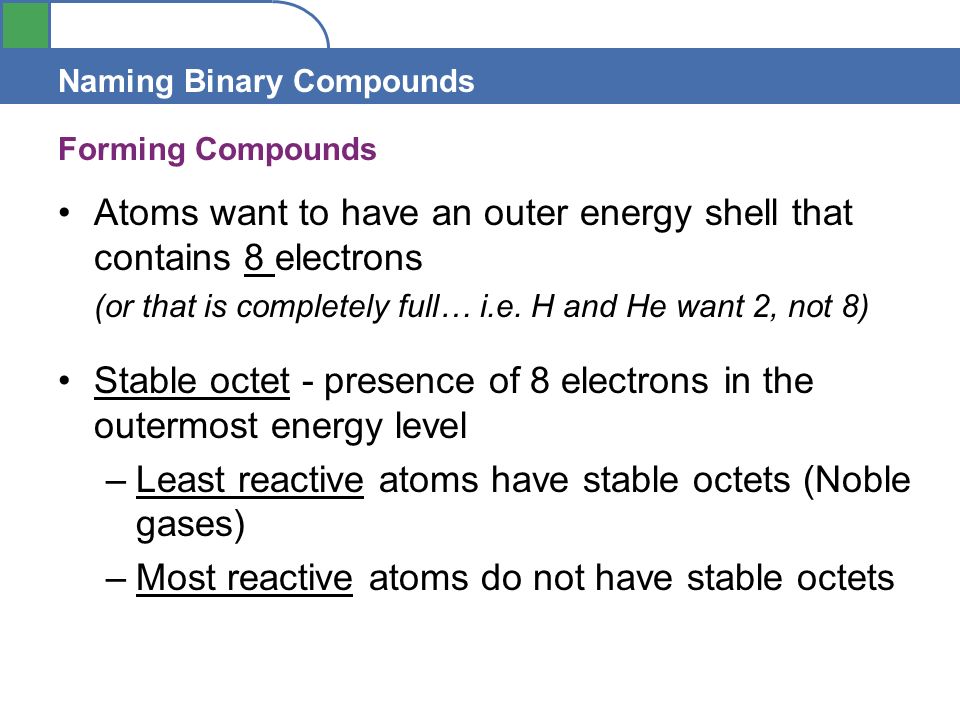

1. Section 4.1 Naming Binary Compounds Forming Compounds Atoms want to have an outer energy shell that contains 8 electrons (or that is completely full… i.e. H and He want 2, not 8) Stable octet - presence of 8 electrons in the outermost energy level –Least reactive atoms have stable octets (Noble gases) –Most reactive atoms do not have stable octets

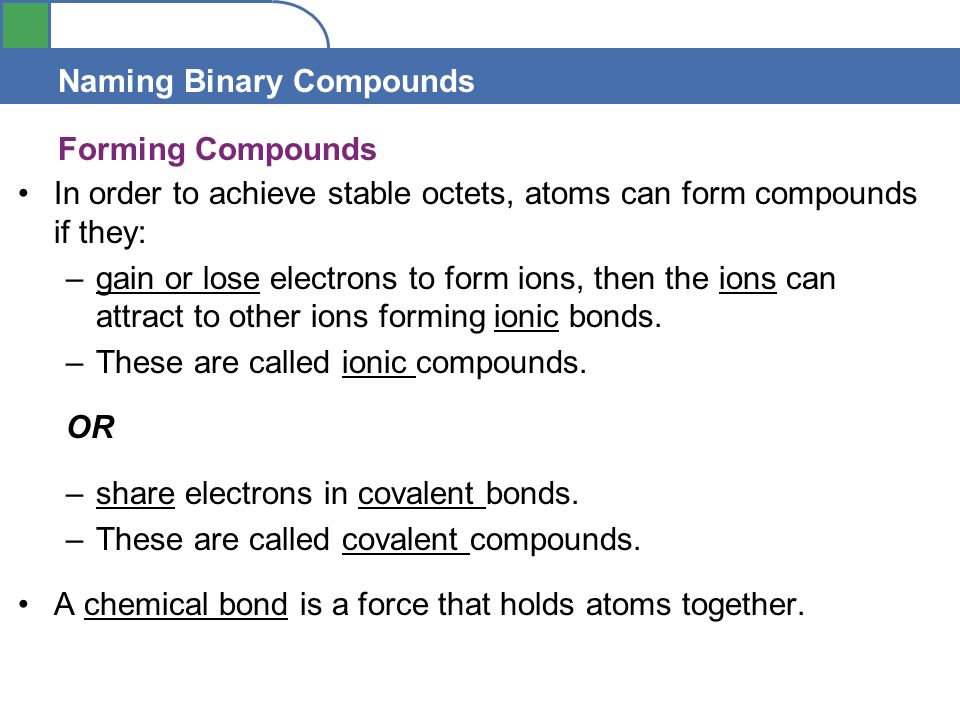

2. Section 4.1 Naming Binary Compounds Forming Compounds In order to achieve stable octets, atoms can form compounds if they: –gain or lose electrons to form ions, then the ions can attract to other ions forming ionic bonds. –These are called ionic compounds. OR –share electrons in covalent bonds. –These are called covalent compounds. A chemical bond is a force that holds atoms together.

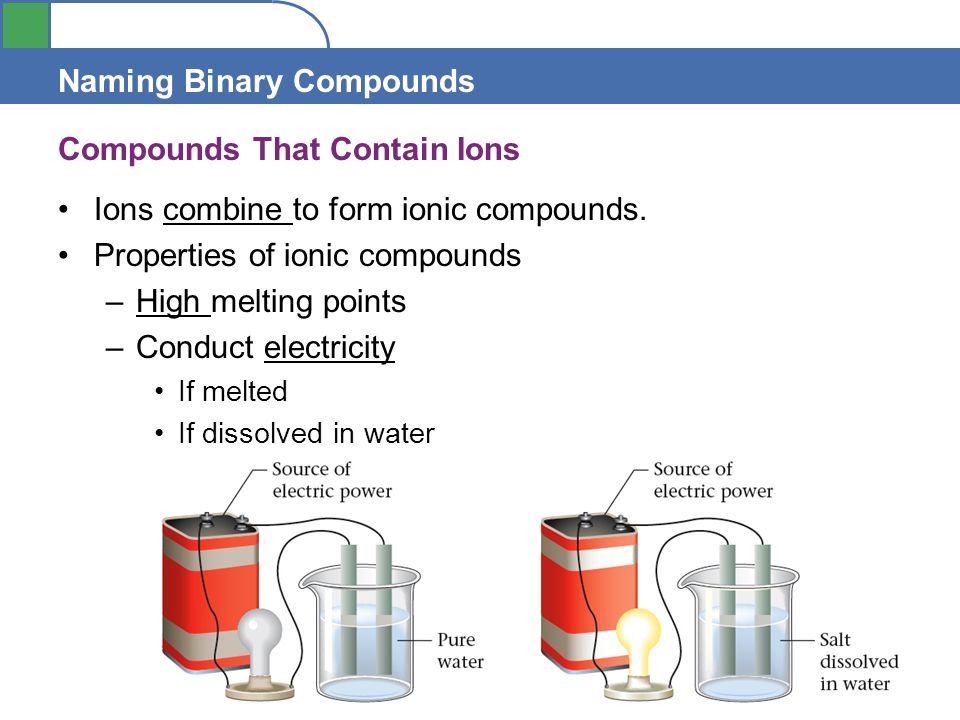

3. Section 4.1 Naming Binary Compounds Compounds That Contain Ions Ions combine to form ionic compounds. Properties of ionic compounds –High melting points –Conduct electricity If melted If dissolved in water

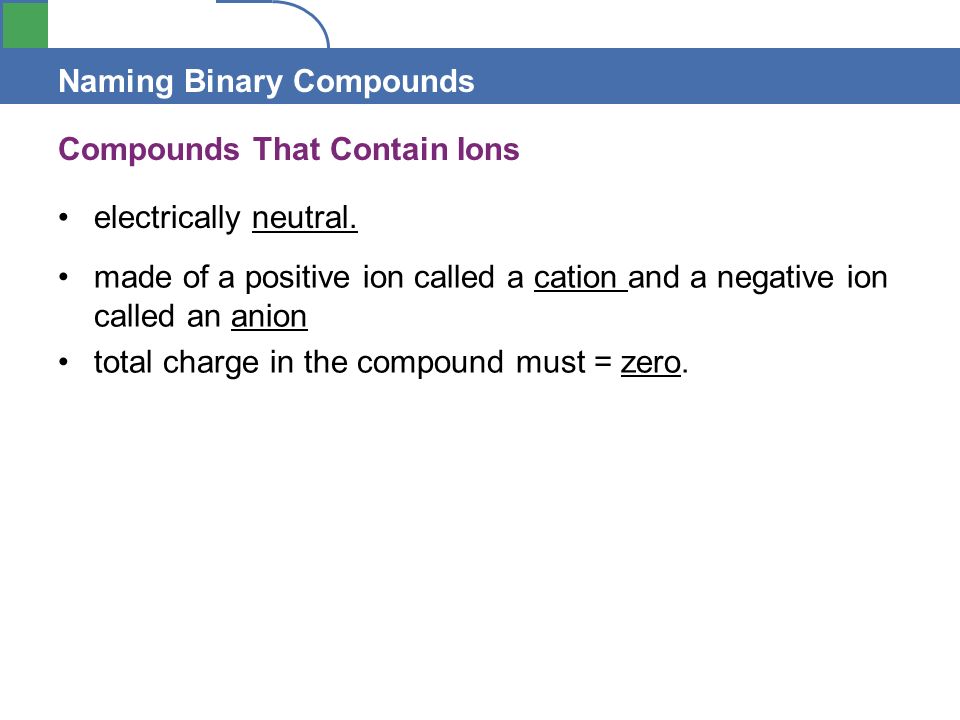

4. Section 4.1 Naming Binary Compounds Compounds That Contain Ions electrically neutral. made of a positive ion called a cation and a negative ion called an anion total charge in the compound must = zero.

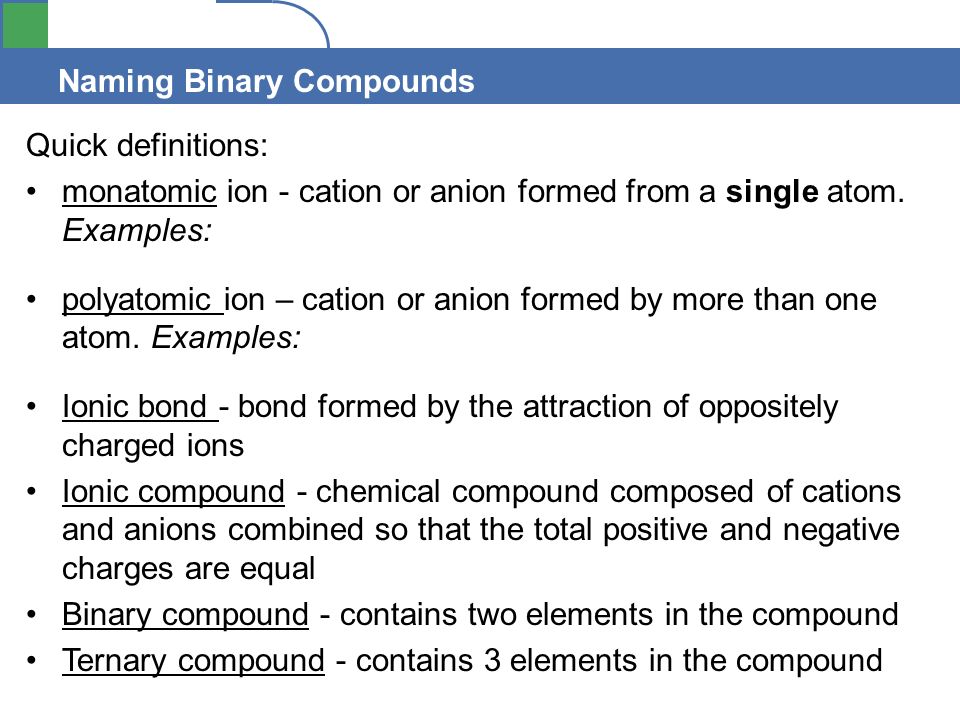

5. Section 4.1 Naming Binary Compounds Quick definitions: monatomic ion - cation or anion formed from a single atom. Examples: polyatomic ion – cation or anion formed by more than one atom. Examples: Ionic bond - bond formed by the attraction of oppositely charged ions Ionic compound - chemical compound composed of cations and anions combined so that the total positive and negative charges are equal Binary compound - contains two elements in the compound Ternary compound - contains 3 elements in the compound

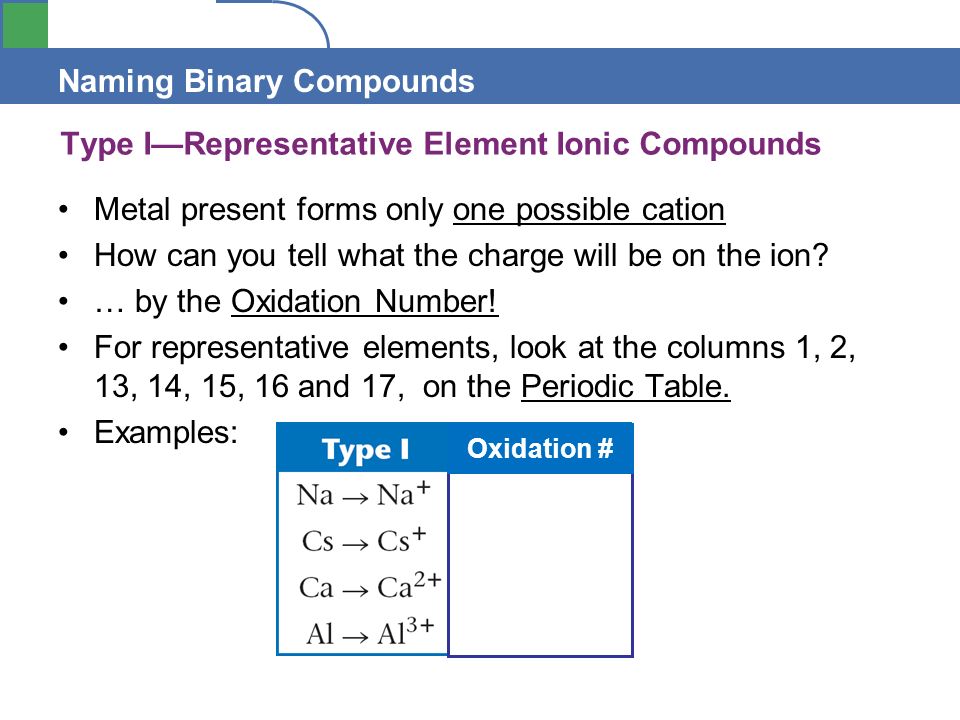

6. Section 4.1 Naming Binary Compounds Type I—Representative Element Ionic Compounds Metal present forms only one possible cation How can you tell what the charge will be on the ion? … by the Oxidation Number! For representative elements, look at the columns 1, 2, 13, 14, 15, 16 and 17, on the Periodic Table. Examples: Oxidation #

7. Section 4.1 Naming Binary Compounds Nomenclature- system for naming chemical substances Nomenclature for ions-- Monatomic cations: (element name) + “ion” Monatomic anion – (element name root) + “ide” + “ion” Examples on next slide…

8. Section 4.1 Naming Binary Compounds Naming Compounds That Contain a Metal and a Nonmetal Names of

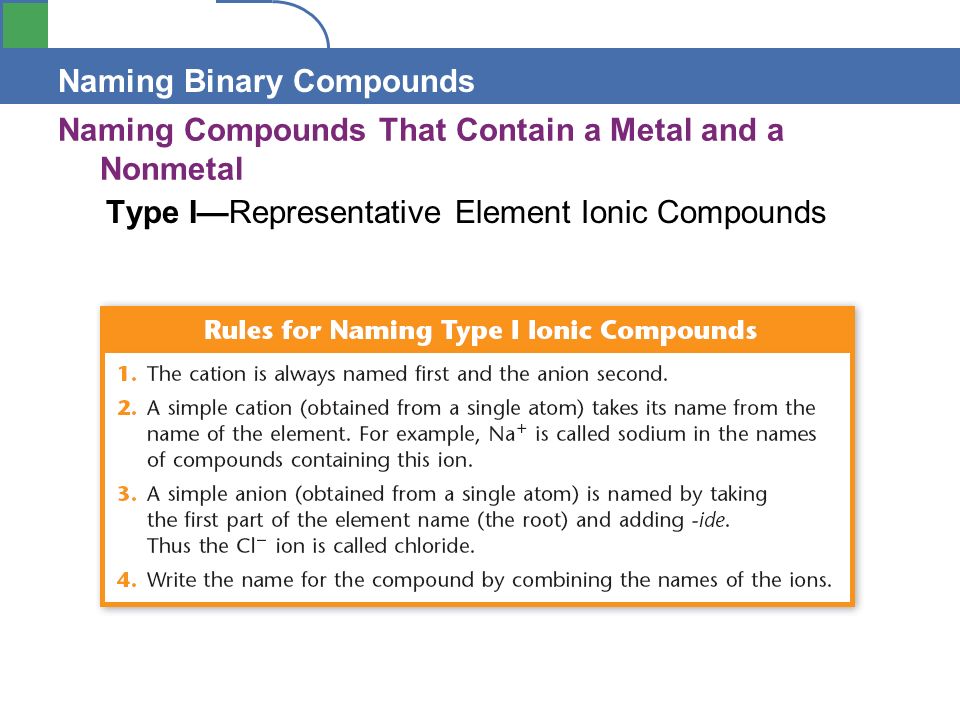

9. Section 4.1 Naming Binary Compounds Naming Compounds That Contain a Metal and a Nonmetal Type I—Representative Element Ionic Compounds

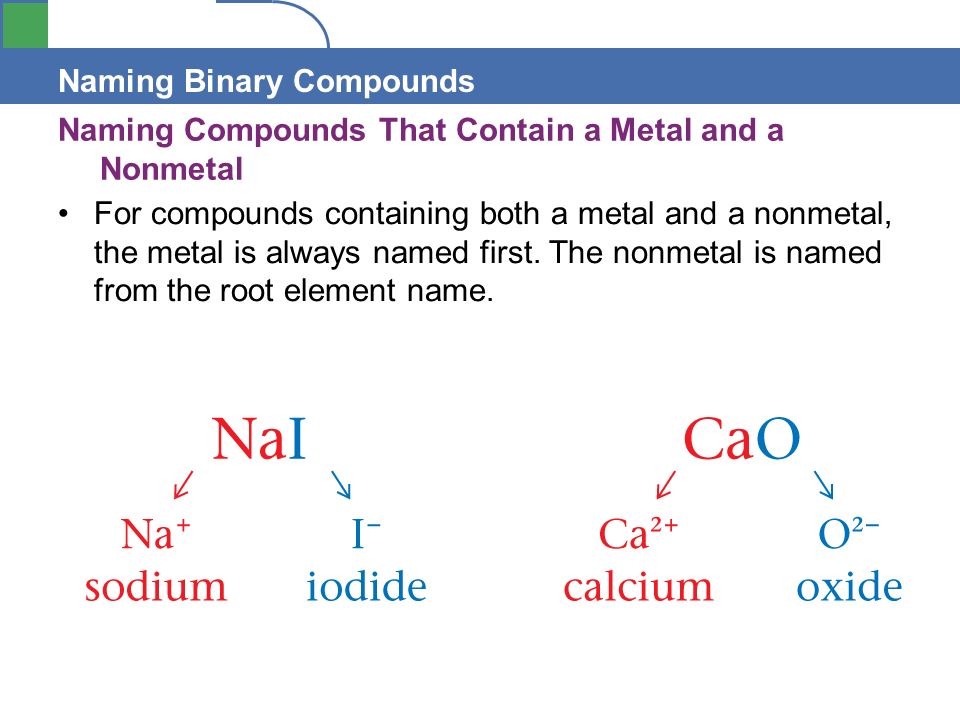

10. Section 4.1 Naming Binary Compounds Naming Compounds That Contain a Metal and a Nonmetal For compounds containing both a metal and a nonmetal, the metal is always named first. The nonmetal is named from the root element name.

11. Section 4.1 Naming Binary Compounds TYPE I—Representative Element Ionic Compounds Examples—Name the following: –CaCl 2 –K2S–K2S –MgO –Ca 3 N 2 –Cs 3 P –Now name the ones on your notes…

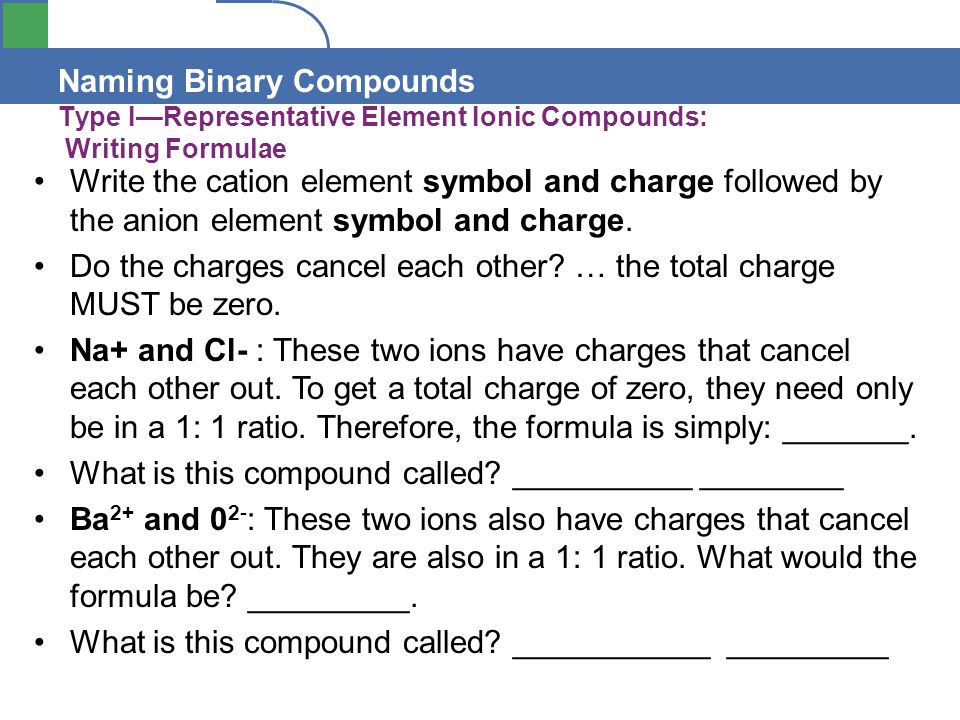

12. Section 4.1 Naming Binary Compounds Type I—Representative Element Ionic Compounds: Writing Formulae Write the cation element symbol and charge followed by the anion element symbol and charge. Do the charges cancel each other? … the total charge MUST be zero. Na+ and Cl- : These two ions have charges that cancel each other out. To get a total charge of zero, they need only be in a 1: 1 ratio. Therefore, the formula is simply: _______. What is this compound called? __________ ________ Ba 2+ and 0 2- : These two ions also have charges that cancel each other out. They are also in a 1: 1 ratio. What would the formula be? _________. What is this compound called? ___________ _________

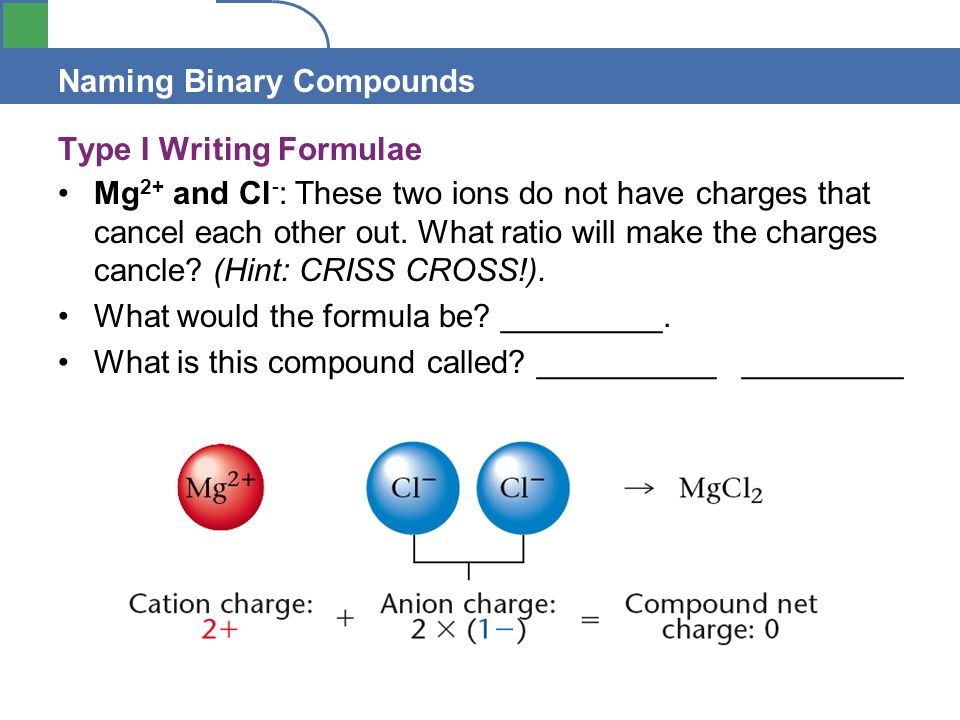

13. Section 4.1 Naming Binary Compounds Type I Writing Formulae Mg 2+ and Cl - : These two ions do not have charges that cancel each other out. What ratio will make the charges cancle? (Hint: CRISS CROSS!). What would the formula be? _________. What is this compound called? __________ _________

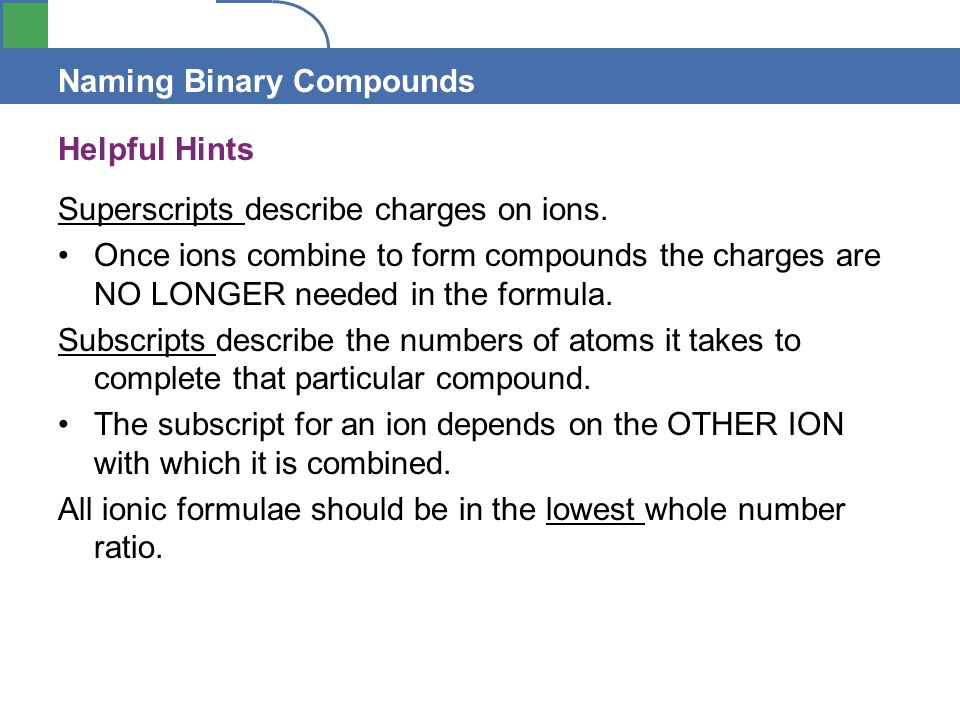

14. Section 4.1 Naming Binary Compounds Helpful Hints Superscripts describe charges on ions. Once ions combine to form compounds the charges are NO LONGER needed in the formula. Subscripts describe the numbers of atoms it takes to complete that particular compound. The subscript for an ion depends on the OTHER ION with which it is combined. All ionic formulae should be in the lowest whole number ratio.

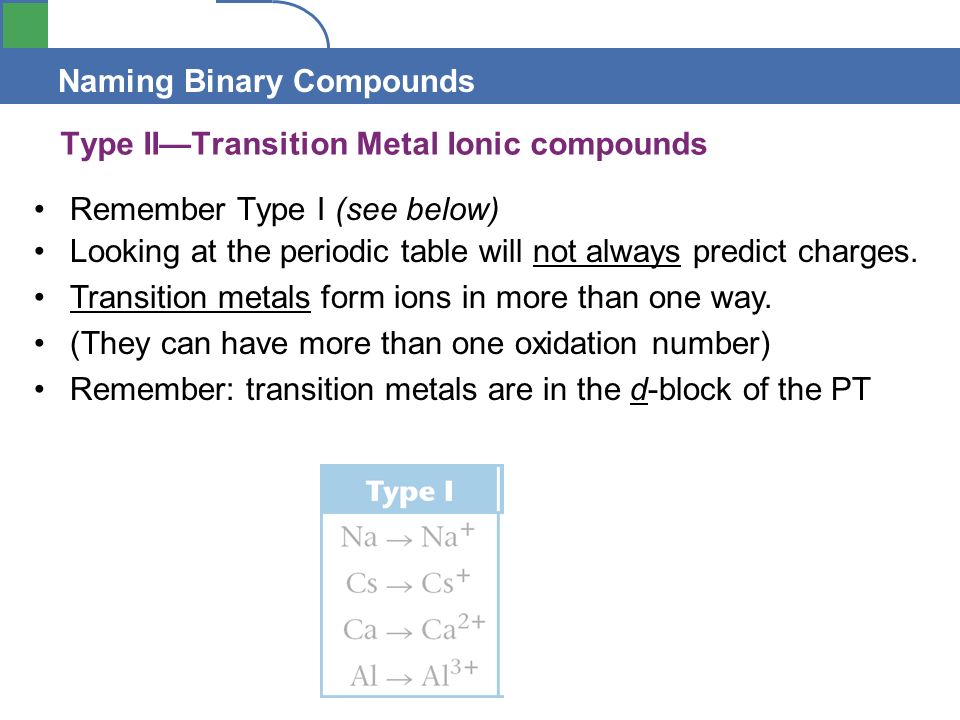

15. Section 4.1 Naming Binary Compounds Type II—Transition Metal Ionic compounds Remember Type I (see below) Looking at the periodic table will not always predict charges. Transition metals form ions in more than one way. (They can have more than one oxidation number) Remember: transition metals are in the d-block of the PT

16. Section 4.1 Naming Binary Compounds Type II Transition Metal Ionic compounds Name these two ions: Ex.: Gold can form Au + or Au 3+ …so how are ions named if more than 1 charge is possible? …USING Roman Numerals!

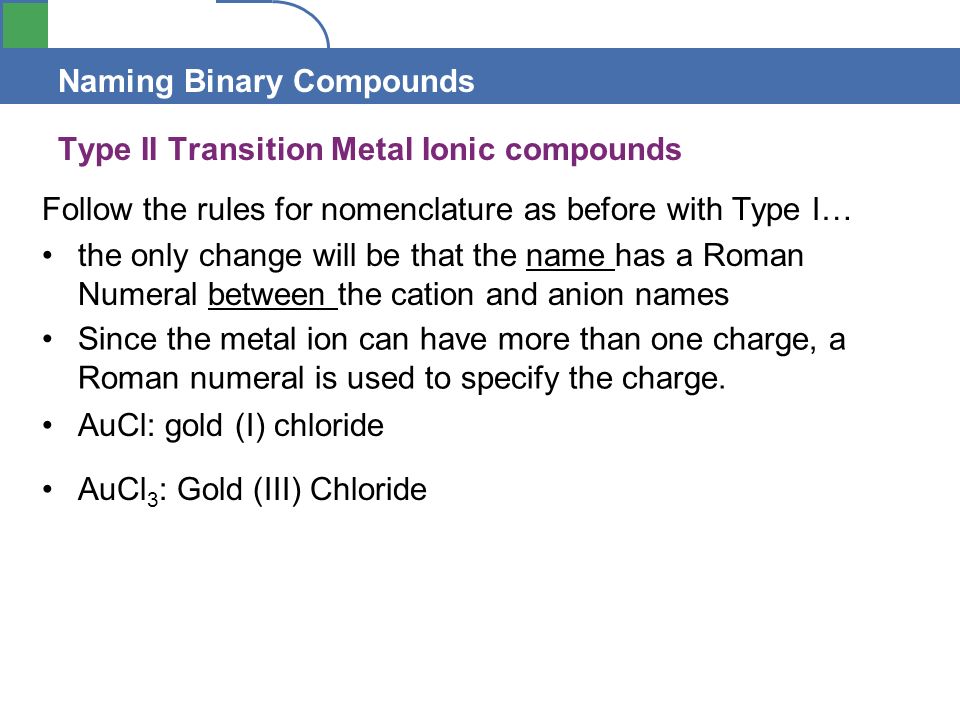

17. Section 4.1 Naming Binary Compounds Type II Transition Metal Ionic compounds Since the metal ion can have more than one charge, a Roman numeral is used to specify the charge. AuCl: gold (I) chloride AuCl 3 : Gold (III) Chloride Follow the rules for nomenclature as before with Type I… the only change will be that the name has a Roman Numeral between the cation and anion names

18. Section 4.1 Naming Binary Compounds Type II Transition Metal Ionic compounds Since the metal ion can have more than one charge, a Roman numeral is used to specify the charge. AuCl: gold (I) chloride AuCl 3 : Gold (III) Chloride For determining the formula from given information: the Roman Numeral tells you the charge on the cation. Then, proceed as with Type I…

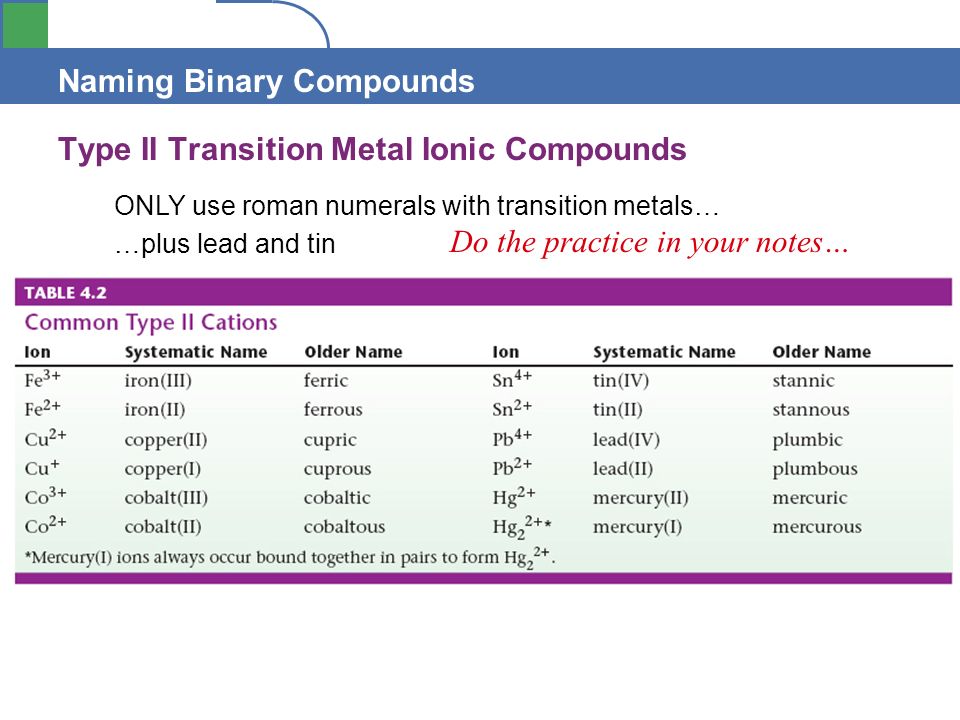

19. Section 4.1 Naming Binary Compounds Type II Transition Metal Ionic Compounds ONLY use roman numerals with transition metals… …plus lead and tin Do the practice in your notes…

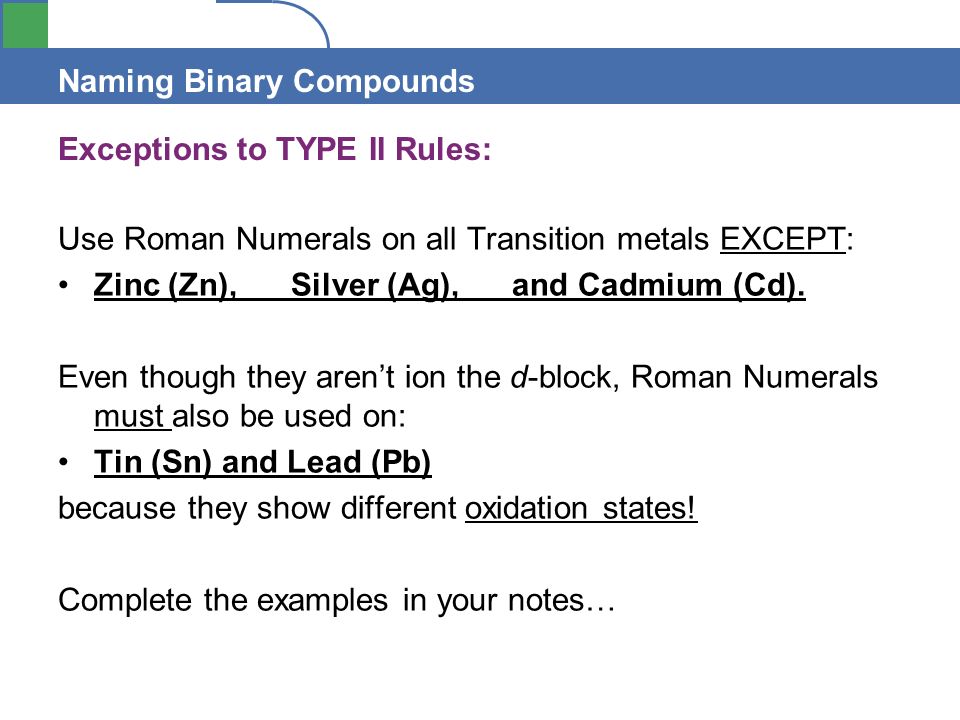

20. Section 4.1 Naming Binary Compounds Exceptions to TYPE II Rules: Use Roman Numerals on all Transition metals EXCEPT: Zinc (Zn), Silver (Ag), and Cadmium (Cd). Even though they aren’t ion the d-block, Roman Numerals must also be used on: Tin (Sn) and Lead (Pb) because they show different oxidation states! Complete the examples in your notes…

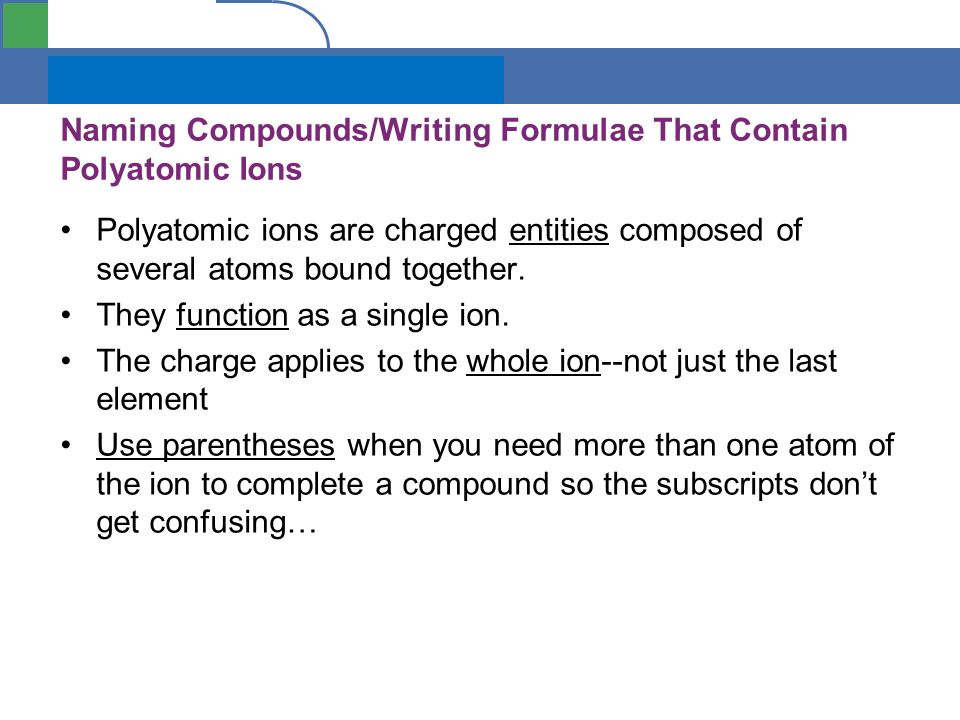

21. Section 4.1 Naming Binary Compounds Naming Compounds/Writing Formulae That Contain Polyatomic Ions Polyatomic ions are charged entities composed of several atoms bound together. They function as a single ion. The charge applies to the whole ion--not just the last element Use parentheses when you need more than one atom of the ion to complete a compound so the subscripts don’t get confusing…

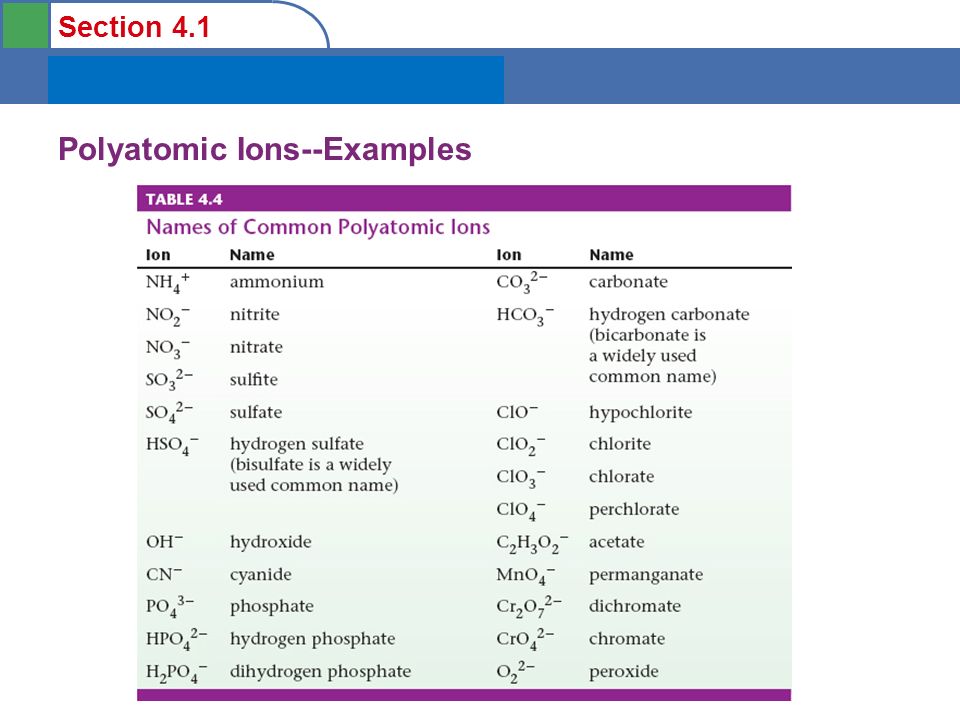

22. Section 4.1 Naming Binary Compounds But you don’t need this chart if you’ve memorized your poly ions. In fact, this should be the easiest part of the unit for those of you who know them!! Polyatomic Ions--Examples

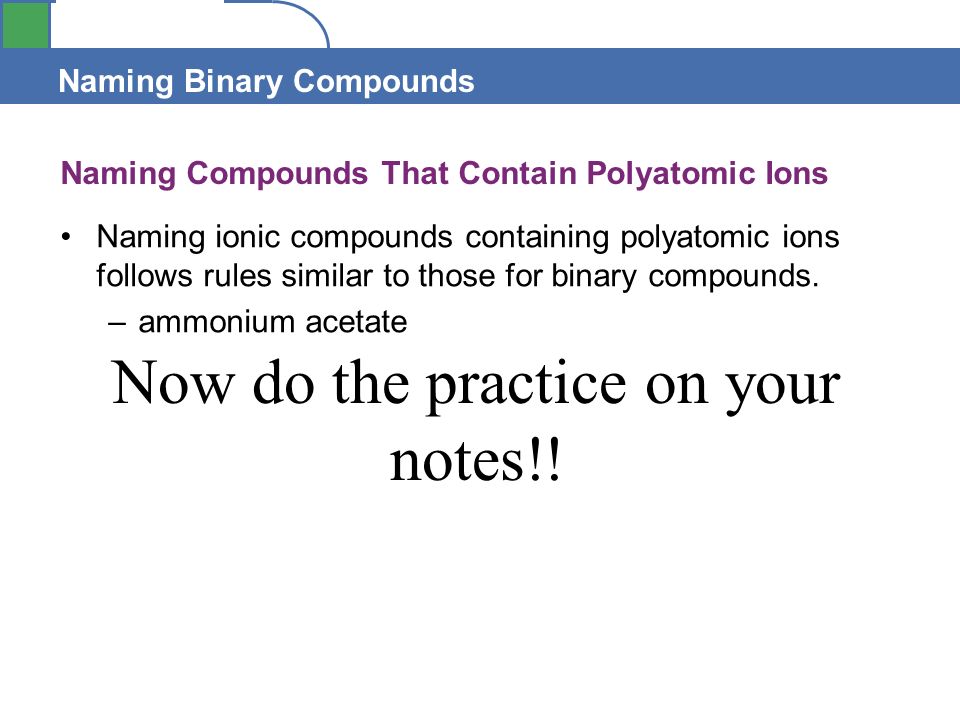

23. Section 4.1 Naming Binary Compounds Naming Compounds That Contain Polyatomic Ions Naming ionic compounds containing polyatomic ions follows rules similar to those for binary compounds. –ammonium acetate Now do the practice on your notes!!

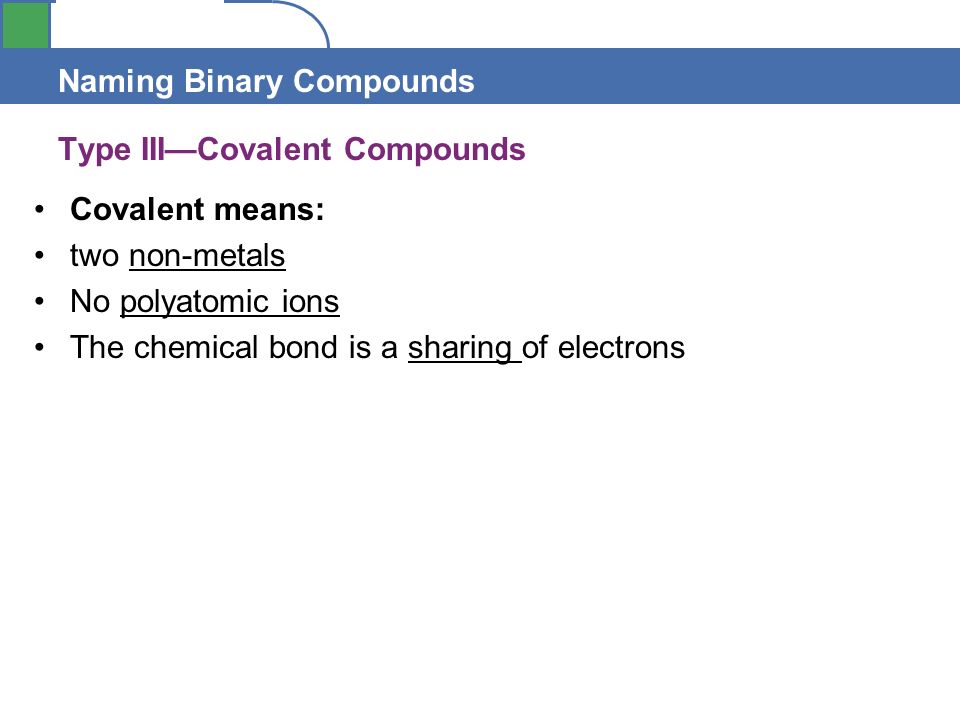

24. Section 4.1 Naming Binary Compounds Type III—Covalent Compounds Covalent means: two non-metals No polyatomic ions The chemical bond is a sharing of electrons

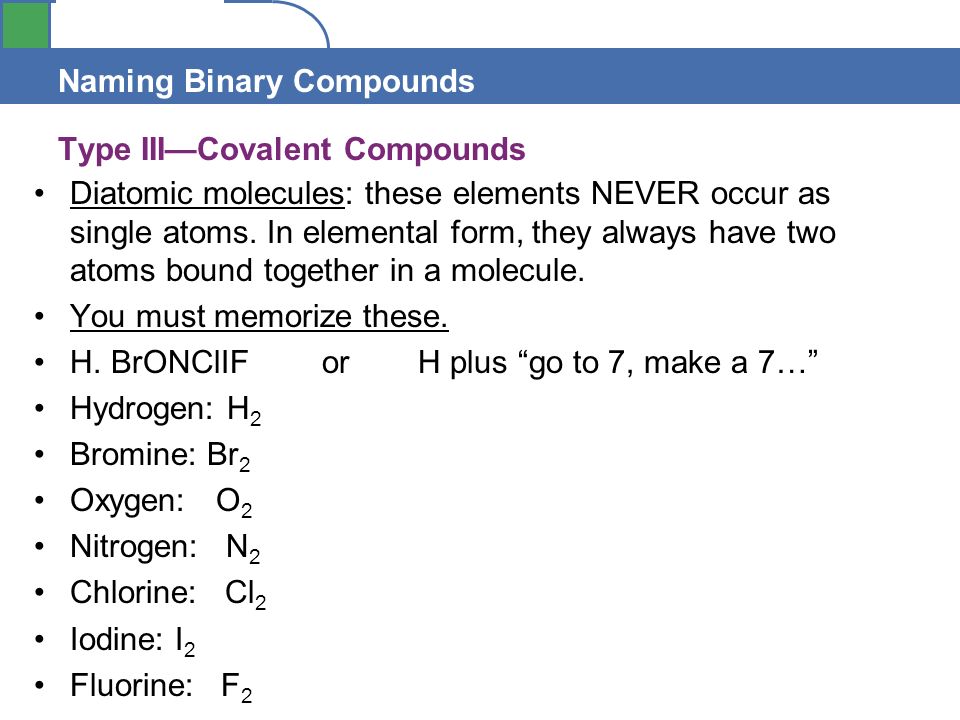

25. Section 4.1 Naming Binary Compounds Type III—Covalent Compounds Diatomic molecules: these elements NEVER occur as single atoms. In elemental form, they always have two atoms bound together in a molecule. You must memorize these. H. BrONClIF or H plus “go to 7, make a 7…” Hydrogen: H 2 Bromine: Br 2 Oxygen: O 2 Nitrogen: N 2 Chlorine: Cl 2 Iodine: I 2 Fluorine: F 2

26. Section 4.1 Naming Binary Compounds Type III—Covalent Compounds Summarized: Prefix+(Name of First Nonmetal) then Prefix+(Name of Second Nonmetal 1st syllable)+”ide”

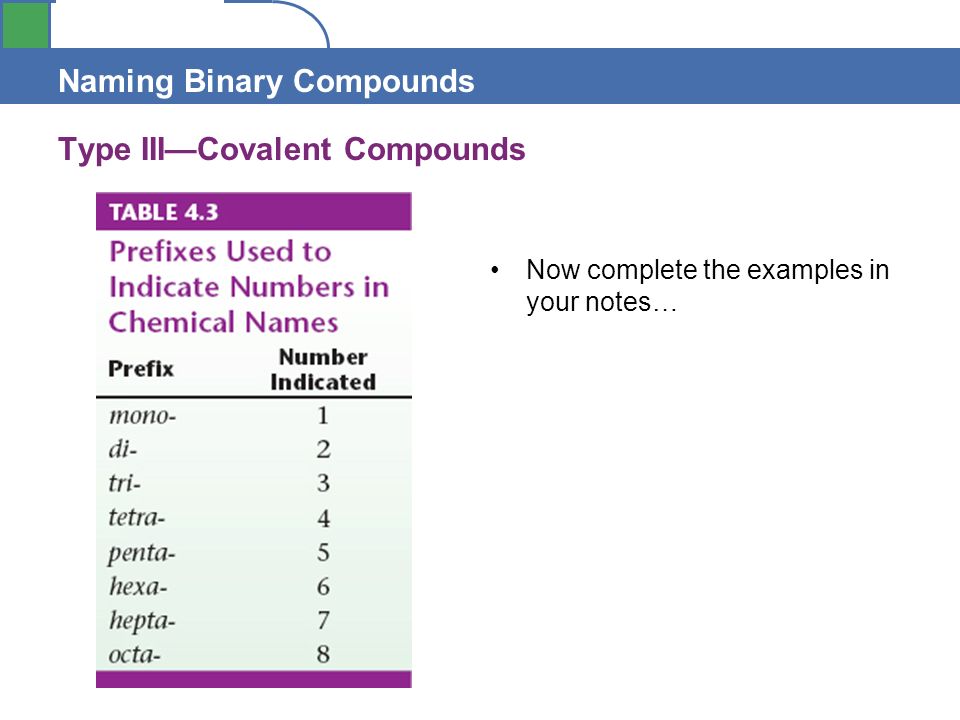

27. Section 4.1 Naming Binary Compounds Type III—Covalent Compounds Now complete the examples in your notes…

28. Section 4.1 Naming Binary Compounds Naming Compounds: A Review

29. Section 4.1 Naming Binary Compounds Naming Acids An acid is a molecule with one or more H + ions attached to an anion.

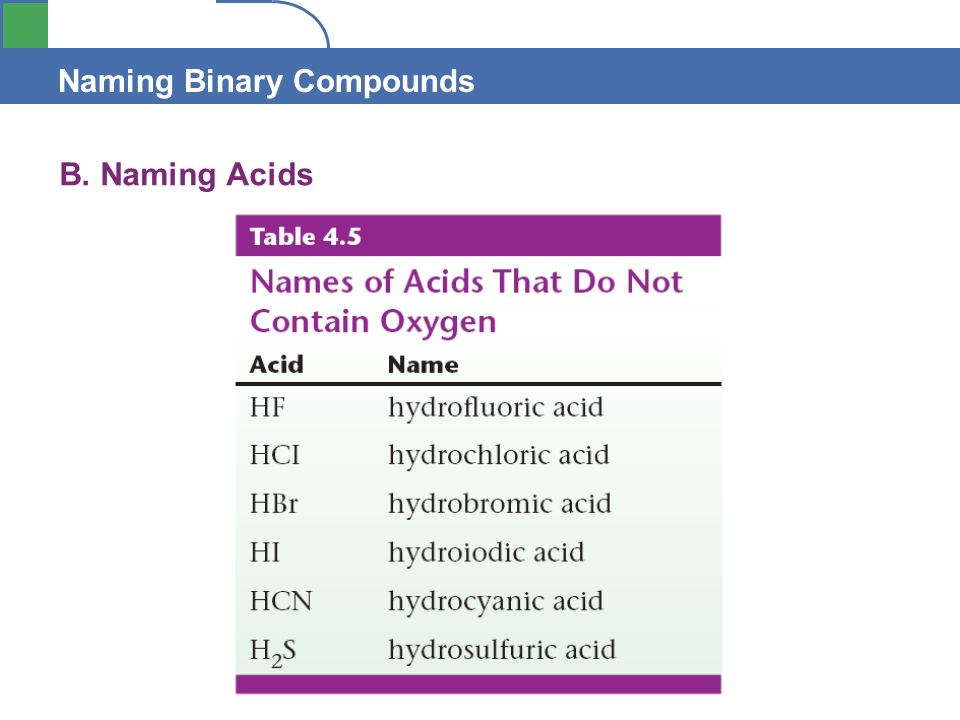

30. Section 4.1 Naming Binary Compounds B. Naming Acids

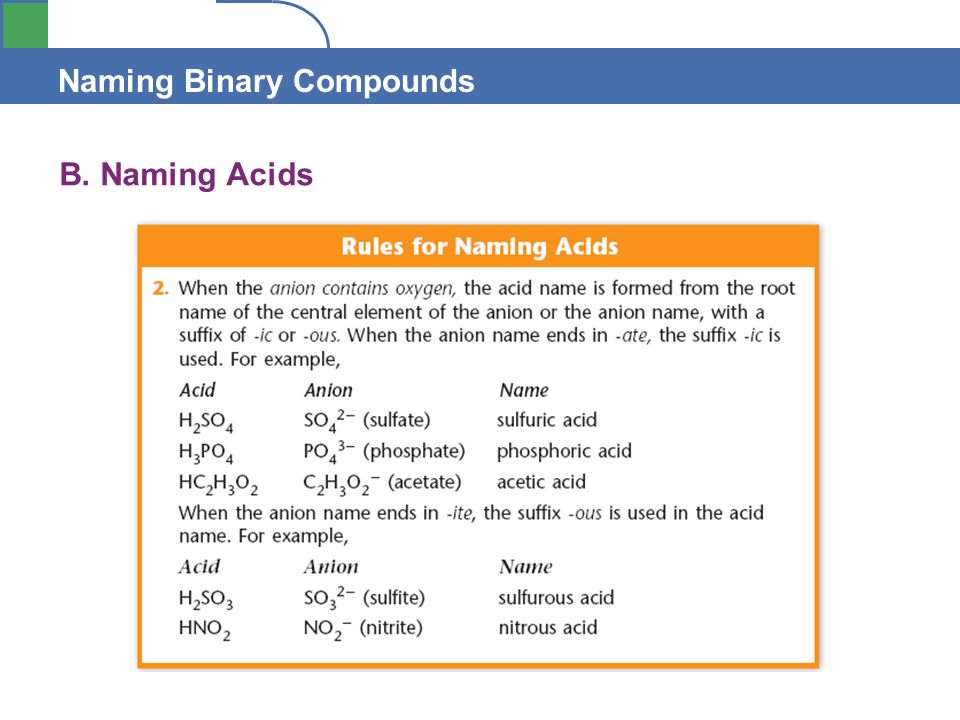

31. Section 4.1 Naming Binary Compounds B. Naming Acids

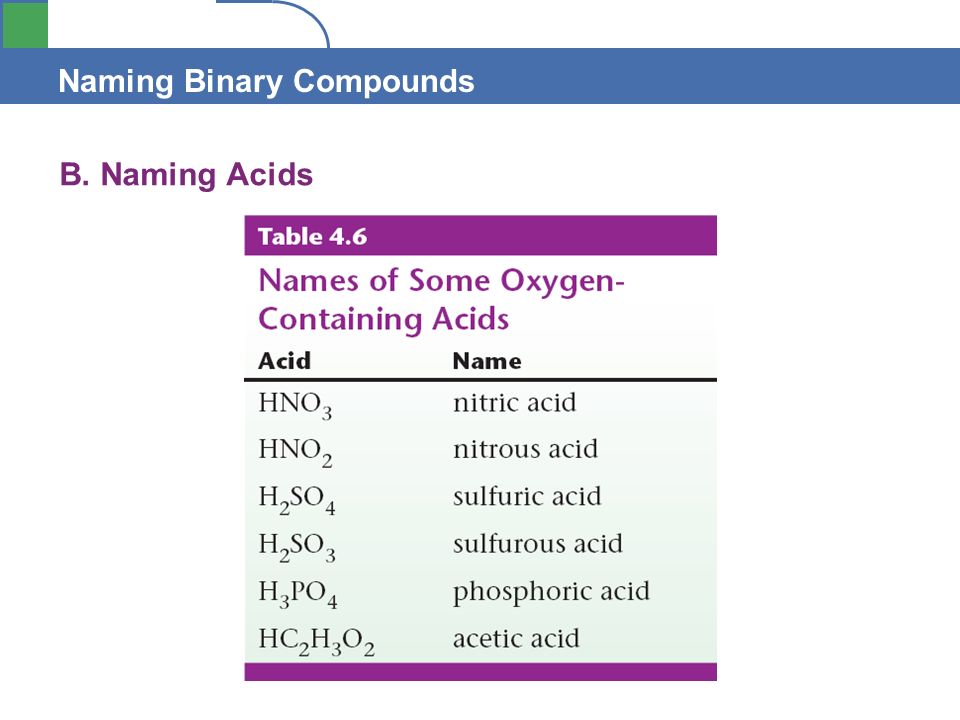

32. Section 4.1 Naming Binary Compounds B. Naming Acids

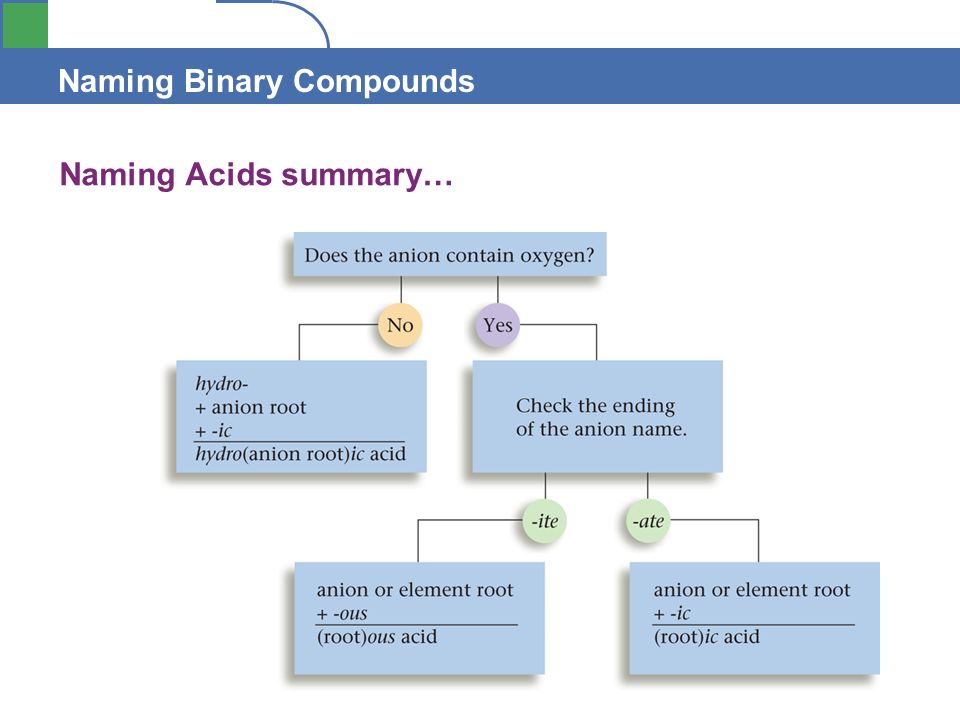

33. Section 4.1 Naming Binary Compounds Naming Acids summary…

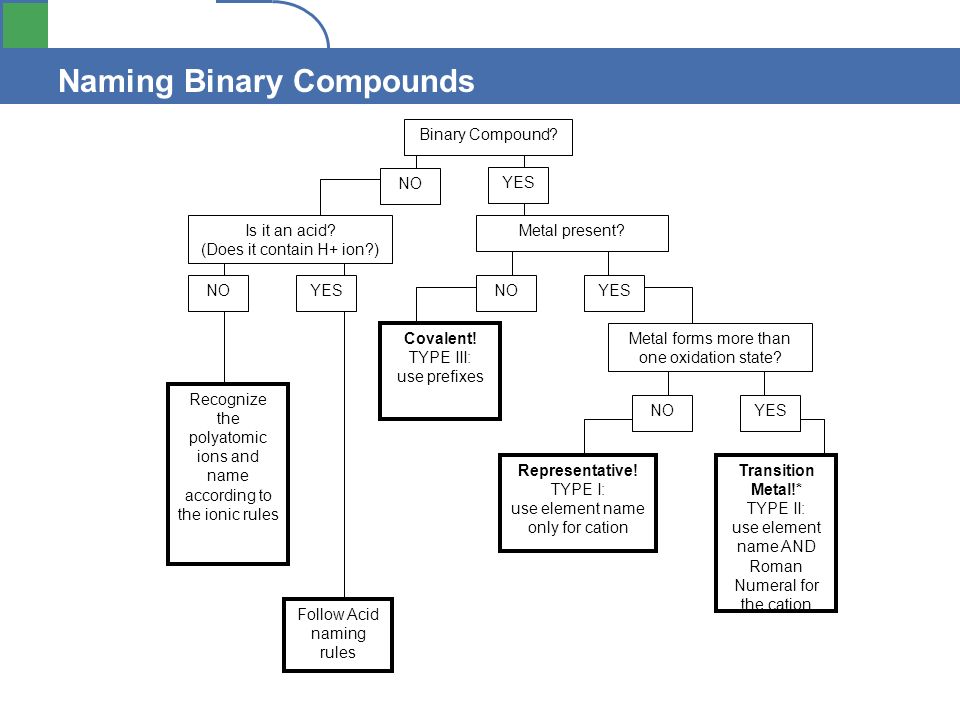

34. Section 4.1 Naming Binary Compounds Binary Compound? Metal present? YES NO YESNO Covalent! TYPE III: use prefixes Metal forms more than one oxidation state? YESNO Representative! TYPE I: use element name only for cation Transition Metal!* TYPE II: use element name AND Roman Numeral for the cation Is it an acid? (Does it contain H+ ion?) YESNO Follow Acid naming rules Recognize the polyatomic ions and name according to the ionic rules
