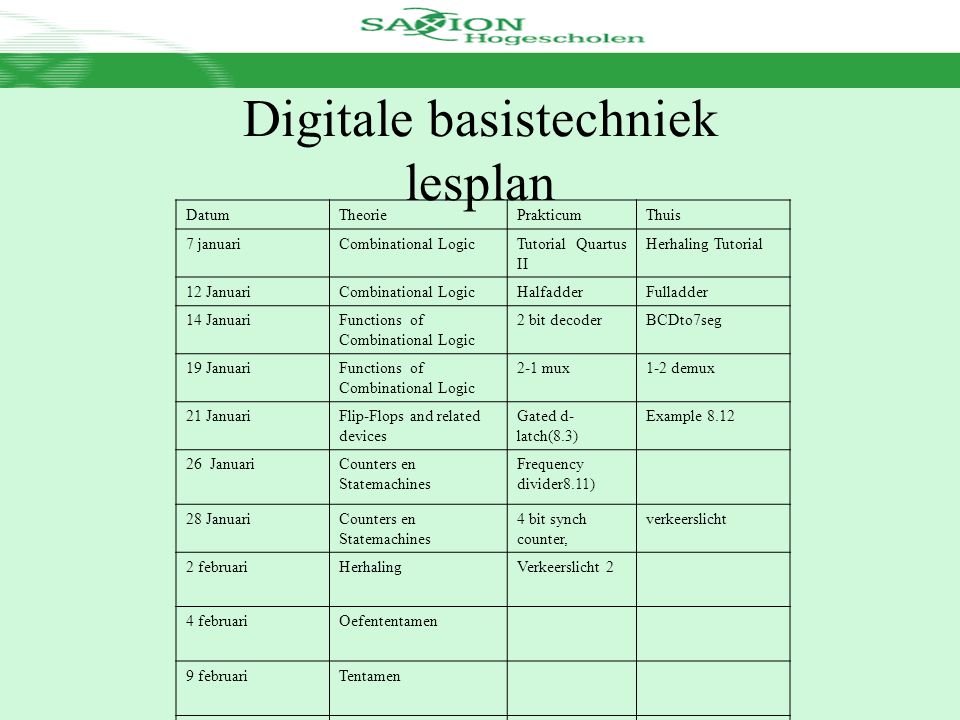

1 Digitale basistechniek lesplan DatumTheoriePrakticumThuis 7 januariCombinational LogicTutorial Quartus II Herhaling Tutorial 12 JanuariCombinational LogicHalfadderFulladder 14 JanuariFunctions of Combinational Logic 2 bit decoderBCDto7seg 19 JanuariFunctions of Combinational Logic 2-1 mux1-2 demux 21 JanuariFlip-Flops and related devices Gated d- latch(8.3) Example 8.12 26 JanuariCounters en Statemachines Frequency divider8.11) 28 JanuariCounters en Statemachines 4 bit synch counter, verkeerslicht 2 februariHerhalingVerkeerslicht 2 4 februariOefententamen 9 februariTentamen

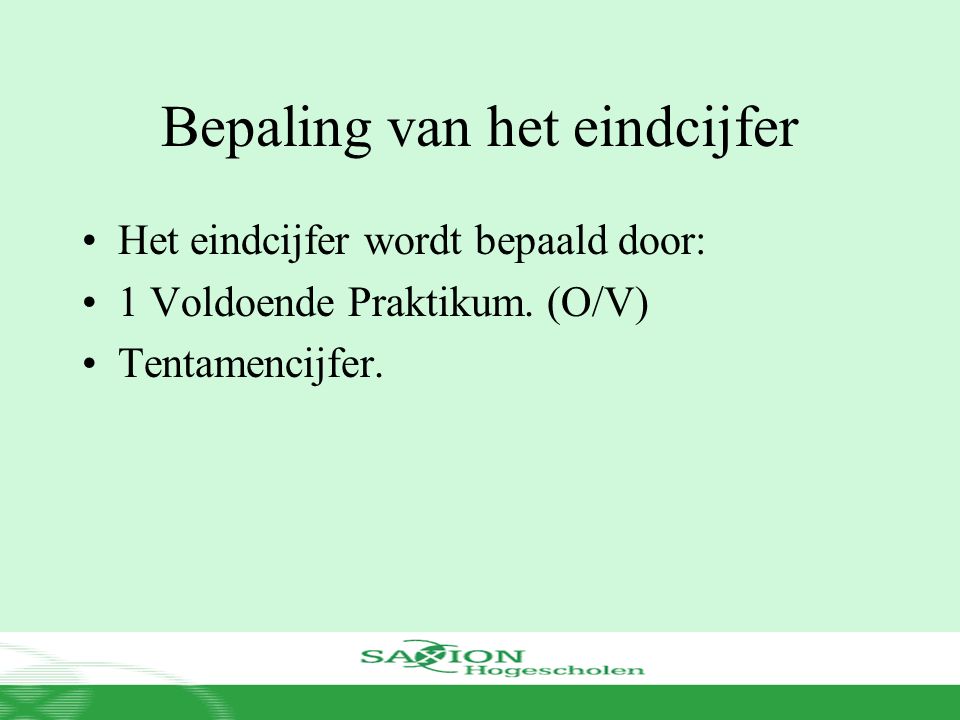

2 Bepaling van het eindcijfer Het eindcijfer wordt bepaald door: 1 Voldoende Praktikum. (O/V) Tentamencijfer.

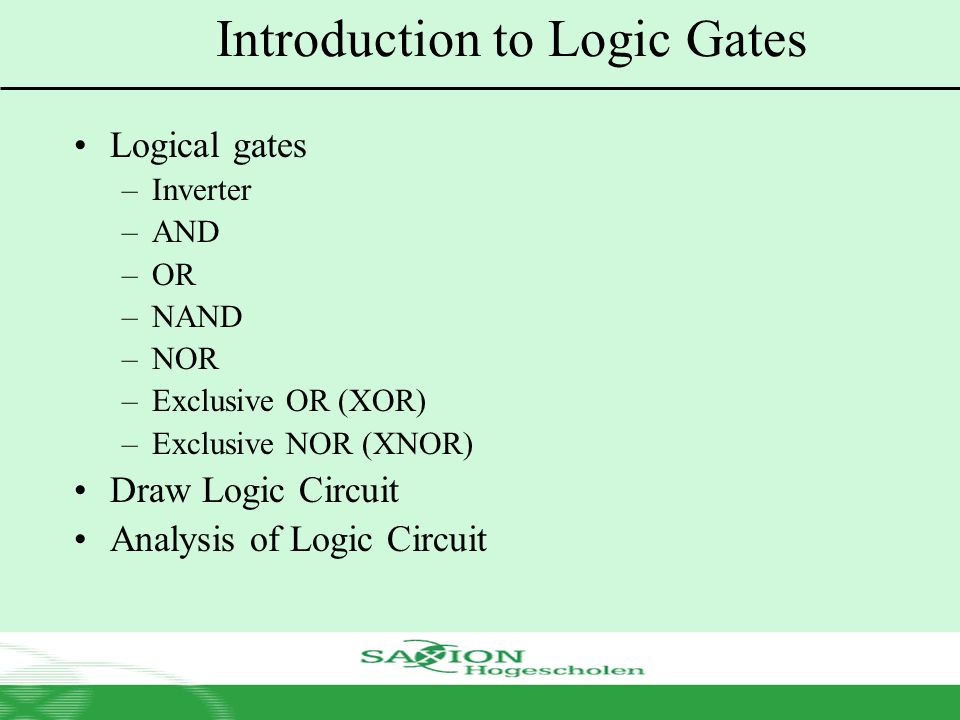

3 Introduction to Logic Gates Logical gates –Inverter –AND –OR –NAND –NOR –Exclusive OR (XOR) –Exclusive NOR (XNOR) Draw Logic Circuit Analysis of Logic Circuit

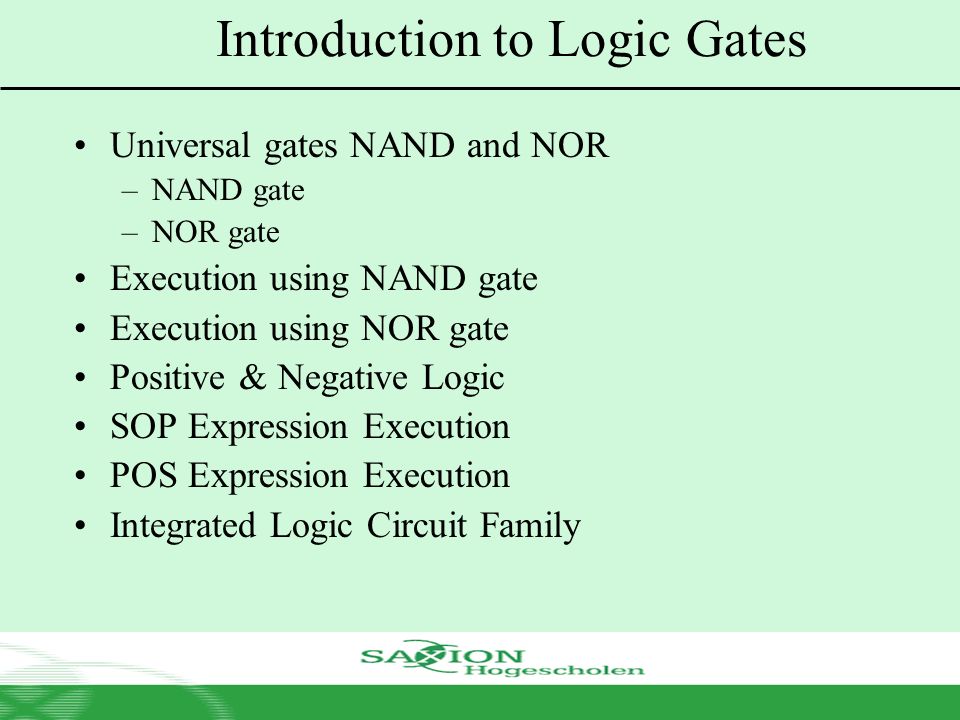

4 Introduction to Logic Gates Universal gates NAND and NOR –NAND gate –NOR gate Execution using NAND gate Execution using NOR gate Positive & Negative Logic SOP Expression Execution POS Expression Execution Integrated Logic Circuit Family

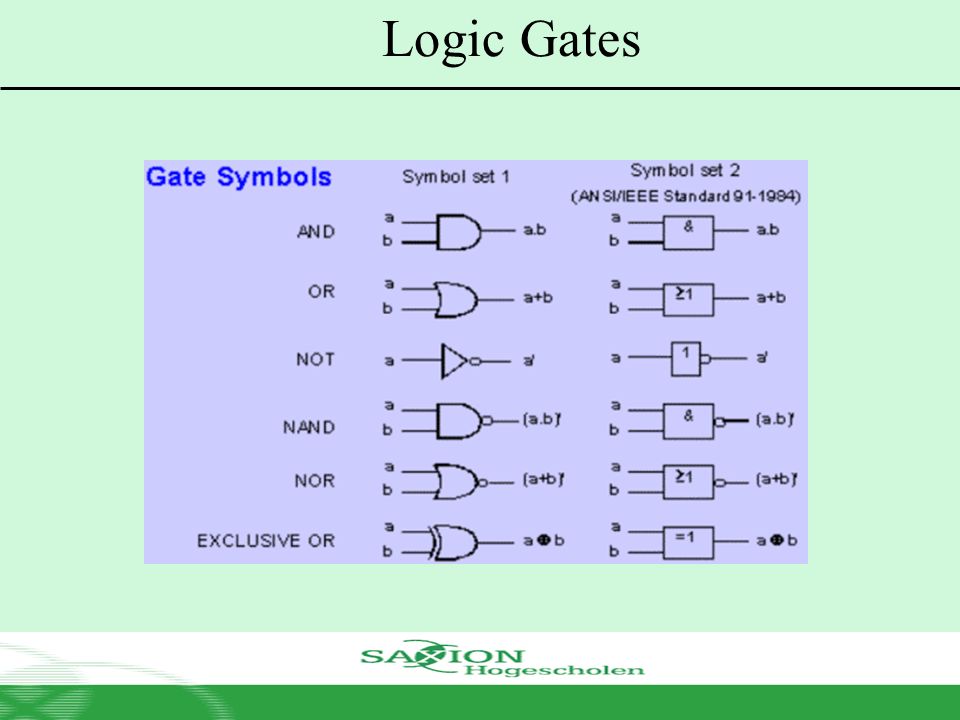

5 Logic Gates

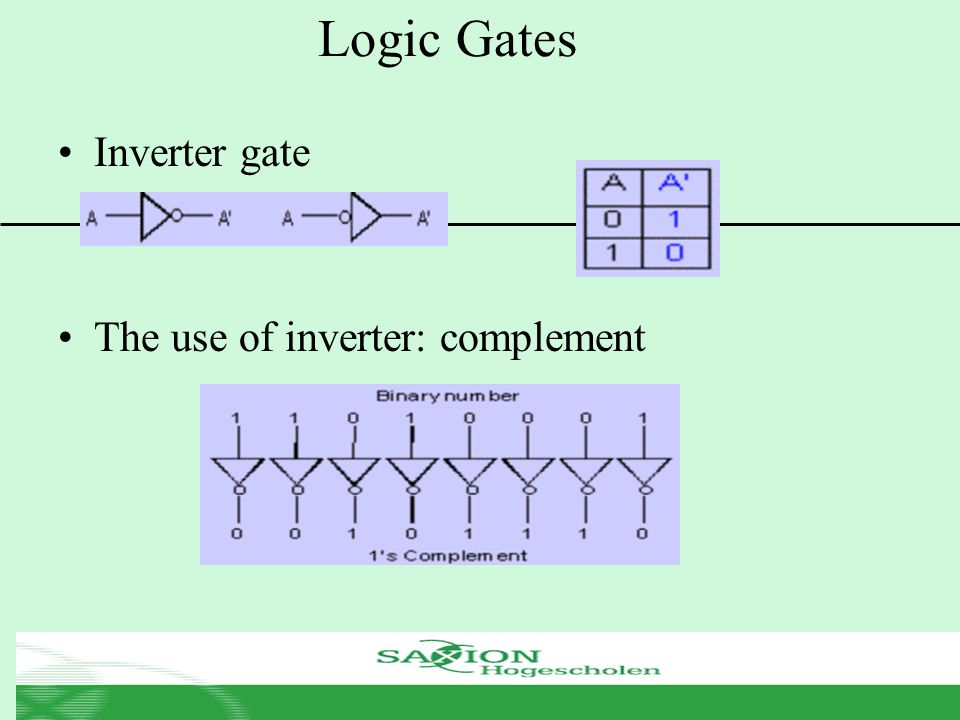

6 Inverter gate The use of inverter: complement

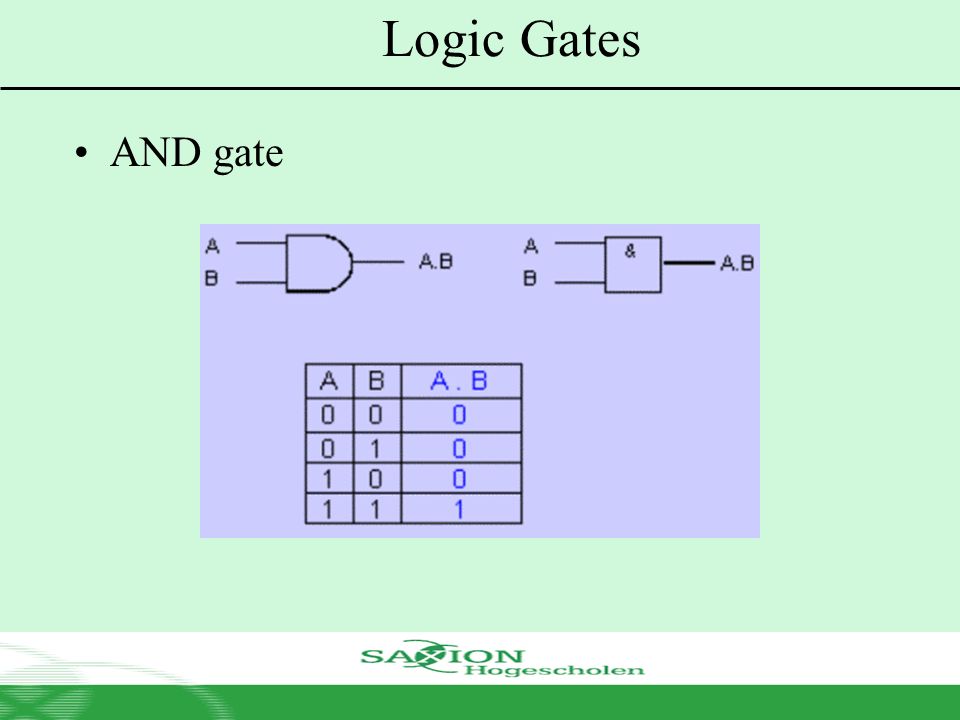

7 Logic Gates AND gate

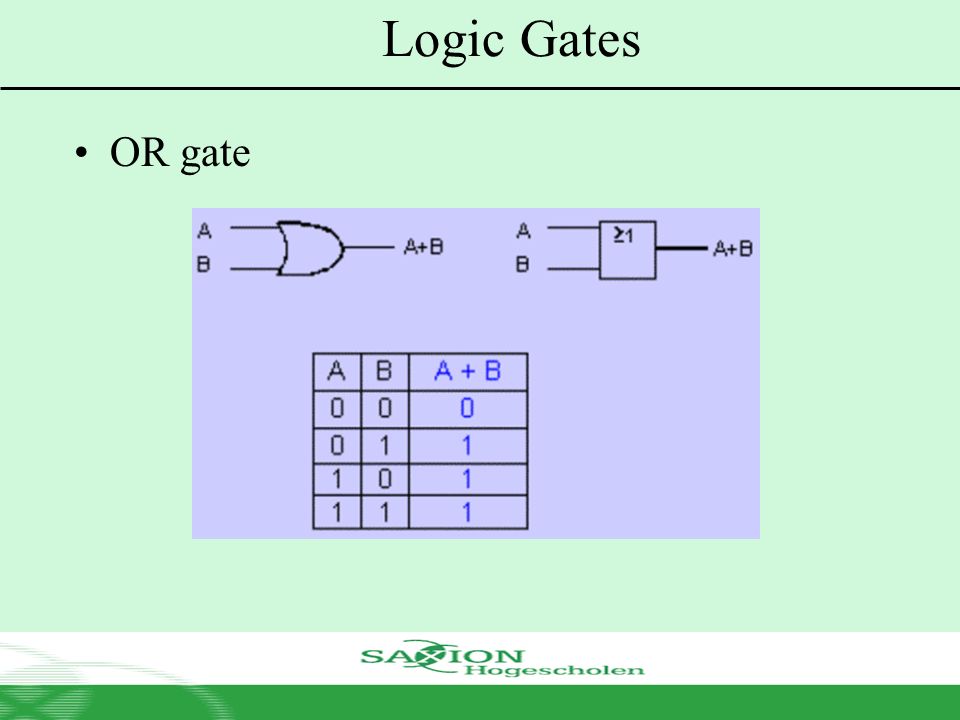

8 Logic Gates OR gate

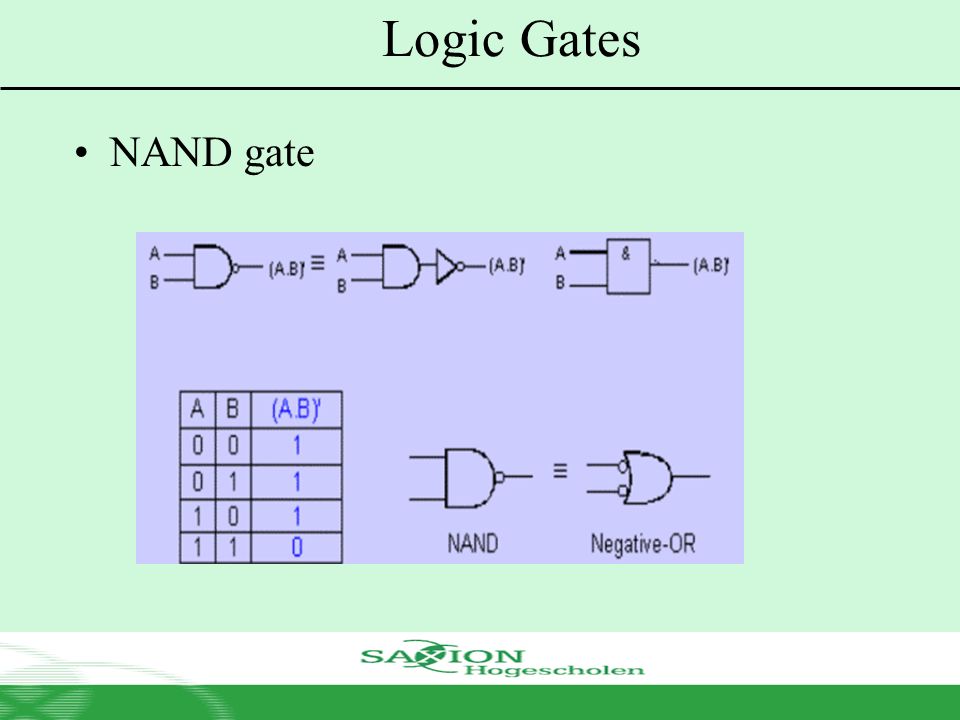

9 Logic Gates NAND gate

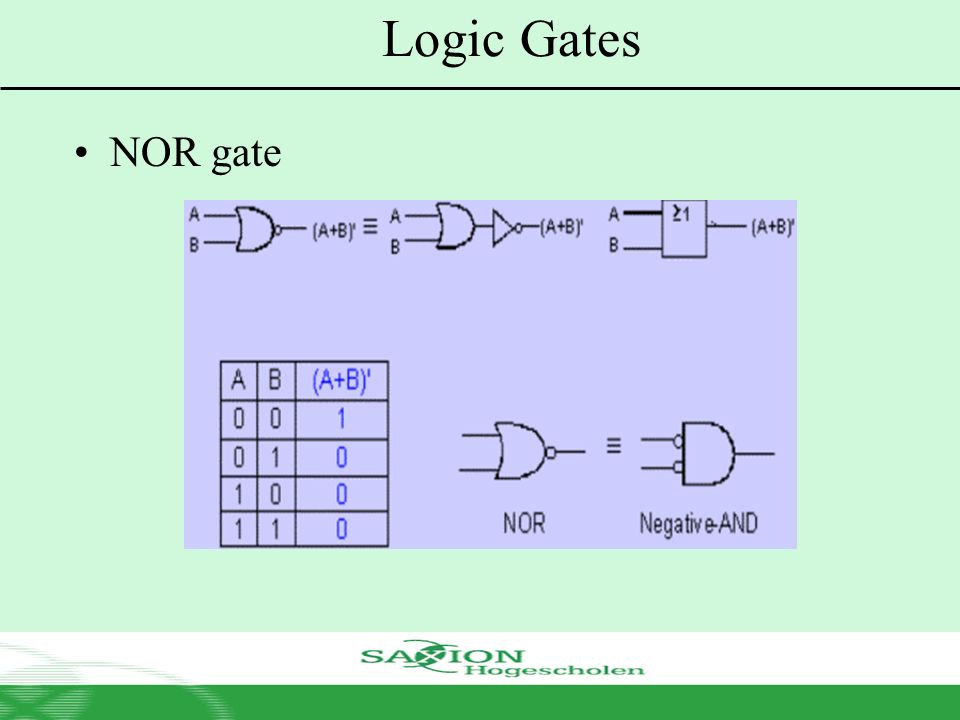

10 Logic Gates NOR gate

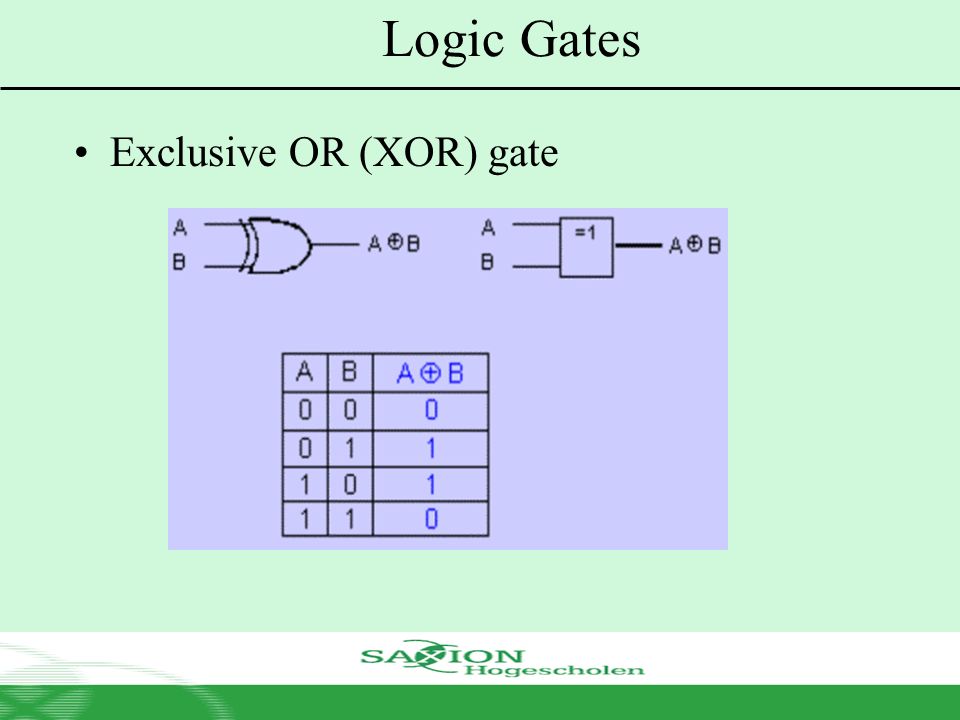

11 Logic Gates Exclusive OR (XOR) gate

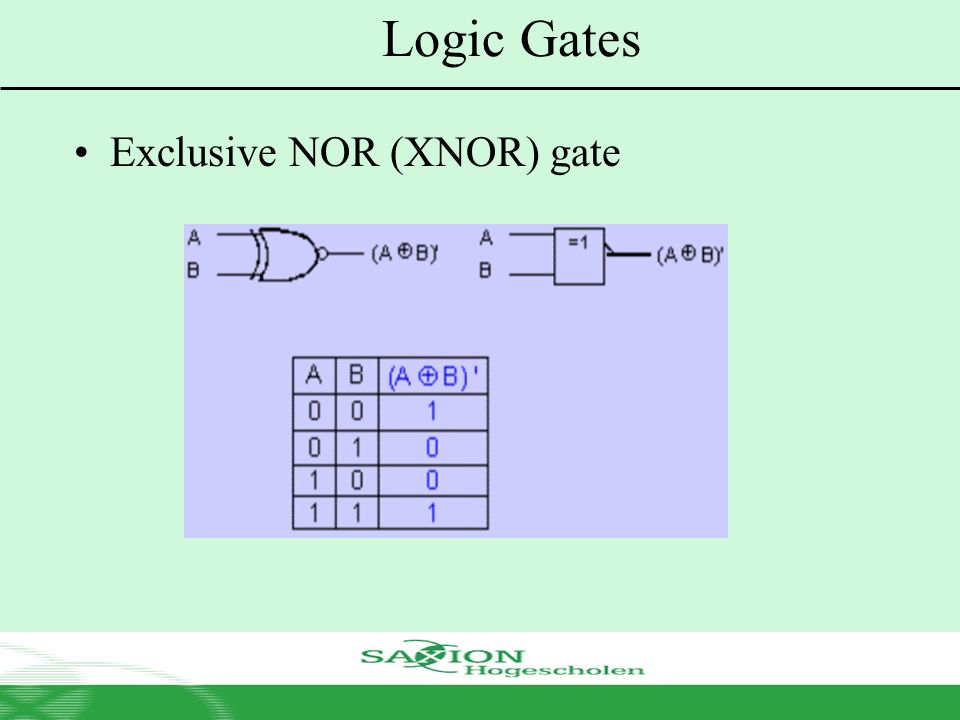

12 Logic Gates Exclusive NOR (XNOR) gate

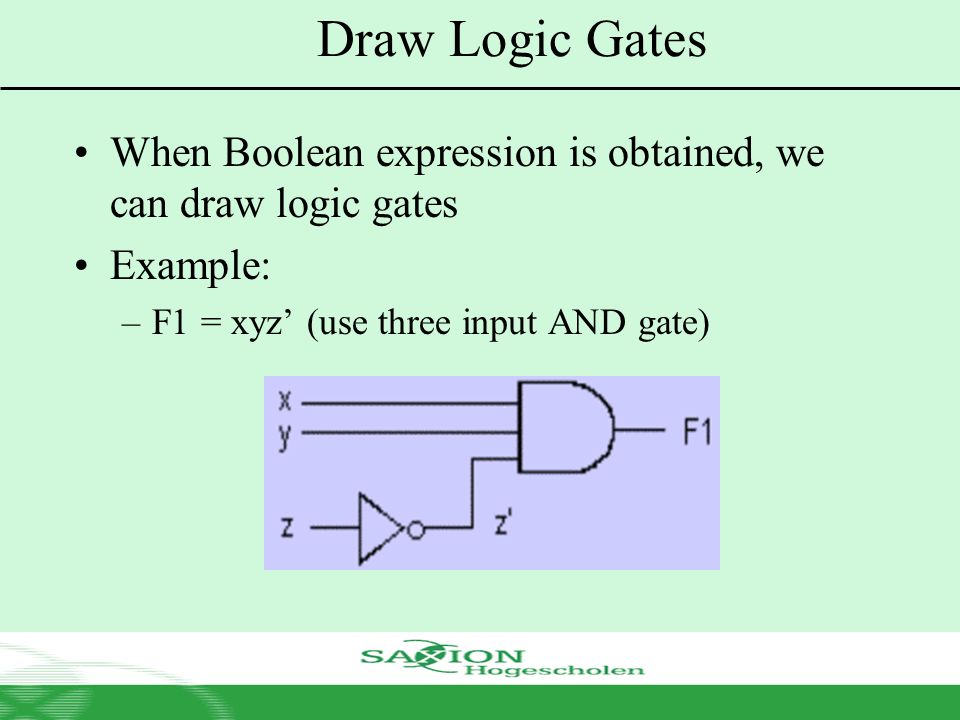

13 Draw Logic Gates When Boolean expression is obtained, we can draw logic gates Example: –F1 = xyz’ (use three input AND gate)

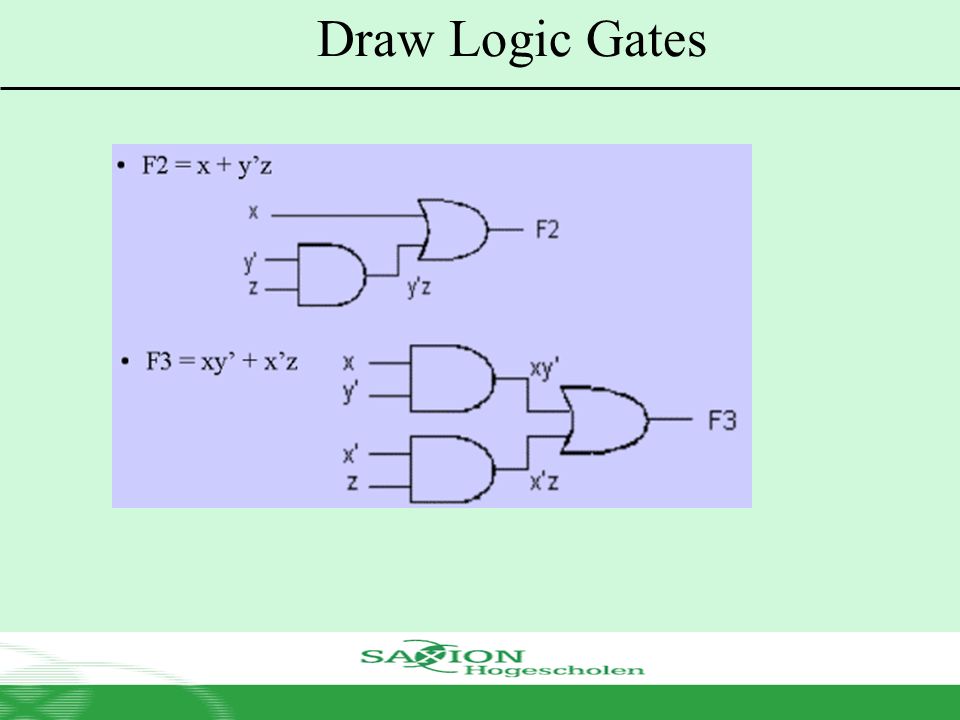

14 Draw Logic Gates

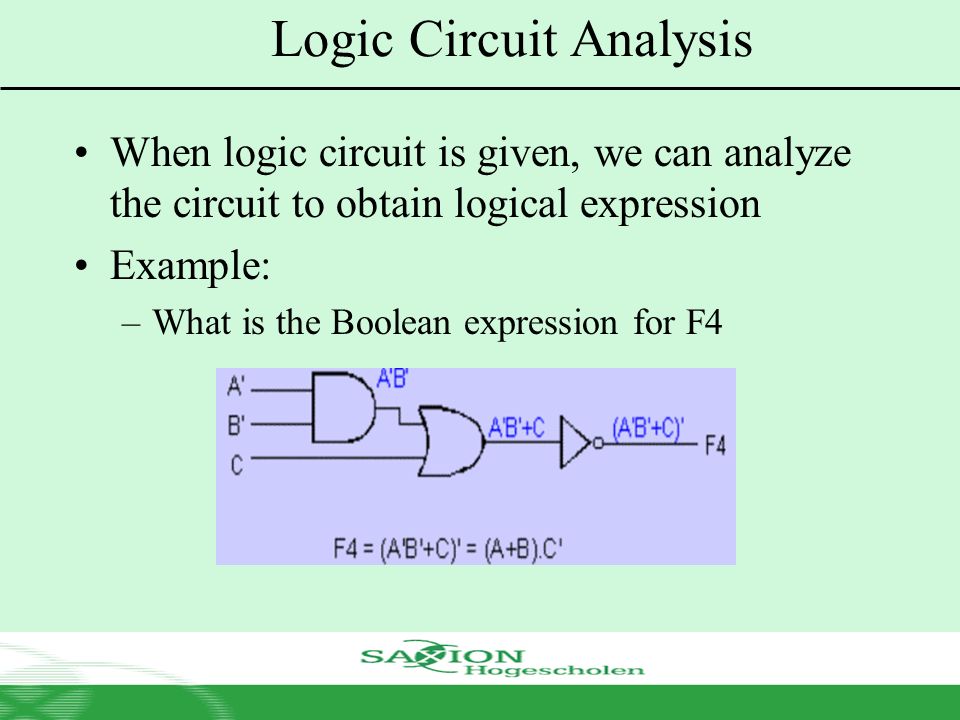

15 Logic Circuit Analysis When logic circuit is given, we can analyze the circuit to obtain logical expression Example: –What is the Boolean expression for F4

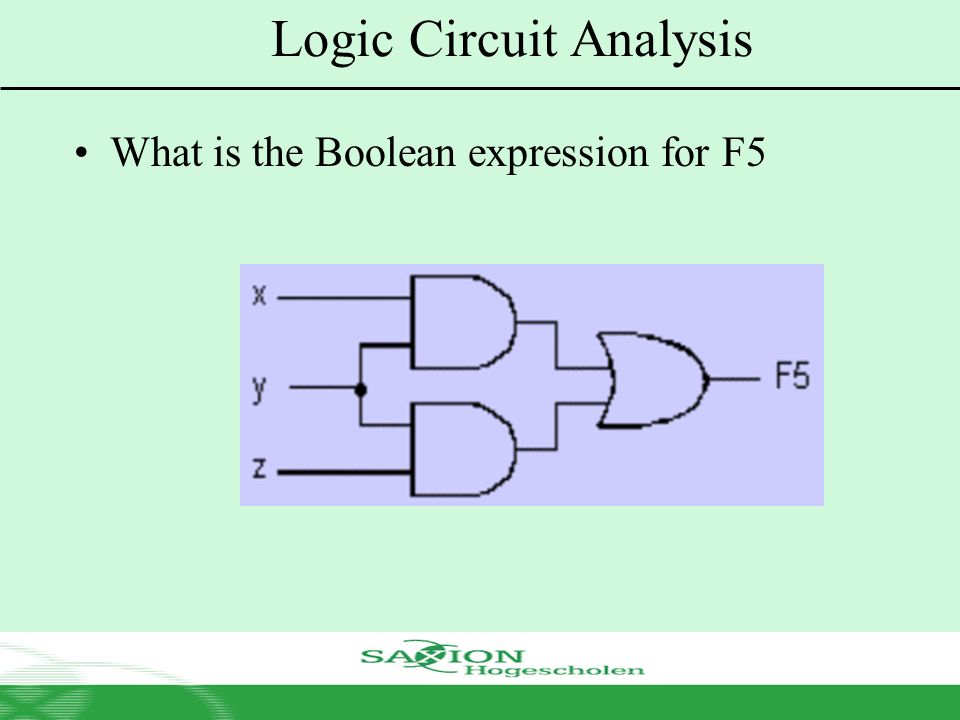

16 Logic Circuit Analysis What is the Boolean expression for F5

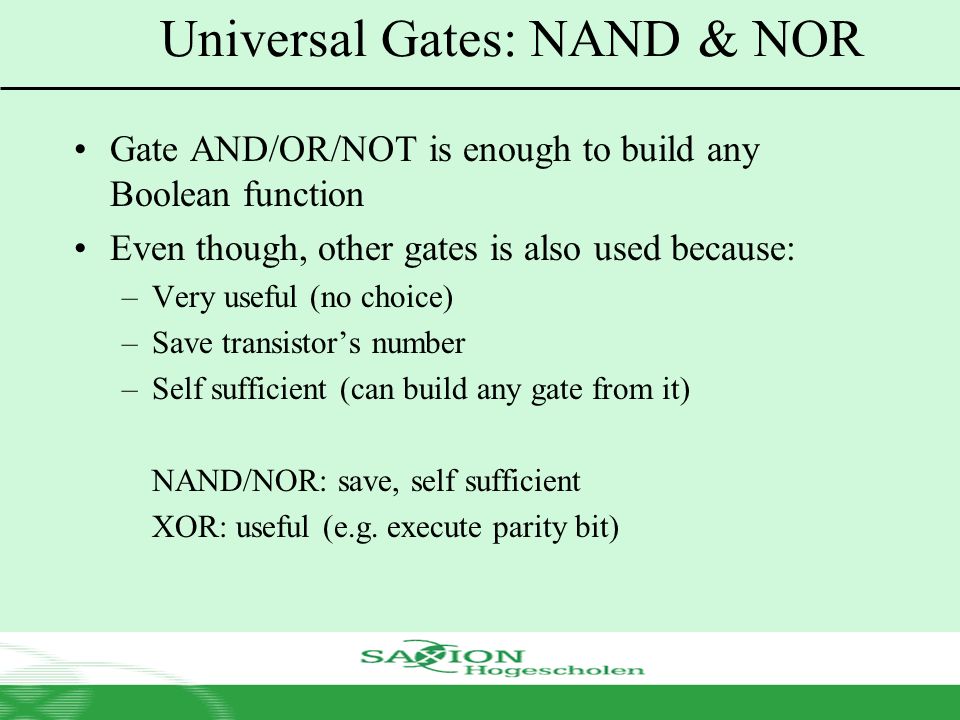

17 Universal Gates: NAND & NOR Gate AND/OR/NOT is enough to build any Boolean function Even though, other gates is also used because: –Very useful (no choice) –Save transistor’s number –Self sufficient (can build any gate from it) NAND/NOR: save, self sufficient XOR: useful (e.g. execute parity bit)

18 NAND Gate NAND gate is self sufficient (i.e.can build any gate from it) Can be used for building AND/OR/NOT gate Build NOT gate using NAND gate

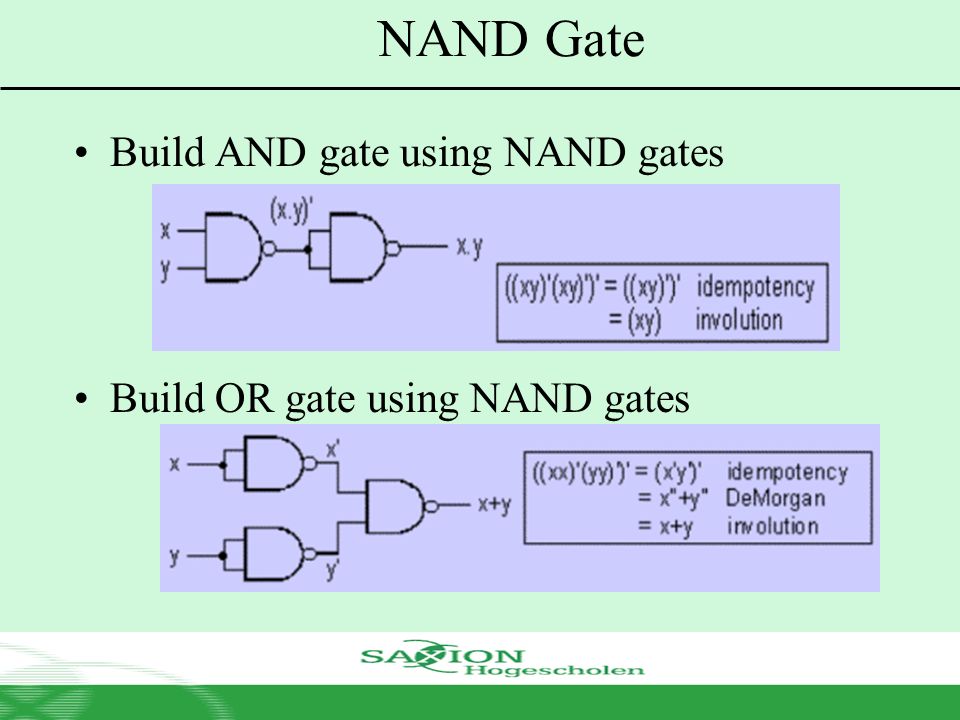

19 NAND Gate Build AND gate using NAND gates Build OR gate using NAND gates

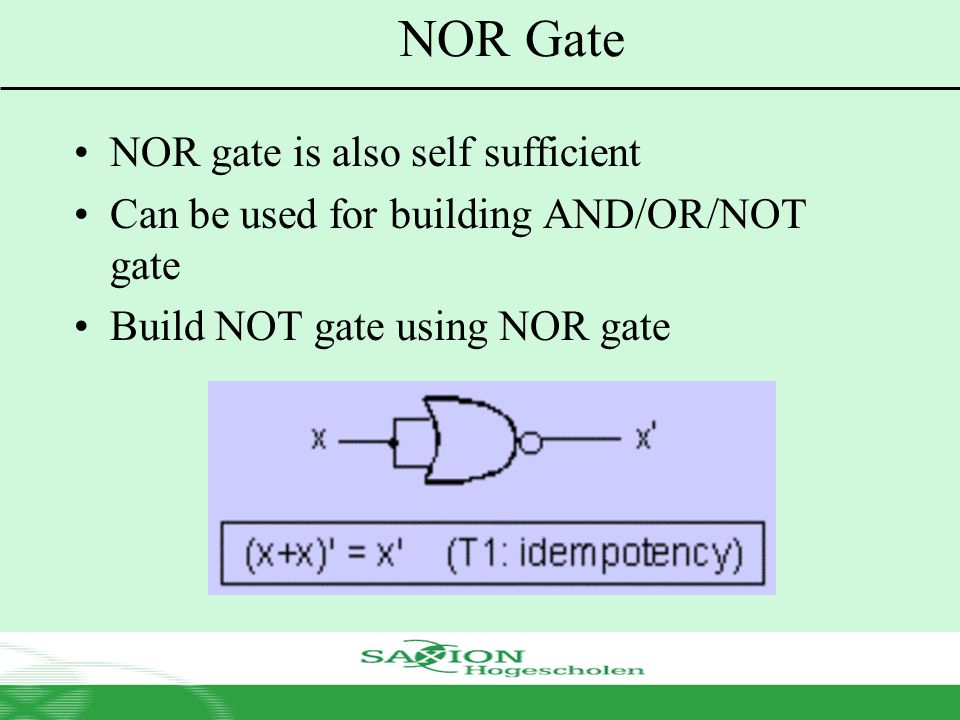

20 NOR Gate NOR gate is also self sufficient Can be used for building AND/OR/NOT gate Build NOT gate using NOR gate

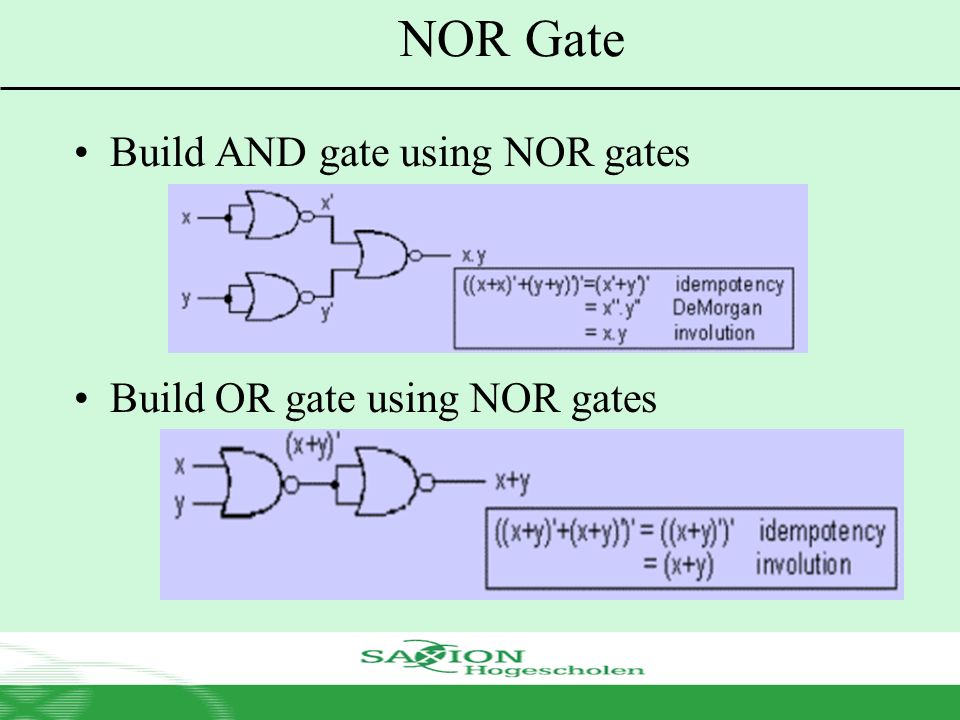

21 NOR Gate Build AND gate using NOR gates Build OR gate using NOR gates

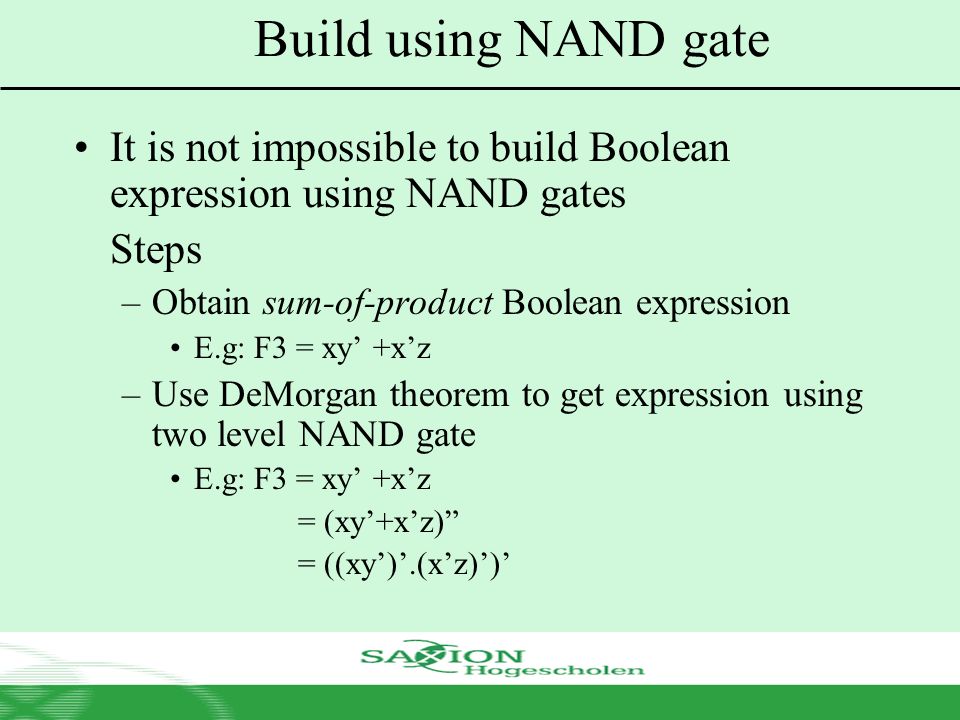

22 Build using NAND gate It is not impossible to build Boolean expression using NAND gates Steps –Obtain sum-of-product Boolean expression E.g: F3 = xy’ +x’z –Use DeMorgan theorem to get expression using two level NAND gate E.g: F3 = xy’ +x’z = (xy’+x’z)” = ((xy’)’.(x’z)’)’

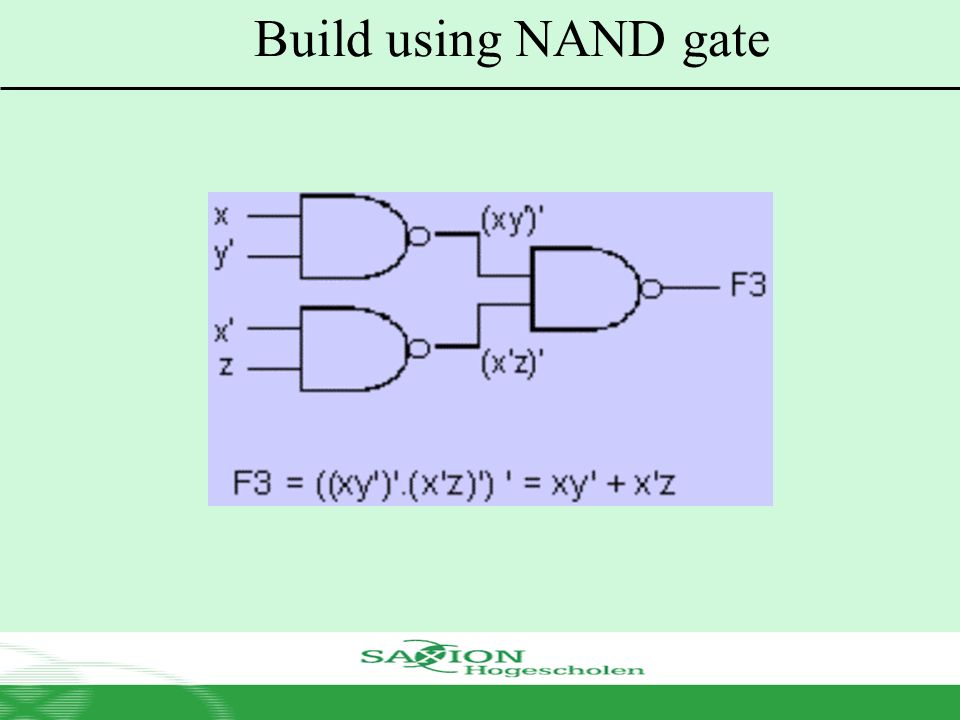

23 Build using NAND gate

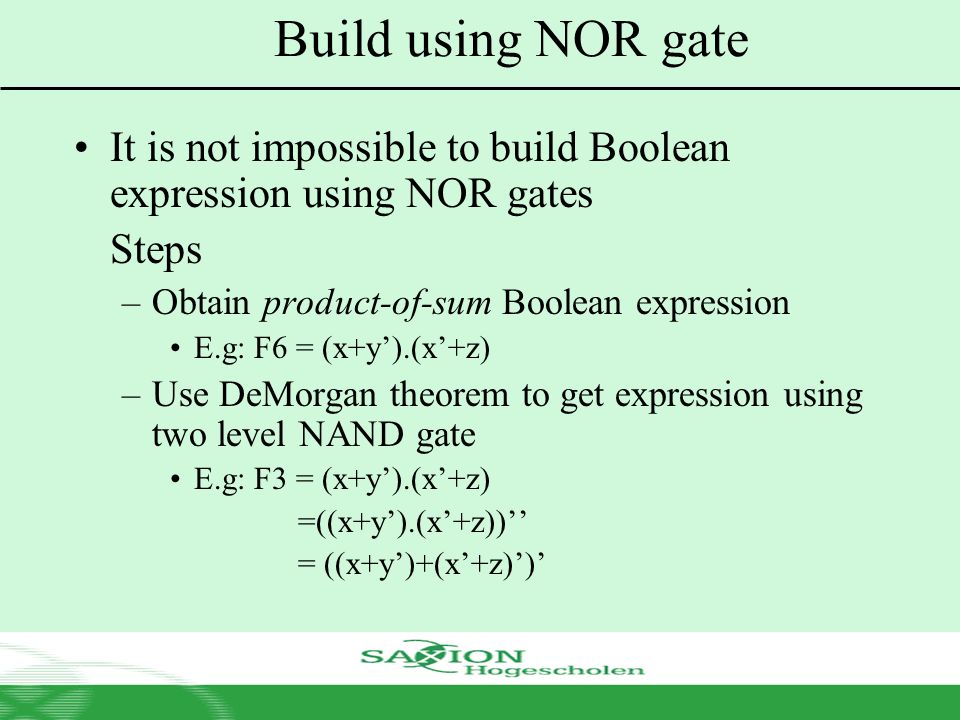

24 Build using NOR gate It is not impossible to build Boolean expression using NOR gates Steps –Obtain product-of-sum Boolean expression E.g: F6 = (x+y’).(x’+z) –Use DeMorgan theorem to get expression using two level NAND gate E.g: F3 = (x+y’).(x’+z) =((x+y’).(x’+z))’’ = ((x+y’)+(x’+z)’)’

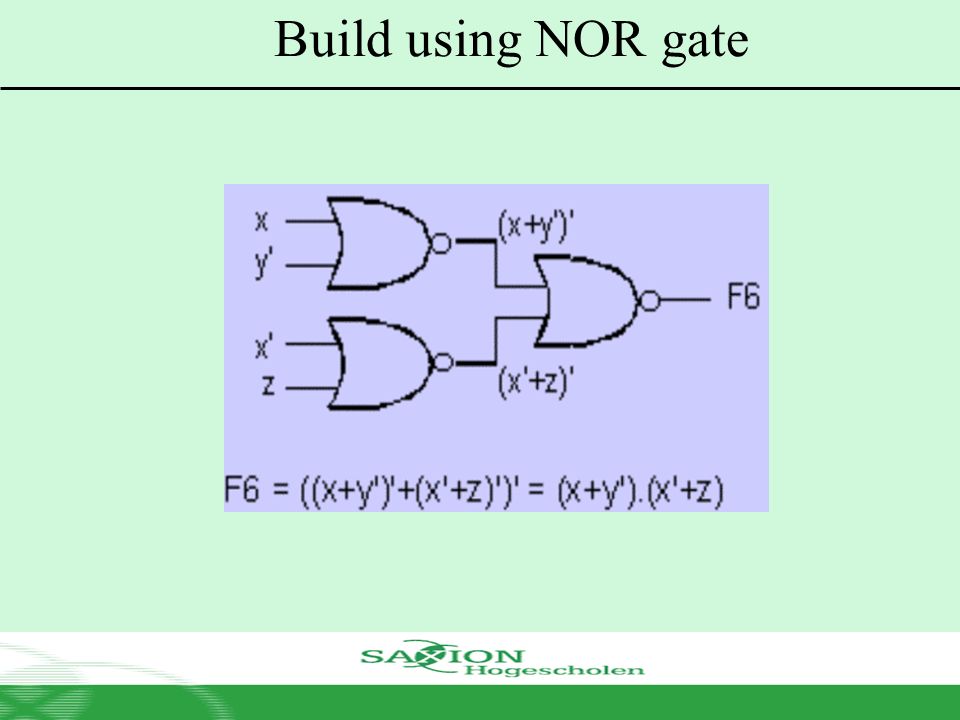

25 Build using NOR gate

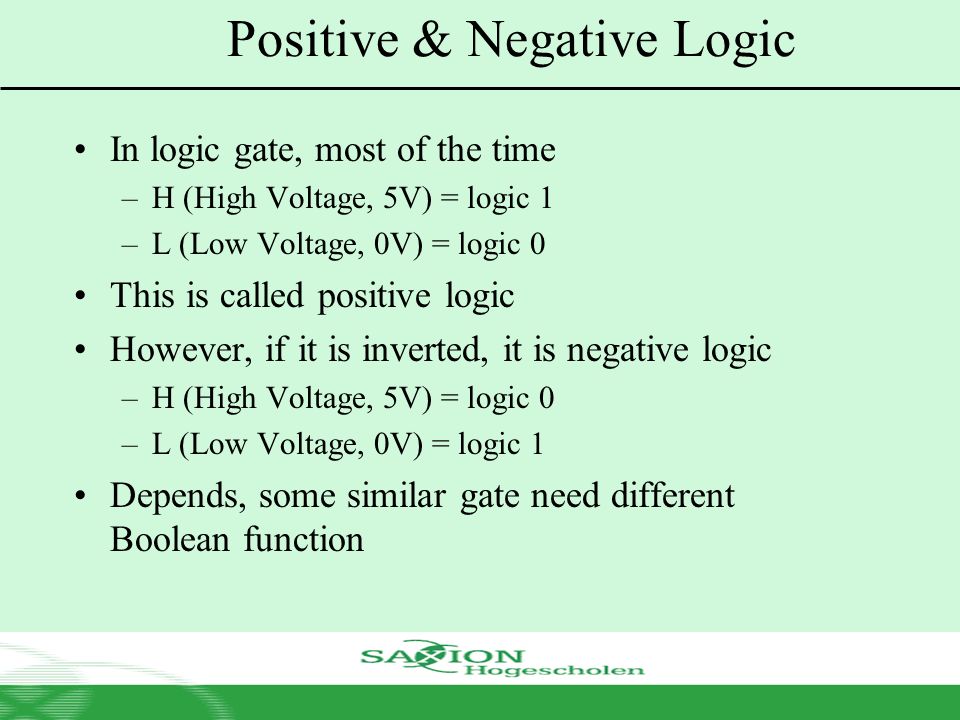

26 Positive & Negative Logic In logic gate, most of the time –H (High Voltage, 5V) = logic 1 –L (Low Voltage, 0V) = logic 0 This is called positive logic However, if it is inverted, it is negative logic –H (High Voltage, 5V) = logic 0 –L (Low Voltage, 0V) = logic 1 Depends, some similar gate need different Boolean function

27 Positive & Negative Logic Signal which is set to logic 1 is said to be active and true Signal which is set to logic 0 is said to be not active and false The name of active high signal is always written in non-compliment form The name of active low signal is always written in non-compliment form

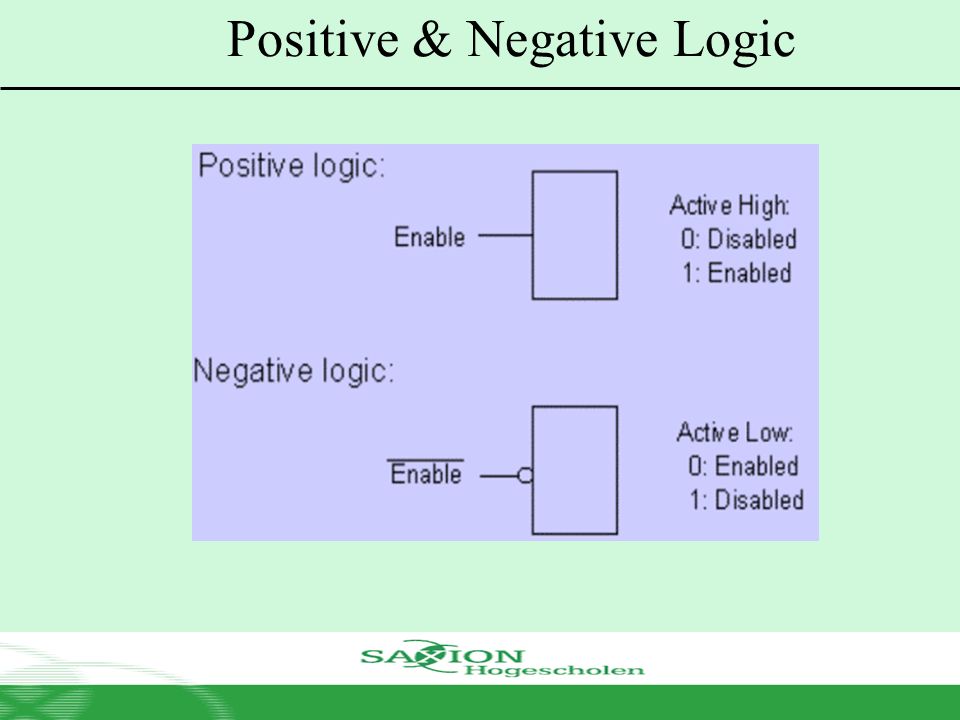

28 Positive & Negative Logic

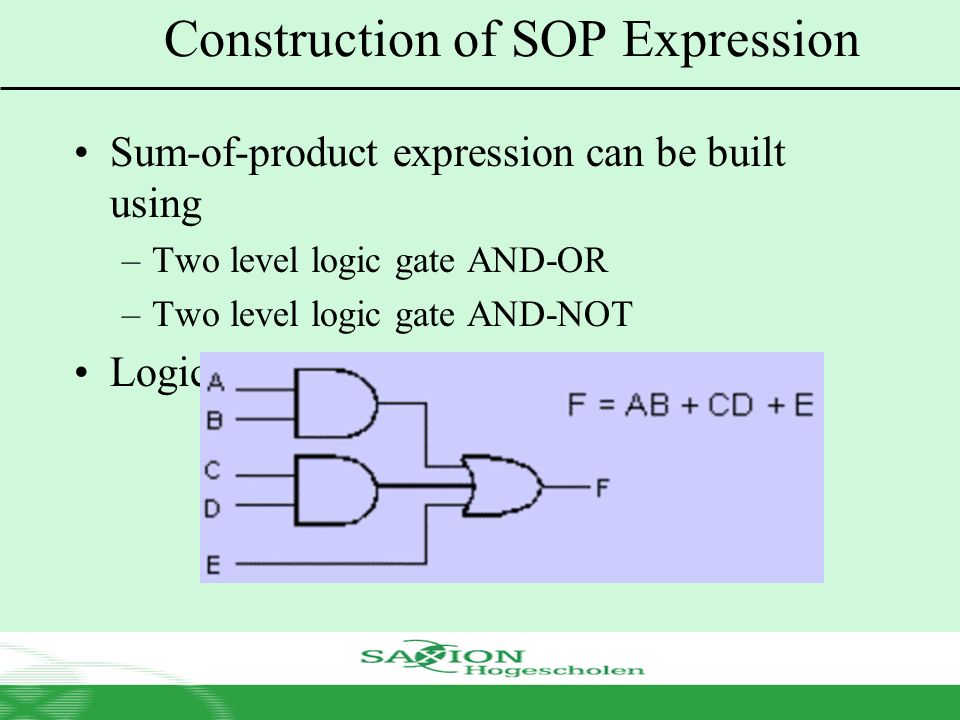

29 Construction of SOP Expression Sum-of-product expression can be built using –Two level logic gate AND-OR –Two level logic gate AND-NOT Logic AND-OR gate

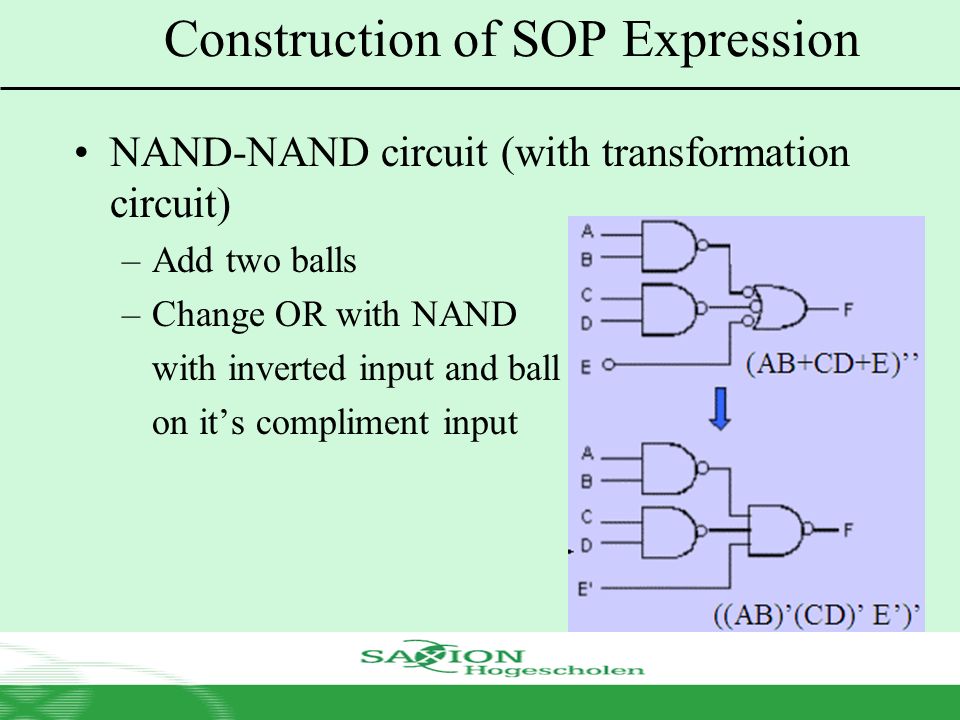

30 Construction of SOP Expression NAND-NAND circuit (with transformation circuit) –Add two balls –Change OR with NAND with inverted input and ball on it’s compliment input

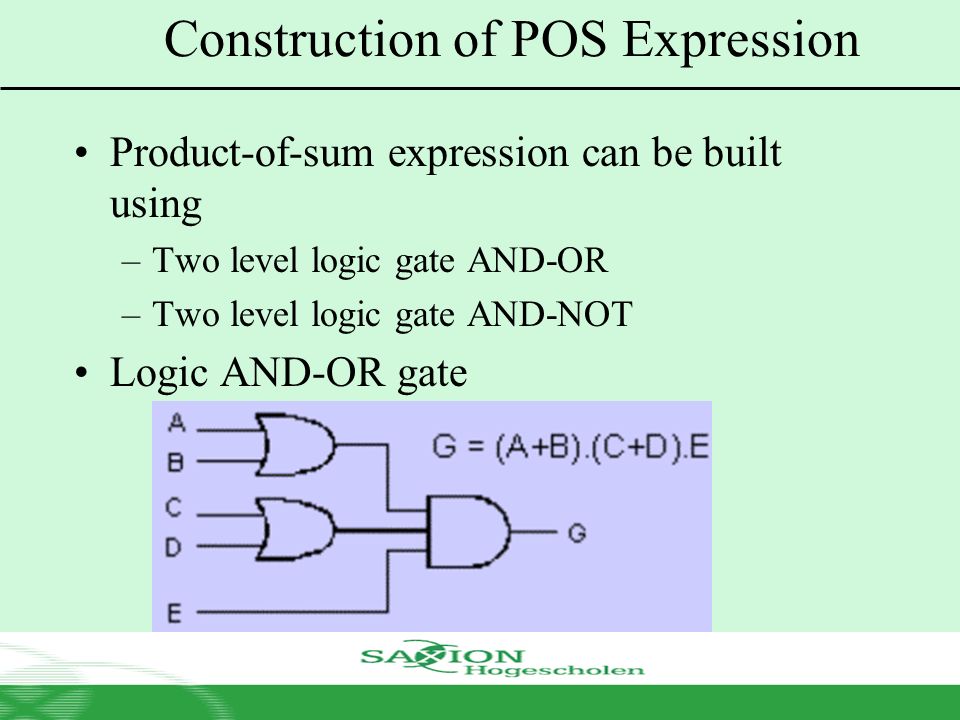

31 Construction of POS Expression Product-of-sum expression can be built using –Two level logic gate AND-OR –Two level logic gate AND-NOT Logic AND-OR gate

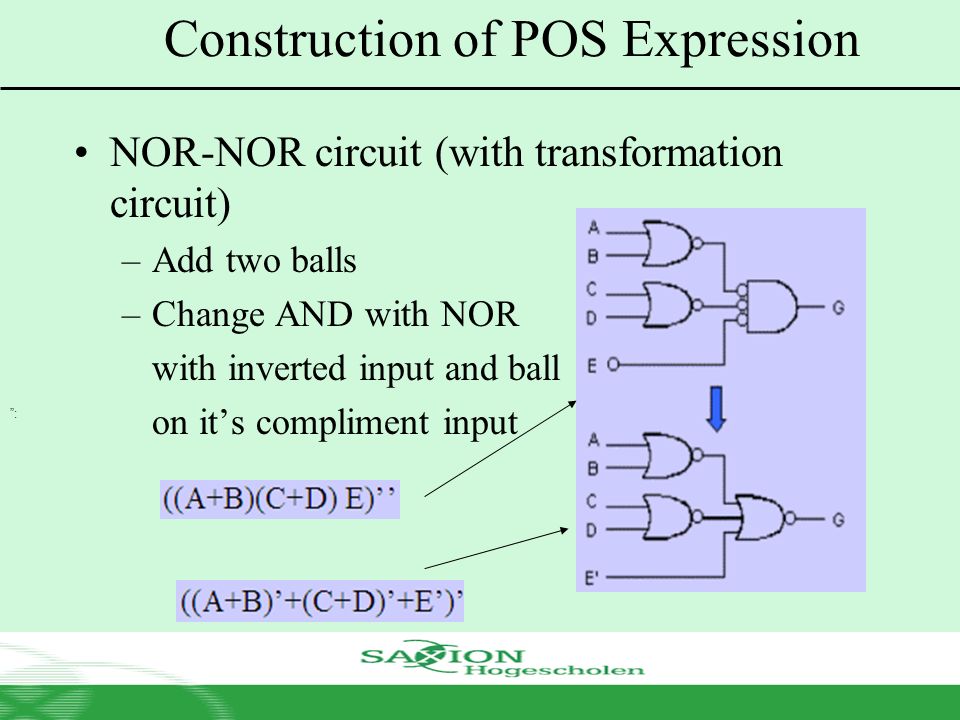

32 Construction of POS Expression NOR-NOR circuit (with transformation circuit) –Add two balls –Change AND with NOR with inverted input and ball on it’s compliment input ”:
