1. Biology I Of Atoms and Molecules: Chemistry Basics

2. ] I. The first job of a biologist is to understand the chemistry of life.

3. What does chemistry have to do with biology? Copyright © 2002 Pearson Education, Inc., publishing as Benjamin Cummings http://www.bing.com/videos/watch/video/bombardier-beetle-1/7f97013685d6db87a42b7f97013685d6db87a42b- 166339149941?q=bombardier%20beetle&FORM=VIRE3

4. A. Atom The smallest “piece” of an element that retains the characteristics of that element. Composed of 3 subatomic particles: Protons Neutrons Electrons

5. Characteristics of Subatomic Particles

6. ] B. Because of its charges, the atom is neutral! ] Draw your Carbon atom using the circle provided

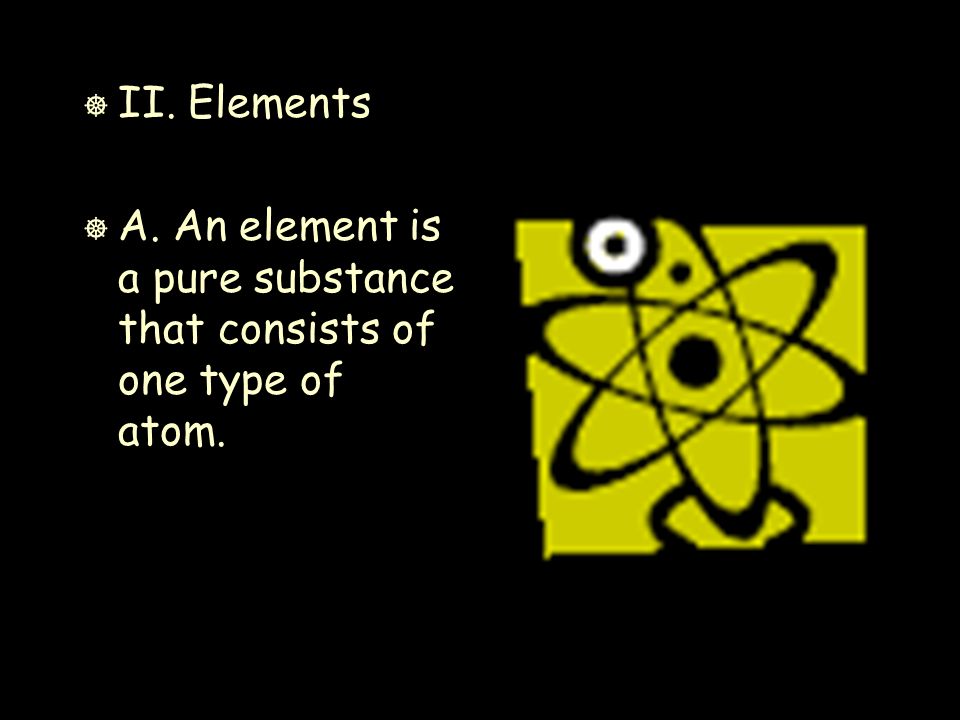

7. ] II. Elements ] A. An element is a pure substance that consists of one type of atom.

8. ] B. Abbreviations for the elements are called symbols. ] C. There are 92 naturally occurring elements. What is this? Turn to the very back of your book

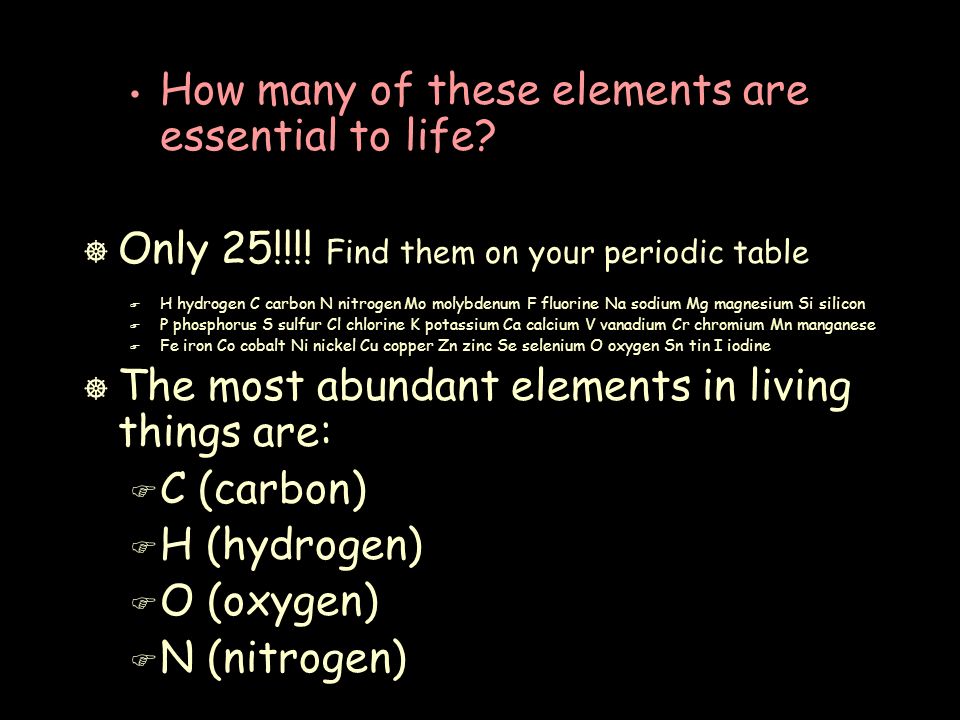

9. How many of these elements are essential to life? ] Only 25!!!! Find them on your periodic table F H hydrogen C carbon N nitrogen Mo molybdenum F fluorine Na sodium Mg magnesium Si silicon F P phosphorus S sulfur Cl chlorine K potassium Ca calcium V vanadium Cr chromium Mn manganese F Fe iron Co cobalt Ni nickel Cu copper Zn zinc Se selenium O oxygen Sn tin I iodine ] The most abundant elements in living things are: F C (carbon) F H (hydrogen) F O (oxygen) F N (nitrogen)

10. III. Atomic number # protons in nucleus of an atom (establishes identity of the atom) Since most atoms are electrically neutral, atomic number indicates # of electrons as well. IV. Atomic mass # protons plus # neutrons in nucleus of an atom

12. How can we determine the number of neutrons in an atom? # neutrons = atomic mass - atomic # Determine # neutrons in a carbon atom (atomic mass = 12; atomic # = 6). # neutrons = 12 - 6 = 6 Do all carbon atoms have the same number of protons? Turn to page 36 Do all carbon atoms have the same number of neutrons?

13. V. Atoms can have different numbers of neutrons. Atoms of the same element that have different numbers of neutrons are called isotopes ] Carbon is a great example ] Draw your 3 carbon atoms (pg.36)

14. ] Some isotopes are radioactive. This means that their nuclei is unstable and breaking down, emitting radiation

15. ] Some important uses of radioactive isotopes are a) carbon dating – determine age of fossils and rocks http://videos.howstuffworks.com/science/carbon-dating-videos- playlist.htm#video-29401 http://videos.howstuffworks.com/science/carbon-dating-videos- playlist.htm#video-29401 b) Treat cancer c) Kill bacteria (that cause food to spoil) d) Labels or “traces” that move through an organism

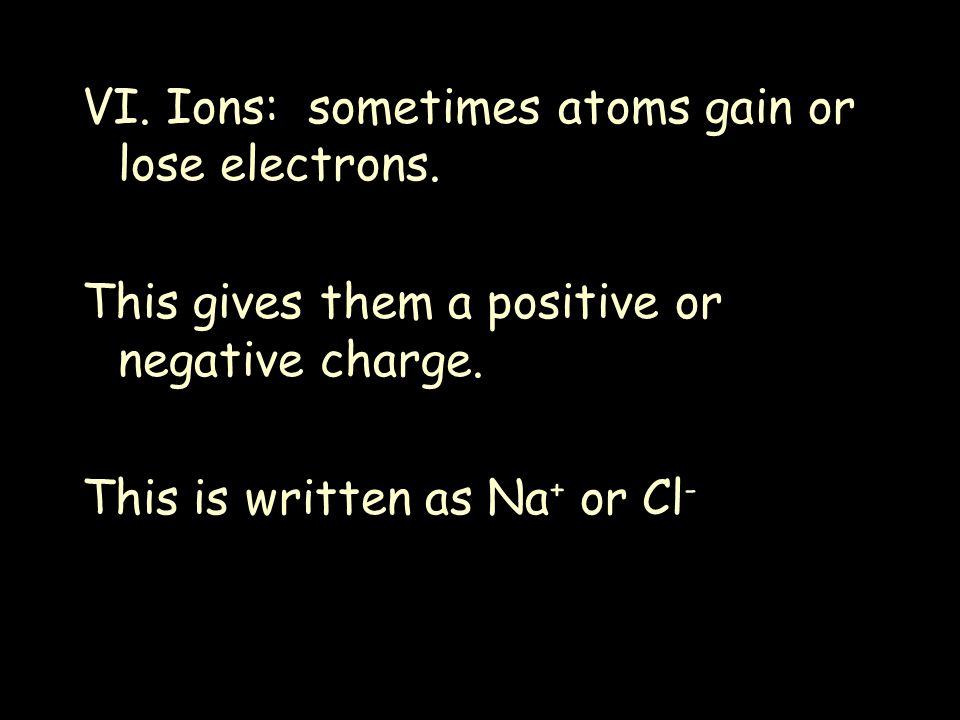

16. VI. Ions: sometimes atoms gain or lose electrons. This gives them a positive or negative charge. This is written as Na + or Cl -

19. VII. A compound is a substance formed by the chemical combination of two or more elements in definite proportions.

20. ] These are represented by chemical formula. 3H 2 O How many atoms of oxygen? 1 This is a subscript. It shows the number of Hydrogen atoms This is the coefficient It shows the number of Water Molecules.

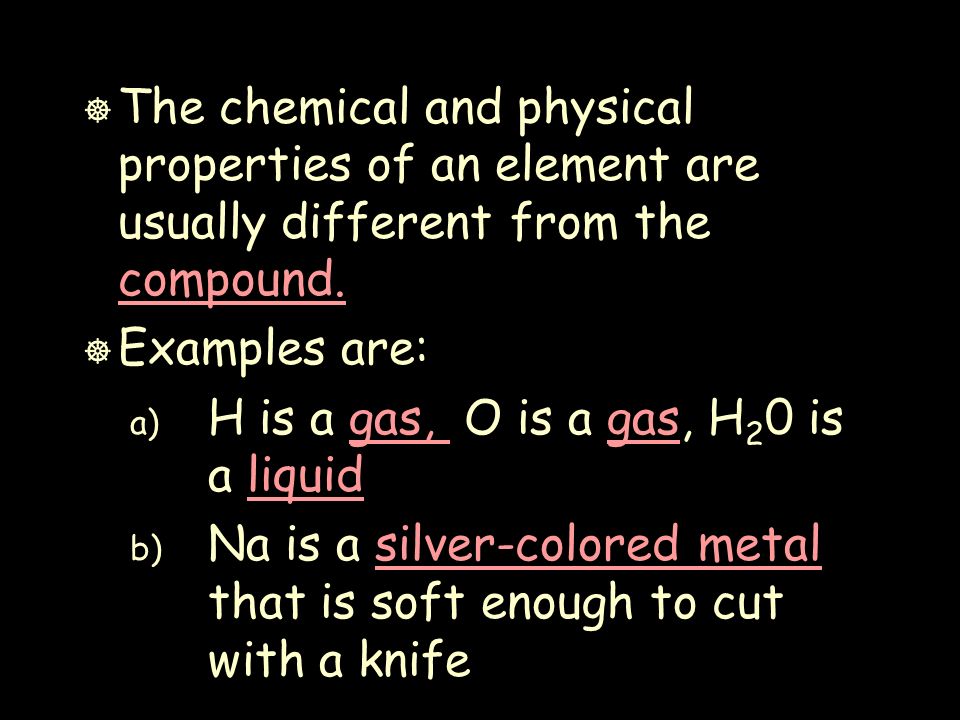

21. ] The chemical and physical properties of an element are usually different from the compound. ] Examples are: a) H is a gas, O is a gas, H 2 0 is a liquid b) Na is a silver-colored metal that is soft enough to cut with a knife

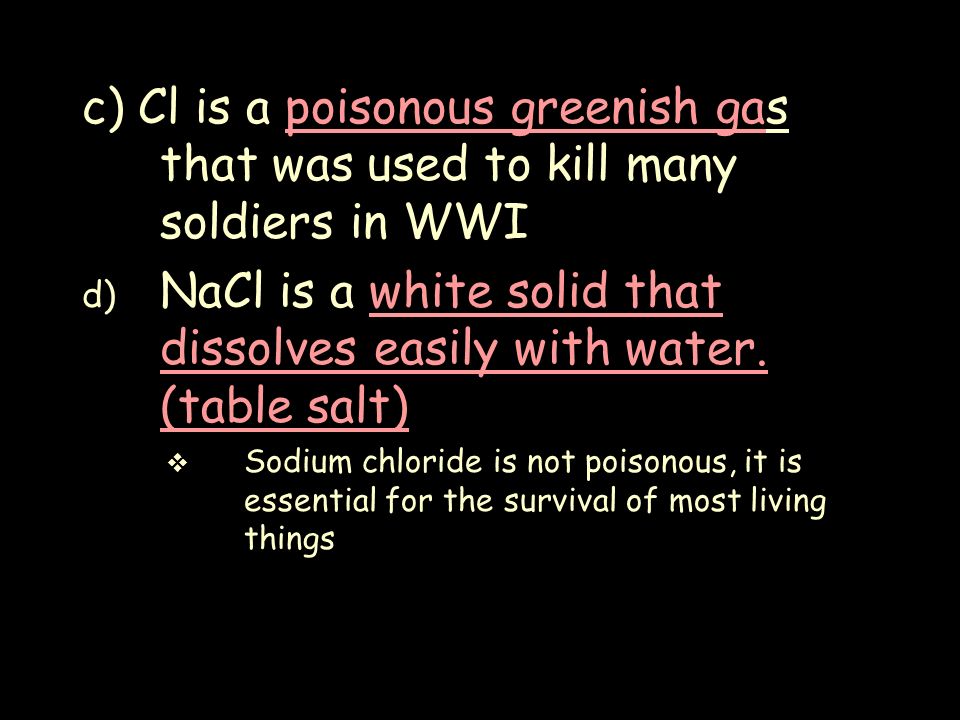

22. c) Cl is a poisonous greenish gas that was used to kill many soldiers in WWI d) NaCl is a white solid that dissolves easily with water. (table salt) v Sodium chloride is not poisonous, it is essential for the survival of most living things

23. ] Chemical Reactions F The reactants of a reaction are written to the left of the arrow

24. ] Chemical reactions F The products of a reaction are written to the right of the arrow

25. ] Example F Rewrite the equation in your notes so the subscripts are lower F This is the equation for cellular respiration ª The process your cells are doing right now!

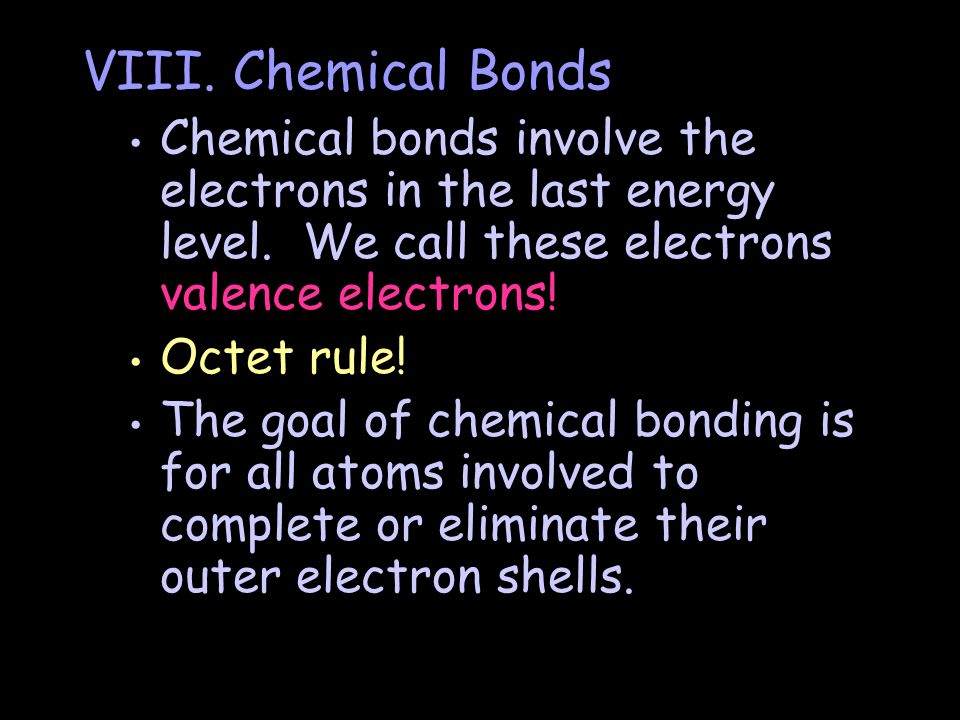

26. VIII. Chemical Bonds Chemical bonds involve the electrons in the last energy level. We call these electrons valence electrons! Octet rule! The goal of chemical bonding is for all atoms involved to complete or eliminate their outer electron shells.

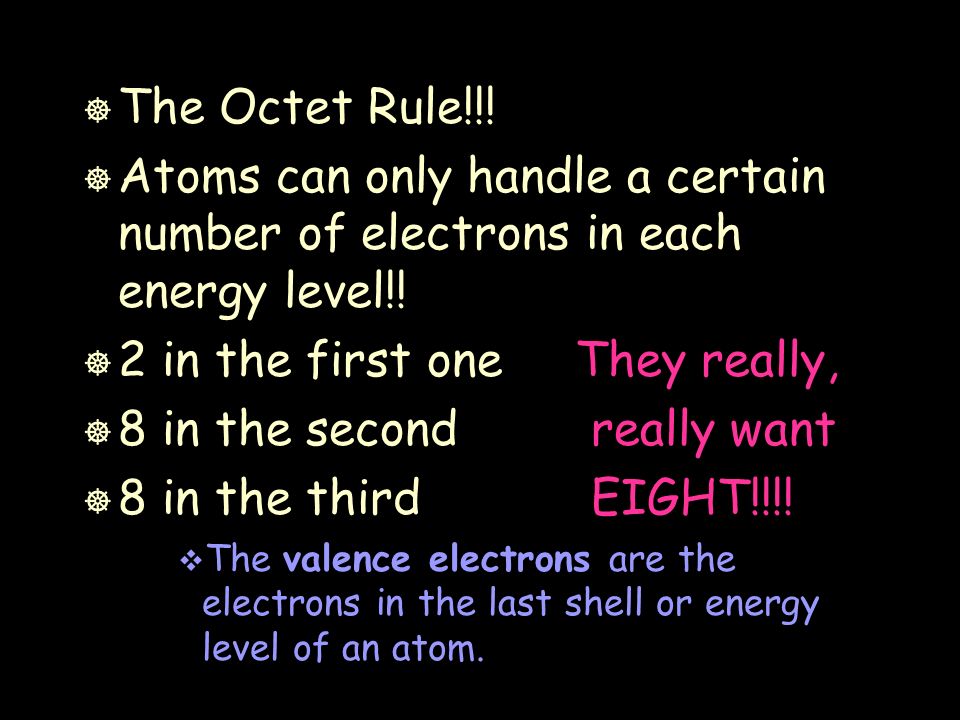

27. ] The Octet Rule!!! ] Atoms can only handle a certain number of electrons in each energy level!! ] 2 in the first one They really, ] 8 in the second really want ] 8 in the third EIGHT!!!! v The valence electrons are the electrons in the last shell or energy level of an atom.

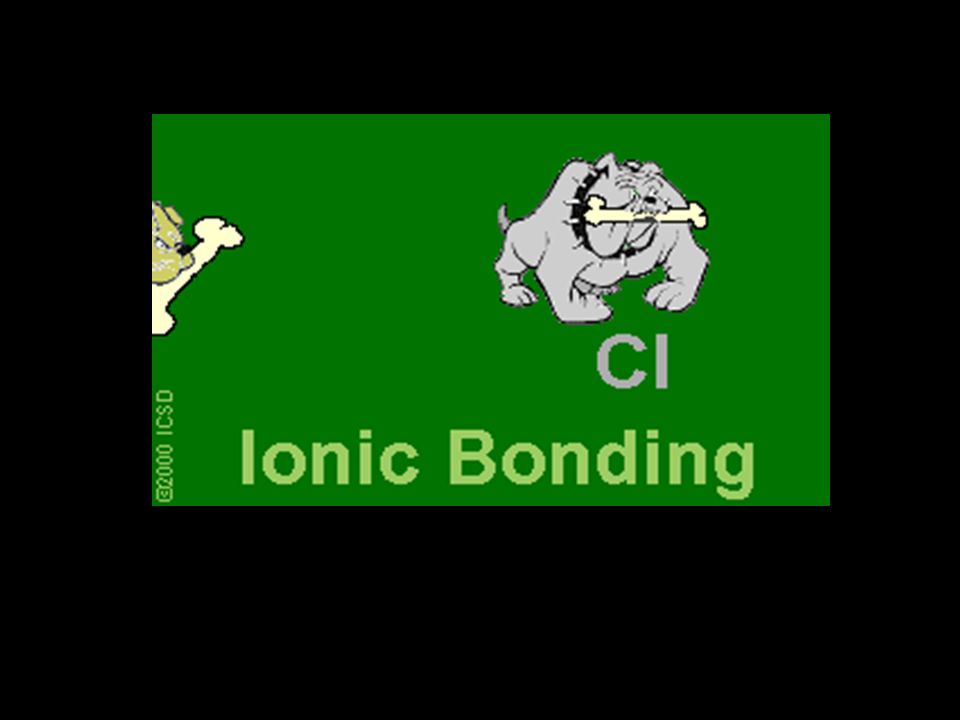

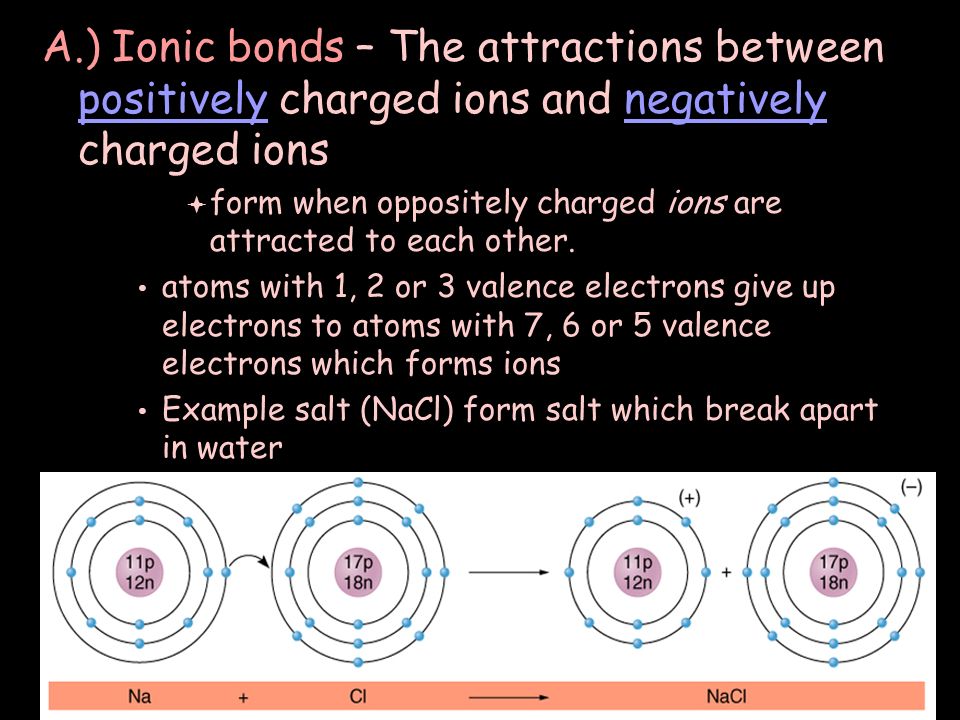

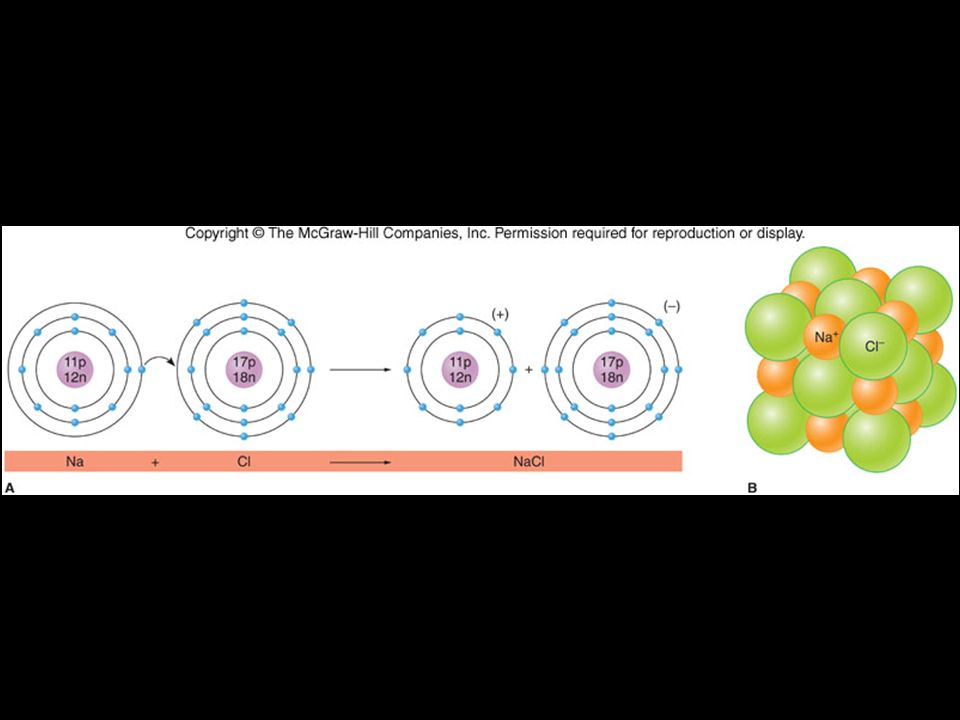

28. A.) Ionic bonds – The attractions between positively charged ions and negatively charged ions ª form when oppositely charged ions are attracted to each other. atoms with 1, 2 or 3 valence electrons give up electrons to atoms with 7, 6 or 5 valence electrons which forms ions Example salt (NaCl) form salt which break apart in water Ex. NaCl

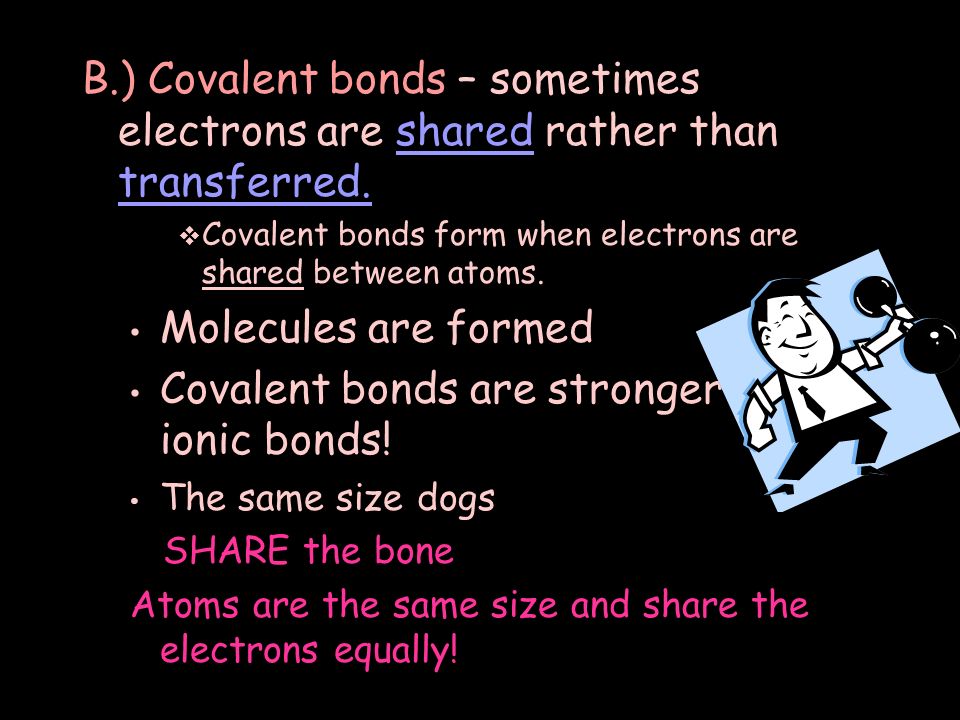

33. B.) Covalent bonds – sometimes electrons are shared rather than transferred. v Covalent bonds form when electrons are shared between atoms. Molecules are formed Covalent bonds are stronger than ionic bonds! The same size dogs SHARE the bone Atoms are the same size and share the electrons equally!

35. ] The structure that results when atoms are joined by covalent bonds is called a molecule. ] Covalent bonds are stronger than ionic bonds

37. Nonpolar covalent bonds - electrons are shared equally between atoms. Ex. methane

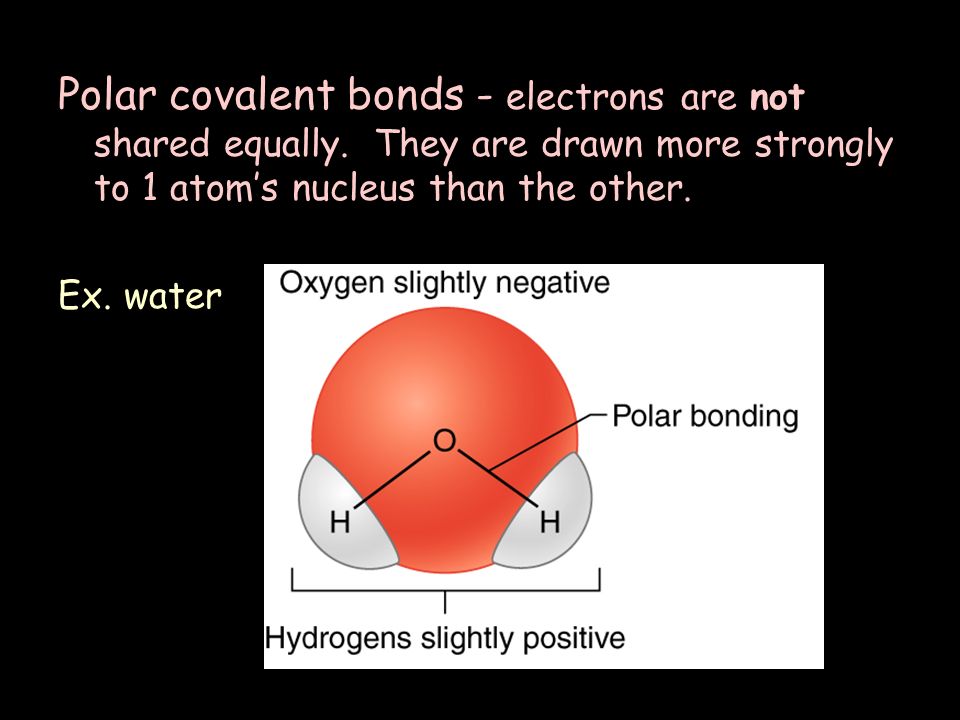

38. Polar covalent bonds - electrons are not shared equally. They are drawn more strongly to 1 atom’s nucleus than the other. Ex. water

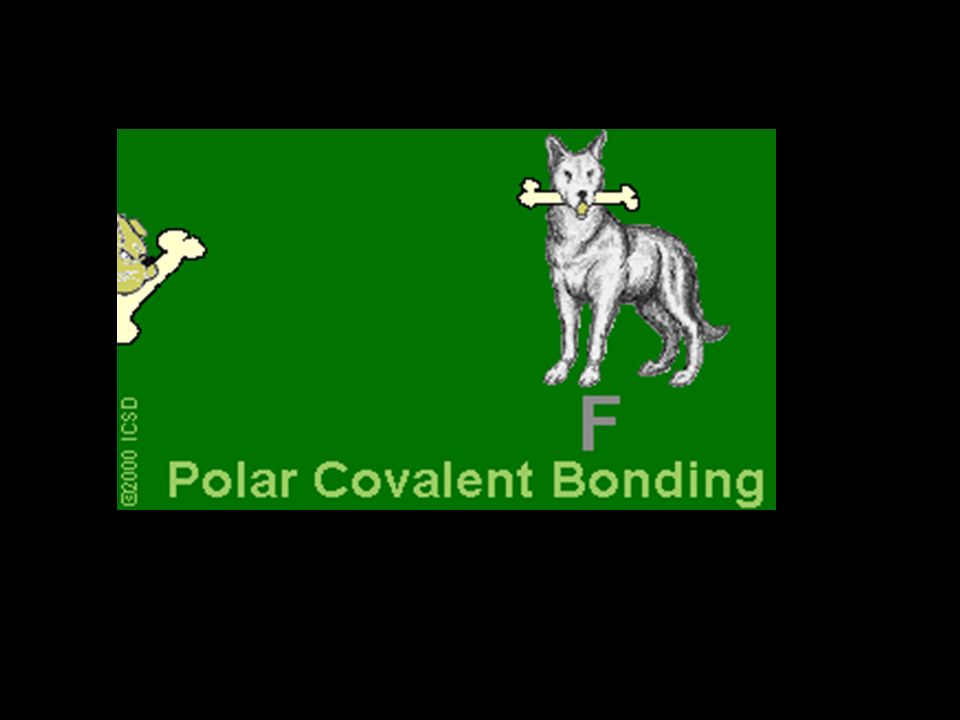

40. Unequal sharing of the bone! ] One dog is larger than the other and hogs the bone, but they are still sharing!!!! ] One atom is larger and hogs the electron making one end of the molecule more negative and one end more positive!!

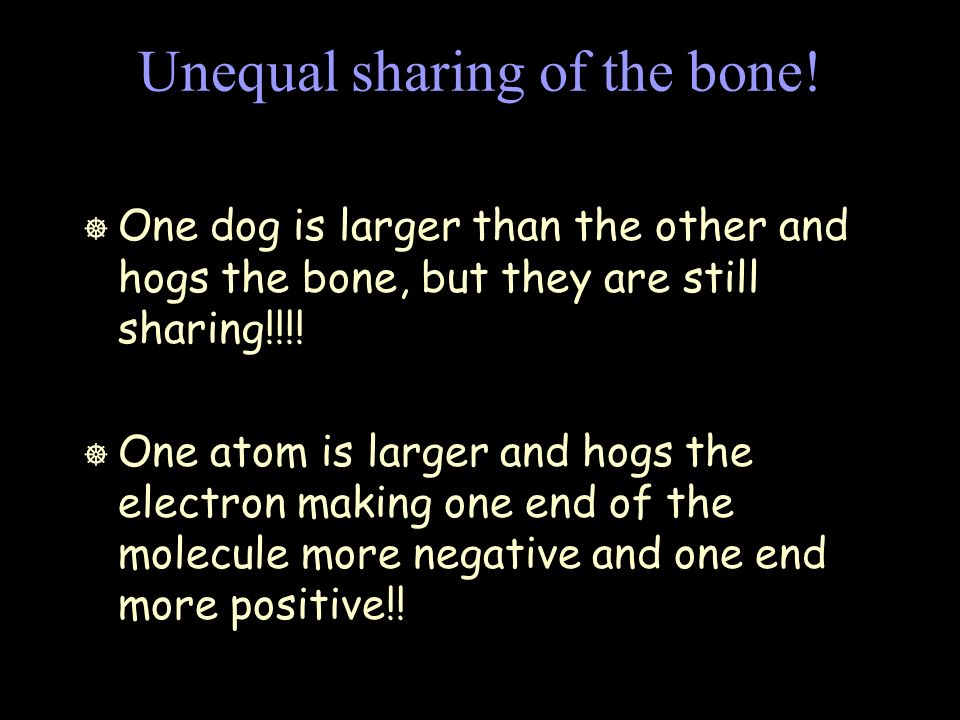

42. Unequal sharing of the bone! ] One dog is larger than the other and hogs the bone, but they are still sharing!!!! ] One atom is larger and hogs the electron making one end of the molecule more negative and one end more positive!!

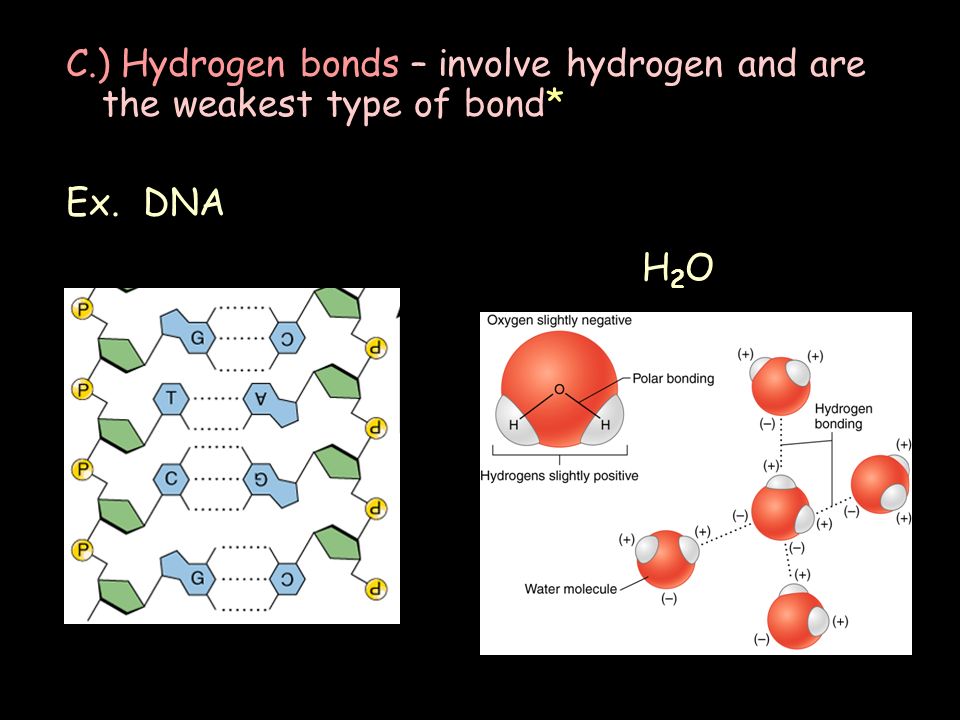

43. C.) Hydrogen bonds – involve hydrogen and are the weakest type of bond* Ex. DNA H2OH2O

44. The End

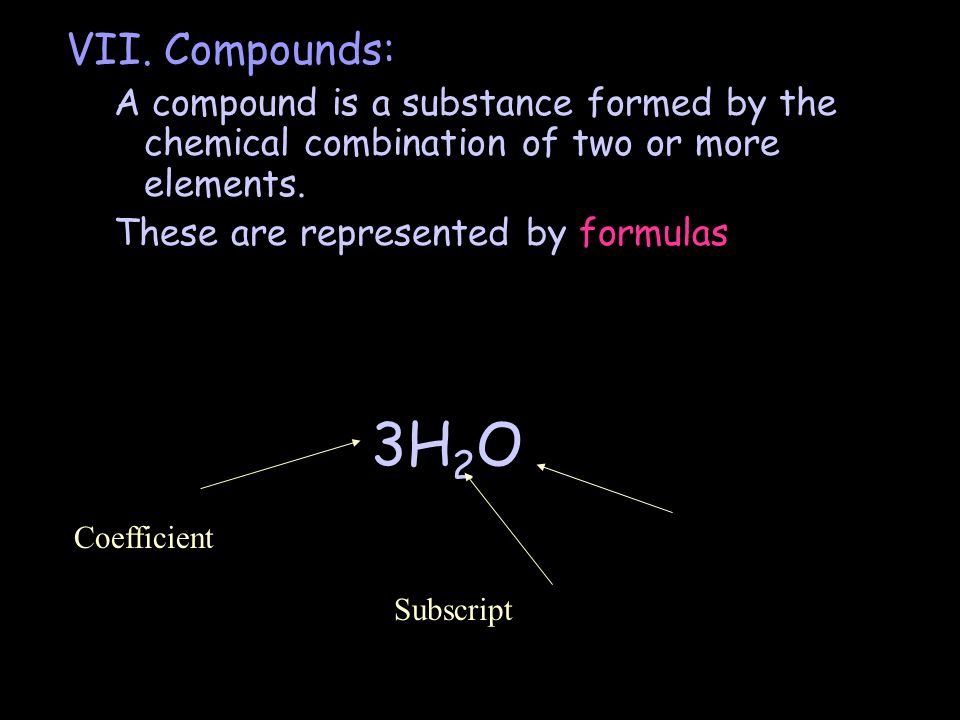

45. VII. Compounds: A compound is a substance formed by the chemical combination of two or more elements. These are represented by formulas 3H 2 O Coefficient Subscript

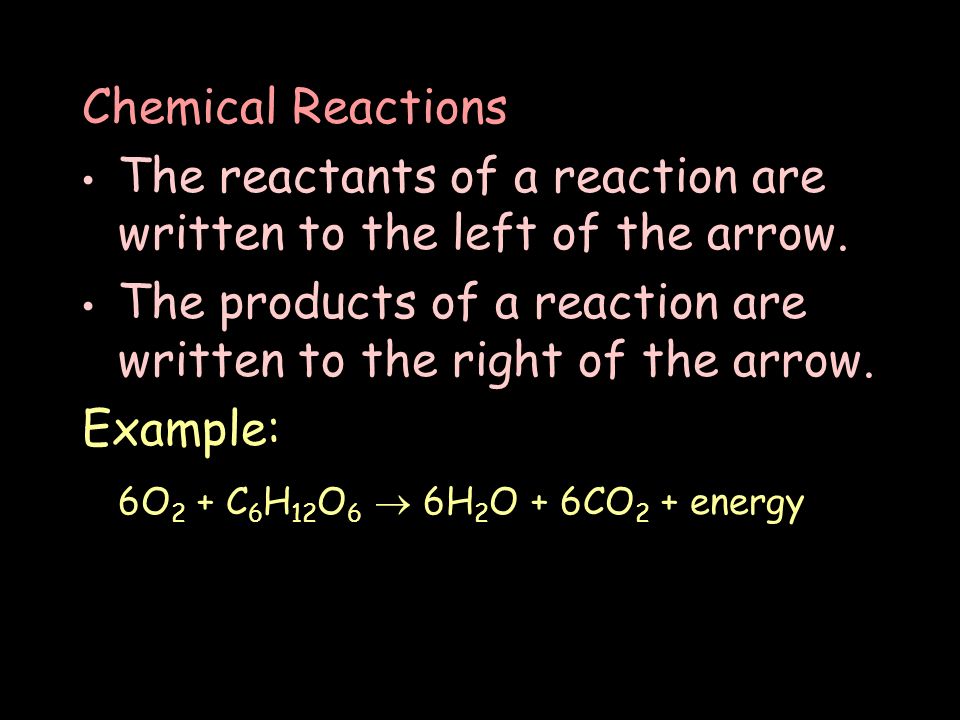

46. Chemical Reactions The reactants of a reaction are written to the left of the arrow. The products of a reaction are written to the right of the arrow. Example: 6O 2 + C 6 H 12 O 6  6H 2 O + 6CO 2 + energy

47. Examples: CO 2 carbon dioxide H 2 O water CH 4 methane C 6 H 12 O 6 glucose

48. Examples: 4CO 2 4 molecules of carbon dioxide 2C 6 H 12 O 6 2 molecules of glucose 6O 2 6 molecules of oxygen
