1. Cells – The Basic Units of Life

4. Basic Regions of the Cell
Cytoplasm -the cell substance between the cell membrane and the nucleus, containing the organelles, cytoskeleton, and various particles.

5. Nucleus - a part of the cell containing DNA and RNA and responsible for growth and reproduction
The control center of the cell.

6. Cell Membrane - The semipermeable membrane that encloses the cytoplasm of a cell. Also called the plasma membrane.

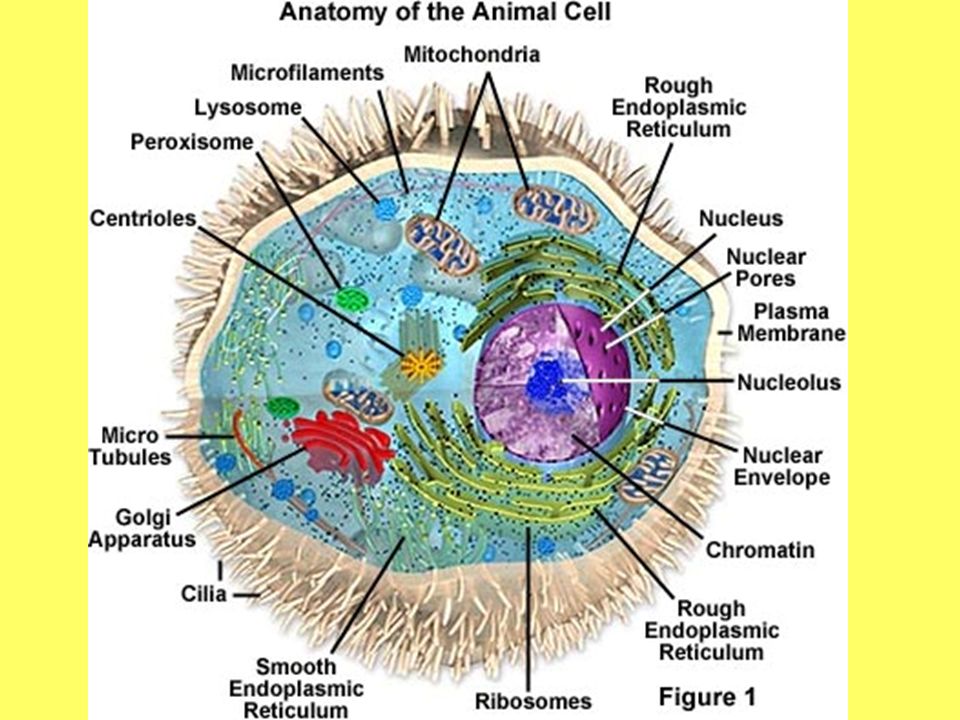

7. Cell Organelles

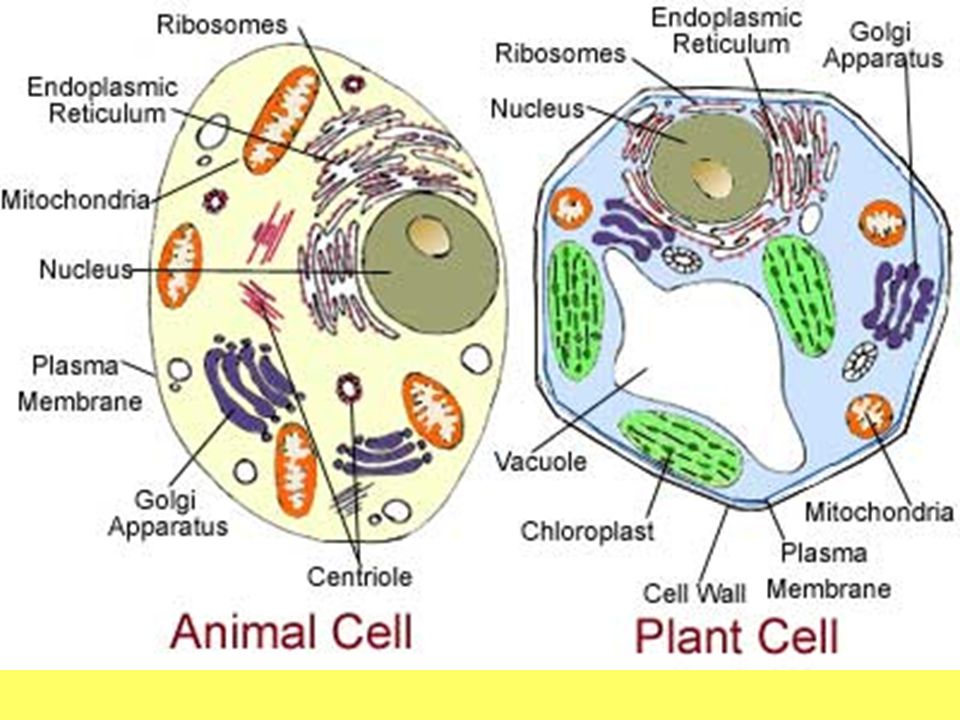

9. Organelles found in Both Animal and Plant Cells

11. The Plasma Membrane (or Cell Membrane)
The semipermeable membrane that encloses the cytoplasm of a cell.
Made up of fatty molecules arranged in a double layer
It is selectively permeable – meaning it lets only SOME substances in or out. It controls what enters and leaves the cell.
It has receptor proteins which detect signals from outside the cell

13. The Nucleus
Contains all genetic information for the cell in the form of DNA
Inside nucleus -instructions contained in the DNA are copied into RNA.
Then the RNA leaves the nucleus and brings instructions to the rest of cell for producing proteins

14. Another view of the nucleus

15. The Nuclear Membrane Surrounds the nucleus Composed of two layers
Has openings (pores) for “traffic” in and out of the nucleus.
It is attached to the endoplasmic reticulum.

17. Mitochondria (singular “mitochondrion”)
Called the “Power Plants” of the cell
They convert organic materials into energy (they make a substance called ATP).
Carry out cellular respiration.
Sugar + oxygen  carbon dioxide + water + energy(ATP)
They control the level of water and other materials in the cell.
A cell can have hundreds or thousands of mitochondria, which can occupy up to 25% of the cell's cytoplasm.

18. Cellular Respiration
Mitochondrion
Sugar + Oxygen  Carbon Dioxide +Water + Energy(ATP)
Takes place in the mitochondria of cells of both animals and plants.

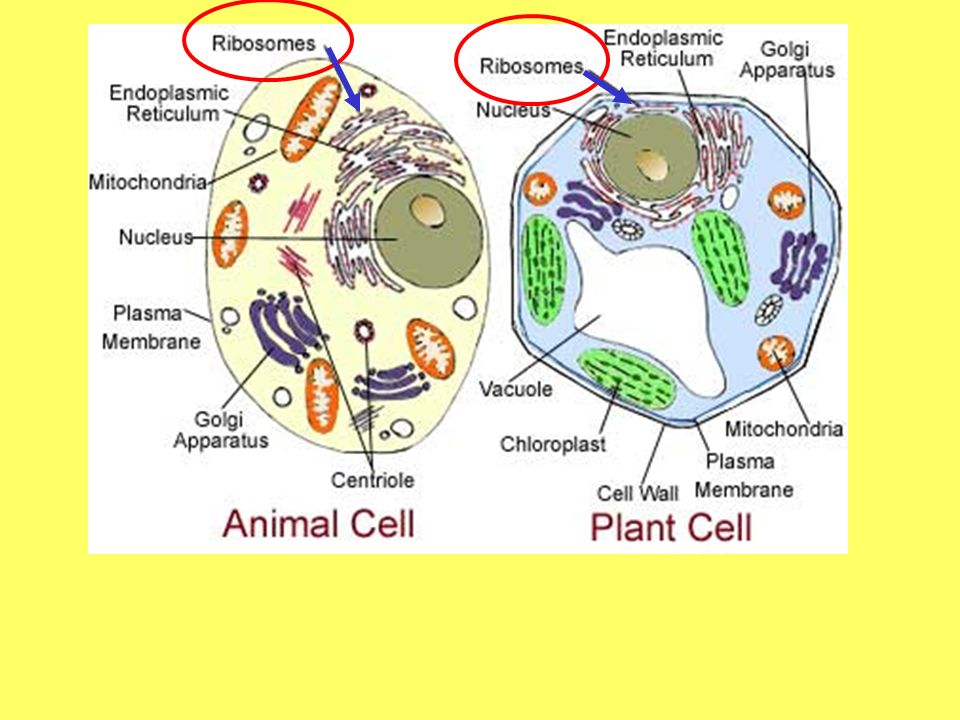

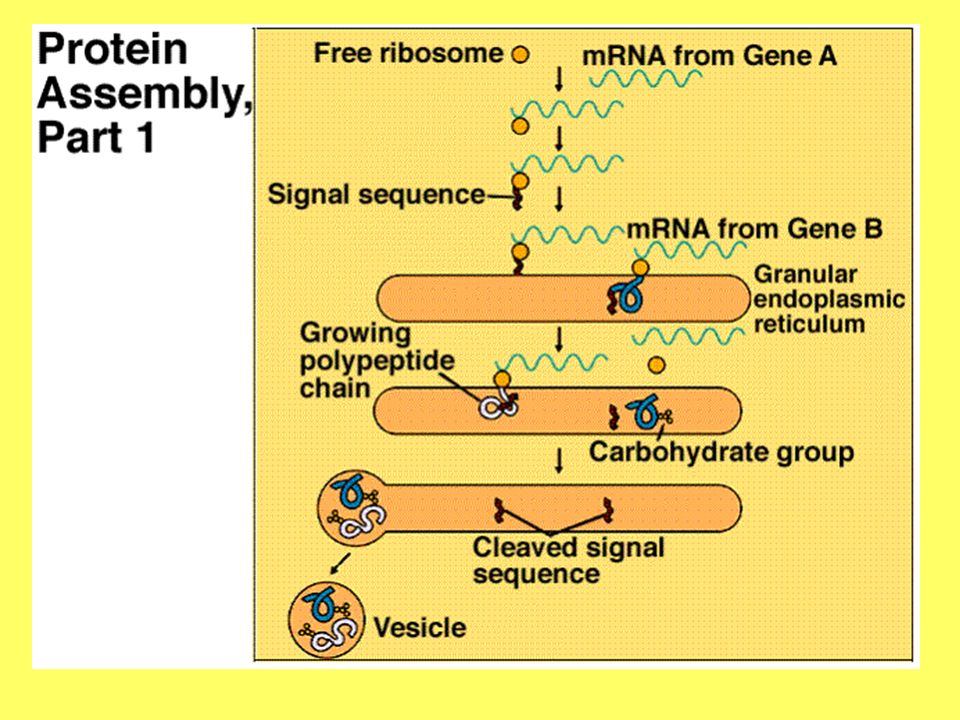

20. Ribosomes Their function is to assemble proteins (from amino acids)
Look like little “dots”. Some on the surface of endoplasmic reticulum and some “free” in the cytoplasm
Each cell contains thousands.

24. Endoplasmic Reticulum
Connected to the nuclear membrane.
A network of tubes.
The cell’s transport system
The “rough type” has ribosomes on its surface.
The “smooth type” lacks ribosomes.
Help transport proteins to different parts of the cell.

26. Golgi Apparatus
Protein packaging plant. Packages molecules into small sacs called vesicles.These are sent to other parts of the cell.

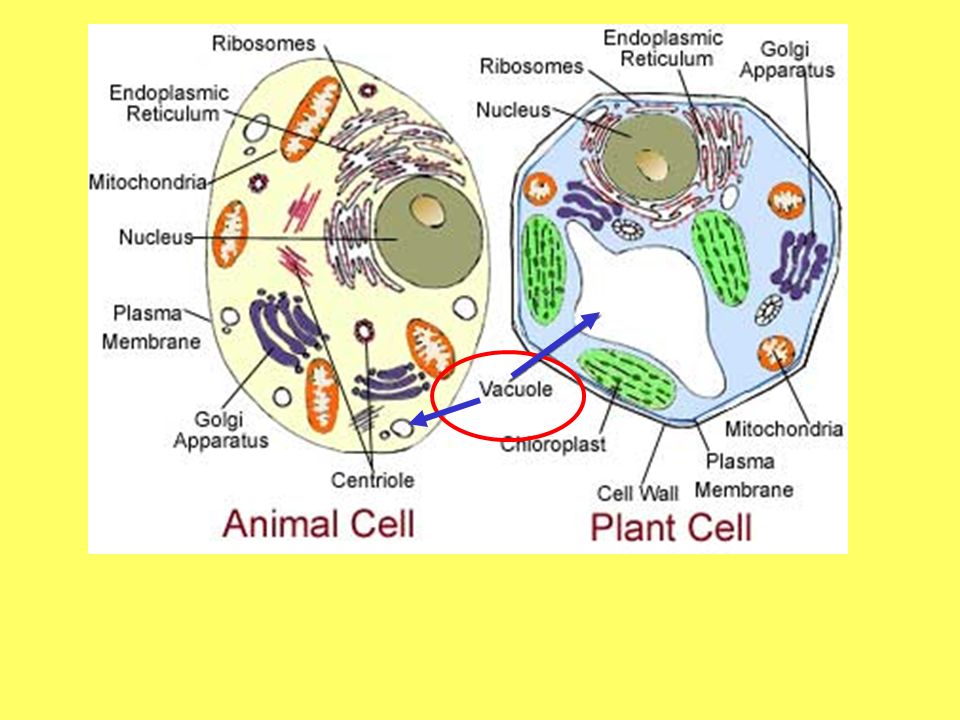

28. Vacuole
Sacs with a membrane. Used for storage, digestion and waste removal. Contain water solutions. Usually one large central vacuole in plant cells and more than one smaller vacuole in animal cells.

29. Lysosomes lysosome animation
Digestive “plant” for proteins, fats and carbohydrates. They fuse with a food vacuole, digest it and carry the wastes to the cell membrane for disposal. Help keep the cell “clean” by destroying used up organelles.

30. Organelles found in Animal Cells Only

32. Centrioles

There is one pair in each cell. Each centriole is made up of a ring of nine microtubules. During cell division, or mitosis, the centrioles produce spindle fibers which help to pull chromosomes apart.
Centrioles are found only in animal cells.

33. Organelles found in Plant Cells Only

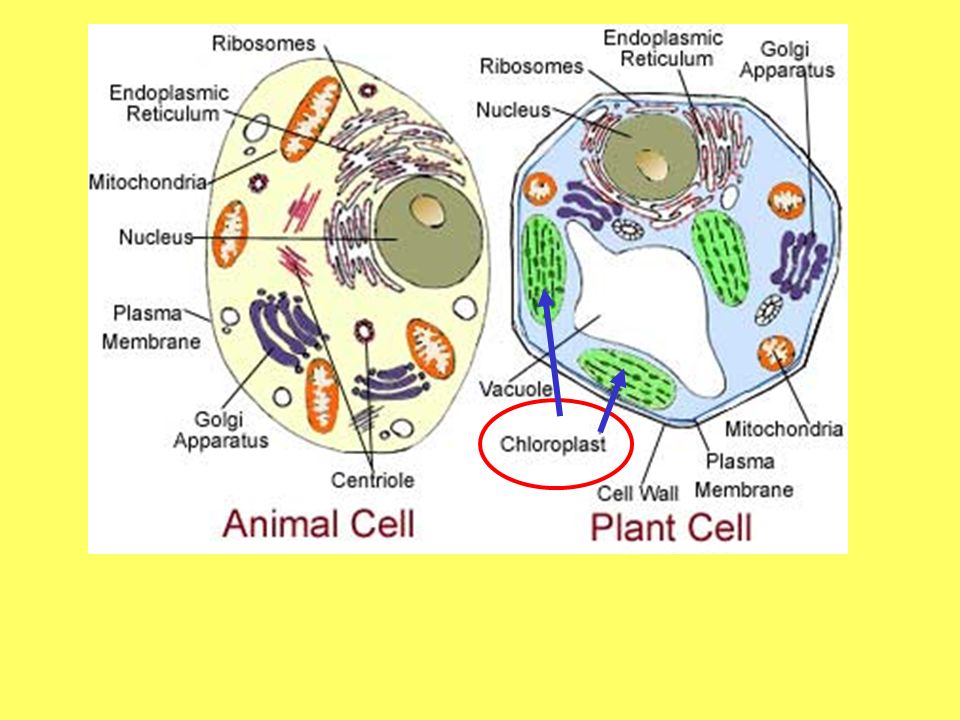

35. Chloroplasts Found in all higher plant cells.
They contain chlorophyll, which makes them green.
They capture light energy from the sun to carry out photosynthesis in the cell.
carbon dioxide + water + energy sugar + oxygen
CO2 + H2O + energy C6H12O6 + O2
chlorophyll
chlorophyll

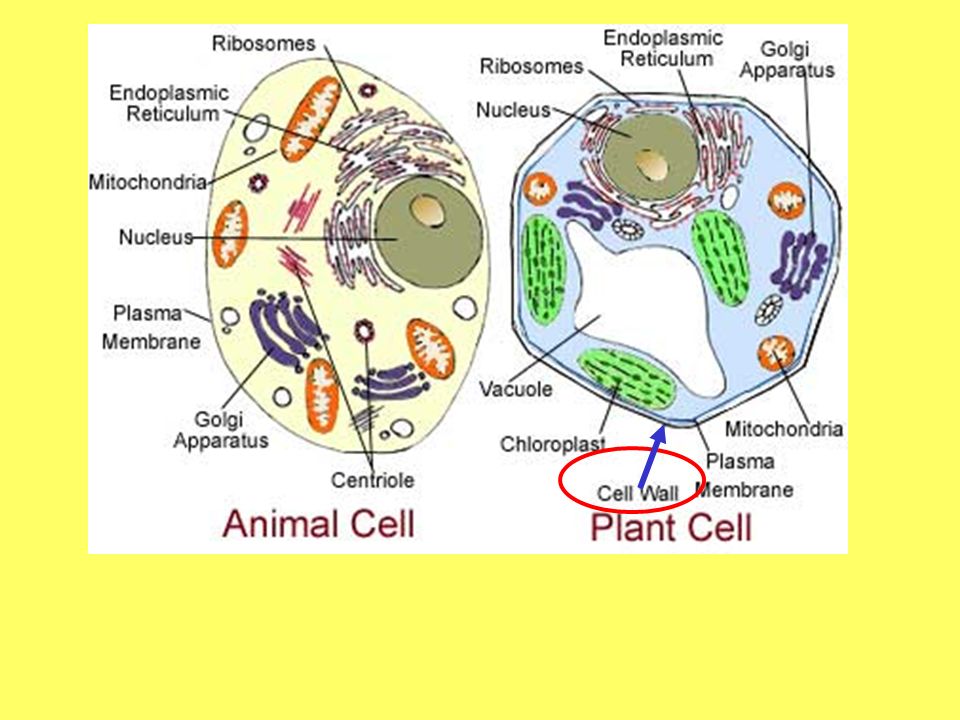

37. The Cell Wall
Protects the cell Makes the cell rigid (found only in plants) Lets water and nutrients pass through (porous) Thicker than cell membranes Made up of cellulose and other materials

38. The Differences Between Animal and Plant Cells
Animal Cells
Plant Cells
Contain centrioles
Don’t contain centrioles
Don’t contain chlorplasts
Contain chloroplasts
Do not have a Cell Wall
Have a Cell Wall
Have more than one small vacuole
Usually have one large central vacuole
Usually smaller than plant cells
Usually larger than animal cells

39. Summary of Cell Organelles
Function
Mitochondria
Energy center or "powerhouse" of the cell. Turns food into useable energy (ATP)
Ribosomes
Make protein
Golgi Apparatus
Processes, packages and secretes proteins
Lysosome
Contains digestive enzymes, breaks things down
Endoplasmic Reticulum
Transport, "intracellular highway"
Vacuole
Stores water or other substances
Chloroplast
Uses sunlight to create food, photosynthesis (only found in plant cells)
Cell Wall
Provides additional support (plant and bacteria cells)
Cell membrane
Gives form to cell and controls materials going into and out of cell
Nucleus
Direct cell activity and forms ribosomes
Centrioles
Organize spindle fibers and assist mitosis
Plastids (like chloroplasts)
Pigment-forming structures providing color.

40. Some other structures found in Cells

41. Cilia (singular cilium)
Thin, tail-like projections coming from the outer surface of the cell. One type is used for propulsion. Another type used for sensing.
Found in protozoa (propulsion) Found in cells lining our trachea (sweep mucus) and ovum (move ovum from ovary to uterus)
cilia
cilia animations

42. Flagella (singular flagellum)
A “whip-like” organelle used to move about. Used by many unicellular organisms mainly. (eg. bacteria)
flagella animations
