1. Android Tablet Diagnostic Tool A700 17.07.2012

2. P2 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Start the Diagnostics Application Please click through installation. Skip the registration.

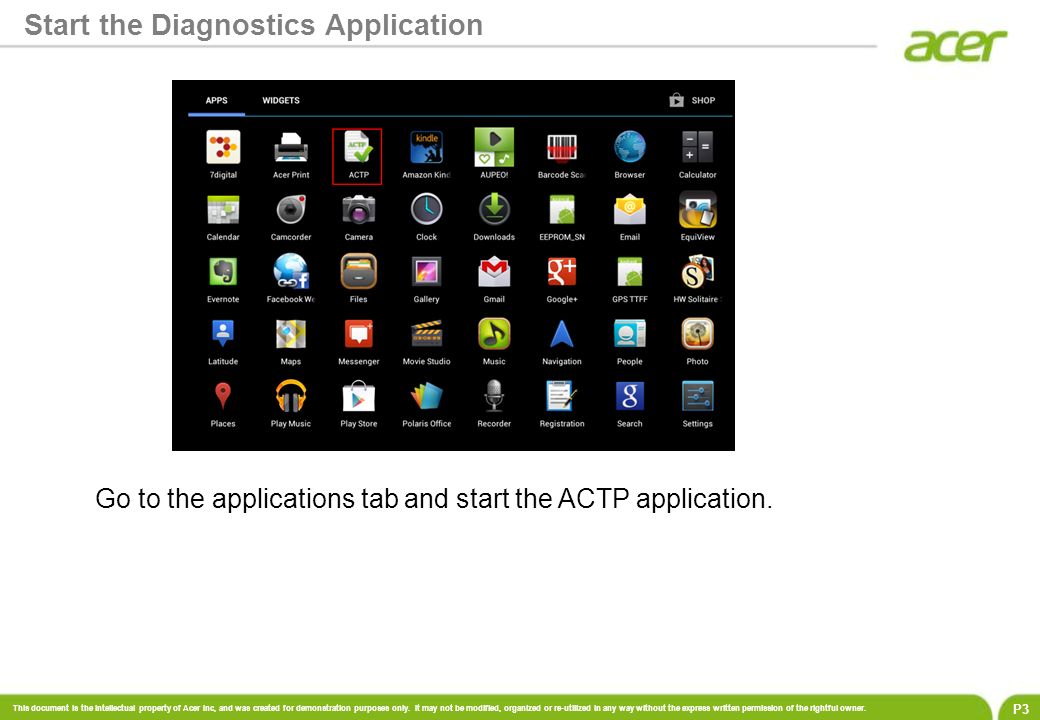

3. P3 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Start the Diagnostics Application Go to the applications tab and start the ACTP application.

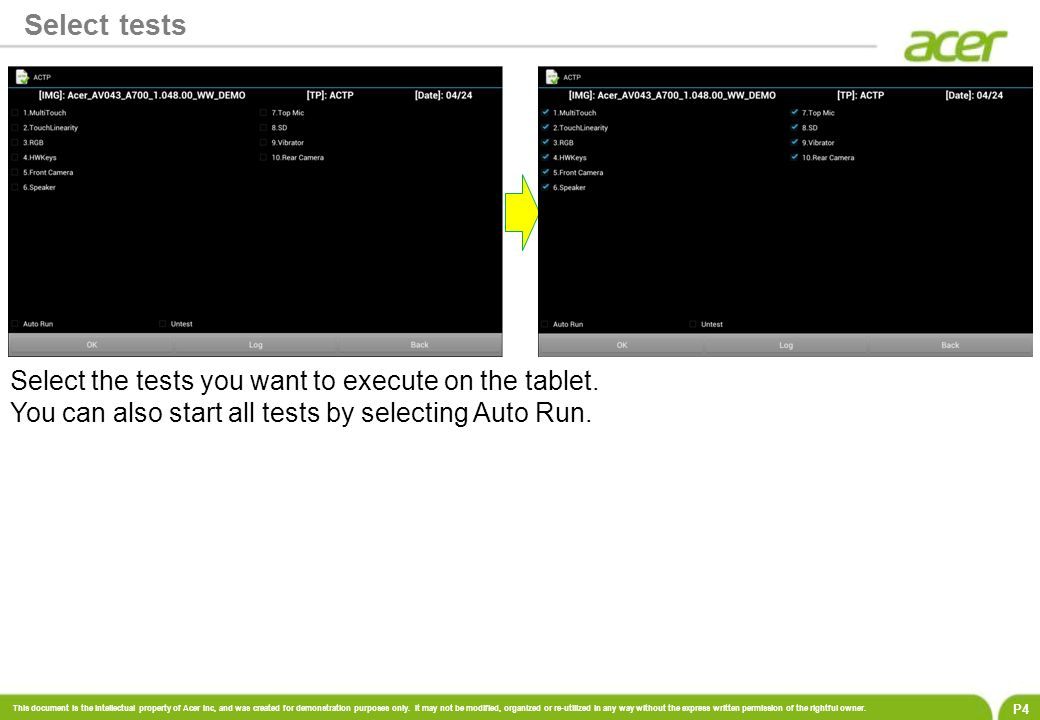

4. P4 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Select tests Select the tests you want to execute on the tablet. You can also start all tests by selecting Auto Run.

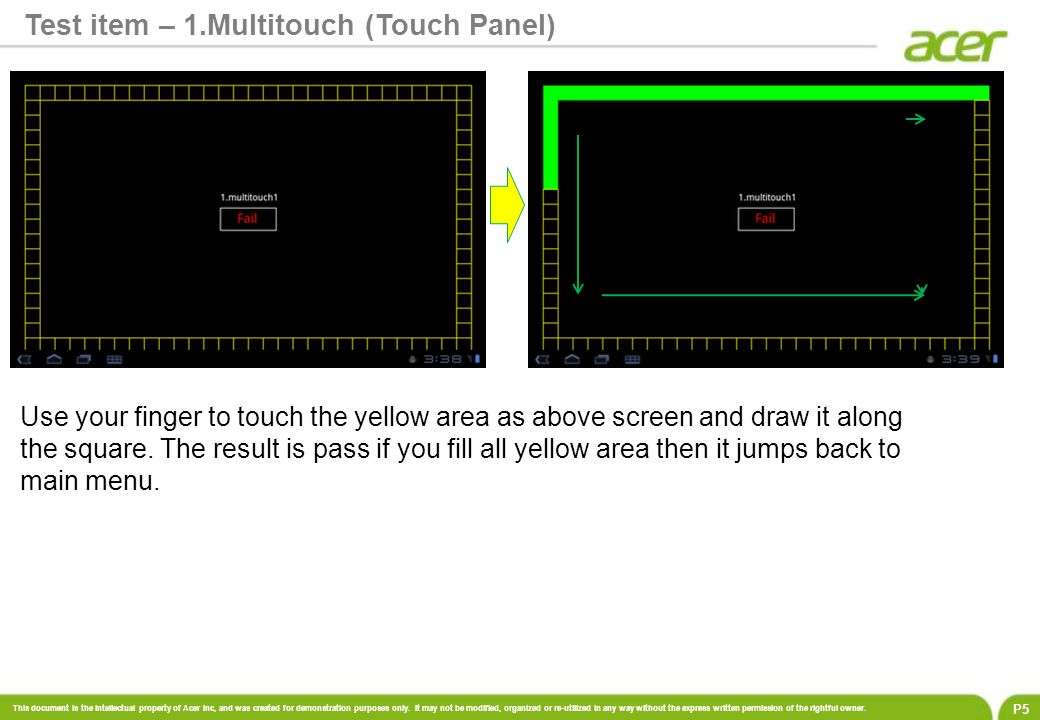

5. P5 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 1.Multitouch (Touch Panel) Use your finger to touch the yellow area as above screen and draw it along the square. The result is pass if you fill all yellow area then it jumps back to main menu.

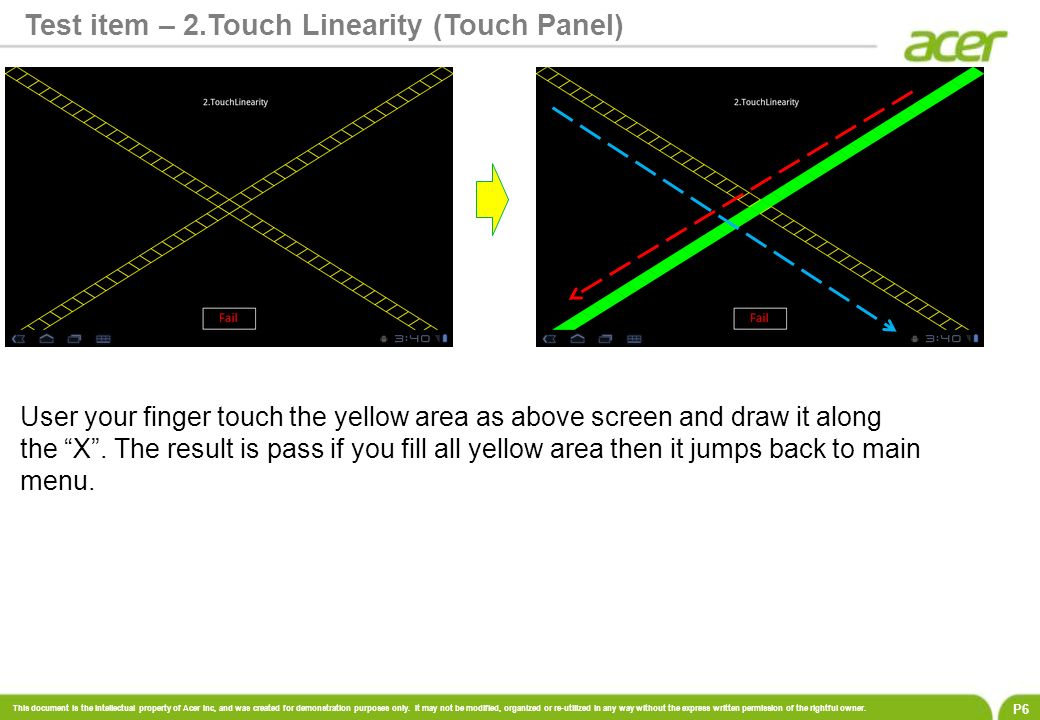

6. P6 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 2.Touch Linearity (Touch Panel) User your finger touch the yellow area as above screen and draw it along the “X”. The result is pass if you fill all yellow area then it jumps back to main menu.

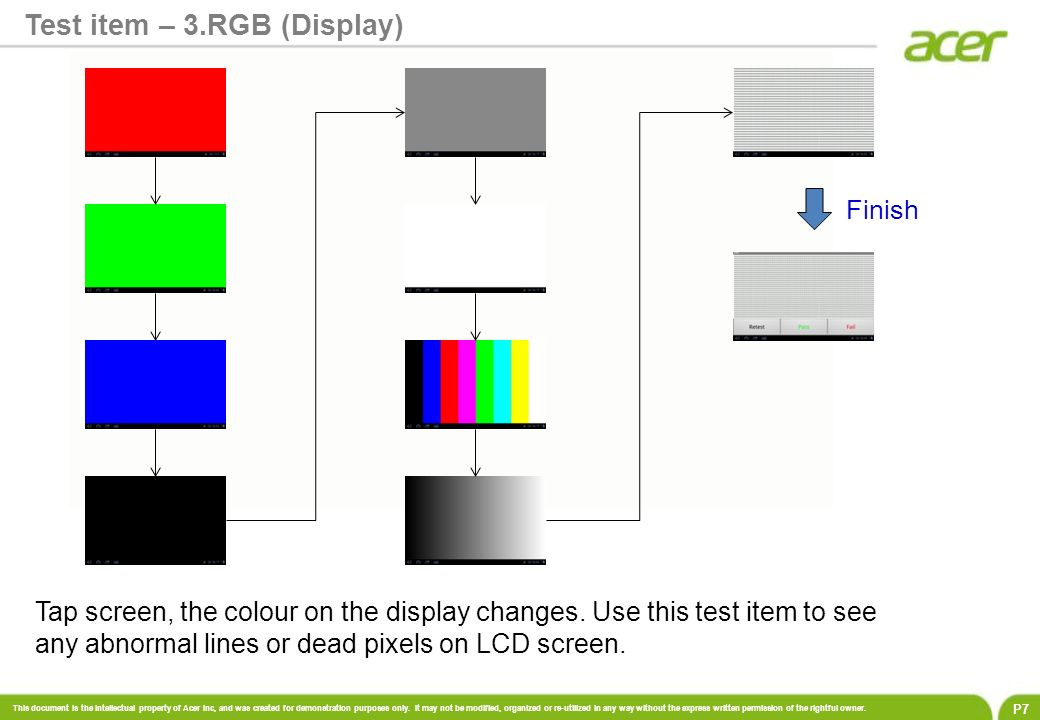

7. P7 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 3.RGB (Display) Tap screen, the colour on the display changes. Use this test item to see any abnormal lines or dead pixels on LCD screen. Finish

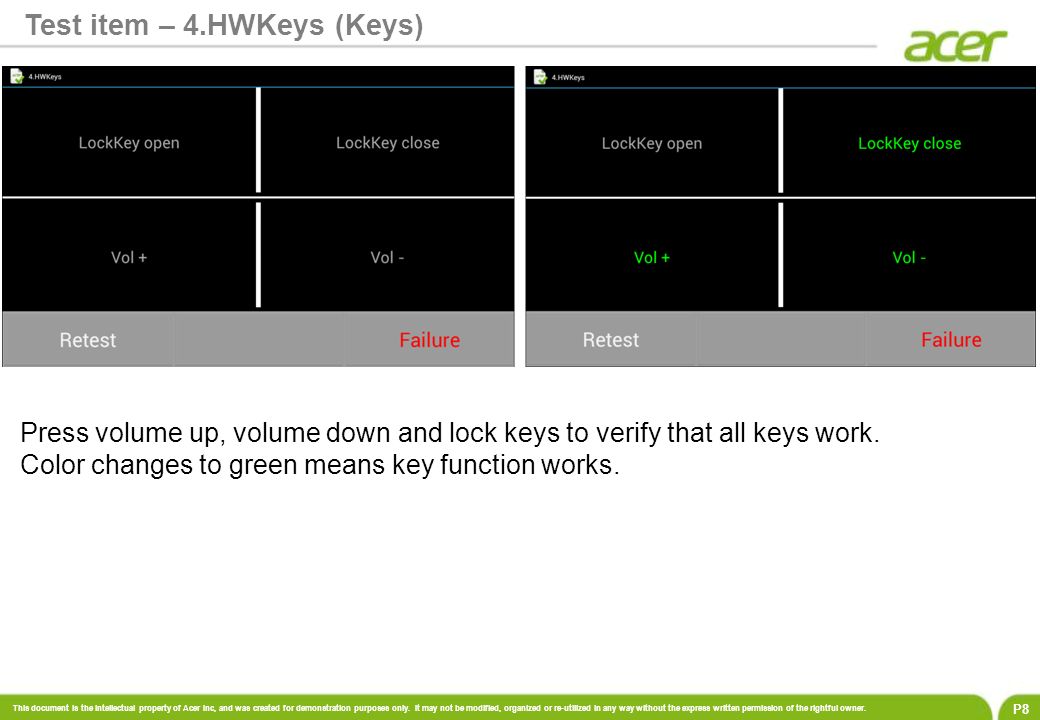

8. P8 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 4.HWKeys (Keys) Press volume up, volume down and lock keys to verify that all keys work. Color changes to green means key function works.

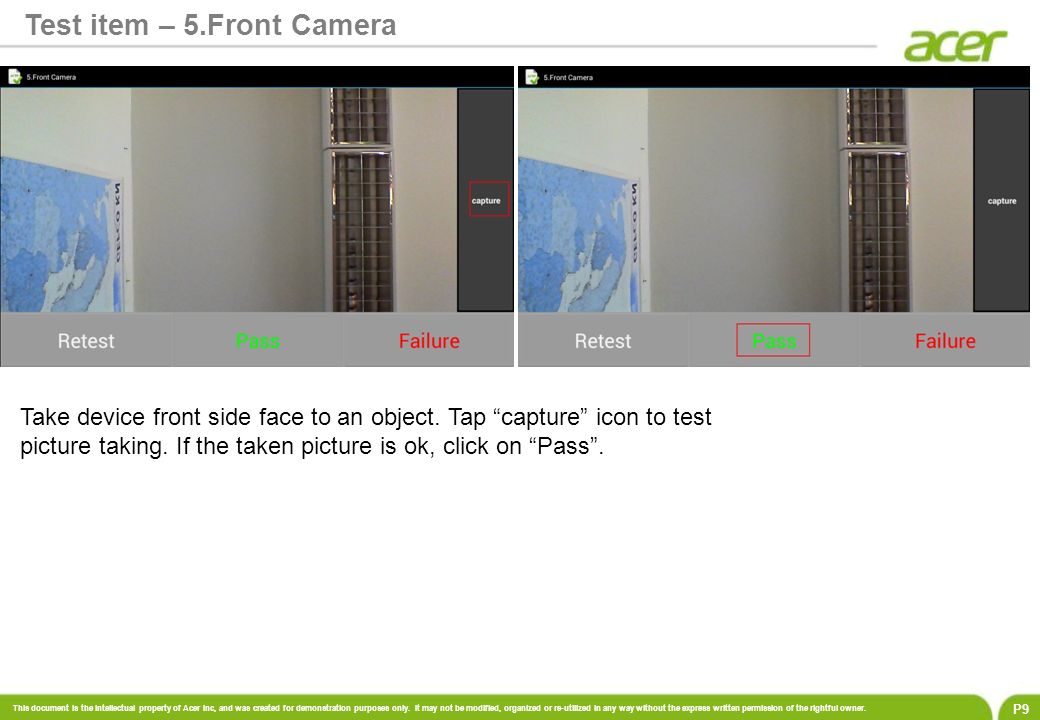

9. P9 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 5.Front Camera Take device front side face to an object. Tap “capture” icon to test picture taking. If the taken picture is ok, click on “Pass”.

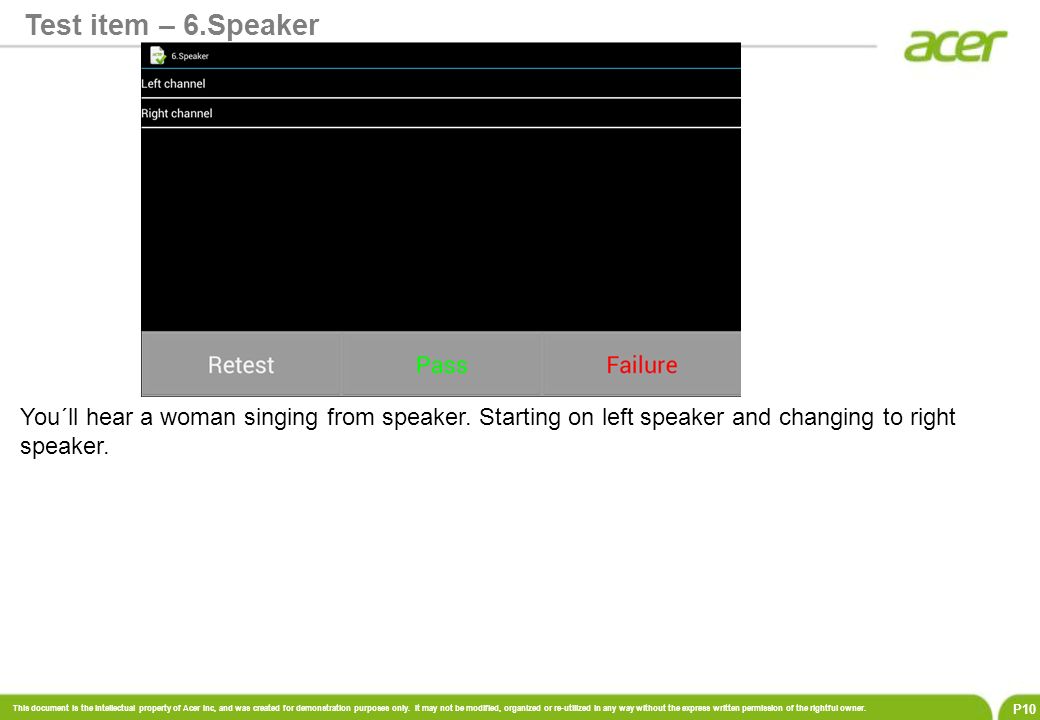

10. P10 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 6.Speaker You´ll hear a woman singing from speaker. Starting on left speaker and changing to right speaker.

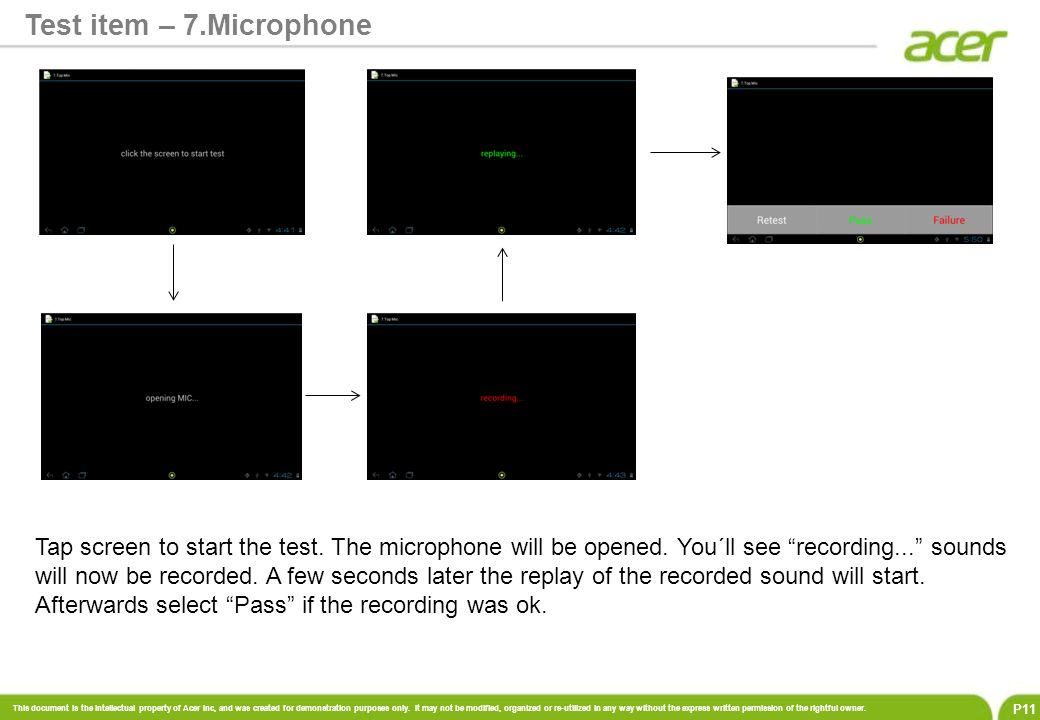

11. P11 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 7.Microphone Tap screen to start the test. The microphone will be opened. You´ll see “recording...” sounds will now be recorded. A few seconds later the replay of the recorded sound will start. Afterwards select “Pass” if the recording was ok.

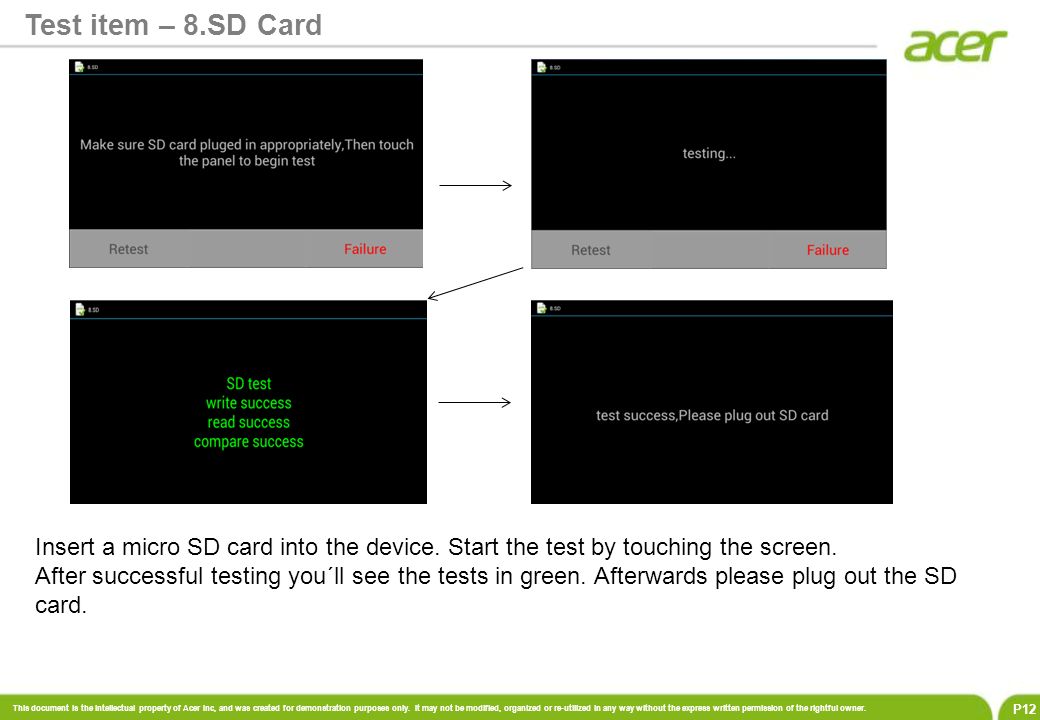

12. P12 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 8.SD Card Insert a micro SD card into the device. Start the test by touching the screen. After successful testing you´ll see the tests in green. Afterwards please plug out the SD card.

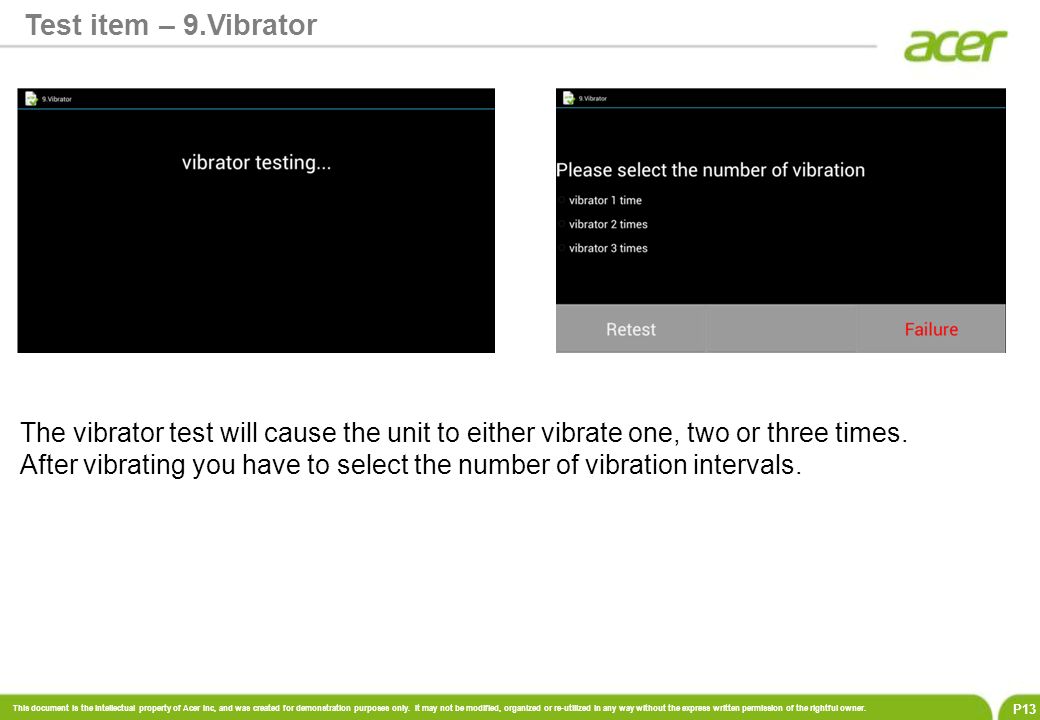

13. P13 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 9.Vibrator The vibrator test will cause the unit to either vibrate one, two or three times. After vibrating you have to select the number of vibration intervals.

14. P14 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test item – 10.Rear Camera To take a picture click on the blue button, afterwards click on “done”. When the taken picture is ok, you can “pass” it in the next step.

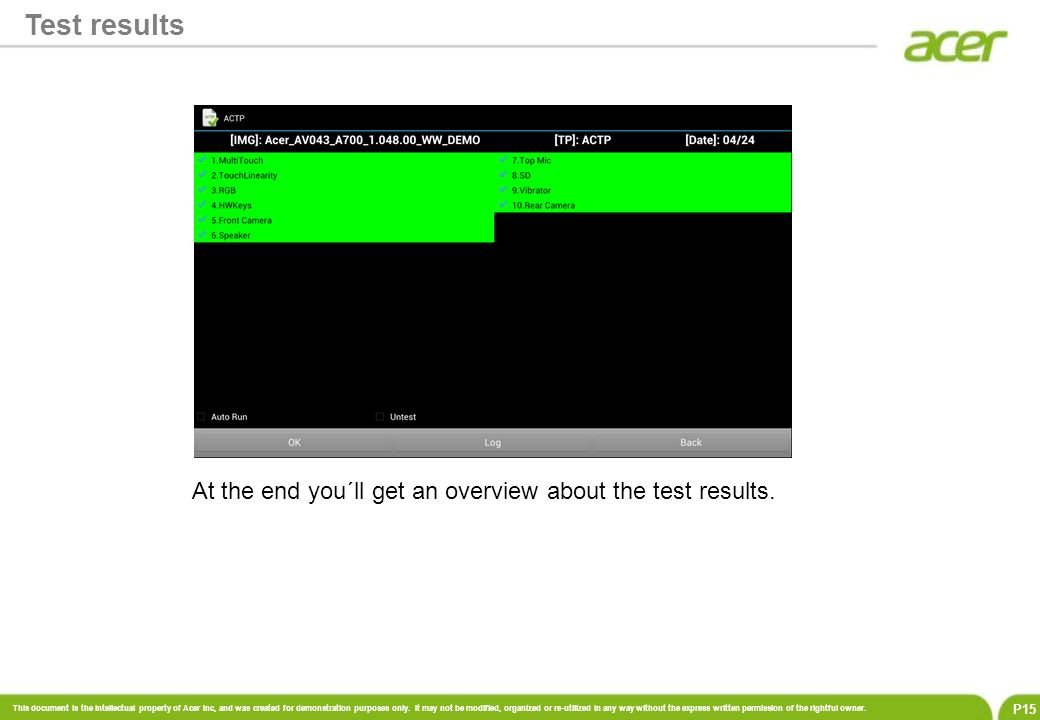

15. P15 This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner. Test results At the end you´ll get an overview about the test results.

16. THANK YOU
