1. AHF 2203 AVIATION HUMAN FACTORS Presentation 5: Hyperventilation and Cabin Pressurization 1

2. Recapitulate Lets recap what we have done last session: – Atmospheric Layer – Variation of pressure and temperature with altitude – Physiological zone of atmosphere – Definition of Hypoxia – Physiological Process of Hypoxia – Types of Hypoxia – Stage of Hypoxia – Sign and symptoms of Hypoxia – Prevention and Correction of Hypoxia – EPT 2

3. Presentation Outline Part 1: Hyperventilation Part 2: Cabin Pressurization 3

4. Learning Outcomes At the end of this session, student should be able to: – Identify and aware of Hyperventilation syndromes and their causes, effects, preventions and medical cure needed especially during flight. – Understand why aircraft cabin need to be pressurized especially at higher altitude. 4

5. Part 1: Hyperventilation 5

6. How do you breathing? Why do you breathing? What gases do you consume during breathing? What happen if you are stopped breathing? Which one comfortable for you: Slow breathing? Rapid breathing? 6

7. 7 What is Breathing???

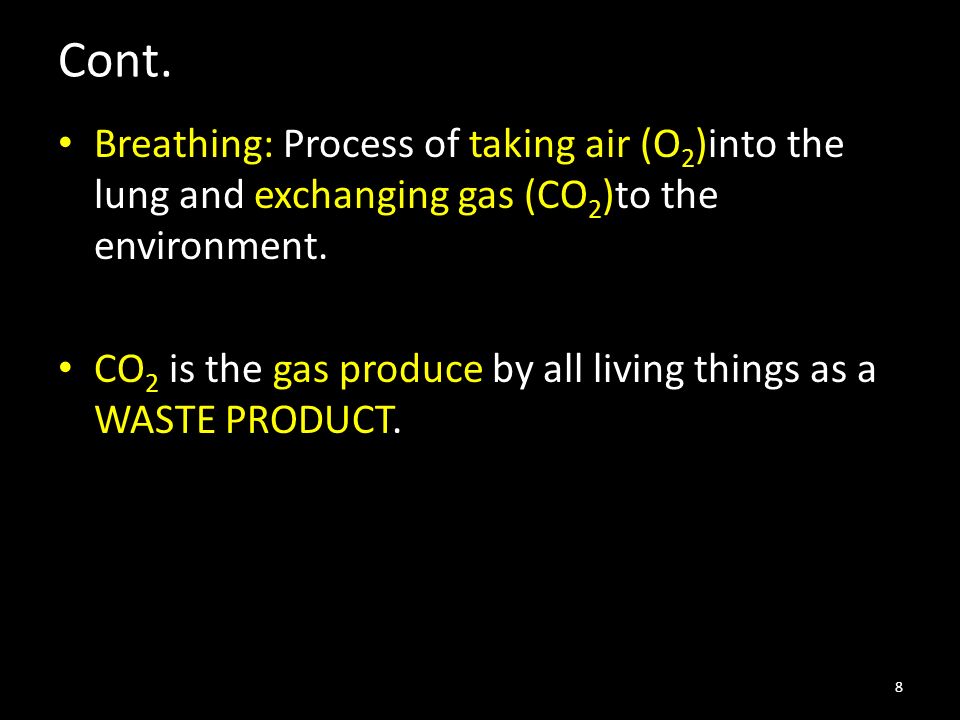

8. Cont. Breathing: Process of taking air (O 2 )into the lung and exchanging gas (CO 2 )to the environment. CO 2 is the gas produce by all living things as a WASTE PRODUCT. 8

9. It is important for maintaining chemical balance in the body and control our breathing. Access CO 2 is eliminated by the lung during isolation (separation). However, some amount of CO 2 must remain in the body – to maintain chemical balance in the body. 9 Cont.

10. The concentration of gases in the body controlled by BRAIN. Average adult breathing cycle: 12-16 breath per minute. Rate of breathing can be rapid/slow down. 10 Cont.

11. What happen to your breathing (slow/fast) when your get into emotional problem (angry/stress/anxiety/panic)?? 11 Cont.

12. Hyperventilation Hyperventilation (overbreathing) can be defineed as excessive rate and depth of respiration leading to abnormal loss of CO2 from the blood. It causes the excessive loss of CO 2 from the blood. This results to degrade the chemical balance in the blood 12

13. The brain will react by restricting the blood flow. By this restriction, the blood flow to the brain cause (result of Hyperventilation): – Poor judgment – Impaired memory – Performance impairment – Late of reaction time – Muscle coordination. 13 Cont.

14. If this chemical imbalance continue (not quickly cured) it might result: UNCONCIOUSNESS!!! With the breath held the carbon dioxide levels build up once more and the symptoms disappear in reverse order. 14 Cont.

15. Hyperventilation Process Increase in rate and depth of breathing Excessive loss of CO2Chemical Imbalance Brain restrict the blood flow Unconsciousness (if chemical imbalance continue) 15 Imagine if the unconsciousness happens to the PILOT??

16. Hyperventilation rarely painful. Many symptoms and sign are similar to hypoxia. So this is the difficulty to recognize Hyperventilation. 16 Cont.

17. Difference between Hypoxia and Hyperventilation Hyperventilation – Skin may look pale. – As we ascend, it can occur slowly and gradually over time. – Muscle activity might becomes spastic Hypoxia – Skin may look blue (cyanosis). – Can occur rapidly. – Muscle soft and limp with little or no activity. 17

18. To help differentiate between Hyperventilation and Hypoxia please monitor this element: – Flight attitude – Cabin altitude (if pressurized) – Oxygen system (if in use) – Emotional state – Awareness of your current flight environment. 18 Cont.

19. Hyperventilation and Hypoxia can occur simultaneously. This making it difficult to diagnose (analyze) the problem. 19 Cont.

20. Relation between Hypoxia and Hyperventilation Hypoxia: lack of oxygen in blood Body attempt to circulate more oxygen. Increase heart and respiratory rate Tend to breath rapidly caused Hyperventilation 20

21. Causes of Hyperventilation Main cause of Hyperventilation is EMOTIONAL PROBLEM What is emotional problem? Please give the example of emotional problem? 21

22. 22 Emotional Problem AnxietyFearAngerPanicStress Cont.

23. Other causes of Hyperventilation that not caused by emotional problem: – Pain – Bleeding – Cardiac disease, such as congestive heart failure (abnormal collection of blood) or heart attack – Drugs (such as an aspirin overdose) – Respiratory disease: Infection such as pneumonia (infection of one or both lungs which is usually caused by bacteria, viruses, or fungi) or sepsis (toxins in the blood or tissues) – Lung disease such as asthma, – Pregnancy 23 Cont.

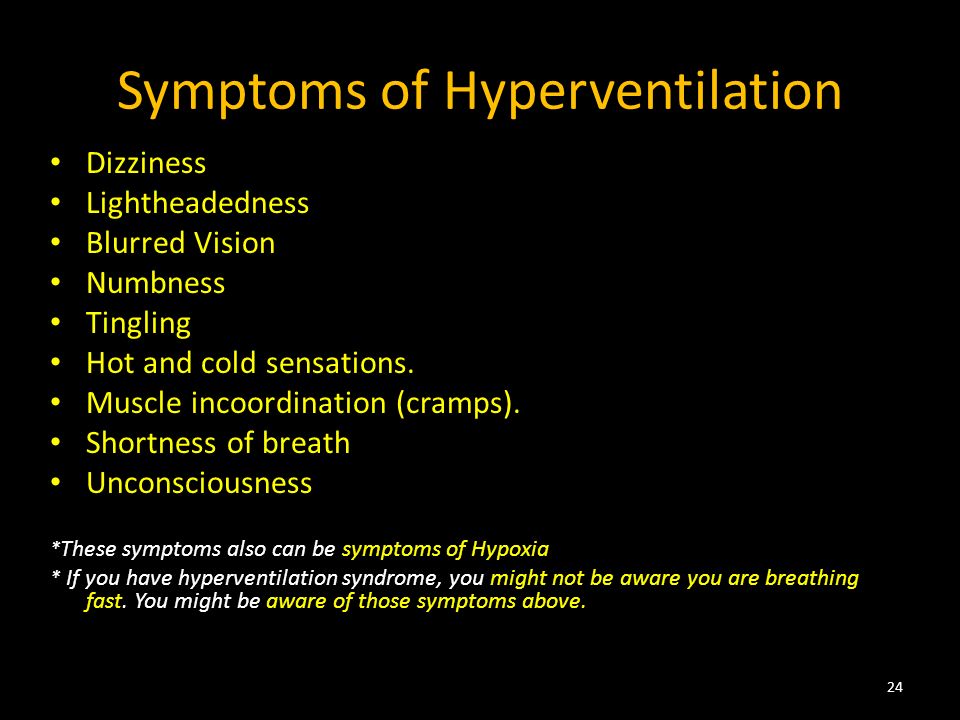

24. Symptoms of Hyperventilation Dizziness Lightheadedness Blurred Vision Numbness Tingling Hot and cold sensations. Muscle incoordination (cramps). Shortness of breath Unconsciousness * These symptoms also can be symptoms of Hypoxia * If you have hyperventilation syndrome, you might not be aware you are breathing fast. You might be aware of those symptoms above. 24

25. Prevention of Hyperventilation Monitor your rate and depth of breathing. Learn to recognize stressors that would cause you to over breath. Avoid panic. 25

26. Treatment of Hyperventilation FAA Checklist (usually when occur simultaneously with hypoxia): – Wear Oxygen Mask – Check the oxygen regulator is turned on – Check all connection are secure – Slow down your breathing rate and depth – Descend to suitable altitude (10000 ft and below) 26

27. Other treatment: – Best method is to voluntarily reduce rate of breathing (Normal rate is 12-16 breaths per minute) – Go to 100% O 2 (if available) – Talk or sing (to increase CO 2 level) – Breathing into a bag. 27 Cont.

28. Part 2: Cabin Pressurization 28

29. Pressure is decrease when altitude is increase. Outside pressure (atmospheric pressure) could be harmful in the high altitude to human body. So to maintain pressurization in the cabin at high altitude is important. 29 Cont.

30. is the active pumping of compressed into an. Cabin pressurization is the active pumping of compressed air into an aircraft cabin. The purpose of these systems is to provide a safe and comfortable cabin environment, and to protect all cabin occupants from the physiological risks of high altitudes (e.g. hypoxia, decompression sickness). The purpose of these systems is to provide a safe and comfortable cabin environment, and to protect all cabin occupants from the physiological risks of high altitudes (e.g. hypoxia, decompression sickness). 30 Cont. What is Cabin Pressurization?

31. It involves simultaneous control on: It involves simultaneous control on: – Temperature – Humidity – Air Circulation – Cabin Pressure Pressurization is essential above 10,000 feet Pressurization is essential above 10,000 feet 31 Cont.

32. Most pressurize aircraft today cruise at altitude of 25000 ft - 51000 ft while keeping cabin at comfortable pressurize altitude as in 6500 ft - 8000 ft. 32 Cont.

33. How Cabin Pressurization Works?? 33

34. Basic Mechanic of Cabin Pressurization System 34 Cont.

35. Outside air continuously enters engine. Outside air continuously enters engine. Air is compressed by the compressor in the engine and then passes through cooling packs. Air is compressed by the compressor in the engine and then passes through cooling packs. Cool outside air goes into mixing chamber and mixed with re-circulated air from the tanks. Cool outside air goes into mixing chamber and mixed with re-circulated air from the tanks. Air from mixing chamber then continuously supplied to the cabin. Air from mixing chamber then continuously supplied to the cabin. Outflow valve then control the air flow by open and close the valve to maintain the suitable pressure. Outflow valve then control the air flow by open and close the valve to maintain the suitable pressure. Cont. 35

36. Cont. 36

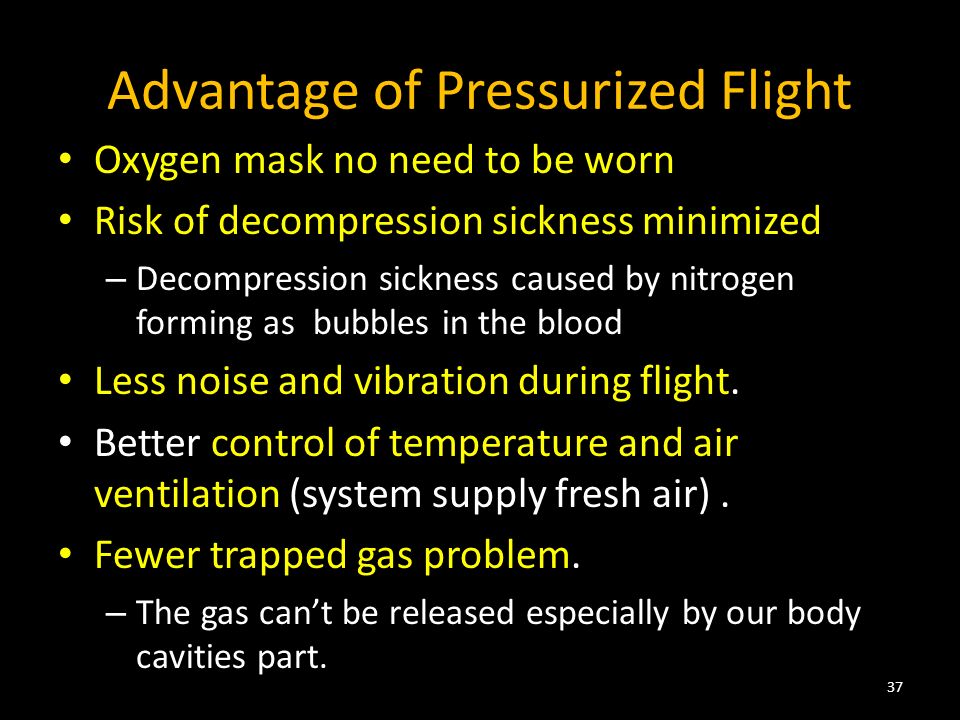

37. Advantage of Pressurized Flight Oxygen mask no need to be worn Risk of decompression sickness minimized – Decompression sickness caused by nitrogen forming as bubbles in the blood Less noise and vibration during flight. Better control of temperature and air ventilation (system supply fresh air). Fewer trapped gas problem. – The gas can’t be released especially by our body cavities part. 37

38. Disadvantages of Pressurized flight Always a chance of DECOMPRESSION. 38

39. What is Decompression?? Decompression means aircraft loss of cabin pressurization. It can occur because cabin pressurization system not functioning well, the damage to the aircraft that causes a break in the aircraft structure which enabling cabin air to escape outside the aircraft 39 Cont.

40. THREE major types of decompression: – Slow Decompression – Rapid Decompression – Explosive Decompression 40 Vary with TIME! Cont.

41. Slow Decompression When the cabin loss pressure greater than 10 seconds. It happens in case of a small air leak. Potential to be most dangerous types of decompression when unaware cabin altitude is going up (since it happen very slow). 41 Cont.

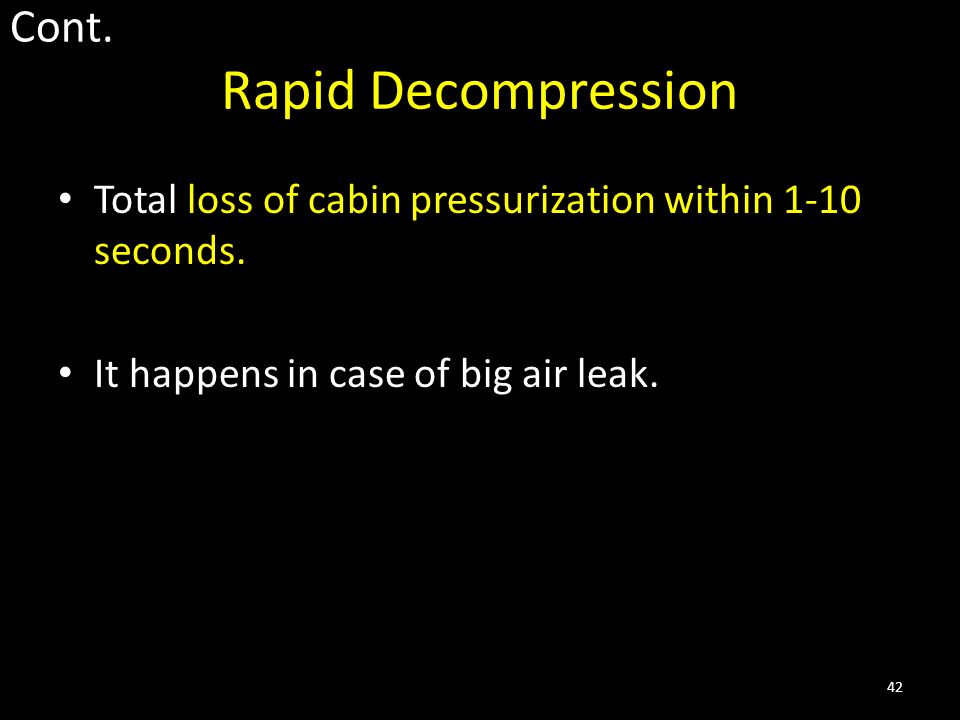

42. Rapid Decompression Total loss of cabin pressurization within 1-10 seconds. It happens in case of big air leak. 42 Cont.

43. Explosive Decompression When cabin pressurization loss in less than 1 second!!! This rapid change can occur faster than our lungs can decompress. Lung damage possible to occur. It happens in case of big air leak. 43 Cont.

44. Qantas Flight Decompression, Big Hole in the Fuselage Cont.

45. Size of cabin – the larger the cabin, the longer the decompression time (slower decompression) Size of the opening (air leak) – the larger the opening, the faster the decompression time. 45 Factors Affecting Severity and Times of Decompression

46. Differential ratio – the greater the pressure differential between the cabin pressure and the external environmental pressure, the more forceful the decompression. Flight altitude – higher altitudes create greater threats for physiological consequences (see *Time of useful Consciousness (TUC)) * TUC also known as Effective Performance Time (EPT). 46 Cont.

47. TUC or EPT is the period of time that a pilot has from the time oxygen become less available until the time when he or she loses the ability to recognize and take action If someone goes beyond TUC, then he or she isn’t even aware of the problem and will not take corrective action The keyword is EFFECTIVE or USEFUL (He or she might be conscious but not making expected useful or effective decision). TUC decrease as altitude increases. 47 Cont. Times of Consciousness Times of Useful Consciousness

48. 48 AltitudeConscious time 200005 – 12 minutes 250002 – 3 minutes 3000045 – 75 seconds 3500030 – 60 seconds 4000010 – 30 seconds 4500012 – 15 seconds 50000+12 or less seconds Cont.

49. Effects of Decompression Physical effects : – Noise: Noise from decompression can increasing to very loud explosive sound. Communication can be disturbed. – Fog: Form when decreasing in temperature and pressure associated with decompression Effect visual problem – Flying Debris (dust/dirt) Dust and dirt cause visual problem. – Cooler Temperature Pressure or air departs the cabin Hypothermia (abnormal body temperature) can occur.

50. Physiological effect: – Trapped Gas The gas can’t be released especially by our body cavities (hole) part (e.g. middle ear, teeth etc.) Certain gases that will expand with decreasing in pressure – Decompression sickness Occur due to nitrogen in the body coming out as solution and forming bubble. – Hypothermia Cause by cooler temperature at high altitude Cont.

51. – Hypoxia Caused by rapid decreasing in partial pressure of oxygen Lead to deficiency of oxygen in blood – Hyperventilation The emergency could increase rate and depth of breathing causing hyperventilation. Cont. 51

52. Oxygen Systems Portable Oxygen Cylinders Oxygen cylinders are located throughout the cabin. The number and location of the oxygen cylinders varies, depending on the aircraft cabin configuration. 52

53. Conclusion Hyperventilation: rapid rate of respiration that may lead to the excessive loss of carbon dioxide from the lung. Cabin pressurization is a convenience mean in control the some of the hazard for human body in high altitude flight. 53

54. Key Points Definition of Hyperventilation Hyperventilation process Causes of Hyperventilation Symptoms of Hyperventilation Preventions of Hyperventilation Treatments of Hyperventilation What is Cabin Pressurization? Purpose of Cabin Pressurization How Cabin Pressurization Works? Advantage of Pressurized Flight Definition of Decompression Types of Decompression Factors affecting Decompression’s time and severity. Effects of Decompression. 54

55. End of Presentation #5 5 Minutes for Q/A session 55

56. Quiz 1 Define physiology and flight physiology Give 3 main component in human body system State the main function of brain, lung and heart. What is the variation of pressure and temperature with altitude? Name TWO physiological zones in atmosphere. Define Hypoxia Duration: 30 minutes 56
