1. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 MINOLTA-QMS presents...

2. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 Color Laser All specifications are subject to change without notice.

3. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Best value, high-performance, high-quality, 11" x 17 " /A3 network color laser printer matching the industry leading ease of use standard set by the magicolor 2

4. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100  Targeted towards general business market [ Primary applications Office documents Desktop publishing  Secondary markets Graphics design & Pre-press proofing Engineering & Scientific Market Positioning

5. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 6100 Model Differences All prices in U.S. dollars. Price Resolution RAM Internal Disk Auto Duplex Paper Input 6100 N $4,299 600 dpi 64 MB Optional 250 sheets 6100 GN $5,299 1200 dpi 192 MB Optional 250 sheets 6100 DP $7,899 1200 dpi 384 MB Standard 1,250 sheets 6100 EN $5,999 1200 dpi 192 MB Standard Optional 250 sheets

6. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 - $4,299 - $7,899 - 6/24 ppm - 600 - 1200 dpi magicolor 2 DL - $1,499 - 4/16 ppm - 600 dpi magicolor 2 DL Duplex - $1,699 - 4/16 ppm - 600 dpi Small Business All prices in US Dollars. Prices subject change without notice. magicolor 330 - $5,899 - 4/16 ppm - 600 - 1200 dpi Graphics magicolor 2 - 4/16 ppm - 600 - 2400 dpi magicolor 2 + - $2,646 - $3,608 - 4/16 ppm - 600 - 2400 dpi Mid-Large Corp. 19981999 Color Laser Family 2000

7. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Target Markets Entry-level color laser printer for small to medium networked business workgroups magicolor 6100N

8. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100GN Target Markets Includes 1200 dpi resolution for desktop publishing and general business applications

9. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Target Markets Equipped with 1200 dpi resolution, hard disk, and added paper handling (DP model only) for large workgroups and higher-volume business applications magicolor 6100EN/DP

10. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 in the Office [ Higher maximum duty cycle [ Higher consumables life [ Automatic duplex [ Smaller footprint

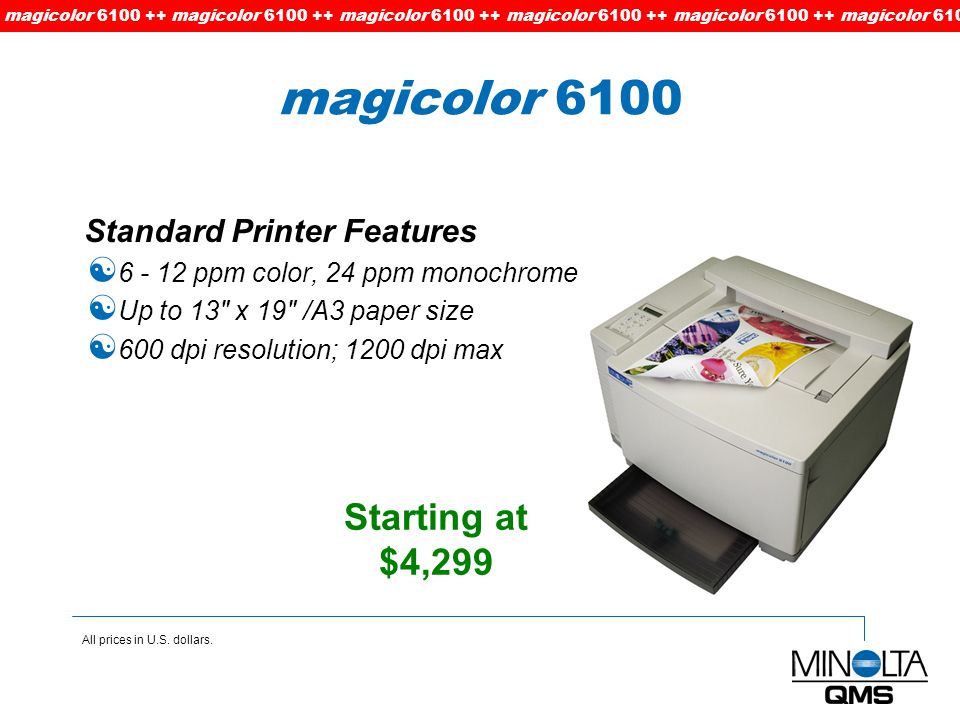

11. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 Standard Printer Features [ 6 - 12 ppm color, 24 ppm monochrome [ Up to 13" x 19" /A3 paper size [ 600 dpi resolution; 1200 dpi max All prices in U.S. dollars. Starting at $4,299

12. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 Standard Printer Features [ PostScript ®, PDF and PCL ® 6 emulations [ 137 printer-resident typefaces (PostScript Level 3 compatible) with Euro character support [ 10/100BaseTX Ethernet ®, IEEE 1284 parallel, serial All prices in U.S. dollars. Starting at $4,299

13. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 Standard Printer Features [ 64-bit, 200 MHz RISC-based controller [ 64 MB SDRAM; 384 MB max [ 250-sheet input; 1250-sheet max All prices in U.S. dollars. Starting at $4,299

14. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ Weight: 119 lbs. (54kg) [ Duty Cycle: Up to 75,000ppm [ Input: 1,250 sheet max (3 bins) [ Output: 250 sheets [ Warranty: One year on-site (U.S) [ Energy Star compliant Print Engine

15. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 13" 19" Letter/A4 Paper Handling [ Letter, A4, Legal, Ledger, A3, 13" x 19” [ 250-sheet standard cassette supports up to 13" x 19”/A3 oversized paper

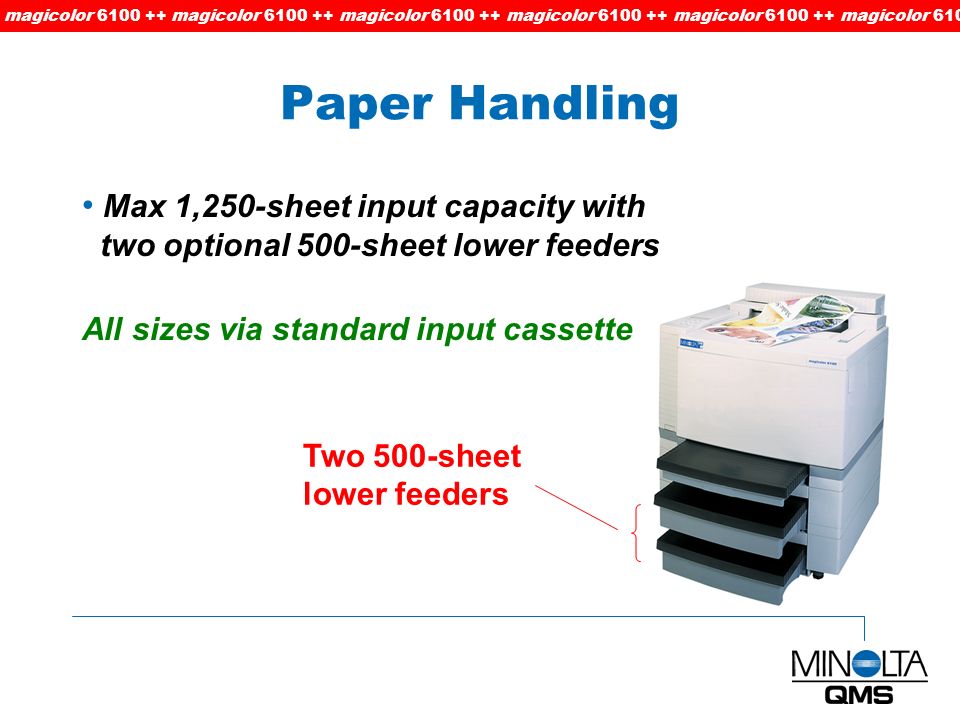

16. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Two 500-sheet lower feeders Max 1,250-sheet input capacity with two optional 500-sheet lower feeders All sizes via standard input cassette Paper Handling

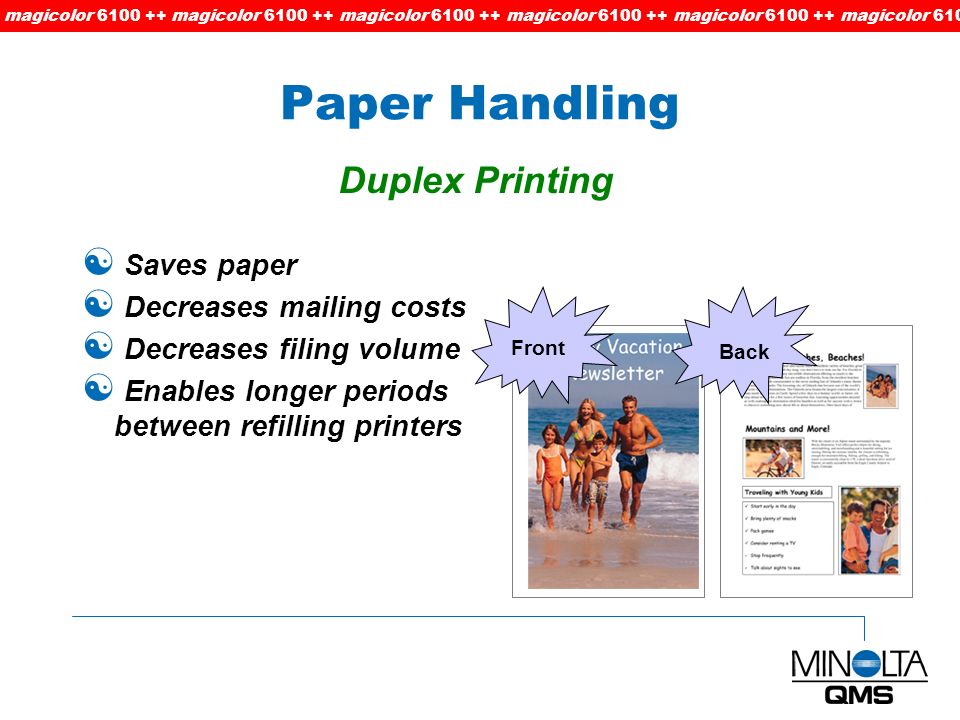

17. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Duplex Printing Paper Handling [ Saves paper [ Decreases mailing costs [ Decreases filing volume [ Enables longer periods between refilling printers Front Back

18. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Media Types [ Plain paper: 16 to 24 lb. Bond [ Thick paper: up to 60 lb. Cover or 90 lb. Index stock via standard input cassette [ Generic transparencies with automatic detection [ Glossy stock [ Pressure sensitive labels and envelopes All media types supported via standard cassette

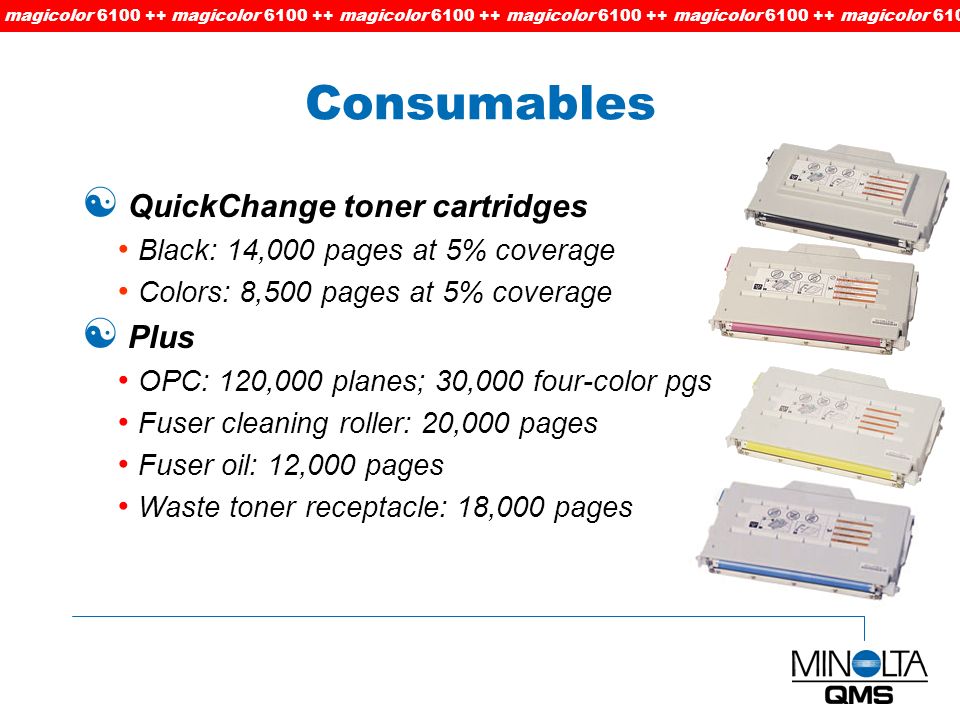

19. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ QuickChange toner cartridges Black: 14,000 pages at 5% coverage Colors: 8,500 pages at 5% coverage [ Plus OPC: 120,000 planes; 30,000 four-color pgs Fuser cleaning roller: 20,000 pages Fuser oil: 12,000 pages Waste toner receptacle: 18,000 pages Consumables

20. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ Approximately 2¢ U.S./ 1.75¢ Euro for 5% black page coverage at list price  Approximately 9.5¢ U.S./ 10¢ Euro for 20% color page coverage at list price Based on simplex letter/A4 size page/U.S. prices. Prices subject to change without notice. Cost Per Page

21. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Controller: Crown architecture Processor: 200 MHz IDT RC64474 [ Multitasking system [ Simultaneous interfacing [ Standard Multiple Languages with ESP Controller

22. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ Virtual memory print system [ Error recovery feature [ Soft Loadable System Controller: Crown architecture Processor: 200 MHz IDT RC64474 Controller

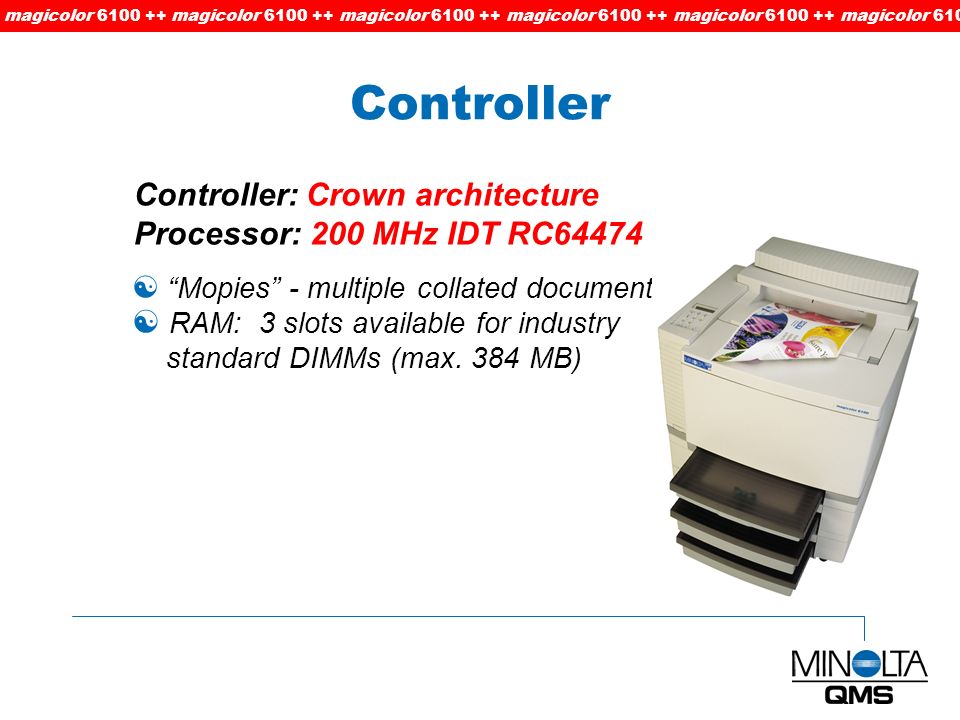

23. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Controller: Crown architecture Processor: 200 MHz IDT RC64474  “Mopies” - multiple collated documents [ RAM: 3 slots available for industry standard DIMMs (max. 384 MB) Controller

24. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Standard [ 10/100BaseTX Ethernet [ Parallel [ Serial Ethernet supports NetWare ® IPX/SPX, TCP/IP, EtherTalk ®, LAN Manager/LAN Server, NetBEUI/NetBIOS, OS/2 ® Simultaneous Interfaces

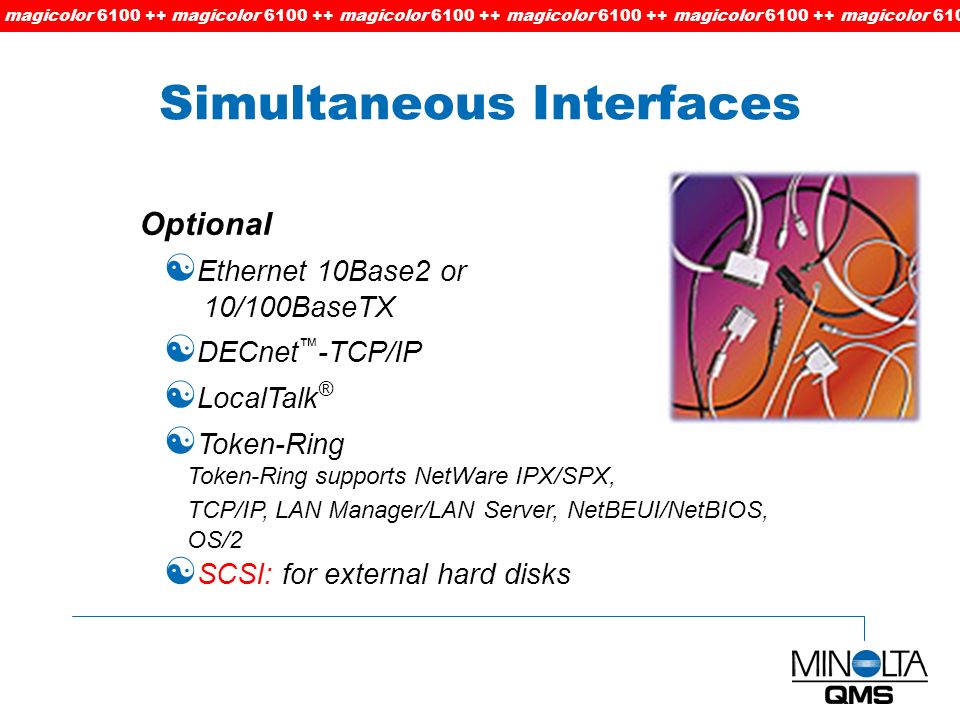

25. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Optional [ Ethernet 10Base2 or 10/100BaseTX [ DECnet ™ -TCP/IP [ LocalTalk ® [ Token-Ring Token-Ring supports NetWare IPX/SPX, TCP/IP, LAN Manager/LAN Server, NetBEUI/NetBIOS, OS/2 [ SCSI: for external hard disks Simultaneous Interfaces

26. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Standard [ PostScript Level 2 [ PCL 6 (PCL 5c, 5e, and XL emulations) [ PDF [ HP-GL ® 7475A/7550/Draftmaster [ Line printer Language Support

27. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Language Support Optional [ LN03+ [ CGM [ ImageServer (CCITT, TIFF, CALS)

28. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Direct printing of files via Web interface Productivity Tools PDF emulation 137 printer-resident typefaces (PostScript Level 3 compatible) with Euro character

29. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Productivity Tools SNMP trap job complete notification Job Proof then Print

30. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Management Tools CrownAdmin 3 Allows system administrators to remotely install, configure, and manage printer operations over LANs and WANs

31. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ Users view printer status and monitor print jobs remotely from any Web browser [ Direct printing of files [ Accounting file retrieval [ Gas gauges for supplies [ Sends email when a printer offline condition occurs CrownView Printer Management

32. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ Print Monitors for Win 95/98/NT route jobs directly from host to printer via TCP/IP [ The utility offers job completion notification [ Auto-Discovery feature searches and lists all MINOLTA-QMS printers on the network, enabling users to quickly view and select a printer Printer Management Serverless Printing

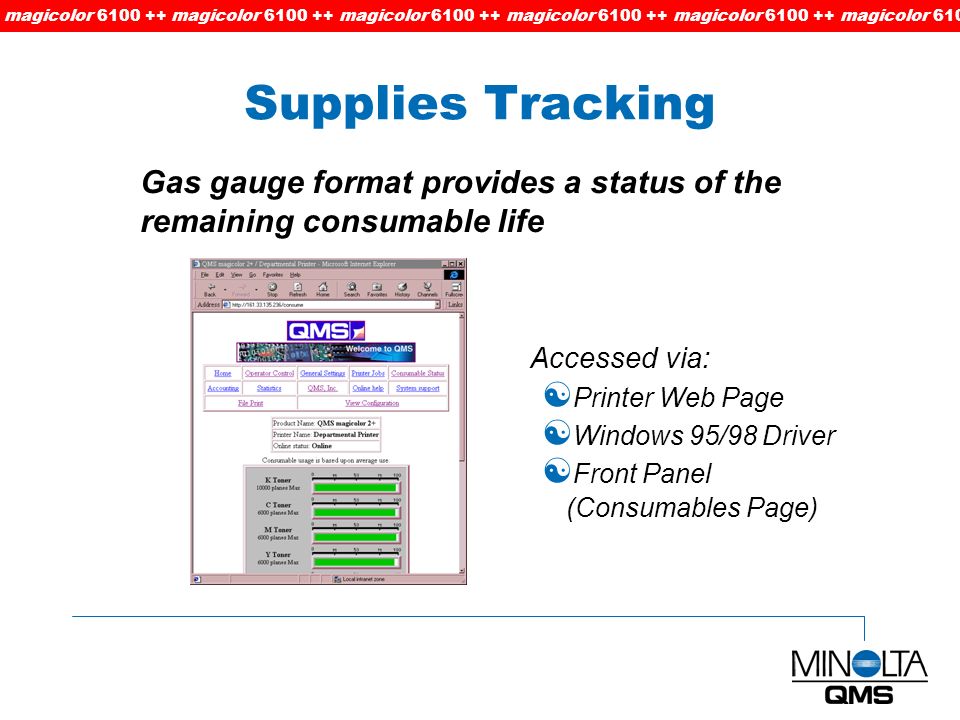

33. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Gas gauge format provides a status of the remaining consumable life Accessed via: [ Printer Web Page [ Windows 95/98 Driver [ Front Panel (Consumables Page) Supplies Tracking

34. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ Monitors and records printer and supplies usage data [ Important for printer resource allocation and cross- department billing  Saved data can be retrieved by CrownView or Crown Printer Auditor Job Accounting

35. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Color Management QCOLOR Automatic Color Correction [ Built-in ICC-compliant color management system [ sRGB color space for easy WYSIWYG printing ü SWOP, Euroscale, and Commercial press color simulations Custom color matching using downloaded ICC profiles

36. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Profiles and Calibration [ Windows ® ICM and Apple ® ColorSync compatible [ Colorific monitor calibration software [ Built-in calibration page [ Color Encore printer calibration software (optional) [ PANTONE ® simulation tables Color Management

37. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 [ DHCP/WINS Support [ Email notification of job completion [ RFC1759 Compliant Printer MIB Smart, powerful, and easy More Tools

38. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 QMS magicolor 6100 1200 dpi (standard on GN/EN/DP) Internal HDD (standard on EN/DP) Time-of-day clock (standard on EN/DP) 1 cassette, 500-sheet lower feeder (max of 2, standard on DP) Automatic duplex unit (standard on DP) SC-200 copier/scanner Printer stand (standard on DP) Token-Ring, DECnet, and LocalTalk interfaces Options Check List

39. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Options Check List SCSI interface for external disks Memory expansion DIMMs (32, 64, 128 MB) Color Encore color calibration kit Kanji fonts - optional internal IDE hard disk for 7 typefaces Security Key BuzzBox printer error warning system LN03+, CGM, ImageServer emulations QMS magicolor 6100

40. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 Transforms the magicolor 6100 into a convenient copier SC-200 Digital Copier/Scanner [ User-friendly design [ One-button copy capability [ Easy-to-read keypad features copy quality and copy count selections [ Scan color or grayscale at up to 600 dpi [ Reduce or enlarge scanned images [ Output images on any printer-supported page size

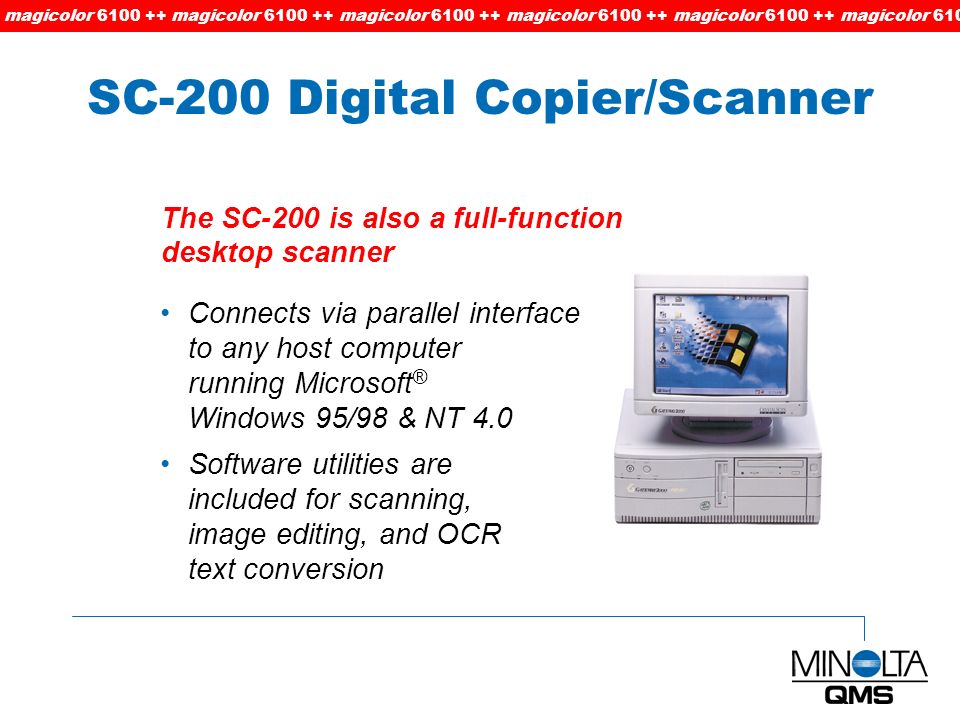

41. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 SC-200 Digital Copier/Scanner The SC-200 is also a full-function desktop scanner Connects via parallel interface to any host computer running Microsoft ® Windows 95/98 & NT 4.0 Software utilities are included for scanning, image editing, and OCR text conversion

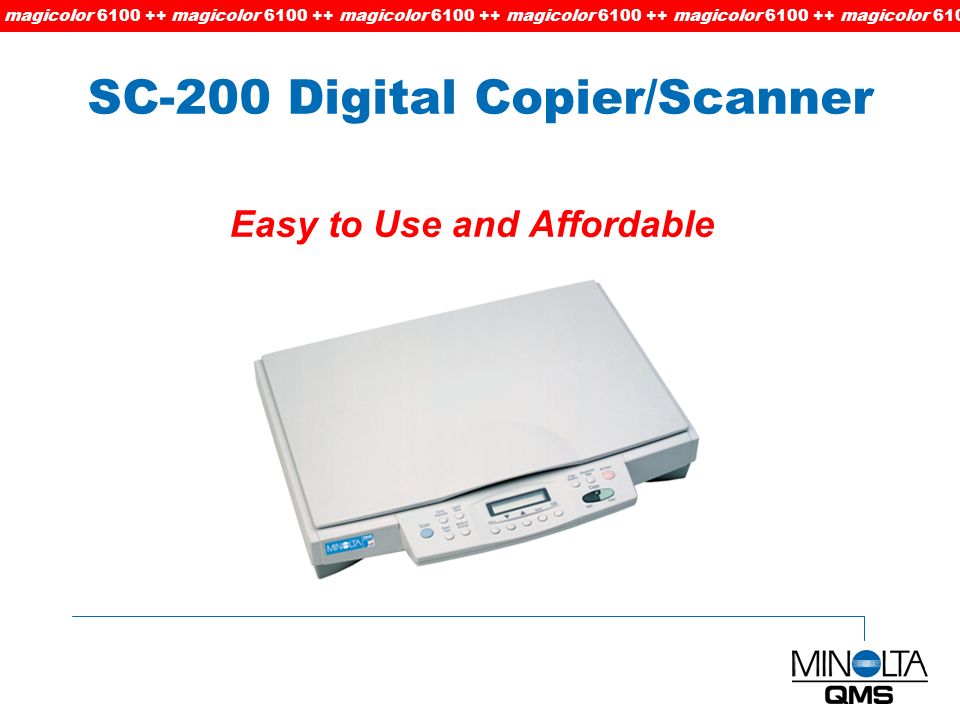

42. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 SC-200 Digital Copier/Scanner Easy to Use and Affordable

43. ++ magicolor 6100 ++ magicolor 6100 ++ magicolor 6100 magicolor 6100 Color Laser
