1. 1 Flexible, Adaptable, Compatible, Accessible

2. 2 “KIOSK” for utility payment: Gas bill Electricity bill Phone bill “Coupon Terminal” “Multipurpose Ticket Terminal”: Airlines: e-ticket Rail or bus: tickets Amusement park “ATM” or any financial automatic payment system

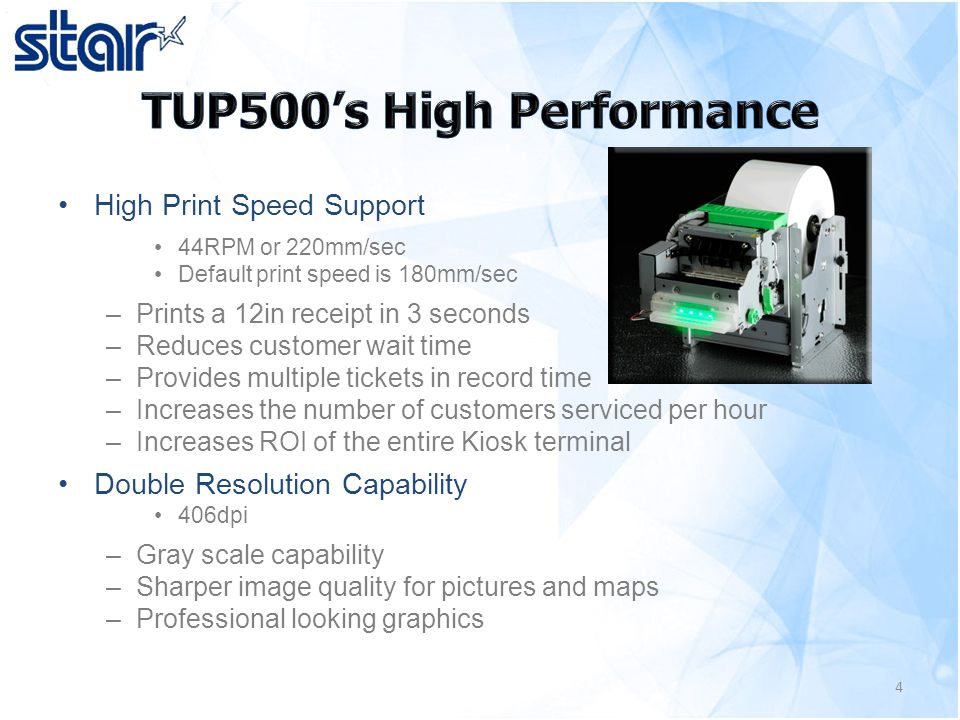

4. High Print Speed Support 44RPM or 220mm/sec Default print speed is 180mm/sec –Prints a 12in receipt in 3 seconds –Reduces customer wait time –Provides multiple tickets in record time –Increases the number of customers serviced per hour –Increases ROI of the entire Kiosk terminal Double Resolution Capability 406dpi –Gray scale capability –Sharper image quality for pictures and maps –Professional looking graphics 4

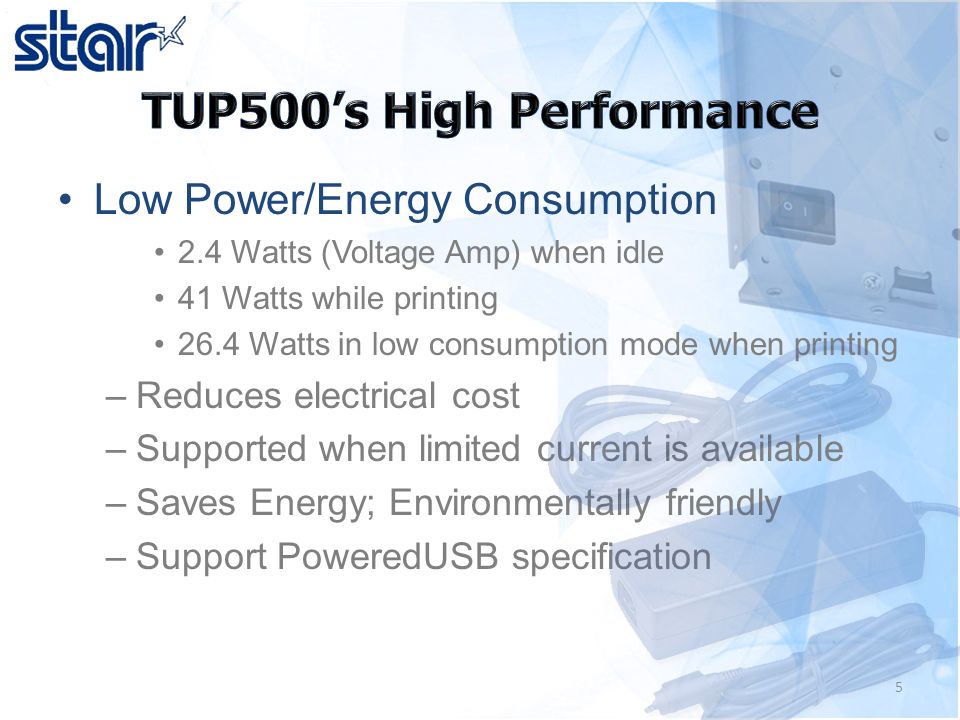

5. Low Power/Energy Consumption 2.4 Watts (Voltage Amp) when idle 41 Watts while printing 26.4 Watts in low consumption mode when printing –Reduces electrical cost –Supported when limited current is available –Saves Energy; Environmentally friendly –Support PoweredUSB specification 5

6. Low Paper Consumption –Smaller default top margin (11mm; with back feed is 3mm) –Environmentally friendly Star Raster Driver/ Image Buffer Method –Provides for continuous printing of up to 300mm pause-free –Reduces customer wait time –Able to serve more customers per hour 6

7. Mechanical Life: 60Million Lines –MCBF: 60Million Lines Cutter: 1Million Cuts Presenter: 1 Million Documents Print Head: 100KM Less down time and maintenance cost = increased ROI 7

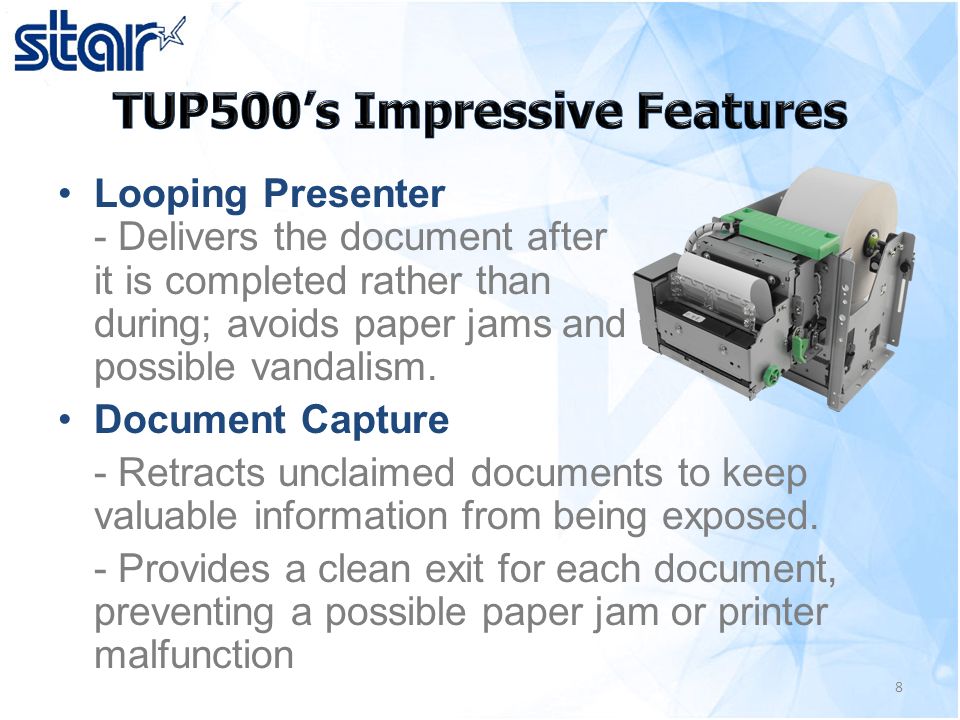

8. Looping Presenter - Delivers the document after it is completed rather than during; avoids paper jams and possible vandalism. Document Capture - Retracts unclaimed documents to keep valuable information from being exposed. - Provides a clean exit for each document, preventing a possible paper jam or printer malfunction 8

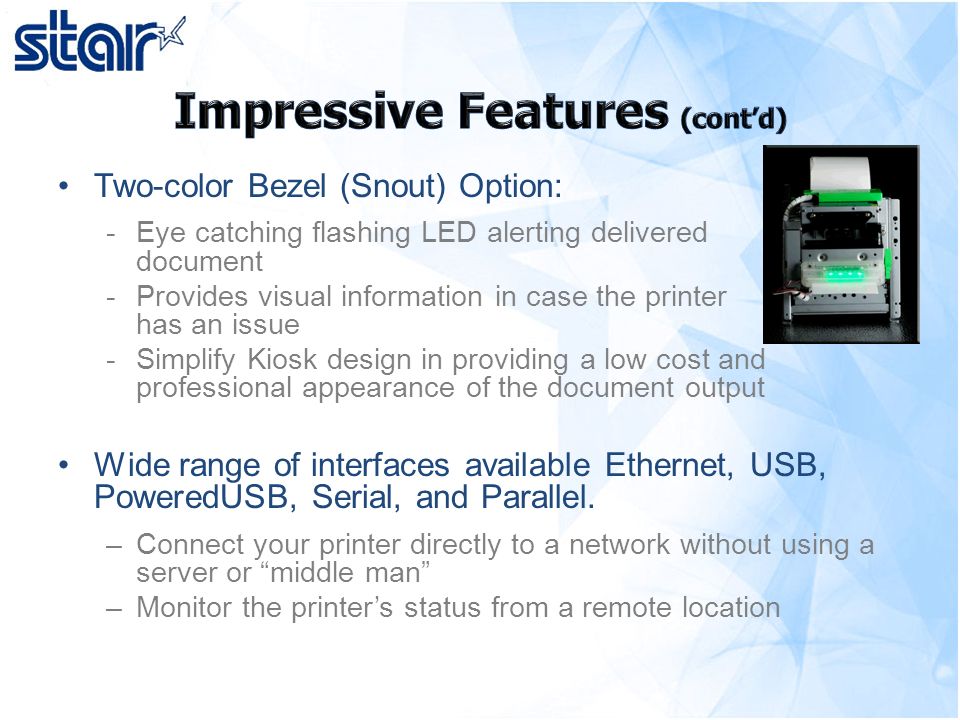

9. Two-color Bezel (Snout) Option: -Eye catching flashing LED alerting delivered document -Provides visual information in case the printer has an issue -Simplify Kiosk design in providing a low cost and professional appearance of the document output Wide range of interfaces available Ethernet, USB, PoweredUSB, Serial, and Parallel. –Connect your printer directly to a network without using a server or “middle man” –Monitor the printer’s status from a remote location

10. Maintenance and Status Tools –Monitors in real-time status of the printer –Monitors/resets maintenance counters* –*the maintenance counters track the printer’s usage. 10 AdaptableAdaptable

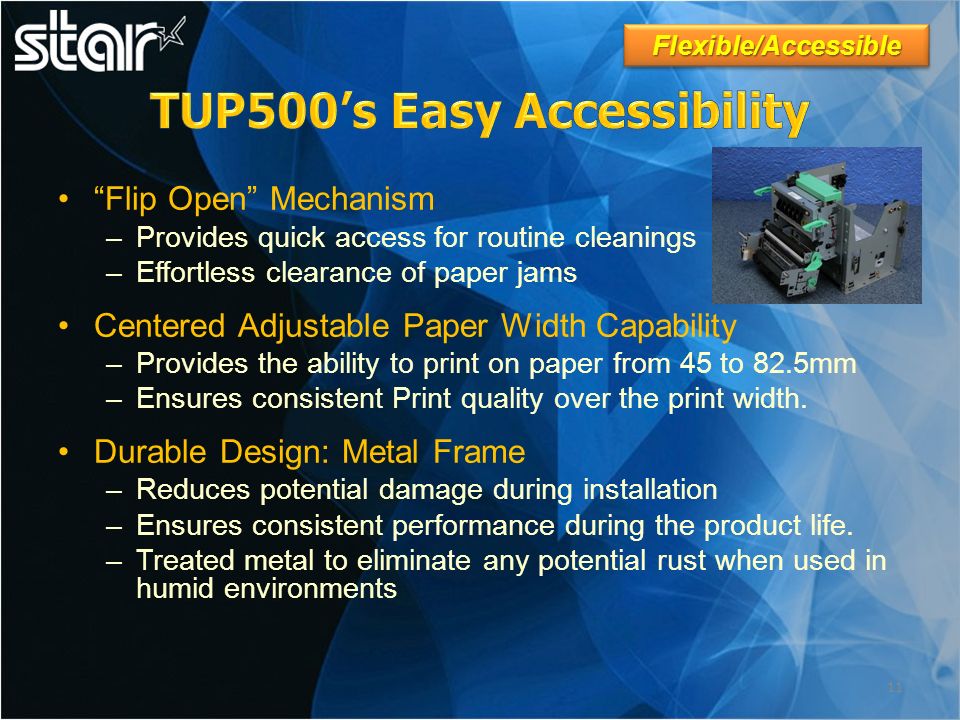

11. “Flip Open” Mechanism –Provides quick access for routine cleanings –Effortless clearance of paper jams Centered Adjustable Paper Width Capability –Provides the ability to print on paper from 45 to 82.5mm –Ensures consistent Print quality over the print width. Durable Design: Metal Frame –Reduces potential damage during installation –Ensures consistent performance during the product life. –Treated metal to eliminate any potential rust when used in humid environments 11 Flexible/AccessibleFlexible/Accessible

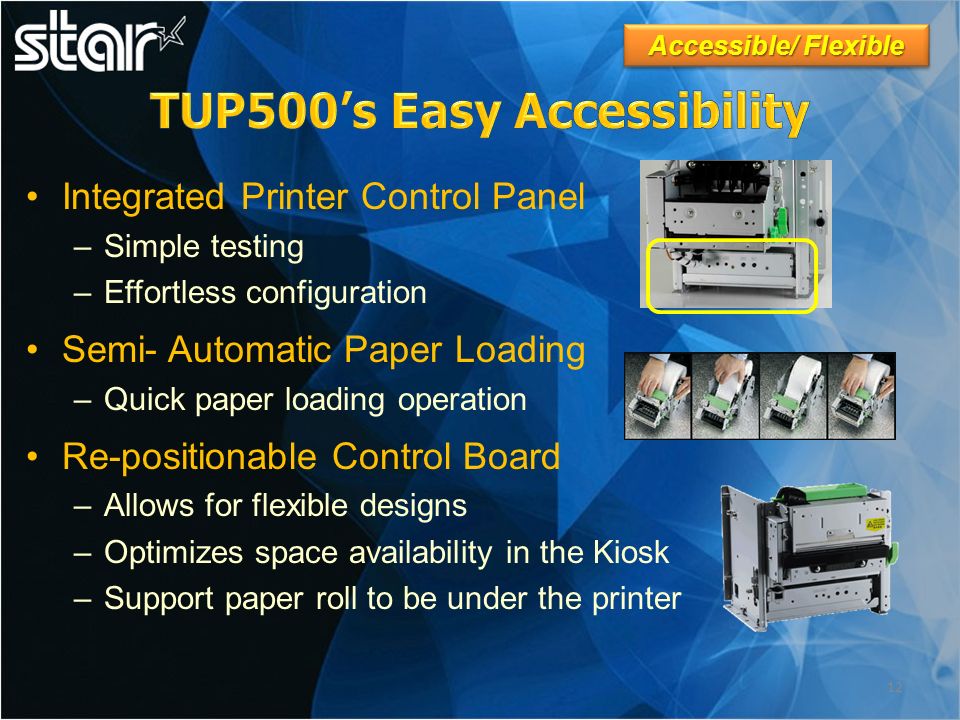

12. Integrated Printer Control Panel –Simple testing –Effortless configuration Semi- Automatic Paper Loading –Quick paper loading operation Re-positionable Control Board –Allows for flexible designs –Optimizes space availability in the Kiosk –Support paper roll to be under the printer 12 Accessible/ Flexible

13. 13  Windows Windows Printer Driver OPOS Driver (Ver.1.8.8) JavaPOS Driver (Ver.1.9.13) USB Vendor Class Driver  Mac/Linux CUPS Driver JavaPOS Driver (Ver.1.9.13) All Drivers, Tools and Manuals can be found on www.starmicronics.comwww.starmicronics.comCompatibleCompatible Windows 2000 SP3~, XP and Vista 32/64 Windows 2000 SP3~, XP and Vista 32 Windows 2000 SP3~, XP and Vista 32/64 Windows 2000 SP3~, XP and Vista 32 Windows 2000 SP3~, XP and Vista 32/64 Windows 2000 SP3~, XP and Vista 32 Mac : OS-X 10.5

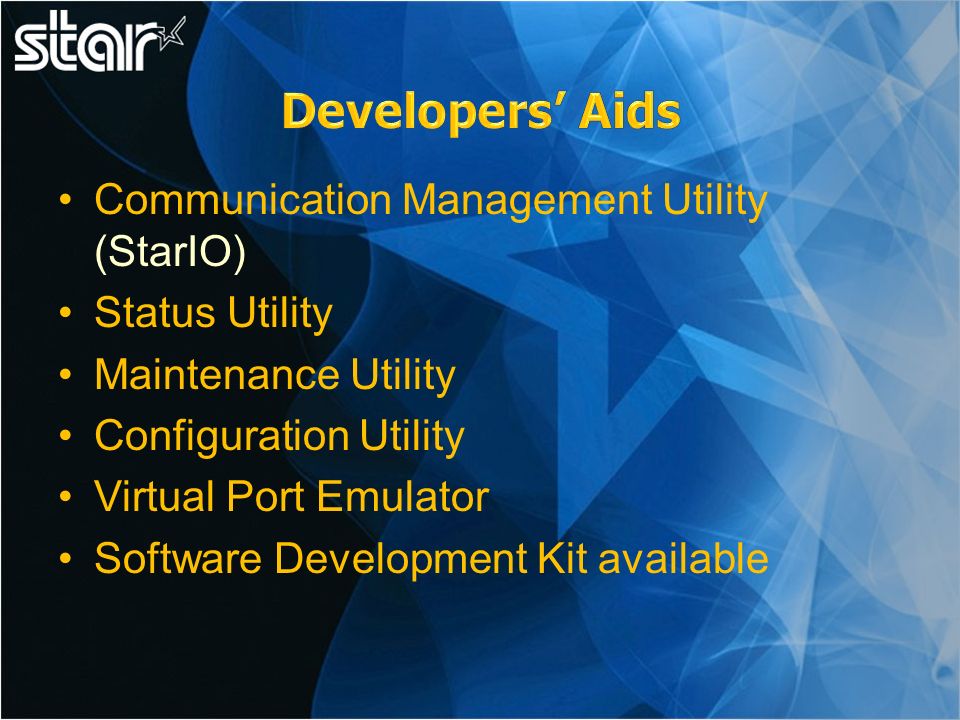

14. Communication Management Utility (StarIO) Status Utility Maintenance Utility Configuration Utility Virtual Port Emulator Software Development Kit available

15. 15 Mechanism [1] Print Method Direct Line Thermal Printing [2] Print Resolution 8 x 8 dots / 203 dpi [3] Print Speed Up to 220 mm/s (for use with suitable 80 / 82.5mm high sensitivity paper with standard 150mm roll diameter) Default speed 180 mm per second [4] Paper Feed Speed Up to 220 mm per second [5] Printable Width Max. 80mm with 1st column print [6] Top Margin 11mm (3mm selectable with reverse feed) [7] Paper Sensors Fixed reflective Photo Black Mark Sensor [8] Auto-Cutter Full cut (Guillotine) [9] Min. / max. Cut Length TUP542 25mm - (300mm *when using paper with Black Mark) TUP592 75 - 300mm [10] Auto-Cutter Life 1 million cuts (≤0.065 ≥0.85mm), 0.3 million cuts (≤0.85 ≥0.15mm) [11] Print Head Life Max. 100 million pulse / 100 Km (using recommended paper) [12] Reliability 60 million lines MCBF [13] Dimensions TUP592 160 (W) x 234.1 (D) x 179 (H) mm TUP542 160 (W) x 185 (D) x 179 (H) mm [14] Weight TUP592 2.5 kg TUP542 2.3 kg

16. Flexible & Adaptable –Customizable design –Impressive features Compatible –Supports popular operating systems Accessible –Design and ease of use 16

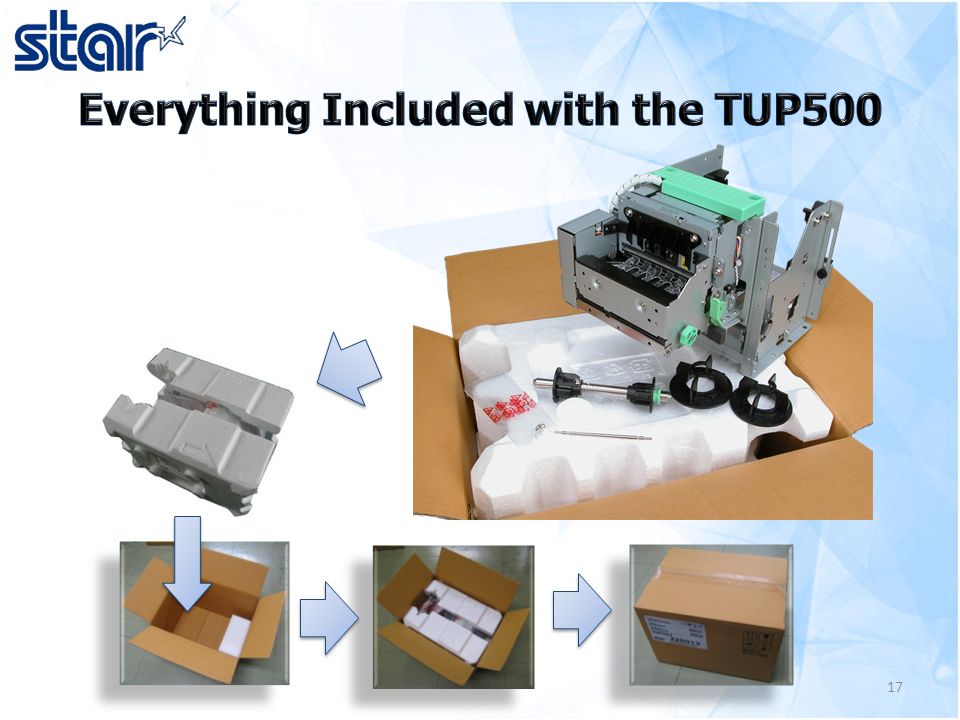

17. 17

18. Large Paper Roll Holder Swappable Interface -Serial, Parallel, USB, Ethernet Power Supply (PS-60A) LED Bezel Plus Software Developer’s Kit
