1 Urinary System and the Excretion System
Chapter 16 Urinary System and the Excretion System

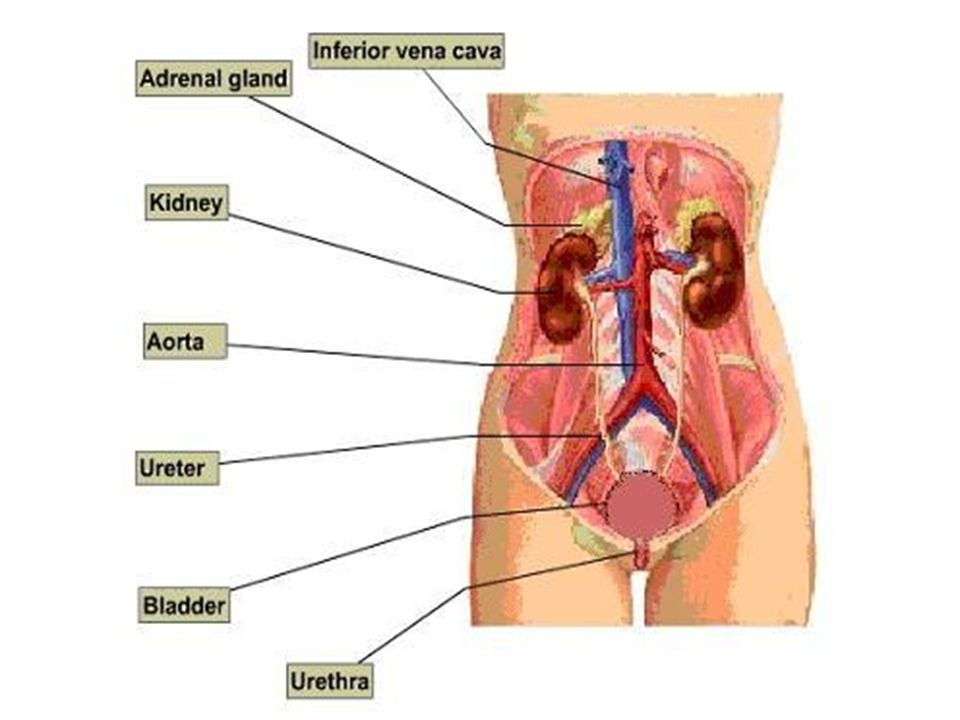

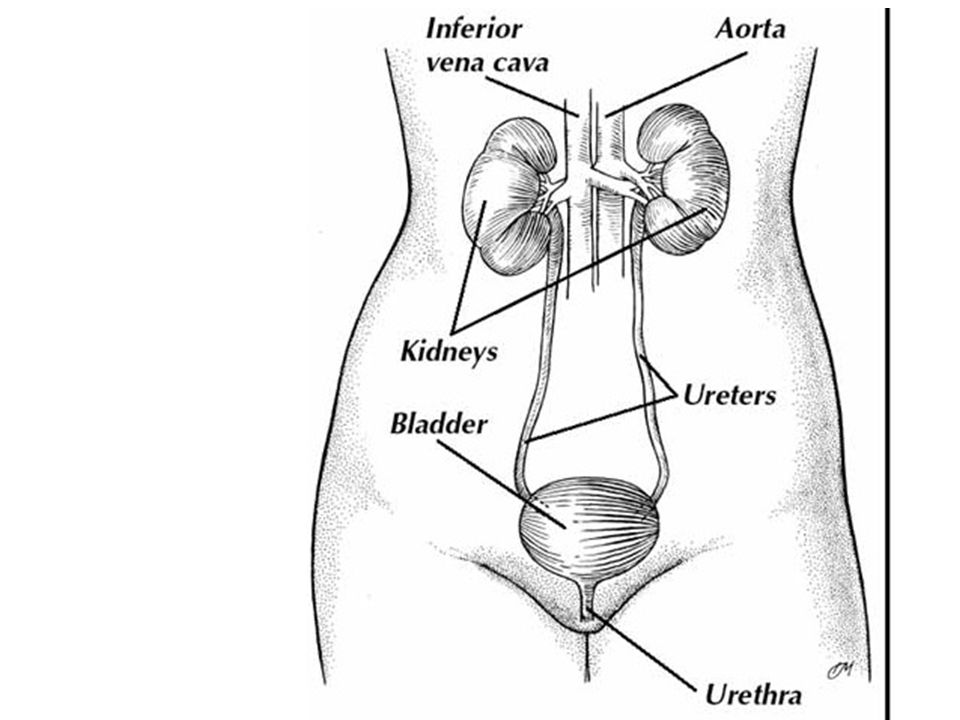

2 Urinary Organs Kidneys  Fist sized organs that are next to the vertebrae Ureters  Tubes that connect the kidney and the urinary bladder Renal Artery and Renal Vein  Takes blood to and from the kidneys The urinary bladder  holds urine Urethra  tube that goes from the urinary bladder and exits the body. Adrenal Gland  glands that are on top of the kidneys that release hormones in the body



5 What does the Urinary System do
They remove metabolic wastes They regulate the amount of water and salt in the body They regulate the blood ph level  should be about 7.4 They release hormones into the blood

6 Removing Metabolic Wastes
The liver breaks down amino acids and this makes Ammonia Ammonia is very toxic and the liver combines carbon dioxide to make the less toxic Urea The kidneys will then filter the Urea out of the blood NH3 + CO2  NH2-C-NH2 =O

7 Creatinine is also excreted by the kidneys
Creatinine is also excreted by the kidneys. Creatinine is the product of creatine phosphate metabolism Uric acid is excreted. Uric Acid is the product of breaking down nucleotides

8 Water Salt Balance Kidneys maintain the appropriate amount of ions in the blood Potassium ions K+ Bicarbonate ions HCO3- Calcium ions Ca2+

9 The Kidney The kidney can be divided into 3 main parts
Renal Cortex  the section that is farthest to the outside Renal Medulla  the section that is in the middle Renal Pelvis  the section that is on the inside that goes into the ureter

10 Renal Cortex Renal Artery Renal Vein Renal Medulla Renal Pelvis

11 The Nephron The kidney is made up of millions of Nephrons
The nephron is where the actual filtration occurs The blood flow is different than other areas of the body. Each nephron has 2 capillary regions Renal artery  Afferent arteriole Glomerulus  Efferent arteriole  Peritubular capillary network  Renal Vein

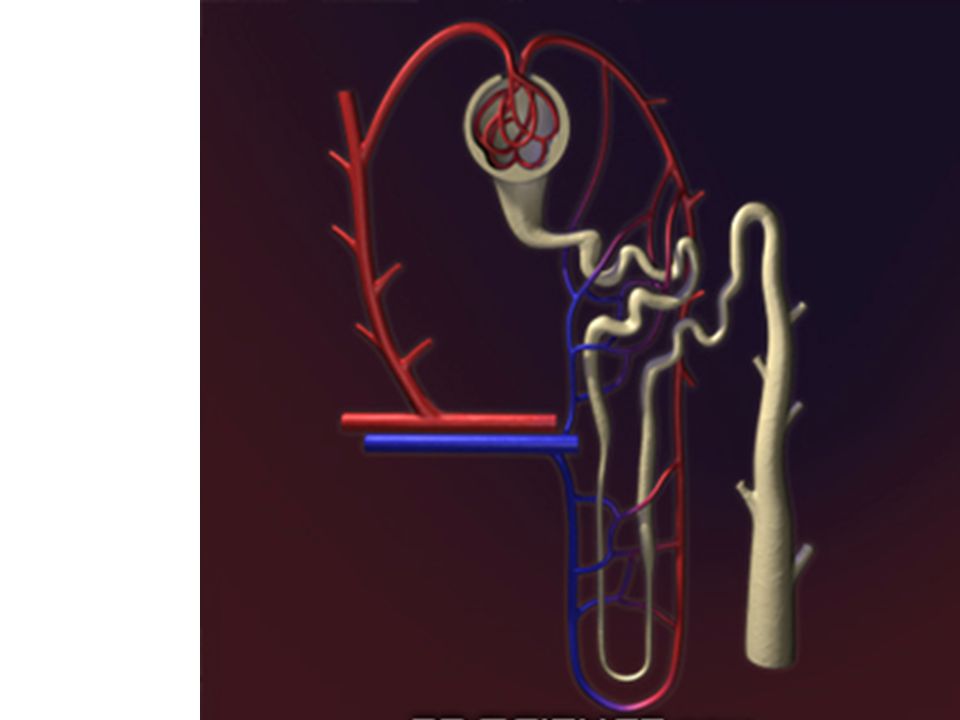

12 Renal Artery Afferent Arteriole Glomerulus Efferent Arteriole Peritubular Capillary Network Renal Vein

13 Parts of the Nephron Bomans Capsule  this is the cup that surrounds the glomerulus. Small molecules move from the blood into the Bomans capsule. This process is called Glomerular Filtration Proximal Convoluted Tubule  this comes after the bomans capsule. Has many mitochondria for active transport. This process is called Tubular Filtration Loop of Henle  Loop that descends into the renal medulla. Reabsorbs water back into the blood Distal Convoluted Tubule  have many mitochondria for active transport of molecules from the blood into the tubule Collecting Ducts  Take wastes to the Ureter.

14 Renal Cortex Renal Medulla

15 Glomerular Filtration
Occurs in the Bomans Capsule (also called the glomerular capsule) This has a high pressure going into the capsule. Blood undergoes Pressure Filtration. Large things do not pass into the Bomans Capsule, but small things do pass into the Bomans Capsule. Small Enough to Pass Too big to Pass Water Nitrogen wastes Nutrients (glucose, amino acids) Salts (ions) Formed Elements (Blood cells) Proteins (fibrinogen)

16 Tubular Reabsorption This occurs in the proximal convoluted tubule.
This is when molecules and ions move from the tubule back into the blood. Nutrients are reabsorbed back into the blood. Ions are reabsorbed back into the blood. This is done both passively and actively. Water is reabsorbed back into the blood.

17 Tubular Secretion This occurs in the distal convoluted tubule
Active transport moves ions and molecules from the blood into the tubule This moves hydrogen ions and nitrogenous wastes

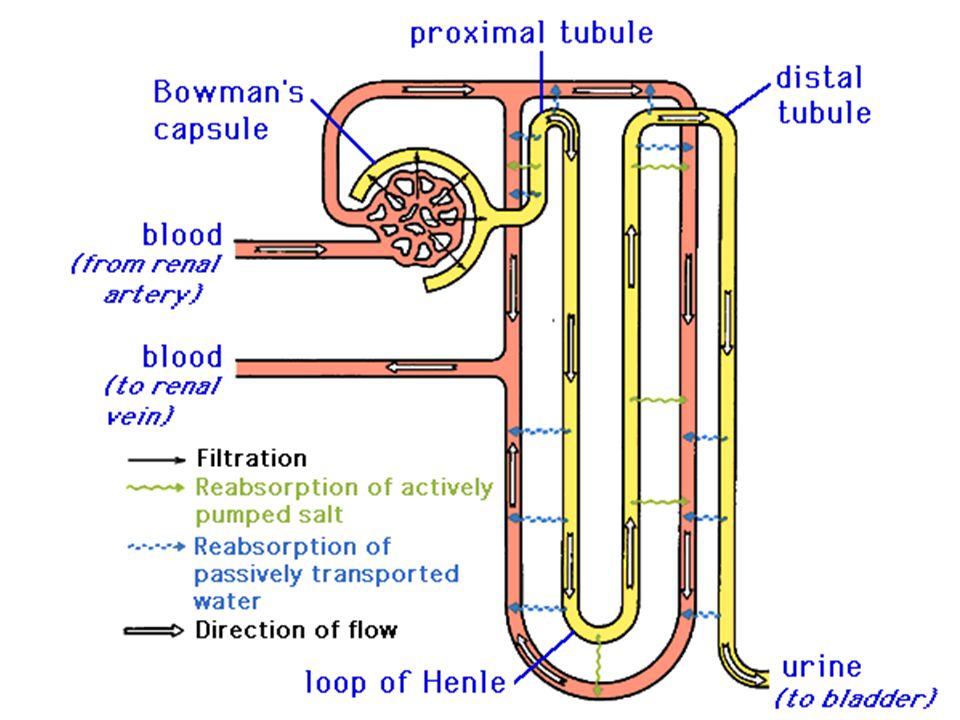

18 Glomerulus Bomans Capsule Afferent arteriole Efferent arteriole Peritubular network Loop of Henle Renal Vein Renal Artery Proximal convoluted tubule Distal convoluted tubule Collecting duct

19 Water – Salt Balance Reabsorption of water
The descending portion of the loop of Henle has water that moves back into the blood. The concentration of Salt is higher toward the bottom of the loop of Henle The acending portion of the loop of Henle does not allow water to pass through it.


21 Maintaining Homeostasis
Antidiuretic Hormone (ADH) this hormone will help regulate how much water is in in your body If ADH is released then more water will be absorbed out of the nephrons and into your blood  this will make you NOT go Pee If you do not make ADH then your nephrons will not absorb very much water and you will go Pee more When will your Body release ADH? When will your Body not release ADH?

22 ADH is made and released in a special gland in the brain called the pituitary gland
The hormone will help regulate the amount of water in the blood and keep it in a state of Homeostasis.


24 Reabsorption of Salt NaCl moves into the Bomans capsule by Pressure Filtration In the Proximal Convoluted Tubule, about 67% of the NaCl is reabsorbed back into the blood 25% of the NaCl is reabsorbed in the ascending portion of the loop of Henle 7% of the NaCl is reabsorbed in the Distal Convoluted Tubule The remaining 1% is part of the urine

25 Hormones and reabsorption of salt
Aldosterone is a hormone that is released by Adrenal Cortex The adrenal cortex is the gland that sits on top of the kidneys Aldosterone causes Na+ ions to be reabsorbed into the blood. When more sodium ions are absorbed into the blood then more water is absorbed into the blood.

26 Kidneys Maintain the bloods pH
Breathing is the main way to maintain the pH of the blood If blood is too acidic  Breathe more to get rid of CO2 If blood is too basic  Breathe less to let H+ ions build up Kidneys can also help regulate pH Blood is too acidic  kidneys excrete H+ ions and reabsorb bicarbonate ions HCO3- Blood is too basic  Kidneys do not excrete H+ ions and do not absorb bicarbonate ions HCO3-
