1. PORT OF SANTOS Sao Paulo / Brazil

2. Location LATITUDE: 23º57’ 3’’ S LONGITUDE: 46º18’ 6’’ W Time Zone: (UTC -03:00) Brasilia

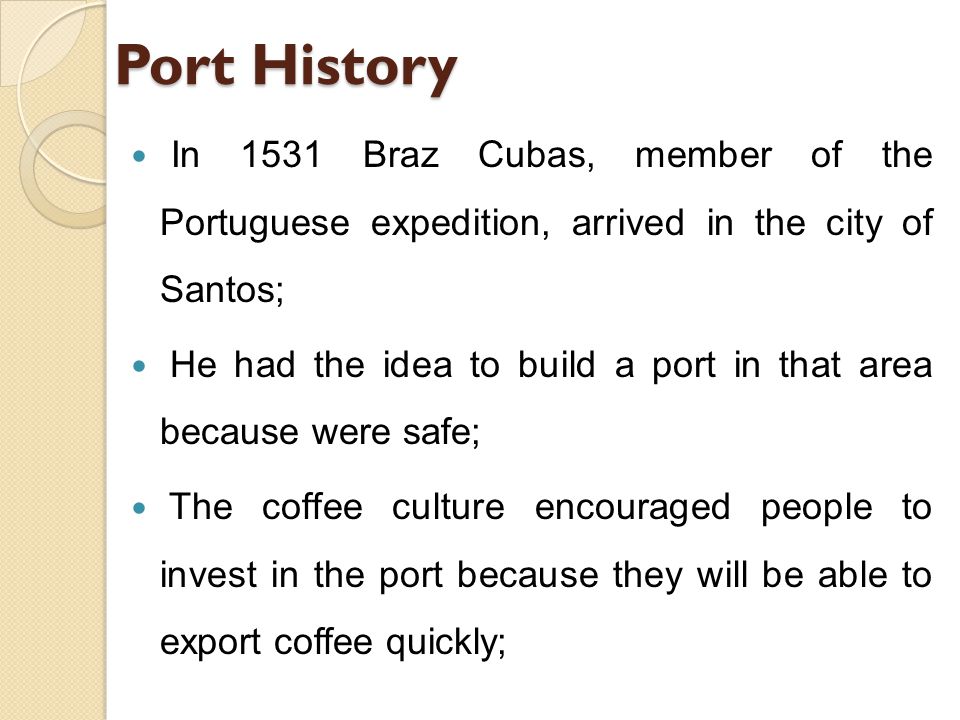

3. Port History In 1531 Braz Cubas, member of the Portuguese expedition, arrived in the city of Santos; He had the idea to build a port in that area because were safe; The coffee culture encouraged people to invest in the port because they will be able to export coffee quickly;

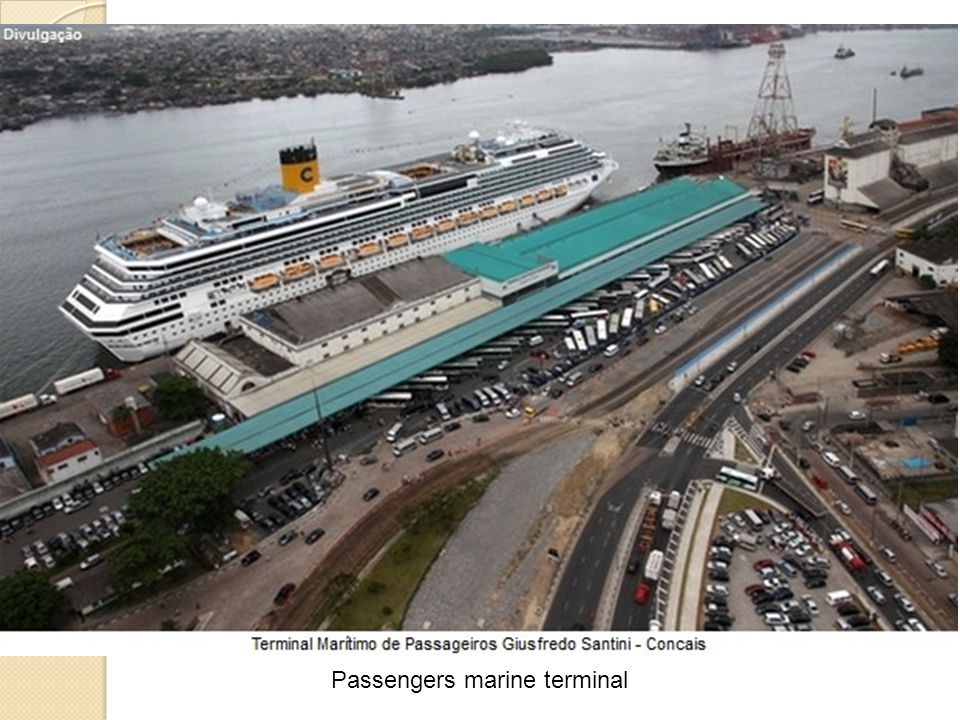

4. Passengers marine terminal

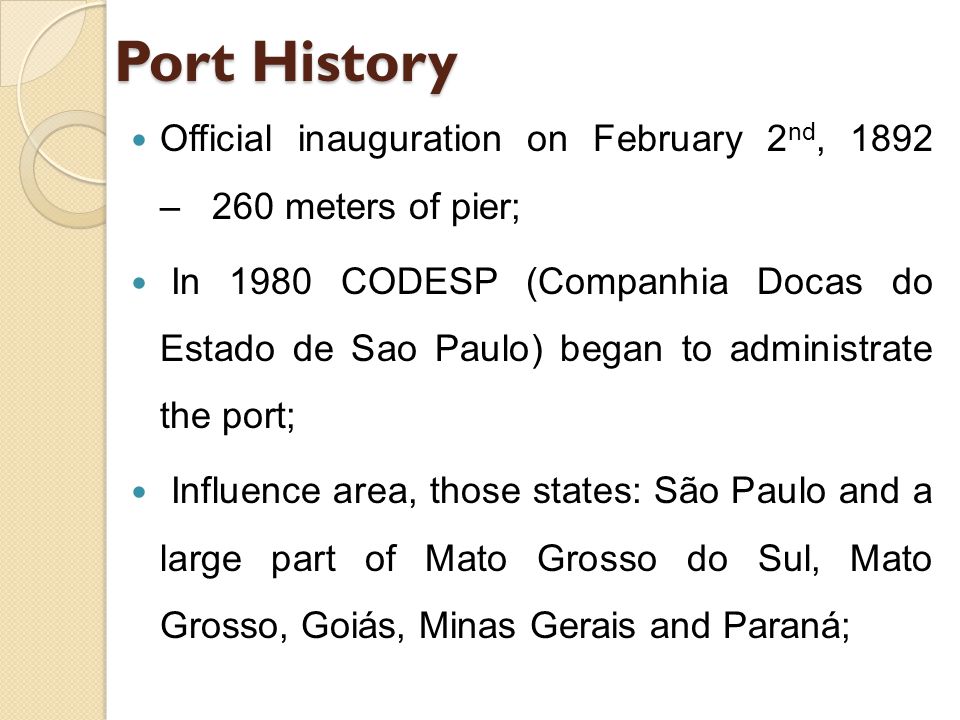

6. Port History Official inauguration on February 2 nd, 1892 – 260 meters of pier; In 1980 CODESP (Companhia Docas do Estado de Sao Paulo) began to administrate the port; Influence area, those states: São Paulo and a large part of Mato Grosso do Sul, Mato Grosso, Goiás, Minas Gerais and Paraná;

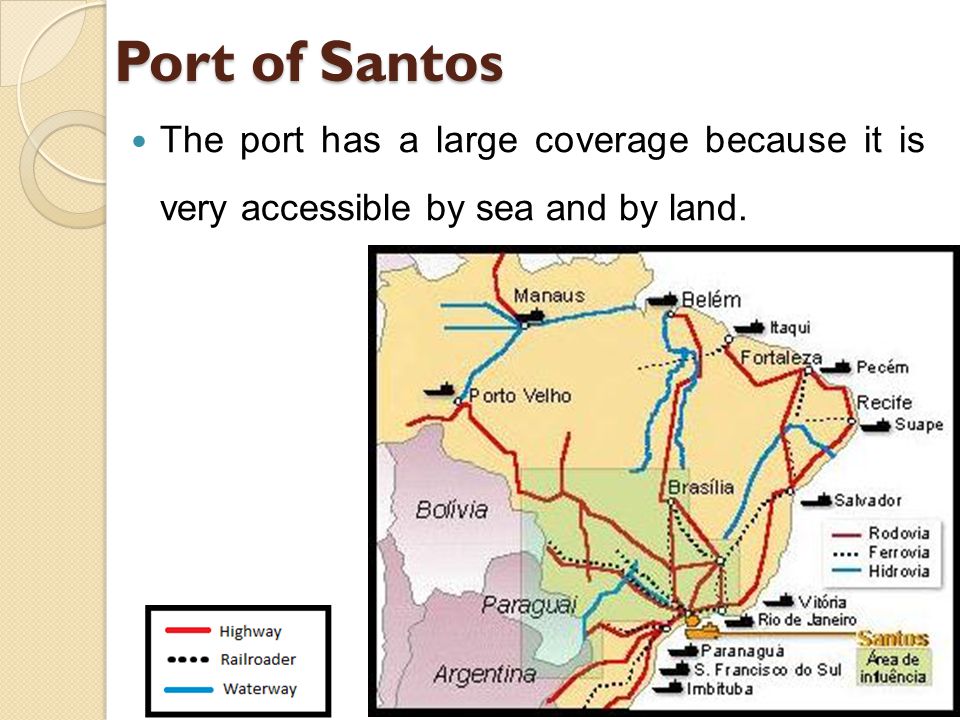

7. Port of Santos The port has a large coverage because it is very accessible by sea and by land.

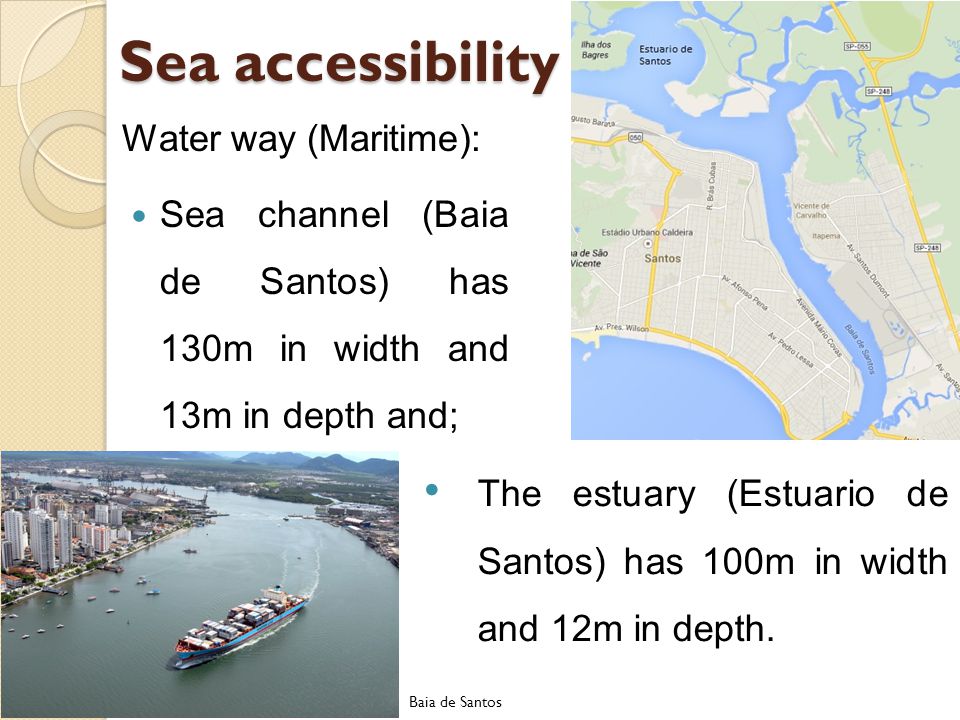

8. Sea accessibility Water way (Maritime): Sea channel (Baia de Santos) has 130m in width and 13m in depth and; Baia de Santos The estuary (Estuario de Santos) has 100m in width and 12m in depth.

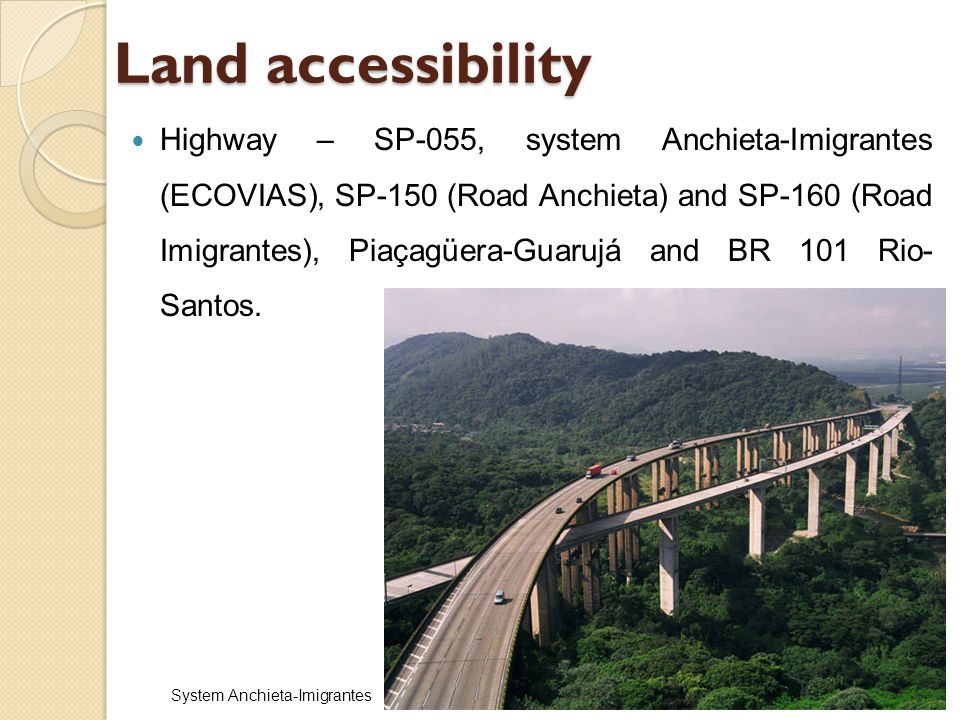

9. Land accessibility Highway – SP-055, system Anchieta-Imigrantes (ECOVIAS), SP-150 (Road Anchieta) and SP-160 (Road Imigrantes), Piaçagüera-Guarujá and BR 101 Rio- Santos. System Anchieta-Imigrantes

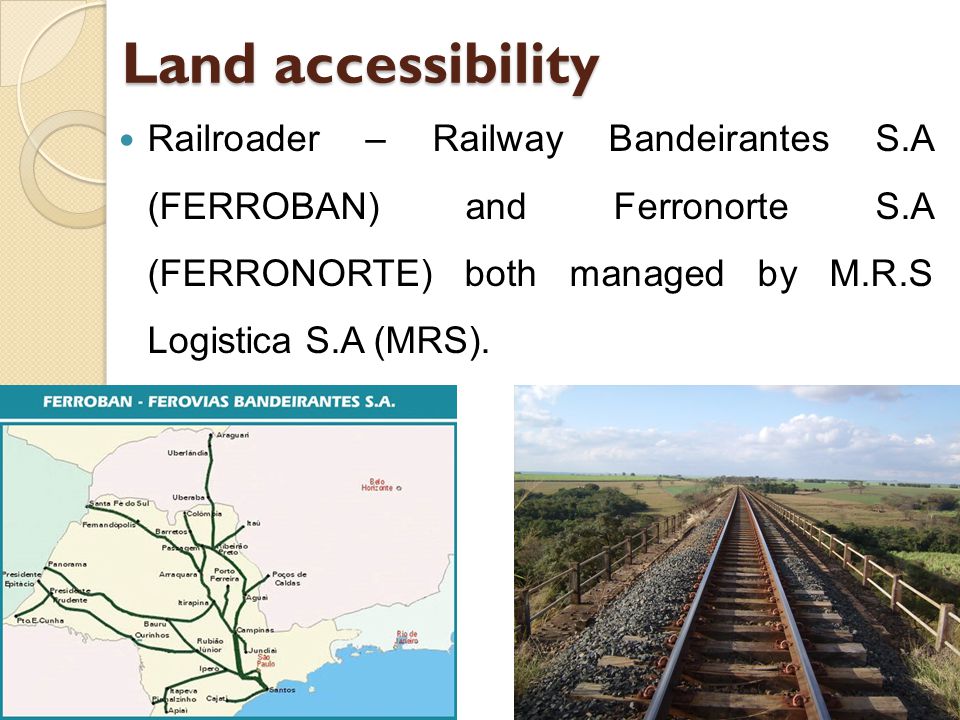

10. Land accessibility Railroader – Railway Bandeirantes S.A (FERROBAN) and Ferronorte S.A (FERRONORTE) both managed by M.R.S Logistica S.A (MRS).

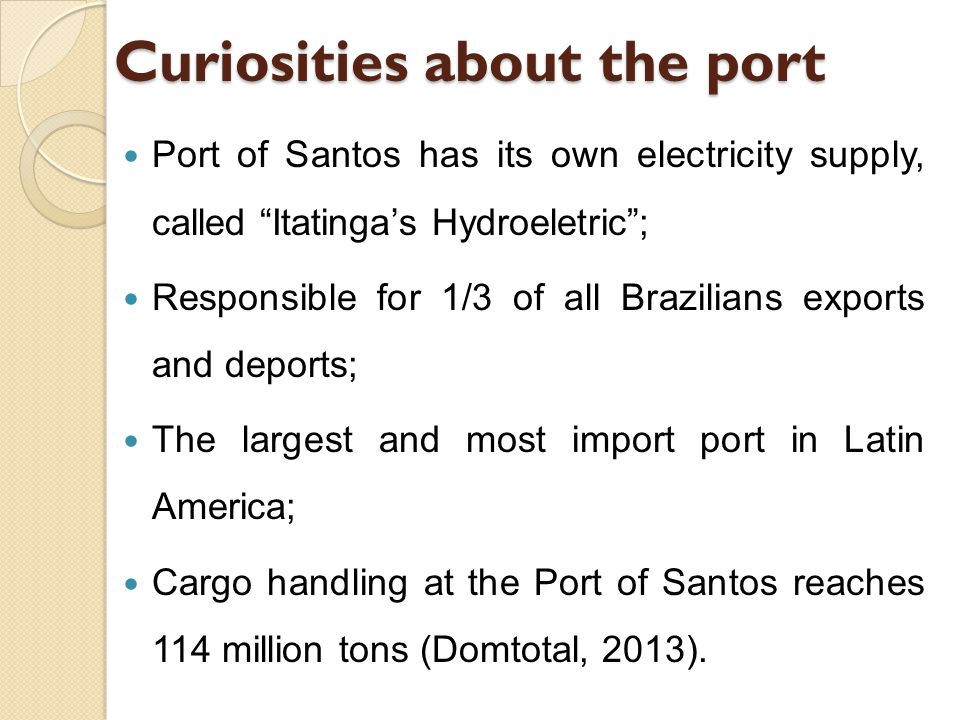

11. Curiosities about the port Port of Santos has its own electricity supply, called “Itatinga’s Hydroeletric”; Responsible for 1/3 of all Brazilians exports and deports; The largest and most import port in Latin America; Cargo handling at the Port of Santos reaches 114 million tons (Domtotal, 2013).

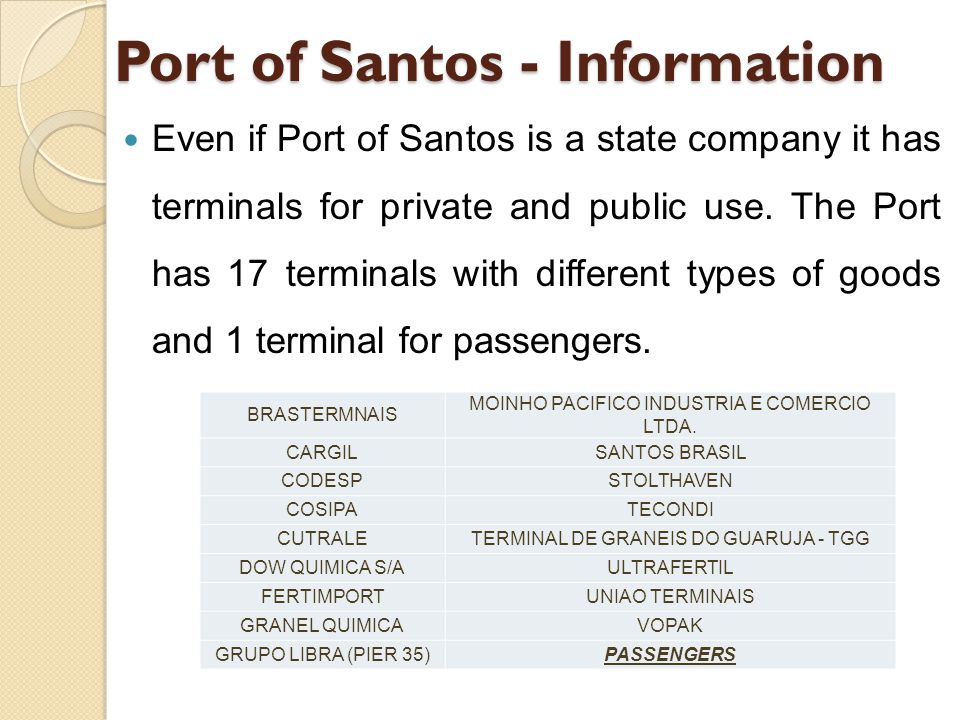

12. Port of Santos - Information Even if Port of Santos is a state company it has terminals for private and public use. The Port has 17 terminals with different types of goods and 1 terminal for passengers. BRASTERMNAIS MOINHO PACIFICO INDUSTRIA E COMERCIO LTDA. CARGILSANTOS BRASIL CODESPSTOLTHAVEN COSIPATECONDI CUTRALETERMINAL DE GRANEIS DO GUARUJA - TGG DOW QUIMICA S/AULTRAFERTIL FERTIMPORTUNIAO TERMINAIS GRANEL QUIMICAVOPAK GRUPO LIBRA (PIER 35)PASSENGERS

13. Important Activities Transport for humans (cruise); Loading and unloading cargo; Storage and distribution of containers (stackyard operations); Bulk and general cargo handling.

14. Important port equipment Different types of Cranes: Rubber Tyred Gantry Cranes (RTG) Mobile Harbor Cranes Ship to shore crane High-performance cranes

15. Important port equipment Straddle Carriers Terminal Tractors and Trailers

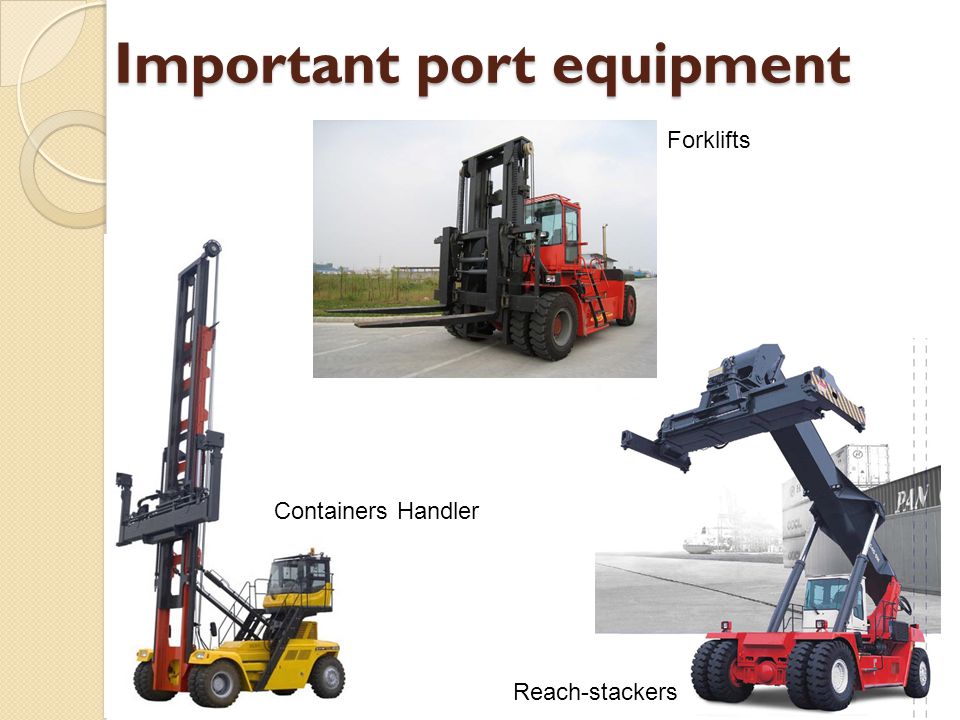

16. Important port equipment Forklifts Reach-stackers Containers Handler

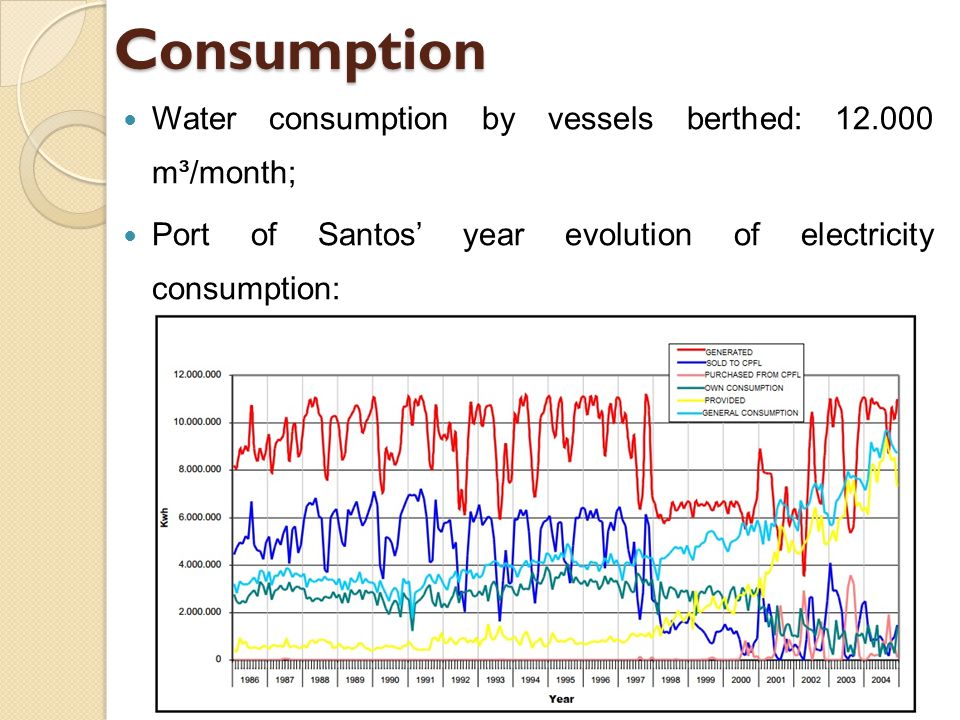

17. Consumption Water consumption by vessels berthed: 12.000 m³/month; Port of Santos’ year evolution of electricity consumption:

18. Discharges Flow rates estimation and organic material of the sewage of the Port of Santos:

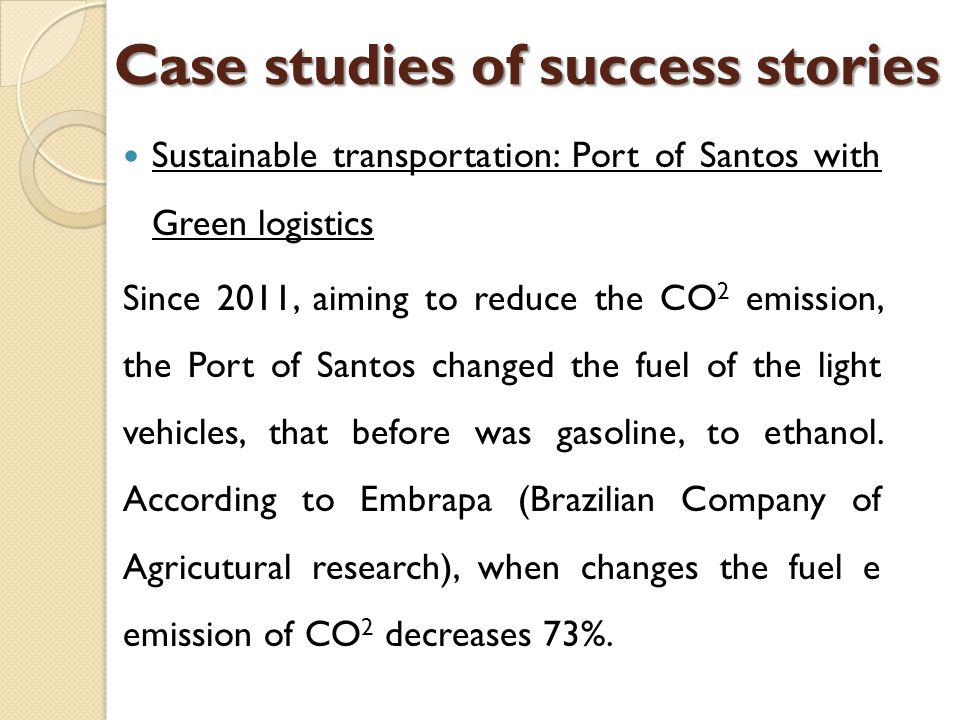

19. Case studies of success stories Sustainable transportation: Port of Santos with Green logistics Since 2011, aiming to reduce the CO 2 emission, the Port of Santos changed the fuel of the light vehicles, that before was gasoline, to ethanol. According to Embrapa (Brazilian Company of Agricutural research), when changes the fuel e emission of CO 2 decreases 73%.

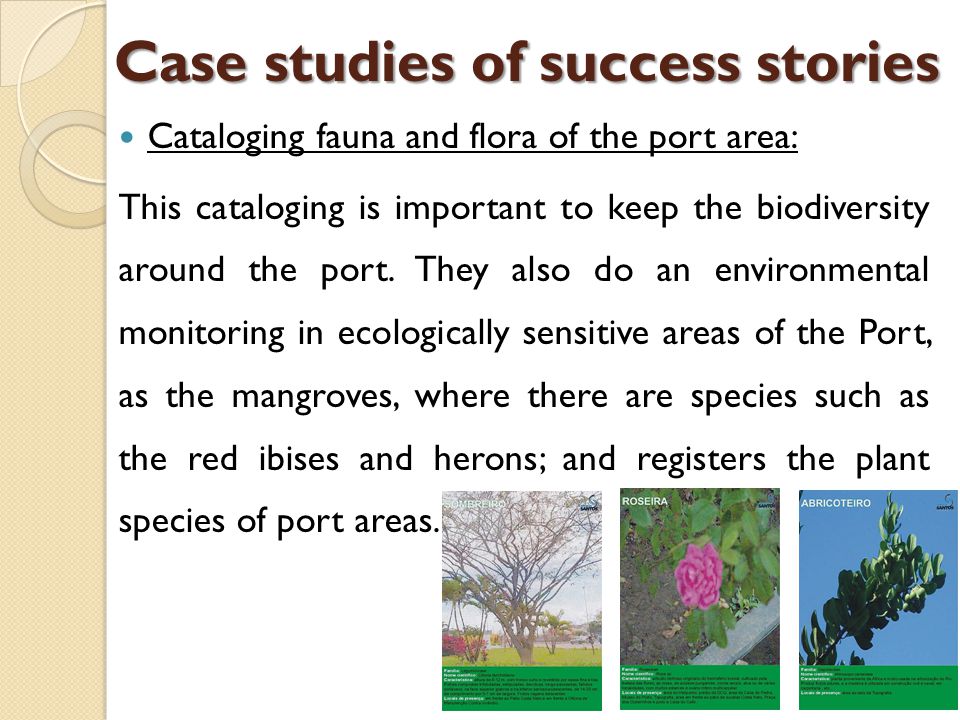

20. Case studies of success stories Cataloging fauna and flora of the port area: This cataloging is important to keep the biodiversity around the port. They also do an environmental monitoring in ecologically sensitive areas of the Port, as the mangroves, where there are species such as the red ibises and herons; and registers the plant species of port areas.
