1 Container Ship Construction

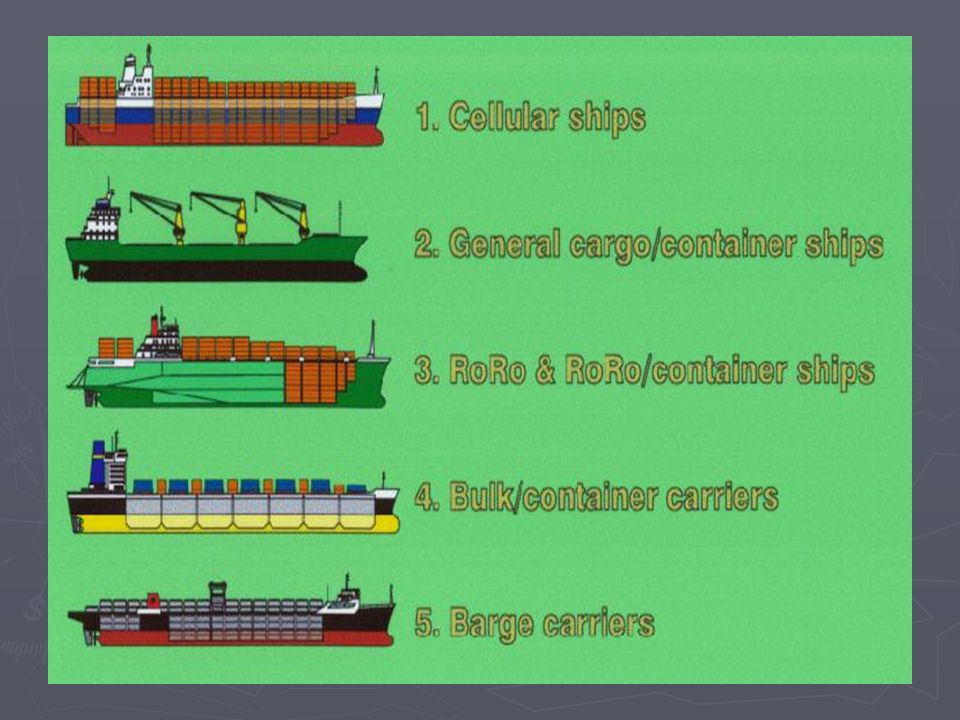

2 Objectives Explain the container carrying vessel construction Explain the container carrying vessel construction Name and identify the basic constructional features of a cargo vessel Name and identify the basic constructional features of a cargo vessel Explain the dimensions of vessels and their use Explain the dimensions of vessels and their use Identify the five main types of container vessels Identify the five main types of container vessels

3 Why learning about container ship construction 1To plan loading and discharge 1To plan loading and discharge 2To know the working environment 2To know the working environment 3To ensure safety and security 3To ensure safety and security

4 Construction Knowledge for Planning For berth allocation For berth allocation For resource allocation For resource allocation For scheduling For scheduling For estimating performance For estimating performance

5 Knowing the Work Environment Where are the work locations? Where are the work locations? How are the work locations to be reached? How are the work locations to be reached? What work will be required? What work will be required? How will the containers be handled? How will the containers be handled? What gear, clothing and equipment will be needed ? What gear, clothing and equipment will be needed ?

6 Ship Construction and Safety What safety precautions might be needed What safety precautions might be needed What emergency procedures should be prepared What emergency procedures should be prepared Where are emergency gear and equipment kept Where are emergency gear and equipment kept Which are the safe emergency escape routes Which are the safe emergency escape routes

7

8

9

10

11

12

13

14

15

16 Panama Canal Maximum Size 32.26 meter

17

18 Plimsol merk

19 Dead Weight Total weight that can be carried in tonnes

20 Gross Tonnage Total volume of all enclosed spaces in tonnes

21 Net Tonnage Total volume of cargo spaces in tonnes

22 Container Carrying Capacity In twenty feet equivalents units TEU

23 Size, Type and Design Selection Traffic volume Traffic volume Container / Bulk / General cargo / mixed / Car Container / Bulk / General cargo / mixed / Car Port equipment and technology Port equipment and technology Water depth Water depth Channel width Channel width Berth Length Berth Length Air draft Air draft

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

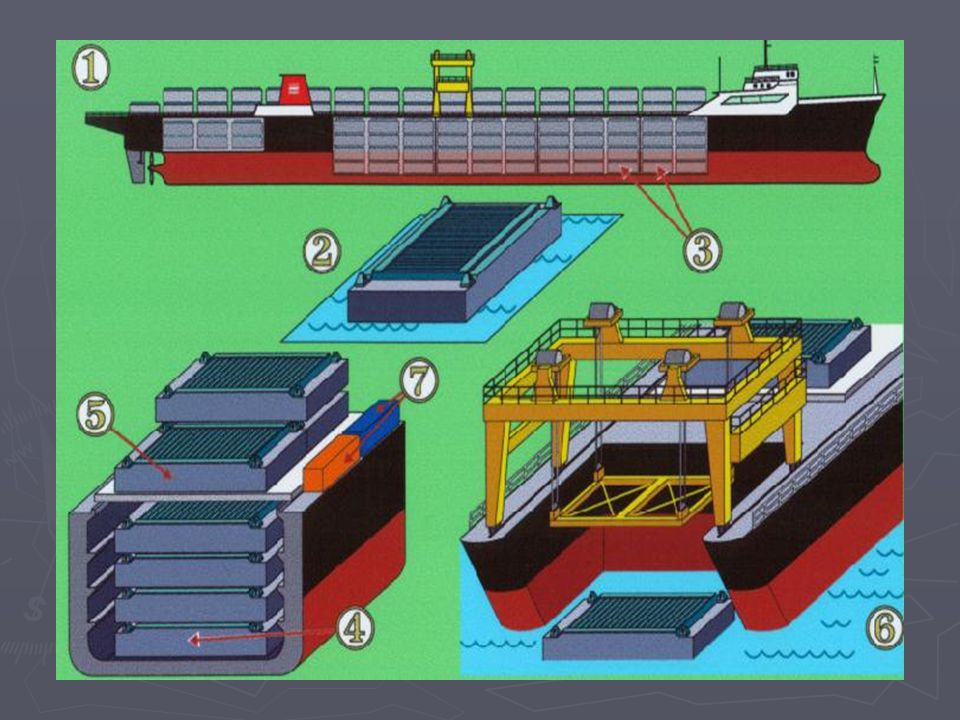

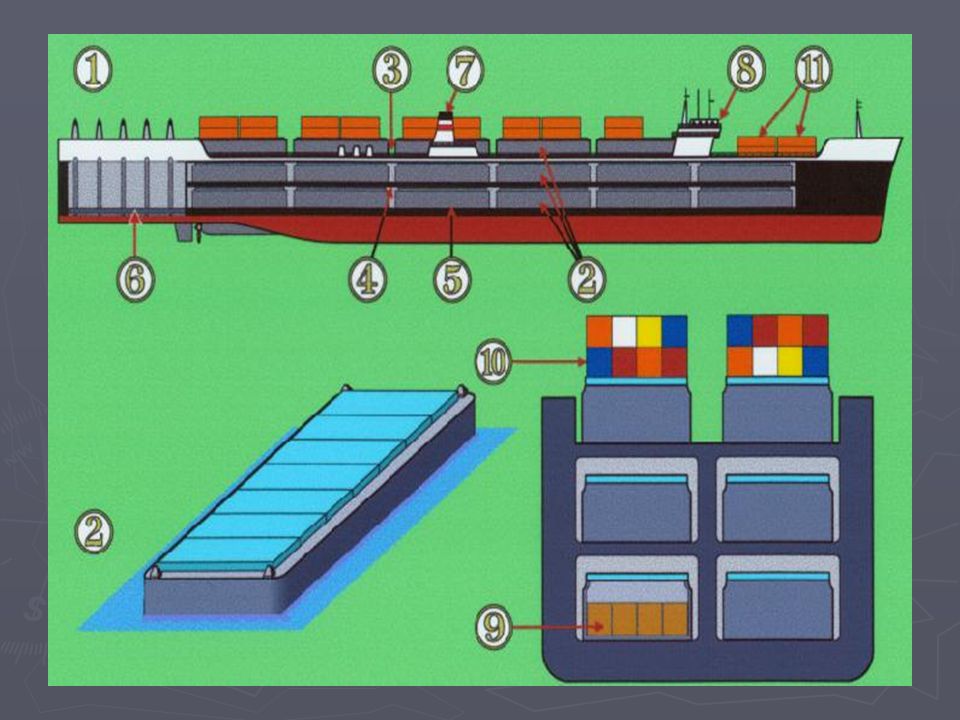

52 Stowage Ro-Ro Operations Problems Problems Limited stacking height Limited stacking height Labour- intensive Labour- intensive Safety risks Safety risks Range of equipment needed Range of equipment needed Space utilization not high Space utilization not high Benefits Cargo can be pre- laded onto cassettes/flatracks Can handle vehicles quickly Heavy lifts and awkward loads are easily accommodated Vessels can be handled at berths and terminals without cranes
