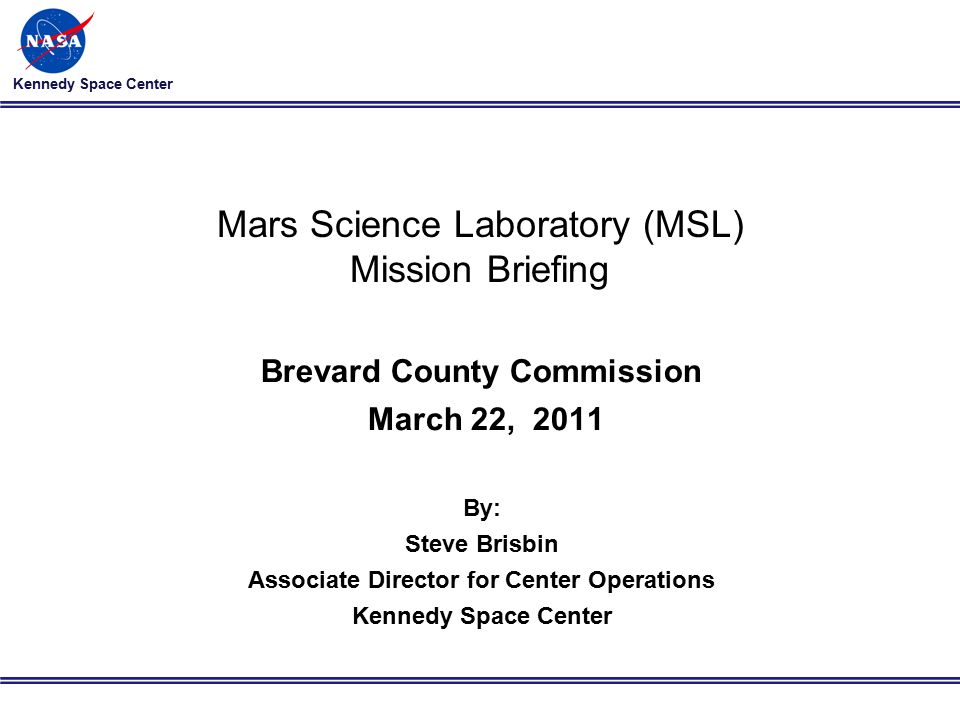

1. Kennedy Space Center Mars Science Laboratory (MSL) Mission Briefing Brevard County Commission March 22, 2011 By: Steve Brisbin Associate Director for Center Operations Kennedy Space Center

2. ♦ Update County Officials on the Mars Science Laboratory mission ♦ Provide an overview of the multi-mission radiological power source ♦ Focus on the contingency planning activity unique to this mission  Partnership with Brevard County Emergency Management  Key agencies involved in emergency planning and response  County Interfaces and planning activity ♦ Answer questions the Commission may have and identify interest in more detailed briefings prior to launch Briefing Purpose 2

3. Kennedy Space Center Rover Family Portrait Spirit and Opportunity 2003 Sojourner 1996 Curiosity 2011 3

4. Kennedy Space Center Curiosity’s Science Goals Curiosity’s primary scientific goal is to explore and quantitatively assess a local region on Mars’ surface as a potential habitat for life, past or present Objectives include: Assessing the biological potential of the site by investigating any organic and inorganic compounds and the processes that might preserve them Characterizing geology and geochemistry, including chemical, mineralogical, and isotopic composition, and geological processes Investigating the role of water, atmospheric evolution, and modern weather/climate Characterizing the spectrum of surface radiation 4

5. Kennedy Space Center Mission Overview SURFACE MISSION Prime mission is one Mars year (687 days) Latitude-independent and long- lived power source Ability to drive out of landing ellipse 84 kg of science payload ENTRY, DESCENT, LANDING Guided entry and powered “sky crane” descent 20×25-km landing ellipse Access to landing sites ±30° latitude, <0 km elevation 900-kg rover CRUISE/APPROACH 8 to 9-month cruise Arrive August 6-20, 2012 LAUNCH Window is Nov. 25 to Dec. 18, 2011 Atlas V (541) 5

6. Kennedy Space Center MSL Science Payload REMOTE SENSING Mastcam (M. Malin, MSSS) - Color and telephoto imaging, video, atmospheric opacity ChemCam (R. Wiens, LANL/CNES) – Chemical composition; remote micro-imaging CONTACT INSTRUMENTS (ARM) MAHLI (K. Edgett, MSSS) – Hand-lens color imaging APXS (R. Gellert, U. Guelph, Canada) - Chemical composition ANALYTICAL LABORATORY (ROVER BODY) SAM (P. Mahaffy, GSFC/CNES) - Chemical and isotopic composition, including organics CheMin (D. Blake, ARC) - Mineralogy ENVIRONMENTAL CHARACTERIZATION MARDI (M. Malin, MSSS) - Descent imaging REMS (J. Gómez-Elvira, CAB, Spain) - Meteorology / UV RAD (D. Hassler, SwRI) - High-energy radiation DAN (I. Mitrofanov, IKI, Russia) - Subsurface hydrogen DAN REMS ChemCam Mastcam RAD MAHLI APXS Brush Drill / Sieves Scoop MARDI 6

7. Kennedy Space Center Why a nuclear power source? Been used safely and successfully by NASA to explore the solar system for more than 40 years Mars Viking 1 and 2 landers Voyager 1 and 2, Galileo, Cassini Coming soon: Pluto in 2015! Enables Curiosity to… Travel farther (20 kilometers/12 miles) Last longer (23 months = Martian year) Operate much more effectively during Martian winter Go to remote places at high latitudes 7

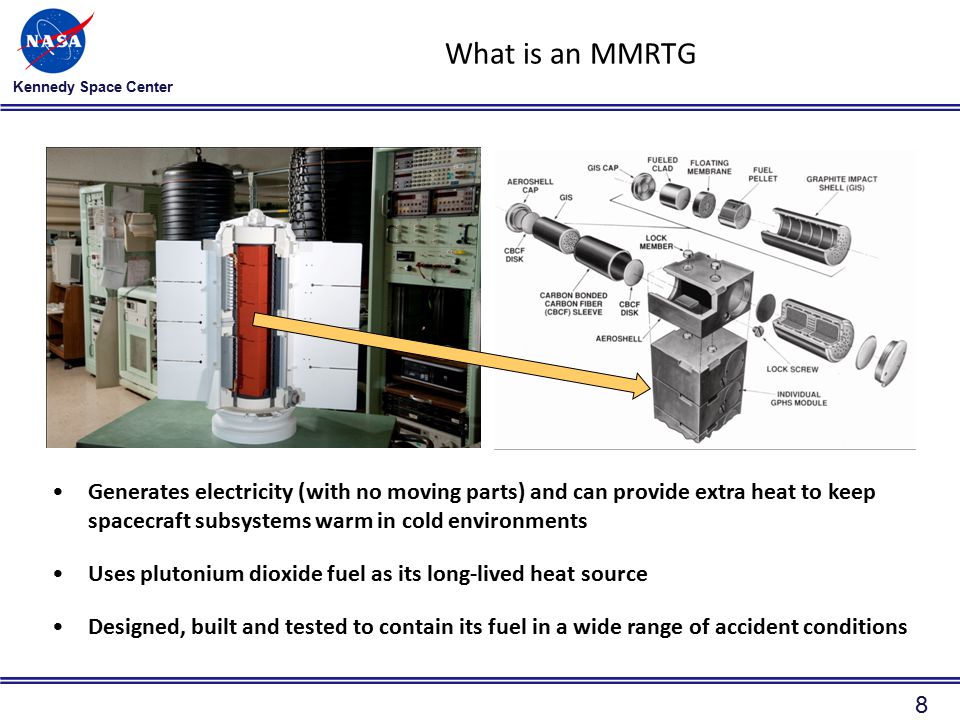

8. Kennedy Space Center What is an MMRTG Generates electricity (with no moving parts) and can provide extra heat to keep spacecraft subsystems warm in cold environments Uses plutonium dioxide fuel as its long-lived heat source Designed, built and tested to contain its fuel in a wide range of accident conditions 8

9. Kennedy Space Center MSL Launch Nuclear Safety Chances of a launch accident are small and the chances of an accident with release are 10 times smaller Unlikely that anyone would be exposed to nuclear material 9

10. Kennedy Space Center MSL Launch Accident Response NASA has assembled a multi-agency team to prepare for any accident. Key partners include DOE, FEMA, EPA, Air Force, Coast Guard, State of Florida, and Brevard County Trained environmental monitoring teams are capable of deployment to any area of potential release 30 advanced environmental monitoring stations are deployed prior to launch (including 19 offsite) 10

11. Kennedy Space Center MSL Launch Accident Response Coordination Centers 11 Assessment Command & Control Center Senior Management Center Joint Information Center Brevard County EOC

12. Kennedy Space Center ♦ We expect a safe and successful launch of the Curiosity mission to Mars. As with every launch, we prepare for any outcome. ♦ NASA has a long history of safe launch and operation of spacecraft carrying radioisotope power sources. The NASA team works every day with the intent of maintaining that excellent record and safely carrying out every launch. ♦ NASA employs a wide range of safety features to ensure a safe launch.  First, we use highly reliable launch vehicles.  Next, if there is a problem with the launch, flight termination systems reduce the likelihood of placing nuclear material in severe accident conditions beyond controlled areas around the launch pad.  In addition, the nuclear power source includes several layers of protective features. Launch and Launch Area Risk 12

13. Kennedy Space Center ♦ Accidents that could result in a release of nuclear material in the launch area could only occur in the earliest phases of launch, before the launch vehicle clears the Florida coastline. No release would be expected from any launch accidents involving spacecraft impact in the ocean. ♦ If an accident with a release were to occur at or near the launch site, the greatest portion of any released material would be expected to remain onsite (KSC and CCAFS) where it presents very low risk to the public. ♦ In the unlikely event of an accident, public exposure to radiation, if any, is expected to be very small:  Most people would not be exposed to any radiation.  If there was a release, on average any individual dose (5-10 millirem) would be equal to about a week of exposure to the background radiation that people receive from living on Earth.  Americans are exposed to an average of 360 millirem of background radiation annually, mostly from sources like radon and cosmic rays.  If there were an off site release the maximum dose to any individual from a launch accident (which is received over 50 years) would be comparable to less than half of the annual dose from background sources of radiation. Launch and Launch Area Risk 13

14. Kennedy Space Center ♦ NASA has an aggressive plan for public and press outreach relative to its plans for the MSL mission ♦ We appreciate the Brevard County emergency planning and response partnership forged over many years of these types of missions ♦ The planning efforts to date for this mission are the most thorough in the history of NASA’s MMRTG use, including a comprehensive engagement of Federal, State and Local partners ♦ We appreciate the opportunity to bring the Commission up to date on the MSL and stand ready to conduct more detailed briefings that the Commission may request Summary 14

15. Kennedy Space Center Learn More About Curiosity Mars Science Laboratory http://mars.jpl.nasa.gov/msl MSL for Scientists http://msl-scicorner.jpl.nasa.gov Mars Exploration Program http://mars.jpl.nasa.gov MSL Candidate Landing Sites http://marsoweb.nas.nasa.gov/landingsites http://webgis.wr.usgs.gov/msl 15

16. Kennedy Space Center MSL Rover 16

17. Brevard County Participation: Mars Science Laboratory Launch

18. Brevard County Participation  Comprehensive Emergency Management Plan (CEMP)/with Space Launch Annex for Major Radiological Source  Developed Specific Plan Integrated with KSC Launch Plan for MSL  Participate in Joint Information System  MSL “Curiosity” at Brevard County Fair  Joint Briefing with media

19. Brevard County Participation  Extensive use of Social Media  SCGTV MSL animation videos  Joint Selection of off Site Monitoring Locations  Coordinate Training with EMS/Hospitals  Alerting and Warning of Public if Required.

20. Public Service Announcement Clear Channel Outdoor has made space available on 7 boards in Brevard and 2 in Orange County
