1. Mid3 Revision Prof. Sin-Min Lee

2. 2 Counters

3. 3 Figure 9--1 A 2-bit asynchronous binary counter. Asynchronous Counter Operation

4. 4 Figure 9--2 Timing diagram for the counter of Figure 9-1, output waveforms are shown in green.

5. 5

6. 6

7. 7 Figure 9--3 Three-bit asynchronous binary counter and its timing diagram for one cycle.

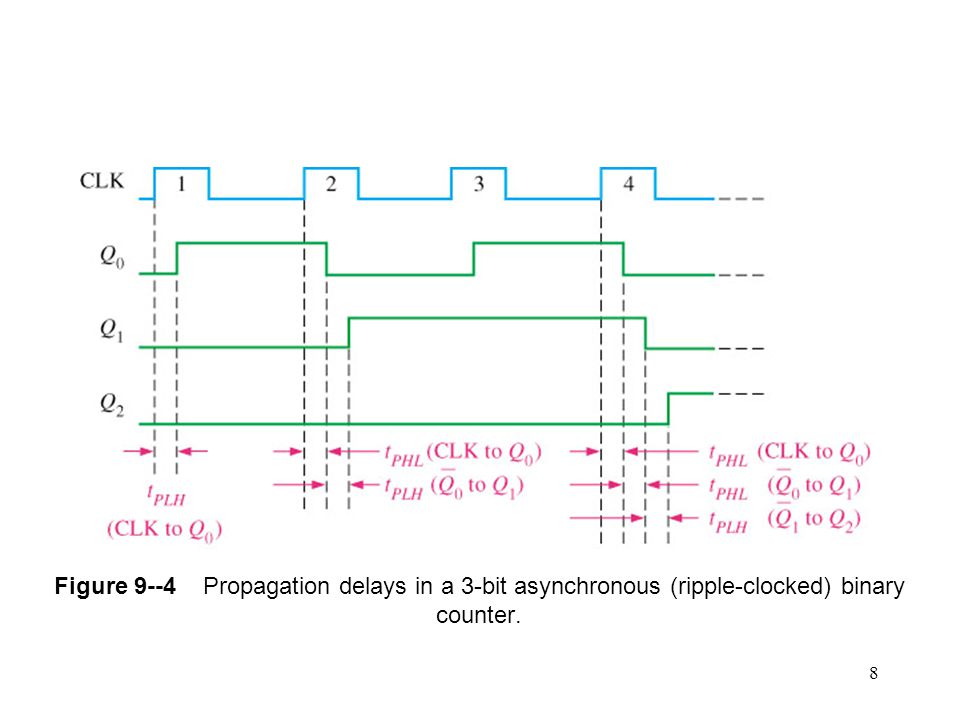

8. 8 Figure 9--4 Propagation delays in a 3-bit asynchronous (ripple-clocked) binary counter.

9. 9 Figure 9--5 Four-bit asynchronous binary counter and its timing diagram.

10. 10 Figure 9--11 A 2-bit synchronous binary counter. Synchronous Counter Operation

11. 11 Figure 9--12 Timing details for the 2-bit synchronous counter operation (the propagation delays of both flip-flops are assumed to be equal).

12. 12 Figure 9--13 Timing diagram for the counter of Figure 9-11.

13. 13 Figure 9--14 A 3-bit synchronous binary counter.

14. 14 Figure 9--15 Timing diagram for the counter of Figure 9-14.

15. 15

16. 16 Figure 9--27 General clocked sequential circuit. Design of Synchronous Counters

17. 17 Figure 9--28 State diagram for a 3-bit Gray code counter. Step 1: State Diagram

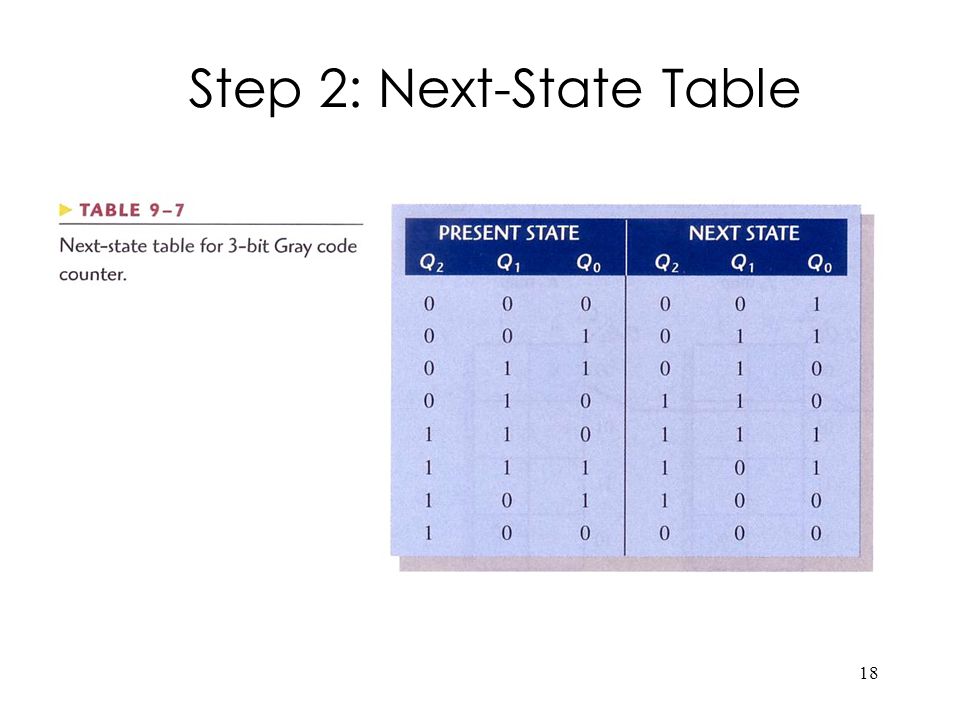

18. 18 Step 2: Next-State Table

19. 19 Step 3: Flip-Flop Transition Table

20. 20 Figure 9--29 Examples of the mapping procedure for the counter sequence represented in Table 9-7 and Table 9-8. Step 4: Karnaugh Maps

21. 21 Figure 9--30 Karnaugh maps for present-state J and K inputs. Step 5: Logic Expressions for Flip-Flop Inputs

22. 22 Figure 9--31 Three-bit Gray code counter. Step 6: Counter Implementation

23. 23 Figure 9—32 : Example 9-5

24. 24

25. 25

26. 26 Figure 9--33

27. 27 Figure 9--34

28. 28 Figure 9--35 Example 9-6 - State diagram for a 3-bit up/down Gray code counter.

29. 29

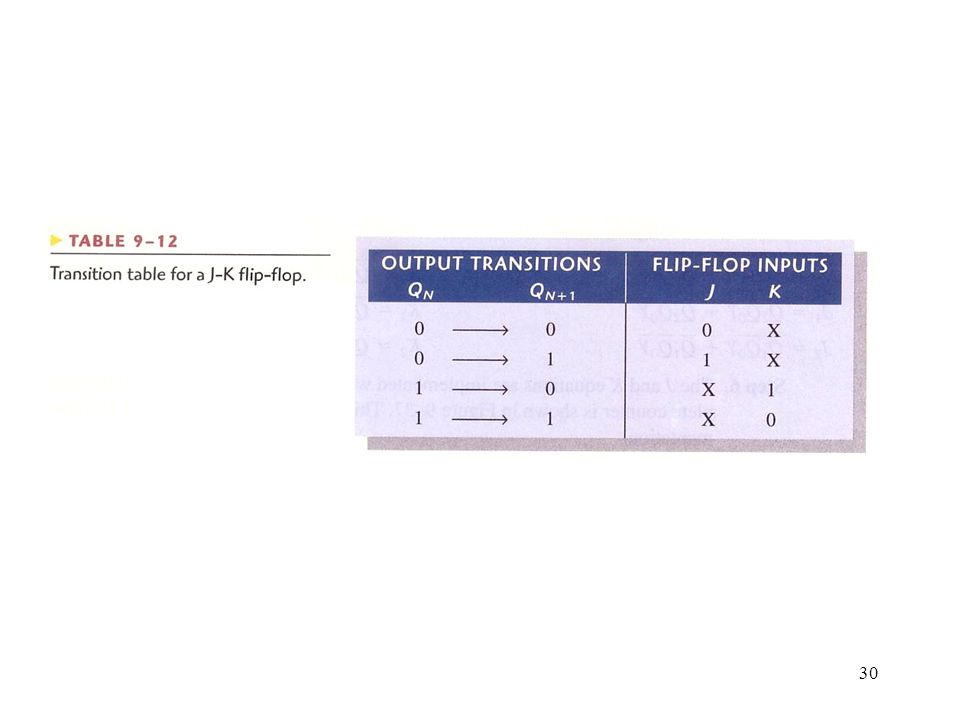

30. 30

31. 31 Figure 9--36 J and K maps for Table 9-11. The UP/DOWN control input, Y, is treated as a fourth variable.

32. 32 Figure 9--37 Three-bit up/down Gray code counter.

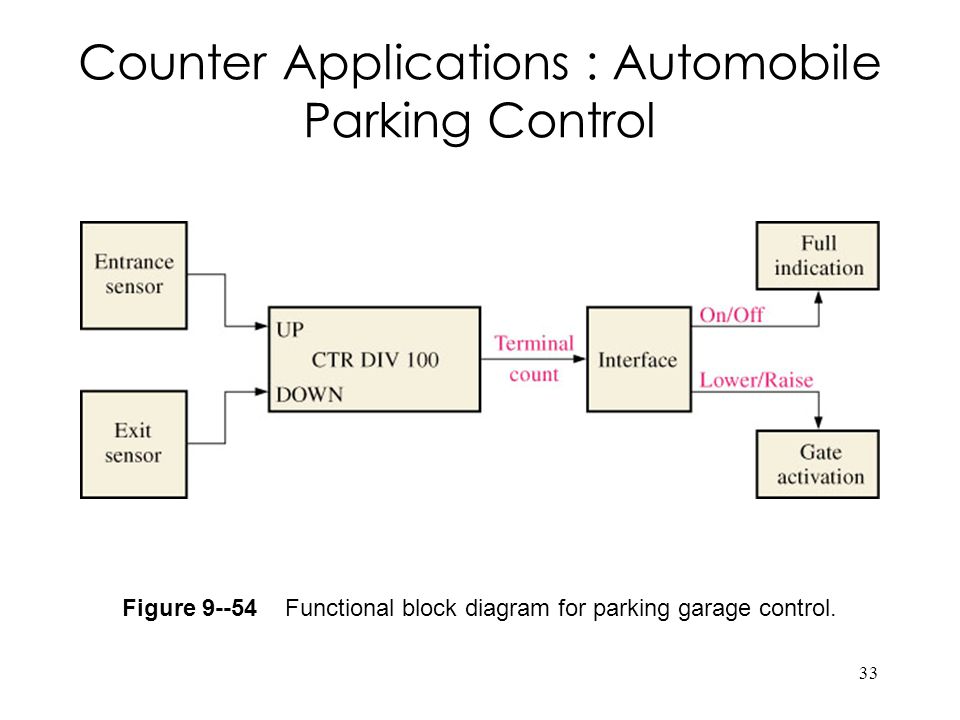

33. 33 Figure 9--54 Functional block diagram for parking garage control. Counter Applications : Automobile Parking Control

34. 34 Figure 9--55 Logic diagram for modulus-100 up/down counter for automobile parking control.

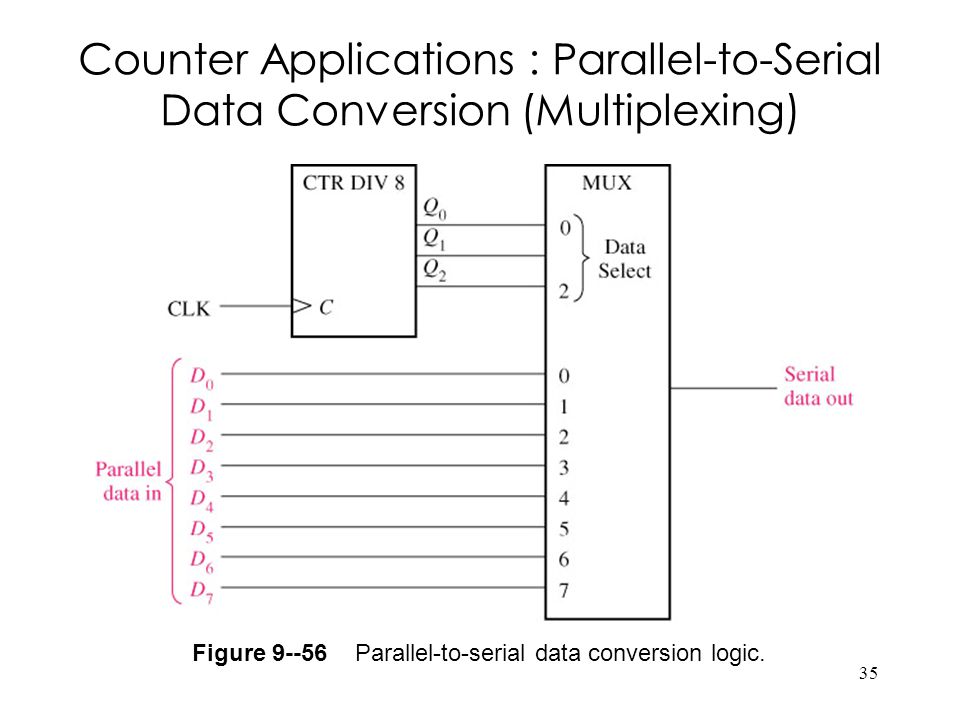

35. 35 Figure 9--56 Parallel-to-serial data conversion logic. Counter Applications : Parallel-to-Serial Data Conversion (Multiplexing)

36. 36 Figure 9--57 Example of parallel-to-serial conversion timing for the circuit in Figure 9-56.

37. 37 Figure 9--66 Traffic light control system block diagram and light sequence. Application

38. 38 Figure 9--67 Block diagram of the sequential logic.

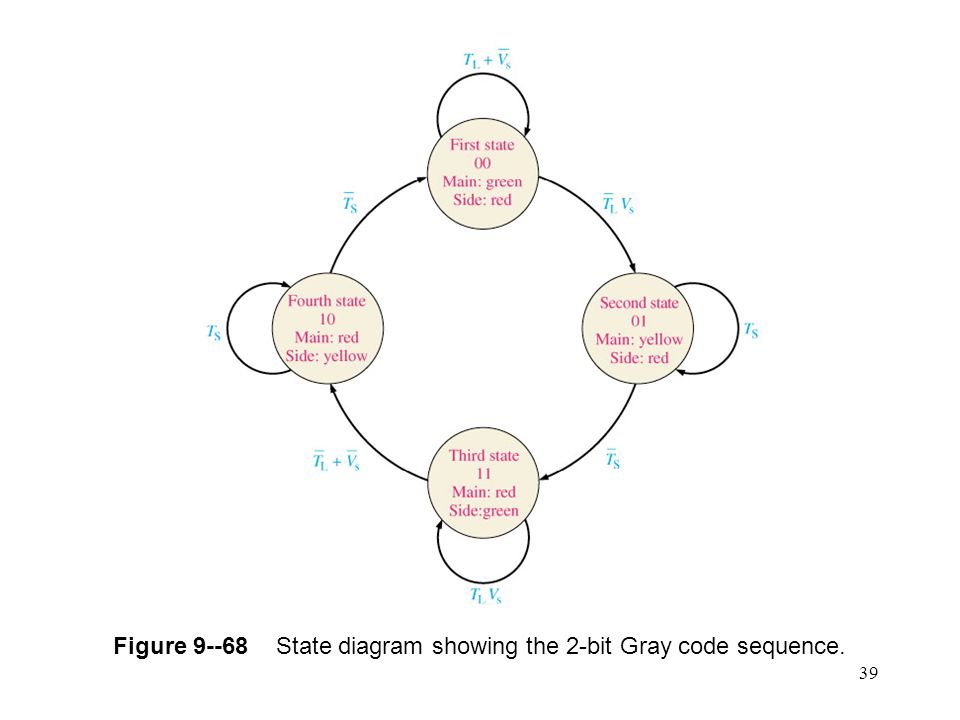

39. 39 Figure 9--68 State diagram showing the 2-bit Gray code sequence.

40. 40 Figure 9--69 Sequential logic.

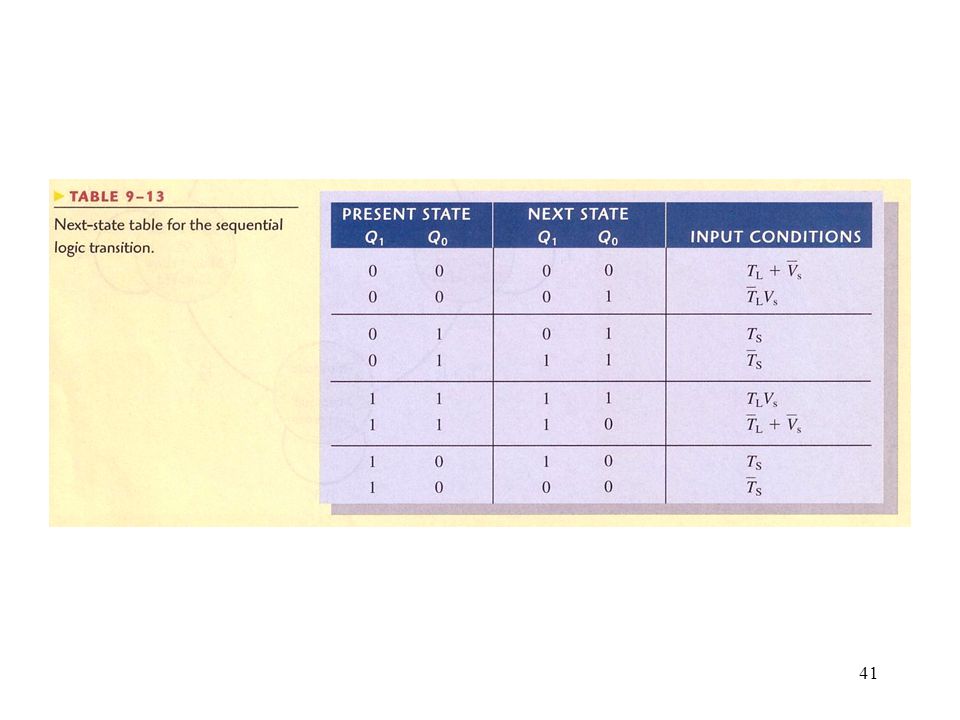

41. 41

42. 42

43. 43

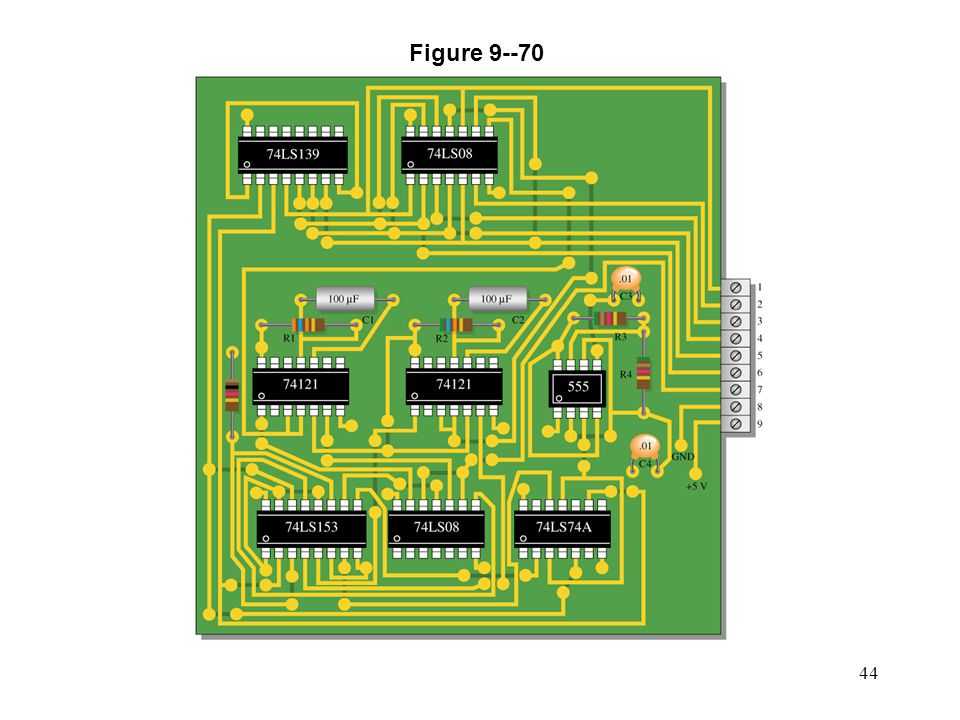

44. 44 Figure 9--70

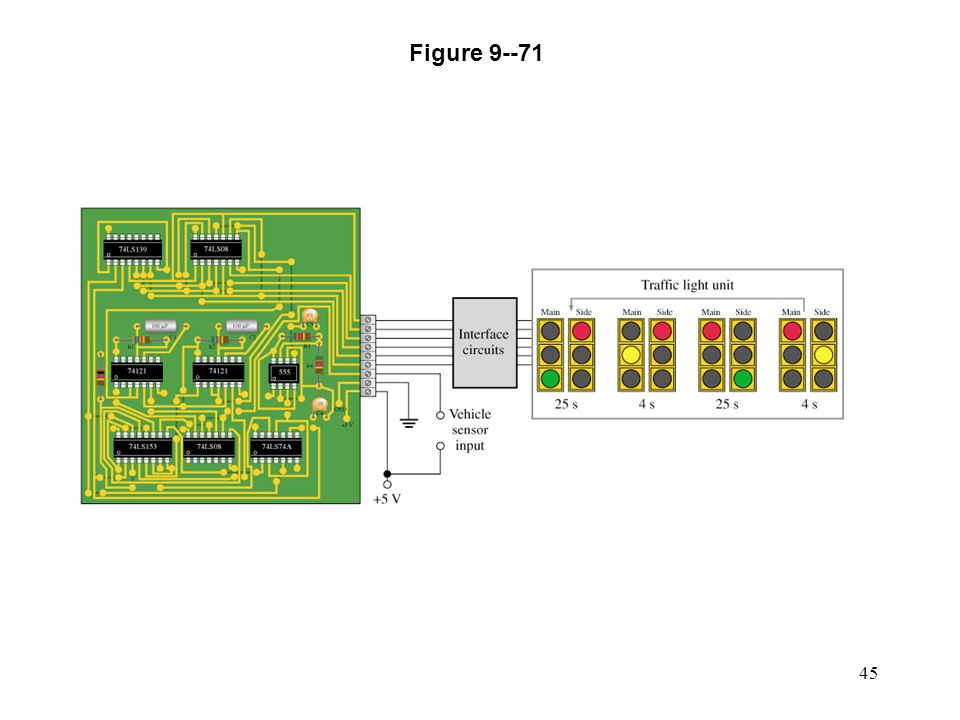

45. 45 Figure 9--71

46. 46 Figure 9--72

47. You have invented a new type of flip-flop that you have called MY flip-flop. The two inputs are M and Y, the outputs are Q and Q'. The truth table of your flip-flop is given below. Show how to implement a SR flip-flop using the new MY flip-flop

48. Multiplexer Given the following implementation using a 4:1 multiplexer, what is the function L(A,B,C,D)? A.  m(0, 1, 2, 3) B.  m(5, 6, 8, 11) C.  m(1, 2, 5, 6) D.  m(1, 2, 5, 6, 9, 10, 13, 14) E.  m(2, 5, 9, 14) C D

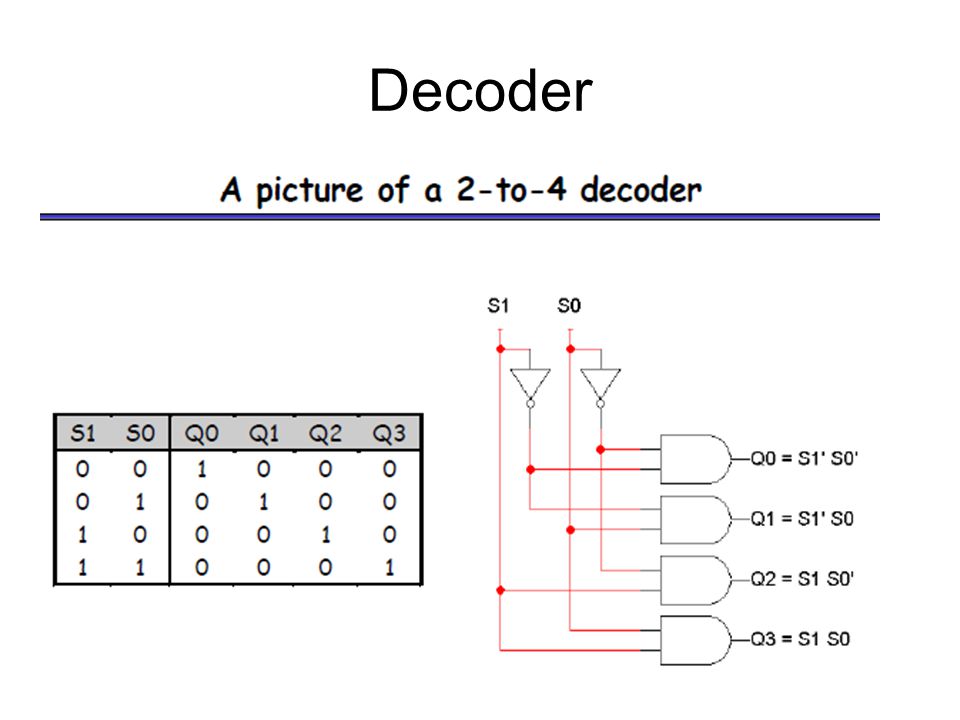

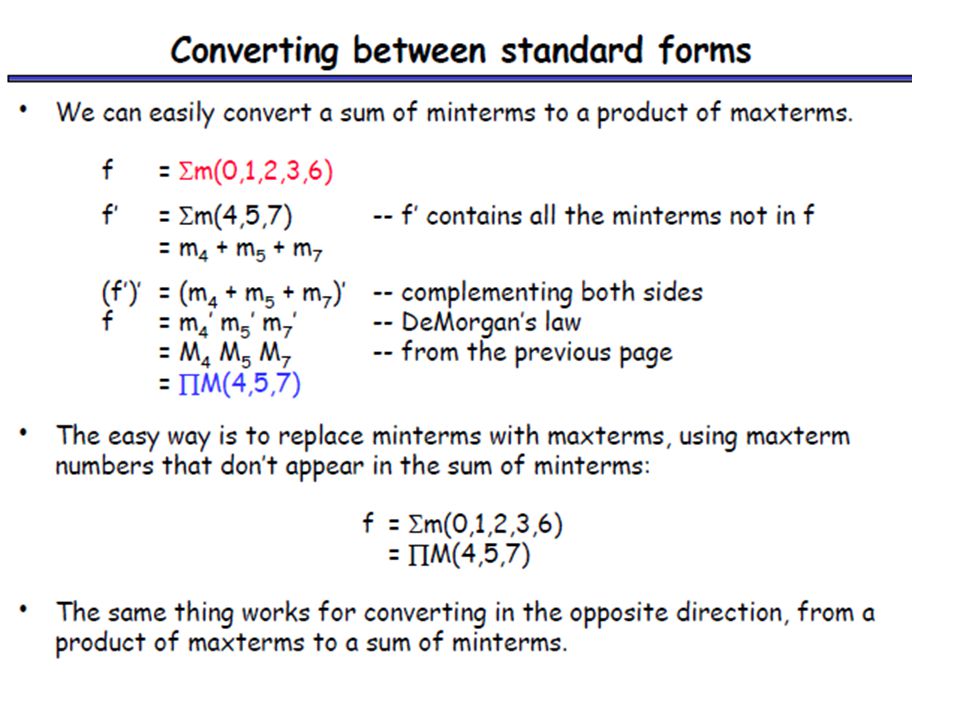

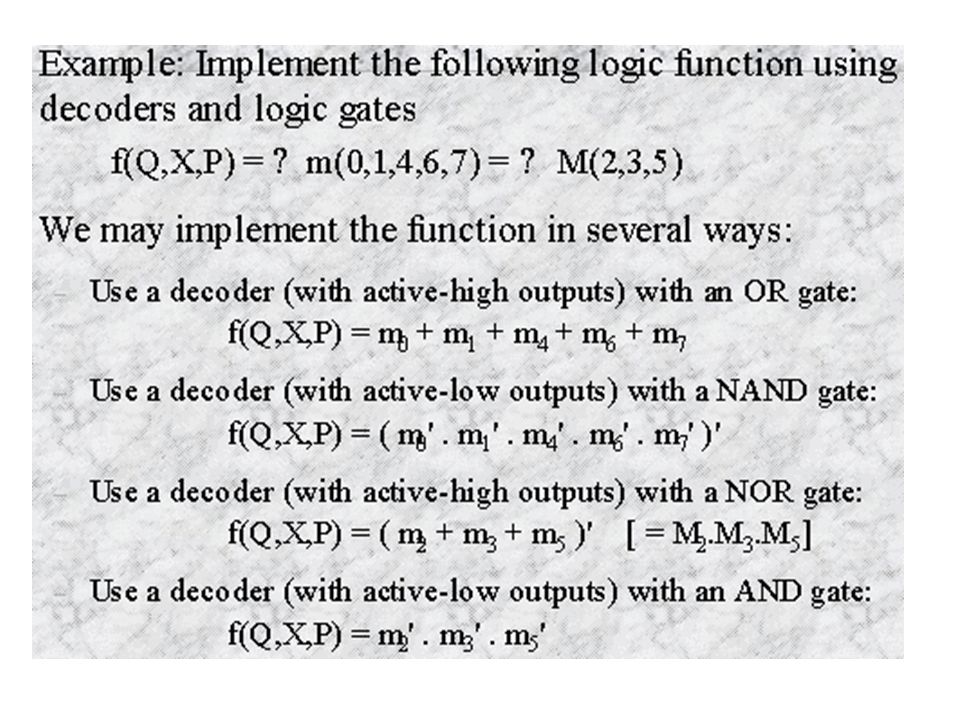

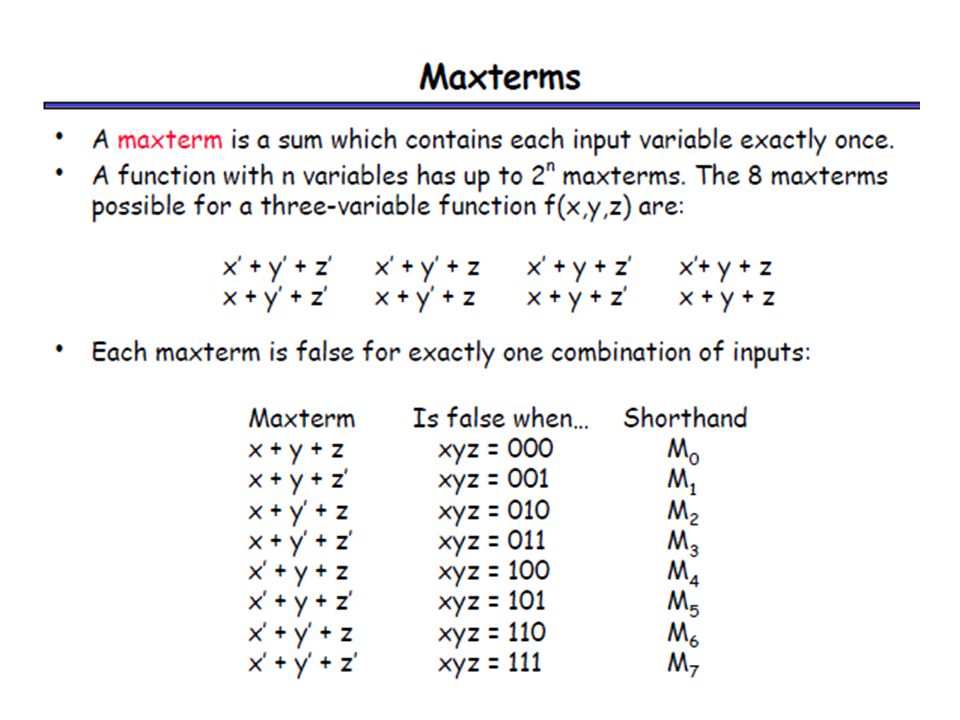

49. Decoder
