1. 8/14/2015 Slide 1

2. CareManager User Training version 3.5_072209 Introduction to CareManager & Diabetes Module

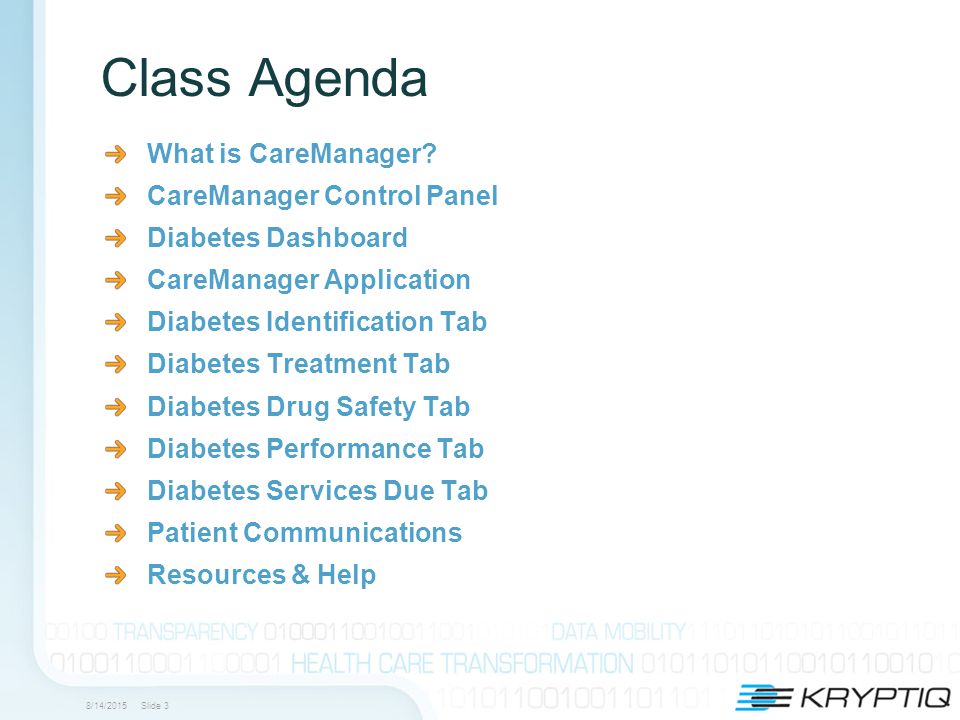

3. 8/14/2015 Slide 3 Class Agenda What is CareManager? CareManager Control Panel Diabetes Dashboard CareManager Application Diabetes Identification Tab Diabetes Treatment Tab Diabetes Drug Safety Tab Diabetes Performance Tab Diabetes Services Due Tab Patient Communications Resources & Help

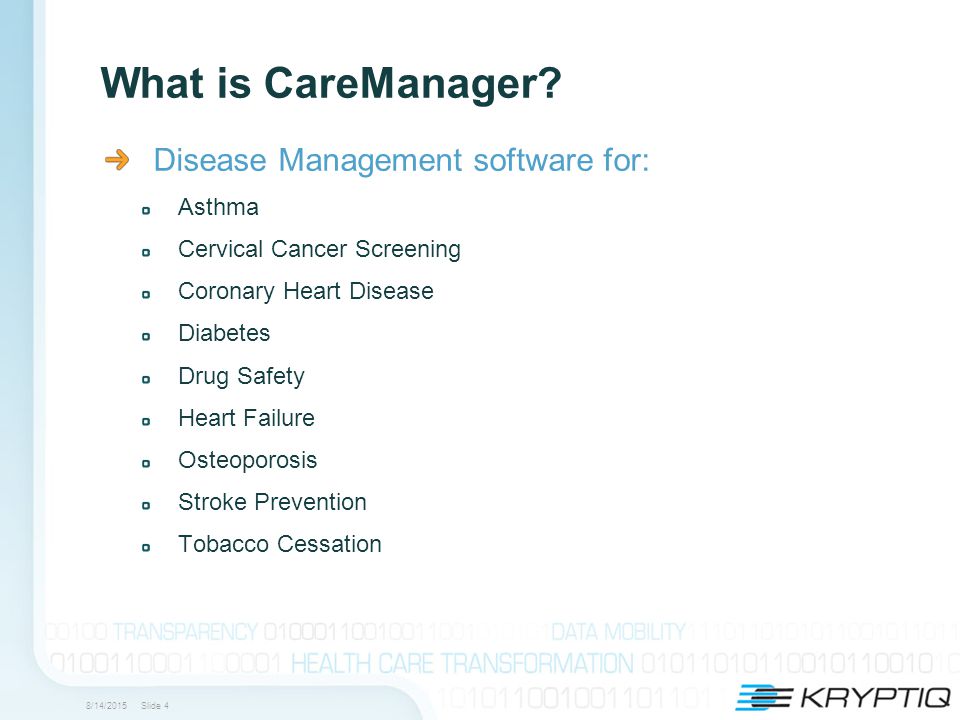

4. 8/14/2015 Slide 4 What is CareManager? Disease Management software for: Asthma Cervical Cancer Screening Coronary Heart Disease Diabetes Drug Safety Heart Failure Osteoporosis Stroke Prevention Tobacco Cessation

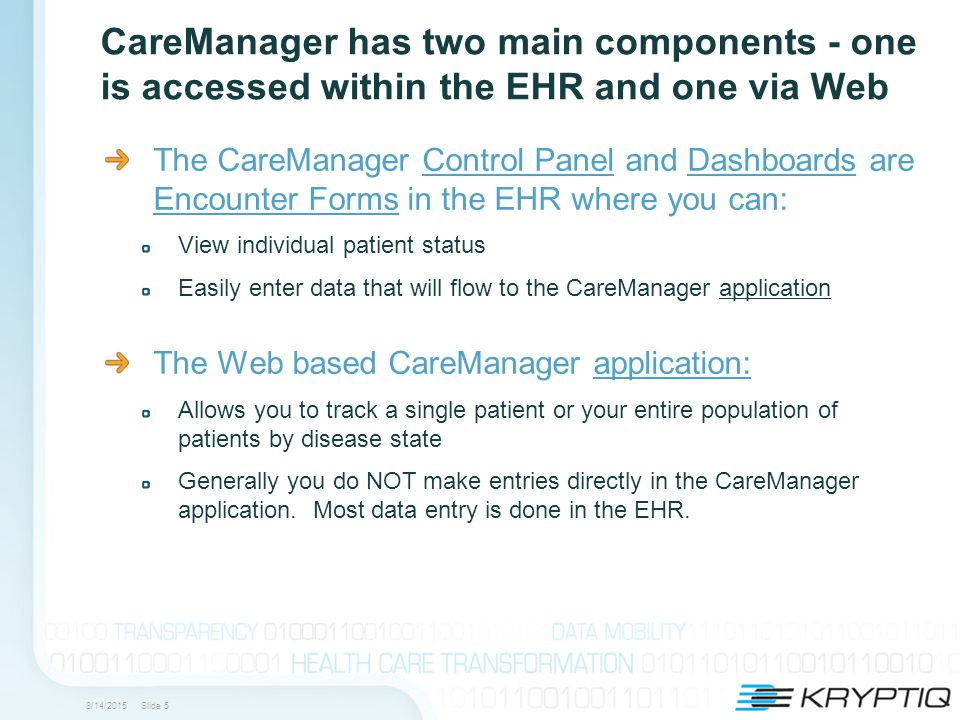

5. 8/14/2015 Slide 5 CareManager has two main components - one is accessed within the EHR and one via Web The CareManager Control Panel and Dashboards are Encounter Forms in the EHR where you can: View individual patient status Easily enter data that will flow to the CareManager application The Web based CareManager application: Allows you to track a single patient or your entire population of patients by disease state Generally you do NOT make entries directly in the CareManager application. Most data entry is done in the EHR.

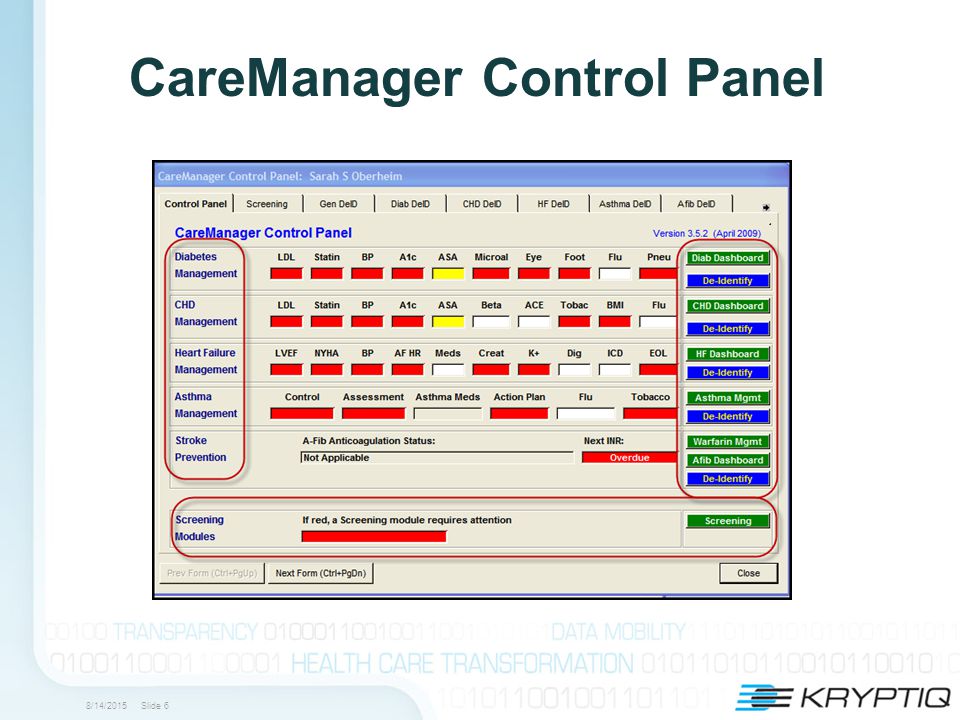

6. 8/14/2015 Slide 6 CareManager Control Panel

7. 8/14/2015 Slide 7 CareManager Control Panel – access by starting Chart Update in EHR 1.Care management summary for the patient, showing key treatment indicators for each module 2.Color Coded for triage 3.Detailed Dashboards available for all modules 4.Screening module dashboards available as well

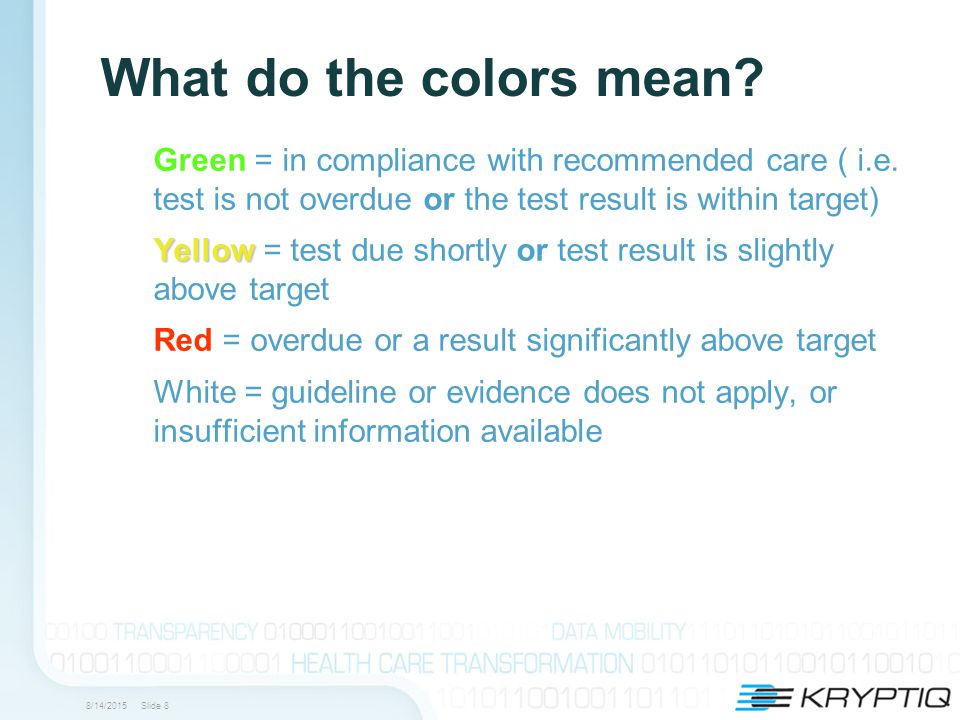

8. 8/14/2015 Slide 8 What do the colors mean? Green = in compliance with recommended care ( i.e. test is not overdue or the test result is within target) Yellow Yellow = test due shortly or test result is slightly above target Red = overdue or a result significantly above target White = guideline or evidence does not apply, or insufficient information available

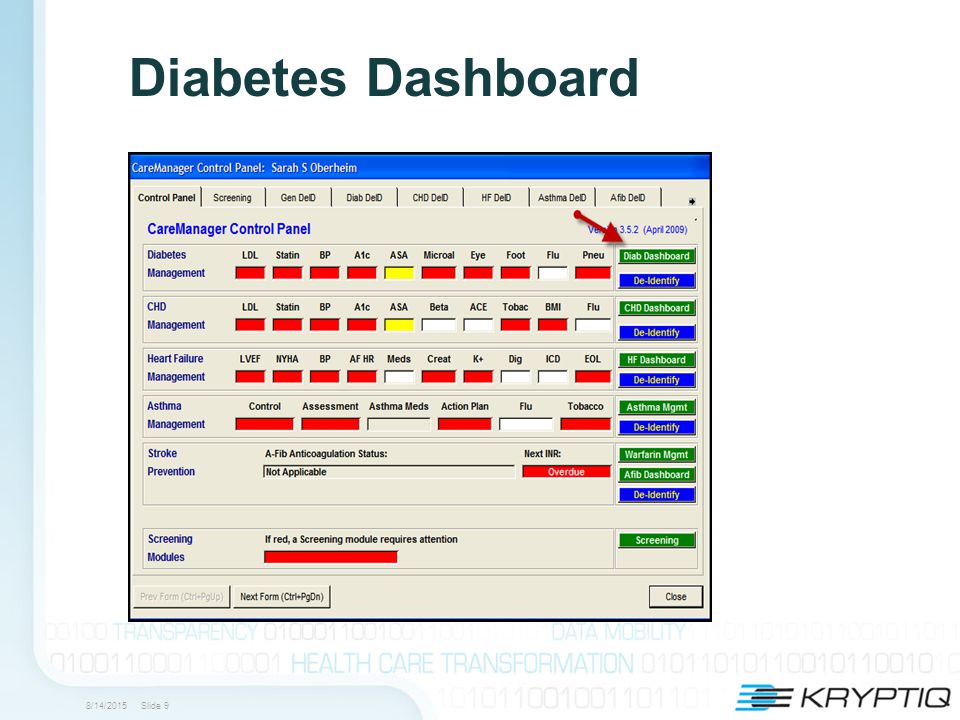

9. 8/14/2015 Slide 9 Diabetes Dashboard

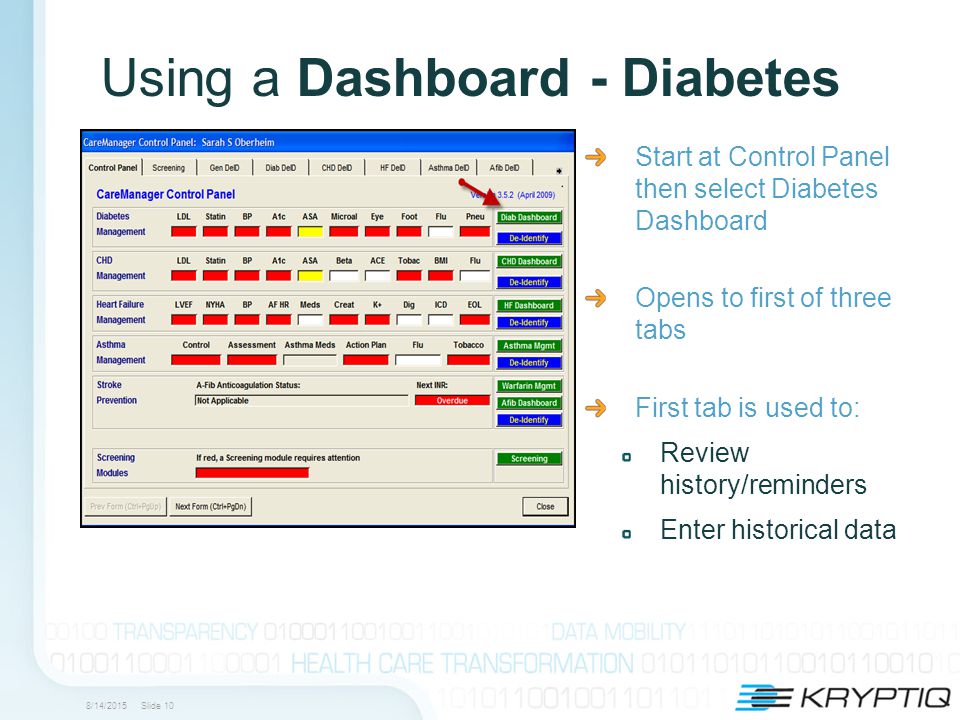

10. 8/14/2015 Slide 10 Using a Dashboard - Diabetes Start at Control Panel then select Diabetes Dashboard Opens to first of three tabs First tab is used to: Review history/reminders Enter historical data

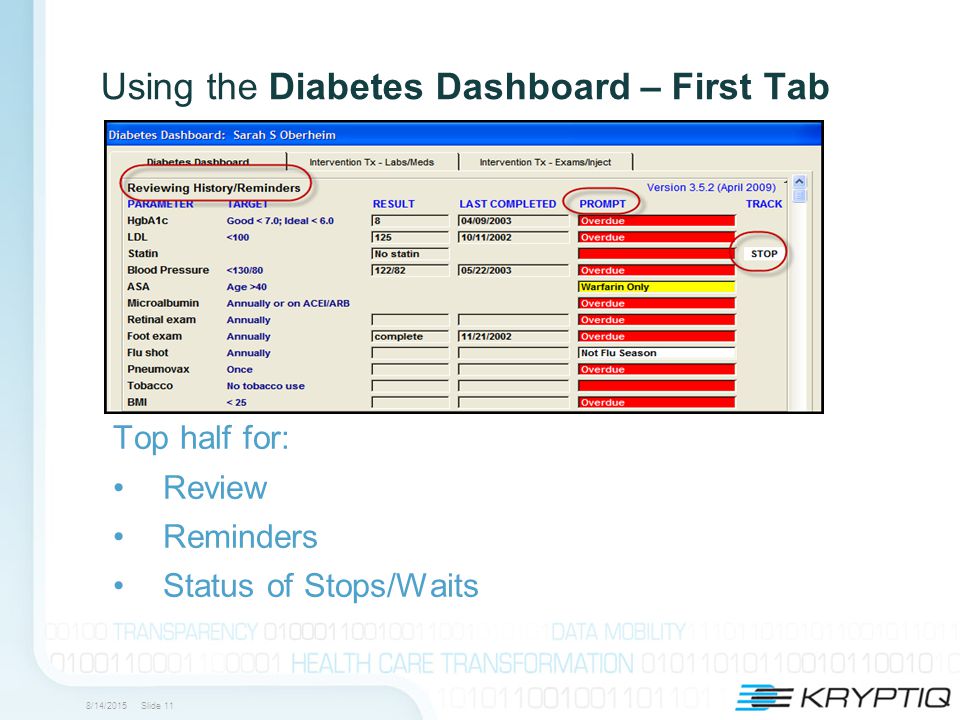

11. 8/14/2015 Slide 11 Using the Diabetes Dashboard – First Tab Top half for: Review Reminders Status of Stops/Waits

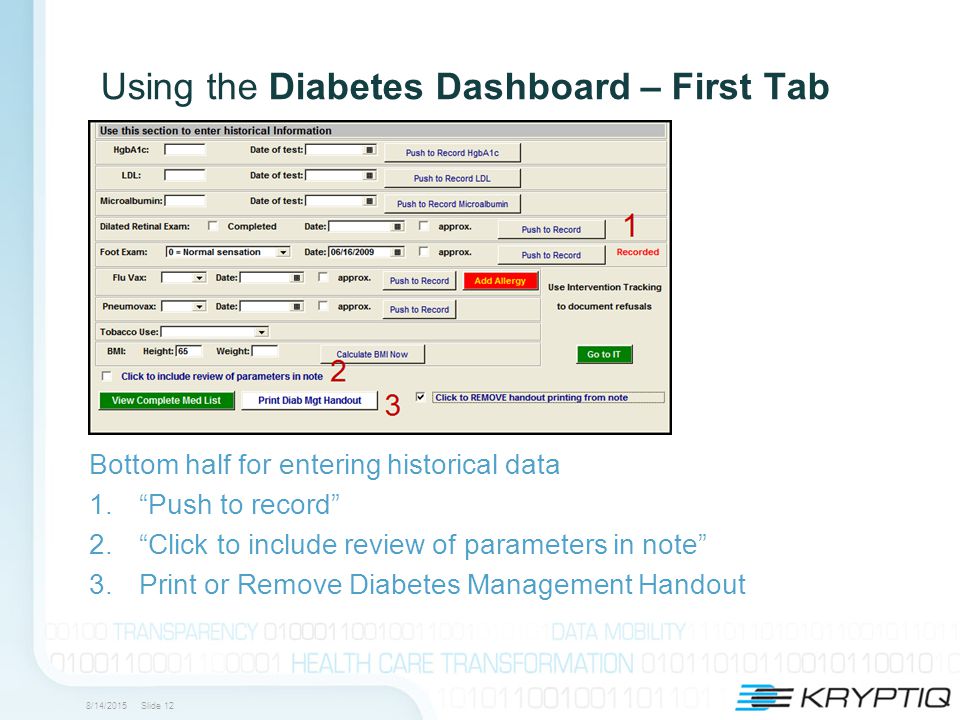

12. 8/14/2015 Slide 12 Using the Diabetes Dashboard – First Tab Bottom half for entering historical data 1.“Push to record” 2.“Click to include review of parameters in note” 3.Print or Remove Diabetes Management Handout

13. 8/14/2015 Slide 13 Using the Diabetes Dashboard – Intervention (second) Tab for Labs/Meds 1.Used to tell CareManager to temporarily stop tracking a specific parameter such as LDL for weeks or months 2.Select Stop (good for up to 12 months) or Wait for a specific parameter 3.Use the drop down menus to choose a reason or type in a reason 4.To stop all interventions for ALL CareManager modules, use STOP ALL on the same form

14. 8/14/2015 Slide 14 Using the Diabetes Dashboard – Intervention (Third) Tab for Exams/Injections 1.Select Stop (good for up to 12 months) for a specific exam 2.Use the drop down menus to choose reason or type in reason 3.Close, end update and sign Note: If patient declines due to allergy, note allergy in chart. CM will then display “allergy” in dashboard

15. 8/14/2015 Slide 15 CareManager Application (Web)

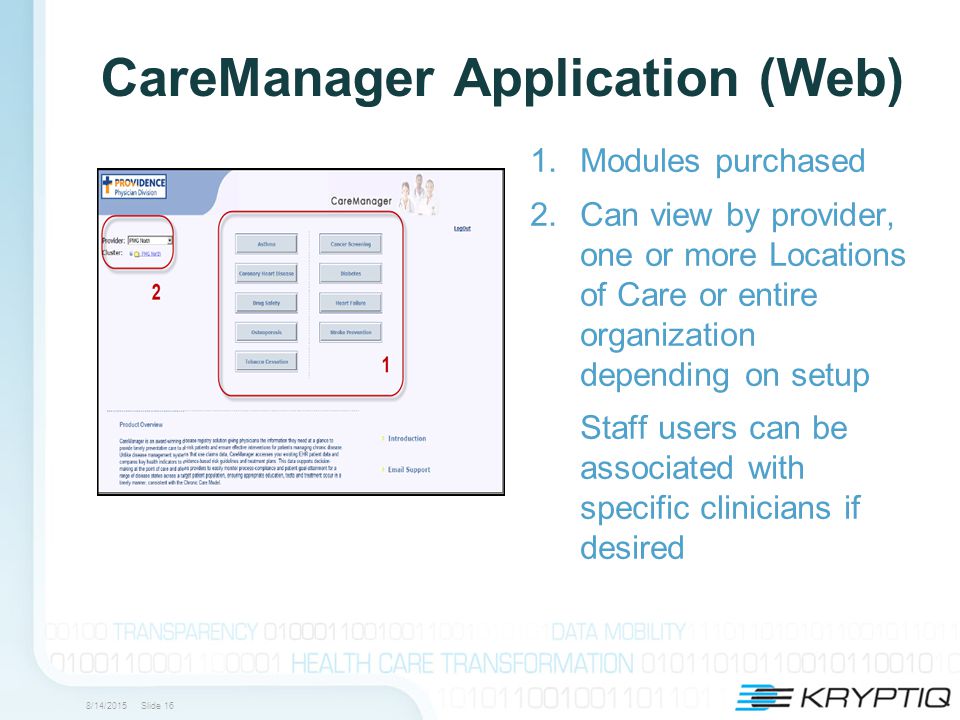

16. 8/14/2015 Slide 16 CareManager Application (Web) 1.Modules purchased 2.Can view by provider, one or more Locations of Care or entire organization depending on setup Staff users can be associated with specific clinicians if desired

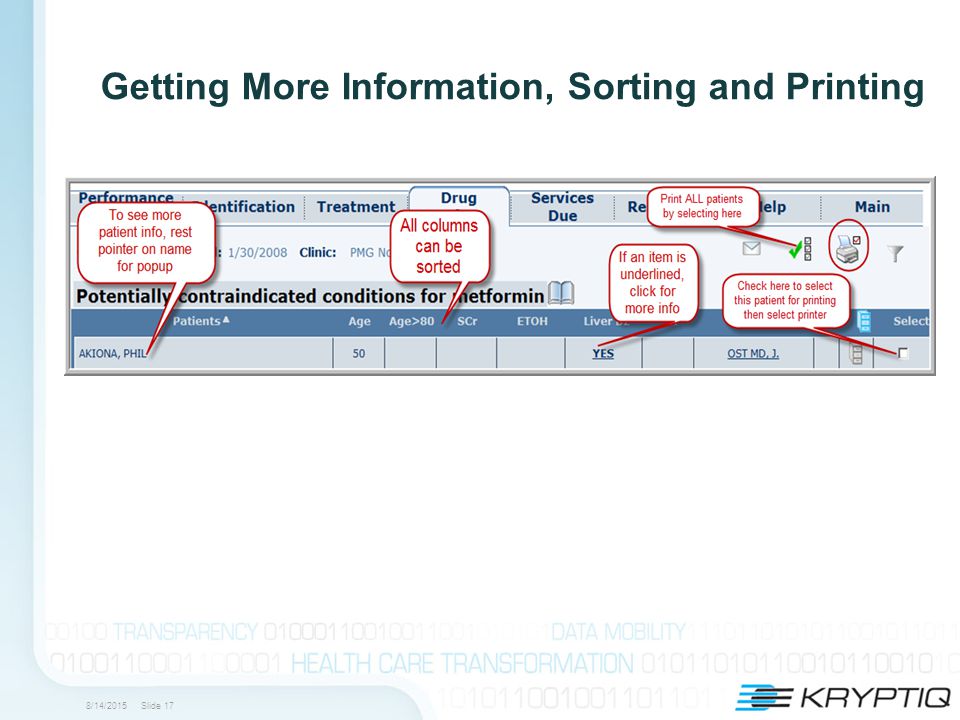

17. 8/14/2015 Slide 17 Getting More Information, Sorting and Printing

18. 8/14/2015 Slide 18 Diabetes Module - Identification Tab

19. 8/14/2015 Slide 19 Diabetes Identification Tab This tab is used to review and classify patients five ways: General cleanup of inactive and deceased patients Add DX of Diabetes where appropriate Indicate where DX of diabetes is not appropriate Indicate care is being monitored elsewhere Monitoring patients for changes

20. 8/14/2015 Slide 20 Diabetes Identification Tab TOP SECTION Patients who may need to be classified as Diabetics and monitored appropriately Over Age 18 and missing a 250.xx Diagnosis AND one or more of these: Their highest-ever level of hemoglobin A1c greater than or equal to 6.1 percent. Their highest-ever level of random serum glucose greater than or equal to 200 mg/dL. Prescription for a hypoglycemic agent on the medication list.

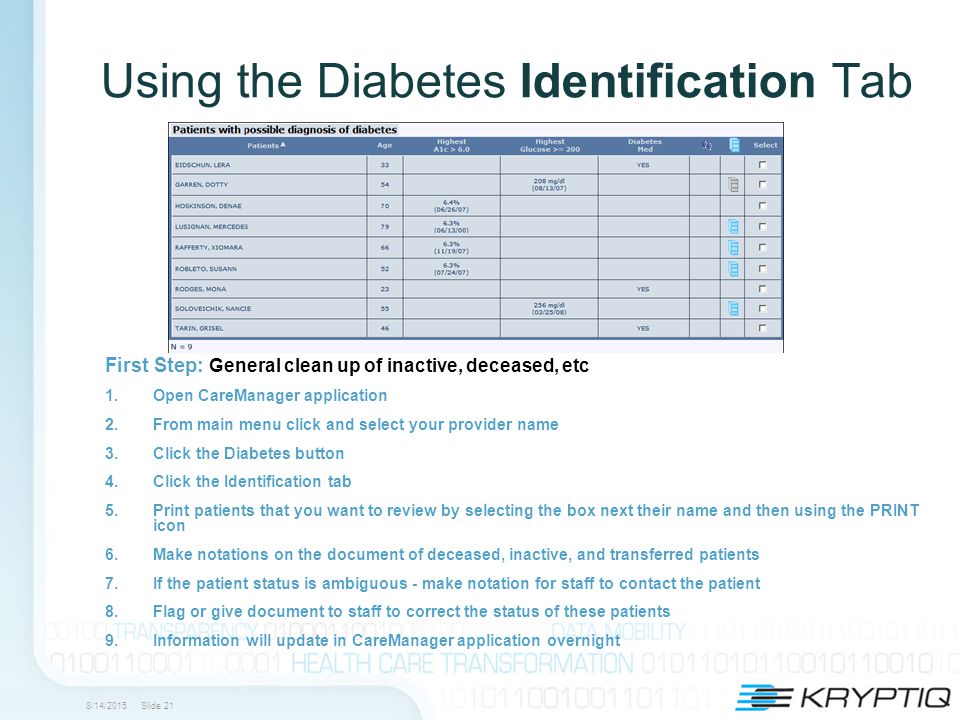

21. 8/14/2015 Slide 21 Using the Diabetes Identification Tab First Step: General clean up of inactive, deceased, etc 1.Open CareManager application 2.From main menu click and select your provider name 3.Click the Diabetes button 4.Click the Identification tab 5.Print patients that you want to review by selecting the box next their name and then using the PRINT icon 6.Make notations on the document of deceased, inactive, and transferred patients 7.If the patient status is ambiguous - make notation for staff to contact the patient 8.Flag or give document to staff to correct the status of these patients 9.Information will update in CareManager application overnight

22. 8/14/2015 Slide 22 Using the Diabetes Identification Tab Second Step: Review remaining patients to either add DX of Diabetes or Indicate NO DX appropriate 1.Open CareManager application 2.From main menu, click and select your name (provider) 3.Click the Diabetes button 4.Click the Identification tab 5.Print patient list for review 6.Toggle to the EMR and open each chart for review 7.Decide whether you will add a DX or note a reason for no DX. Use CareManager Encounter Form – Control Panel for data entry

23. 8/14/2015 Slide 23 To ADD Diagnosis of Diabetes using EHR 1.Start Chart Update – use CareManager Encounter Type. 2.From the CareManager Control Panel, select the De- Identify tab. 3.Select Patient HAS a diagnosis of Diabetes – click Enroll patient and add the diagnosis to the problem list.

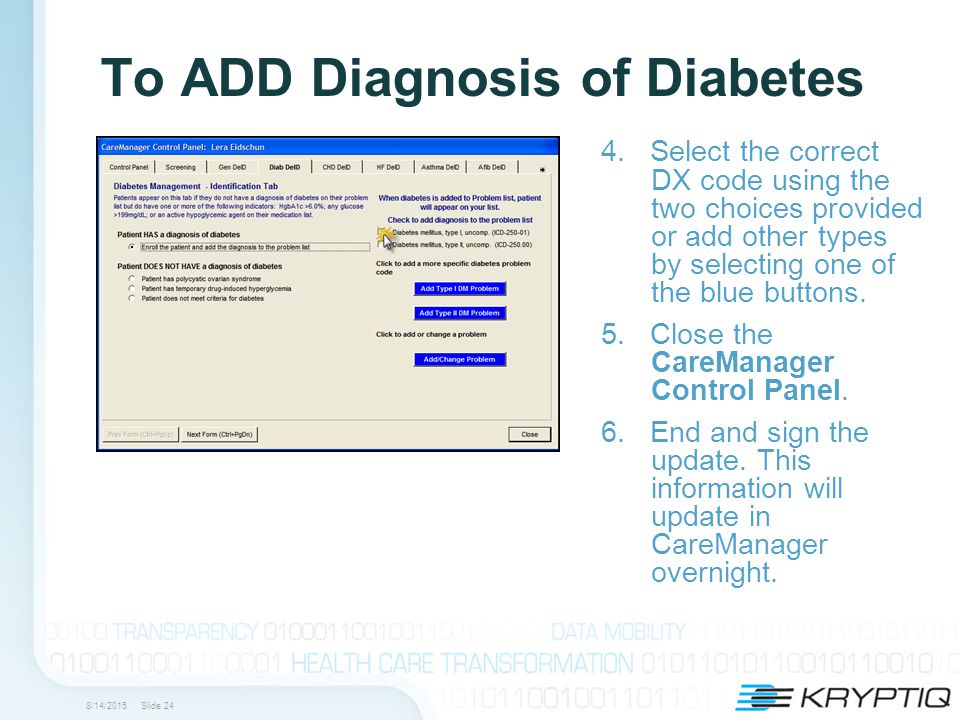

24. 8/14/2015 Slide 24 To ADD Diagnosis of Diabetes 4. Select the correct DX code using the two choices provided or add other types by selecting one of the blue buttons. 5. Close the CareManager Control Panel. 6. End and sign the update. This information will update in CareManager overnight.

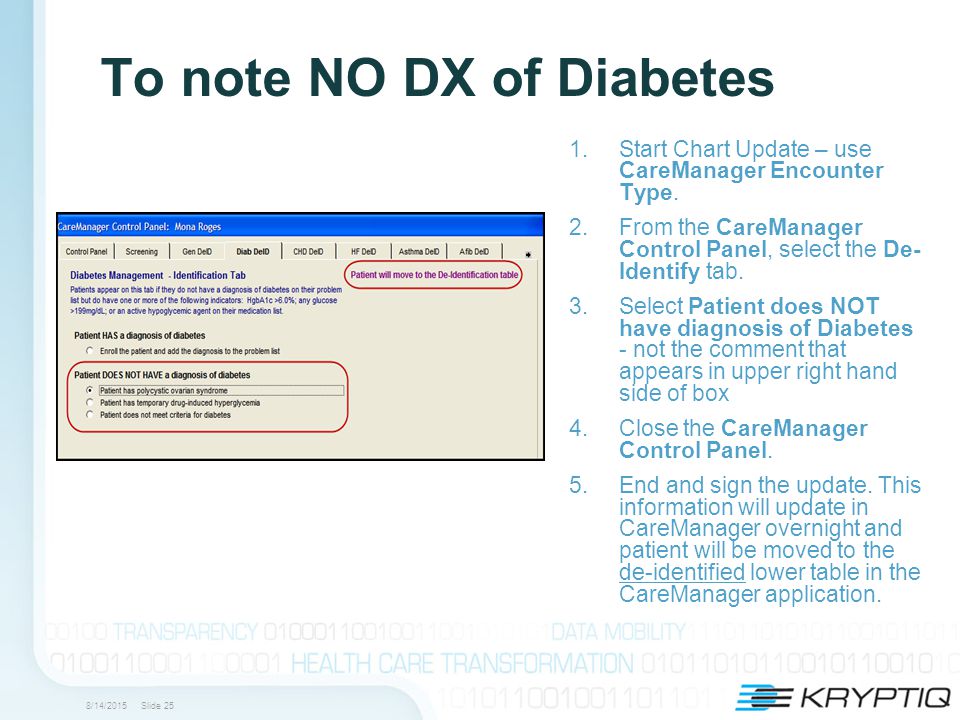

25. 8/14/2015 Slide 25 To note NO DX of Diabetes 1.Start Chart Update – use CareManager Encounter Type. 2.From the CareManager Control Panel, select the De- Identify tab. 3.Select Patient does NOT have diagnosis of Diabetes - not the comment that appears in upper right hand side of box 4.Close the CareManager Control Panel. 5.End and sign the update. This information will update in CareManager overnight and patient will be moved to the de-identified lower table in the CareManager application.

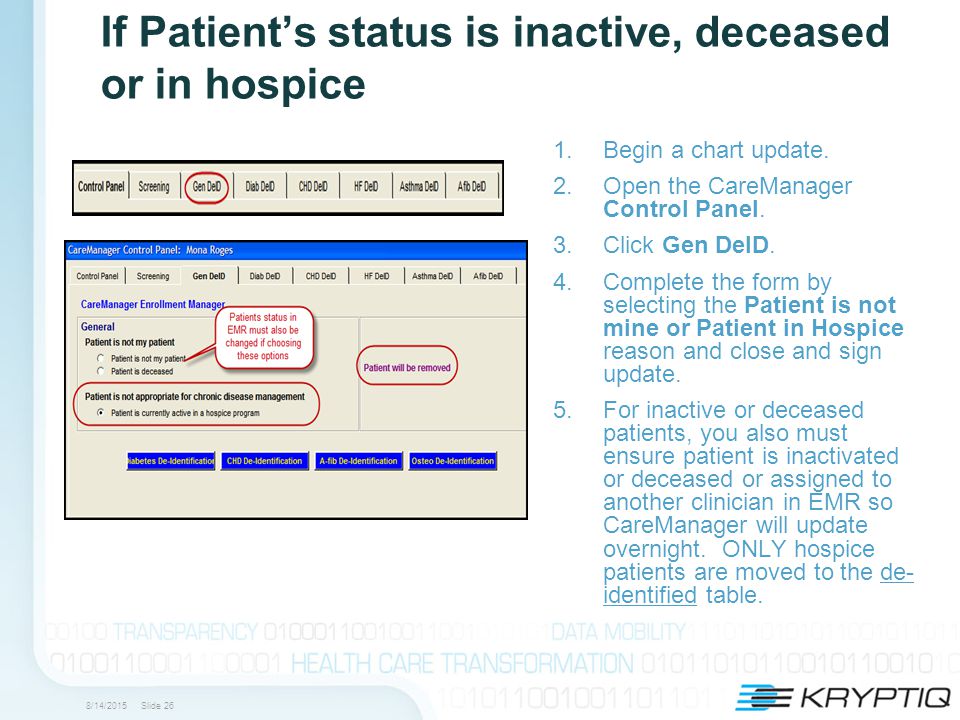

26. 8/14/2015 Slide 26 If Patient’s status is inactive, deceased or in hospice 1.Begin a chart update. 2.Open the CareManager Control Panel. 3.Click Gen DeID. 4.Complete the form by selecting the Patient is not mine or Patient in Hospice reason and close and sign update. 5.For inactive or deceased patients, you also must ensure patient is inactivated or deceased or assigned to another clinician in EMR so CareManager will update overnight. ONLY hospice patients are moved to the de- identified table.

27. 8/14/2015 Slide 27 Ongoing Monitoring of Patients Monitoring: 1.Open CareManager application 2.From main menu, click and select your name (provider) 3.Click the Diabetes button 4.Click the Identification tab 5.Check the top table for new entries or changes to existing patients 6.Check the lower table for patients at high risk for developing diabetes

28. 8/14/2015 Slide 28 Treatment Tab – CareManager Application

29. 8/14/2015 Slide 29 Color Review Green = in compliance with recommended care (i.e. test is not overdue or the test result is within target) Yellow Yellow = test due shortly or test result is slightly above target Red = overdue or a result significantly above target White = guideline or evidence does not apply, or insufficient information available

30. 8/14/2015 Slide 30 What do the symbols mean? Active Stop = Do not pursue treatment at this time. Expired Stop = Expiration date for stop is over. Pursue. Active Wait = Waiting for patient action, result or treatment. Expired Wait = Expiration date for wait is over. Pursue. Multiple Provider Support = Multiple Providers involved.

31. 8/14/2015 Slide 31 Using the Treatment Tab This tab is used by physicians to monitor compliance After monitoring, user may add interventions or update information using the CareManager Control Panel in the EMR Users may also generate Patient Communications from this tab – covered later in this class

32. 8/14/2015 Slide 32 Drug Safety Tab

33. 8/14/2015 Slide 33 Using the Drug Safety Tab This tab is used by physicians to monitor drug therapy and possible contraindications for diabetic patients being managed by CareManager Two areas: Metformin & TZDs and relevant lab values for each

34. 8/14/2015 Slide 34 Using the Drug Safety Tab 1.Open CareManager application. 2.From main menu, click and select your name (provider). 3.Click the Diabetes button. 4.Click the Drug Safety tab. 5.For all patients with elevated or overdue parameters – Select ALL and Print. 6.Using the list, open the chart in EHR and review. 7.Determine if the patient is still on the medication. If no, remove the drug from the Medication List using the EMR. 8.Identify patients needing follow up based on monitoring criteria. Goal is to help you quickly identify patients who need intervention of some kind.

35. 8/14/2015 Slide 35 Performance Feedback Tab

36. 8/14/2015 Slide 36 Performance Feedback Tab - At target for LDL- At target for blood pressure - At target for A1c - With poor control of A1c - On an antiplatelet agent - With renal protection - With current monofilament exam - With current dilated retinal exam - Who have received pneumovax - Whose BMI is >30 or unknown - Whose tobacco status is current or unknown.

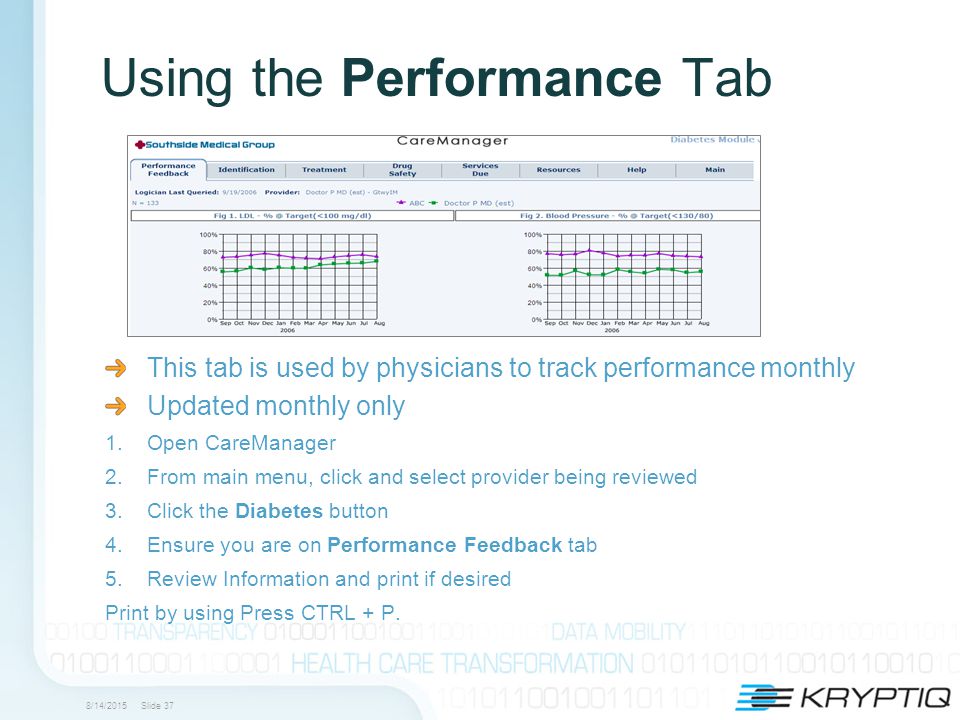

37. 8/14/2015 Slide 37 Using the Performance Tab This tab is used by physicians to track performance monthly Updated monthly only 1.Open CareManager 2.From main menu, click and select provider being reviewed 3.Click the Diabetes button 4.Ensure you are on Performance Feedback tab 5.Review Information and print if desired Print by using Press CTRL + P.

38. 8/14/2015 Slide 38 Services Due Tab

39. 8/14/2015 Slide 39 Using the Services Due Tab This tab is used by staff to prioritize patient outreach Uses the same grid of colors and symbols: Clock = wait has been applied to the column value Stop Sign = time-based stop on value or patient People = multiple providers are managing this patient’s diabetes File Cabinet = letters or correspondence added to this patient’s chart Use Patient Communication tools for contact (i.e. letters or phone notes)

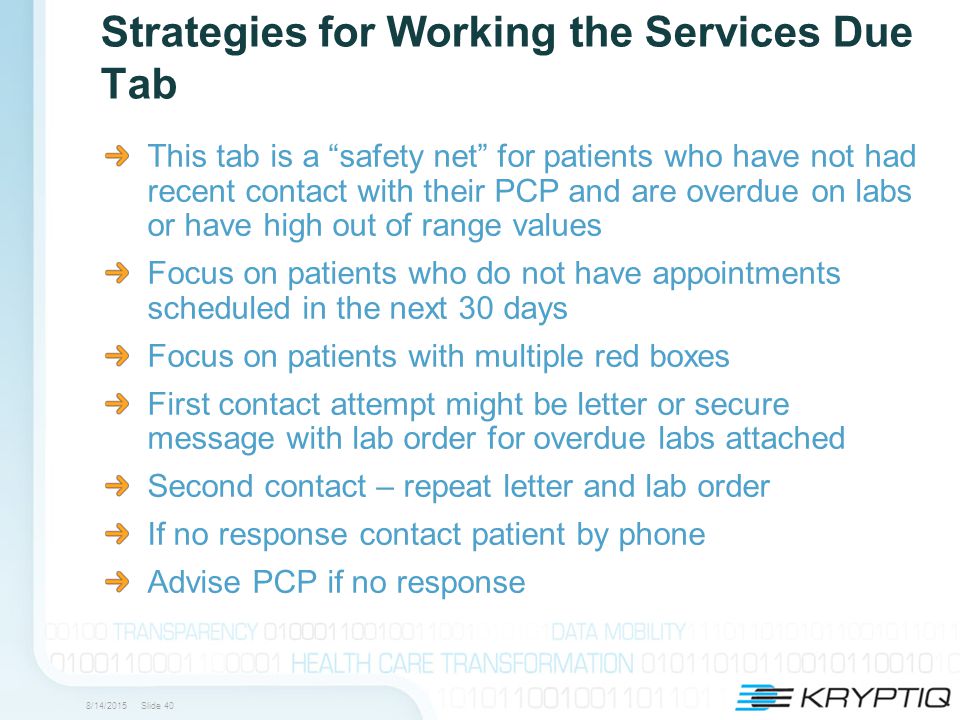

40. 8/14/2015 Slide 40 Strategies for Working the Services Due Tab This tab is a “safety net” for patients who have not had recent contact with their PCP and are overdue on labs or have high out of range values Focus on patients who do not have appointments scheduled in the next 30 days Focus on patients with multiple red boxes First contact attempt might be letter or secure message with lab order for overdue labs attached Second contact – repeat letter and lab order If no response contact patient by phone Advise PCP if no response

41. 8/14/2015 Slide 41 Patient Communications

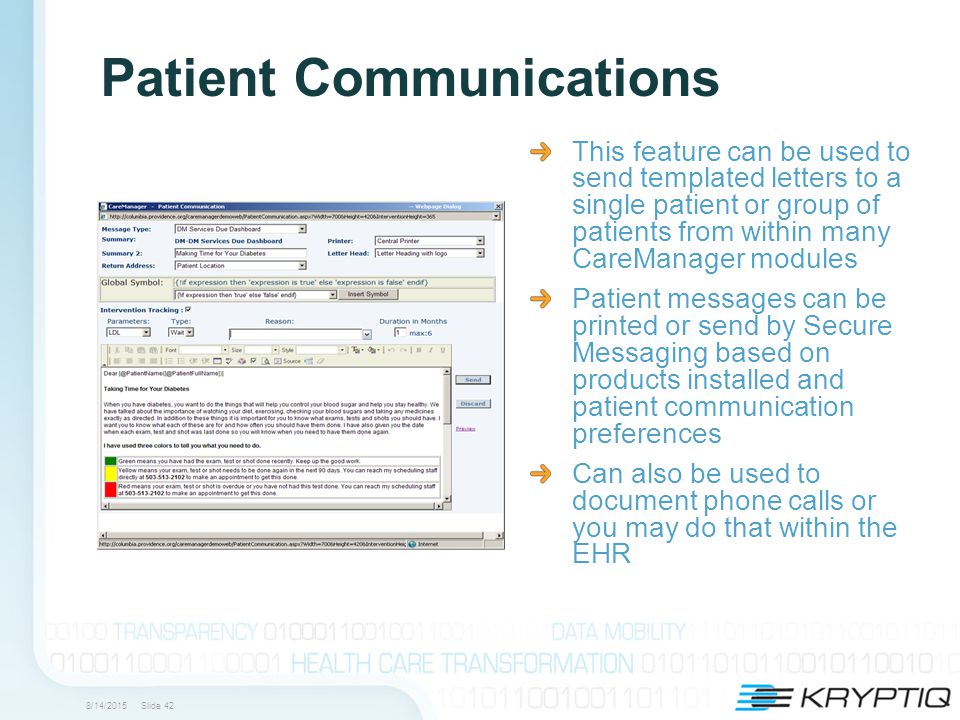

42. 8/14/2015 Slide 42 Patient Communications This feature can be used to send templated letters to a single patient or group of patients from within many CareManager modules Patient messages can be printed or send by Secure Messaging based on products installed and patient communication preferences Can also be used to document phone calls or you may do that within the EHR

43. 8/14/2015 Slide 43 Patient Communications All documents created are imported to the patient chart Use Cases: Send an individual, personal letter or email to a patient who is due for a particular lab test. Document a phone call made to an individual patient to explain a lab result. Create a customized message that is designed for a group of people who need to come in for a particular test, and personalize the message for each patient in the group by using symbols that CareManager replaces with patient-specific EHR data.

44. 8/14/2015 Slide 44 Patient Communications Workflow 1.Select one or more patients by clicking one or more boxes in the Select column. Note: Only one patient may be selected for Phone Notes

45. 8/14/2015 Slide 45 Patient Communications Workflow 2. Click the Patient Communication icon to open the Patient Communication Form. Some letter templates may have a “blue” status indicating late but not out of range

46. 8/14/2015 Slide 46 Patient Communications Workflow - Letter 1.In the Message Type list, click an option (such as Custom Message or Phone Note). The summary text associated with the selected Message Type appears in the Summary field and in summary line of EHR document. 2.If you want to print the intervention, click a printer name in the Printer list. 3.If you want to add a predefined letter head to the letter, click an option in the Letter Head list. 4.If you want to change the return address, click an option in the Return Address list. 5.If you want to Preview message – click Preview.

47. 8/14/2015 Slide 47 Patient Communications Workflow - Preview 1.Close after preview 2.Click Send on right side of screen 3.Document will appear in patient chart

48. 8/14/2015 Slide 48 Patient Communications Workflow – Phone Note 1.In the Message Type list, click Phone Note. The summary text associated with the selected Message Type appears in the Summary field and in summary line of EHR document 2.If you want to print the intervention, click a printer name in the Printer list 3.For phone notes, use no letterhead default 4.“Signed” box should be checked or left unchecked based on clinic policy 5.Enter note in text box 6.Click Save when complete

49. 8/14/2015 Slide 49 Patient Communications Workflow - Audit Click

50. 8/14/2015 Slide 50 Patient Communications – Intervention Tracking 1.To add intervention tracking while creating a letter or message, check the Intervention Tracking box 2.Choose the parameter to be tracked (i.e. LDL) 3.Choose the type( i.e. Stop or Wait) 4.Enter Reason for Stop or Wait 5.Enter duration of Stop or Wait 6.Preview 7.Click Send and letter will be sent and copied to chart and intervention will update overnight in CareManager

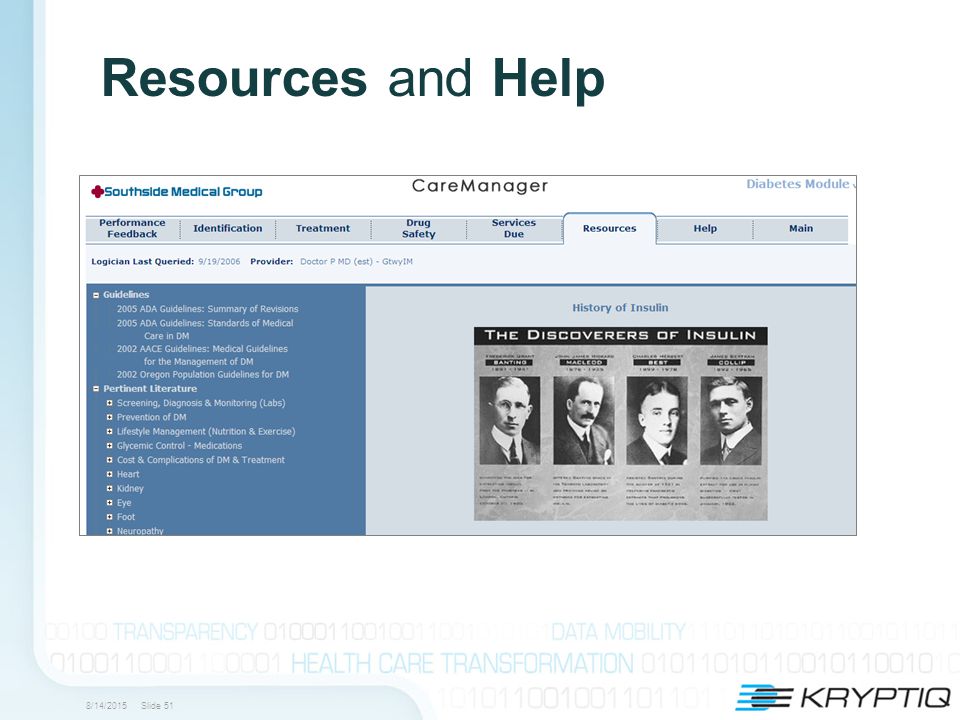

51. 8/14/2015 Slide 51 Resources and Help

52. 8/14/2015 Slide 52 Resources & Help are actually helpful! Problem #1: You are in the Treatment tab and cannot figure out why a patient’s Statin status is WHITE Solution: Click on the at the top right of the page and the Table of Contents for the HELP will open for you.

53. 8/14/2015 Slide 53 Resources & Help are actually helpful! 1. Select Treatment Tab from the Contents 2. Select White from the list on right You will be taken to a table explaining the “White” parameters

54. 8/14/2015 Slide 54 Resources & Help are actually helpful! Problem #2: You are in the Diabetes module and want to know what ICD codes are used to place a patient in this module Solution: Click on the at the top right of the page and the Diabetes Table of Contents will open for you

55. 8/14/2015 Slide 55 Resources & Help are actually helpful! Select Index Tab at top of Table of Contents Click on the letter “I” and then ICD codes You will be taken to a list of all the ICD and CPT codes that are used in the Diabetes module

56. 8/14/2015 Slide 56 Resources & Help are actually helpful! Problem #3: You are in the Diabetes module and would like to check the latest ADA guidelines Solution: Select the Resources Tab in the CareManager module 1. You will see a list of the latest guidelines 2. Click on the area you would like to review

57. 8/14/2015 Slide 57 CareManager Introduction & Diabetes Module Questions? Thanks for attending!
