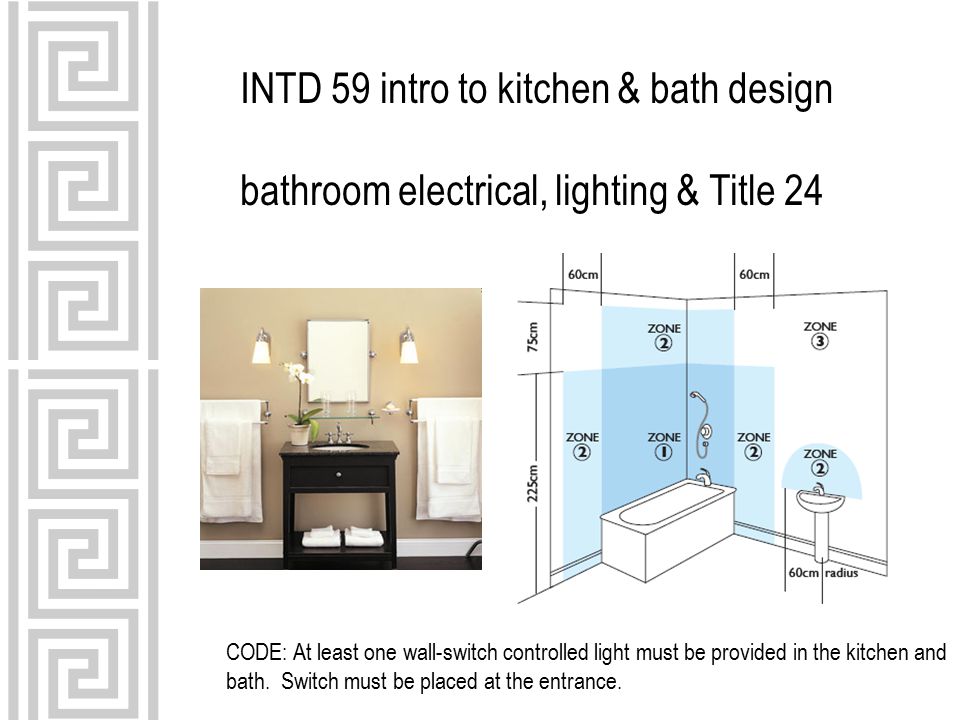

1. INTD 59 intro to kitchen & bath design bathroom electrical, lighting & Title 24 CODE: At least one wall-switch controlled light must be provided in the kitchen and bath. Switch must be placed at the entrance.

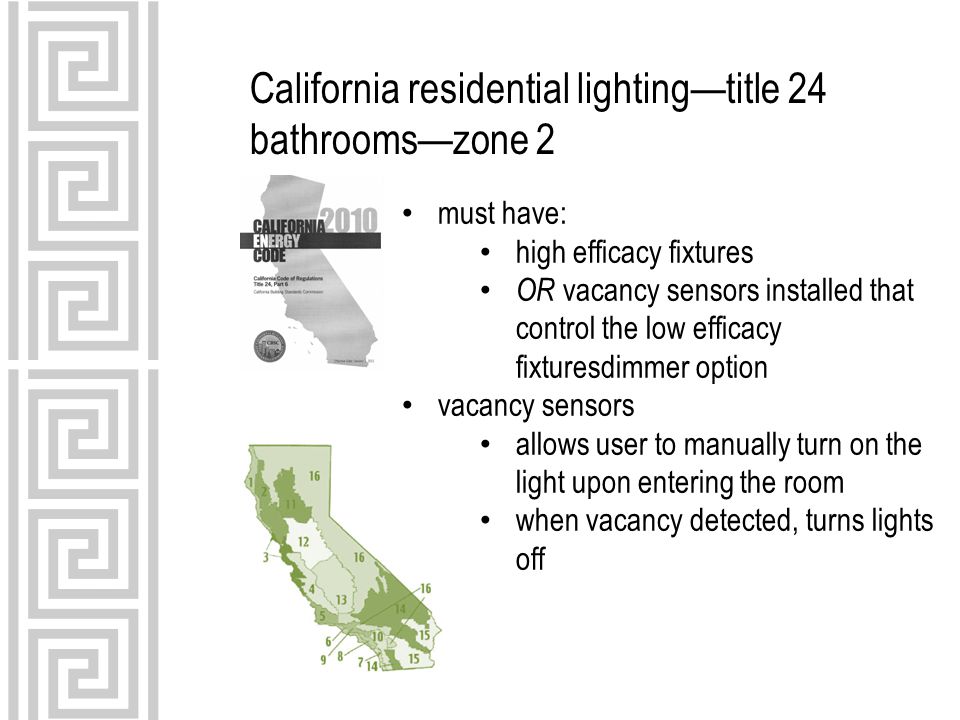

2. California residential lighting—title 24 bathrooms—zone 2 must have: high efficacy fixtures OR vacancy sensors installed that control the low efficacy fixturesdimmer option vacancy sensors allows user to manually turn on the light upon entering the room when vacancy detected, turns lights off

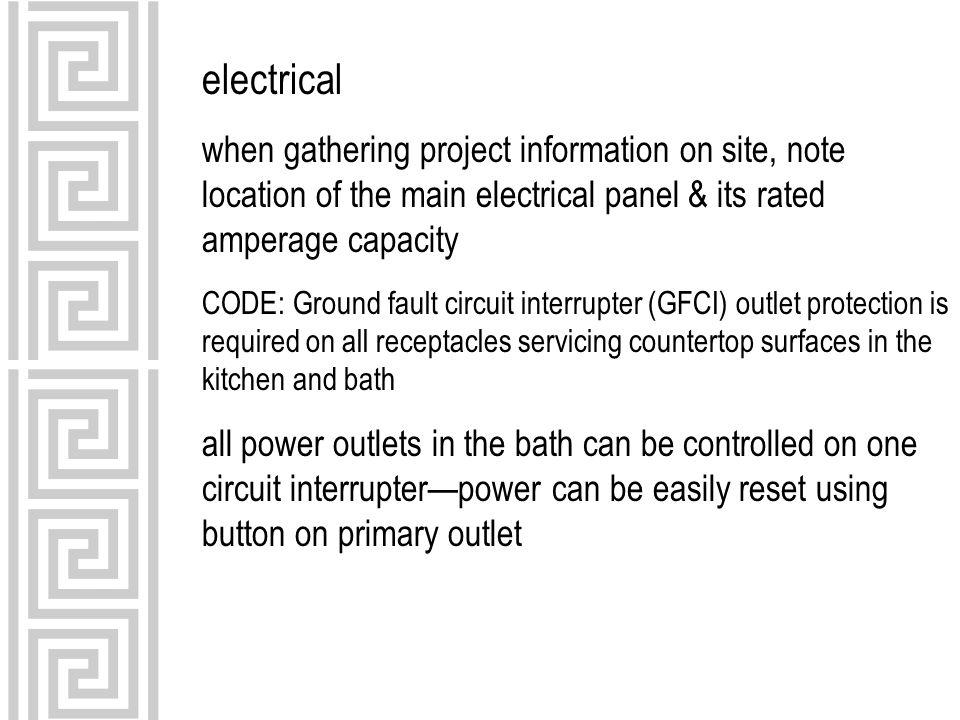

3. electrical when gathering project information on site, note location of the main electrical panel & its rated amperage capacity CODE: Ground fault circuit interrupter (GFCI) outlet protection is required on all receptacles servicing countertop surfaces in the kitchen and bath all power outlets in the bath can be controlled on one circuit interrupter—power can be easily reset using button on primary outlet

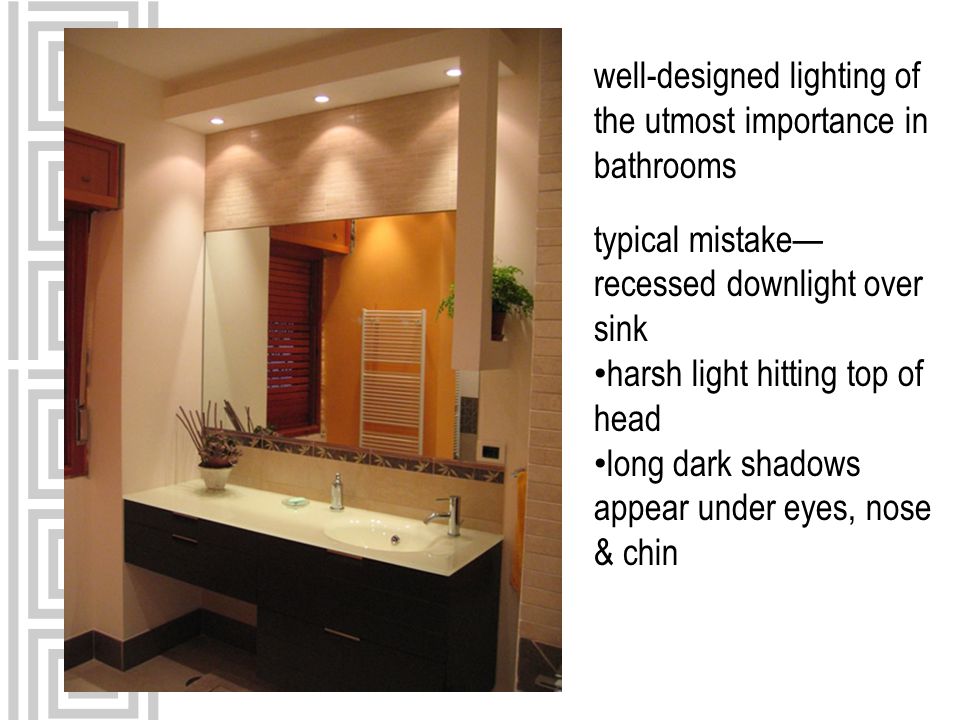

4. well-designed lighting of the utmost importance in bathrooms typical mistake— recessed downlight over sink harsh light hitting top of head long dark shadows appear under eyes, nose & chin

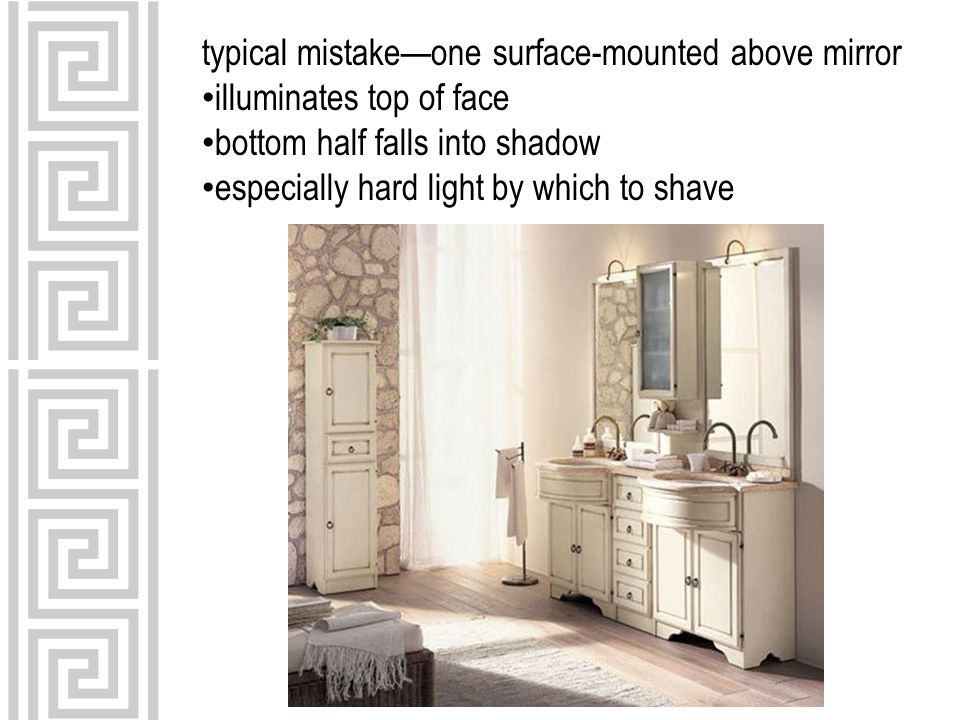

5. typical mistake—one surface-mounted above mirror illuminates top of face bottom half falls into shadow especially hard light by which to shave

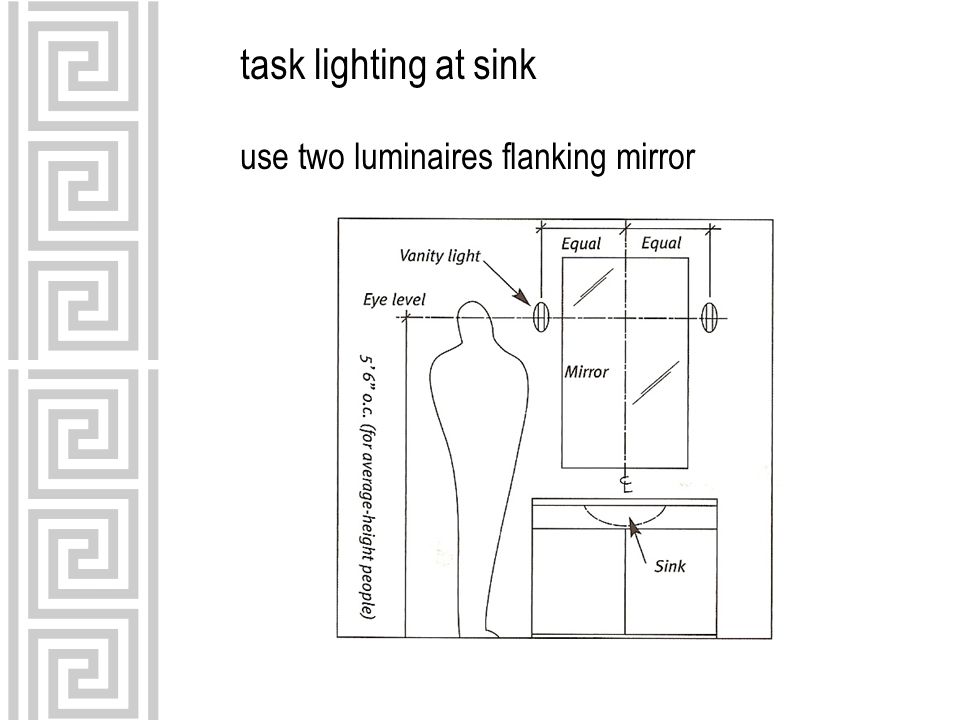

6. task lighting at sink use two luminaires flanking mirror

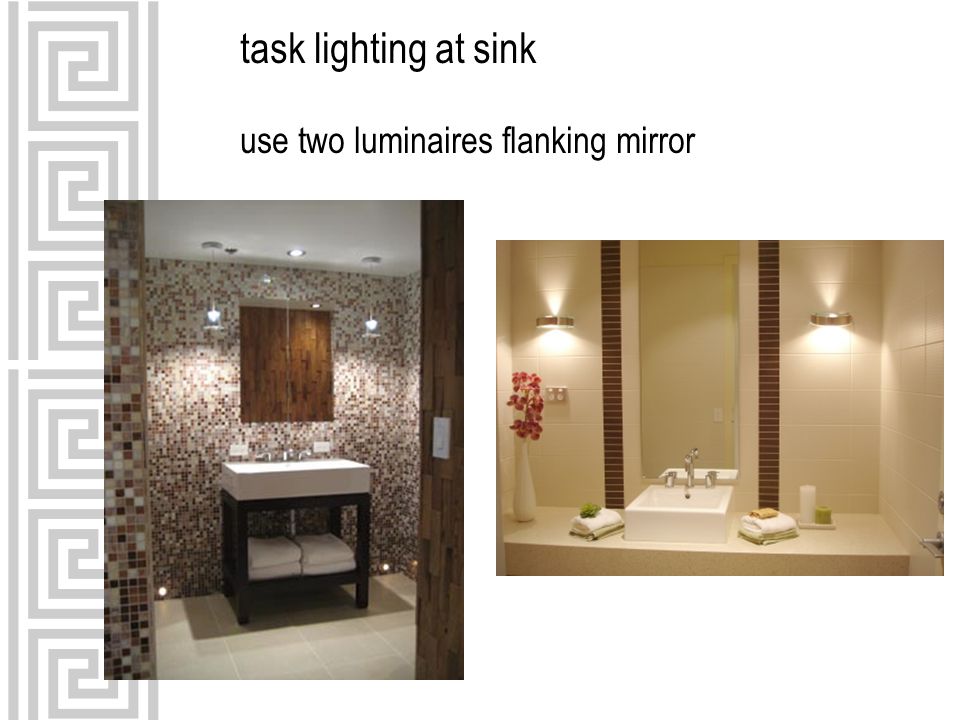

7. task lighting at sink use two luminaires flanking mirror

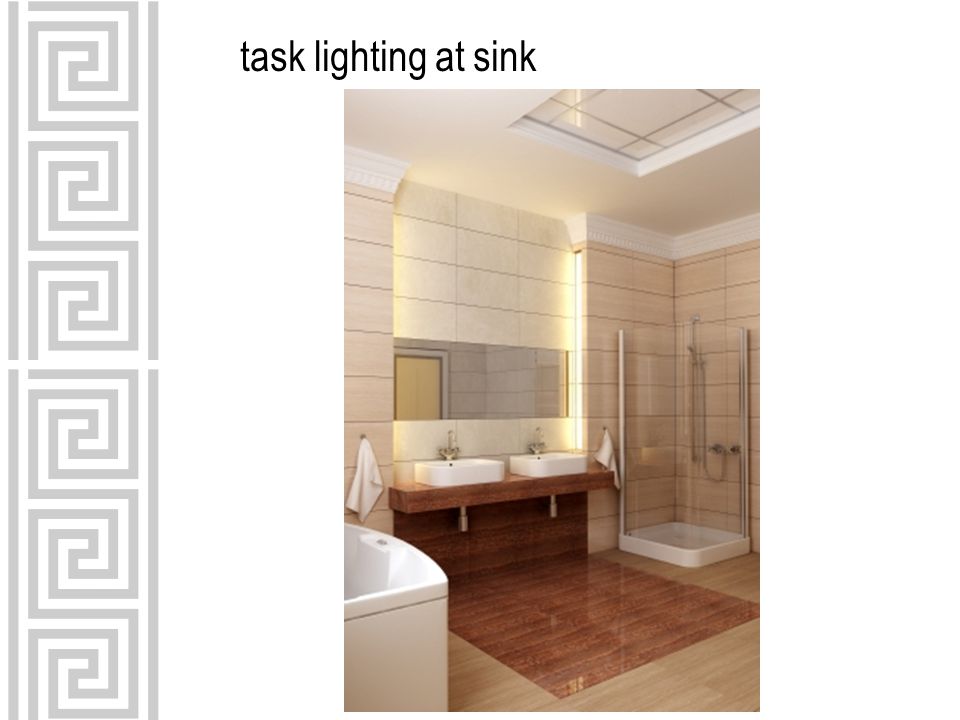

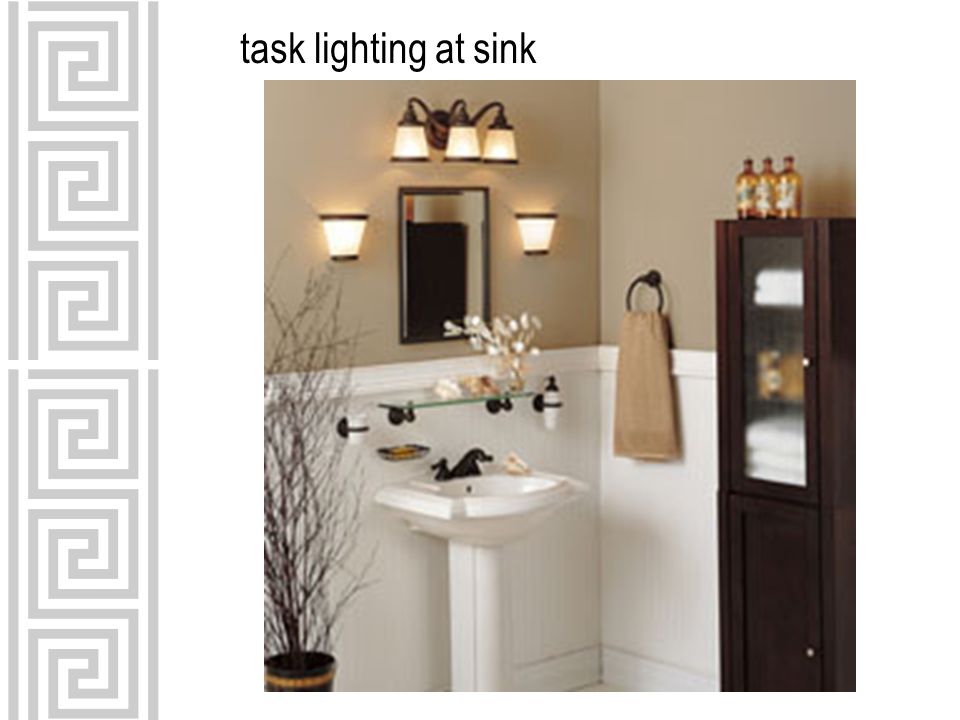

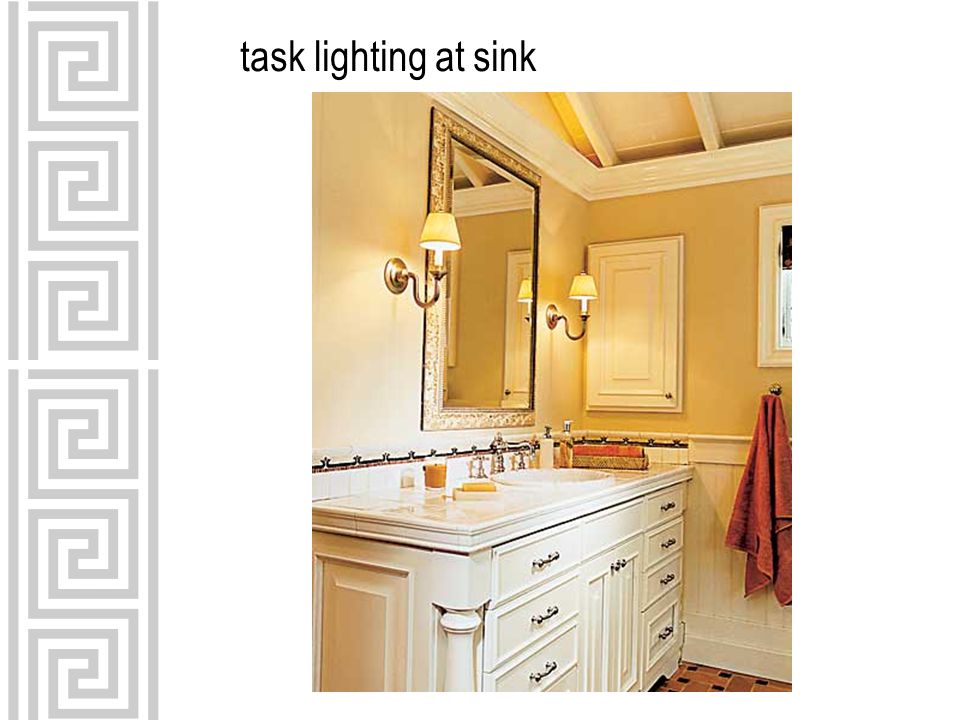

8. task lighting at sink

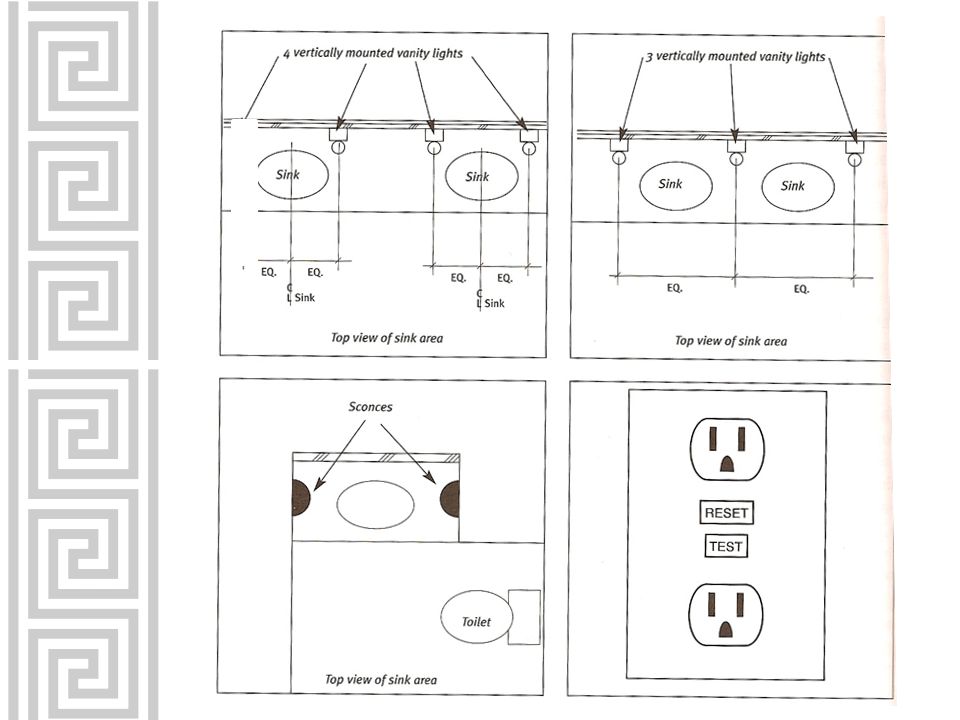

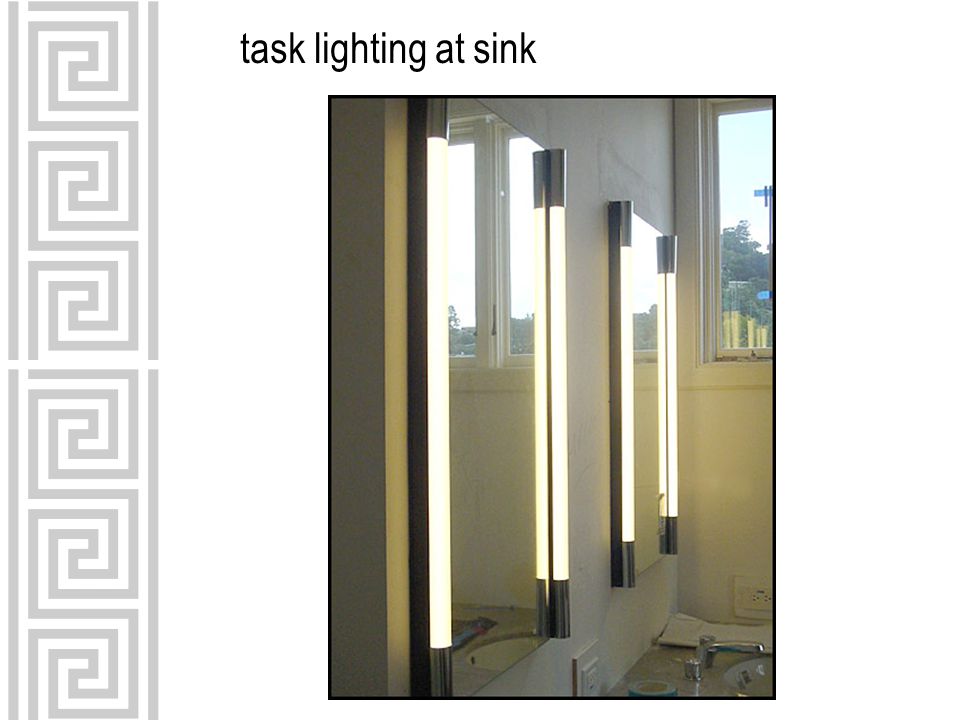

12. use two luminaires flanking mirror

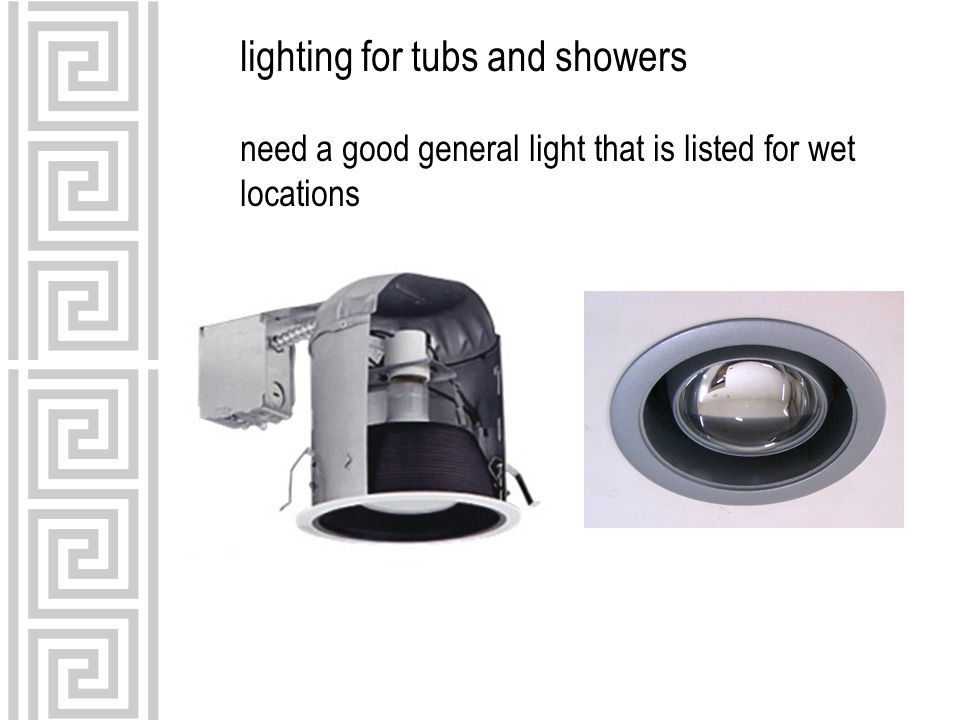

13. lighting for tubs and showers need a good general light that is listed for wet locations

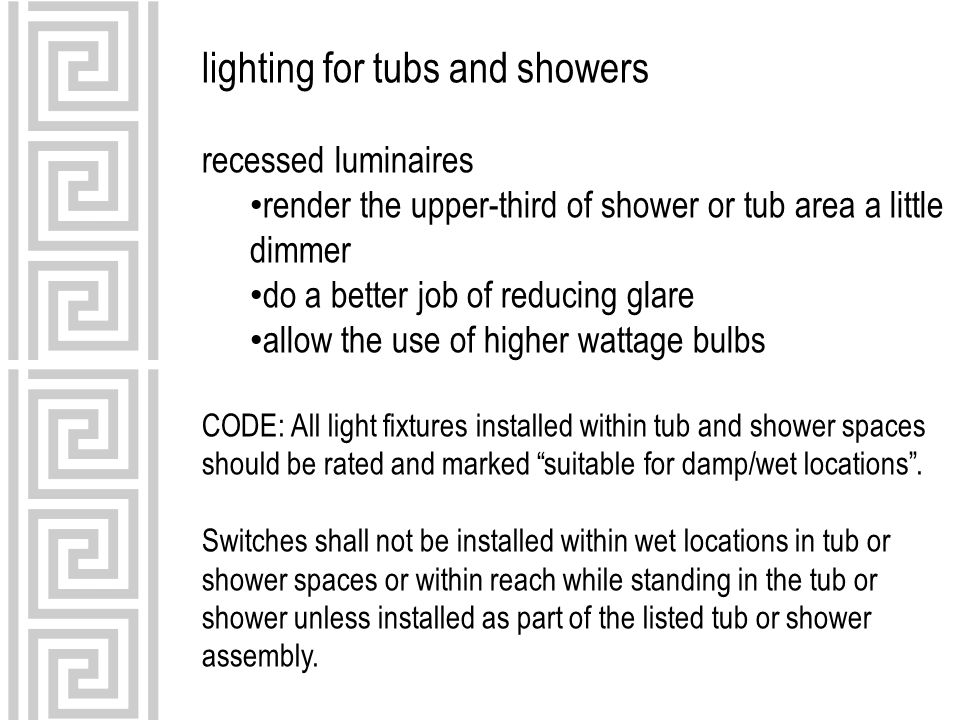

14. lighting for tubs and showers recessed luminaires render the upper-third of shower or tub area a little dimmer do a better job of reducing glare allow the use of higher wattage bulbs CODE: All light fixtures installed within tub and shower spaces should be rated and marked “suitable for damp/wet locations”. Switches shall not be installed within wet locations in tub or shower spaces or within reach while standing in the tub or shower unless installed as part of the listed tub or shower assembly.

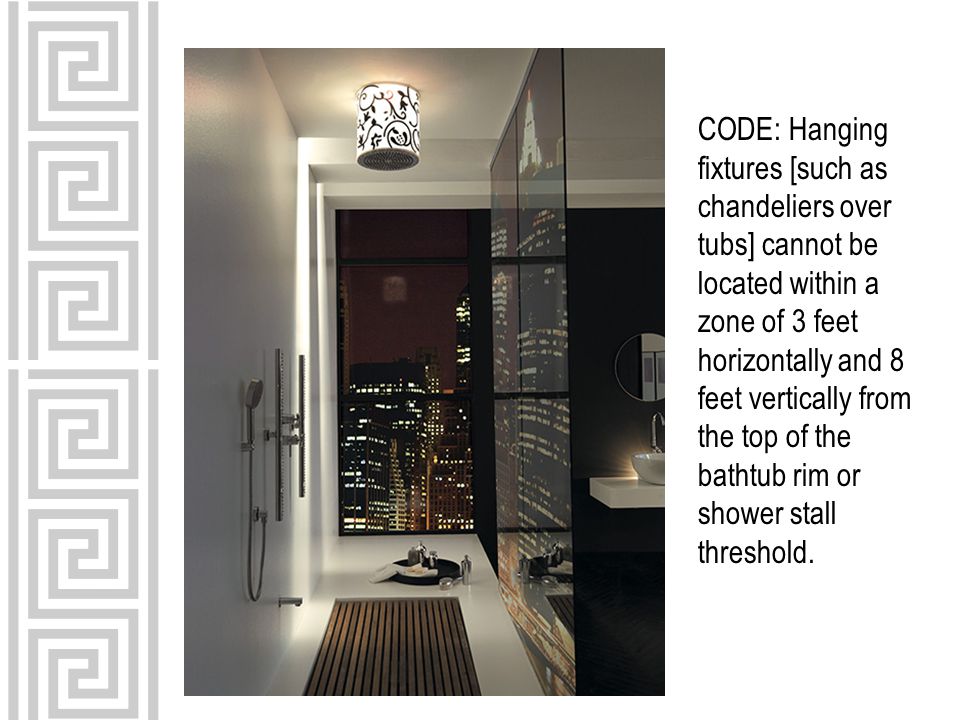

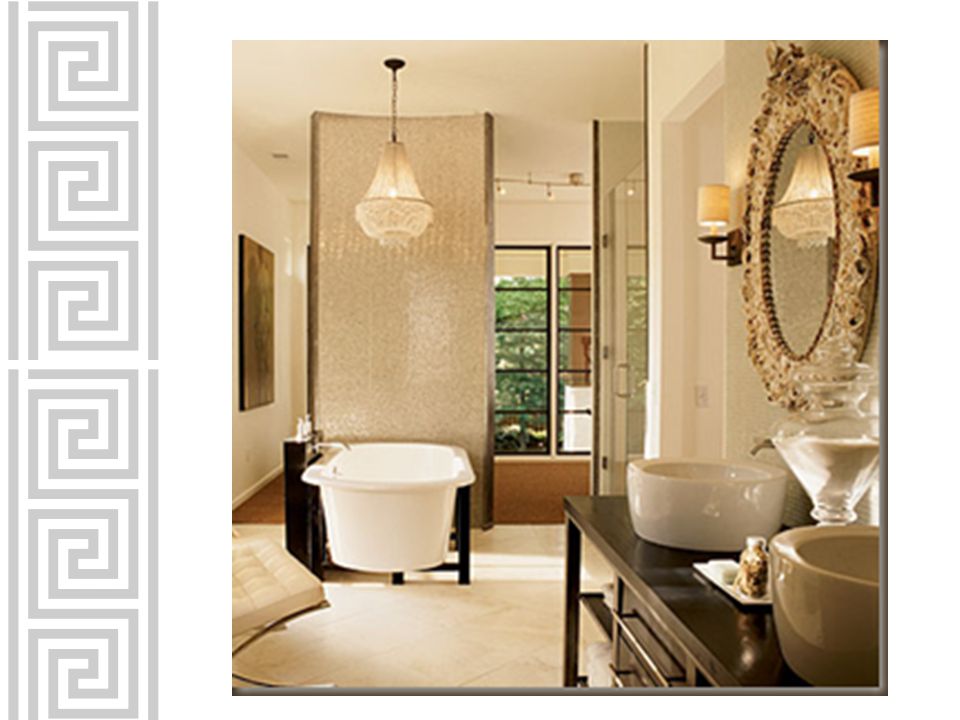

15. CODE: Hanging fixtures [such as chandeliers over tubs] cannot be located within a zone of 3 feet horizontally and 8 feet vertically from the top of the bathtub rim or shower stall threshold.

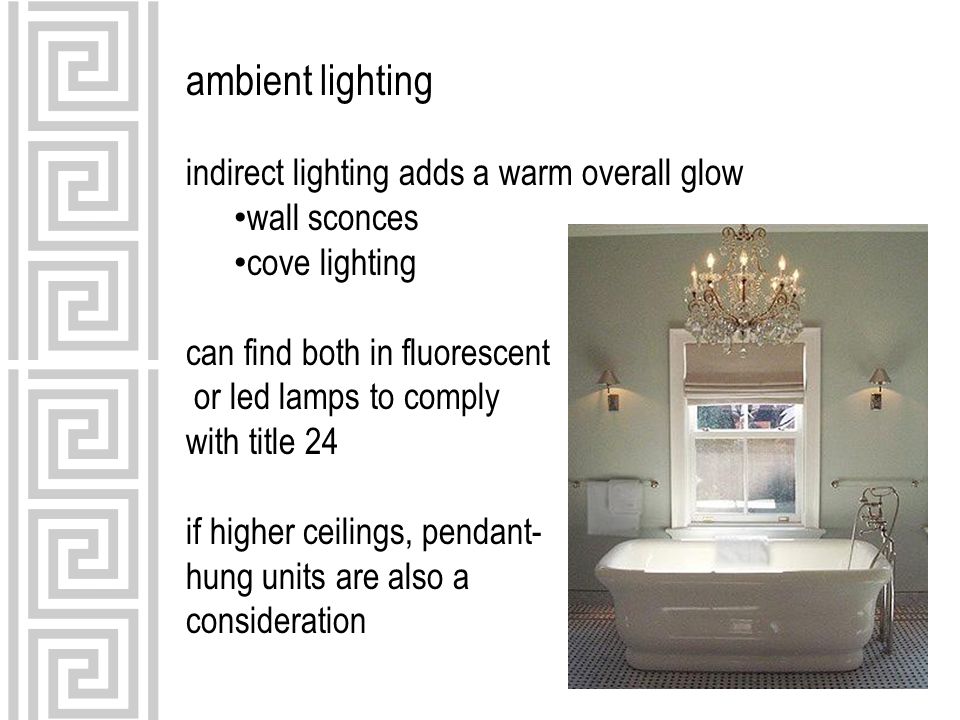

17. ambient lighting indirect lighting adds a warm overall glow wall sconces cove lighting can find both in fluorescent or led lamps to comply with title 24 if higher ceilings, pendant- hung units are also a consideration

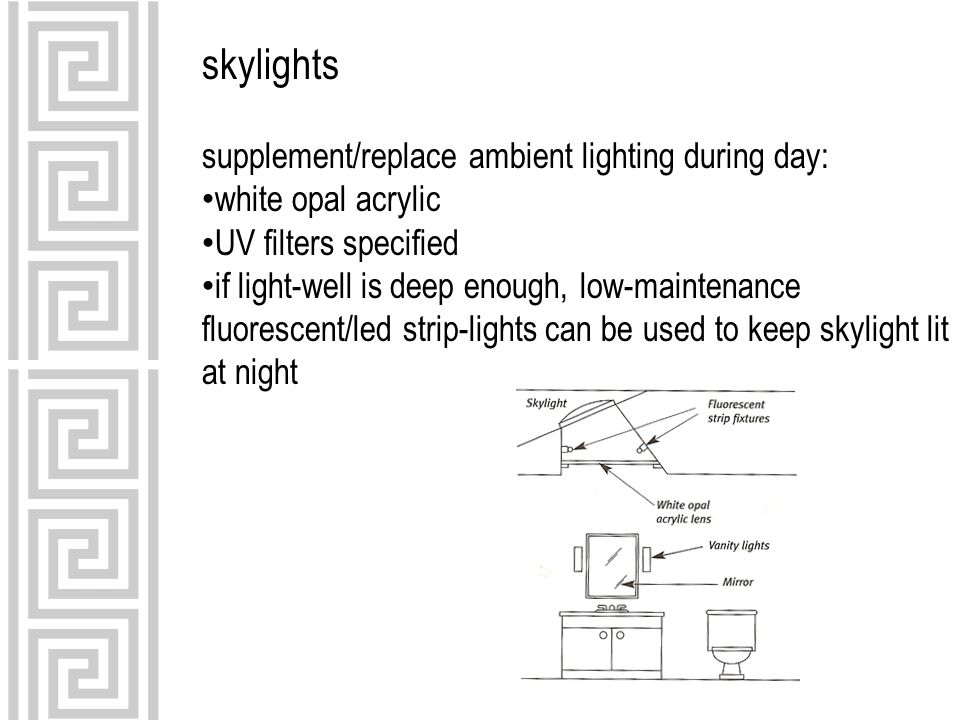

18. skylights supplement/replace ambient lighting during day: white opal acrylic UV filters specified if light-well is deep enough, low-maintenance fluorescent/led strip-lights can be used to keep skylight lit at night

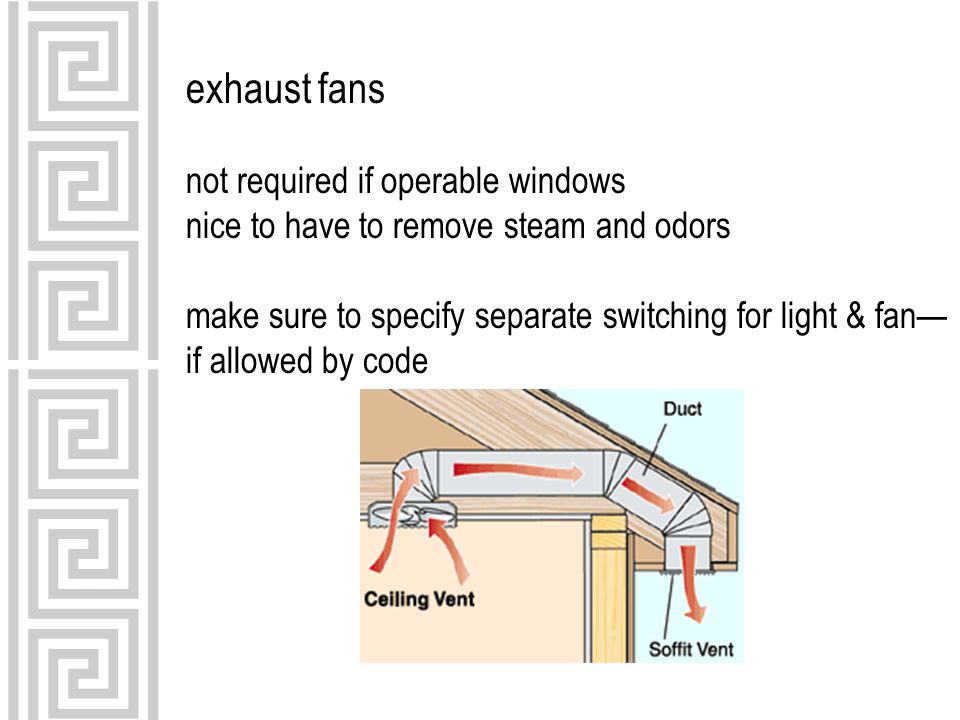

19. exhaust fans not required if operable windows nice to have to remove steam and odors make sure to specify separate switching for light & fan— if allowed by code

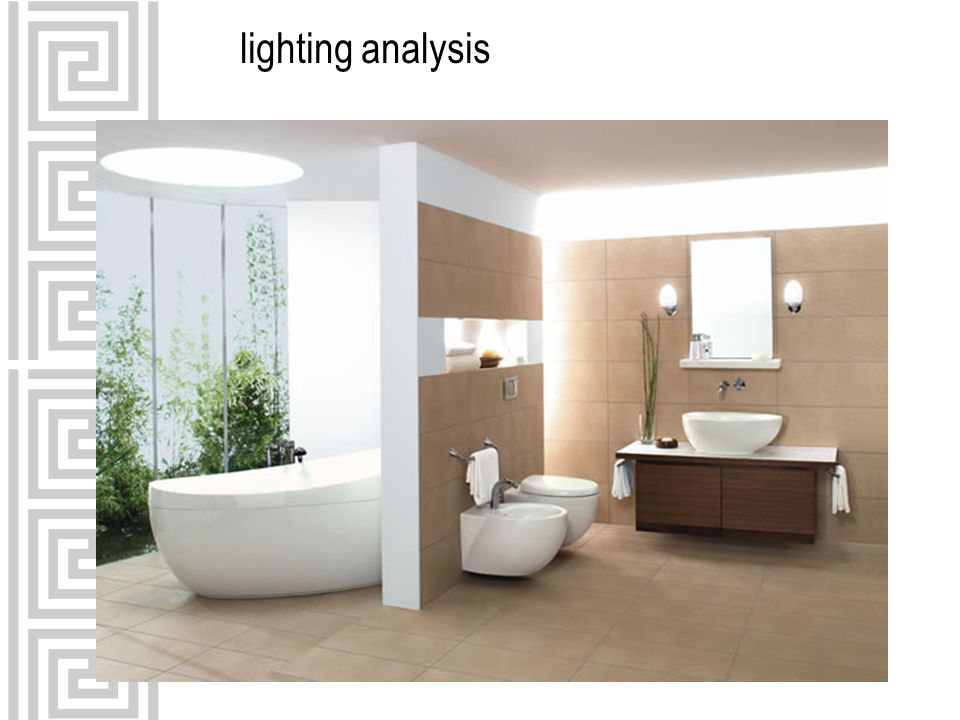

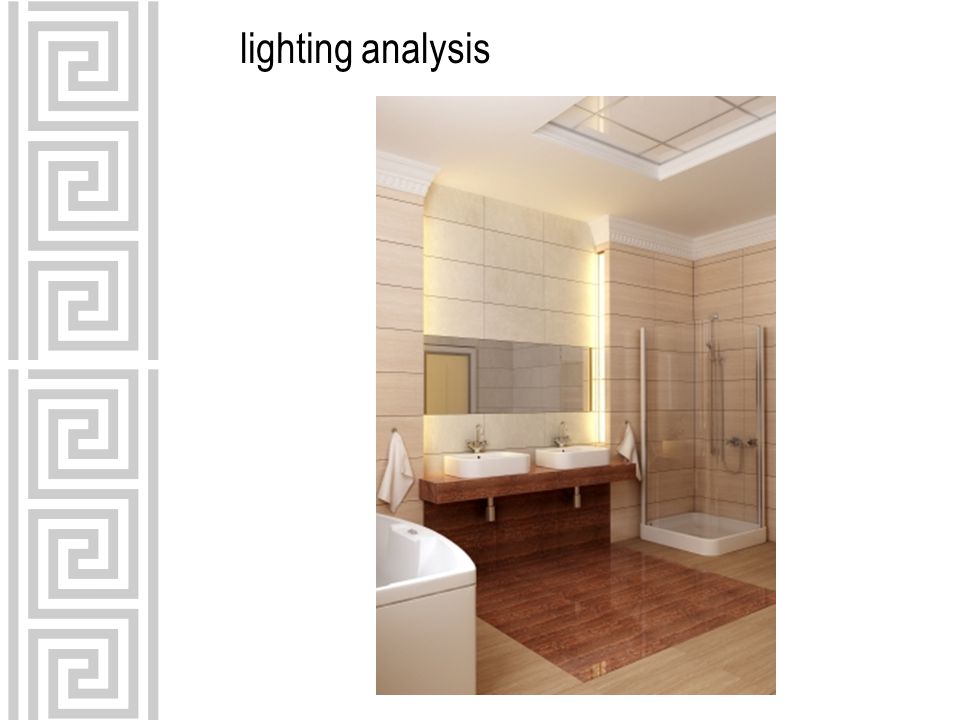

20. lighting analysis
