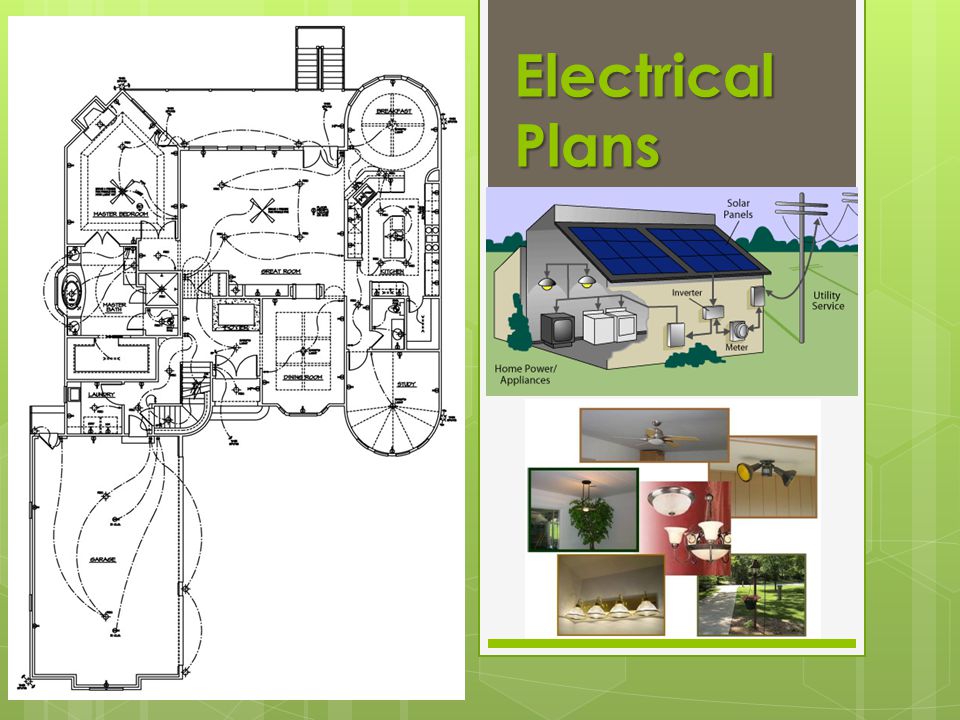

1. Electrical Plans

2. Here is an example of a simple floor plan illustrating some electrical symbols that you might have in your home. Notice that all electrical symbols are connected by curved lines (usually a hidden line pattern ) Electrical Plan

3. Symbols Here are some examples of electrical fixtures. There are several different types and can vary throughout a house.

4. Receptacles Single Receptacle OutletDuplex Receptacle Outlet Quadruplex Receptacle Outlet GFCI (Ground Fault Circuit Interrupter) Outlet GFCI

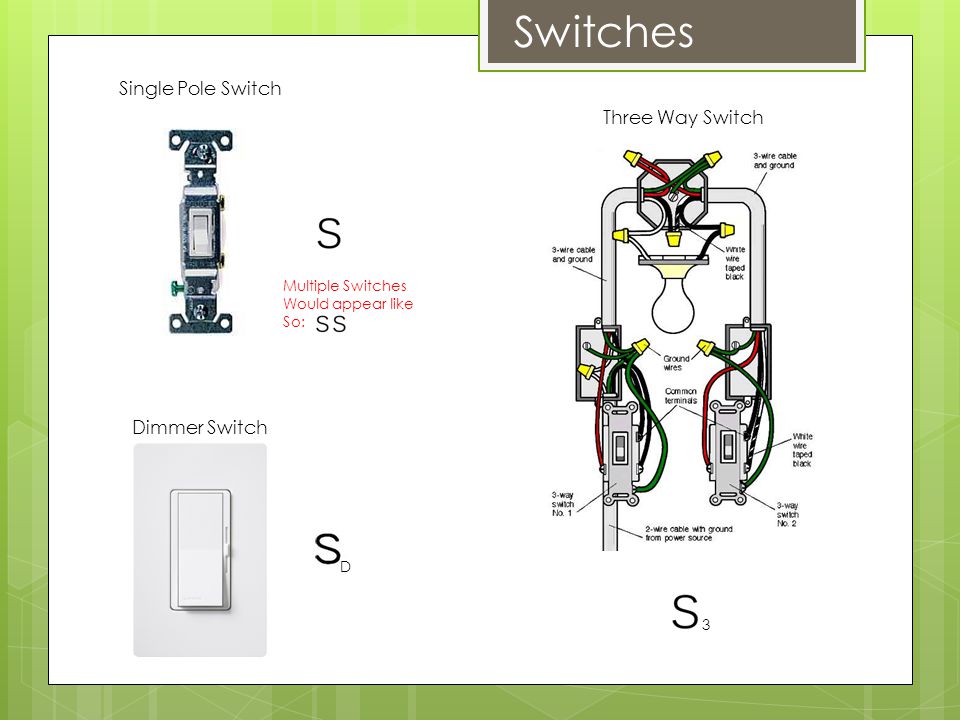

5. Switches Single Pole Switch Three Way Switch Dimmer Switch D 3 Multiple Switches Would appear like So:

6. Switches 4

7. Light Fixtures Pendant Light Fixture Recessed Light Fixture Ceiling Light Fixture Wall-Mounted Light Fixture Refer to Slide 3

8. Smoke Detector 240 Volt Receptacles Other Electrical Components S
