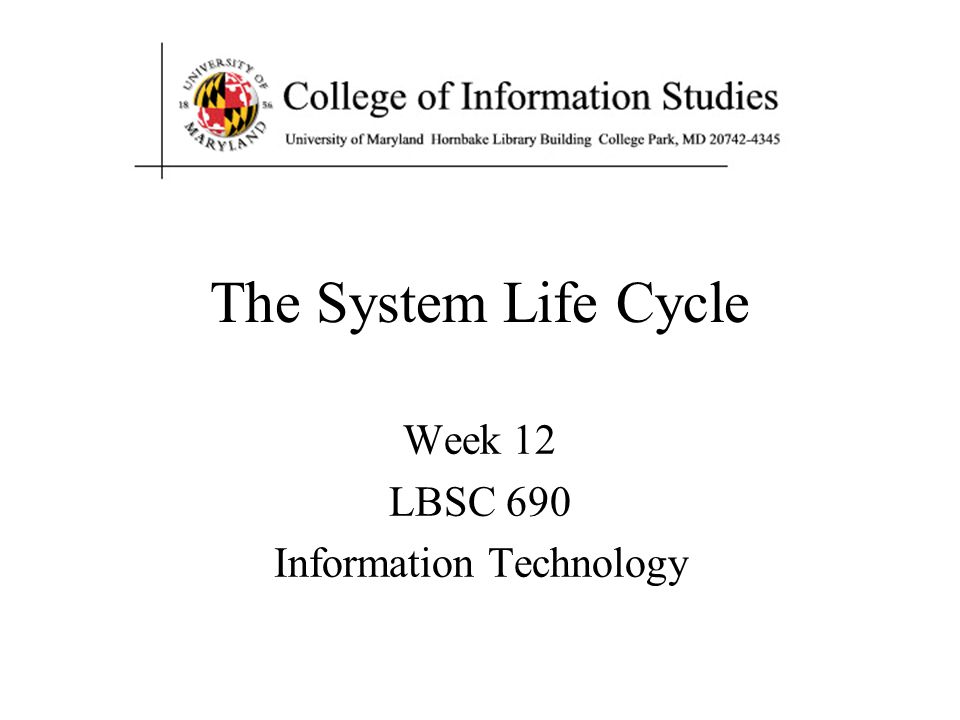

1. The System Life Cycle Week 12 LBSC 690 Information Technology

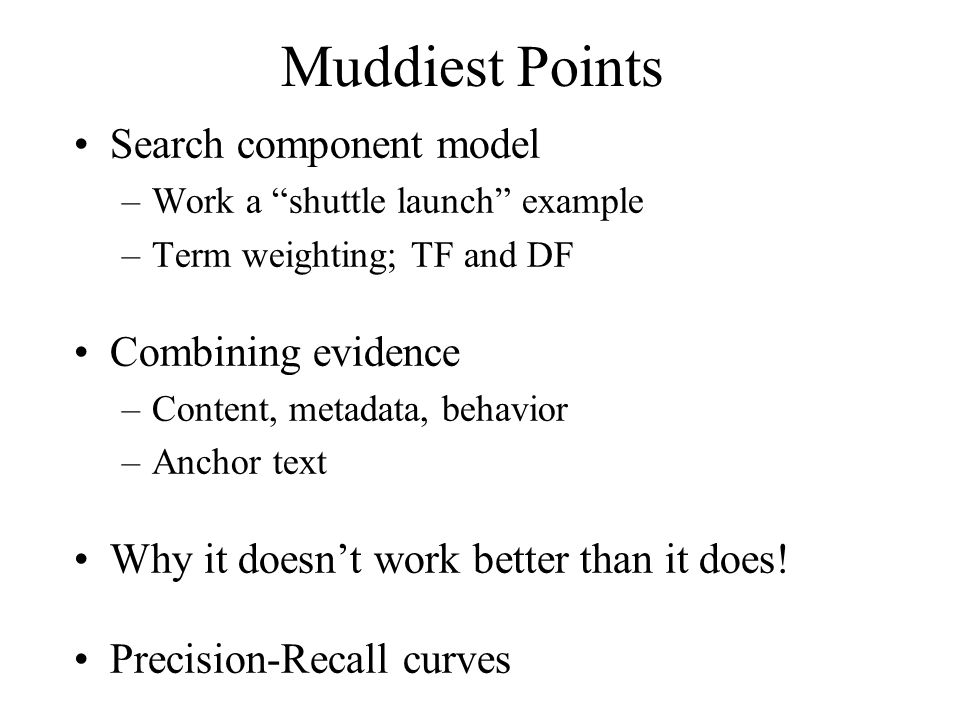

2. Muddiest Points Search component model –Work a “shuttle launch” example –Term weighting; TF and DF Combining evidence –Content, metadata, behavior –Anchor text Why it doesn’t work better than it does! Precision-Recall curves

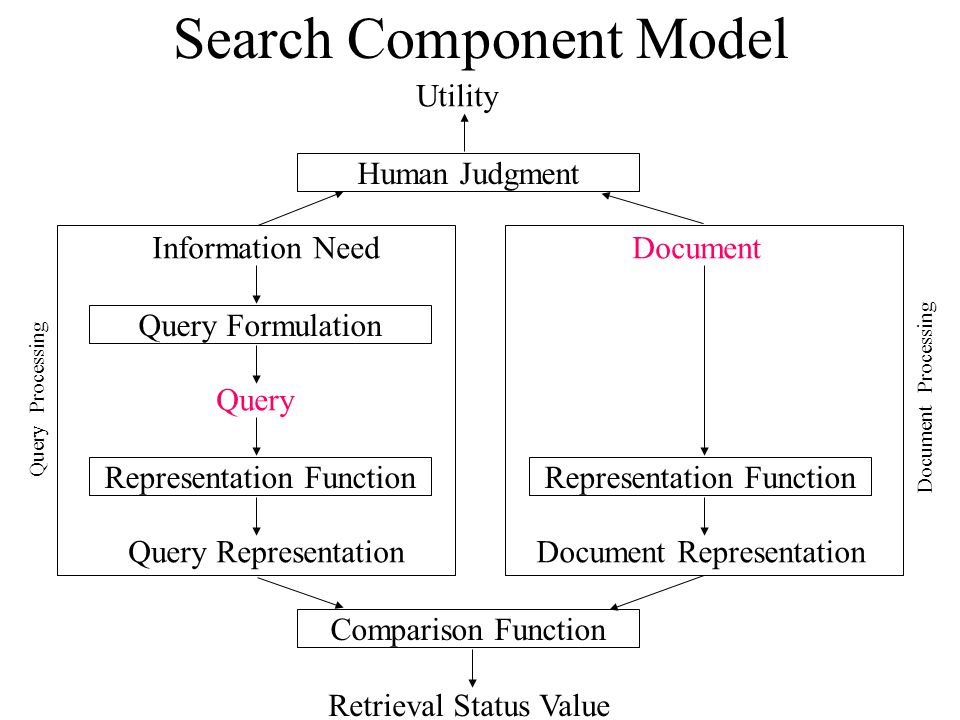

3. Search Component Model Comparison Function Representation Function Query Formulation Human Judgment Representation Function Retrieval Status Value Utility Query Information NeedDocument Query RepresentationDocument Representation Query Processing Document Processing

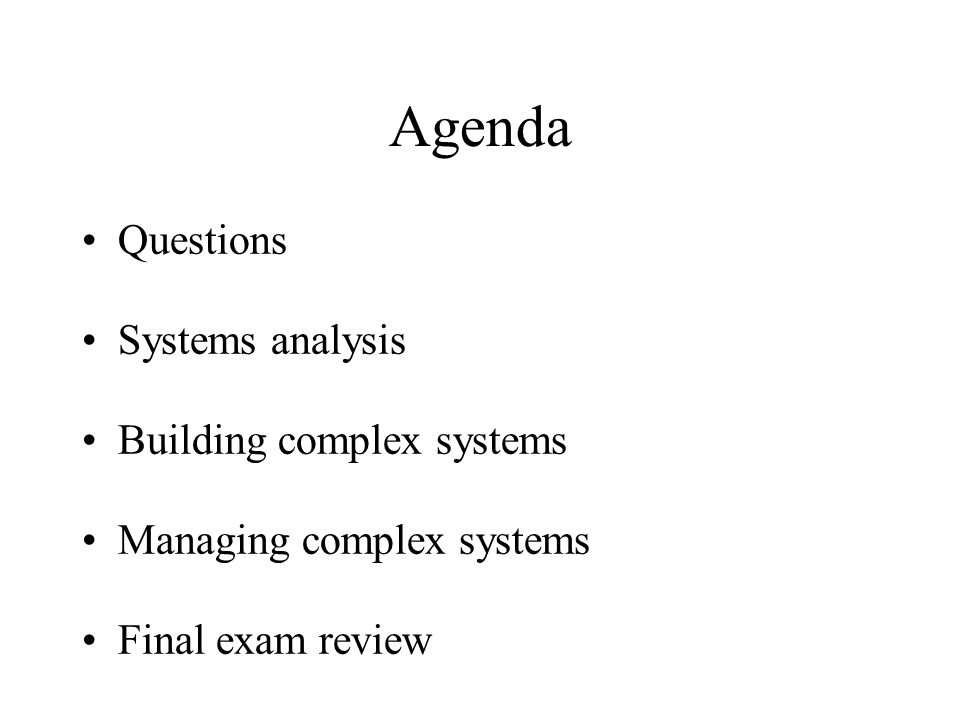

4. Agenda Questions Systems analysis Building complex systems Managing complex systems Final exam review

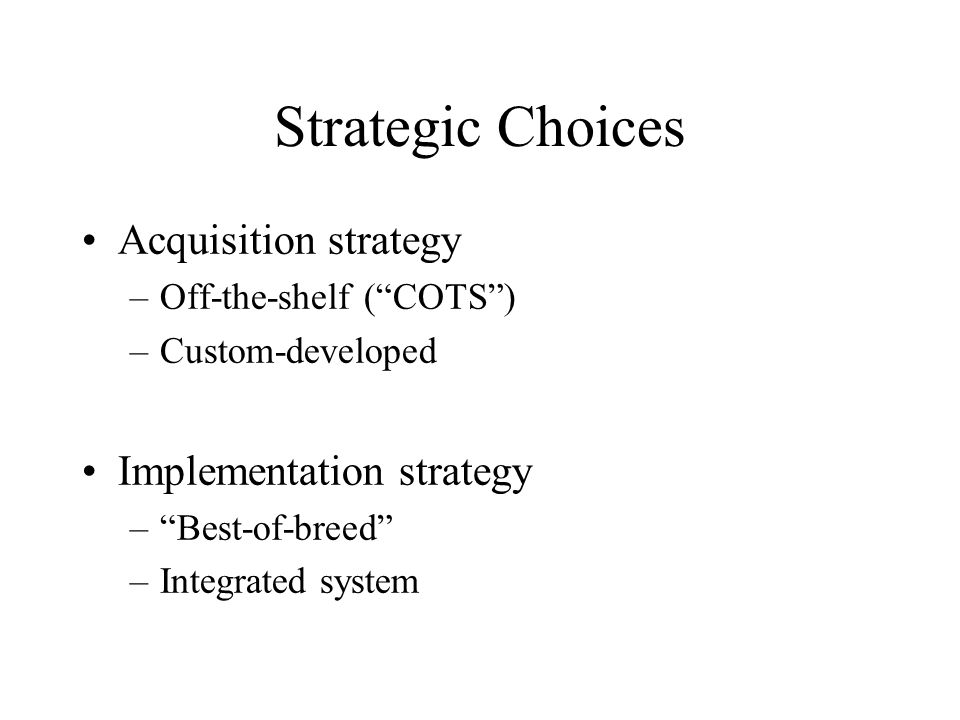

5. Strategic Choices Acquisition strategy –Off-the-shelf (“COTS”) –Custom-developed Implementation strategy –“Best-of-breed” –Integrated system

6. Architecture Choices Self-contained (e.g., PDA) –Requires replication of software and data Client-server (e.g., Web) –Some functions done centrally, others locally Peer-to-peer (e.g., Skype) –All data and computation is distributed “Cloud computing” –Centrally managed data and compute centers

7. Source: Harper’s (Feb, 2002) What do Oregon, Iceland, abandoned mines have in common?

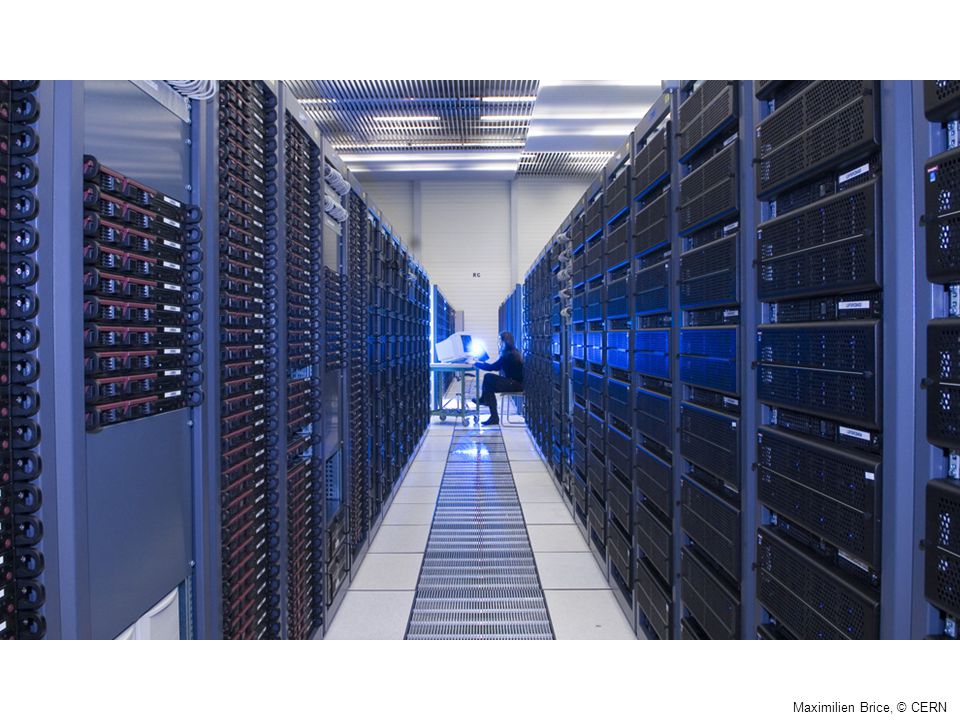

8. Maximilien Brice, © CERN

9. Cloud Computing: Rent vs. Buy Centralization of computing resources –Space –Power –Cooling –Fiber Issues: –Efficiency –Utilization –Redundancy –Management

10. Interaction Modality Choices Interactive (“timesharing”) –Usually multiple processes on one machine –Possibly supporting different users Batch processing (e.g., recall notices) –Save it up and do it all at once

11. The System Life Cycle Systems analysis –How do we know what kind of system to build? User-centered design –How do we discern and satisfy user needs? Implementation –How do we build it? Management –How do we use it?

12. Types of Requirements User-centered –Functionality System-centered –Availability Mean Time Between Failures (MTBF) Mean Time To Repair (MTTR) –Capacity Number of users for each application Response time –Flexibility Upgrade path

13. Systems Analysis First steps: –Understand the task Limitations of existing approaches –Understand the environment Structure of the industry, feasibility study Then identify the information flows –e.g., Serials use impacts cancellation policy Then design a solution –And test it against the real need

14. Analyze the Information Flows Where does information originate? –Might come from multiple sources –Feedback loops may have no identifiable source Which parts should be automated? –Some things are easier to do without computers Which automated parts should be integrated? What existing systems are involved? –What information do they contain? –Which systems should be retained? – What data will require “retrospective conversion”?

15. Analyzing Information Flows Process Modeling –Structured analysis and design –Entity-relationship diagrams –Data-flow diagrams Object Modeling –Object-oriented analysis and design –Unified Modeling Language (UML)

16. Some Library Activities Acquisition Cataloging Reference –Online Public Access Catalog (OPAC) Circulation Weeding Reserve, recall, fines, interlibrary loan, … Budget, facilities schedules, payroll,...

17. Discussion Point: Integrated Library System What functions should be integrated? What are the key data flows? Which of those should be automated?

18. The Waterfall Model Requirements Specification Implementation Verification

19. The Waterfall Model Requirements analysis –Specifies what the software is supposed to do Specification –“Specification” defines the design of the software Implementation Verification –“Test Plan” defines how you will know that it did it Maintenance

20. The Spiral Model Build what you think you need –Perhaps using the waterfall model Get a few users to help you debug it –First an “alpha” release, then a “beta” release Release it as a product (version 1.0) –Make small changes as needed (1.1, 1.2, ….) Save big changes for a major new release –Often based on a total redesign (2.0, 3.0, …)

21. The Spiral Model 1.0 0.5 2.0 3.0 1.1 1.2 2.1 2.2 2.3

22. Some Unpleasant Realities The waterfall model doesn’t work well –Requirements usually incomplete or incorrect The spiral model is expensive –Redesign leads to recoding and retesting

23. “Rapid” Prototyping Goal: explore requirements –Without building the complete product Start with part of the functionality –That will (hopefully) yield significant insight Build a prototype –Focus on core functionality, not in efficiency Use the prototype to refine the requirements Repeat the process, expanding functionality

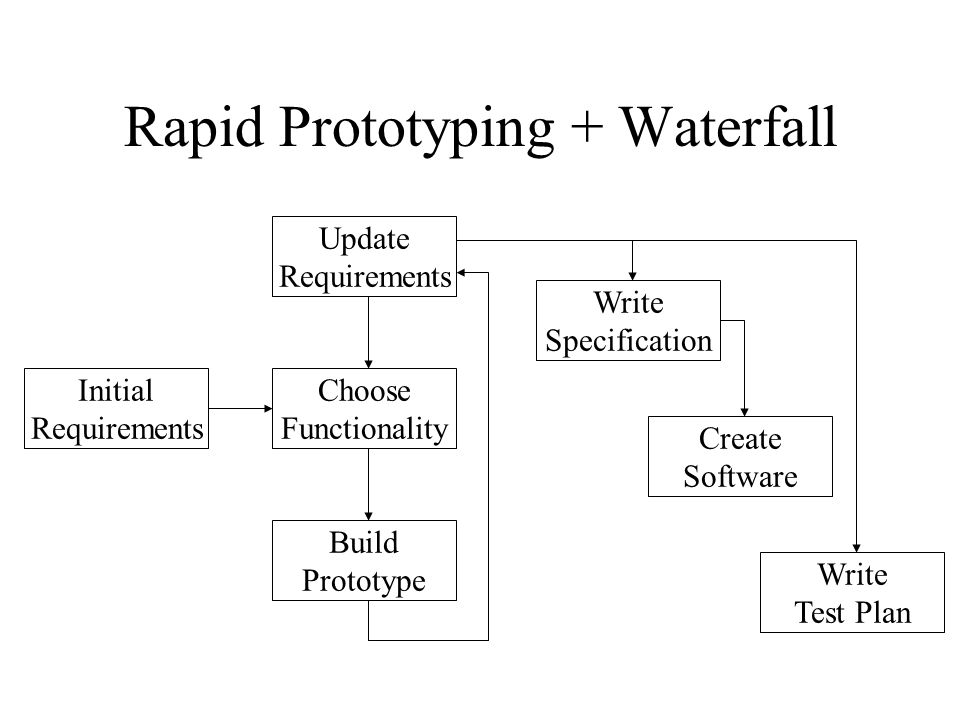

24. Rapid Prototyping + Waterfall Update Requirements Choose Functionality Build Prototype Initial Requirements Write Specification Create Software Write Test Plan

25. Management Issues Policy –Privacy, access control, appropriate use, … Training –System staff, organization staff, “end users” Operations –Fault detection and response –Backup and disaster recovery –Audit –Cost control (system staff, periodic upgrades, …) Planning –Capacity assessment, predictive reliability, …

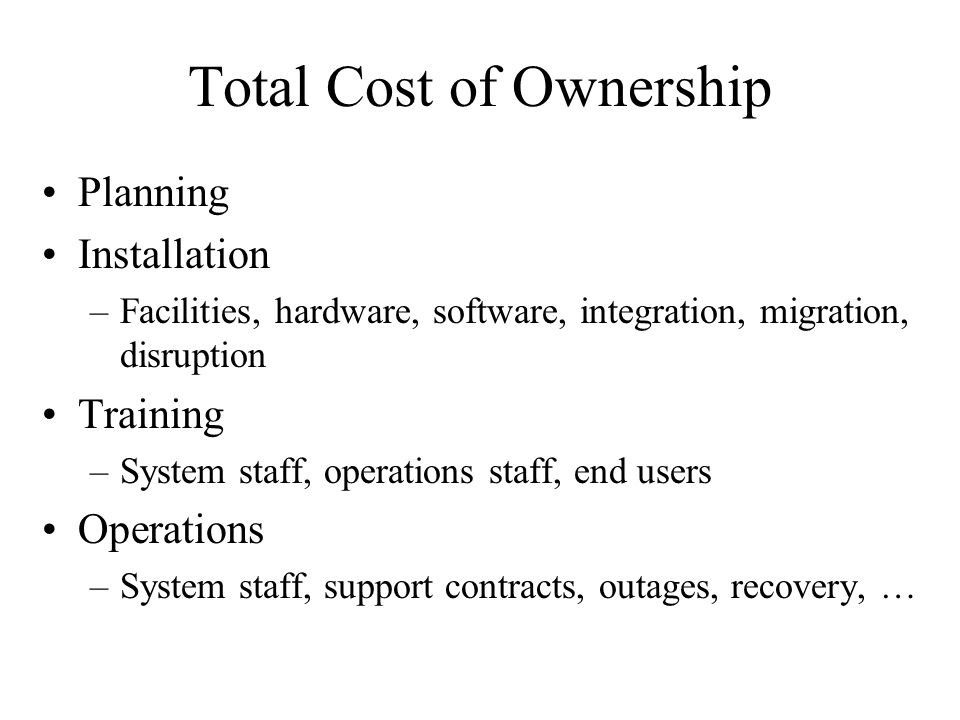

26. Total Cost of Ownership Planning Installation –Facilities, hardware, software, integration, migration, disruption Training –System staff, operations staff, end users Operations –System staff, support contracts, outages, recovery, …

27. Total Cost of Ownership

28. Some Examples ProprietaryOpen Source Operating systemWindows XPLinux Office suiteMicrosoft OfficeOpenOffice Image editorPhotoshopGIMP Web browserInternet ExplorerMozilla Web serverIISApache DatabaseOracleMySQL

29. Some Opinions Bill Gates on Linux (March, 1999): –“I don’t really think in the commercial market, we’ll see it in any significant way.” Microsoft SEC filing (January, 2004): –“The popularization of the open source movement continues to pose a significant challenge to the company’s business model”

30. Open Source “Pros” More eyes  fewer bugs Iterative releases  rapid bug fixes Rich community  more ideas –Coders, testers, debuggers, users Distributed by developers  truth in advertising Open data formats  Easier integration Standardized licenses

31. Open Source “Cons” Communities require incentives –Much open source development is underwritten Developers are calling the shots –Can result in feature explosion Proliferation of “orphans” Diffused accountability –Who would you sue? Fragmentation –“Forking” may lead to competing versions Little control over schedule

32. Iron Rule of Project Management You can control any two of: –Capability –Cost –Schedule Open source software takes this to an extreme

33. Open Source Business Models Support Sellers Loss Leader Widget Frosting Accessorizing Sell distribution, branding, and after-sale services. Give away the software to make a market for proprietary software. If you’re in the hardware business, giving away software doesn’t hurt. Sell accessories: books, compatible hardware, complete systems with pre-installed software

34. Hands On: What Goes Wrong? Check out Risks Digest for a random date –http://catless.ncl.ac.uk/Risks –Pick a random date near your birthday Find a case of unexpected consequences Try to articulate the root cause –Not the direct cause

35. Discussion Points: Managing Complex Systems Critical system availability –Why can’t we live without these systems? Understandability –Why can’t we predict what systems will do? Nature of bugs –Why can’t we get rid of them? Auditability –How can we learn to do better in the future?

36. Critical Infrastructure Protection Telecommunications Banking and finance Energy Transportation Emergency services Food and agriculture Water Public health Postal and shipping Defense industrial base Hazardous materials SCADA: Supervisory Control and Data Acquisition

37. National Cyberspace Strategy Response system –Analysis, warning, response, recovery Threat and vulnerability reduction Awareness and training program –Return on investment, best practices Securing government systems International cooperation

38. Summary Systems analysis –Required for complex multi-person tasks User-centered design –Multiple stakeholders complicate the process Implementation –Architecture, open standards, … Management –Typically the biggest cost driver

39. The Grand Plan Computers, Networks Web, XML, Social Software MultimediaDatabasesProgrammingSearch Building and Deploying Systems Policy

40. Data-Intensive Computing NOAA climate data: ~1 PB climate data (2007) Wayback Machine: 2 PB + 20 TB/month (2006) CERN’s LHC: 15 PB a year (2008) Google processes 20 PB a day (2008) All words ever spoken: ~ 5 EB
