1. Everybody talks about the weather but nobody does anything about it. - Charles Dudley Warner AOSC 200 SUMMER 2010

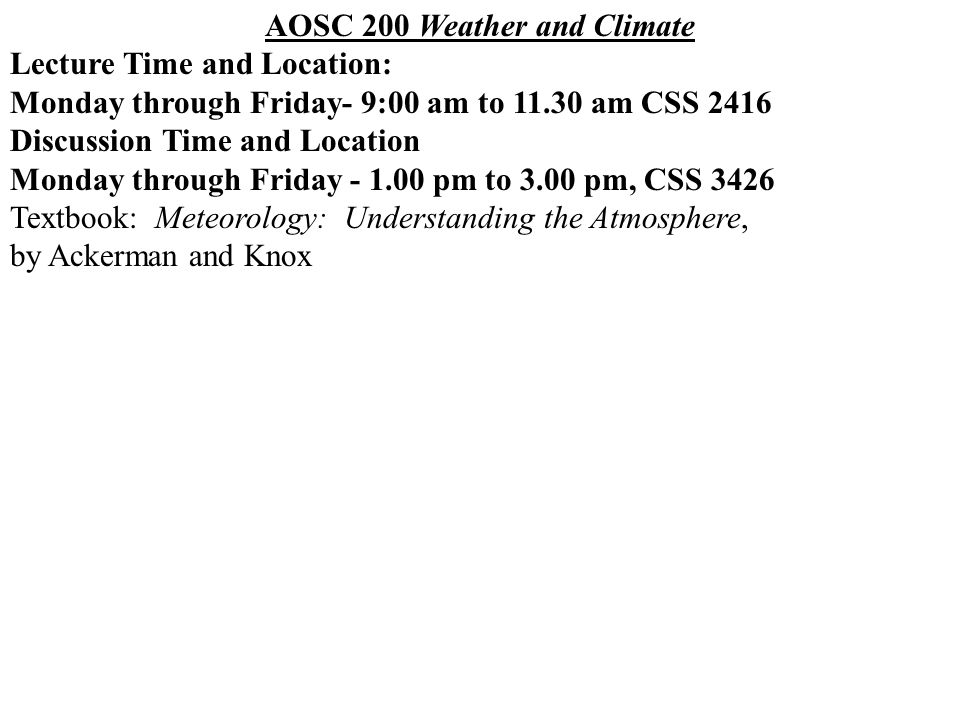

2. AOSC 200 Weather and Climate Lecture Time and Location: Monday through Friday- 9:00 am to 11.30 am CSS 2416 Discussion Time and Location Monday through Friday - 1.00 pm to 3.00 pm, CSS 3426 Textbook: Meteorology: Understanding the Atmosphere, by Ackerman and Knox

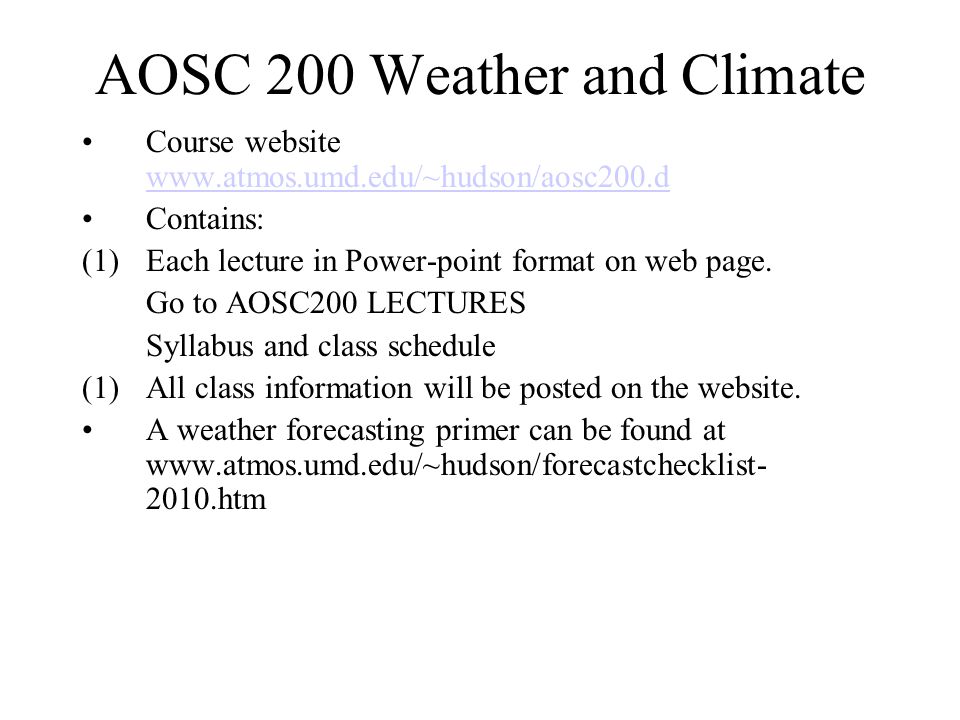

3. AOSC 200 Weather and Climate Course website www.atmos.umd.edu/~hudson/aosc200.d www.atmos.umd.edu/~hudson/aosc200.d Contains: (1)Each lecture in Power-point format on web page. Go to AOSC200 LECTURES Syllabus and class schedule (1)All class information will be posted on the website. A weather forecasting primer can be found at www.atmos.umd.edu/~hudson/forecastchecklist- 2010.htm

4. Grading The course will be graded on the basis of a mid-term exams (25% of the final grade), a final exam(30% of the final grade), 7 lab projects (25% of the final grade), and 4 quizzes (20% of the final grade).

5. Who am I? My PhD was in Physics. My research thesis was in Spectroscopy. Each molecule or atom emits and absorbs radiation in unique regions – like a finger print. One can use this fact to identify the molecule or atom. Before joining UM in 1990, I worked for NASA developing instruments to identify atmospheric molecules from satellites. It was at NASA that I became an atmospheric physicist Research on the Ozone layer in the Stratosphere. Current research is on applying this ozone data to climate studies.

8. http://www.youtube.com/watch?v= YfcNRWefEEU http://www.youtube.com/watch?v= YfcNRWefEEU

9. The Blue Marble

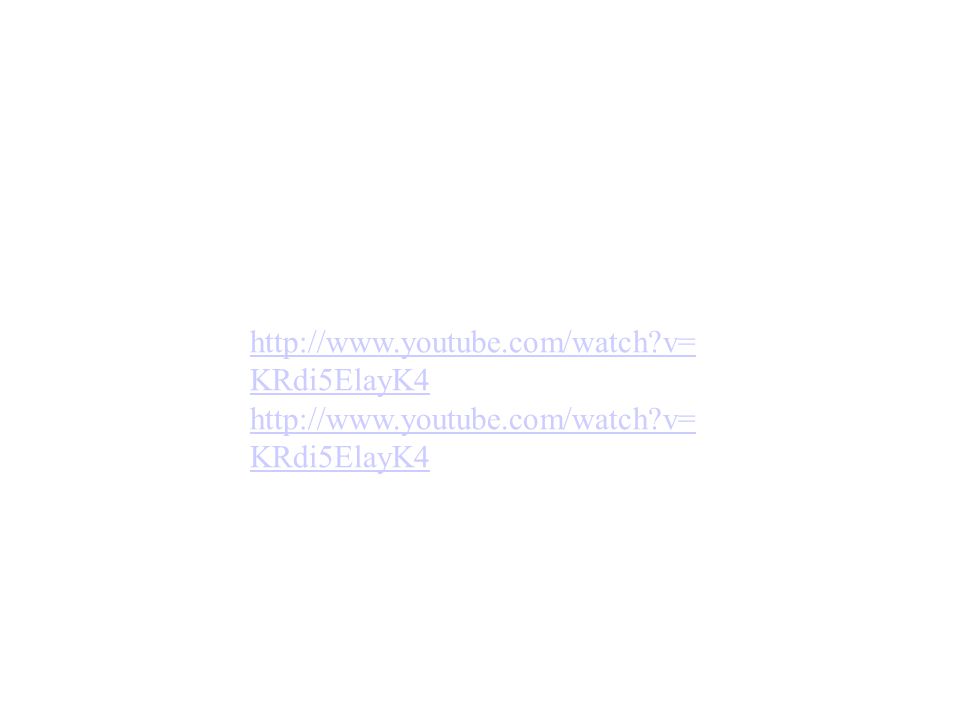

10. http://www.youtube.com/watch?v= KRdi5ElayK4 http://www.youtube.com/watch?v= KRdi5ElayK4

11. Fig. 1-1, p. 2 Weather Satellite Image, July 7, 2005

12. Weather vs. Climate Weather Instantaneous description of what the atmosphere is doing at a particular time and place Climate Description of what weather is usually like in a region (large or small). Not just the average weather, but a description of what the extremes are like too.

13. Fig. 1-2, p. 3 Different hemispheres – different weather Why? Different ratios of land to oceans. Oceans tend to act like a thermostat. Mountains cause instabilities in the air flow. Southern hemisphere is calmer.

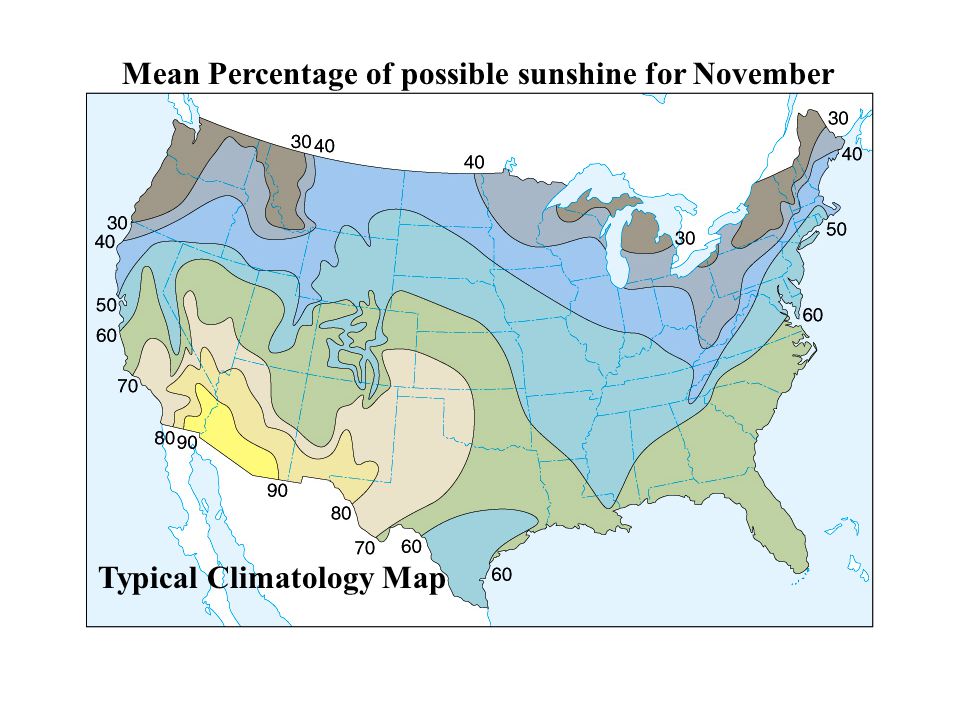

14. Typical Weather Map Mean Percentage of possible sunshine for November Typical Climatology Map

15. Surface Pressure Map Jan 25

16. 850 Mb chart for Monday Jan 25

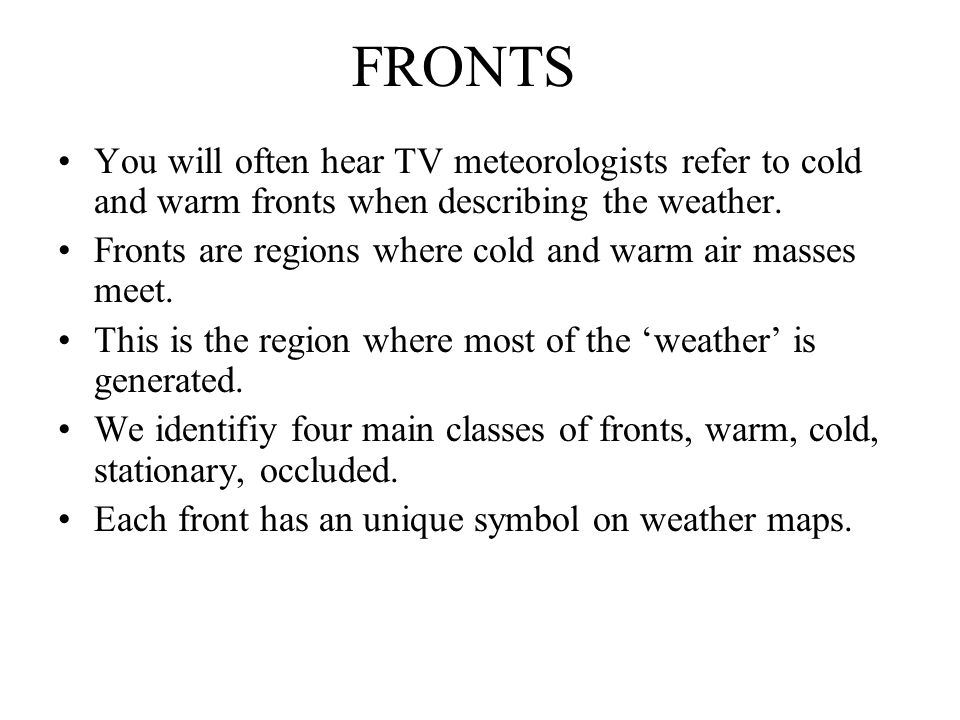

17. FRONTS You will often hear TV meteorologists refer to cold and warm fronts when describing the weather. Fronts are regions where cold and warm air masses meet. This is the region where most of the ‘weather’ is generated. We identifiy four main classes of fronts, warm, cold, stationary, occluded. Each front has an unique symbol on weather maps.

18. Fig. 1-15, p. 18

19. Fig. 9.13 Warm Front

20. Fig. 9.15 Cold front

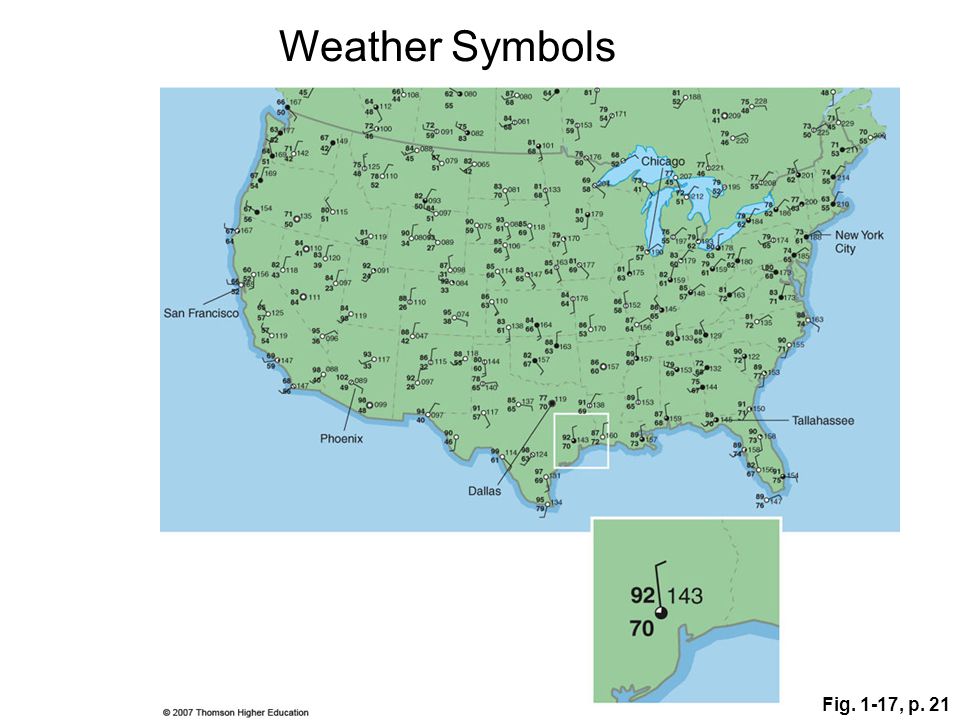

21. Fig. 1-17, p. 21 Weather Symbols

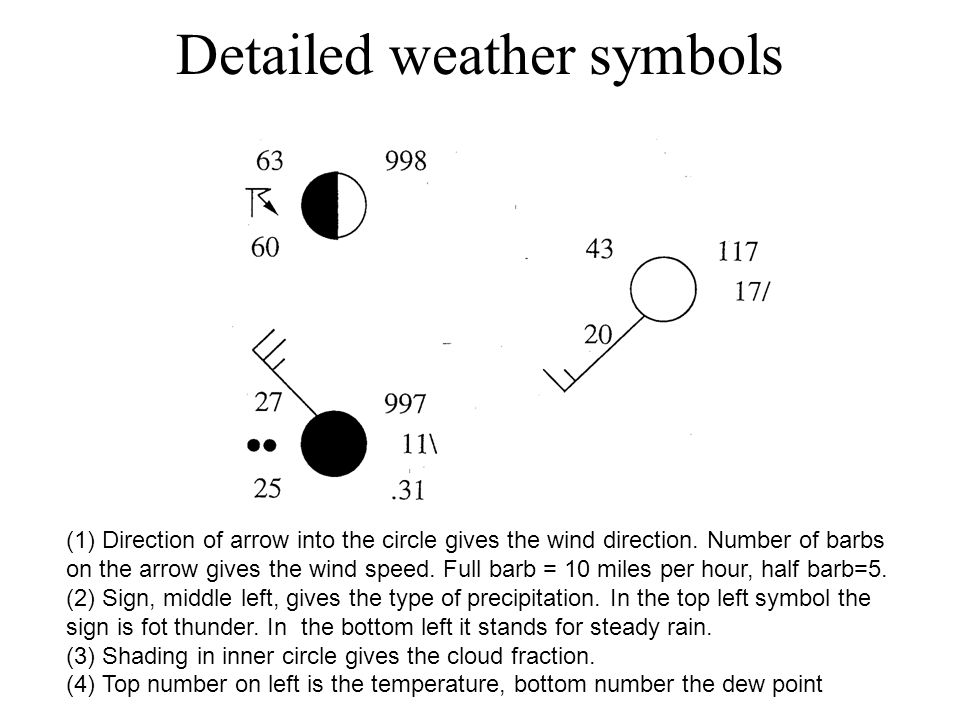

22. Detailed weather symbols (1) Direction of arrow into the circle gives the wind direction. Number of barbs on the arrow gives the wind speed. Full barb = 10 miles per hour, half barb=5. (2) Sign, middle left, gives the type of precipitation. In the top left symbol the sign is fot thunder. In the bottom left it stands for steady rain. (3) Shading in inner circle gives the cloud fraction. (4) Top number on left is the temperature, bottom number the dew point

23. Weather symbols The numbers at top right of each symbol represent the pressure in millibars (mb) The pressure seldom drops below 950 mb and seldom gets above 1049 mb In the days of teletype the object was to shorten the amount of information sent. So if I say the pressure was 98 then the receiver could assume that I meant 998. And if I sent 14 then 1014 was assumed. To further confuse the issue it was decided to sent the tenth of a mb. So now if I sent 998 I meant 999.8. Similarly 117 means 1011.7.

24. Weather Forecasting A website has been prepared to guide you through the process of making a simple weather forecast. You can either go to Dr. Hudson’s web page and then click on: Forecast Checklist Or go to: http://www.atmos.umd.edu/~hudson/forecas tchechecklist-2010.htm

25. BREAK

26. N2N2 O2O2 Ar O3O3 Inert gasesCO 2 H2H2 ←SO 2, NO 2, CFC’s, etc PM CO CH 4 N2ON2O Composition of the Earth’s Troposphere

27. Table 1-1, p. 4

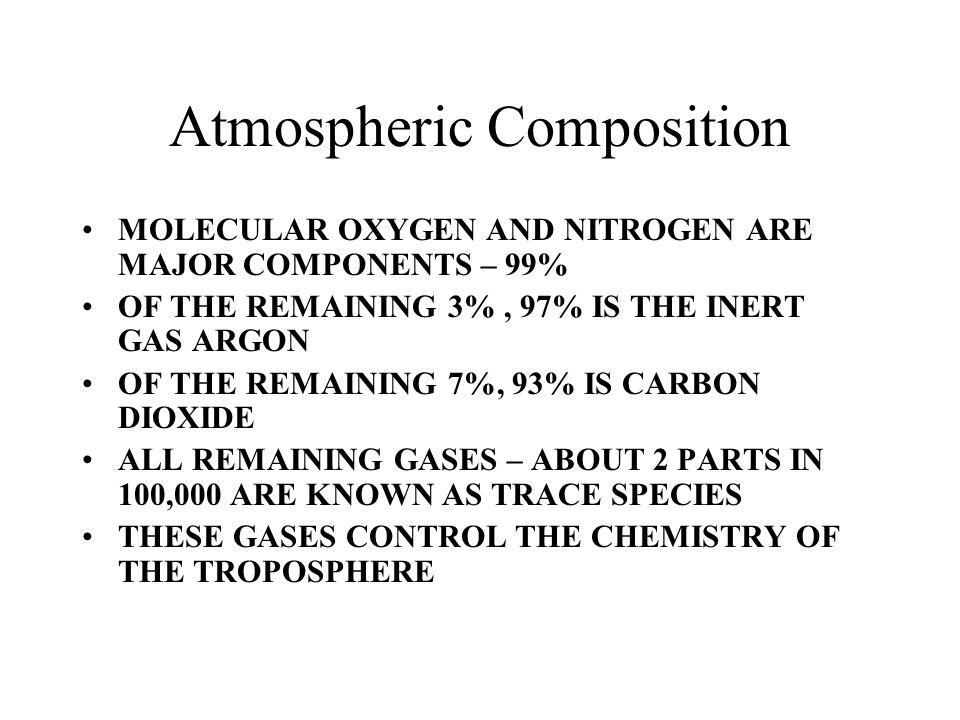

28. Atmospheric Composition MOLECULAR OXYGEN AND NITROGEN ARE MAJOR COMPONENTS – 99% OF THE REMAINING 3%, 97% IS THE INERT GAS ARGON OF THE REMAINING 7%, 93% IS CARBON DIOXIDE ALL REMAINING GASES – ABOUT 2 PARTS IN 100,000 ARE KNOWN AS TRACE SPECIES THESE GASES CONTROL THE CHEMISTRY OF THE TROPOSPHERE

29. Atmospheric Evolution Earth’s early atmosphere consisted of Hydrogen (H), Helium (He), Methane (CH 4 ) and Ammonia (NH 3 ) As the earth cooled volcanic eruptions occurred emitting water vapor (H 2 O), carbon dioxide (CO 2 ) and molecular nitrogen (N 2 ). The molecular oxygen (O 2 ) in the current atmosphere came about as single celled algae developed in the oceans about 3 billion years ago. The oxygen is produced as a by-product of photosynthesis, the making of sugars from water vapor and carbon dioxide. This oxygen produced ozone in the upper atmosphere which filtered out harmful ultraviolet radiation from the sun. This allowed plants and animals to develop on land.

30. Fig. 1-4, p. 7

31. Fig. 1-3, p. 6

32. Carbon Dioxide Cycle SOURCES VOLCANOES PLANT/ANIMAL RESPIRATION PLANT DECAY BURNING OF FOSSIL FUELS DEFORESTATION SINKS PLANT PHOTOSYNTHESIS OCEANS CARBONATES

33. Fig. 1-5, p. 8 Hydrologic Cycle

34. WATER IS EVERYWHERE ON EARTH IT IS IN THE OCEANS, GLACIERS, RIVERS, LAKES, THE ATMOSPHERE, SOIL, AND IN LIVING TISSUE ALL OT THESE ‘RESERVOIRS’ CONSTITUTE THE HYDROSPHERE THE CONTINUOUS EXCHANGE OF WATER AMONGST THE ‘RESERVOIRS’ IS KNOWN AS THE HYDROLOGIC CYCLE THE HYDROLOGIC CYCLE IS POWERED BY ENERGY FROM THE SUN EVAPORATION AND TRANSPIRATION PRECIPITATION RUN-OFF TO THE SEA

35. Other important Gases Methane - CH 4 Is produced whenever plant material decays below water, e.g. in marshes and rice paddies. Is a greenhouse gas. Has a long lifetime in the Troposphere but breaks down in the Stratosphere to form water. Cholofluorocarbons - scientific name for the Freons. Are greenhouse gases Have a long lifetime in the Troposphere but break down in the Stratosphere to releases chlorine. Responsible for the Ozone Hole. Emissions were banned as a result of the Montreal Protocol.

36. Fig. 1-7, p. 9

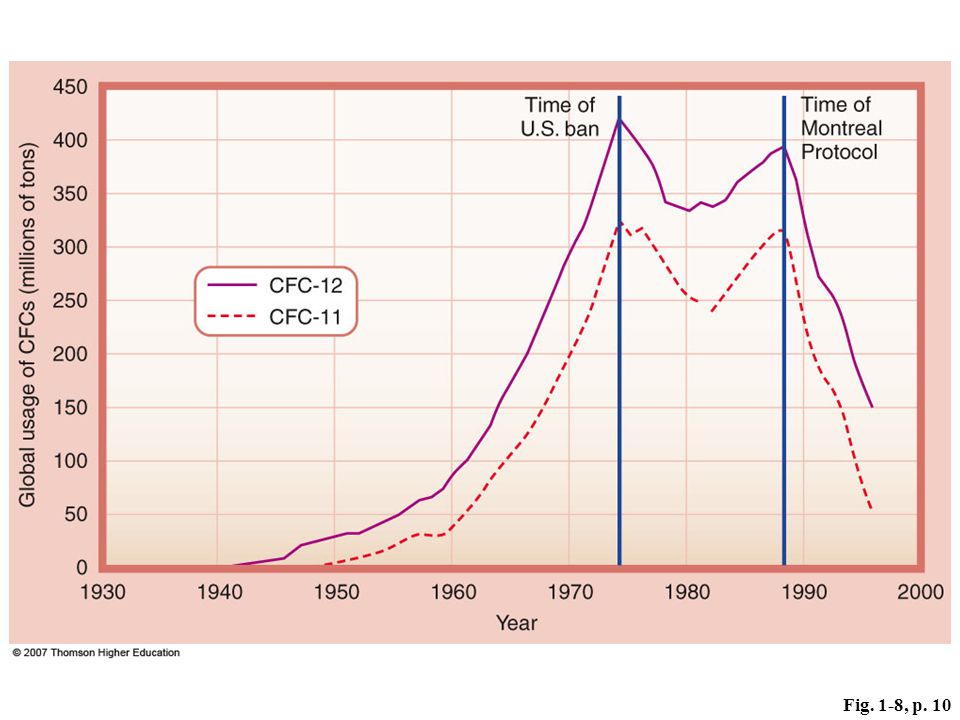

37. Fig. 1-8, p. 10

38. Fig. 1-9, p. 11

39. Aerosols PARTICLES SUSPENDED IN THE ATMOSPHERE DIAMETERS MEASURED IN MICRONS – ONE MILLIONTH OF A METER. CAN MODIFY THE AMOUNT OF SOLAR ENERGY THAT REACHES THE SURFACE. CAN ACT AS CONDENSATION NUCLEI FOR CLOUD DROPLETS. PRIMARY SOURCES: SEA SALT SPRAY WIND EROSION VOLCANOES FIRES HUMAN ACTIVITY

40. Fig. 1-10, p. 11

41. Fig. 1-11, p. 12 Smoke from Forest Fires along the coast of California.

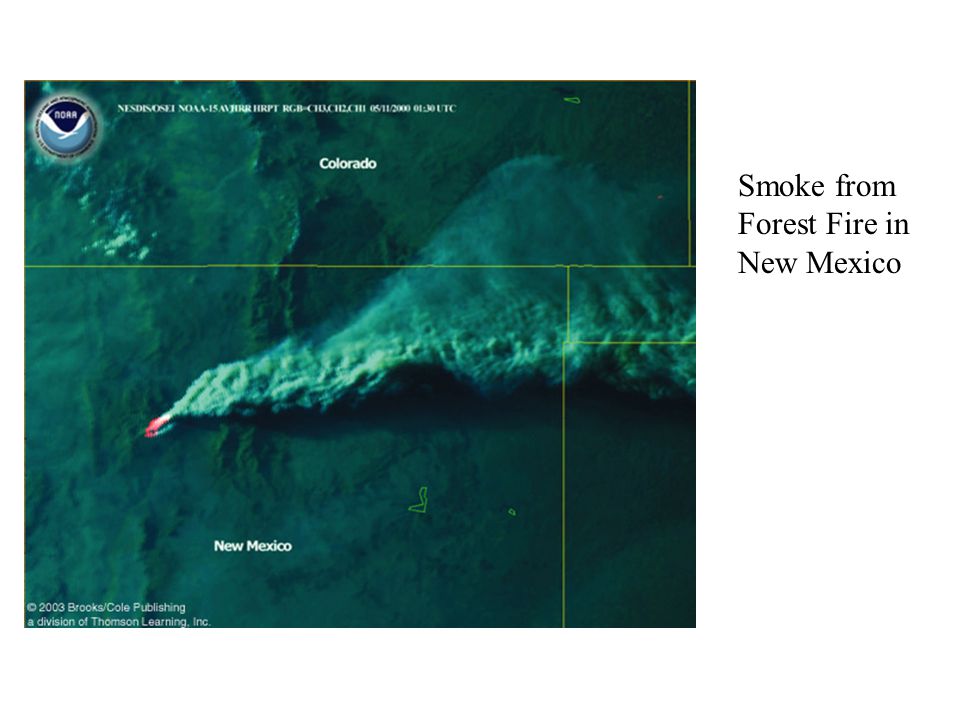

42. Fig. 1.11 Smoke from Forest Fire in New Mexico

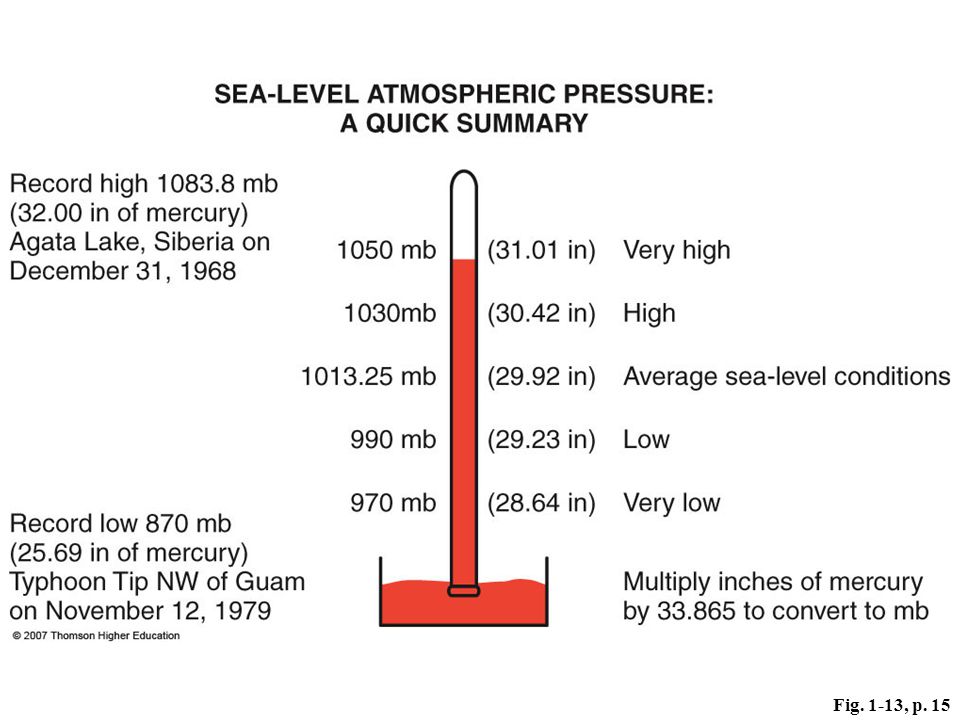

43. Fig. 1-13, p. 15

44. Toricello Filled a glass tube with mercury that had been sealed at one end He then inverted the tube in a bowl of mercury Found that the mercury did not flow out of the tube but remained in the tube, and that the height of the mercury column was constant each time he tried the experiment. He reasoned that the air was keeping the mercury in the column by pressing down on the bowl of mercury.

45. Fig. 1.13

46. Fig. 1-13, p. 15

47. Fig. 1.12

49. Atmospheric Pressure PRESSURE AT A POINT IS THE WEIGHT OF AIR ABOVE THAT POINT A COLUMN OF AIR AT THE SURFACE WEIGHS SLIGHTLY MORE THAN 1 KILOGRAM PER SQUARE CENTIMETER IN STILL AIR, TWO FACTORS DETERMINE THE PRESSURE – TEMPERATURE AND DENSITY IDEAL GAS LAW PRESSURE = DENSITY.TIMES.TEMPERATURE.TIMES.CONST ANT PRESSURE CHANGES WITH ALTITUDE

50. Fig. 1-14, p. 17

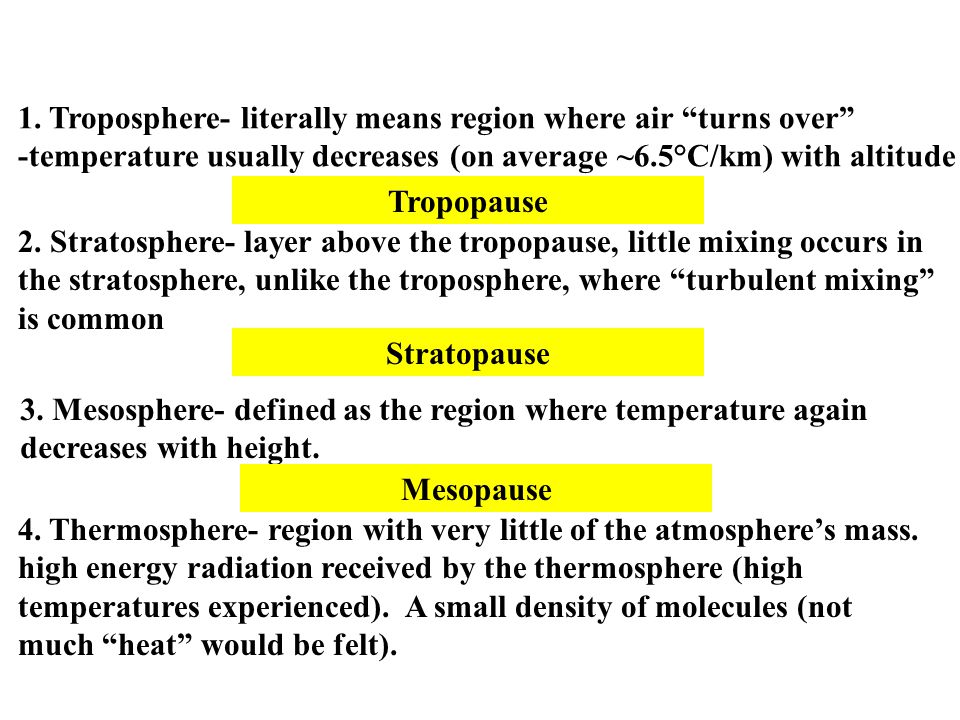

51. 1. Troposphere- literally means region where air “turns over” -temperature usually decreases (on average ~6.5°C/km) with altitude 2. Stratosphere- layer above the tropopause, little mixing occurs in the stratosphere, unlike the troposphere, where “turbulent mixing” is common 3. Mesosphere- defined as the region where temperature again decreases with height. 4. Thermosphere- region with very little of the atmosphere’s mass. high energy radiation received by the thermosphere (high temperatures experienced). A small density of molecules (not much “heat” would be felt). Tropopause Stratopause Mesopause

52. When the atmosphere moves it tends to move along constant pressure lines (isobars) and not along constant altitude lines. In meteorology it is helpful to refer to altitude as a certain pressure value rather than a height. 850 mb  1500 m (5000 ft) 700 mb  3000 m (10,000 ft) 500 mb  5500 m (18000) 300 mb  9000 m (30,000)
