1. 1 Brief Introduction to Verilog Weiping Shi

2. 2 What is Verilog? It is a hardware description language Allows designers to quickly create and debug large scale designs Similar to C in syntax Verilog will be used to do design assignments in this course

3. 3 Sample Half Adder module Add_half (sum, c_out, a, b); inputa, b; outputsum, c_out; wire c_out_bar; xor (sum, a, b); nand (c_out_bar, a, b); not (c_out, c_out_bar); endmodule c_out a b sum c_out_bar

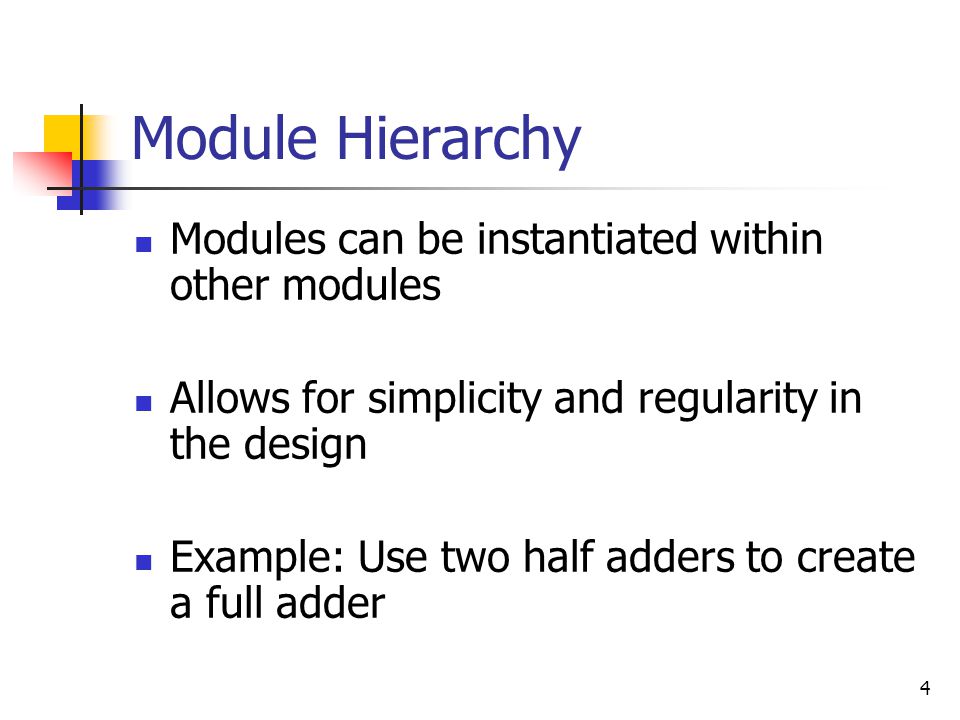

4. 4 Module Hierarchy Modules can be instantiated within other modules Allows for simplicity and regularity in the design Example: Use two half adders to create a full adder

5. 5 Module Hierarchy Example module Add_half ( sum, c_out, a, b ); inputa, b; outputsum, c_out; wire c_out_bar; xor (sum, a, b); nand (c_out_bar, a, b); not (c_out, c_out_bar); endmodule Module Add_full ( sum, c_out, a, b, c_in );// parent module input a, b, c_in; output c_out, sum; wire w1, w2, w3; Add_half M1 ( w1, w2, a, b ); Add_half M2 ( sum, w3, w1, c_in );// child module or ( c_out, w2, w3 );// primitive instantiation endmodule

6. 6 Alternative Half Adders module Add_half ( sum, c_out, a, b ); inputa, b; outputsum, c_out; assign { c_out, sum } = a + b; // Continuous assignment endmodule module Add_half (sum, c_out, a, b ); inputa, b; outputsum, c_out; regsum, c_out; always @ ( a or b) begin sum = a ^ b; c_out = a & b; end endmodule

7. 7 Structural v.s. Behavioral Verilog can be structural or behavioral Structural definition specifies the gates and their connections explicitly Behavioral definition specifies the functionality of a design Does not contain any structural information such as transistors or gates Logic synthesis software implements the structural

8. Behavioral Example 2 Bit Comparator module comparator (a_greater, b_greater, equal, a, b); inputa, b; outputa_greater, b_greater, equal; rega_greater, b_greater, equal; always @(a or b)// either a or b changes begin if (a > b) begin a_greater = 1; b_greater = 0; equal = 0; end if (a<b) begin a_greater = 0; b_greater = 1; equal = 0; end if (a==b) begin a_greater = 0; b_greater = 0; equal = 1; end endmodule

9. 9 Alternate comparator module comparator (a_greater, b_greater, equal, a, b); inputa, b; outputa_greater, b_greater, equal; assign a_greater = (a > b) ? 1 : 0; assign b_greater = (a < b) ? 1 : 0; assign equal = (a==b) ? 1 : 0; endmodule Uses a conditional continuous assignment to set the outputs.

10. 10 Clarification Registers are used when an output is updated on an event. The value must be held until a new event updates that value. Assign statements are used when the output is continuously being assigned.

11. 11 Using Verilog on Sun Create your Verilog module in a text file entitled: % vi filename.v Compile the file using the command % verilog filename.v

12. 12 Testbench Manipulate the module inputs to observe the circuit reaction Uses module hierarchy Introduces the concept of delay

13. 13 Sample Testbench for a Half Adder module tbench; rega,b;// regs connect to module inputs wiresum,cout;// wires connect to module outputs half_adder M1(cout,sum,a,b);// instantiate the half adder initial begin a = 0, b = 0;//time 0 #5a = 1, b = 0;//time 5 #3a = 1, b = 1;//time 8 #4a = 0, b = 1;//time 12 #52a = 0, b = 0;//time 64 #70$finish;//stops the simulation end initial begin $monitor($time,”a = %b, b=%b cout=%b sum=%b”,a,b,cout,sum);//displays the variable values at each //unit of time that an event occurs end endmodule

14. 14 Testbench Results Compiling source file "ha.v" Compiling source file "tbench.v" Highest level modules: tbench 0a = 0, b=0 cout=0 sum=0 5a = 1, b=0 cout=0 sum=1 8a = 1, b=1 cout=1 sum=0 12a = 0, b=1 cout=0 sum=1 64a = 0, b=0 cout=0 sum=0 "tbench.v": $finish at simulation time 134

15. 15 Arrays Arrays can be expressed in Verilog Can be used for inputs, outputs, wires, regs,… Ex: 4 bit input input[3:0]A;

16. 16 Array Example module xor_demo(xor_group,xor_bit,A,B); input[3:0]A, B; output[3:0] xor_group,xor_bit; assign xor_group = A ^ B; assign xor_bit[0] = A[0] ^ B[0]; assign xor_bit[1] = A[1] ^ B[1]; assign xor_bit[2] = A[2] ^ B[2]; assign xor_bit[3] = A[3] ^ B[3]; endmodule

17. 17 Array Test bench module tbench; reg [3:0] A, B; wire [3:0] xor_group,xor_bit; xor_demo M1(xor_group,xor_bit,A,B); initial begin A = 0; B = 0; #5 A = 4'b0001; B = 4'b1100; #10 A = 4'd5; B = 4'd10; #5 A = 4'hF; B=4'hE; end initial begin #40 $finish; end initial begin $monitor($time,"A=%b B=%b group=%b bit=%b",A,B,xor_group,xor_bit); end endmodule

18. 18 Xor Array Results Compiling source file "xor.v" Compiling source file "xtbench.v" Highest level modules: tbench 0A=0000 B=0000 group=0000 bit=0000 5A=0001 B=1100 group=1101 bit=1101 15A=0101 B=1010 group=1111 bit=1111 20A=1111 B=1110 group=0001 bit=0001 L18 "xtbench.v": $finish at simulation time 40

19. 19 Parameters Parameters can be used to name integers Parameter declaration is done when you define the port list Ex:parameter true = 1’b1; parameter false = 1’b0; parameter stop = 5’h1F;

20. 20 FSM Example: Car speed accelerator brake clock medium lowstopped high a: accelerator b: brake a = 1, b = 0 b = 1 a = 1, b = 0

21. 21 Behavioral Description module car(speed, a, b, clock); inputa, b, clock; output[1:0] speed; reg[1:0] speed; parameterstopped = 2’b00; parameterfast = 2’b11; always @(posedge clock or b) begin if (b == 1 && speed != stopped) speed = speed – 1; else if (b == 0 && a == 1 && speed != fast) speed = speed + 1; end endmodule
