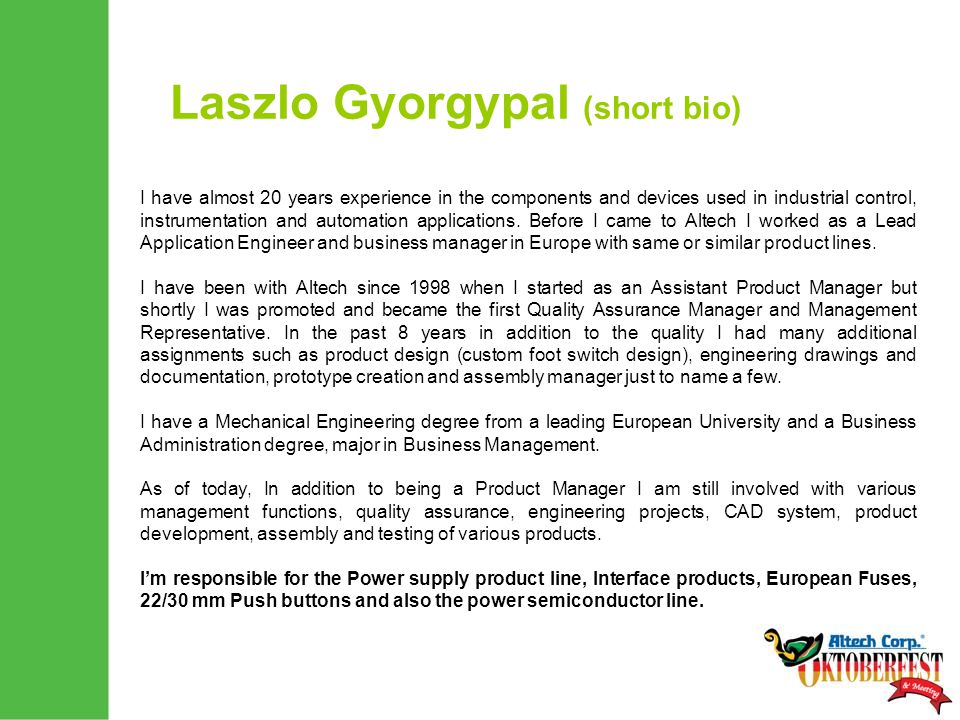

1. I have almost 20 years experience in the components and devices used in industrial control, instrumentation and automation applications. Before I came to Altech I worked as a Lead Application Engineer and business manager in Europe with same or similar product lines. I have been with Altech since 1998 when I started as an Assistant Product Manager but shortly I was promoted and became the first Quality Assurance Manager and Management Representative. In the past 8 years in addition to the quality I had many additional assignments such as product design (custom foot switch design), engineering drawings and documentation, prototype creation and assembly manager just to name a few. I have a Mechanical Engineering degree from a leading European University and a Business Administration degree, major in Business Management. As of today, In addition to being a Product Manager I am still involved with various management functions, quality assurance, engineering projects, CAD system, product development, assembly and testing of various products. I’m responsible for the Power supply product line, Interface products, European Fuses, 22/30 mm Push buttons and also the power semiconductor line. Laszlo Gyorgypal (short bio)

2. Laszlo Gyorgypal Product Manager Interface Modules 35 Royal Road Flemington, NJ 908-806-9400 www.altechcorp.com 2007

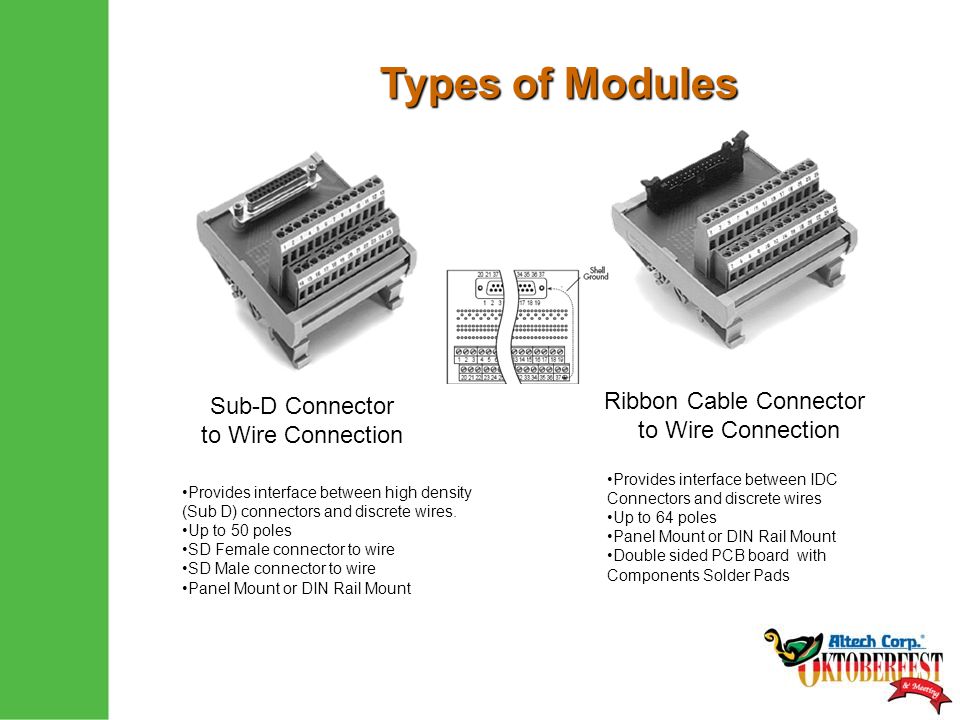

3. Sub-D Connector to Wire Connection Ribbon Cable Connector to Wire Connection Types of Modules Provides interface between high density (Sub D) connectors and discrete wires. Up to 50 poles SD Female connector to wire SD Male connector to wire Panel Mount or DIN Rail Mount Provides interface between IDC Connectors and discrete wires Up to 64 poles Panel Mount or DIN Rail Mount Double sided PCB board with Components Solder Pads

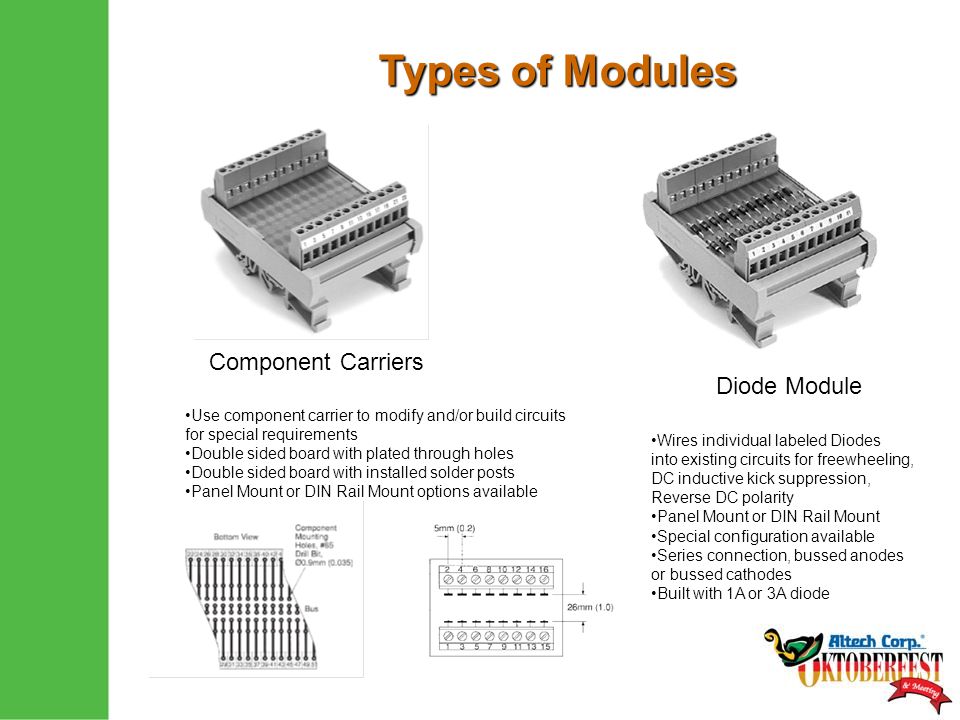

4. Diode Module Wires individual labeled Diodes into existing circuits for freewheeling, DC inductive kick suppression, Reverse DC polarity Panel Mount or DIN Rail Mount Special configuration available Series connection, bussed anodes or bussed cathodes Built with 1A or 3A diode Component Carriers Use component carrier to modify and/or build circuits for special requirements Double sided board with plated through holes Double sided board with installed solder posts Panel Mount or DIN Rail Mount options available Types of Modules

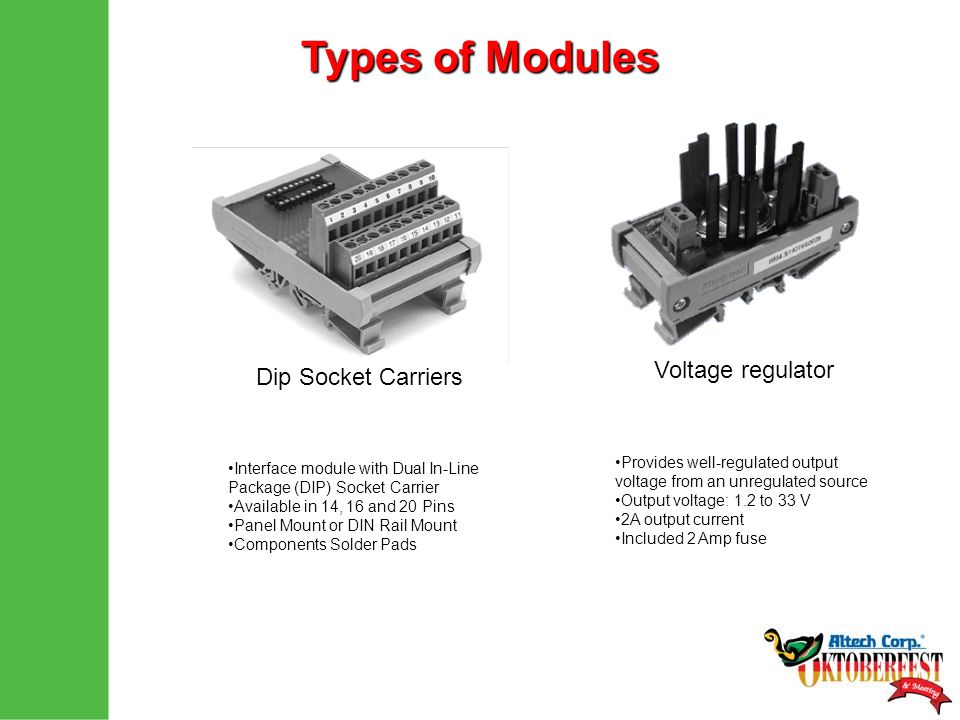

5. Dip Socket Carriers Types of Modules Interface module with Dual In-Line Package (DIP) Socket Carrier Available in 14, 16 and 20 Pins Panel Mount or DIN Rail Mount Components Solder Pads Voltage regulator Provides well-regulated output voltage from an unregulated source Output voltage: 1.2 to 33 V 2A output current Included 2 Amp fuse

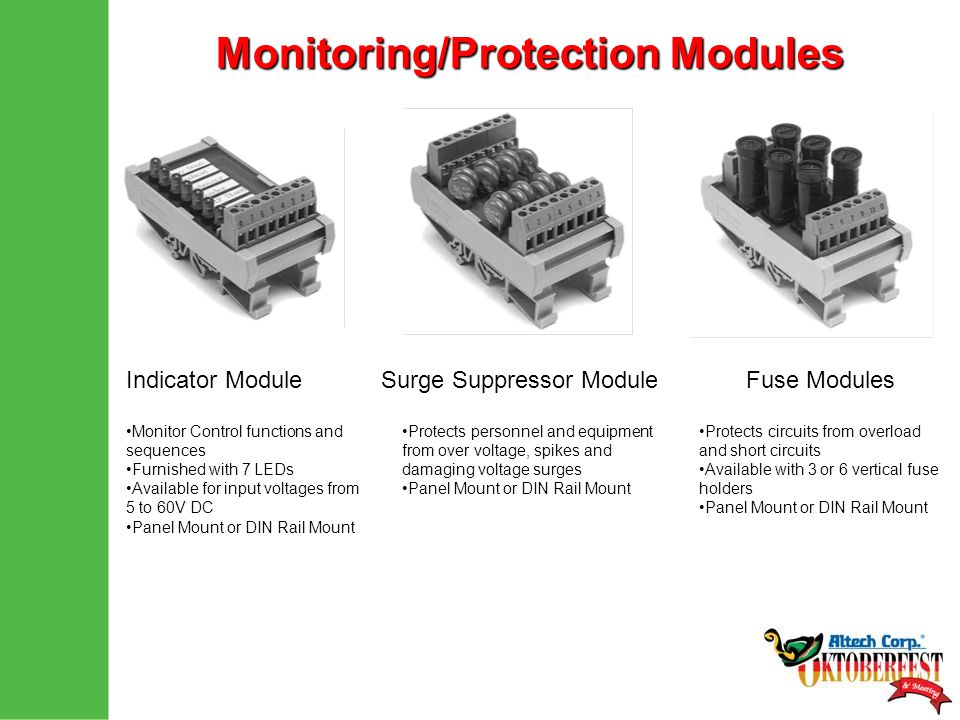

6. Indicator ModuleSurge Suppressor Module Monitoring/Protection Modules Monitor Control functions and sequences Furnished with 7 LEDs Available for input voltages from 5 to 60V DC Panel Mount or DIN Rail Mount Protects personnel and equipment from over voltage, spikes and damaging voltage surges Panel Mount or DIN Rail Mount Protects circuits from overload and short circuits Available with 3 or 6 vertical fuse holders Panel Mount or DIN Rail Mount Fuse Modules

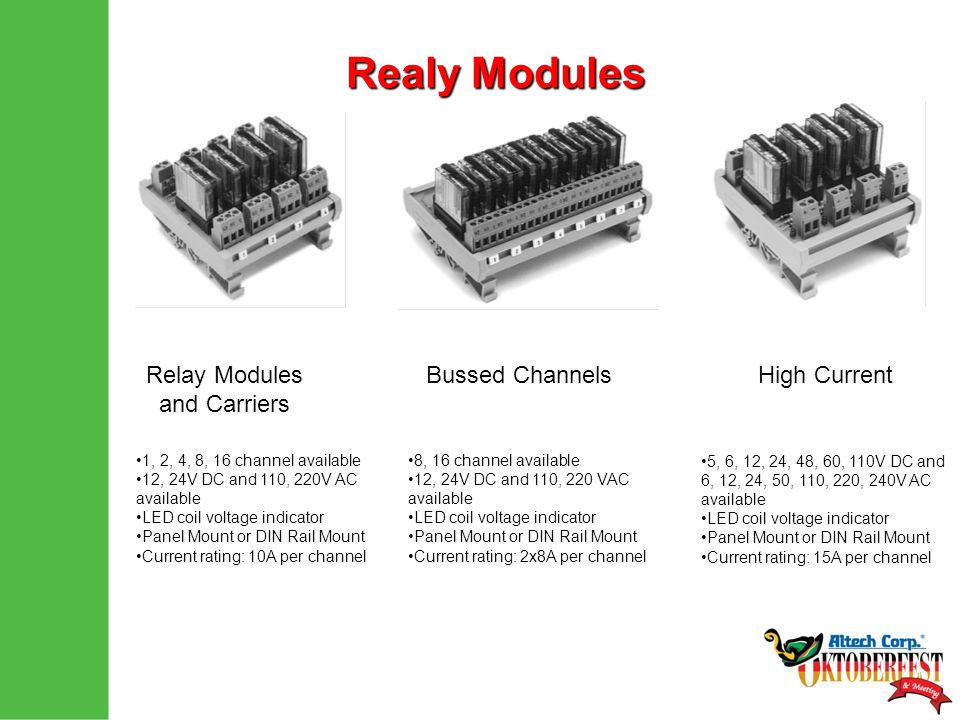

7. Relay Modules and Carriers Bussed ChannelsHigh Current Realy Modules 1, 2, 4, 8, 16 channel available 12, 24V DC and 110, 220V AC available LED coil voltage indicator Panel Mount or DIN Rail Mount Current rating: 10A per channel 8, 16 channel available 12, 24V DC and 110, 220 VAC available LED coil voltage indicator Panel Mount or DIN Rail Mount Current rating: 2x8A per channel 5, 6, 12, 24, 48, 60, 110V DC and 6, 12, 24, 50, 110, 220, 240V AC available LED coil voltage indicator Panel Mount or DIN Rail Mount Current rating: 15A per channel

8. I/O Opto Carrier Types of Modules Solid State Relay I/O Module Safety Relay Modules 1, 2, 4, 8, 16 channel available Isolated or bussed channels Input or output, AC or DC Integrated Socket LED indication, fuse protection Panel Mount or DIN Rail Mount Current rating: 3A 1, 2, 4, 8, 16 channel available Fuse protection LED indicator Panel Mount or DIN Rail Mount Input or output modules can be mixed Wide range of solid state I/O modules to choose from LED coil voltage indicator Panel Mount or DIN Rail Mount Reverse DC polarity LED protection Surge suppression with DC coils Industry standard safety relays Double pole double throw relays Single or bussed channels

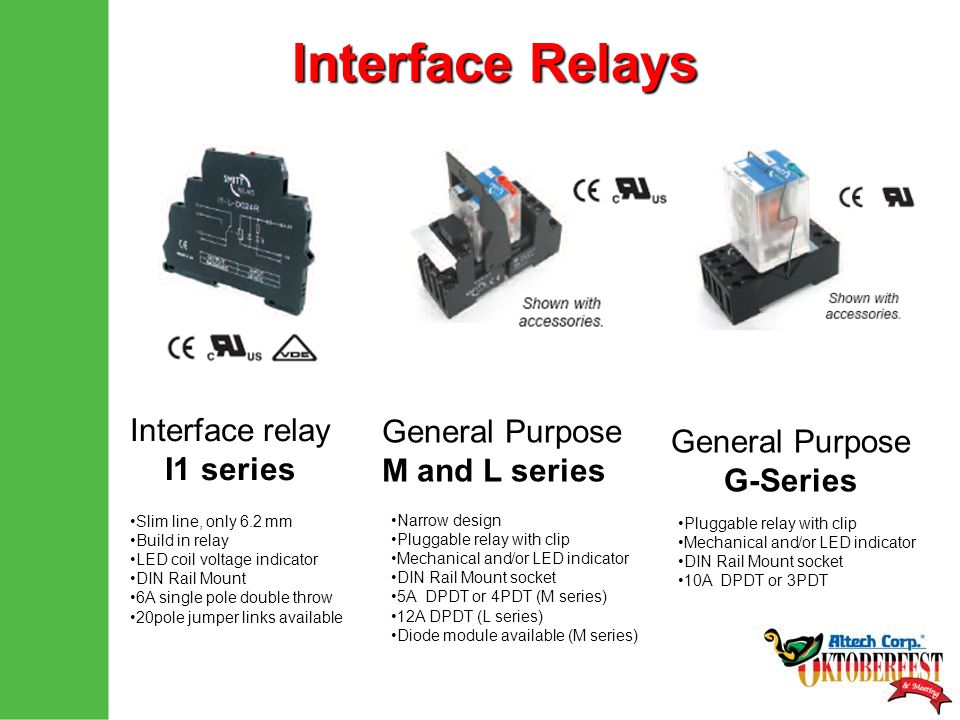

9. Interface Relays Interface Relays Interface relay I1 series General Purpose M and L series General Purpose G-Series Slim line, only 6.2 mm Build in relay LED coil voltage indicator DIN Rail Mount 6A single pole double throw 20pole jumper links available Narrow design Pluggable relay with clip Mechanical and/or LED indicator DIN Rail Mount socket 5A DPDT or 4PDT (M series) 12A DPDT (L series) Diode module available (M series) Pluggable relay with clip Mechanical and/or LED indicator DIN Rail Mount socket 10A DPDT or 3PDT

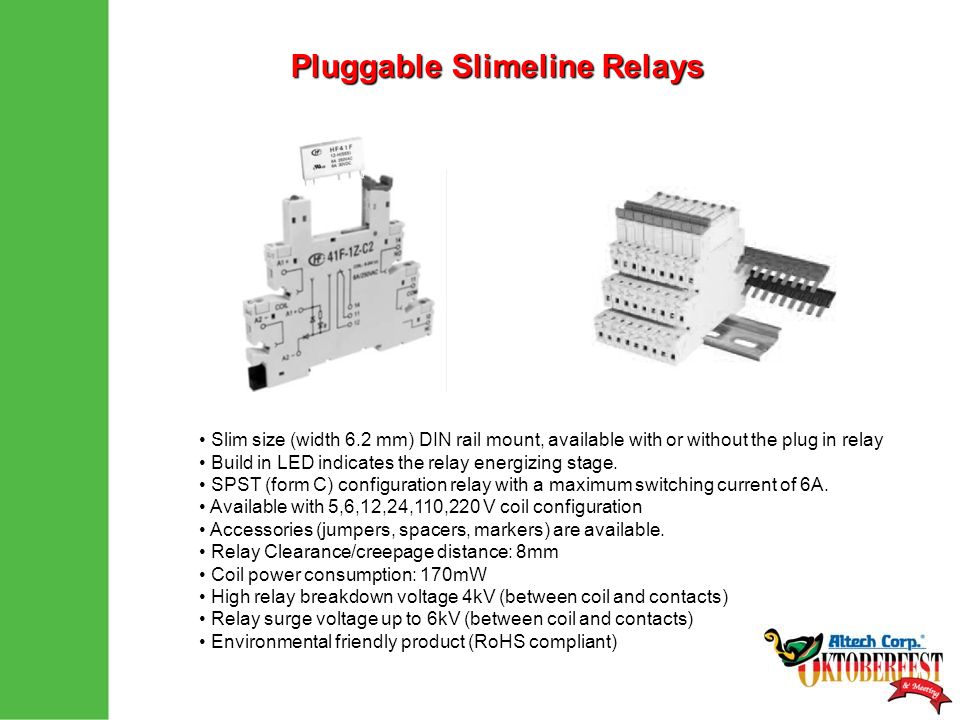

10. Pluggable Slimeline Relays Pluggable Slimeline Relays Slim size (width 6.2 mm) DIN rail mount, available with or without the plug in relay Build in LED indicates the relay energizing stage. SPST (form C) configuration relay with a maximum switching current of 6A. Available with 5,6,12,24,110,220 V coil configuration Accessories (jumpers, spacers, markers) are available. Relay Clearance/creepage distance: 8mm Coil power consumption: 170mW High relay breakdown voltage 4kV (between coil and contacts) Relay surge voltage up to 6kV (between coil and contacts) Environmental friendly product (RoHS compliant)

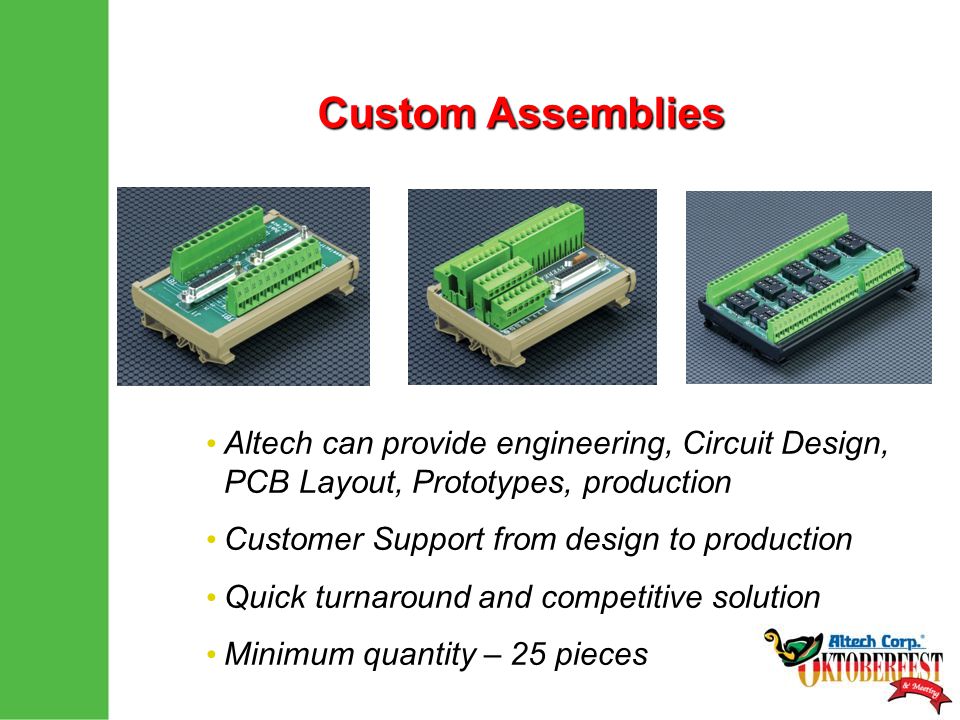

11. Altech can provide engineering, Circuit Design, PCB Layout, Prototypes, production Customer Support from design to production Quick turnaround and competitive solution Minimum quantity – 25 pieces Custom Assemblies

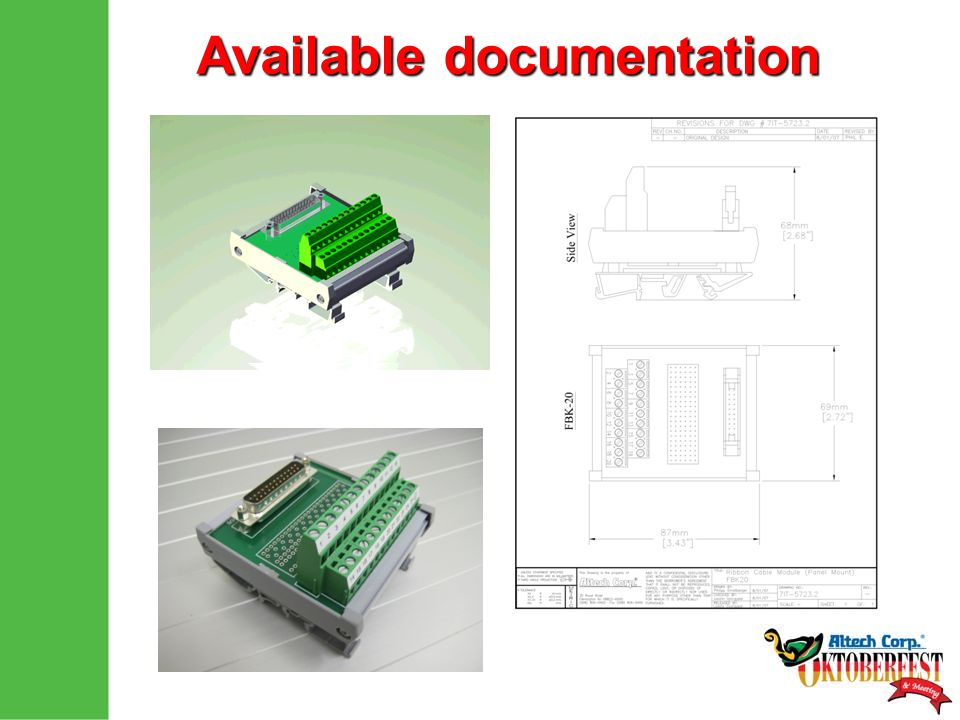

12. Available documentation Available documentation
