1. Division 08-Openings ARCH 330 Fall 2008

2. Master Format 080000 OPENINGS 080100 Operation and Maintenance of Openings 080600 Schedules for Openings 081000 DOORS & FRAMES 081100 Metal Doors & Frames- Includes Hollow metal, aluminum, stainless steel and bronze. 081400 Wood Doors 080300 SPECIALTY DOORS- access, sliding, coiling, folding, etc. 080400 ENTRANCES, STOREFRONTS and CURTAIN WALLS 080500 WINDOWS 087000 HARDWARE 088000 GLAZING 089000 LOUVERS & VENTS

3. Doors & Windows (pre-hung) Hollow Metal Aluminum Wood Plastic (mostly windows, least expensive) The architectural look (aesthetics) and performance characteristics are the primary reasons for selection.

4. Coordination Doors & Windows In most cases they come from different sources. Hollow Metal Wood Doors Finish Hardware Glazing Coordinated through the door and window schedule. Each door or window is listed and specific details assigned.

5. Doors and Windows Rough Openings into different wall systems exterior and interior. That wall system or sometimes called wall type will required architectural detailing in regards to: Jamb Head Sill Reveals Door Swings –RH, LH, RHR, LHR

6. Understanding Actual Openings

7. Architectural Finish

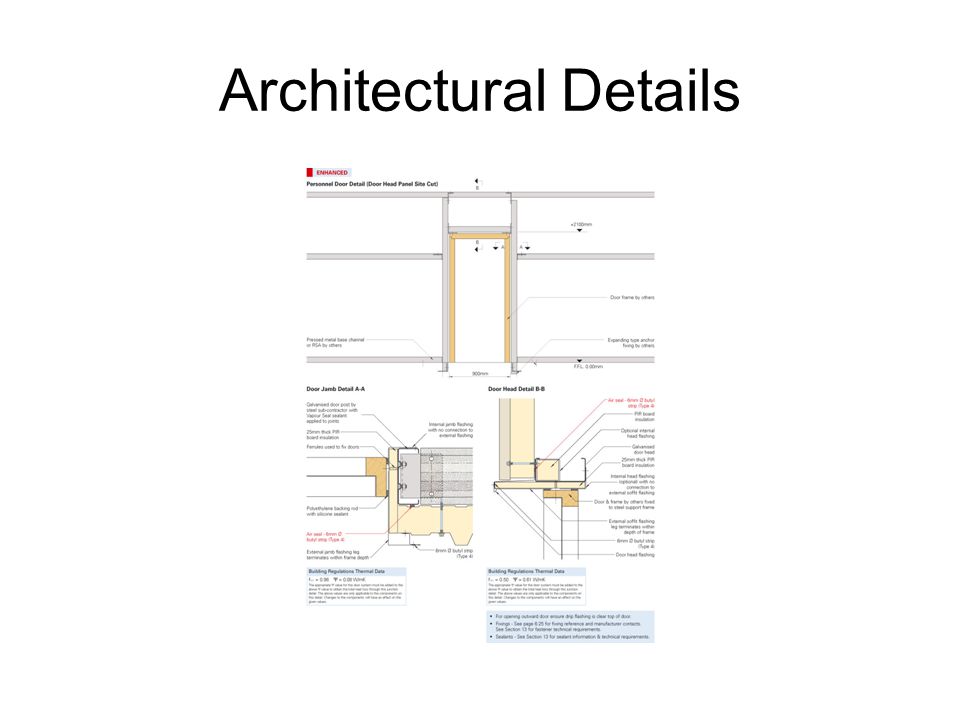

8. Architectural Details

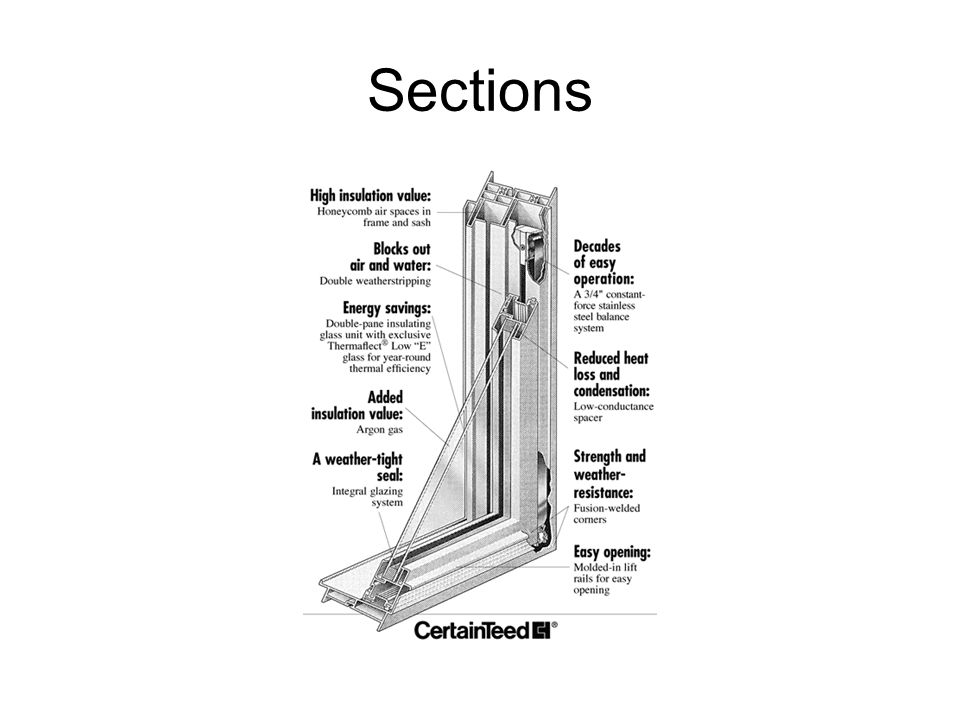

9. Sections

10. Windows Too

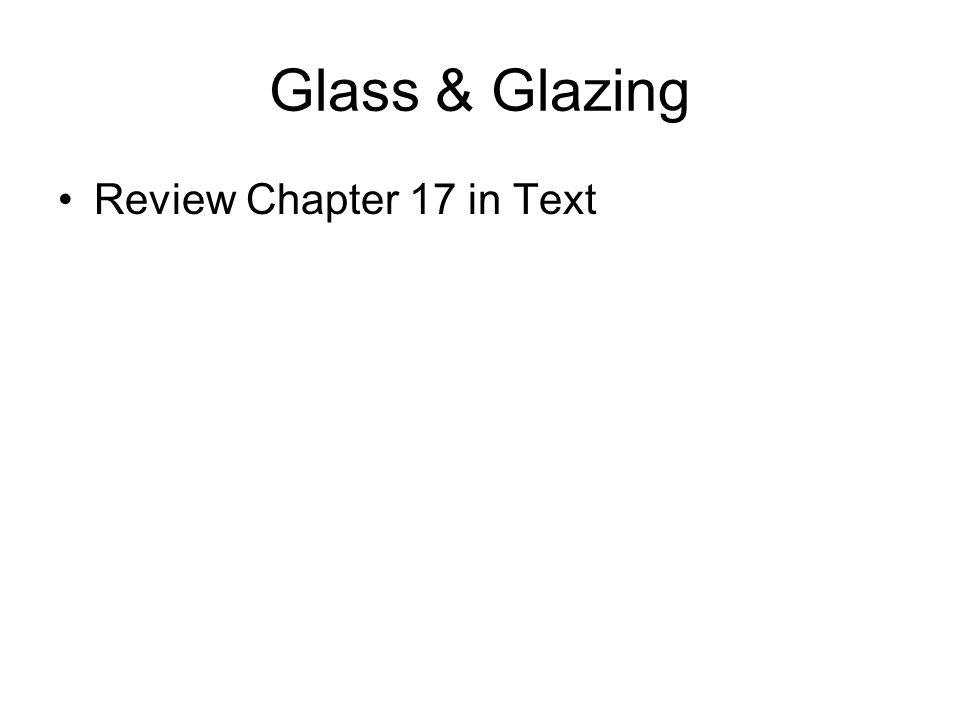

11. Glass & Glazing Review Chapter 17 in Text

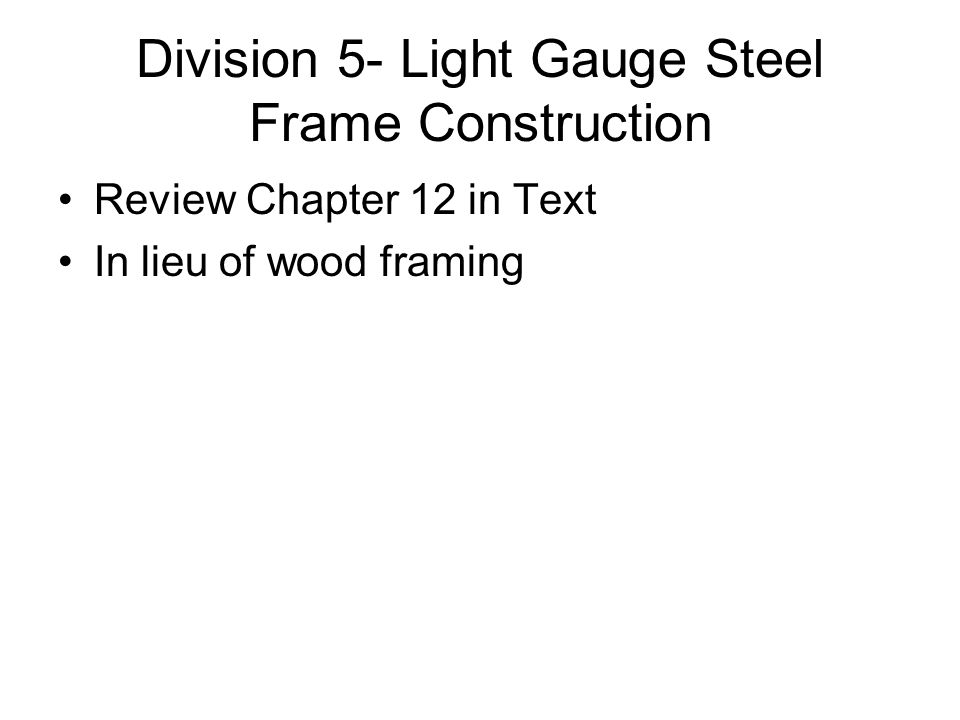

12. Division 5- Light Gauge Steel Frame Construction Review Chapter 12 in Text In lieu of wood framing

13. Schedule Wednesday- October 29- Midterm Review Friday-Midterm Midterm Covers –Wood –Structural Steel –Openings
