4 1. Pt is a 62 y/o F c/o difficulty swallowing (dysphagia). What to order next?1. Pt is a 62 y/o F c/o difficulty swallowing (dysphagia).Upper GI studyBarium Swallow/ Speech EvaluationEsophagramCT of the neckEGD

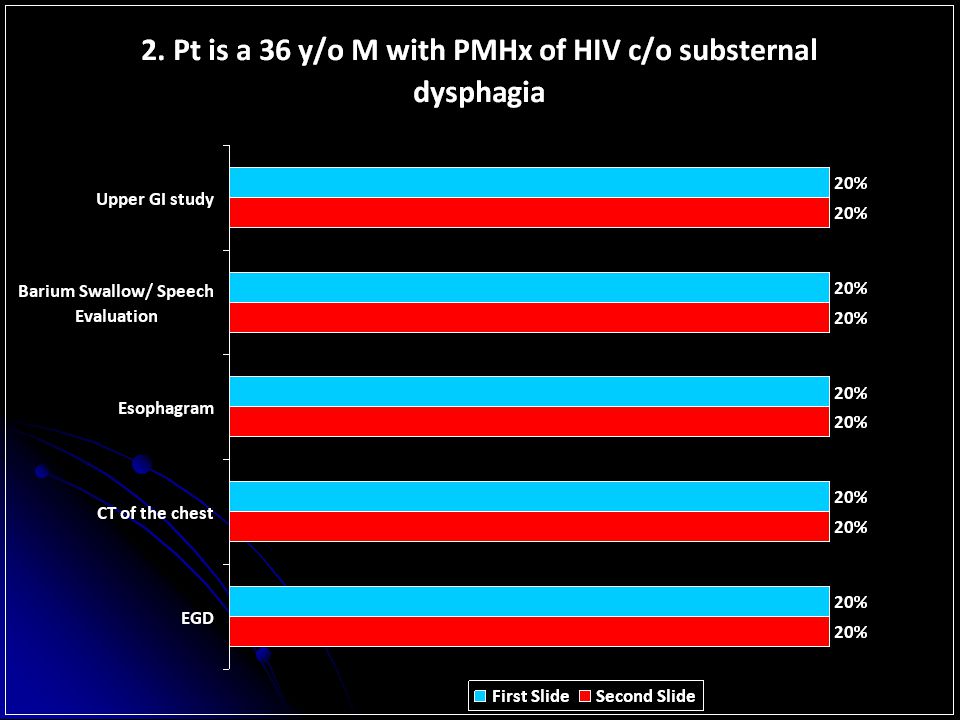

5 2. Pt is a 36 y/o M with PMHx of HIV c/o substernal dysphagia What to order next?2. Pt is a 36 y/o M with PMHx of HIV c/o substernal dysphagiaUpper GI studyBarium Swallow/ Speech EvaluationEsophagramCT of the chestEGD
6 What to order next?3. Pt is a 28 y/o c/o chronic vague abdominal pain and diarrhea. Crohn’s disease is suspected.UGI with SBFTCT of the abd/ pelvisCT of the abd/ pelvis with IV and PO contrastMRI of the abdomenBarium enema
7 What to order next?4. Pt is a 72 y/o M with PMHx of multiple abdominal surgeries c/o distended stomach and pain. SBO is suspected.CT abd/ pelvis without contrastCT abd/ pelvis with PO contrastCT abd/ pelvis with IV contrastCT abd/ pelvis with PO and IV contrastAbdominal Xray series
8 What to order next? CXR Chest CT without contrast 5. Pt is a 54 y/o F c/o acute chest pain. No EKG changes and cardiac enzymes are normal.CXRChest CT without contrastChest CT with contrastNuclear Stress Test studyTEE
9 What to order next? CXR Invasive angiography CT abdomen EGD CT chest 6. Pt is a 67 y/o F with PMHx of EtOH abuse and liver cirrhosis. She is c/o hematemesis.CXRInvasive angiographyCT abdomenEGDCT chest
10 What to order next? Repeat Xray CT MRI Bone scan US 7. Pt is 32 y/o runner c/o persistent L foot pain. Stress fx is suspected. Initial Xrays are normal.Repeat XrayCTMRIBone scanUS
11 What to order next? US IVP CT abd/ pelvis without contrast 8. Pt is a 53 y/o F with PMHx DM c/o back pain and fever. Acute pyelonephritis is suspected.USIVPCT abd/ pelvis without contrastCT abd/ pelvis with IV contrastCT abd/ pelvis with and without IV contrast
12 9. Pt is a 53 y/o F c/o painless hematuria. No PMHx of renal disease. What to order next?9. Pt is a 53 y/o F c/o painless hematuria. No PMHx of renal disease.IVPCT abd/ pelvis without contrastCT abd/ pelvis with IV contrastMRIUS
13 10. Pt is 56 y/o M c/o vague Sx. Acute renal failure is suspected. What to order next?10. Pt is 56 y/o M c/o vague Sx. Acute renal failure is suspected.USCT abd/ pelvis without contrastCT abd/ pelvis with contrastMRINuclear Medicine Renogram
14 What to order next? CT abd/ pelvis without contrast 11. Pt is 53 y/o postmenopausal F c/o vague abdominal pain with suspected adnexal mass on physical exam.CT abd/ pelvis without contrastCT abd/ pelvis with contrastUSMRIXray
15 What to order next? Xray KUB CT abd/ pelvis without contrast 12. Pt is a 65 y/o M c/o acute onset of abdominal pain. PE yields a pulsatile abdominal mass.Xray KUBCT abd/ pelvis without contrastCT abd/ pelvis with contrastUScolonoscopy
16 13. 78 y/o M presents with hypotension and rectal bleeding. What to order next?y/o M presents with hypotension and rectal bleeding.CT abd/ pelvisCT abd/ pelvis with IV contrastRBC tagged nuclear medicine scanColonoscopyInterventional Angiography
17 What to order next? Lt hand Xray Repeat Head CT MRI with Gd contrast y/o M c/o sudden onset Lt hand numbness and weakness. Acute CVA is suspected. Initial head CT was ‘nonacute’.Lt hand XrayRepeat Head CTMRI with Gd contrastMRI without contrastUS
18 What to order next? CT with IV contrast CT without IV contrast US Xray 15. An obese 57 y/o F with PMHx DM c/o acute edematous, painful and erythematous upper extremity.CT with IV contrastCT without IV contrastUSXrayMRI
20 Plain Film X-Ray / Mammography Cost: Both plain films and mammography are inexpensiveRisk: Mortality and morbidity related to exposure to radiationAvailability / AccessPlain films are widely availableMammography is available during business hoursWeight LimitsThe IVP table has a limit of 325 pounds. Alternatives to intravenous urography include CT, US, MRI, and cystoscopy/retrograde pyelography.Plain films have no fixed weight limit, but image quality declines with increasing patient weight and/or size. A departmental examination is always of better quality than a portable study due to better quality equipment and higher obtainable radiation parameters.Mammography has no specific weight limit.
21 Ultrasound Cost: Inexpensive Risk: Generally non-invasive Essentially no mortality or morbidityEndovaginal, transrectal, transesophageal, and endocavitary US carry procedural risks related to introduction of the US probeAvailability / Access: Relatively easily available
22 UltrasoundPrep:Patients should be NPO X 4 hours for GB, liver, pancreas, and biliary ductal examinationWeight Limits:US has no definite fixed weight limit, but image quality and penetration decline as weight and/or size increasesVascular US has no weight limit per se, but very large limbs will have poor quality results or not be able to be meaningfully examined
23 CT (computed tomography) Cost: ExpensiveRisk:Mortality and morbidity related to radiation exposure (especially children, breast tissue, lens, and ovaries/testes)Risk related to IV contrast use (death approximately 1 case per 40,000 – 100,000 uses)Oral contrast poses no real risk, except in pts who aspirate water soluable contrast
24 CT Availability / Access: Relatively easily available Generally non-invasiveAll patients must be assessed for ability to receive IV contrast, even in “non-contrast” situations since changing circumstances may necessitate the use of IV contrast.All use of IV contrast requires IV access; of specific importance is that high-pressure contrast injections require at least an 18-gauge access with a catheter rated to accept high pressures!PICC lines and catheters of 20 gauge or less don’t meet these requirements unless specifically specified. This has particular importance for PE and other CT angiogram procedures (aorta, renal arteries etc.) and may render these CT procedures unable to be performed if suitable IV access isn’t available.New PICC lines are available that can accept high-pressure injections. “Power PICCs”
25 CTPrep:Ideally patients should be NPO X 4 hours before administration of IV contrast, in case of contrast-induced vomiting, but this is optional if there is any urgency to the examinationWeight Limits:Relative weight limit of 400 poundsAbsolute weight limit of 450 poundsPatients with weight over 300 pounds or with protuberant abdomens tend to have degraded image qualityPE studies in particular suffer quality image degradation as weight increases, thus, a V/Q scan is a better exam in large patients
26 MRI (Magnetic Resonance Imaging) Cost: Very expensiveRisk:Carries little mortality or morbidity due to electromagnetic exposure or IV contrastAvailability / Access:Less easily availableSmall gauge IV access for IV contrast use is acceptablePrep:The patient doesn’t need to be NPO, but must be able to lay stillIn cases of claustrophobia or a non-cooperative patient, elective sedation may be required; this is arranged and ordered by the referring healthcare providerWeight Limits:The mobile MRI have weight limits of 300 pounds.Larger patients may require referral to an open MRI
27 Nuclear Medicine Cost: NM is moderately expensive Risk: Carries minimal mortality and morbidity from the radiation and associated labeled radiopharmaceuticalsAvailability / Access: less availableSmall gauge IV access for IV radiopharmaceutical use is acceptablePET/CT is considered as a NM procedure and scheduled via the nuclear medicine departmentPlease note that a cooperative patient who isn't artificially ventilated is required for the ventilation part of a lung V/Q scan; if these conditions aren't present, then an alternative PE examination should be selected
28 Nuclear Medicine Prep: The patient should be NPO X 4 hours for GB, GB ejection fraction, and cardiac NM examinationsCardiac Stress Tests should also require the patient to be on a caffeine-free dietPatients on TPN or whom just ate may have false positive HIDA scansWeight Limits:Single head (camera) nuclear medicine table has a weight limit of 300 poundsDual head NM table has a weight limit of 350 poundsPET/CT table has a weight limit of poundsThere is progressive image degradation as weight increases due to soft tissue attenuation of the gamma rays or positrons being emitted by the radiopharmaceutical.
29 Fluoroscopy (UGI-SBFT-BE) Cost: moderately expensiveRisk:A procedural risk of perforation (BE)Aspiration of oral contrast media (UGI & SBFT)Potential anaphylaxis due to allergic reaction to the latex balloon (BE)mortality and morbidity related to radiation exposureAvailability / Access:Specific informed consent is not requiredless available after regular business hoursPrep:Patients scheduled for UGI, SBFT, and BE examinations should be on restricted diet and/or bowel prep before their procedures. Details are available in the radiology department.Weight LimitsThe fluoroscopy table has a weight limit of 350 poundsAlternatives to fluoroscopy include EGD and Colonoscopy
30 Modified Swallow, Esophagram, UGI or SBFT?!?! Modified speech swallowing exam- evaluates swallowing mechanism with liquid and solid barium preps as well as tablet formEsophagram- evaluates esophagus only and its motilityUGI- evaluates esophagus, stomach and 1st and 2nd duodenum; may show refluxSBFT- only evaluates the small bowel (ie, esophagus and stomach are not evaluated)
31 Biopsy & Angiography / Interventional Procedures Angio/interventional procedures are "mini surgeries“!Cost:Biopsy and angio/interventional procedures are expensiveRisk:Significant procedural risksAssociated mortality and morbidity from radiation exposure and contrast use (IV, intra-arterial, or intracavitary)Availability / Access:Availability is by consult to the angio/interventional service. Specific informed consent by the patient or guardian is required in all cases, unless the referring healthcare provider gives emergency consentPrep:There will be formal pre-op and post-op evaluation and monitoring of the patient to ensure maximum safety during and after the procedureAll interventional procedures are usually offered as a “consult” serviceWeight Limits:Vascular US has no weight limit per se, but very large limbs will have poor quality results or not be able to be meaningfully examined
33 IV Contrast (CT)CT examinations on patients with a history of severe allergy- e.g. anaphylaxis, throat swelling, difficulty breathing related to prior contrast exposure should never be performed with IV contrast.Informed consent will be obtained by the requesting physician or the radiology technician in the department.Prior to contrast administration, the patient or guardian is required to sign an informed consent explicitly stating that the risks, benefits, and alternative choices have been thoroughly explained to, and understood by the patient or appropriate guardian.All personnel administering contrast are required to confirm the presence of a consent prior to injection.
34 IV Contrast (CT) Immediate Adverse Reactions to CT Contrast Agents: Mild (Incidence, 3%)Self limited without evidence of progression Hives, nasal stuffiness, itching, headache, shaking, dizziness Not necessarily due to contrast but reported as adverse event: Nausea and vomitingModerate (Incidence, 0.04%)Clinical findings require treatment and careful observation for progression Tachycardia, bradycardia, hypertension, hypotension, dyspnea, bronchospasm, wheezing, laryngeal edema, pronounced cutaneous reactionSevere (Incidence 1-2 per 10,000 injections, 0.01%)Severe, life threatening symptoms, usually requires hospitalization Laryngeal edema, convulsions, profound hypertension, unresponsiveness
35 Factors that Increase the Risk of Adverse Reactions to Iodinated Contrast Agents A. Systemic ReactionsPrevious adverse reactionHistory of asthma or bronchospasmHistory of allergy or atopyAnxietyCardiac diseaseMedication (b-blockers)Hematologic and metabolic disease (sickle cell anemia, patients with thrombotic tendency, multiple myeloma, pheochromocytoma)B. Nephrotoxicity/ CINCongestive heart failure (New York Heart Association class 3 & 4)DehydrationRenal disease, especially in diabetics treated with metformin (Glucophage)Medications (aspirin, NSAIDs)
36 Contrast agents play an important and sometimes essential role in many kinds of imaging. Clinicians are given the option of specifying whether contrast is to be used at the time of scheduling. However, if nothing is specified, the radiologist may make the decision at the time the examination is reviewed.Most pediatric radiology studies are protocoled by the radiologist.
37 Indications for IV Contrast in Computed Tomography History suggests infection or abscess (head, abdomen, soft tissue)Evaluation of suspected inflammatory processSuspected bowel infarct and/ or ischemiaHistory of malignancy or previous intracranial tumorEvaluation of metastatic diseaseEvaluation of solid organs (liver, kidney, spleen) esp. trauma!Evaluation of vascular pathology (embolus, dissection, thrombus, aneurysm, AVM)Proper evaluation of spinal canal in CTCT of the neck (for better distinction of adenopathy)CT of the mediastinum (better distinction of adenopathy)Proper evaluation of post-transplant patientsSoft tissue mass or tumor
38 Absolute Indications for IV contrast infection/ abscess/ inflammationMetastatic disease/ history of cancerVascular pathologySuspected solid organ injury
39 IV Contrast (CT) Screening Risk of contrast related ARF/ CIN (contrast induced nephropathy) is similar for LOCM and HOCM in normal patients.Normal patients are classified as those patients with Cr < 1.4 mg/dl or well hydrated patients who are moderately impaired (Cr < 2 mg/dl) with or without diabetes, and may be injected.Patients undergoing hemodialysis should be scheduled for dialysis within 6 hours of the contrast injection.Diabetics who are on glucophage (Metformin) should be instructed to hold the medication for 48 hours following the CT, pending lab work.It is recommended that metformin be withheld for 24 hours before the test, however, recent data has shown that this is not a contraindication to IV contrast in emergency situations.
40 IV Contrast (CT) Screening In patients with known renal disease, DM, multiple myeloma, one kidney, renal transplant, currently undergoing chemotx, gout, prior abnormal BUN or Cr, advanced heart failure or hypovolemia the GFR will be calculated.For patients who are on hemodialysis (GFR <30), dialysis is scheduled at the discretion of the nephrologist or ordering physician. The GFR is not calculated.In patients with GFR <30 mL/min IV contrast is contraindicated unless on hemodialysis.For patients with GFR mL/min, hydration protocol is performed.Patients with GFR are instructed to self hydrate before and after the scan.
41 IV Contrast (CT) Prophylaxis Protocol For patients with GFR 30-60, hydration protocol of 500 cc normal saline is given intravenously.Mucomyst is not indicated and has never been proven to prevent CIN.For patients with a history of moderate or mild contrast reaction, premedication with Medrol is advised. (32 mg PO x 2, 12 hours and 2 hours before contrast administration) Alternatively, 200 mg of IV hydrocortisone can be used for NPO patients. If the patient is already on daily corticosteroids, prophylaxis is not needed.For patients with gout, multiple myeloma, one kidney, renal transplant or currently undergoing chemotx hydration protocol with 250 cc normal saline is given.The Iodine Myth: history of allergy to seafood/shellfish or topical iodine does not predispose to a contrast reaction and prophlaxis is not advised.
42 MRI contrast: Gadolinium The only real indication for the use of Gd contrast is in the evaluation of metastasis, tumors or soft tissue mass lesions.Gd is also useful in evaluation of vascular pathology, although special MR techniques such as MRV or MRA do not require contrast.Gd arthrogram procedures are required to adequately evaluate the shoulder labrum, TFCC of the wrist and labrum of the hip.Overall incidence of acute reactions is 1 in 100,000 (0.01%) for normal patients and 1 in 10,000 for patients with GFR <30.No adverse reactions have ever been reported with intraarticular Gd contrast.
43 Nephrogenic Systemic Fibrosis NSF is a debilitating acquired systemic disorder characterized by prominent skin manifestations (fibrosis), which typically spare the face, but also affects the lungs, esophagus, heart and skeletal muscles.The etiology of NSF remains unclear, but occurs exclusively in patients with chronic renal failure, and the incidence increases with repeated Gd exposure or higher doses.Skin lesions typically appear 1 week to 6 months after contrast exposure.There is no treatment for NSF, and immediate dialysis after Gd adminsitration shows no definite decrease in risk. Plasmaphoresis has been used with some success.
44 Nephrogenic Systemic Fibrosis NSF shows diffuse increased muscle uptake on bone scan, and an edematous increased T2 signal within the skin, muscles and fascia on MR.Confirmation is typically made by skin biopsy.By 2010, approximately 600 cases have been reported up to that date. (out of 41 million doses)Most reported cases were associated with gadodiamide (Omniscan). Conemaugh Health System uses Optimark. (Multihance is used if the patient has a low GFR.)All patients are now screened before receiving Gd, and their GFR is calculated.Patients who have stage 3, 4 or 5 (end stage) renal disease should not receive Gd contrast.
45 Nephrogenic Systemic Fibrosis No consistently effective therapy exists to treat NSF.The CDC has so far failed to identify a single causative medication, but almost all cases have been reported in patients with GFR < 30 mL/min.For patients on hemodialysis, this should be performed ideally within 3-4 hours of receiving Gd contrast.In , virtually no new cases of NSF were reported after screening protocols were implemented, even after heightened awareness by the medical community.No other risk factors have been linked to the development of NSF.
49 Barium vs. H2O soluble enteric contrast Patients who are at risk for aspiration should not receive H2O soluble contrast. If aspirated, this can cause severe pulmonary edema or chemical pneumonitis.Patients with suspected bowel perforation should receive water or H2O soluble enteric contrast. Barium can cause chemical peritonitis and is not absorbed. No allergic reactions have ever been reported from barium contrast.H2O soluble contrast agents can be used for therapeutic enemas.
50 Breast Feeding or Pregnancy Contrast Issues Pregnant women should not receive IV contrast of any kind, including nuclear isotopes. Iodinated contrast is harmful to the developing fetal thyroid and nuclear isotopes expose the fetus to systemic radiation. Enteric contrast is safe for any study, although the radiation risk of xray or CT exams is unknown.Breast feeding mothers can receive IV contrast, Gd contrast or nuclear medicine studies. Oral fluids should be encouraged.
51 ACR Appropriateness Criteria The ACR Appropriateness Criteria® are evidence-based guidelines to assist referring physicians and other providers in making the most appropriate imaging or treatment decision. By employing these guidelines, providers enhance quality of care and contribute to the most efficacious use of radiology.
52 A mobile version of the ACR Appropriateness Criteria® found on the ACR's Web site, the Anytime, Anywhere Application.This application gives instant, point-of-care access to the most recent evidence-based clinical practice guidelines for imaging decisions for diagnostic imaging, interventional radiology and radiation oncology based on expert consensus and also includes relative radiation level exposures and summaries from literature reviews.It contains more than 175 topics with over 850 additional variants and includes topics from the following expert panels: cardiovascular, gastrointestinal, musculoskeletal, neurologic, thoracic, urologic, pediatric, women's imaging, interventional radiology, and radiation oncology.
53 Anytime, Anywhere Application is available for most mobile devices, including the iPhone, iPad, BlackBerry, Palm, PDA or other smart phones.Searchable by topic or procedure.
54 Example of Topics: Expert Panel on Cardiovascular Imaging Cardiac • Acute Chest Pain—No ECG or Enzyme Evidence of Myocardial Ischemia/Infarction• Acute Chest Pain—Suspected Aortic Dissection• Acute Chest Pain—Suspected Myocardial Ischemia• Acute Chest Pain—Suspected Pulmonary Embolism• Chronic Chest Pain—No Evidence of Myocardial Ischemia/Infarction (Update in Progress)• Chronic Chest Pain—Suspected Cardiac Origin• Congestive Heart Failure• Shortness of Breath—Suspected Cardiac Origin• Suspected Bacterial Endocarditis• Suspected Congenital Heart Disease in the Adult

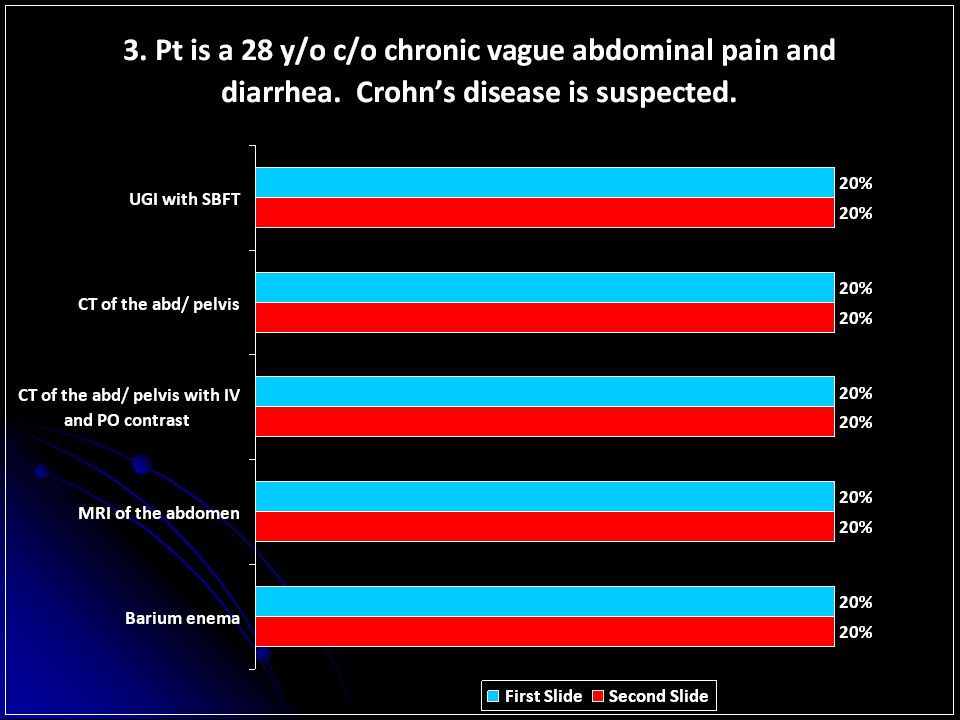

60 3. Pt is a 28 y/o c/o chronic vague abdominal pain and diarrhea 3. Pt is a 28 y/o c/o chronic vague abdominal pain and diarrhea. Crohn’s disease is suspected.UGI with SBFTCT of the abd/ pelvisCT of the abd/ pelvis with IV and PO contrastMRI of the abdomenBarium enemaCountdown10
62 4. Pt is a 72 y/o M with PMHx of multiple abdominal surgeries c/o distended stomach and pain. SBO is suspected.CT abd/ pelvis without contrastCT abd/ pelvis with PO contrastCT abd/ pelvis with IV contrastCT abd/ pelvis with PO and IV contrastAbdominal Xray seriesCountdown10
64 Chest CT without contrast Chest CT with contrast 5. Pt is a 54 y/o F c/o acute chest pain. No EKG changes and cardiac enzymes are normal.CXRChest CT without contrastChest CT with contrastNuclear Stress Test studyTEECountdown10
66 6. Pt is a 67 y/o F with PMHx of EtOH abuse and liver cirrhosis 6. Pt is a 67 y/o F with PMHx of EtOH abuse and liver cirrhosis. She is c/o hematemesis.CXRInvasive angiographyCT abdomenEGDCT chestCountdown10
68 7. Pt is 32 y/o runner c/o persistent L foot pain. Stress fx suspected 7. Pt is 32 y/o runner c/o persistent L foot pain. Stress fx suspected. Initial Xrays are normal.Repeat XrayCTMRIBone scanUSCountdown10
70 CT abd/ pelvis without contrast CT abd/ pelvis with IV contrast 8. Pt is a 53 y/o F with PMHx DM c/o back pain and fever. Acute pyelonephritis is suspected.USIVPCT abd/ pelvis without contrastCT abd/ pelvis with IV contrastCT abd/ pelvis with and without IV contrastCountdown10
76 CT abd/ pelvis without contrast CT abd/ pelvis with contrast US MRI 11. Pt is 53 y/o postmenopausal F c/o vague abdominal pain with suspected adnexal mass on physical exam.CT abd/ pelvis without contrastCT abd/ pelvis with contrastUSMRIXrayCountdown10
78 CT abd/ pelvis without contrast CT abd/ pelvis with contrast US 12. Pt is a 65 y/o M c/o acute onset of abdominal pain. PE yields a pulsatile abdominal mass.Xray KUBCT abd/ pelvis without contrastCT abd/ pelvis with contrastUScolonoscopyCountdown10
82 14. 64 y/o M c/o sudden onset Lt hand numbness and weakness y/o M c/o sudden onset Lt hand numbness and weakness. Acute CVA is suspected. Initial head CT was ‘nonacute’.Lt hand XrayRepeat Head CTMRI with Gd contrastMRI without contrastUSCountdown10
