1 Leica DISTO™ D210 Simple & functional…

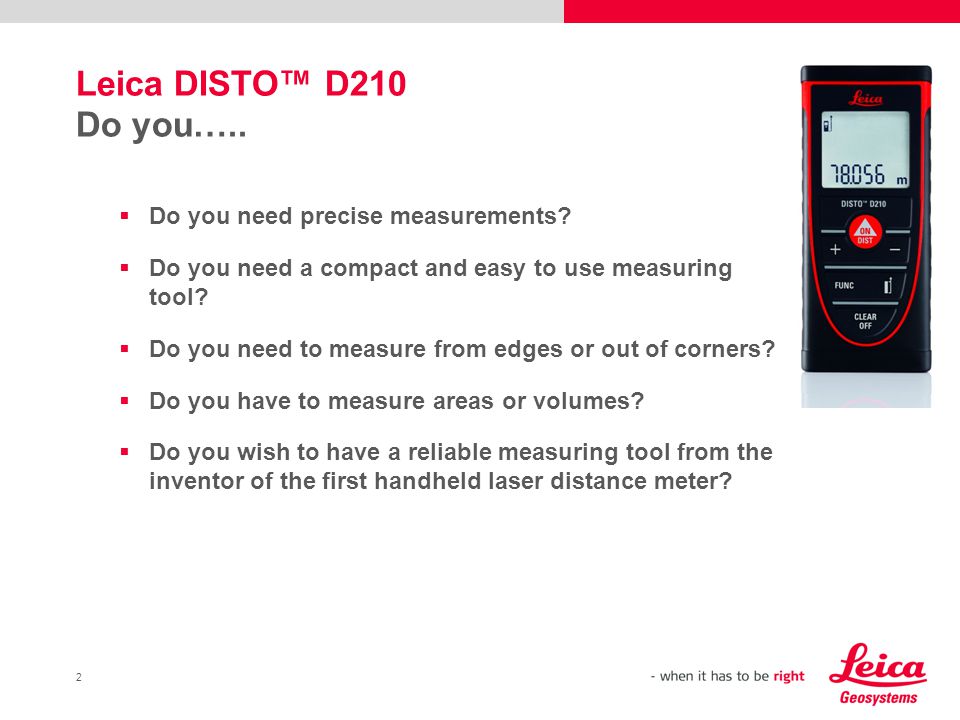

2 2  Do you need precise measurements?  Do you need a compact and easy to use measuring tool?  Do you need to measure from edges or out of corners?  Do you have to measure areas or volumes?  Do you wish to have a reliable measuring tool from the inventor of the first handheld laser distance meter? Leica DISTO™ D210 Do you…..

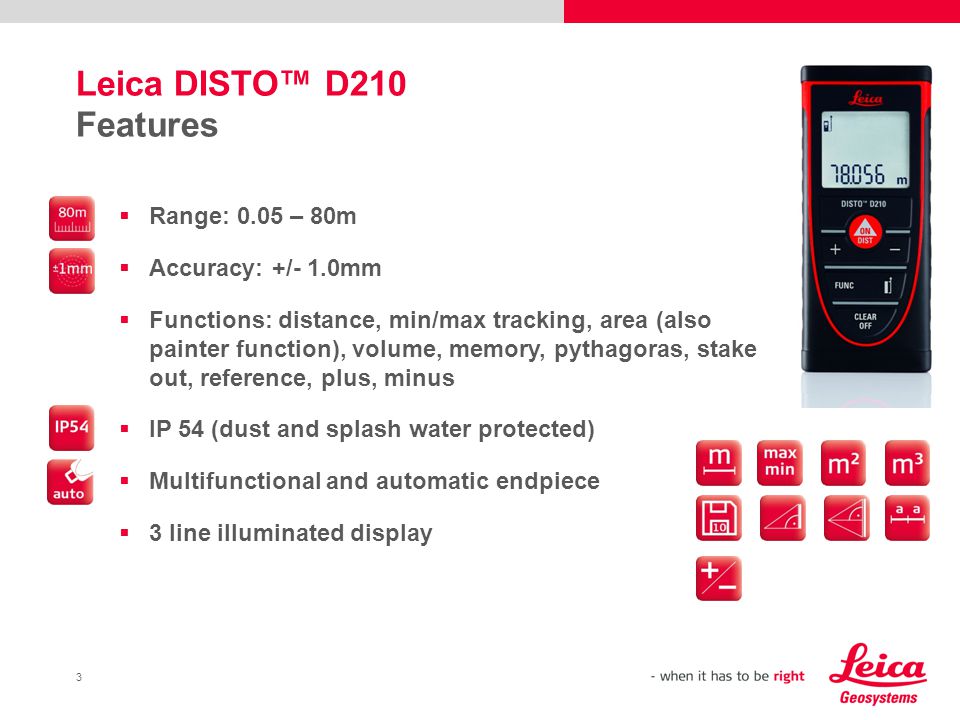

3 3  Range: 0.05 – 80m  Accuracy: +/- 1.0mm  Functions: distance, min/max tracking, area (also painter function), volume, memory, pythagoras, stake out, reference, plus, minus  IP 54 (dust and splash water protected)  Multifunctional and automatic endpiece  3 line illuminated display Leica DISTO™ D210 Features

4 4 Leica DISTO™ D210 Designed for the customer 2 component housing -Reinforced with fiberglass plastic bracings Leica designed optics - Innovative laser precision from the inventor of laser distance meter

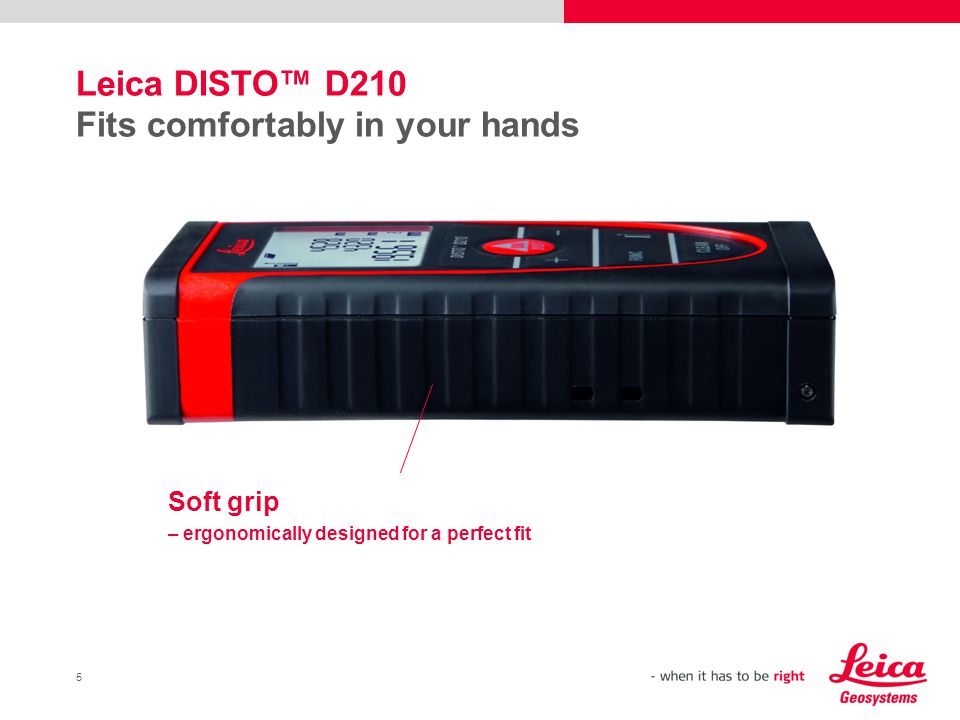

5 5 Leica DISTO™ D210 Fits comfortably in your hands Soft grip – ergonomically designed for a perfect fit

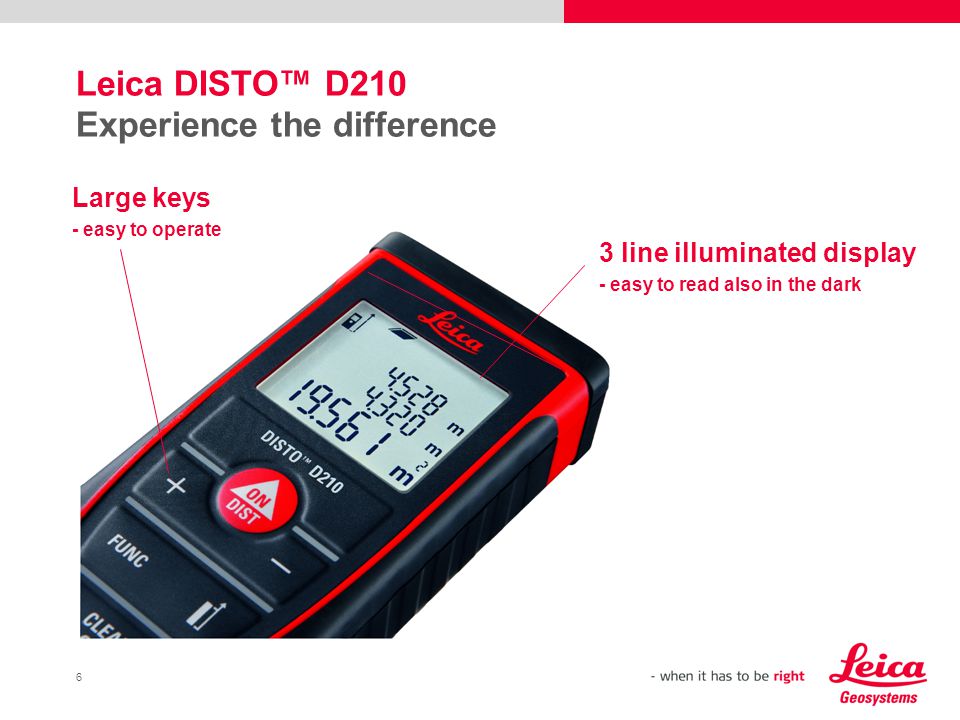

6 6 Leica DISTO™ D210 Experience the difference 3 line illuminated display - easy to read also in the dark Large keys - easy to operate

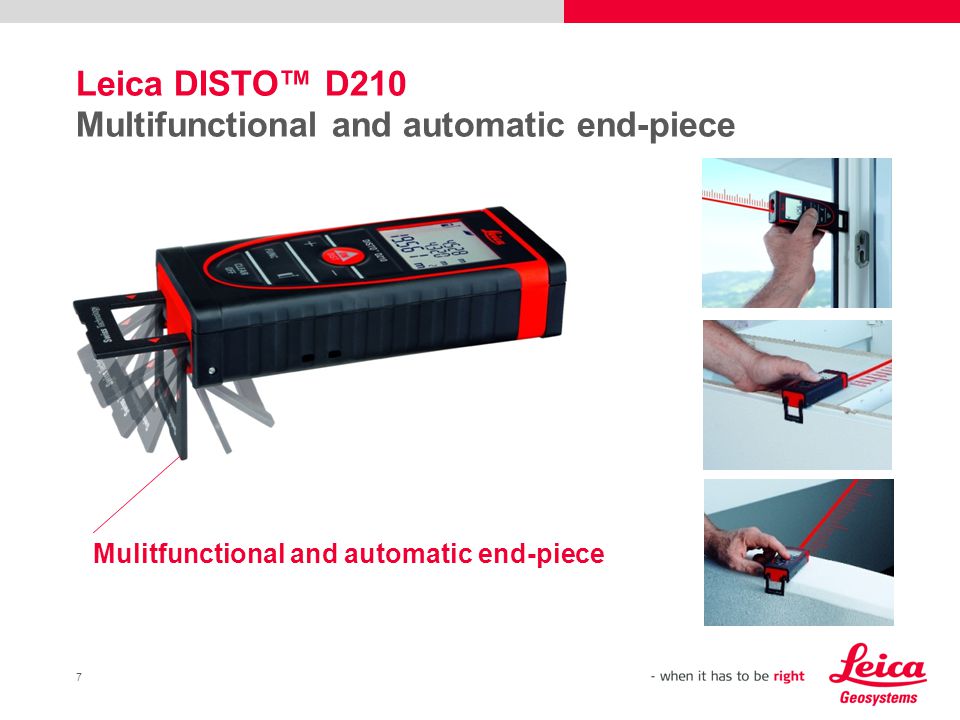

7 7 Leica DISTO™ D210 Multifunctional and automatic end-piece Mulitfunctional and automatic end-piece

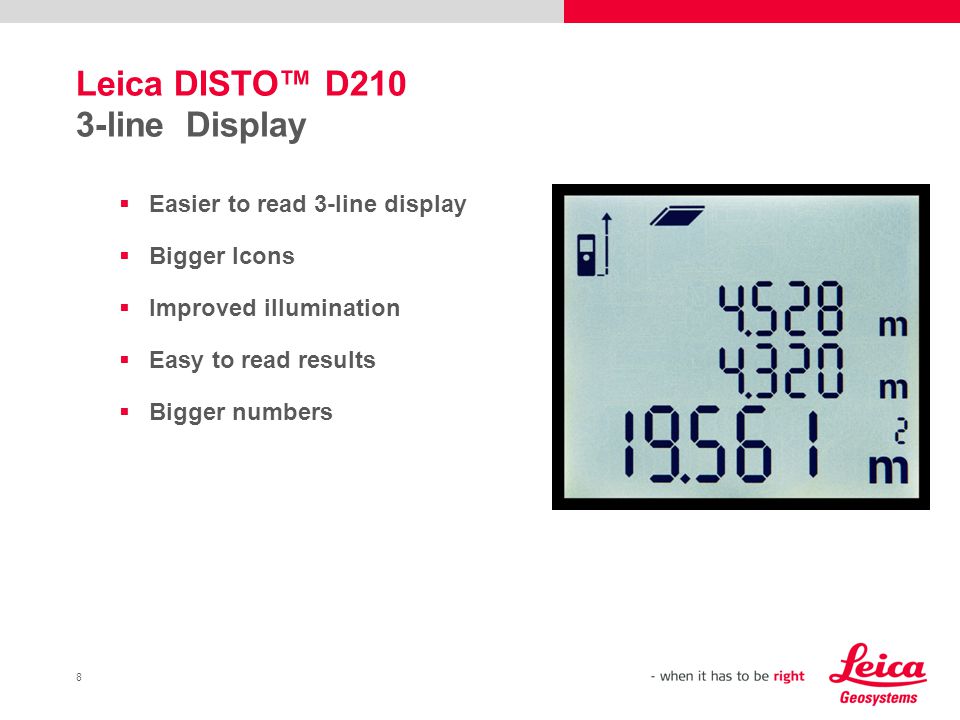

8 8 Leica DISTO™ D210 3-line Display  Easier to read 3-line display  Bigger Icons  Improved illumination  Easy to read results  Bigger numbers

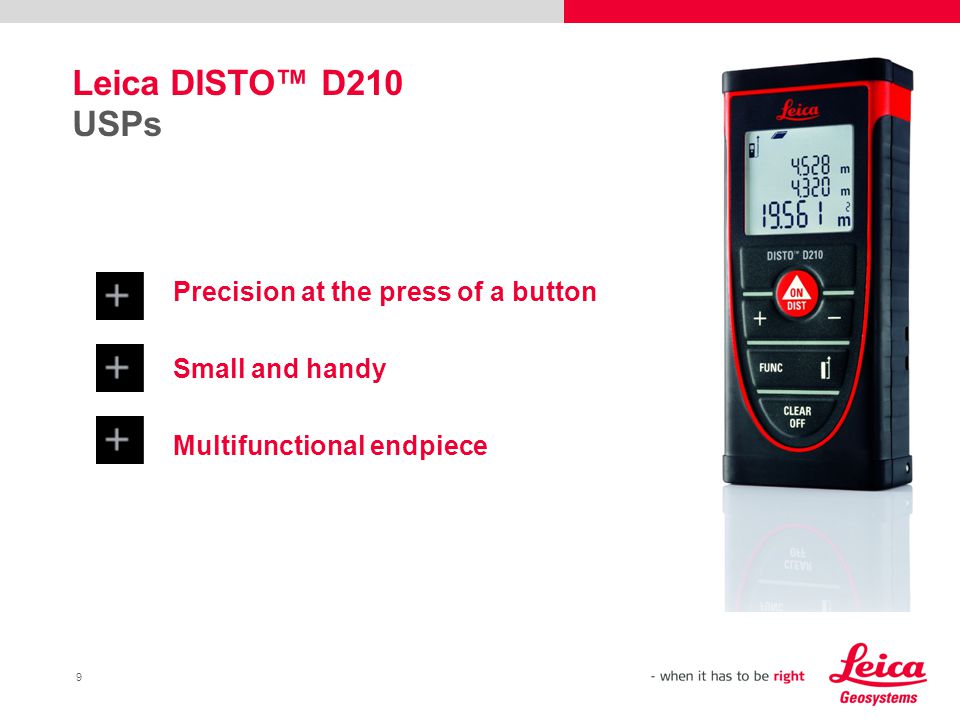

9 9 Precision at the press of a button Small and handy Multifunctional endpiece Leica DISTO™ D210 USPs

10 10 Leica DISTO™ D210 Functions Minimum / Maximum Tracking Area / Volume

11 11 Leica DISTO™ D210 Functions Painter FunctionPythagoras

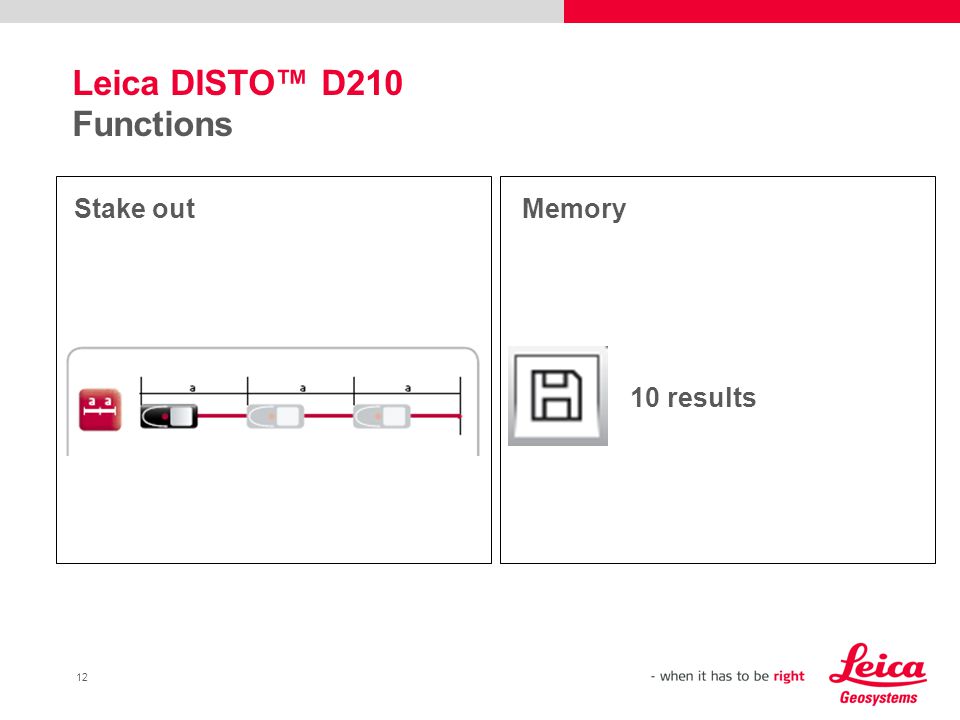

12 12 Leica DISTO™ D210 Functions Stake outMemory 10 results

13 13 Leica DISTO™ D210 Key Lock (On/Off) Optional Key Lock “On”Optional Key Lock “Off”

14 14 Feature – Benefits …and even more smart features... FeatureBenefit Accuracy of +/- 1.0mmPrecise measurements Perfect functionality entry unitProvides many important functions relevant for basic measurements Power Range Technology™Excellent measuring performance also in bright conditions Automatic detection of end-piecePrevents expensive measuring errors when reference is not set correctly Improved illuminated 3-line displayCalculated results at a glance (Area, Volume,…), excellent backlight to also read results in the dark

15 15 Feature – Benefits …and even more smart features... FeatureBenefit IP 54 (dust and splash water protected) Prepared for many job sites Combined soft grip and rubber housing Touch and feel with combined robustness and ergonomics Get results at the press of a button up to 80m Being able to measure alone (one man operated, not having to climb up ladders)

16 16 Leica DISTO™ D210 Scope of Delivery Carton Packaging  Holster  Handloop  2 AAA Batteries 1.5 V  Instruction and Safety Manual on CD  Producer Certificate  Quickstart Art. No

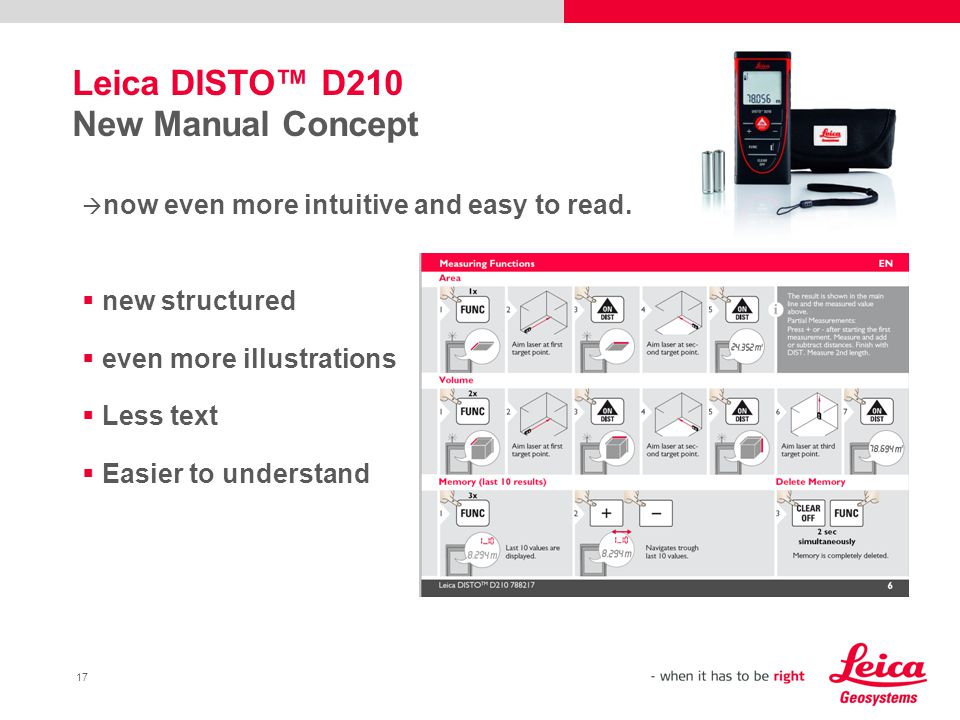

17 17 Leica DISTO™ D210 New Manual Concept  now even more intuitive and easy to read.  new structured  even more illustrations  Less text  Easier to understand

18 18 New Standard for Accuracy and Range ISO  showing the difference  Requires detailed specification about a laser distance meter for end user’s reference  Provides information about specification in practical use  Makes measurement devices comparable at the point of sales  Shows that a manufacturer of laser distance meter - specifying his devices in accordance with the new standard - is taking his task seriously!

19 19 New Standard for Accuracy and Range ISO  Content  Considering the impact of target quality, ambient light and temperature  Specifying the accuracy (tolerance) of a device  Typical Tolerance (white painted wall, low ambient light like e.g. in buildings, room temperature)  Maximum Tolerance (almost black targets or very reflecting ones like e.g. metal, lot of ambient light like a wall in direct sunlight, whole operation temperature range)  Specification over the whole specified range  Specifying the maximum measuring range of a device  Typical Range (white painted wall, low ambient light like e.g. in buildings, room temperature)  Range at unfavorable conditions (white painted wall, lot of ambient light like a wall in direct sunlight)  Maximum range at clearly specified other conditions like on named reflecting target

20 20 DASS / Warranty Customer-friendly service comes first  3 year warranty if registered within 8 weeks after purchase at  Trouble-free exchange of devices instead of cost estimations for repair  Please find further information concerning warranty and our customer-friendly DASS concept in our DASS manual.

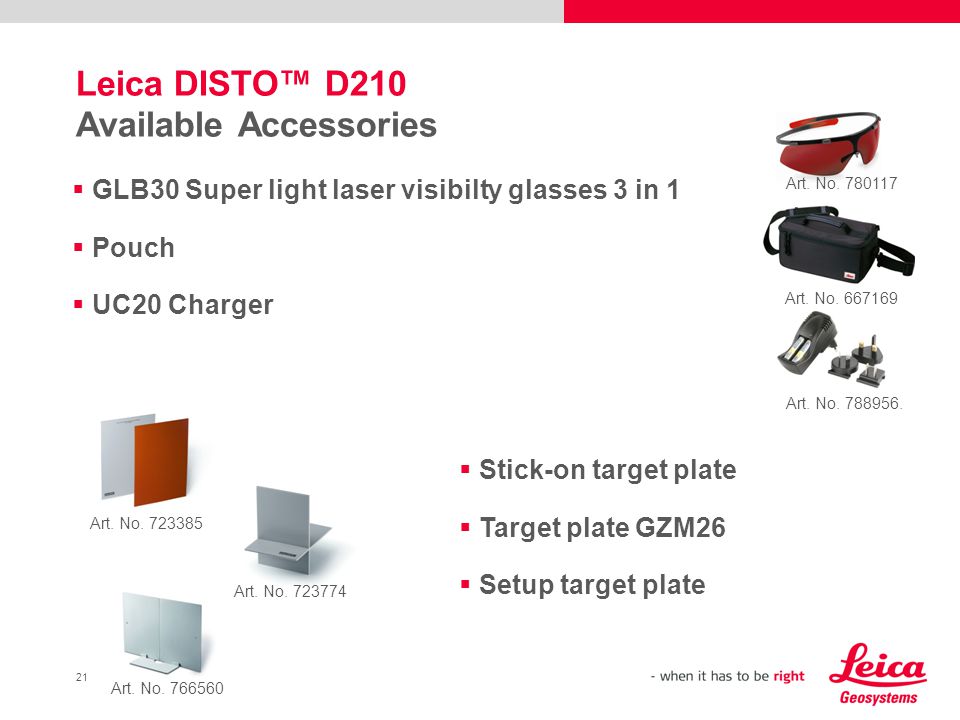

21 21 Leica DISTO™ D210 Available Accessories  GLB30 Super light laser visibilty glasses 3 in 1  Pouch  UC20 Charger  Stick-on target plate  Target plate GZM26  Setup target plate Art. No Art. No Art. No Art. No Art. No Art. No

22 Leica DISTO™ D210 Applications…

23 23 Leica DISTO™ D210 Applications - Tiler Task: Measures areas to calculate the material to order  Area can easily be measured and is automatically calculated

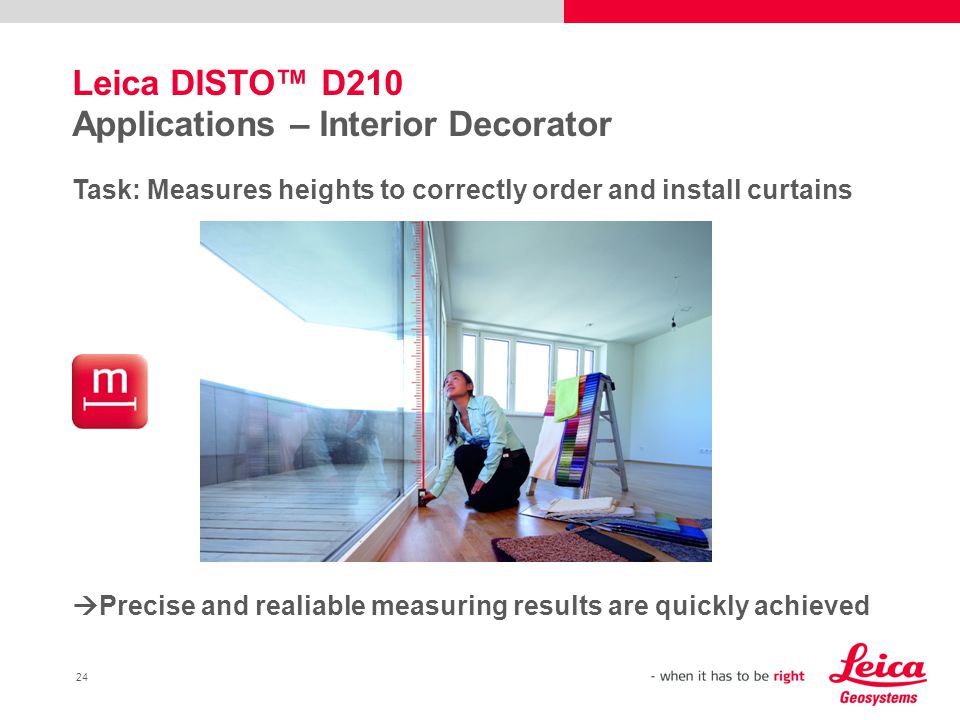

24 24 Leica DISTO™ D210 Applications – Interior Decorator Task: Measures heights to correctly order and install curtains  Precise and realiable measuring results are quickly achieved

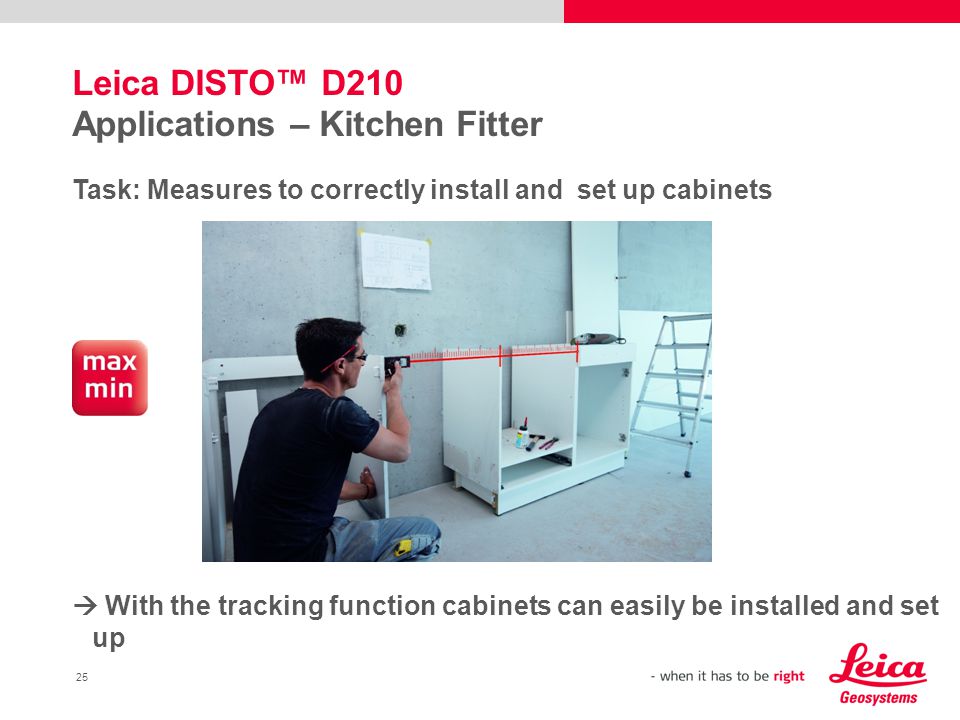

25 25 Leica DISTO™ D210 Applications – Kitchen Fitter Task: Measures to correctly install and set up cabinets  With the tracking function cabinets can easily be installed and set up

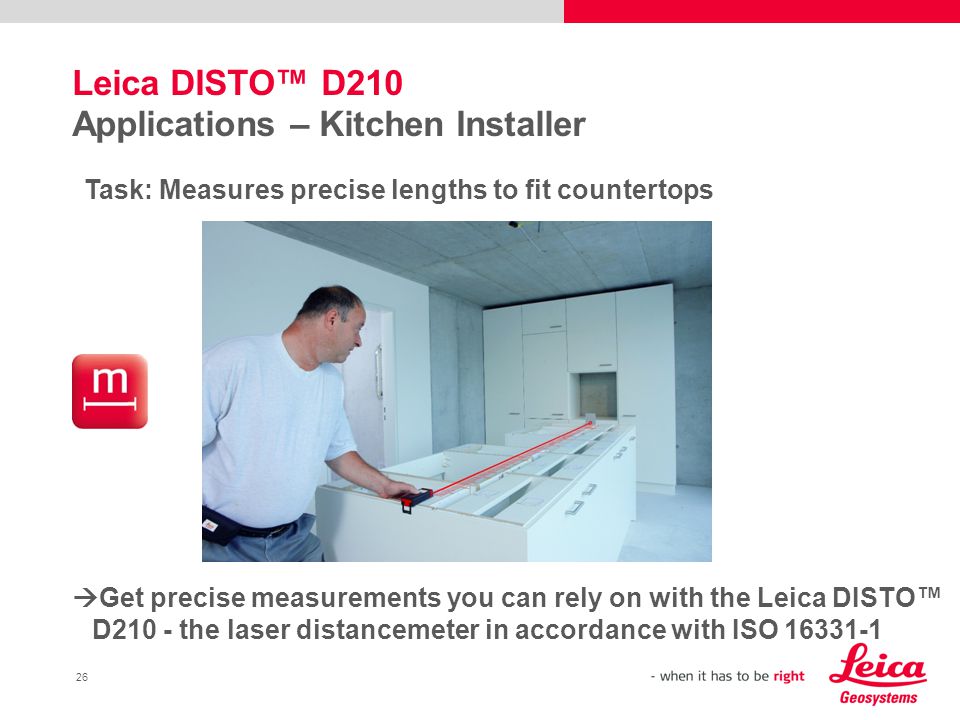

26 26 Leica DISTO™ D210 Applications – Kitchen Installer Task: Measures precise lengths to fit countertops  Get precise measurements you can rely on with the Leica DISTO™ D210 - the laser distancemeter in accordance with ISO

27 27 Leica DISTO™ D210 Applications – Real Estate Agent Task: Measures room dimensions to check and demonstrate appartment / house sizes  appear professional in front of your customer with a DISTO™ and get sizes of rooms at the press of a button, quick and reliable!

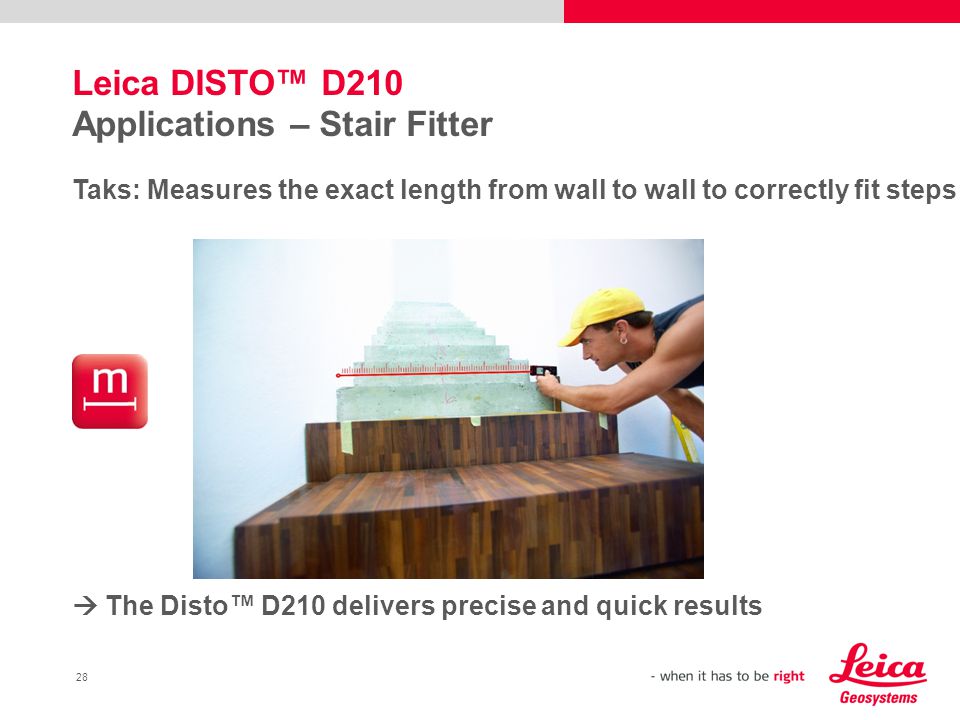

28 28 Leica DISTO™ D210 Applications – Stair Fitter Taks: Measures the exact length from wall to wall to correctly fit steps  The Disto™ D210 delivers precise and quick results

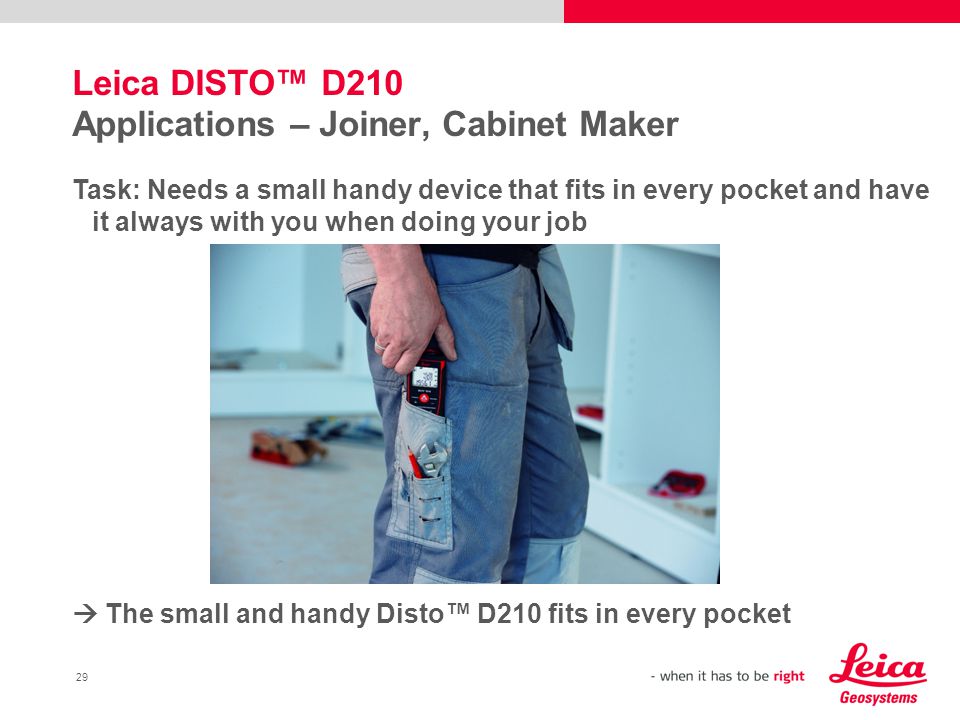

29 29 Leica DISTO™ D210 Applications – Joiner, Cabinet Maker Task: Needs a small handy device that fits in every pocket and have it always with you when doing your job  The small and handy Disto™ D210 fits in every pocket

30 30 Leica DISTO™ D210 Applications – Electrician Task: Measures diagonales with max. tracking to check size and shape to later install a mailbox and security system  The Disto™ D210 displays Minimum, Maximum and the acutal measurement

31 31 Leica DISTO™ D210 Applications – Painter Task: Measures wall areas to calculate how much paint is needed  Easily calculate wall area and get reliable, precise and accurate measurements with one press

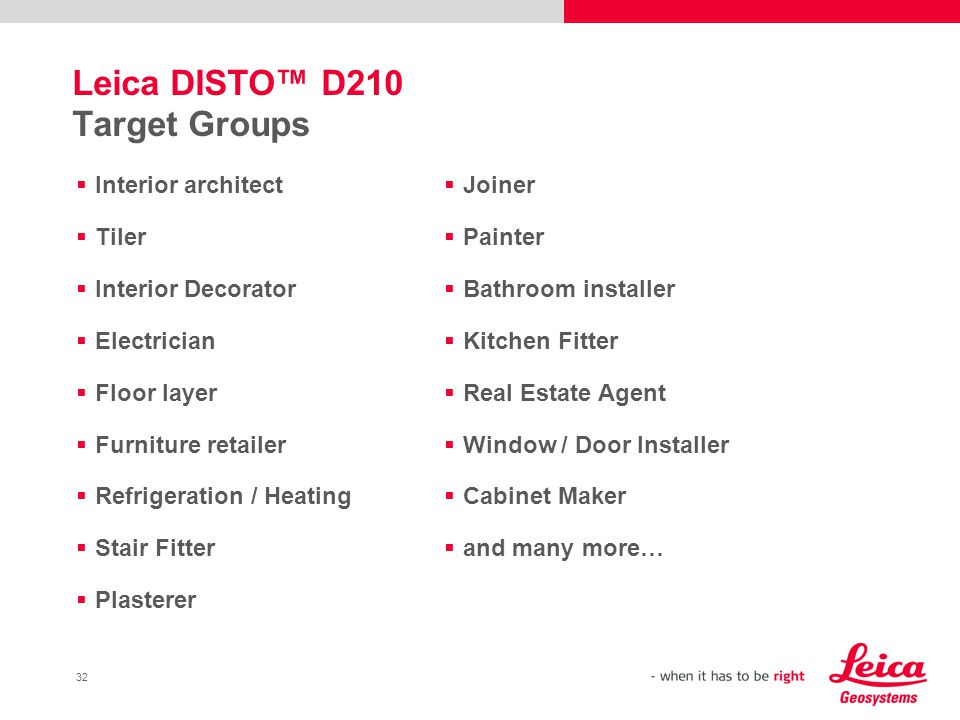

32 32 Leica DISTO™ D210 Target Groups  Interior architect  Tiler  Interior Decorator  Electrician  Floor layer  Furniture retailer  Refrigeration / Heating  Stair Fitter  Plasterer  Joiner  Painter  Bathroom installer  Kitchen Fitter  Real Estate Agent  Window / Door Installer  Cabinet Maker  and many more…

33 33 Leica DISTO™ D210 Testimonial “I absolutelly need to rely on the distance measurements I take. For this reason I trust to the Leica DISTO D210™ which is in accordance with the latest ISO standard for accuracy and range." Detlef Foht (Site Manager)
