1 SGSW-24240 SGSW-24240R Copyright © PLANET Technology Corporation. All rights reserved. 24 100/1000 SFP with 8 Shared TP Managed Stackable Switch

2 Presentation Outline

3 3 / 24 Presentation Outline  Product Overview  Product Benefits  Product Features  Application  Comparison

4 Product Overview  SGSW - Stackable Gigabit Switch Family SGSW-24040 / SGSW-24040R SGSW-24040P / SGSW-24040P4 SGSW-24240 / SGSW-24240R 24-Port 10/100/1000 24-Port 10/100/1000 PoE 24-Port 100/1000 SFP

5 Product Overview SGSW-24040SGSW-24040RSGSW-24040PSGSW-24040P4 SGSW-24240SGSW-24240R Interface 10/100/1000T 24 88 1000SX/LX 4444 24 100FX -- Compatible PoE -- 24 -- Redundant Power ---48VDC-- -48VDC Stack Capability Hardware Stack, up to 16 units, 384 ports  SGSW - Stackable Gigabit Switch Family

6 Product Overview  SGSW-24240 Series Fiber Connection MFB-Series MGB-Series Dual-Speed SFP 1000 Base-SX / LX / BX SFP Transceiver 100 Base-FX / BX SFP Transceiver

7 Product Overview  Stackable Solution – up to 16 units, 384 ports SGSW-24240 Stack Group SGSW-24240 + SGSW-24040 Stack Group

8 8 / 24 Product Overview  Front Panel of SGSW-24240 / SGSW-24240R 24 for 3.3VDC mini GBIC/SFP slots, compatible with 1000Base-SX/LX or 100FX SFP modules 8-Port 10/100/1000Base-T RJ-45, shared with Port-1~Port-8 Auto-MDI/MDI-X Auto Negotiation RS-232 console Interface One Reset button One 7-segment display LED Reset Button RS-232 Console 24 x 100/1000 SFP slots Switch ID LED 8 x 10/100/1000 RJ-45 Copper Port

9 9 / 24 Product Overview  Rear Panel of SGSW-24240 2 dedicated HDMI Stacking Ports / 5Gbps bandwidth 100~240V AC, universal Power Supply One Power Switch  Rear Panel of SGSW-24240R 2 dedicated HDMI Stacking Ports 100~240V AC, universal Power Supply One Power Switch -48V DC, Terminal Block Connector Power Switch - 48V DC Power Connector Stacking Port

10 10 / 24 Key Benefits  Long Reach Maximum distance up to 120km FTTx / Metro network best solution Multi Port / Flexible Dual-Speed SFP slots  High Scalability Hardware Stacking Technology, up to 16 units Efficient Single IP Management Add / Remove ports and functionality as needed Ideal for Growing Networking  High Density Up to 384 100/1000 SFP ports and 128 10/100/1000T copper  Cost-effective Prevent expensive up-front cost as chassis-based switch

11 11 / 24 Key Benefits  High Reliability and Availability Ring Stack Topology Master Switch Redundancy Hot-Swappable Rapid Spanning Tree for switch link redundancy Link Aggregation increases bandwidth and provides link fault tolerance AC / DC Power Redundant (SGSW-24240R)  Easy and Friendly Traffic Control Layer 2 / 3 / 4 QCL Traffic Control and ACL Security DDOS prevent  Simple Management Embedded user friendly WEB interface SNMP and Trap alarm for Centralize Network Management

12 12 / 24 Product Features  Hardware SGSW-24240 24 SFP slots, flexible for Gigabit Fiber-Optic network extension – SFP type, plug and play – 1000Base-SX/LX :Maximum 120 kilometers (MGB-L120) – 100Base-FX compatible 8-Port 10/100/1000Mbps Gigabit Interface ‏ 2 HDMI-Like 5Gbps Stacking interfaces, 20Gbps stacking bus, full- duplex, ring topology 10K Jumbo Frame Rack mount installation SGSW-24240R: -48V DC Power input, range -30V~-60V Active-active power redundancy

13 Product Features  Stacking Hardware stack up to 16 units and 384 Gigabit ports Single IP address stack management Stacking architecture supports Chain and Ring mode Plug and Play connectivity Mirror across stack Master switch backup Link Aggregation groups spanning multiple switches in a stack Hardware learning with MAC table synchronization across stack

14 Product Features  Supports VLAN IEEE 802.1Q Tagged VLAN Up to 255 VLANs groups, out of 4041 VLAN IDs Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE)  Supports Spanning Tree Protocol STP, IEEE 802.1d (Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)  Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (Static Trunk) Maximum 12 trunk groups, up to 16 ports per trunk group Up to 32Gbps bandwidth(Duplex Mode)

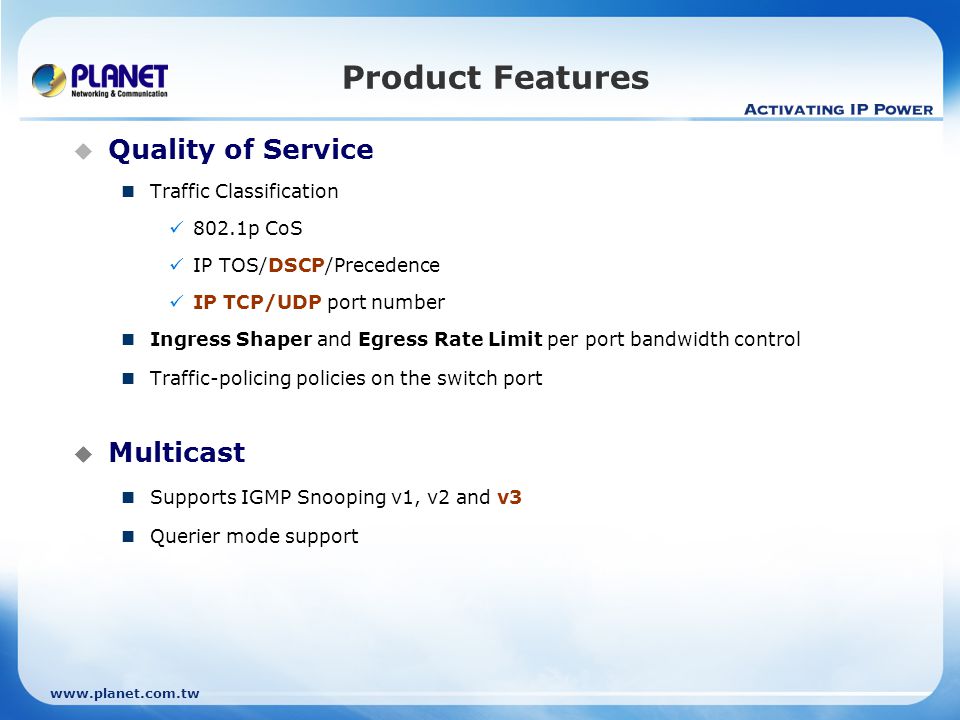

15 Product Features  Quality of Service Traffic Classification 802.1p CoS IP TOS/DSCP/Precedence IP TCP/UDP port number Ingress Shaper and Egress Rate Limit per port bandwidth control Traffic-policing policies on the switch port  Multicast Supports IGMP Snooping v1, v2 and v3 Querier mode support

16 Product Features  Security Network Access Authentication IEEE 802.1x Port-Based MAC-Based authentication Access Control List (ACL) IP-Based filtering to permit or deny traffic MAC-Based filtering to permit or deny traffic ACL Wizard for easy rules configuration Static MAC

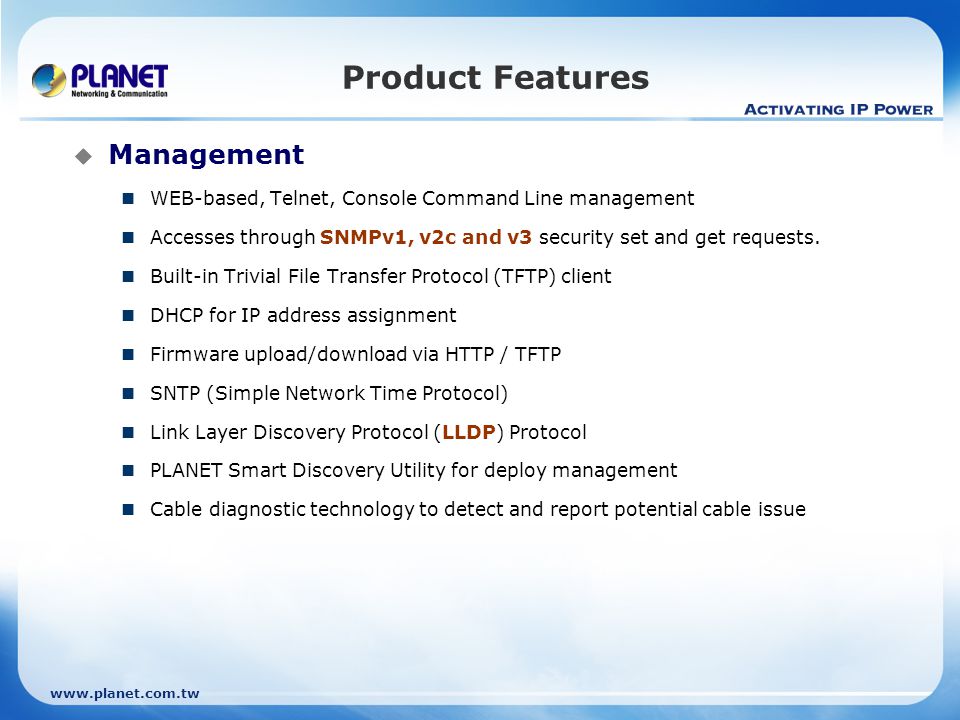

17 Product Features  Management WEB-based, Telnet, Console Command Line management Accesses through SNMPv1, v2c and v3 security set and get requests. Built-in Trivial File Transfer Protocol (TFTP) client DHCP for IP address assignment Firmware upload/download via HTTP / TFTP SNTP (Simple Network Time Protocol) Link Layer Discovery Protocol (LLDP) Protocol PLANET Smart Discovery Utility for deploy management Cable diagnostic technology to detect and report potential cable issue

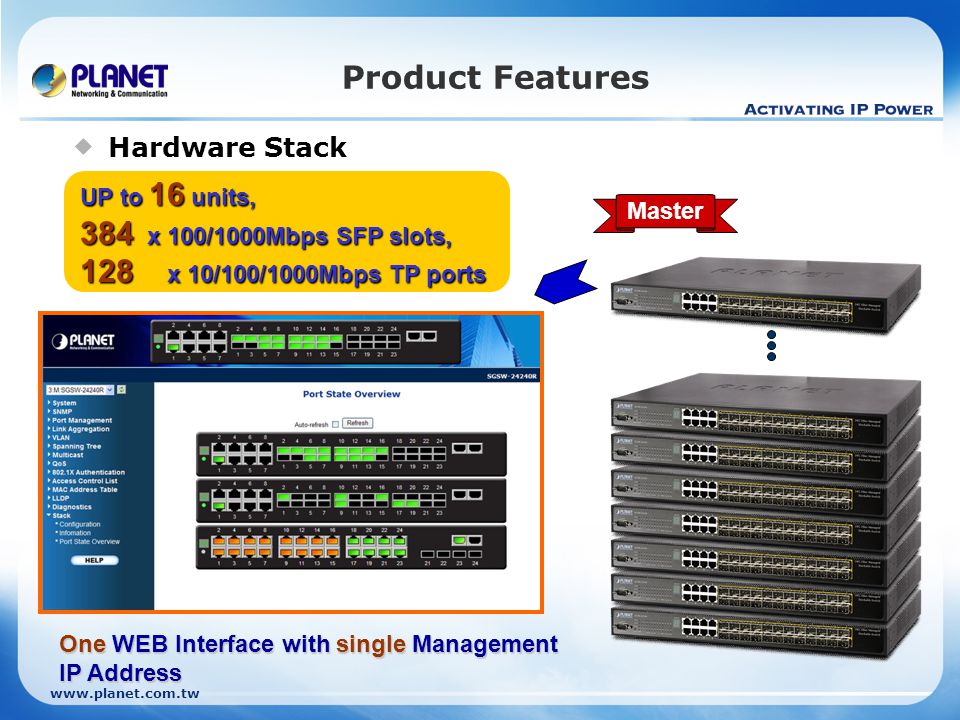

18 Product Features UP to 16 units, 384 x 100/1000Mbps SFP slots, 128 x 10/100/1000Mbps TP ports Master One WEB Interface with single Management IP Address  Hardware Stack

19 Product Features  High Scalability To meet the various networking requirements and simplify the network deployment SGSW-24040SGSW-24040P One large Switch SGSW-24240

20 Product Features  Hardware Stack – Chain Topology

21 Product Features  Hardware Stack – Ring Topology Providing Redundant Forward path FAIL 1 2 3 4 5

22 Product Features  ACL Wizard Based on Ethernet Type / ARP / IPv4 for packets permit or deny, rate limitation and port copy

23 Product Features  QoS Wizard Easy set up typical network application quality control

24 Product Features  Excellent Traffic Control guarantees the best performance in Voice and Video conferencing transmission. Large file transfers High performance servers Video conferencing Voice over IP Skype Phone, MSN Phone communication Multicast Streaming

25 25 / 24 Product Features  Link Layer Discovery Protocol (LLDP) LLDP is used to discover basic information about neighboring devices on the local broadcast domain LLDP Protocol WGSW-24040 SGSW-24040 IP: LLDP Neighbor’s WEB UI

26 GT-70x / GT-80x 1000SX/LX Media Converter Application  SGSW-24240 Series Fiber Connection Workstation with 100 or 1000 Fiber NIC FT-80x / FT-90x 100FX Media Converter LAN Switch with 100 or 1000 Fiber Link Capability ISW-511 / FSD-805SC Ethernet Switch w/ 100FX

27 Application  Carrier Class Backbone Switch for the Campus and Community For small area network communication such as in campus and community, the PLANET SGSW-24240 series Managed Stackable Switches enable an affordable and scalable network deployment. Multiple SGSW-24240 series Switches may be connected together to constitute a chain or ring stack topology using the 5Gbps stacking ports as interconnect links. Up to 16 units, 384 high-density Gigabit Ethernet ports can be managed by a stacking group with a single IP address. Furthermore, up to 384 mini-GBIC / SFP ports are available for remote uplink connectivity in a stacking group and provide the uplink to the edge network through 1000Base-SX/LX or 100Base-FX SFP modules. The SGSW-24240 series stackable switching system gives you the flexibility to expand small area network when needed.

28 Application – Campus

29 Application  FTTx / MAN Application The SGSW-24240 series offers multiple flexible fiber optical connective capability and helps to extend the coverage from backbone to edge network applications. The stackable fiber switch also provides high scalability for current and future network infrastructure as they can flexibly work with other PLANET SGSW series Gigabit Switches to meet the various networking requirements and simplify the network deployment and management of metro access networks. The SGSW-24240 series applies the double tag VLAN (Q-in-Q) technology to provide low cost and easy operation for service providers carrying traffic for multiple customers across their networks. It allows the service providers to offer certain services such as Internet access on VLANs for specific customers and meanwhile still can provide other types of services for other customers on other VLANs. With SNMPv3 support, the SNMPv3 security structure in the SGSW- 24240 consists of various security models, with each model having its own security levels for the ISP and Service Provider.

30 Application – FTTx / MAN

31 31 / 24  High Performance, High-Density, High Reliable Enterprise Backbone Switch Gigabit Ethernet supported equipment has become the fundamental unit of Enterprises and Network servers. The SGSW-24240 series stackable Gigabit switch can easily provide the cost-effective, high-density and high-bandwidth required from now on. Dedicated stacking features built into SGSW-24240 series switch makes all devices in the stack operate together as a one much larger switch providing multiple high performance Gigabit Ethernet network for backbone of enterprise or Telecoms. The SGSW-24240 series switch is ideal to be used as a server farm switch connecting servers. With the dynamic link aggregation function, a 16 GB fat pipe is provided for connecting to the backbone if required. The dual power supplies provide the SGSW-24240R the non-Stop network service ability. Besides the AC power input, the DC power supply can be chosen as -48V DC power input source or redundant power for SGSW-24240R. The SGSW-24240R can take electrical power either from the AC outlet, the DC outlet or both for redundant. Applications

32 Application – FTTx / MAN

33 Product Comparison - Competitor PLANETD-LinkNetgearZyXEL Model nameSGSW-24240DGS-3100-24TGGSM7212GS-3012F FeatureManaged Interface 1000Base-SX/LX SFP241612 100FX SFP compatible ■■ -- 10/100/1000Base-T8 (combo)812 (combo)4 (combo) Stacking Interface2 x 5Gbps (HDMI) -IP Stacking Max. Unit166-24 Max. Port384144-N/A Layer 2 Features Jumbo Frame10K 9K Bandwidth ControlIn / Out Link Aggregation Static8 Trunks / 8 Ports32 Trunks / 8 Ports6 Trunks / 8 Ports LACP8 Trunks / 8 Ports32 Trunks / 8 Ports6 Trunks / 8 Ports VLAN 802.1Q ■■■■ Q-in-Q ■ ** ■ N/A Private VLAN ■■ - ■ Spanning Tree802.1d / 1w802.1d / 1w / 1s 802.1w IGMP SnoopingV1,V2, V3* V1,V2 / 256 Multicast Group v1, v2 ■ (no version info) IGMP Query mode ■ N/A ■

34 Product Comparison - Competitor PLANETD-LinkNetgearZyXEL Model nameSGSW-24240DGS-3100-24TGGSM7212GS-3012F QoS 802.1p ■ / 4 queue ■ / 8 queue TOS / DSCP ■■■ N/A Strict / WRR ■ / ■ Policy-Base DiffServ ■■■ Rate limit per MAC/IP/TCP/UDP Security 802.1X Port Based ■■■■ MAC Based ■■ -- ACL L2 / L3 / L4 MAC/IP/TCP/UDP Filtering Port Security ■ V, 16MACs per port N/A IP / MAC Security Static MAC / BindingIP-MAC Port BindingN/A MAC Filtering, MAC Binding RADIUS ■■■■ Management Management & Configuration WEB, Telnet, Console WEB. Telnet, Console SNMP V1, V2c ■■■■ V3 ■■■ - Trap ■■■■ LogSystem logSystem LogSyslog N/A Other ManagementSNTP, LLDPSNTP, CPU monitoringSNTP N/A

35 Product Comparison - Competitor SGSW-24240 SGSW-24240R WGS3-24240GSW-2416SFFGSW-2624SF Classification Layer 2Layer 3Layer 2 Management Web SmartManagement Interface 10/100/1000T 8 (Combo)4 (Combo)242 1000SX/LX 24 16 (Combo)2 (Combo) 100FX Compatible-- 24 Switch Fabric 68Gbps48Gbps 8.8Gbps Management Stackable, up to 16 unitsStandalone  PLANET High Density Fiber Switch

36 36 / 24 Appendix  Accessories Stacking Cable CB-STX200 2M Crossed-HDMI stacking cable CB-STX50 0.5M Crossed-HDMI stacking cable ( Standard Package)

37 Appendix  Available Modules: Gigabit SFP MGB-GT SFP-Port 1000Base-T Module MGB-SX SFP-Port 1000Base-SX mini-GBIC module MGB-LX SFP-Port 1000Base-LX mini-GBIC module MGB-L50 SFP-Port 1000Base-LX mini-GBIC module-50KM MGB-L70 SFP-Port 1000Base-LX mini-GBIC module-70KM MGB-L120 SFP-Port 1000Base-LX mini-GBIC module-120KM MGB-LA10 SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10KM MGB-LB10 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10KM MGB-LA20 SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-20KM MGB-LB20 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-20KM MGB-LA40 SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-40KM MGB-LB40 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-40KM

38 38 / 24 Appendix  Available Modules: 100Base-FX SFP MFB-FX SFP-Port 100Base-FX Transceiver (1310nm) -2km MFB-F20 SFP-Port 100Base-FX Transceiver (1310nm) – 20km MFB-F60 SFP-Port 100Base-FX Transceiver (1310nm) – 60km MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM,TX:1310nm) -20km MFB-FB20 SFP-Port 100Base-BX Transceiver (WDM,TX:1550nm) -20km

39  Target Markets – Long Distance / High Performance Network Service ISP / Telecom / Network Service Provider Tender Market Government / Campus / Hospital Enterprise Secure Office & Factory  Target Customers Who buys Fiber Switches WGS3-24240, GSW-2416SF, FGSW-2624SF, MGSW-004-12F and etc. Who buys Fast Ethernet / Gigabit Media Converter and Converter Chassis FT-80x, FT-90x, GT-70x, GT-80x, GST-70x, MC-1500, MC-1610MR Who buys IP Surveillance device IP Cam + Media converter Who buys PLANET Gigabit Stackable Switches SGSW-24040 and SGSW-24040P series Who need Centralized, Scalable, Easy installation and Single IP Management network solution Appendix Sales Target
