1. © 2012 Bentley Systems, Incorporated Integrated Asset Management Roads and Highways Jugal Makwana Bentley Systems

2. © 2012 Bentley Systems, Incorporated 2 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Why What When Where How Asset Management

3. © 2012 Bentley Systems, Incorporated 3 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 *BMI Infrastructure Report Q4-2011 6.4 51.7 Asset Creation Asset Maintenance Asset Upgrade

4. © 2012 Bentley Systems, Incorporated 4 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 What? It depends on who we ask Pavement Engineer Bridge Engineer Senior Mgmt Safety Analyst A B D Roads Engineer C

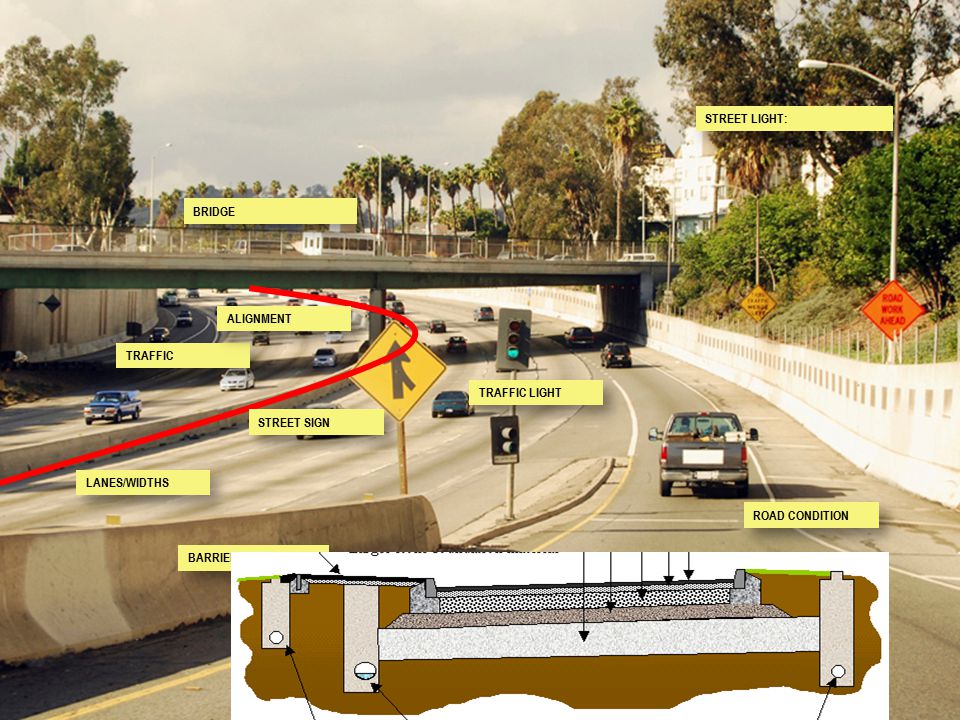

5. © 2012 Bentley Systems, Incorporated 5 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 TRAFFIC LIGHT BRIDGE BARRIER POT HOLE STREET LIGHT: STREET SIGN TRAFFIC ALIGNMENT ROAD CONDITION LANES/WIDTHS

6. © 2012 Bentley Systems, Incorporated 6 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 If we put the pieces together: Category of roadLength in Km Total road network3.34 million National Highways65,569 State Highways1,30,000 Major Distt. Road, Rural road & Urban road 3.14 million ?

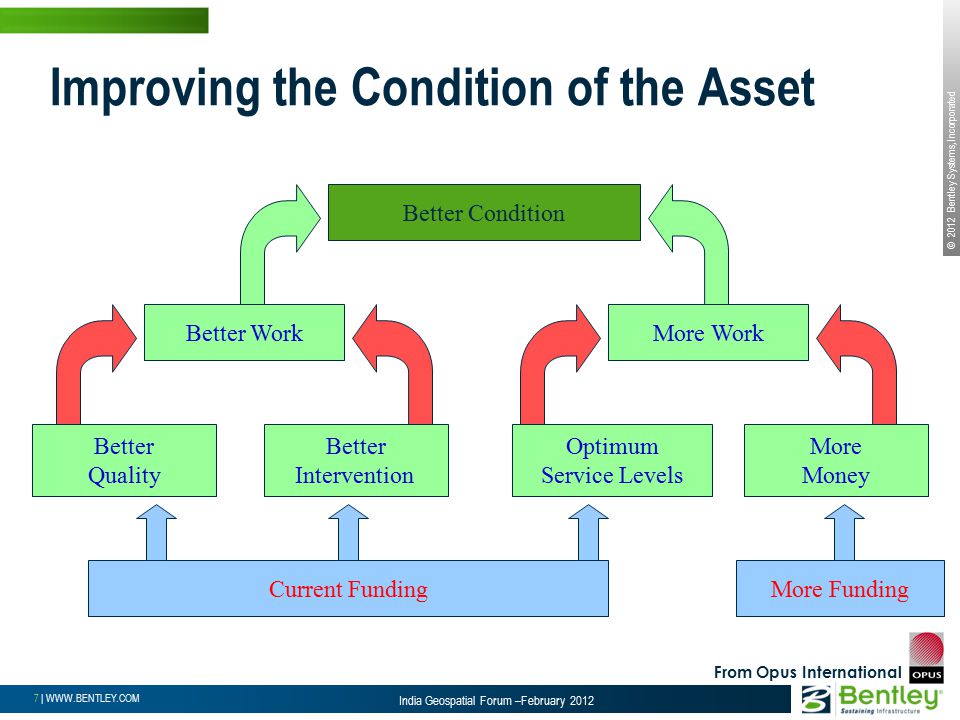

7. © 2012 Bentley Systems, Incorporated 7 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Improving the Condition of the Asset Better Condition Better WorkMore Work Better Quality Optimum Service Levels More Money Better Intervention Current FundingMore Funding From Opus International

8. © 2012 Bentley Systems, Incorporated 8 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Better Condition Better WorkMore Work Better Quality Optimum Service Levels More Money Better Intervention Current FundingMore Funding X ? Better Asset Management ManagementPractices From Opus International Improving the Condition of the Asset

9. © 2012 Bentley Systems, Incorporated 9 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 The AASHTO definition of Asset Management supports this conclusion: Conclusion Asset Management needs Information!

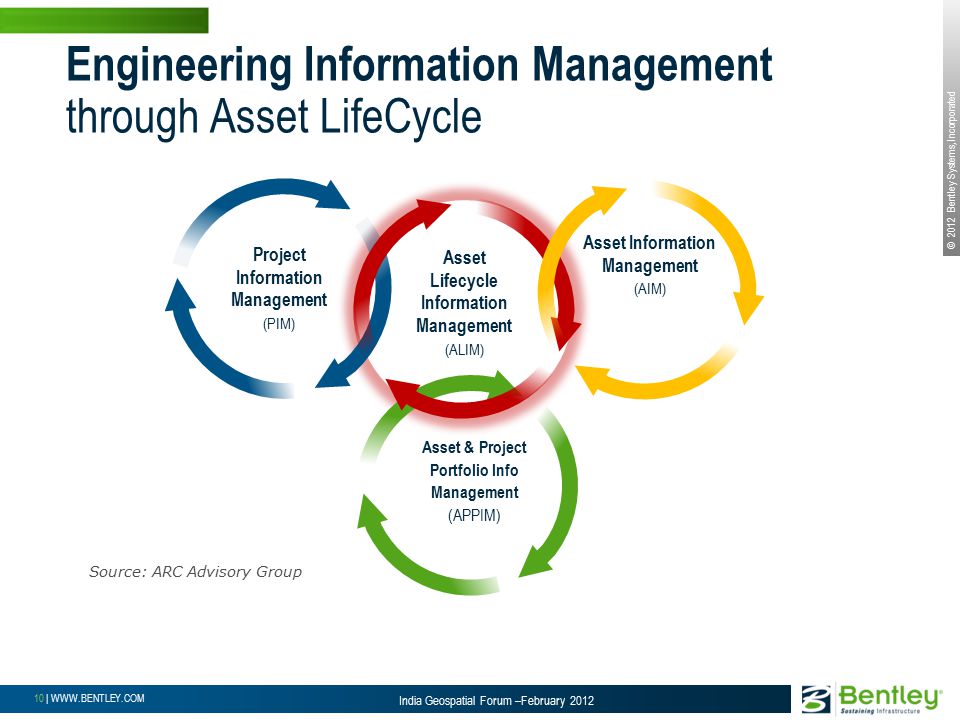

10. © 2012 Bentley Systems, Incorporated 10 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Engineering Information Management through Asset LifeCycle Asset & Project Portfolio Info Management (APPIM) Asset Information Management (AIM) Project Information Management (PIM) Asset Lifecycle Information Management (ALIM) Source: ARC Advisory Group

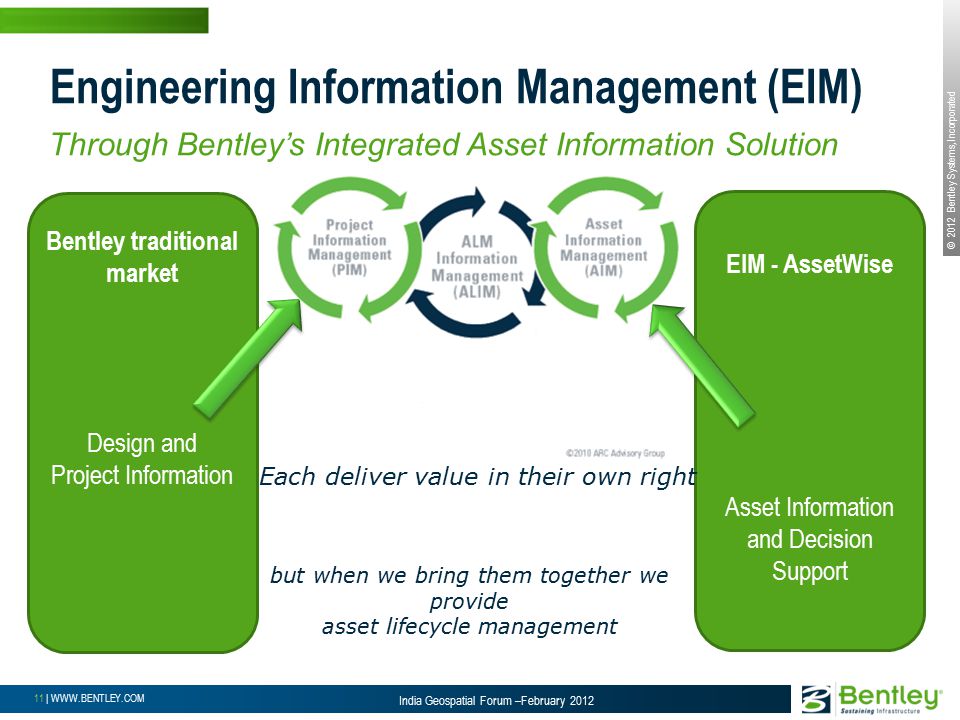

11. © 2012 Bentley Systems, Incorporated 11 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Engineering Information Management (EIM) Through Bentley’s Integrated Asset Information Solution Bentley traditional market Design and Project Information EIM - AssetWise Asset Information and Decision Support but when we bring them together we provide asset lifecycle management Each deliver value in their own right

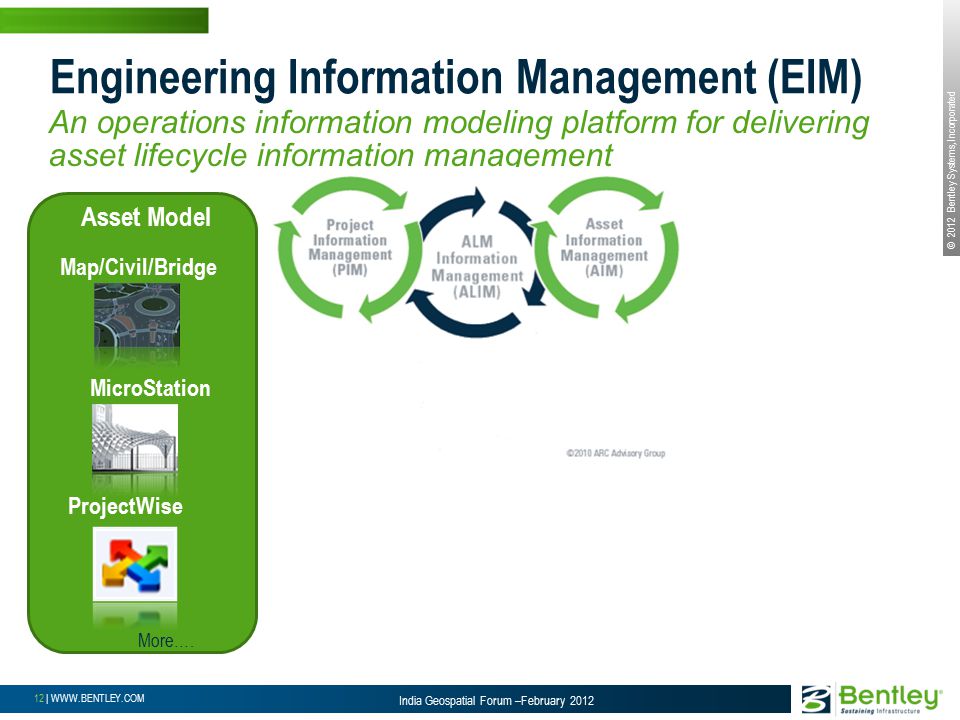

12. © 2012 Bentley Systems, Incorporated 12 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Engineering Information Management (EIM) An operations information modeling platform for delivering asset lifecycle information management Bentley traditional market Design And ProjectWise Map/Civil/Bridge MicroStation More…. Asset Model

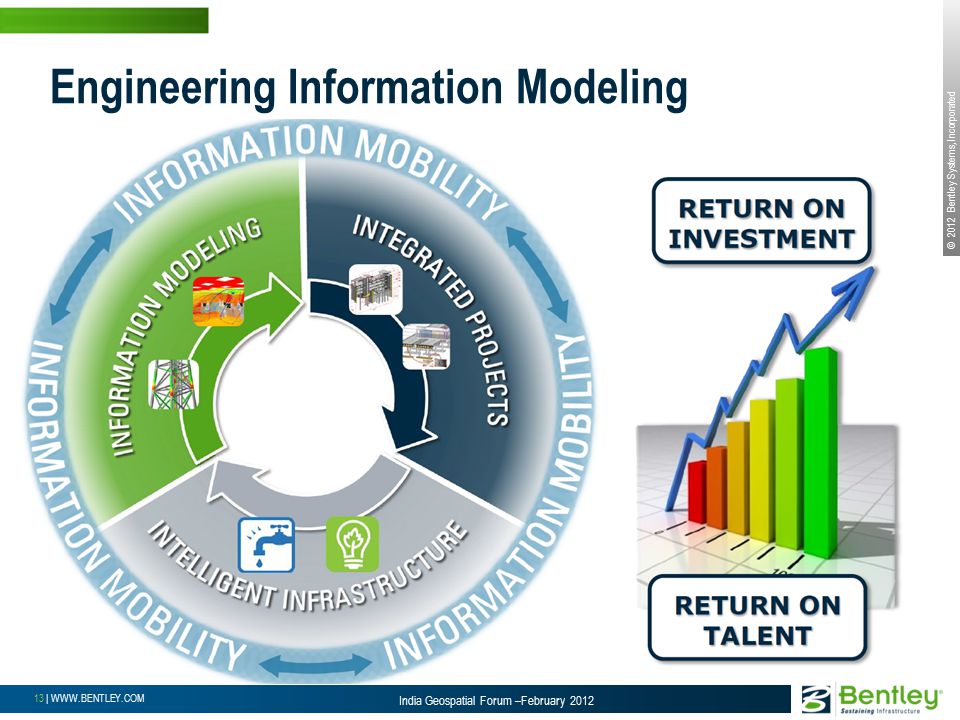

13. © 2012 Bentley Systems, Incorporated 13 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Engineering Information Modeling

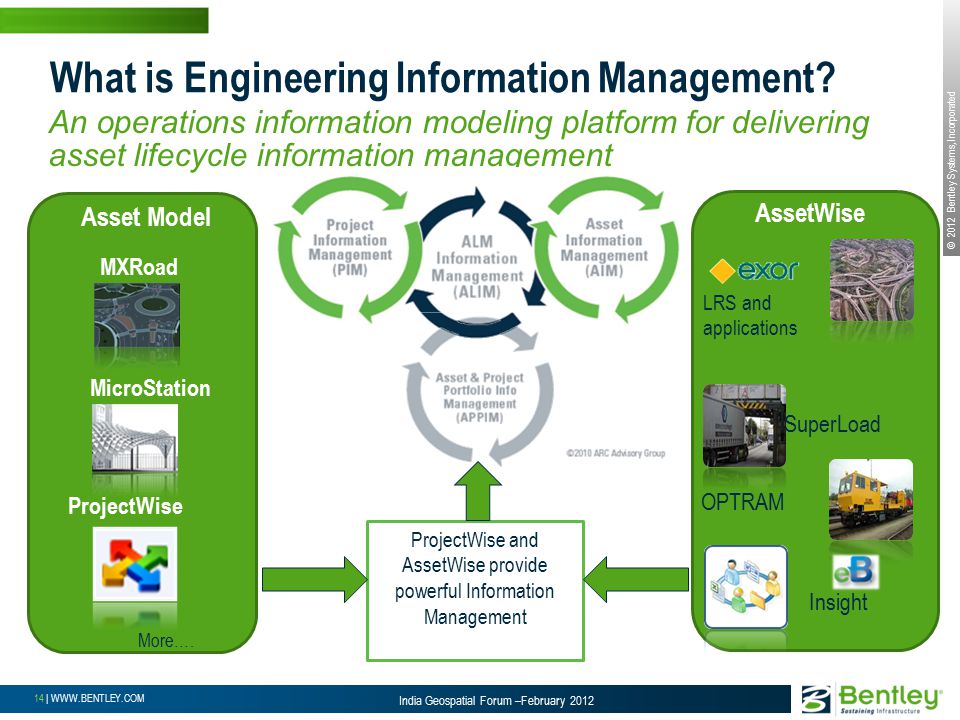

14. © 2012 Bentley Systems, Incorporated 14 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 What is Engineering Information Management? An operations information modeling platform for delivering asset lifecycle information management Bentley traditional market Design And AssetWise ProjectWise MXRoad MicroStation More…. SuperLoad OPTRAM Insight LRS and applications ProjectWise and AssetWise provide powerful Information Management Asset Model

15. © 2012 Bentley Systems, Incorporated 15 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Asset Information Provides Decision Support !

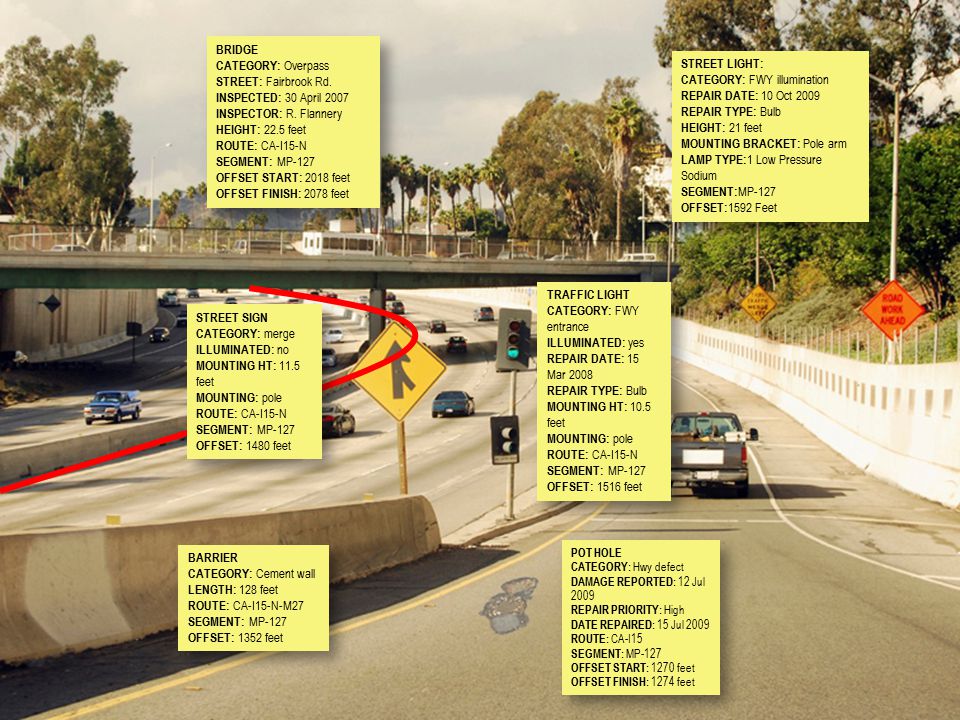

16. © 2012 Bentley Systems, Incorporated 16 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 TRAFFIC LIGHT CATEGORY: FWY entrance ILLUMINATED: yes REPAIR DATE: 15 Mar 2008 REPAIR TYPE: Bulb MOUNTING HT: 10.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1516 feet TRAFFIC LIGHT CATEGORY: FWY entrance ILLUMINATED: yes REPAIR DATE: 15 Mar 2008 REPAIR TYPE: Bulb MOUNTING HT: 10.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1516 feet BRIDGE CATEGORY: Overpass STREET: Fairbrook Rd. INSPECTED: 30 April 2007 INSPECTOR: R. Flannery HEIGHT: 22.5 feet ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET START: 2018 feet OFFSET FINISH: 2078 feet BRIDGE CATEGORY: Overpass STREET: Fairbrook Rd. INSPECTED: 30 April 2007 INSPECTOR: R. Flannery HEIGHT: 22.5 feet ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET START: 2018 feet OFFSET FINISH: 2078 feet BARRIER CATEGORY: Cement wall LENGTH: 128 feet ROUTE: CA-I15-N-M27 SEGMENT: MP-127 OFFSET: 1352 feet BARRIER CATEGORY: Cement wall LENGTH: 128 feet ROUTE: CA-I15-N-M27 SEGMENT: MP-127 OFFSET: 1352 feet POT HOLE CATEGORY: Hwy defect DAMAGE REPORTED: 12 Jul 2009 REPAIR PRIORITY: High DATE REPAIRED: 15 Jul 2009 ROUTE: CA-I15 SEGMENT: MP-127 OFFSET START: 1270 feet OFFSET FINISH: 1274 feet POT HOLE CATEGORY: Hwy defect DAMAGE REPORTED: 12 Jul 2009 REPAIR PRIORITY: High DATE REPAIRED: 15 Jul 2009 ROUTE: CA-I15 SEGMENT: MP-127 OFFSET START: 1270 feet OFFSET FINISH: 1274 feet STREET LIGHT: CATEGORY: FWY illumination REPAIR DATE: 10 Oct 2009 REPAIR TYPE: Bulb HEIGHT: 21 feet MOUNTING BRACKET: Pole arm LAMP TYPE: 1 Low Pressure Sodium SEGMENT: MP-127 OFFSET: 1592 Feet STREET LIGHT: CATEGORY: FWY illumination REPAIR DATE: 10 Oct 2009 REPAIR TYPE: Bulb HEIGHT: 21 feet MOUNTING BRACKET: Pole arm LAMP TYPE: 1 Low Pressure Sodium SEGMENT: MP-127 OFFSET: 1592 Feet STREET SIGN CATEGORY: merge ILLUMINATED: no MOUNTING HT: 11.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1480 feet STREET SIGN CATEGORY: merge ILLUMINATED: no MOUNTING HT: 11.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1480 feet

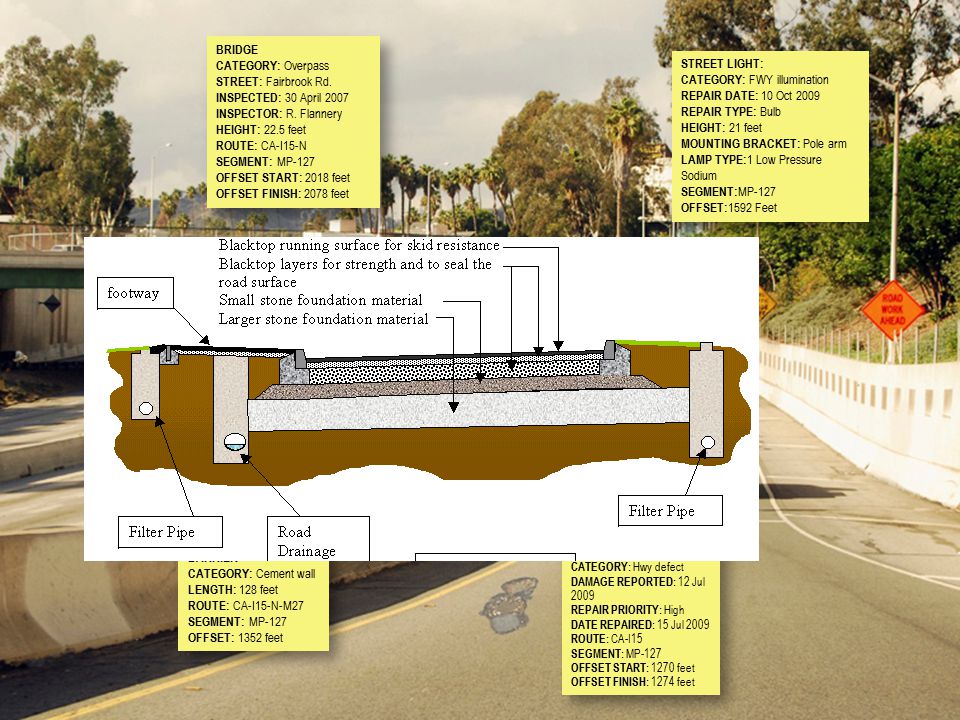

17. © 2012 Bentley Systems, Incorporated 17 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 TRAFFIC LIGHT CATEGORY: FWY entrance ILLUMINATED: yes REPAIR DATE: 15 Mar 2008 REPAIR TYPE: Bulb MOUNTING HT: 10.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1516 feet TRAFFIC LIGHT CATEGORY: FWY entrance ILLUMINATED: yes REPAIR DATE: 15 Mar 2008 REPAIR TYPE: Bulb MOUNTING HT: 10.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1516 feet BRIDGE CATEGORY: Overpass STREET: Fairbrook Rd. INSPECTED: 30 April 2007 INSPECTOR: R. Flannery HEIGHT: 22.5 feet ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET START: 2018 feet OFFSET FINISH: 2078 feet BRIDGE CATEGORY: Overpass STREET: Fairbrook Rd. INSPECTED: 30 April 2007 INSPECTOR: R. Flannery HEIGHT: 22.5 feet ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET START: 2018 feet OFFSET FINISH: 2078 feet BARRIER CATEGORY: Cement wall LENGTH: 128 feet ROUTE: CA-I15-N-M27 SEGMENT: MP-127 OFFSET: 1352 feet BARRIER CATEGORY: Cement wall LENGTH: 128 feet ROUTE: CA-I15-N-M27 SEGMENT: MP-127 OFFSET: 1352 feet POT HOLE CATEGORY: Hwy defect DAMAGE REPORTED: 12 Jul 2009 REPAIR PRIORITY: High DATE REPAIRED: 15 Jul 2009 ROUTE: CA-I15 SEGMENT: MP-127 OFFSET START: 1270 feet OFFSET FINISH: 1274 feet POT HOLE CATEGORY: Hwy defect DAMAGE REPORTED: 12 Jul 2009 REPAIR PRIORITY: High DATE REPAIRED: 15 Jul 2009 ROUTE: CA-I15 SEGMENT: MP-127 OFFSET START: 1270 feet OFFSET FINISH: 1274 feet STREET LIGHT: CATEGORY: FWY illumination REPAIR DATE: 10 Oct 2009 REPAIR TYPE: Bulb HEIGHT: 21 feet MOUNTING BRACKET: Pole arm LAMP TYPE: 1 Low Pressure Sodium SEGMENT: MP-127 OFFSET: 1592 Feet STREET LIGHT: CATEGORY: FWY illumination REPAIR DATE: 10 Oct 2009 REPAIR TYPE: Bulb HEIGHT: 21 feet MOUNTING BRACKET: Pole arm LAMP TYPE: 1 Low Pressure Sodium SEGMENT: MP-127 OFFSET: 1592 Feet STREET SIGN CATEGORY: merge ILLUMINATED: no MOUNTING HT: 11.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1480 feet STREET SIGN CATEGORY: merge ILLUMINATED: no MOUNTING HT: 11.5 feet MOUNTING: pole ROUTE: CA-I15-N SEGMENT: MP-127 OFFSET: 1480 feet

18. © 2012 Bentley Systems, Incorporated 18 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Managing more than just physical Road Assets… Road Works Accidents Traffic DataEnquiry Management Parks and Places, BBQ’s…

19. © 2012 Bentley Systems, Incorporated 19 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Exor at a Glance 19

20. © 2012 Bentley Systems, Incorporated 20 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Solutions footprint…depth and breadth… E X O R S O L U TI O N S Road network definition, Customer Service Desk, Field Data collection, Asset recording, Inspections recording, Road condition recording, Structures recording, traffic volume recording, safety / crash data, Street works notices / permits, asset valuation / depreciation Construction records, Document management, Spatial data management, Road Information, Structures Information, Traffic Information, Safety / Crash Information Contract management, Works ordering and budgeting management, Multi-year programming, Road works co-ordination, Safety Analysis Pavement modelling, Asset valuations, Traffic congestion Executive Information Data Recording Information Management Operations and Management Strategic Management & Planning Executive Exor Database, Loaders, Web Services Field Data Collection software Pavement Manager, Enquiry Manager, Document Manager, Spatial Manager, Network Manager, Structures Manager, Traffic Manager, Safety Manager, Street Works Manager Maintenance Manager, Schemes Manager, Street Works Manager, Safety Manager Pavement Manager, Asset valuations Information Manager Integrate with other systems like HDM-4

21. © 2012 Bentley Systems, Incorporated 21 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Exor Business Applications AssetWise – Exor Road Asset Management Oracle Spatial Database Geographic Information Systems Existing Legacy Systems Information Dashboard GIS/ Spatial Display Other Departmental and Corporate Systems Integration Using API’s Exor Hub Technology Oracle Spatial

22. © 2012 Bentley Systems, Incorporated 22 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Oracle Spatial Database Asset Valuation Manager Street Lighting Manager Maintenance Manager Schemes Manager Traffic Interface Manager Structures Manager Safety Manager UKPMS Enquiry Manager MapCapture Mobile Public Rights of Way Noticing Manager Permitting Manager Street Gazetteer Manager CIM / FIM

23. © 2012 Bentley Systems, Incorporated 23 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Exor Hub PMS / Condition Projects Traffic Data CRASH (Safety) Sharing Data without Duplication

24. © 2012 Bentley Systems, Incorporated 24 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Data Displayed with Integrated Mapping

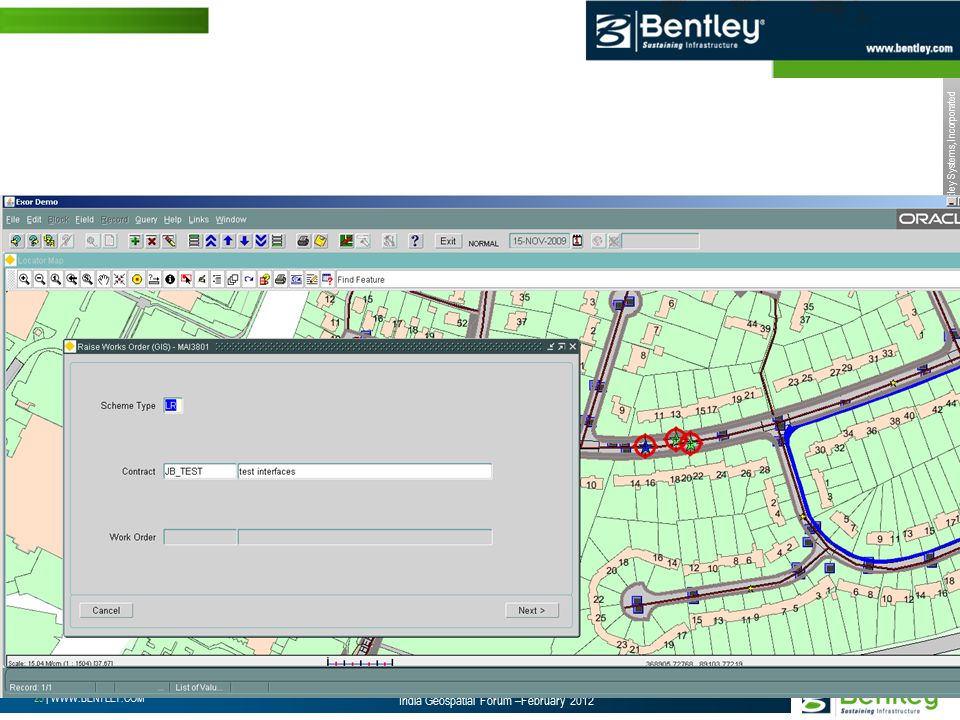

25. © 2012 Bentley Systems, Incorporated 25 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Select Multiple Work Requests and Create a Work Order from the Map

26. © 2012 Bentley Systems, Incorporated 26 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Example Engineering reporting – Assets along a route

27. © 2012 Bentley Systems, Incorporated 27 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 1 13 $ 26,000 Reconstruction Project 18 5 $ 1,500 Planned Maintenance 811.5 $ 5,000 Pothole Repair (2000) (100) (2500) $8,000 $2,000 $6,300 $2,100 $16,100 $4,600 $3,150 $2,100 $500 $100 Segment Cost Cost per mile Exor provides powerful reporting across data sets

28. © 2012 Bentley Systems, Incorporated 28 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 100.07101.52101.7101.83101.95102.16102.54 5.66.27.08.07.06.4 Width 102.54 100.07 101.52101.75101.9102102.4 304031294125 Roughness 100.07101.52101.75101.83101.95102102.54102.4 Merge Results Width < 8 AND Roughness <40 And Merge Query functionality like this

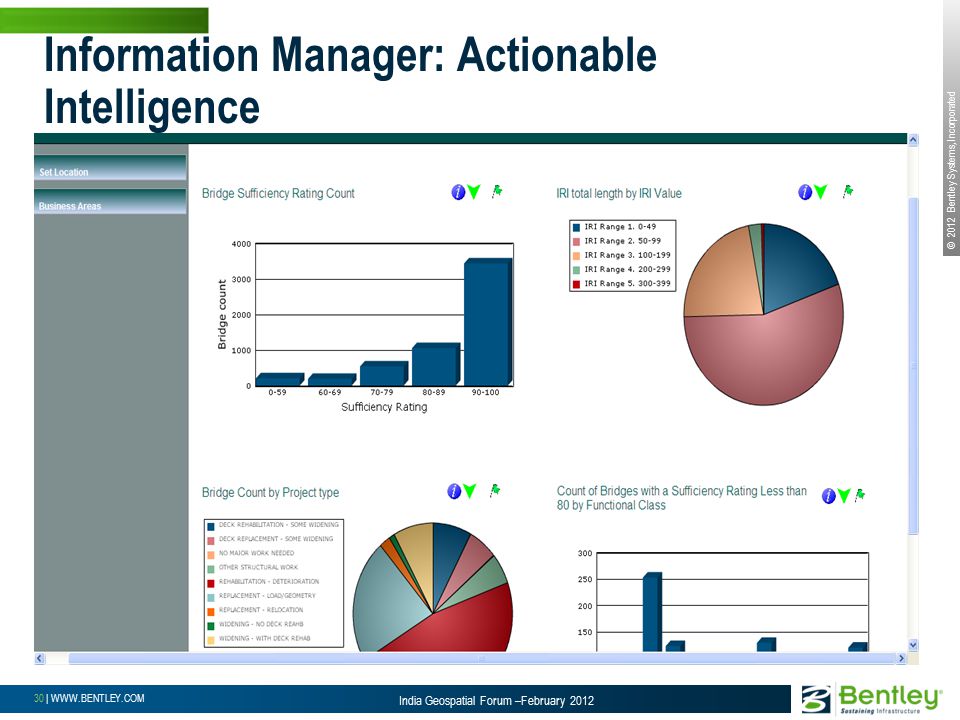

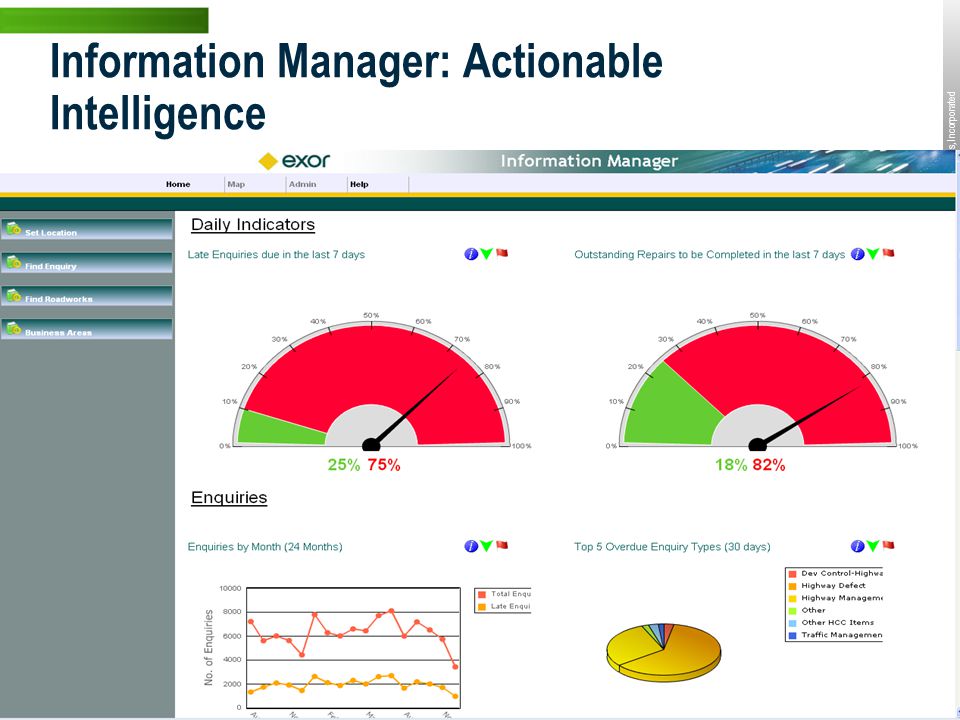

29. © 2012 Bentley Systems, Incorporated 29 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Information Manager: Actionable Intelligence 29

30. © 2012 Bentley Systems, Incorporated 30 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Information Manager: Actionable Intelligence

31. © 2012 Bentley Systems, Incorporated 31 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Global Adopters 31

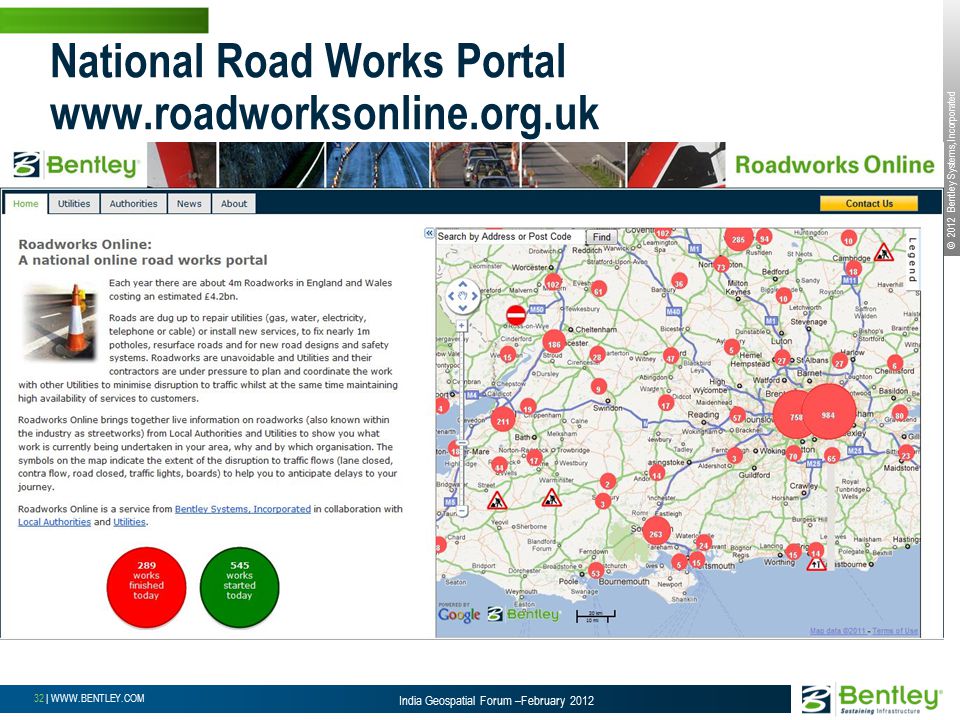

32. © 2012 Bentley Systems, Incorporated 32 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 National Road Works Portal www.roadworksonline.org.uk

33. © 2012 Bentley Systems, Incorporated 33 | WWW.BENTLEY.COM India Geospatial Forum –February 2012 Engineering Information Management for Integrated Asset Management Enhances interoperability –Other Bentley Asset Lifecycle solutions –Third Party Solutions Proven Solutions Post Go-Live Support –Active user Community –Enhancements –Safeguard user investment Summary
