1. TITAC: Design of a QDI microprocessor TITAC: Tokyo Institute of Technology TITAC-1: IEEE Design & Test (Summer 94) 1. main goal: explore the design methodology 2. 8-bit Von Neumann microprocessor is designed TITAC-2: ICCD’97 32-bit fully functional microprocessor based on MIPS 2000 Reading 6

2. Outline Goal of TITAC-1 Organization and Instruction sets Design methodology 1. control path 2. data path

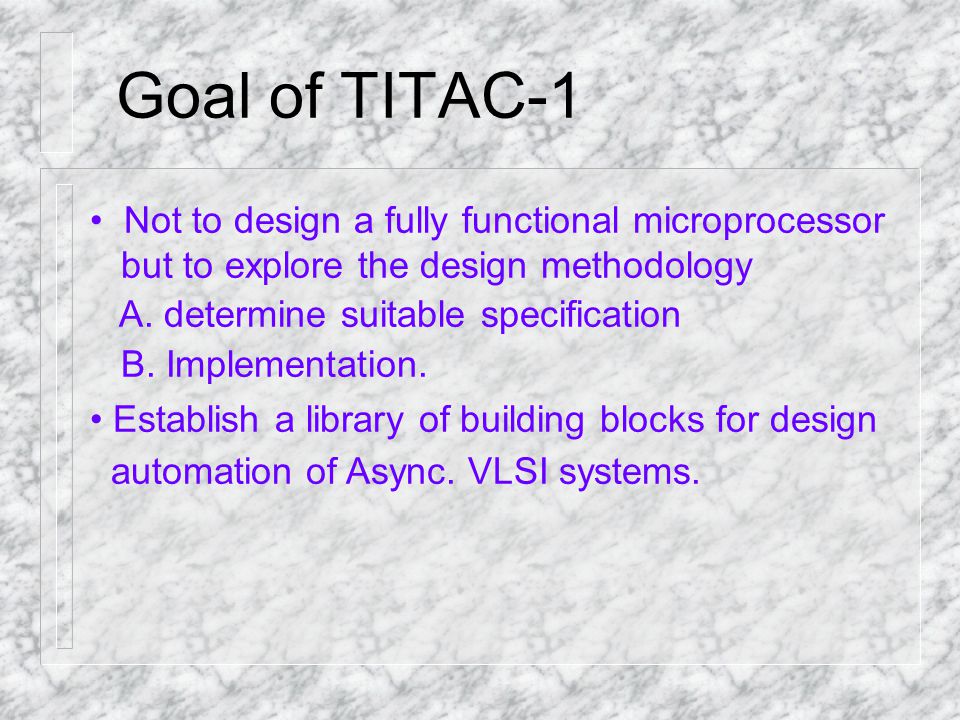

3. Goal of TITAC-1 Not to design a fully functional microprocessor but to explore the design methodology A. determine suitable specification B. Implementation. Establish a library of building blocks for design automation of Async. VLSI systems.

4. Organization of TITAC TITAC is an 8-bit Von Neumann microprocessor Single-accumulator architecture TITAC consists of * Control section: 1. controls data flow of datapath section 2. two controllers: hardwired and microprogrammed A. selectable by an external switch. B. designed by two authors independently. * Datapath section:

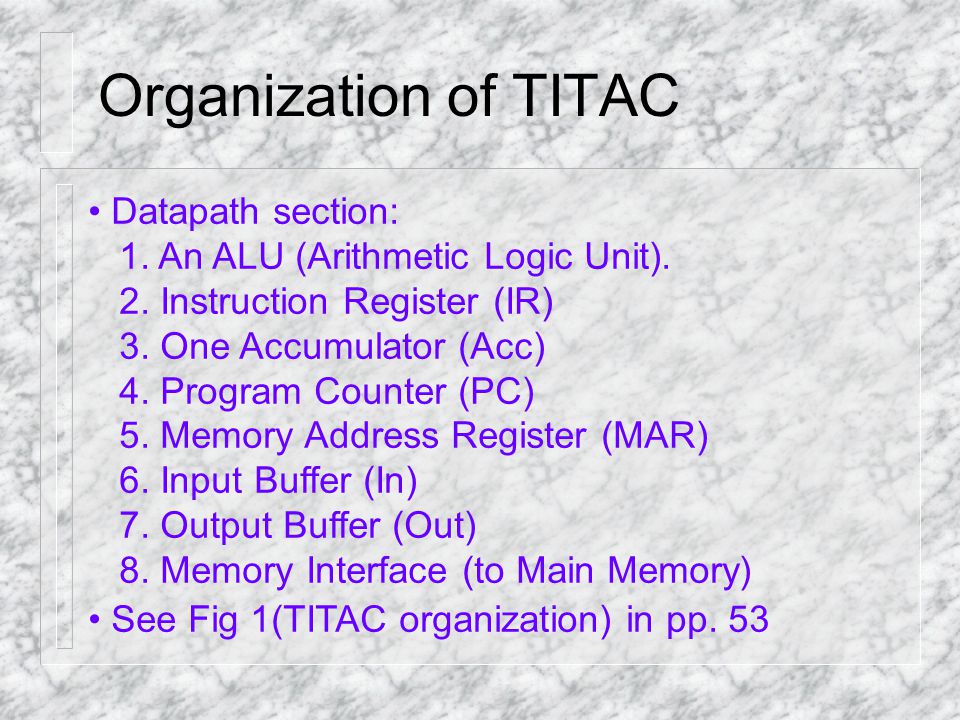

5. Organization of TITAC Datapath section: 1. An ALU (Arithmetic Logic Unit). 2. Instruction Register (IR) 3. One Accumulator (Acc) 4. Program Counter (PC) 5. Memory Address Register (MAR) 6. Input Buffer (In) 7. Output Buffer (Out) 8. Memory Interface (to Main Memory) See Fig 1(TITAC organization) in pp. 53

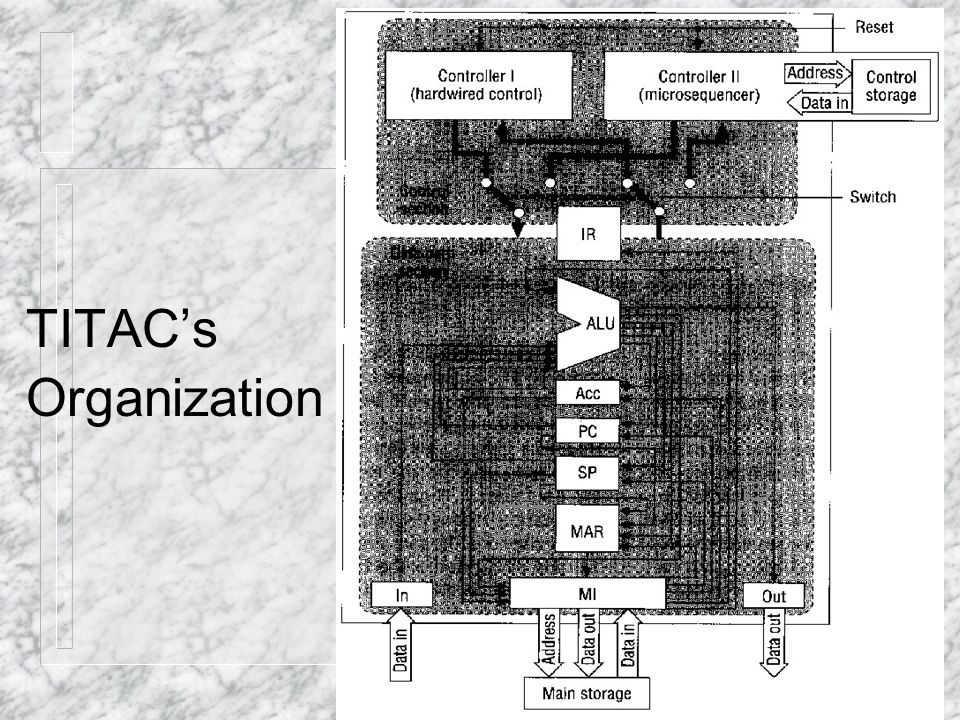

6. TITAC’s Organization

7. Instruction Set of TITAC Memory Reference Instructions: (two Bytes) A. opcode + operand B. address modes: 1. Immediate 2. Stack pointer relative 3. Indirect 4. Direct C. ADD mem ==> Acc := mem + Acc ADC mem: add with carry... Branch Instructions: (two bytes) Miscellaneous Instructions: (one byte)

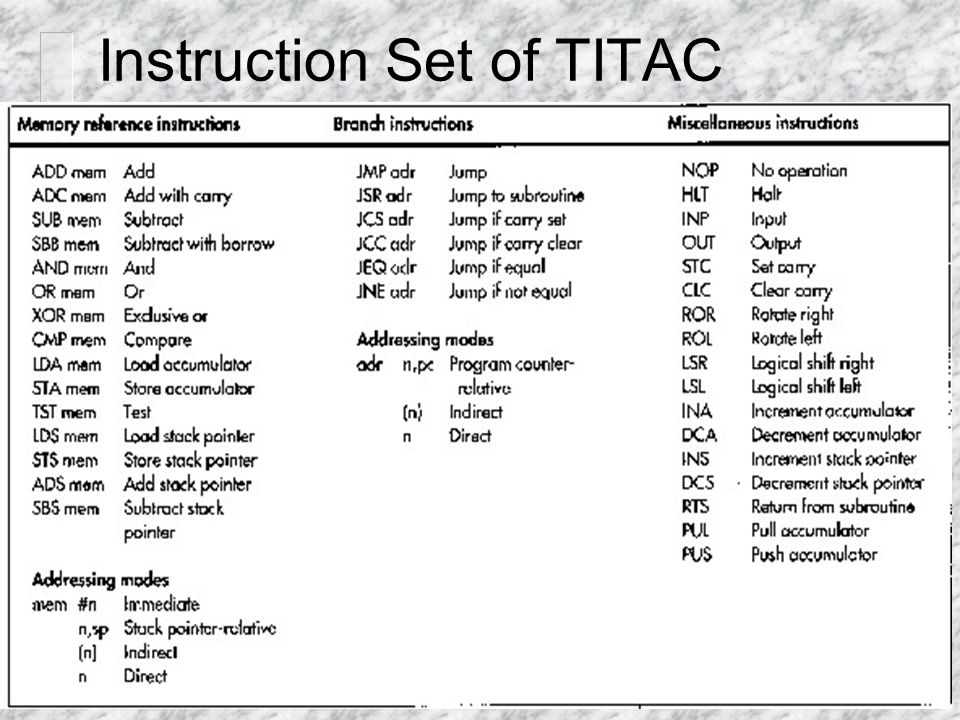

8. Instruction Set of TITAC

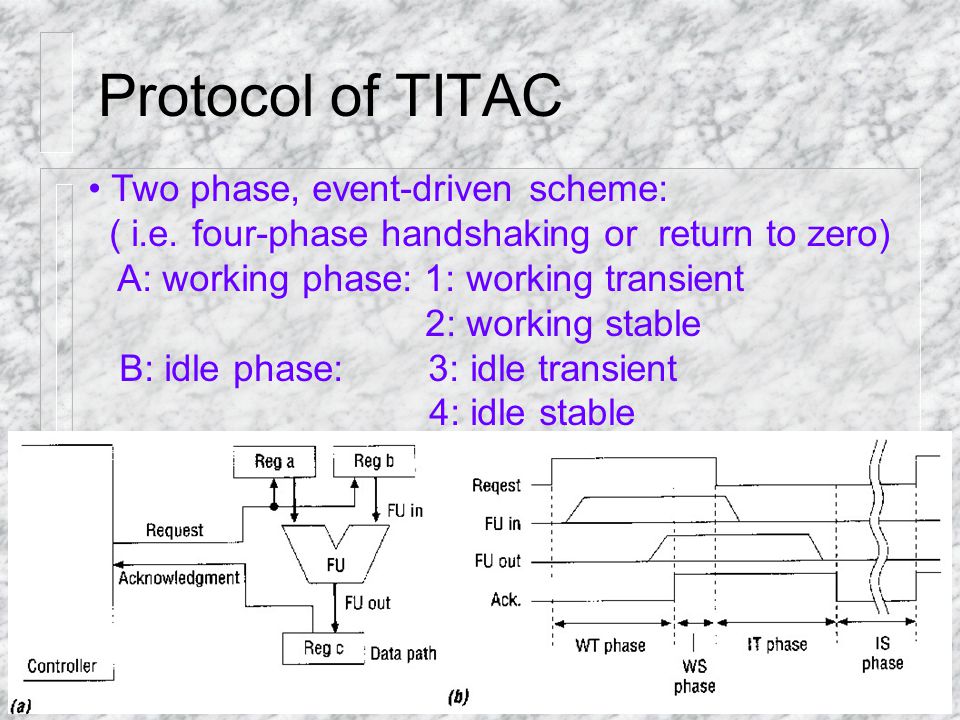

9. Protocol of TITAC Two phase, event-driven scheme: ( i.e. four-phase handshaking or return to zero) A: working phase: 1: working transient 2: working stable B: idle phase: 3: idle transient 4: idle stable

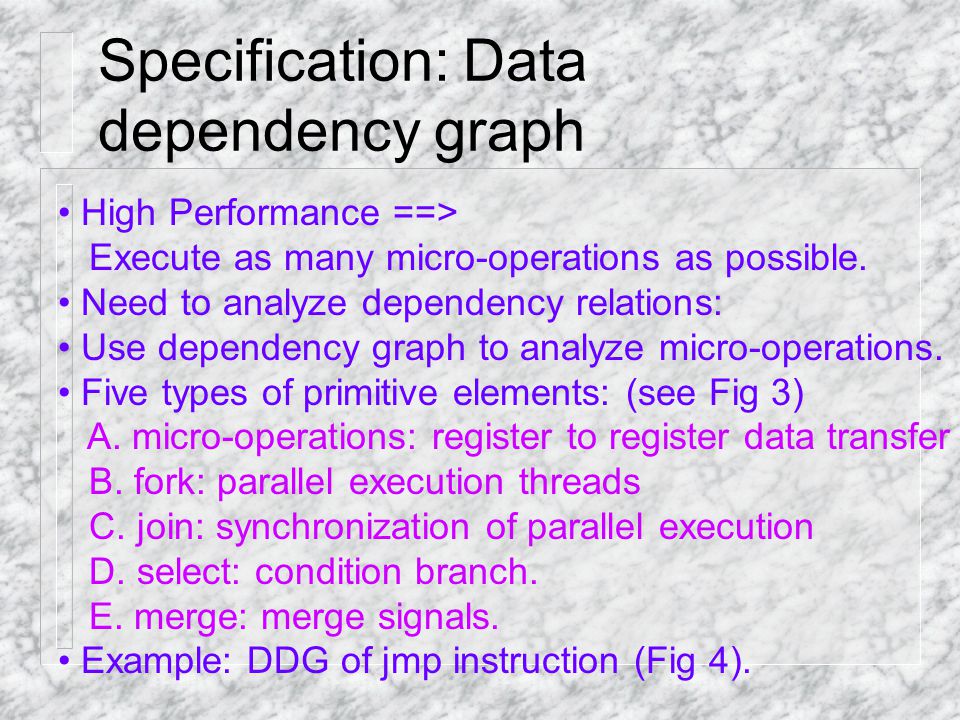

10. Specification: Data dependency graph High Performance ==> Execute as many micro-operations as possible. Need to analyze dependency relations: Use dependency graph to analyze micro-operations. Five types of primitive elements: (see Fig 3) A. micro-operations: register to register data transfer B. fork: parallel execution threads C. join: synchronization of parallel execution D. select: condition branch. E. merge: merge signals. Example: DDG of jmp instruction (Fig 4).

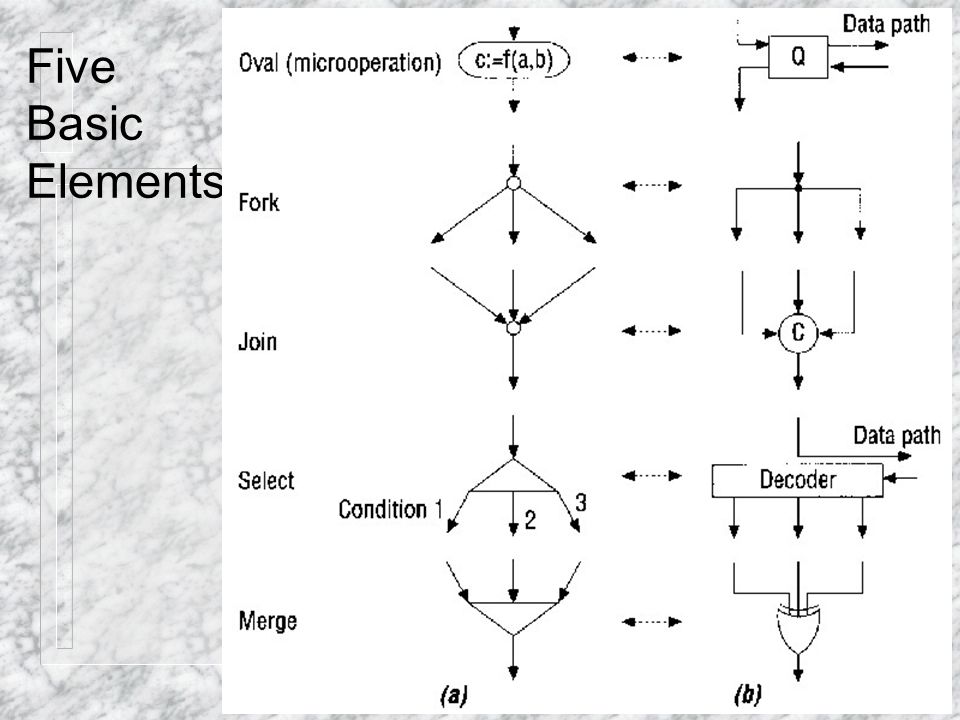

11. Five Basic Elements:

12. Data dependency graph: Jump Write After Read Write After Write

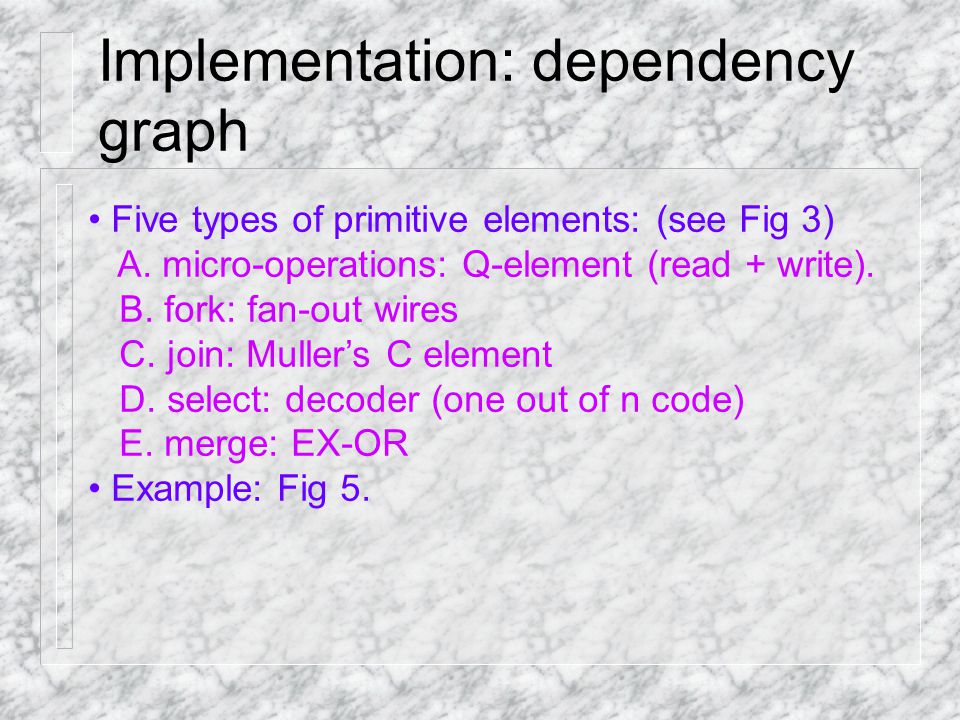

13. Implementation: dependency graph Five types of primitive elements: (see Fig 3) A. micro-operations: Q-element (read + write). B. fork: fan-out wires C. join: Muller’s C element D. select: decoder (one out of n code) E. merge: EX-OR Example: Fig 5.

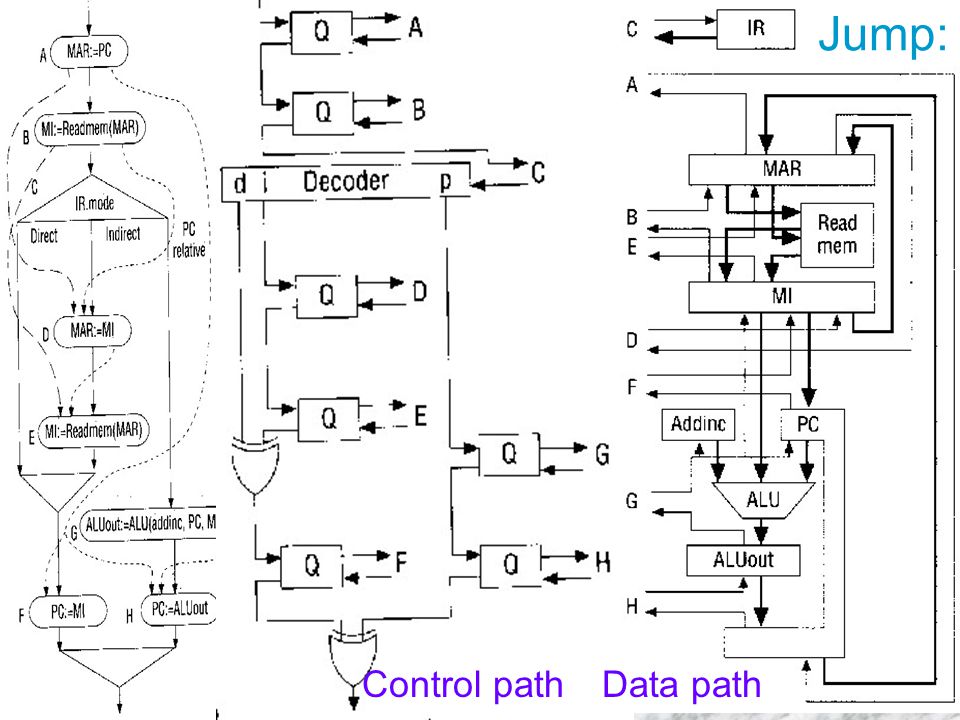

14. Jump: Control pathData path Jump:

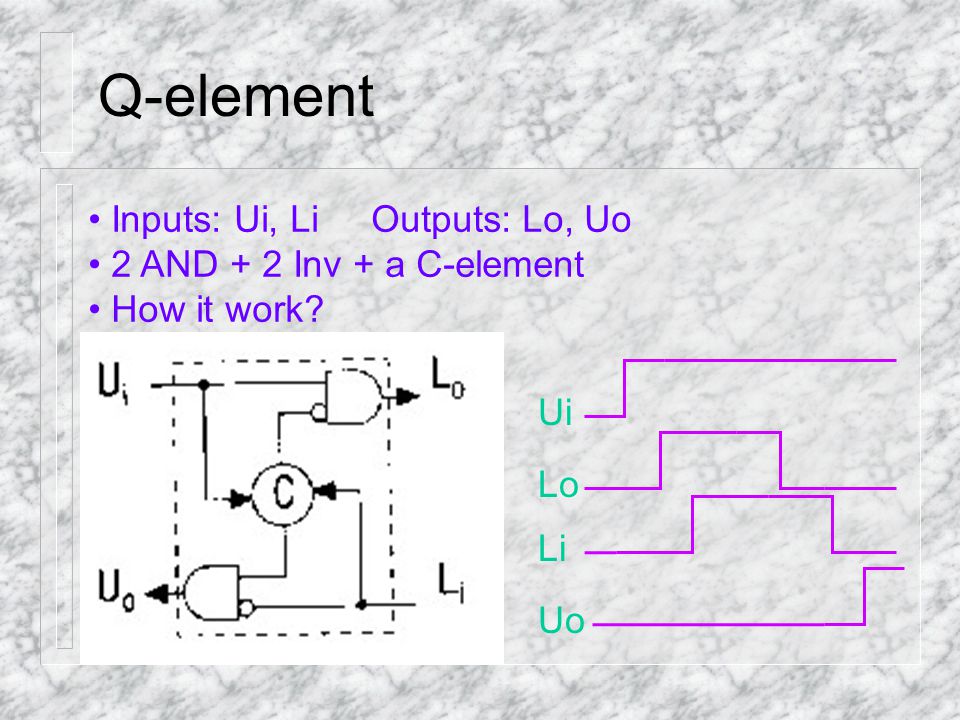

15. Q-element Inputs: Ui, Li Outputs: Lo, Uo 2 AND + 2 Inv + a C-element How it work? Ui Lo Uo Li

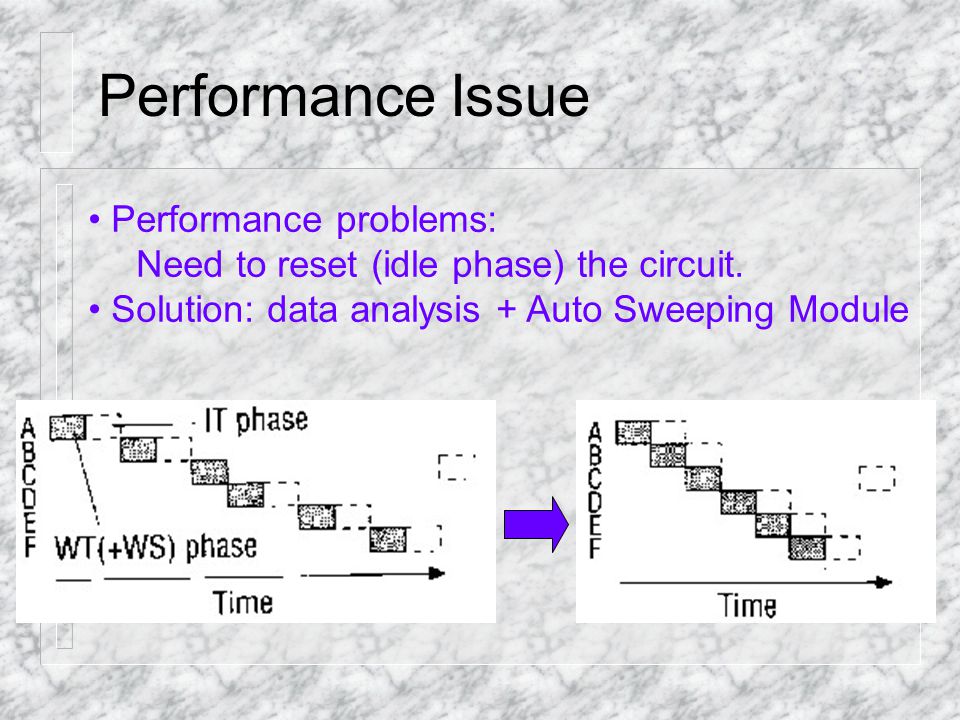

16. Performance Issue Performance problems: Need to reset (idle phase) the circuit. Solution: data analysis + Auto Sweeping Module

17. Auto Sweeping Module (ASM) Improve the latency. Uo+ ==> start next computation ==> reset current computation Parallel execution of working phase and idle phase Ui Lo Uo Li

18. Auto Sweeping Module (ASM) Replacement Q-element with ASM: A. replace each Q-element with one ASM. B. Analyze data dependency: WAW and WAR C. add AND gates to ensure the dependency.

19. ASM JUMP DDG

20. ASM JUMP Q JUMP

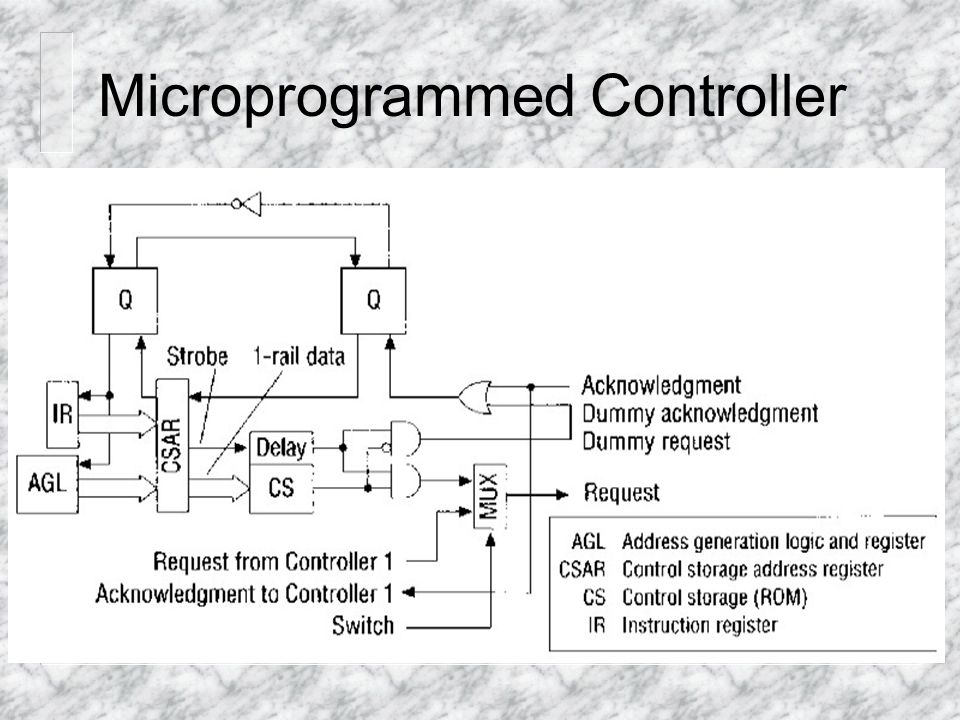

21. Microprogrammed Controller

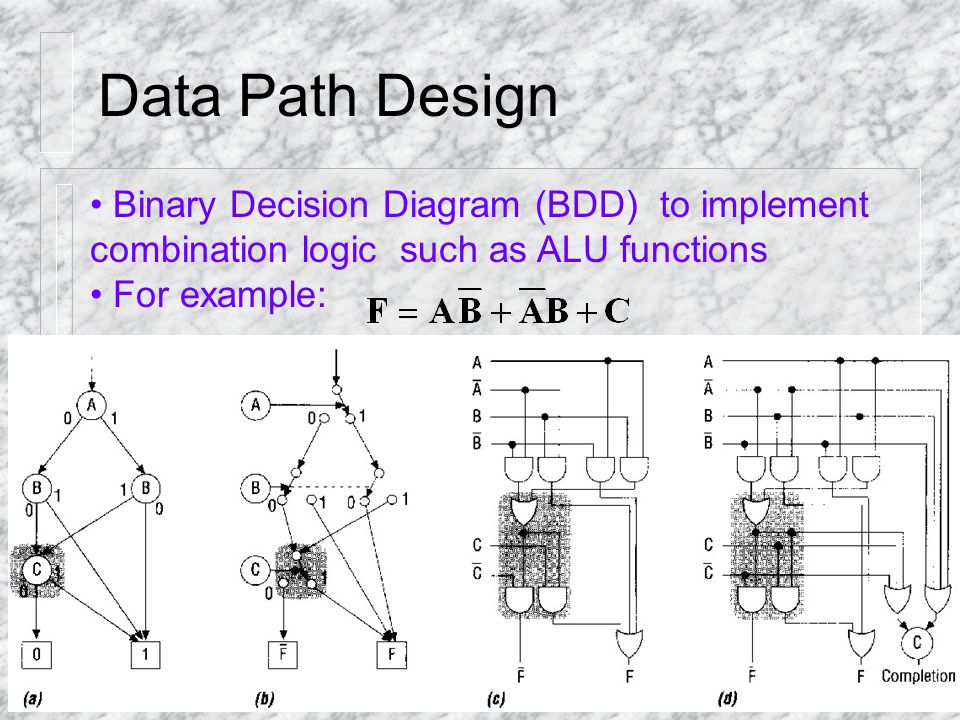

22. Data Path Design Binary Decision Diagram (BDD) to implement combination logic such as ALU functions For example:

23. Data Path Design Binary Decision Diagram (BDD) to implement combination logic such as ALU functions For example:

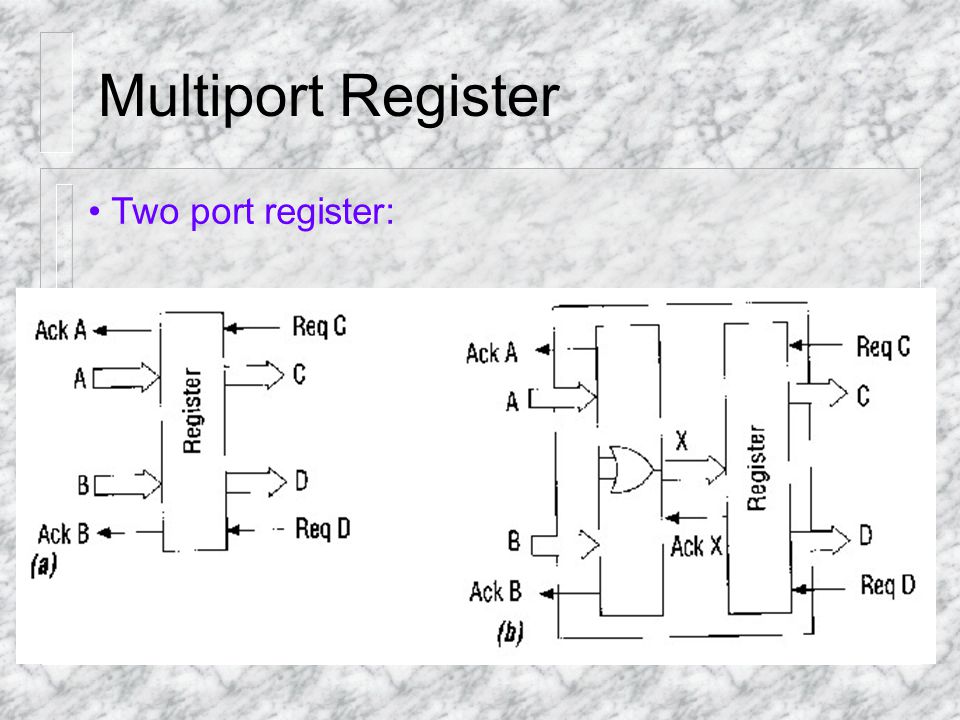

24. Multiport Register Two port register:

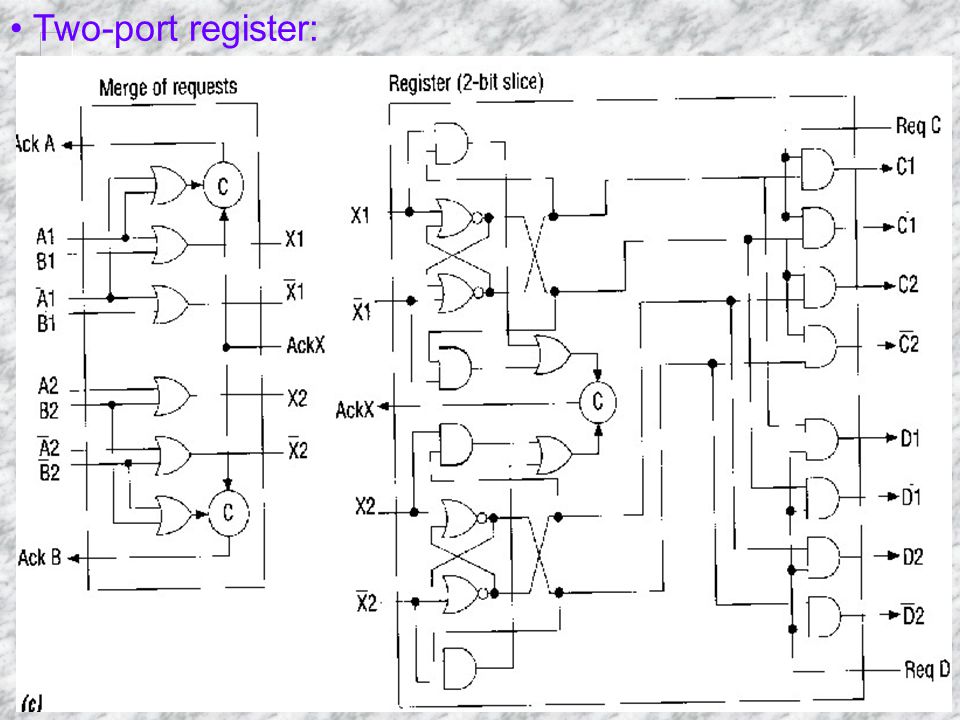

25. Two-port register:

26. Memory
