1. T.E.A.M. Timber Equipment Applications Management Forest Equipment Fire Alert Fire Alert

2. Prepared by T.E.A.M. Members Logging companies Equipmentmanufacturers Equipment dealers Fire prevention specialists Insurance companies Nationwide Forest Equipment Fire Awareness and Education Programs Action

3. Provided by T.E.A.M. for professional Loggers around the world

4. The majority of forest equipment fires are preventable!

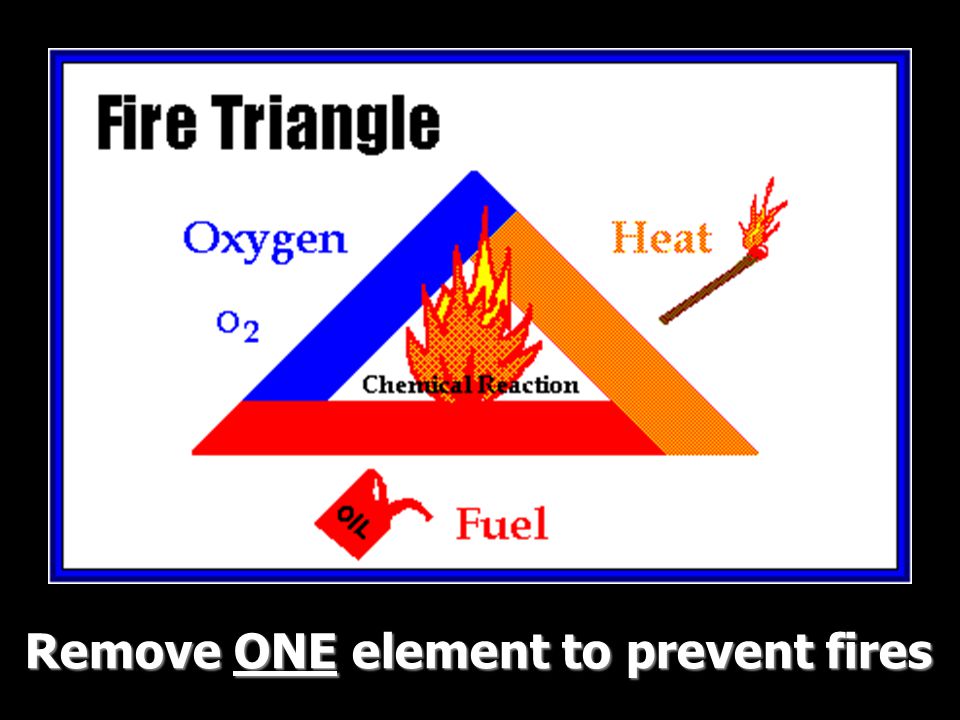

6. Remove ONE element to prevent fires

7. Fuel Sources Diesel Hydraulic Fluid Engine Oil Anti-freeze Gas-oil Mix Bark Insulation (wiring) RagsSawdust Wood Dust

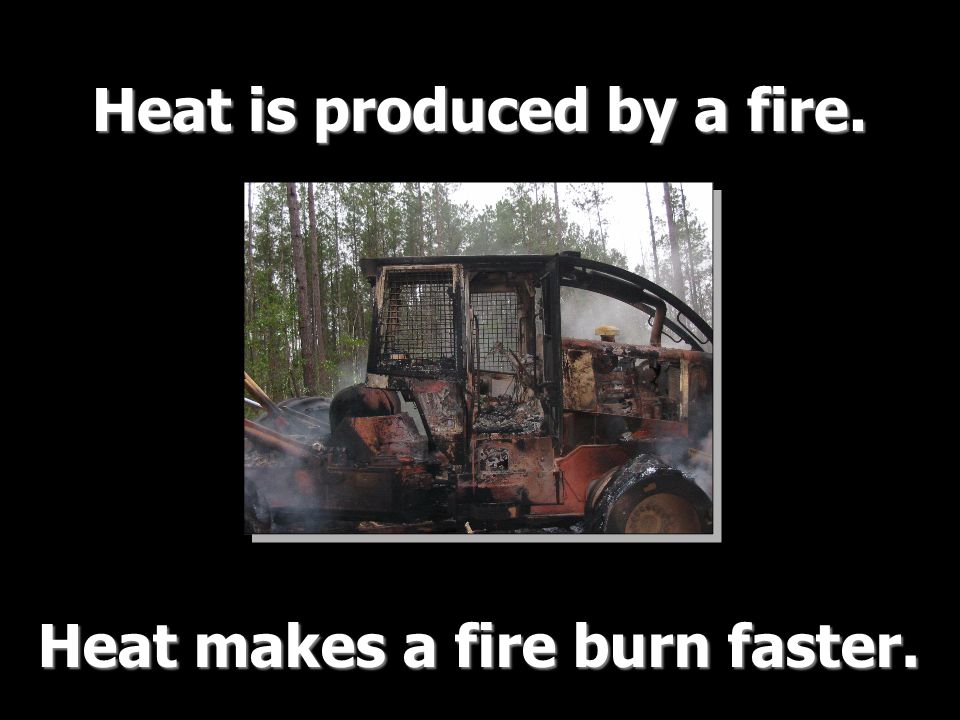

10. Heat makes a fire burn faster. Heat is produced by a fire.

11. Types Of Combustion UncontrolledCombustion ControlledCombustion FlamingCombustion SmolderingCombustion

12. Follow Manufacturers Recommendations Stay with the machine at least 30 minutes after shutdown

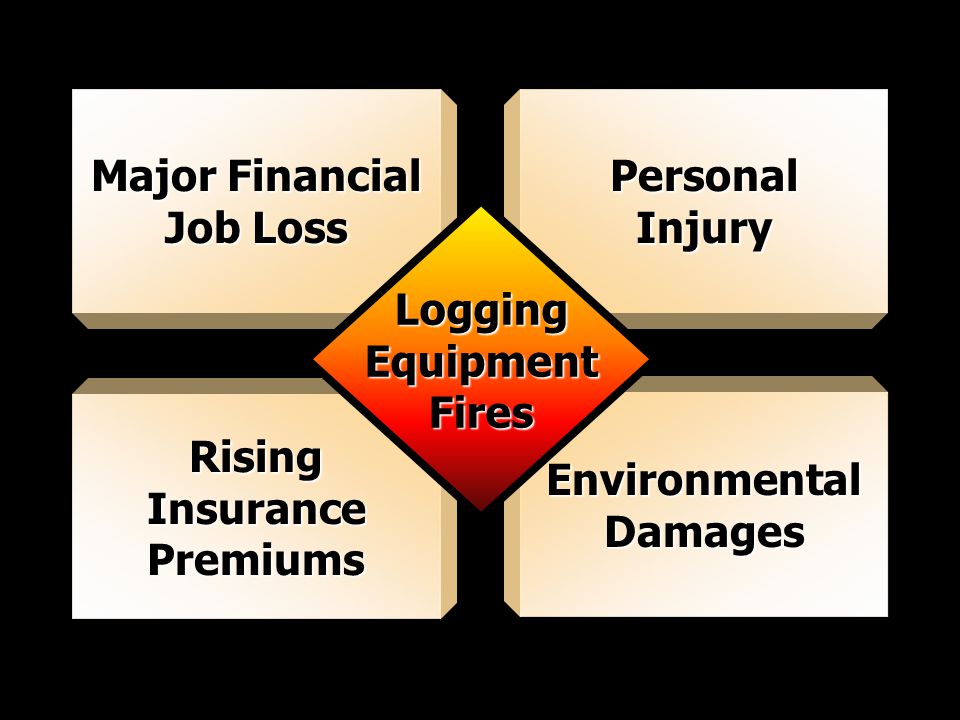

13. RisingInsurancePremiums EnvironmentalDamages Major Financial Job Loss PersonalInjury LoggingEquipmentFires

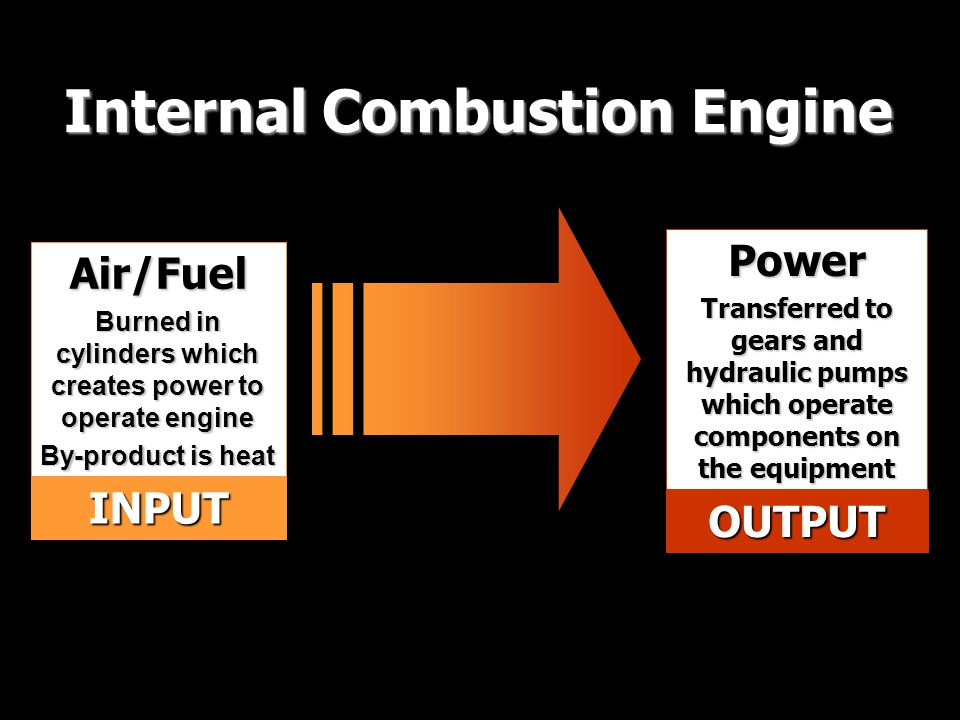

14. Internal Combustion Engine Air/Fuel Burned in cylinders which creates power to operate engine By-product is heat Power Transferred to gears and hydraulic pumps which operate components on the equipment INPUT OUTPUT

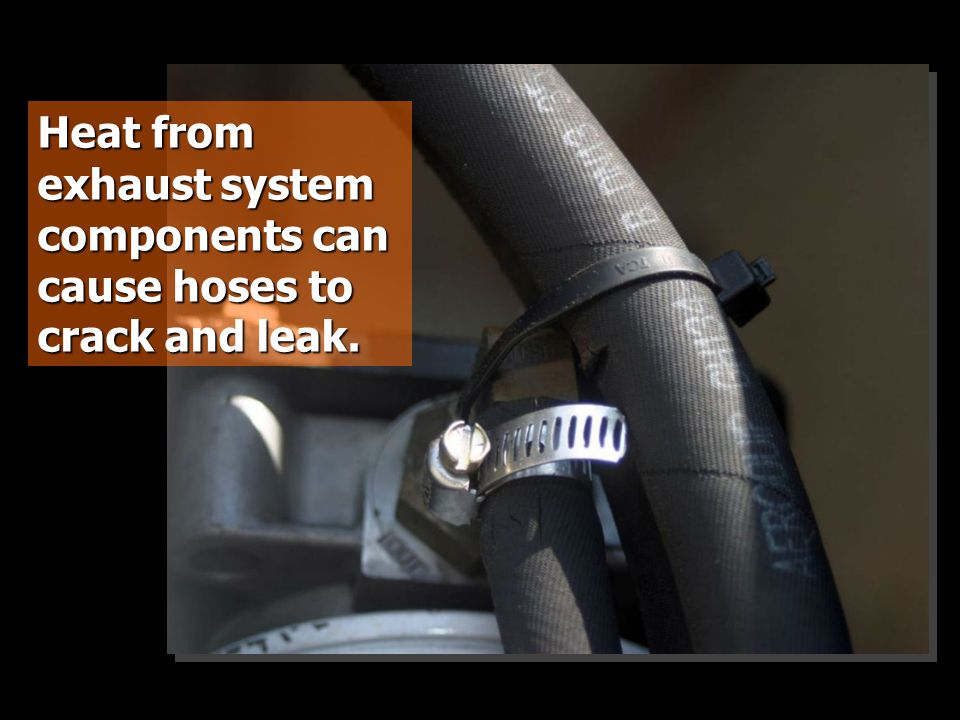

16. Heat from exhaust system components can cause hoses to crack and leak.

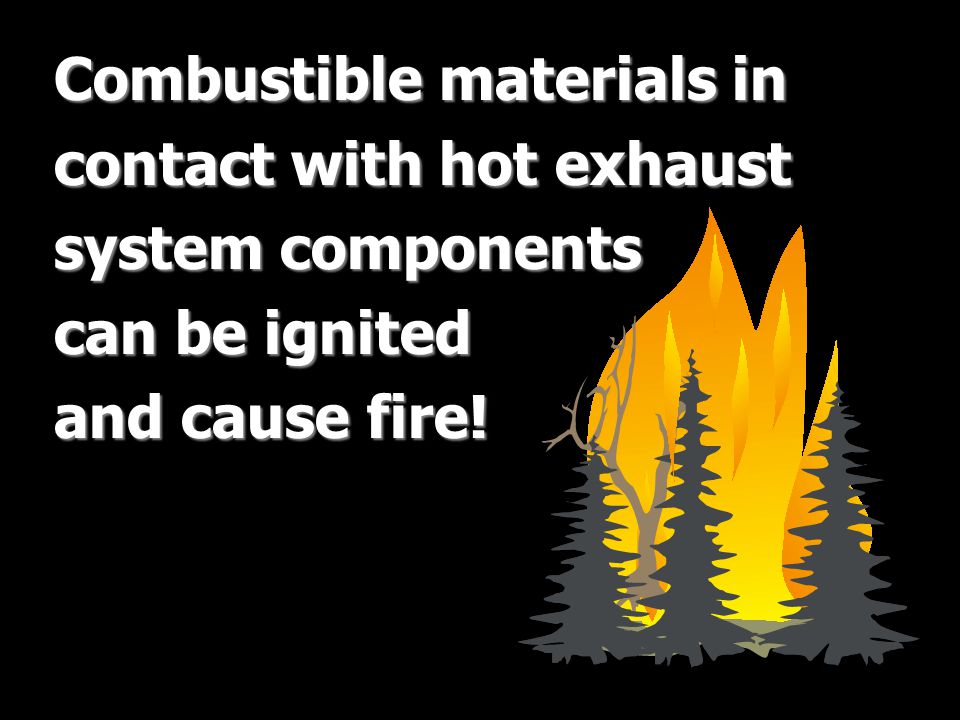

17. Combustible materials in contact with hot exhaust system components can be ignited and cause fire!

19. Fuel s Fire Danger in the Woods Dust Dry wood Bark Leaves Needles Peat Sticks Undergrowth

21. Temperature in the Woods Fire in the woods will ignite much easier on hot daysFire in the woods will ignite much easier on hot days Fire in the woods will spread faster on hot daysFire in the woods will spread faster on hot days Fire in the woods will ignite much easier on hot daysFire in the woods will ignite much easier on hot days Fire in the woods will spread faster on hot daysFire in the woods will spread faster on hot days

22. Wind in the Woods Dries out the fuel making it easier to igniteDries out the fuel making it easier to ignite Makes fire burn fasterMakes fire burn faster Dries out the fuel making it easier to igniteDries out the fuel making it easier to ignite Makes fire burn fasterMakes fire burn faster

24. Fan air inside an engine compartment will also dry out fuelsFan air inside an engine compartment will also dry out fuels Fan air will make fire in the engine compartment burn fasterFan air will make fire in the engine compartment burn faster Fan air inside an engine compartment will also dry out fuelsFan air inside an engine compartment will also dry out fuels Fan air will make fire in the engine compartment burn fasterFan air will make fire in the engine compartment burn faster Fan Air

26. Do not smoke within 50 feet of fueling areas.

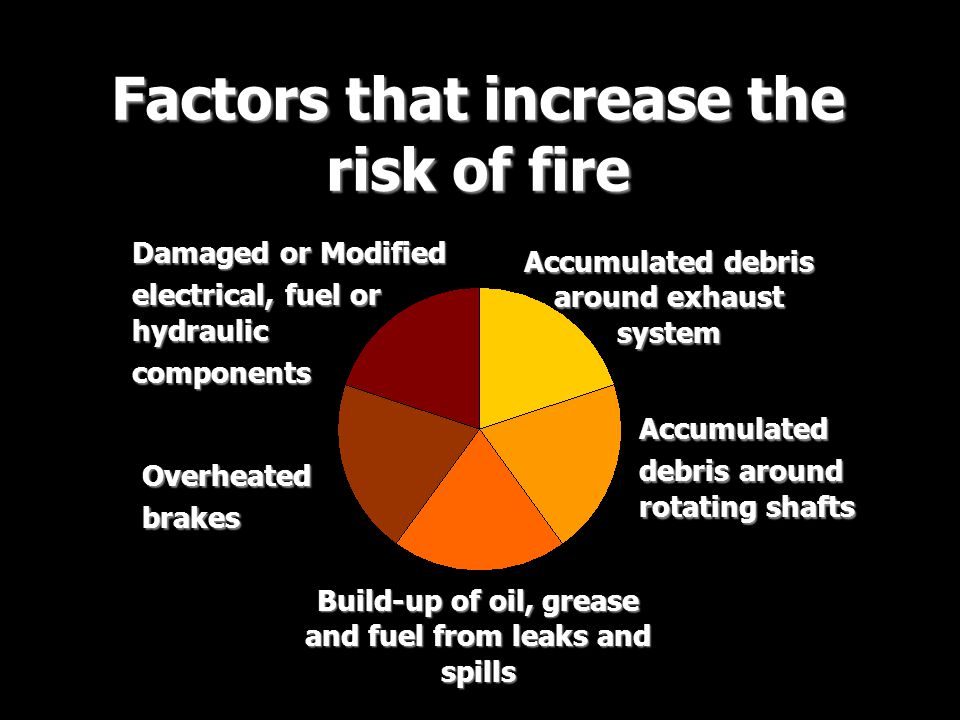

27. Factors that increase the risk of fire Accumulated debris around exhaust system Damaged or Modified electrical, fuel or hydraulic components Build-up of oil, grease and fuel from leaks and spills Accumulated debris around rotating shafts Overheatedbrakes

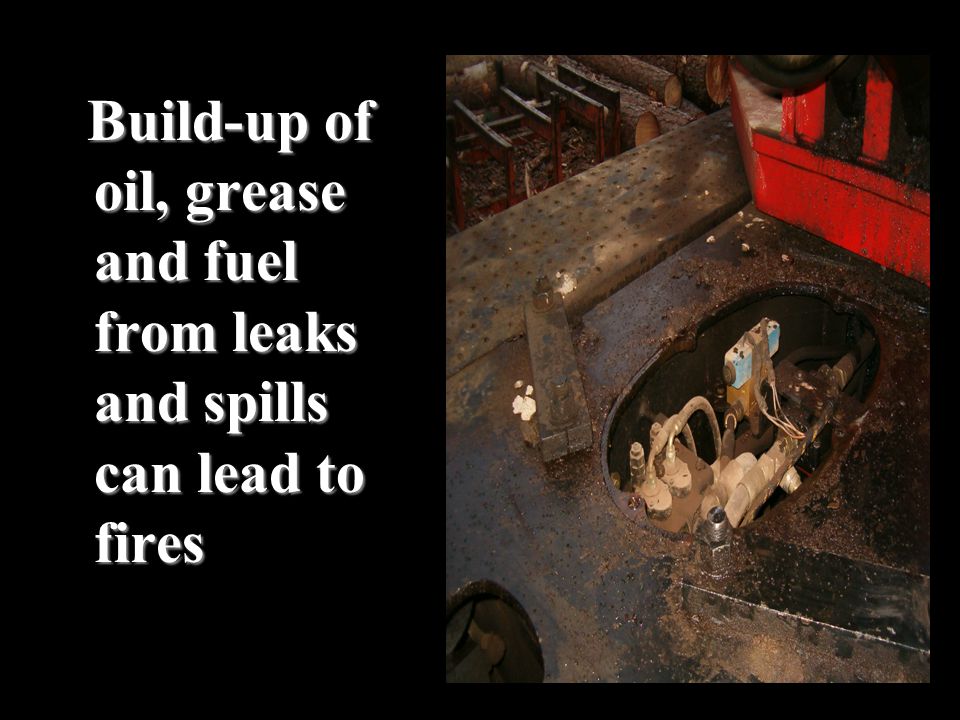

28. Build-up of oil, grease and fuel from leaks and spills can lead to fires Build-up of oil, grease and fuel from leaks and spills can lead to fires

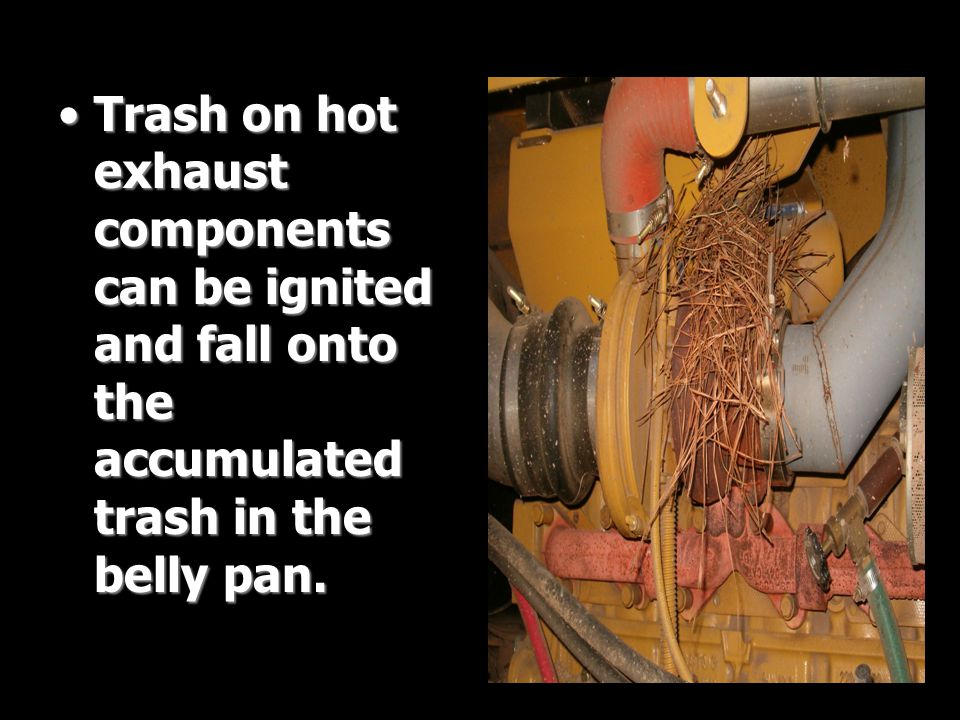

29. Trash on hot exhaust components can be ignited and fall onto the accumulated trash in the belly pan.Trash on hot exhaust components can be ignited and fall onto the accumulated trash in the belly pan.

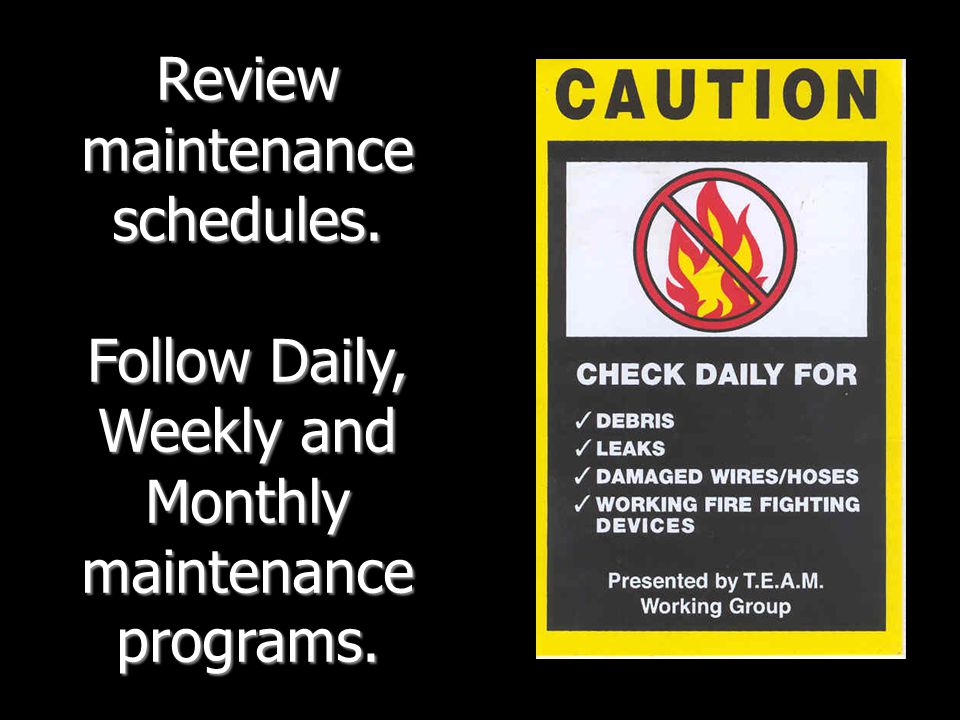

30. Review maintenance schedules. Follow Daily, Weekly and Monthly maintenance programs.

33. Forestry equipment is constructed of combustible materials and MUST NOT be operated in the presence of fire.

35. CLEAN TRAINING Keys to reducing equipment fires REPAIR INSPECT

37. Training Routine steps necessary to reduce the risk of fire: Repair Use only operators who have been trained to use the logging equipment Repair or replace any defective components Inspect Inspect battery cables, electrical wiring, hydraulic/fuel line connections and components Clean Clean engine and exhaust system of accumulated debris at least once daily

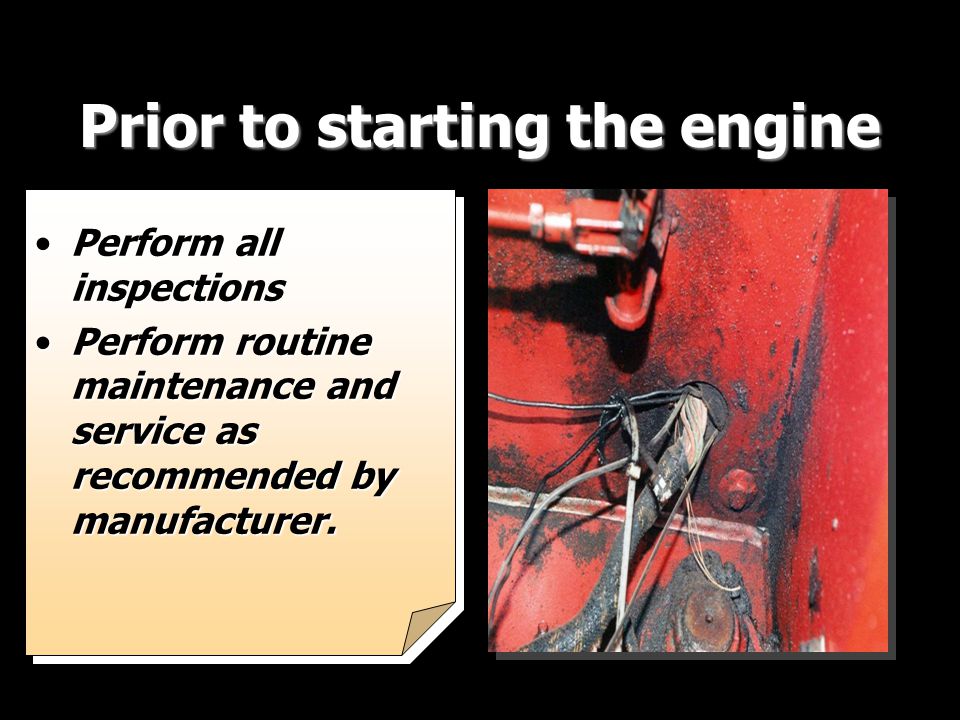

38. Prior to starting the engine Perform all inspectionsPerform all inspections Perform routine maintenance and service as recommended by manufacturer.Perform routine maintenance and service as recommended by manufacturer. Perform all inspectionsPerform all inspections Perform routine maintenance and service as recommended by manufacturer.Perform routine maintenance and service as recommended by manufacturer.

39. Drop belly pans and steam clean or pressure wash unitDrop belly pans and steam clean or pressure wash unit Clean and service the engine and hydraulic cooling systems to avoid overheatingClean and service the engine and hydraulic cooling systems to avoid overheating Clean unit often! Drop belly pans and steam clean or pressure wash unitDrop belly pans and steam clean or pressure wash unit Clean and service the engine and hydraulic cooling systems to avoid overheatingClean and service the engine and hydraulic cooling systems to avoid overheating Clean unit often! Follow a Maintenance Schedule

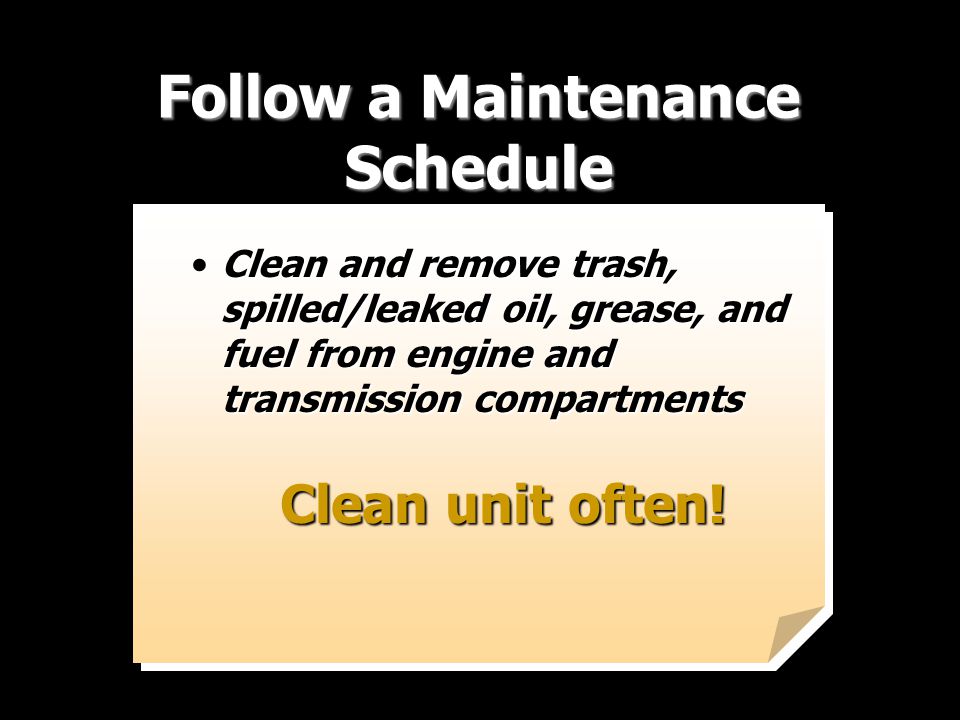

41. Clean and remove trash, spilled/leaked oil, grease, and fuel from engine and transmission compartmentsClean and remove trash, spilled/leaked oil, grease, and fuel from engine and transmission compartments Clean unit often! Clean and remove trash, spilled/leaked oil, grease, and fuel from engine and transmission compartmentsClean and remove trash, spilled/leaked oil, grease, and fuel from engine and transmission compartments Clean unit often! Follow a Maintenance Schedule

43. Before fueling shut off the engine.

44. Maintain all protective shields, screens, belly pans and covers.Maintain all protective shields, screens, belly pans and covers. The frequency of cleaning and inspections will vary depending on operating conditions.The frequency of cleaning and inspections will vary depending on operating conditions. Clean unit often! Maintain all protective shields, screens, belly pans and covers.Maintain all protective shields, screens, belly pans and covers. The frequency of cleaning and inspections will vary depending on operating conditions.The frequency of cleaning and inspections will vary depending on operating conditions. Clean unit often! Follow a Maintenance Schedule

45. Park equipment at least 50 feet away from other equipmentPark equipment at least 50 feet away from other equipment Park equipment in an area cleared of excess ground debris.Park equipment in an area cleared of excess ground debris. Turn off ignition and battery disconnect switch if available on unit.Turn off ignition and battery disconnect switch if available on unit. Park equipment at least 50 feet away from other equipmentPark equipment at least 50 feet away from other equipment Park equipment in an area cleared of excess ground debris.Park equipment in an area cleared of excess ground debris. Turn off ignition and battery disconnect switch if available on unit.Turn off ignition and battery disconnect switch if available on unit. Shutdown Procedure

46. Park equipment at least 50 feet away from other equipment Park equipment at least 50 feet away from other equipment!

47. Observe the machines for 30 minutes to ensure proper cool down.Observe the machines for 30 minutes to ensure proper cool down. Remove all keys, lock equipment and fuel cap.Remove all keys, lock equipment and fuel cap. Remove hydraulic pressure by grounding blades, grapples, booms, and attachments.Remove hydraulic pressure by grounding blades, grapples, booms, and attachments. Observe the machines for 30 minutes to ensure proper cool down.Observe the machines for 30 minutes to ensure proper cool down. Remove all keys, lock equipment and fuel cap.Remove all keys, lock equipment and fuel cap. Remove hydraulic pressure by grounding blades, grapples, booms, and attachments.Remove hydraulic pressure by grounding blades, grapples, booms, and attachments. Shutdown Procedure

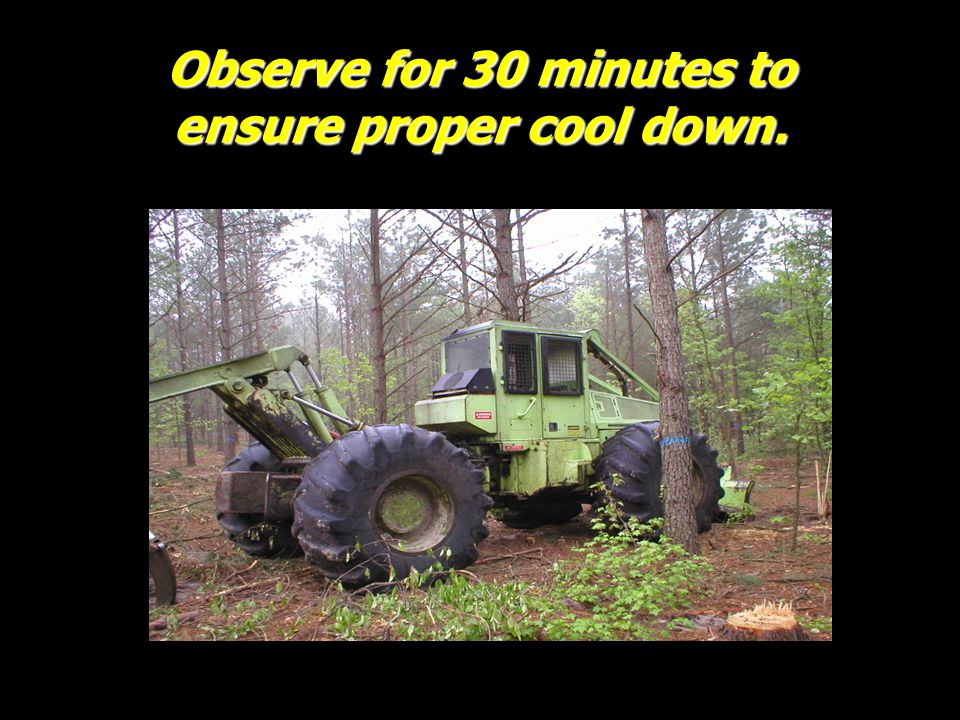

48. Observe for 30 minutes to ensure proper cool down.

49. Train equipment operators to develop good cleaning and maintenance habits and how to recognize potential fire hazards. You can reduce fire losses.

51. Train operators to use fire extinguishers and suppression systems.Train operators to use fire extinguishers and suppression systems. Maintain at least one charged and operable fire extinguisher in each machine.Maintain at least one charged and operable fire extinguisher in each machine. Train operators to use fire extinguishers and suppression systems.Train operators to use fire extinguishers and suppression systems. Maintain at least one charged and operable fire extinguisher in each machine.Maintain at least one charged and operable fire extinguisher in each machine. Fire Fighting Equipment and Systems:

52. Maintain onboard Fire Suppression System as recommended by manufacturer.Maintain onboard Fire Suppression System as recommended by manufacturer. Fire Fighting Equipment and Systems:

54. The presence of a fixed fire suppression system DOES NOT eliminate the need for daily inspections, maintenance and cleaning!

56. Read, understand and follow manufacturer’s directions for maintenance of fixed on-board fire suppression equipment.

57. IN CASE OF FIRE DO NOT PANIC!

58. Maintain onboard Fire Suppression System as recommended by manufacturer.Maintain onboard Fire Suppression System as recommended by manufacturer.

59. HAVE APPROPRIATE FIRE EXTINGUISHERS AVAILABLE!

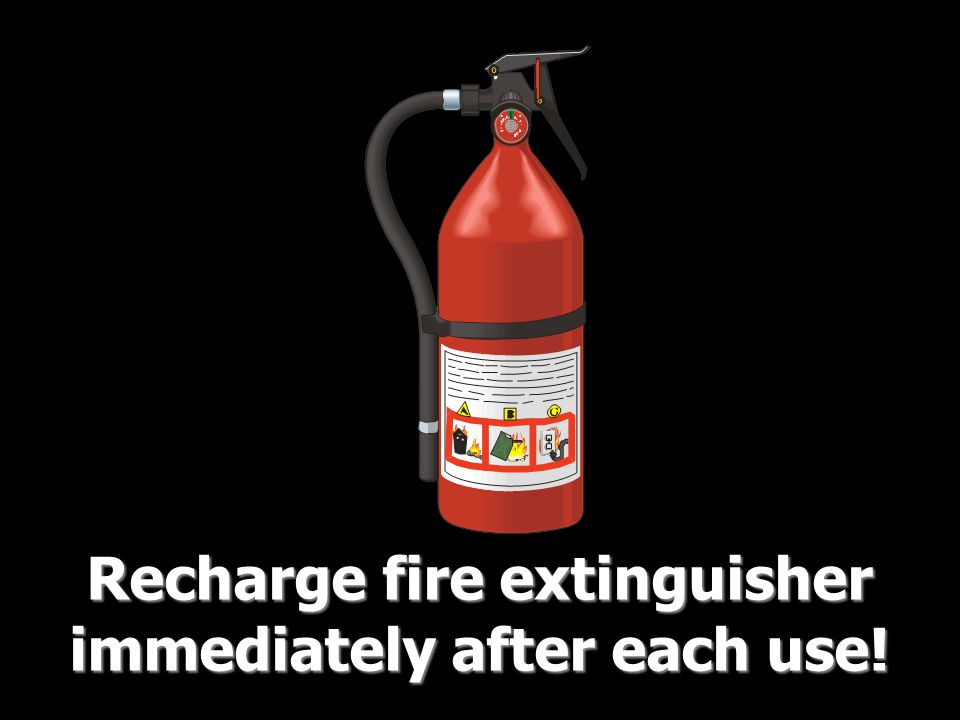

60. Recharge fire extinguisher immediately after each use!

62. Prior to using a cutting or welding device, disconnect the battery, clean the machine and if necessary wet the work area down with water.Prior to using a cutting or welding device, disconnect the battery, clean the machine and if necessary wet the work area down with water. Fire Prevention Tips

63. Keep a charged and operable fire extinguisher present during this work.Keep a charged and operable fire extinguisher present during this work. Do not transport flammable liquids, i.e., gasoline, etc., on the machine.Do not transport flammable liquids, i.e., gasoline, etc., on the machine. Keep a charged and operable fire extinguisher present during this work.Keep a charged and operable fire extinguisher present during this work. Do not transport flammable liquids, i.e., gasoline, etc., on the machine.Do not transport flammable liquids, i.e., gasoline, etc., on the machine. Fire Prevention Tips

64. Properly Trained Operators & Properly Maintained Machines Are The Key

65. REMEMBER: Insurance is Math Not Magic Reducing Fire Loss Potential Will Save You Money!!!

66. Prepared by T.E.A.M. Members Logging companies Equipmentmanufacturers Equipment dealers Fire prevention specialists Insurance companies Nationwide Forest Equipment Fire Awareness and Education Programs Action
