© 2006 BEI Technologies 1-800-ENCODER, www.beiied.com Installing the LN Linear Encoder Note: The following installation example is for demonstration purposes.

Similar presentations


Presentation on theme: "© 2006 BEI Technologies 1-800-ENCODER, www.beiied.com Installing the LN Linear Encoder Note: The following installation example is for demonstration purposes."— Presentation transcript:

1 © 2006 BEI Technologies ENCODER, Installing the LN Linear Encoder Note: The following installation example is for demonstration purposes only and may not reflect your exact installation requirements.

2 © 2006 BEI Technologies ENCODER, Installing the read head

3 © 2006 BEI Technologies ENCODER, Correct Read head alignment Read head must be parallel to the axis of travel to within ± 0.002” Readhead (Front) Top Axis of travel

4 © 2006 BEI Technologies ENCODER, Incorrect Read head alignment Damage to scale and / or read head imminent! Readhead (Front) Top Axis of travel

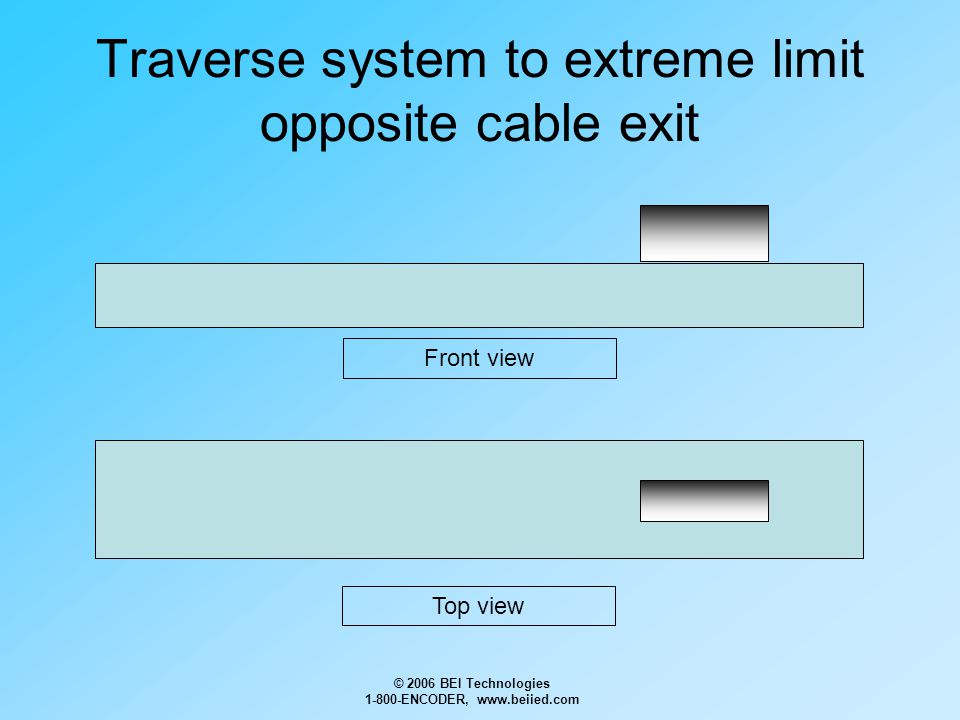

5 © 2006 BEI Technologies ENCODER, Traverse system to extreme limit opposite cable exit Front view Top view

6 © 2006 BEI Technologies ENCODER, Gently run scale through read head Front view Top view

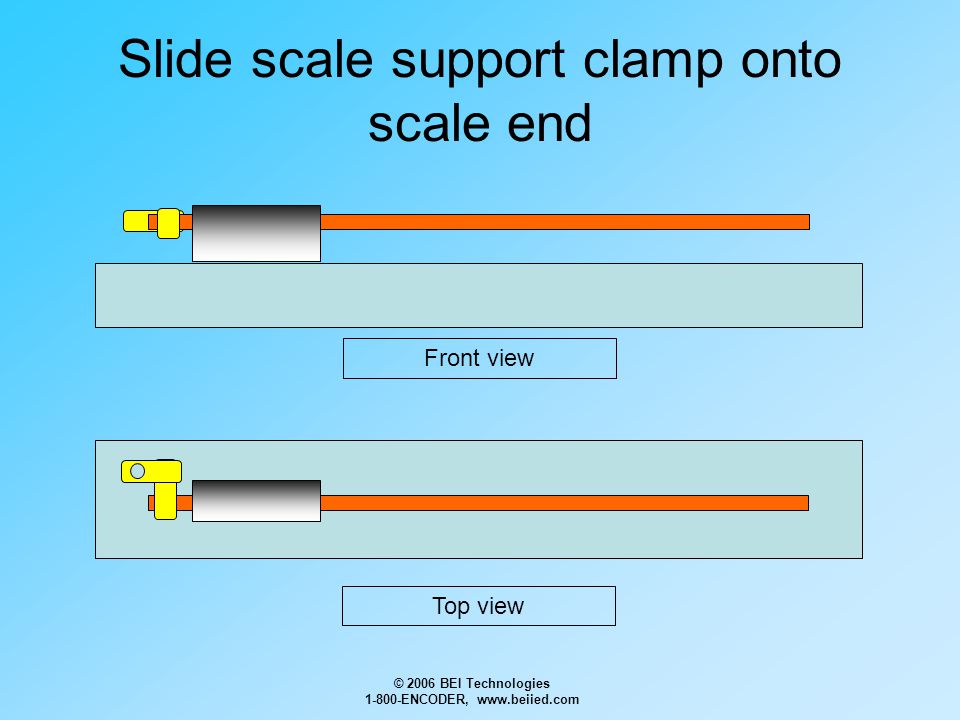

7 © 2006 BEI Technologies ENCODER, Slide scale support clamp onto scale end Front view Top view

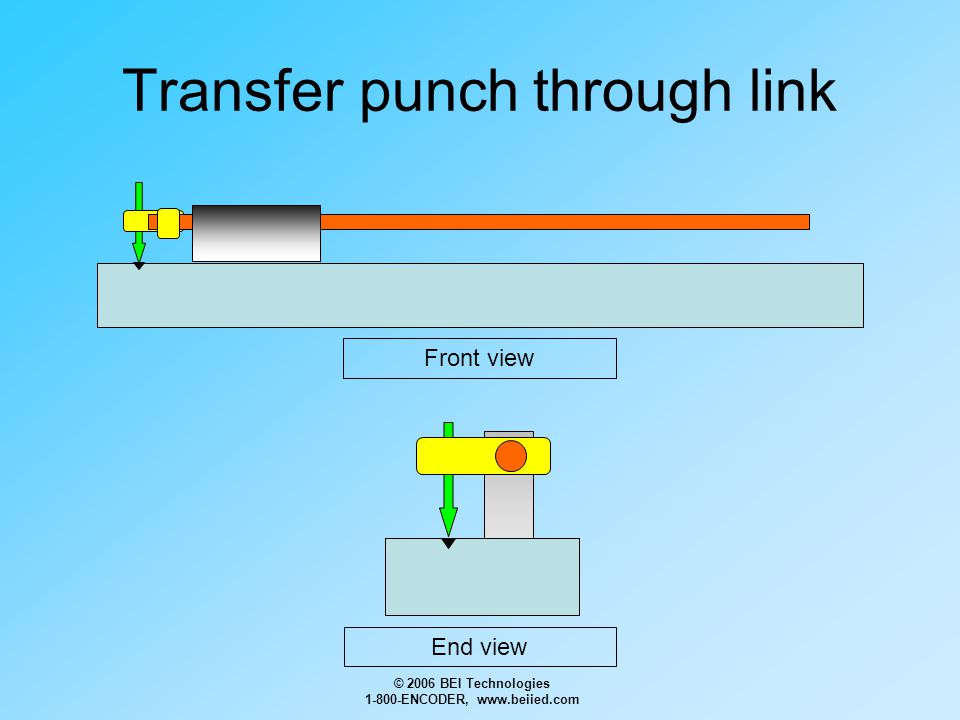

8 © 2006 BEI Technologies ENCODER, Transfer punch through link Front view End view

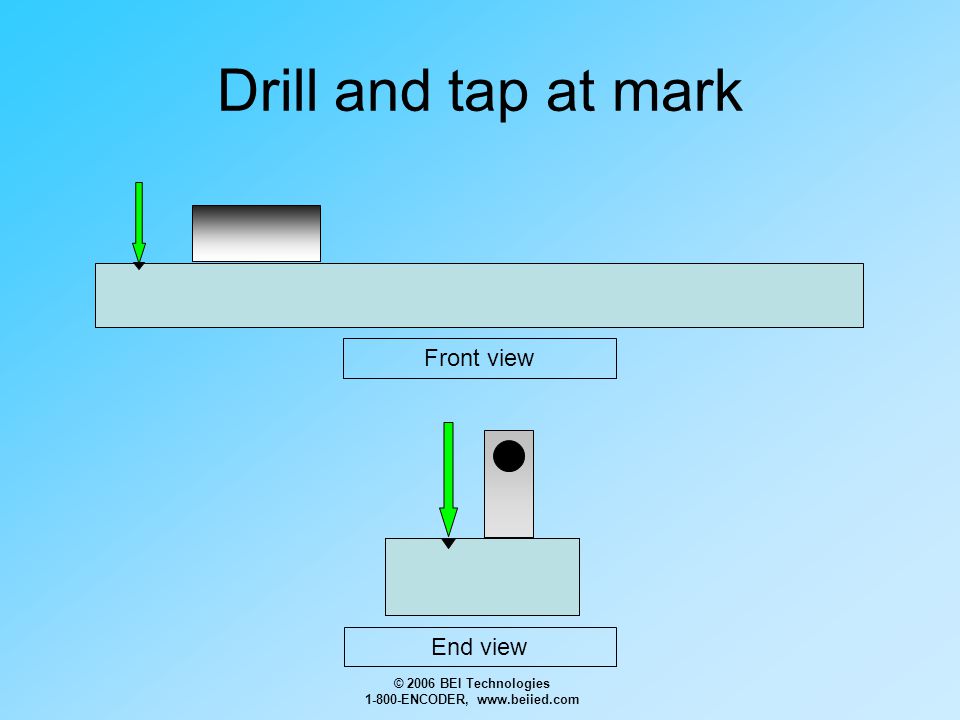

9 © 2006 BEI Technologies ENCODER, Drill and tap at mark Front view End view

10 © 2006 BEI Technologies ENCODER, Install support pillar, then loosely attach scale bracket Front view End view

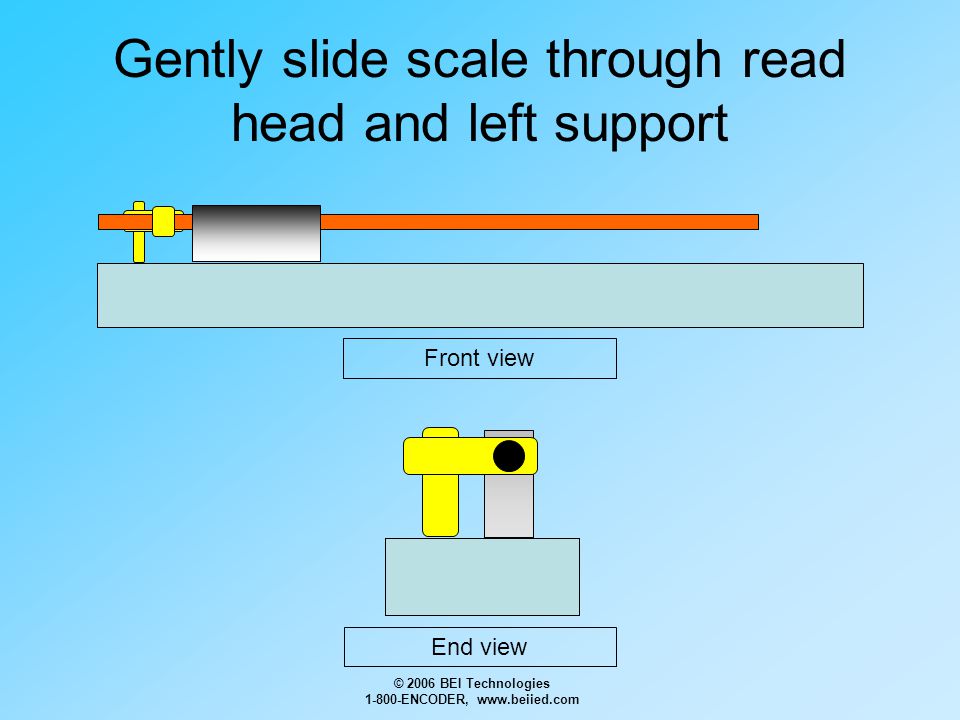

11 © 2006 BEI Technologies ENCODER, Gently slide scale through read head and left support Front view End view

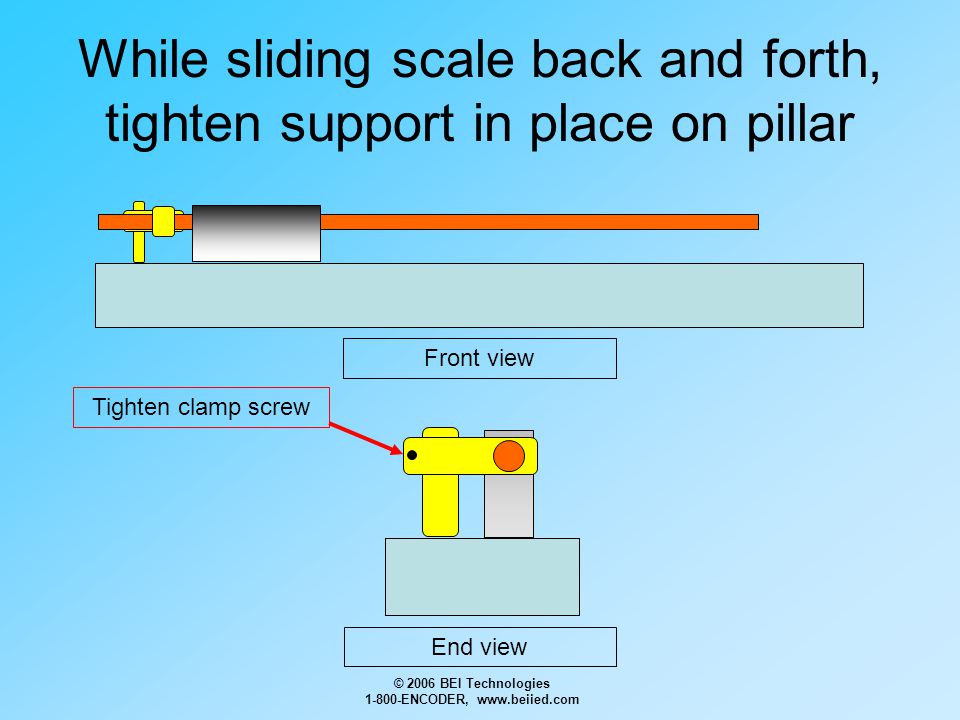

12 © 2006 BEI Technologies ENCODER, While sliding scale back and forth, tighten support in place on pillar Front view End view Tighten clamp screw

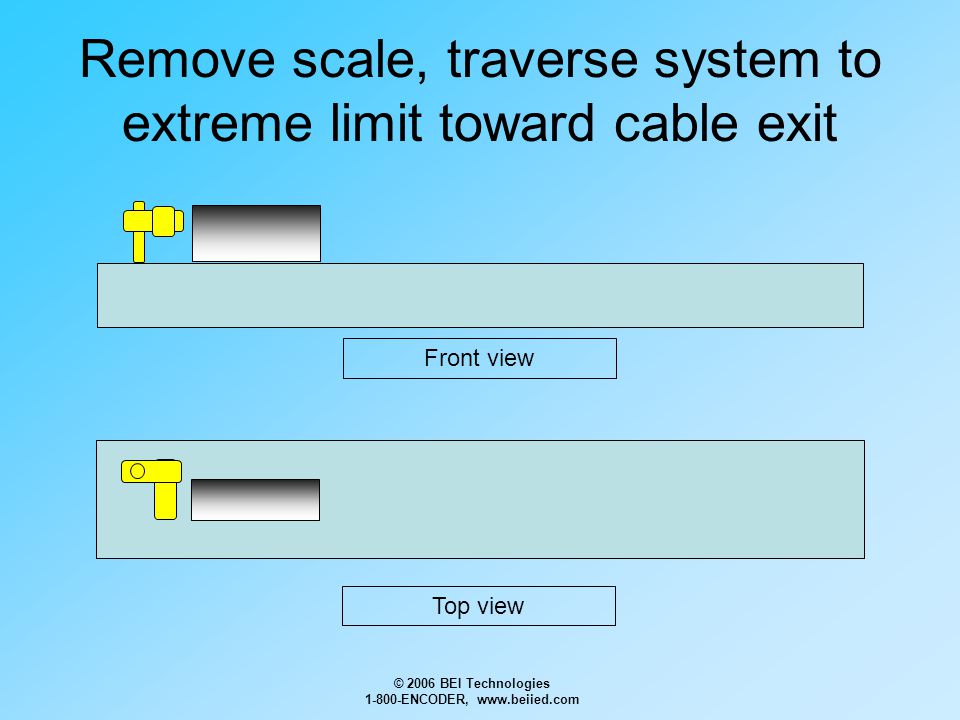

13 © 2006 BEI Technologies ENCODER, Remove scale, traverse system to extreme limit toward cable exit Front view Top view

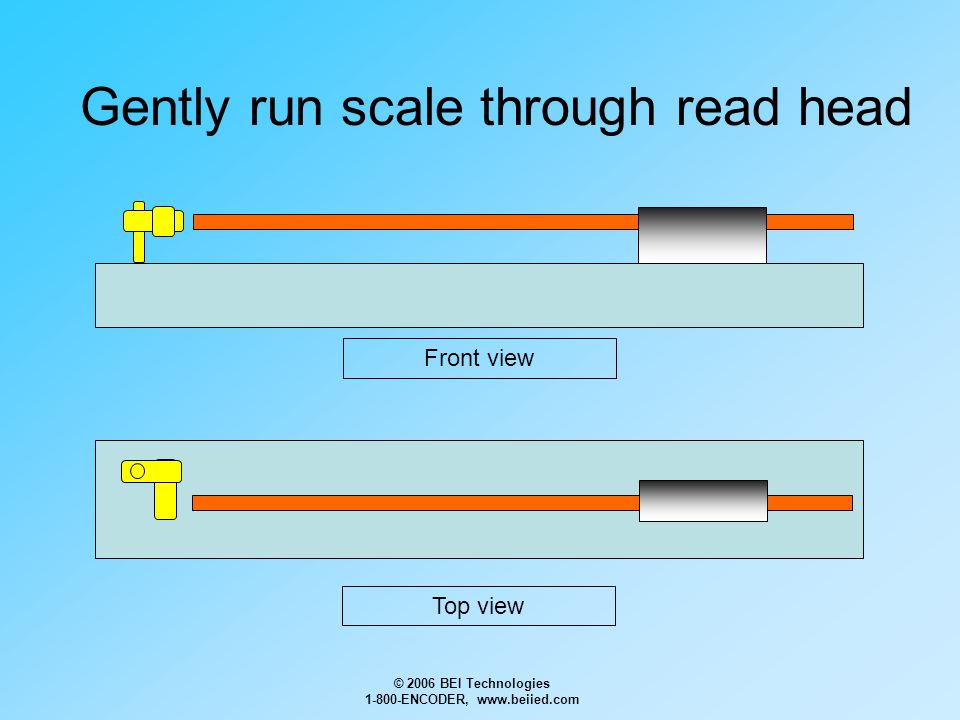

14 © 2006 BEI Technologies ENCODER, Front view Top view Gently run scale through read head

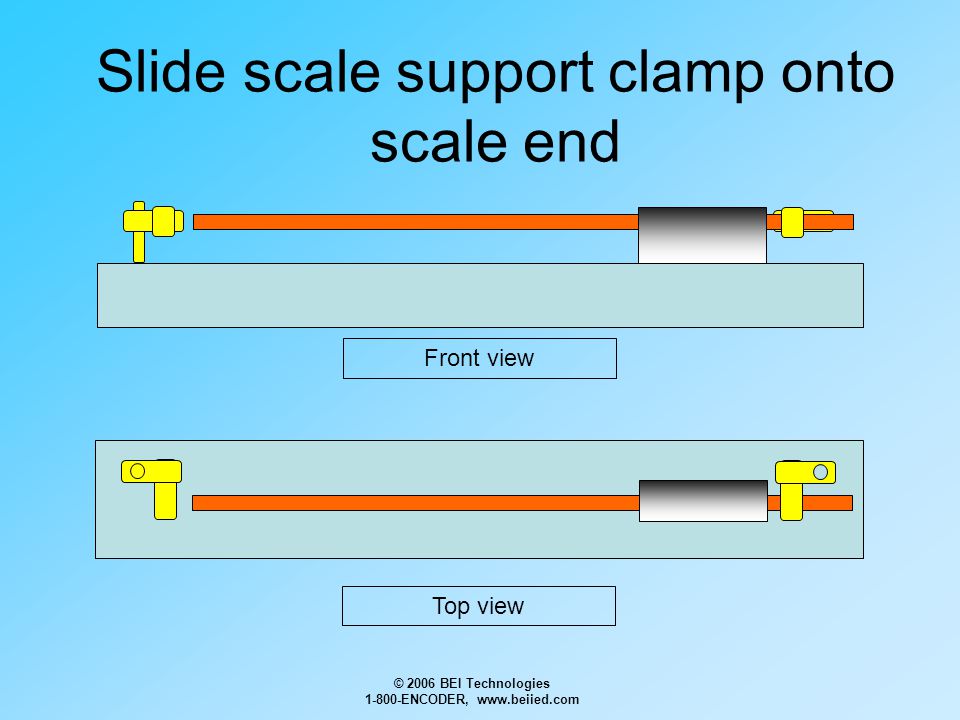

15 © 2006 BEI Technologies ENCODER, Front view Top view Slide scale support clamp onto scale end

16 © 2006 BEI Technologies ENCODER, Transfer punch through link Front view End view

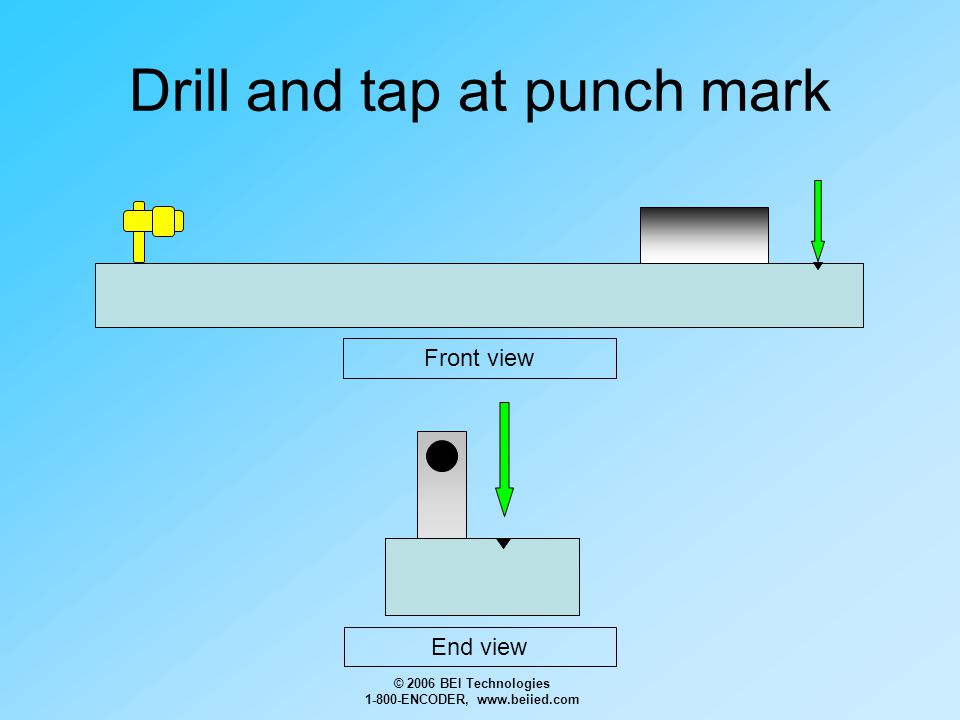

17 © 2006 BEI Technologies ENCODER, Drill and tap at punch mark Front view End view

18 © 2006 BEI Technologies ENCODER, Install support pillar, then loosely attach scale bracket Front view End view

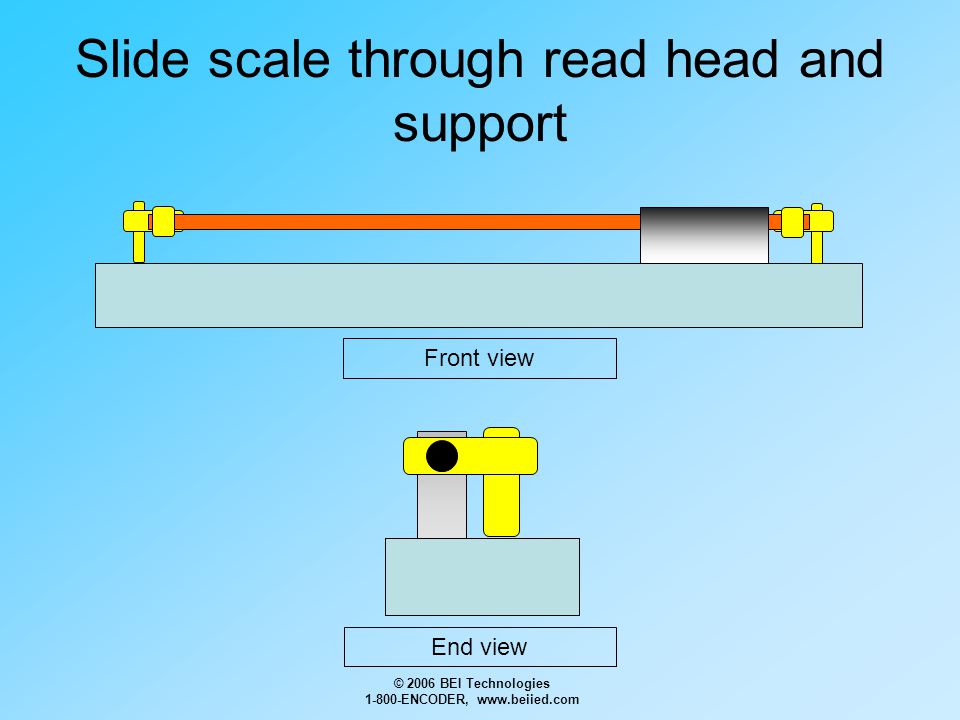

19 © 2006 BEI Technologies ENCODER, Slide scale through read head and support Front view End view

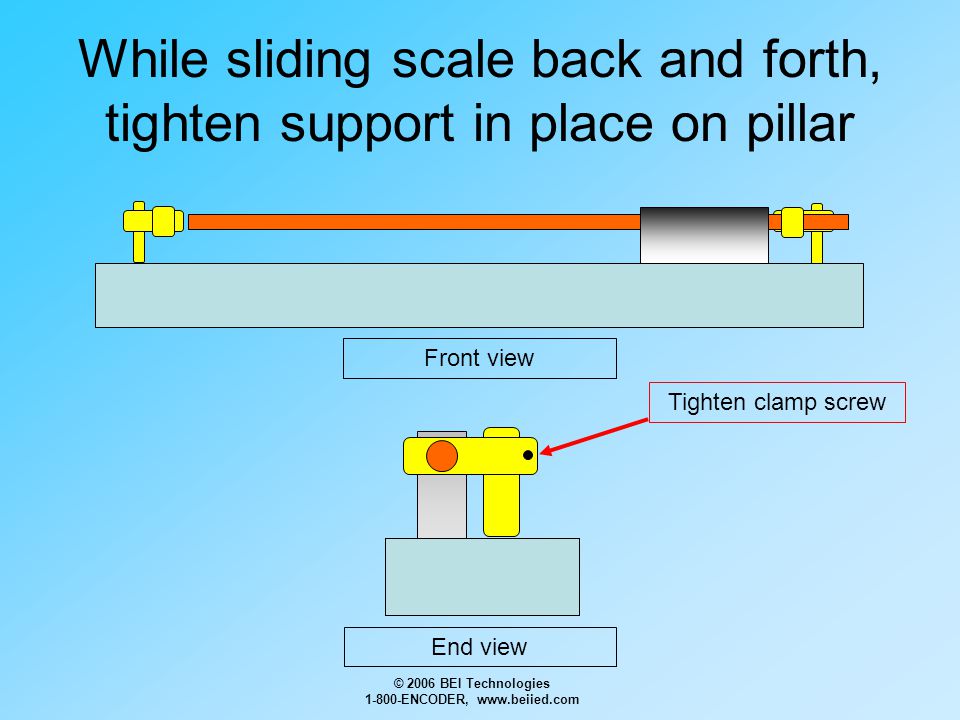

20 © 2006 BEI Technologies ENCODER, While sliding scale back and forth, tighten support in place on pillar Front view End view Tighten clamp screw

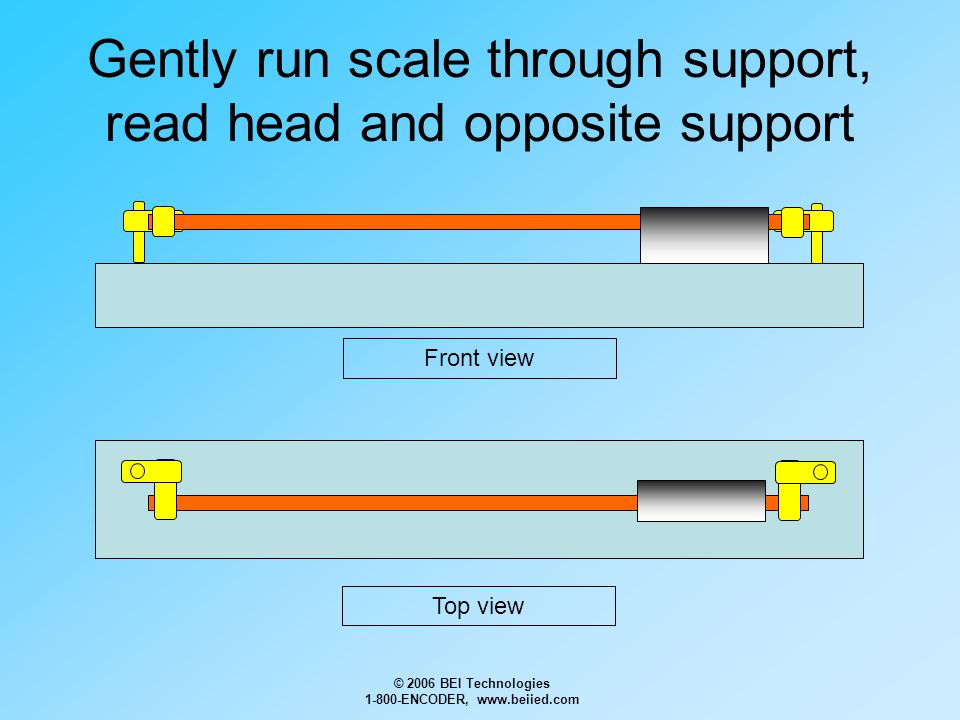

21 © 2006 BEI Technologies ENCODER, Gently run scale through support, read head and opposite support Front view Top view

22 © 2006 BEI Technologies ENCODER, Tighten scale clamp at left end Front view Top view

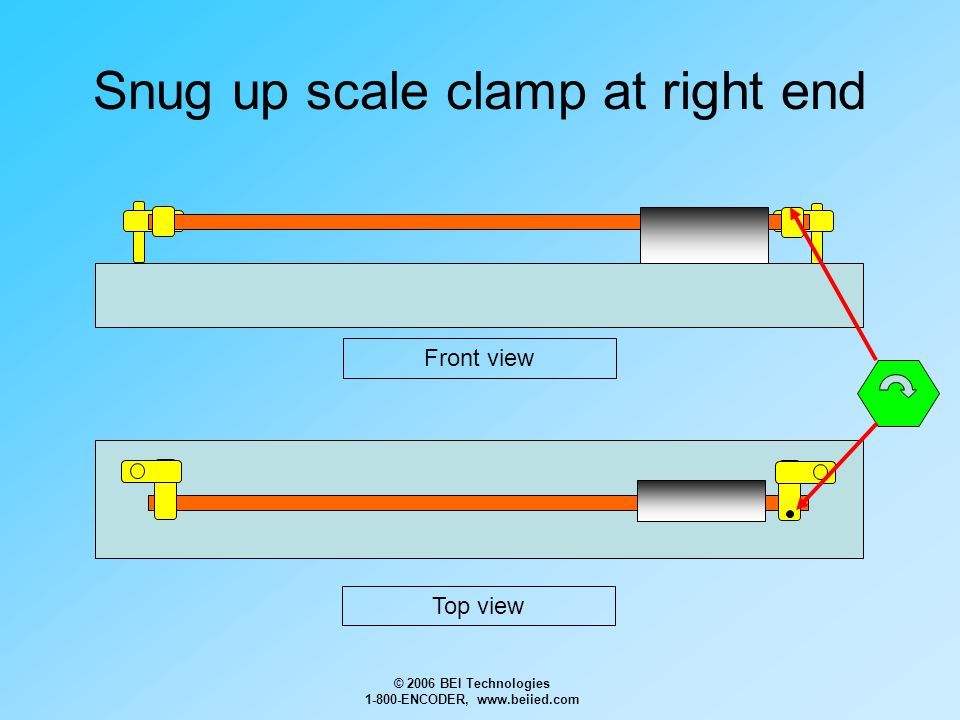

23 © 2006 BEI Technologies ENCODER, Snug up scale clamp at right end Front view Top view

24 © 2006 BEI Technologies ENCODER, If you need further assistance installing your BEI linear encoder, please contact us ENCODER
