1 Design Processes: A Moon Base Habitat Concept Design For Students and Arm Chair Astronauts A teacher’s guide for the study of ‘Design Processes’ for high school students and arm chair astronauts using a moon base Hab design as inspiration. David Willson - NASA Ames/KISS institute of Practical Robotics Source: Wiley J Larson and Linda K Pranke, “Human Space Flight, Mission analysis and design” Mark Gargano - Mars Society Australia, Education Officer

2 Overview Design Processes –Traditional Design Process and Concurrent Engineering Process –Concept Development Process & Team work –Generation of Ideas Design Example: Design an Accommodation Hab for a Moon Base –Define the project aims, scope of work and technical specification –Define the Assumptions –Concept Estimate the volume and define a geometry/shape Define the Structure Estimate the supplies and equipment Estimate the power needs. –Risk Assessment - Concept Design

3 Design Processes Detailed Design process – long time & lots of errors Develop a Very Detailed Concept (2) Concurrent (parallel) Engineering Design Process (How the Japanese out-competed US and European Car Manufacturers: “Kim B.Clark, Takahiro Fujimoto “Product Development Performance” Harvard Business School) (1) Traditional (sequential) Design Process Develop a Rough Concept Various Design disciplines Detailed Design process – shorter time, less errors Finished Product War Room Various Design disciplines

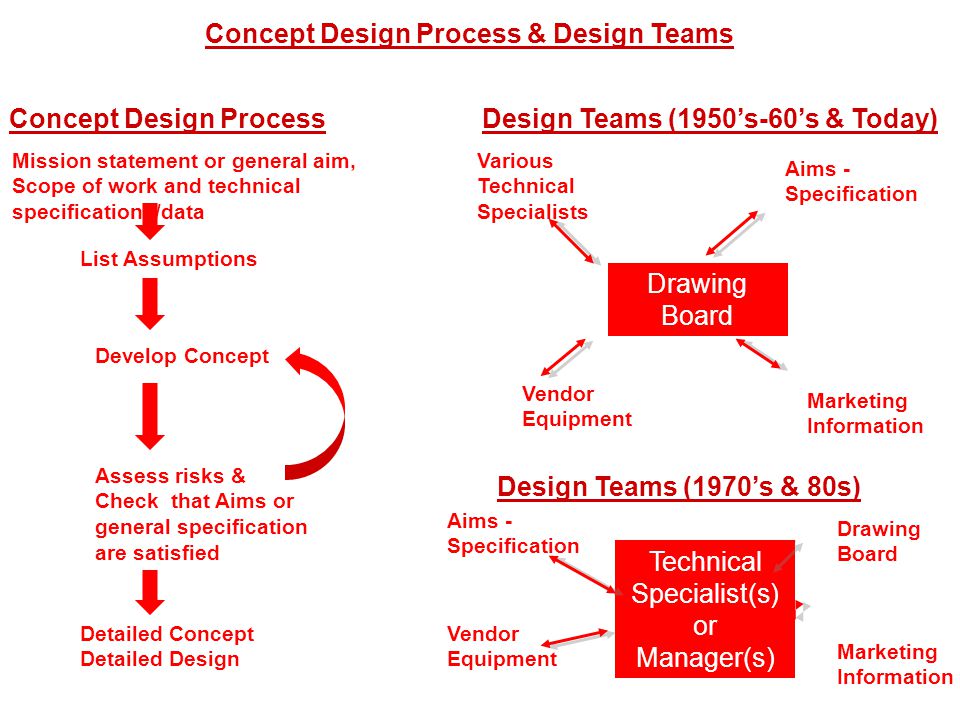

4 Concept Design Process & Design Teams Various Technical Specialists Concept Design Process Detailed Concept Detailed Design Mission statement or general aim, Scope of work and technical specifications/data List Assumptions Develop Concept Assess risks & Check that Aims or general specification are satisfied Design Teams (1950’s-60’s & Today) Drawing Board Aims - Specification Marketing Information Vendor Equipment Design Teams (1970’s & 80s) Technical Specialist(s) or Manager(s) Drawing Board Aims - Specification Vendor Equipment Marketing Information

5 How do we generate new ideas? (Where do they come from?) - Understand the ‘core’ of the problem as best possible before developing a new idea. - One technique is to empty the mind of pre-conceived notions and sketch out thoughts and associations as they come regardless of their impracticality. A new idea can be generated from these thoughts. - Look at the work of artists and science fiction writers. Their ideas may not be workable but can inspire and generate new ones. - Bounce ideas of others. Allow others to add and change. Let the ‘team’ develop the idea. This requires good teamwork. An individual cannot know more than the team.

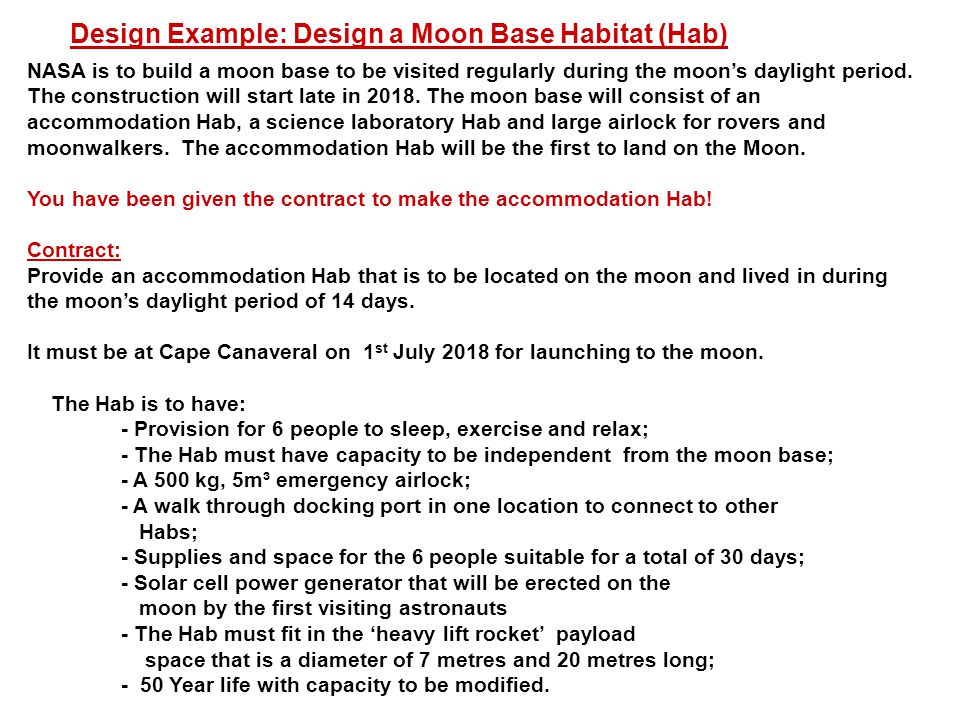

6 Design Example: Design a Moon Base Habitat (Hab) NASA is to build a moon base to be visited regularly during the moon’s daylight period. The construction will start late in The moon base will consist of an accommodation Hab, a science laboratory Hab and large airlock for rovers and moonwalkers. The accommodation Hab will be the first to land on the Moon. You have been given the contract to make the accommodation Hab! Contract: Provide an accommodation Hab that is to be located on the moon and lived in during the moon’s daylight period of 14 days. It must be at Cape Canaveral on 1 st July 2018 for launching to the moon. The Hab is to have: - Provision for 6 people to sleep, exercise and relax; - The Hab must have capacity to be independent from the moon base; - A 500 kg, 5m³ emergency airlock; - A walk through docking port in one location to connect to other Habs; - Supplies and space for the 6 people suitable for a total of 30 days; - Solar cell power generator that will be erected on the moon by the first visiting astronauts - The Hab must fit in the ‘heavy lift rocket’ payload space that is a diameter of 7 metres and 20 metres long; - 50 Year life with capacity to be modified.

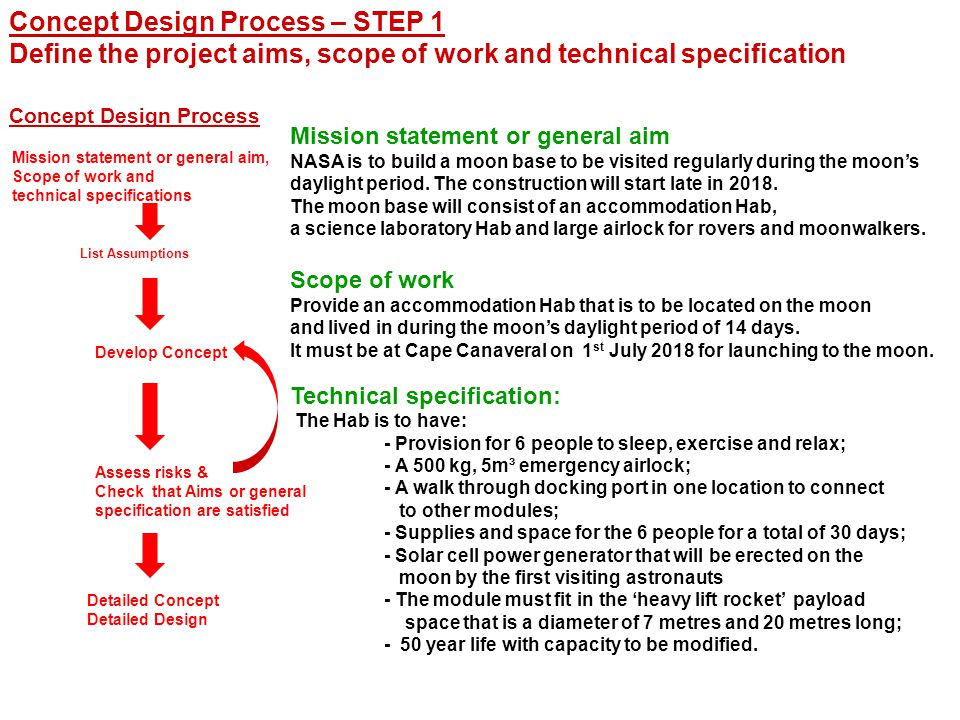

7 Concept Design Process – STEP 1 Define the project aims, scope of work and technical specification Mission statement or general aim NASA is to build a moon base to be visited regularly during the moon’s daylight period. The construction will start late in The moon base will consist of an accommodation Hab, a science laboratory Hab and large airlock for rovers and moonwalkers. Scope of work Provide an accommodation Hab that is to be located on the moon and lived in during the moon’s daylight period of 14 days. It must be at Cape Canaveral on 1 st July 2018 for launching to the moon. Technical specification: The Hab is to have: - Provision for 6 people to sleep, exercise and relax; - A 500 kg, 5m³ emergency airlock; - A walk through docking port in one location to connect to other modules; - Supplies and space for the 6 people for a total of 30 days; - Solar cell power generator that will be erected on the moon by the first visiting astronauts - The module must fit in the ‘heavy lift rocket’ payload space that is a diameter of 7 metres and 20 metres long; - 50 year life with capacity to be modified. Concept Design Process Detailed Concept Detailed Design Mission statement or general aim, Scope of work and technical specifications List Assumptions Develop Concept Assess risks & Check that Aims or general specification are satisfied

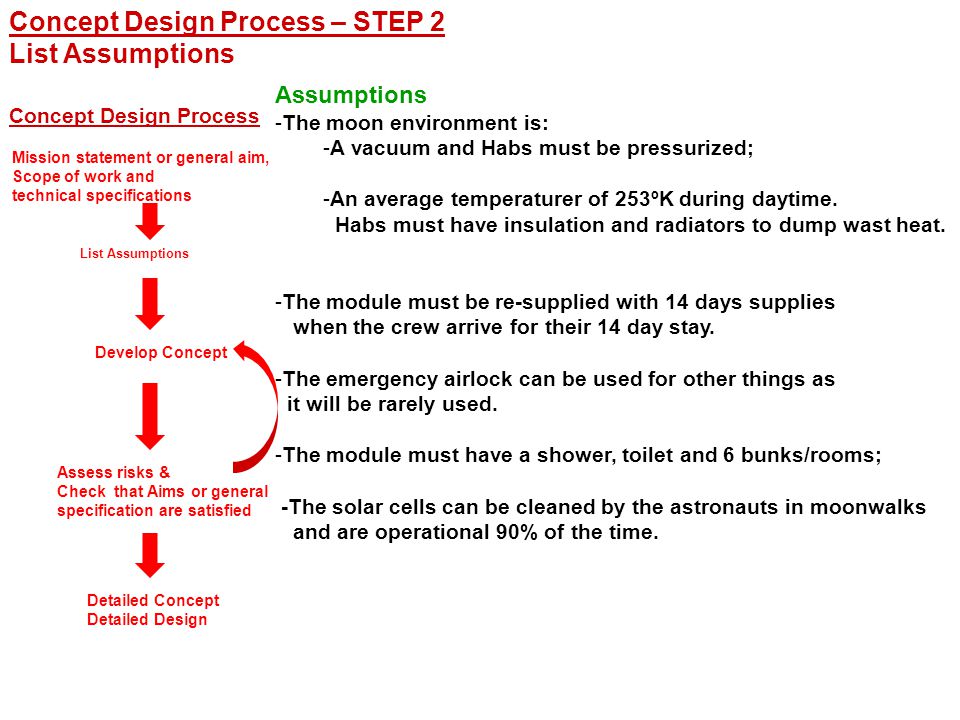

8 Concept Design Process – STEP 2 List Assumptions Assumptions -The moon environment is: -A vacuum and Habs must be pressurized; -An average temperaturer of 253ºK during daytime. Habs must have insulation and radiators to dump wast heat. -The module must be re-supplied with 14 days supplies when the crew arrive for their 14 day stay. -The emergency airlock can be used for other things as it will be rarely used. -The module must have a shower, toilet and 6 bunks/rooms; -The solar cells can be cleaned by the astronauts in moonwalks and are operational 90% of the time. Concept Design Process Detailed Concept Detailed Design Mission statement or general aim, Scope of work and technical specifications List Assumptions Develop Concept Assess risks & Check that Aims or general specification are satisfied

9 Concept Design Process – STEP 3-1 Develop Concept : Estimate the volume and define a geometry/shape - 1 Consider the graph above (NASA-STD-3000) It shows the ‘free’ space per person considered as ‘accepted’ over given time periods. If a person has less than the accepted ‘free’ space then it is considered as ‘intolerable’ for the person. Remember the graph is for spacecraft in orbit with crew in 0 G conditions where ‘free’ space is more easily usable. Our Hab is on the moon. We are to design ‘free’ space for 30 days or 1 month. This translates to a minimum of 4 m³ but better with 10 m³ free space. We will use 10 m³ free space as our minimum bench mark. This is not much – a cube 2.15 metres per side!

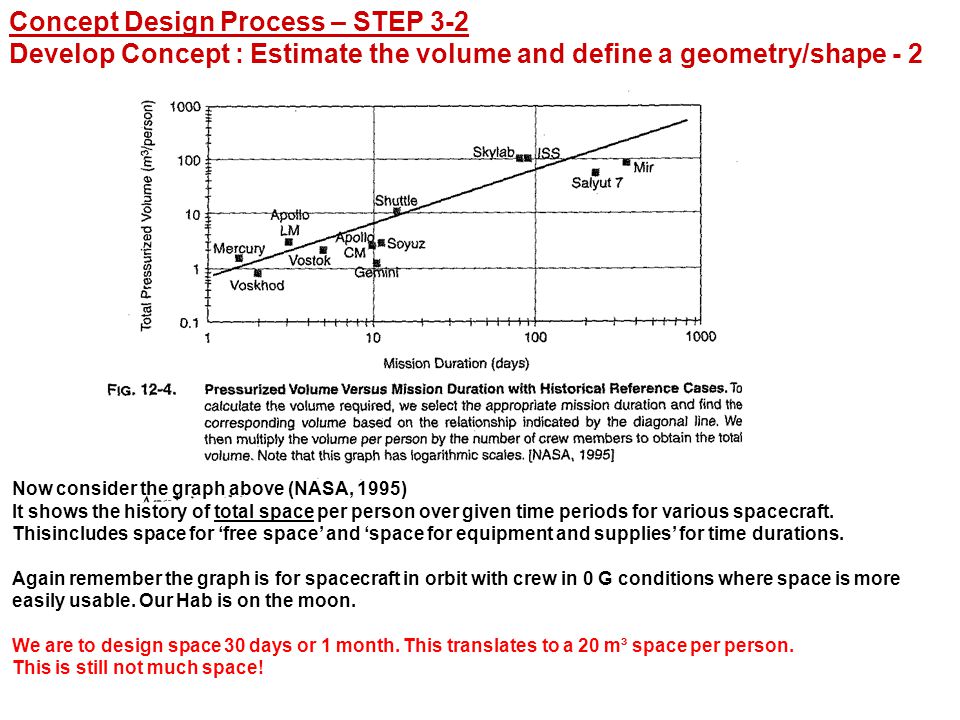

10 Concept Design Process – STEP 3-2 Develop Concept : Estimate the volume and define a geometry/shape - 2 Now consider the graph above (NASA, 1995) It shows the history of total space per person over given time periods for various spacecraft. Thisincludes space for ‘free space’ and ‘space for equipment and supplies’ for time durations. Again remember the graph is for spacecraft in orbit with crew in 0 G conditions where space is more easily usable. Our Hab is on the moon. We are to design space 30 days or 1 month. This translates to a 20 m³ space per person. This is still not much space!

11 Concept Design Process – STEP 3-3 Develop Concept : Estimate the volume and define a geometry/shape - 3 Volume and find a ‘first pass’ mass Estimate Volume: The previous slide suggested we use a total space of 20 m³ per person. Thus for 6 people, Volume = 6 people x 20 m³/person= 120 m³ ‘First pass’ Mass Estimate: Design history of manned spacecraft show that the mass of the spacecraft habitation space is a function of Volume, Number of crew and Endurance time. We use the algorithm Mass = 592 x ( Volume (m) x number of crew x Endurance (days))^0.342 = 592 x (120 m³ x 6 crew x 14 days)^0.342 = 13,850 kg Sphere Most mass efficient shape. Has the least surface area for volume enclosed The walls can be half as thick as a cylinder to carry the same load. Volume = 4/3 (PI) R³ Surface area = 4 (PI) R² Cylinder Is easy to move around and bury under regolith. Nice shape to fit together. Volume = (PI) R²/2 x L Surface area = 2x (PI) R²/2 (ends) + (PI) x D x L Tuna Can More mass efficient shape Good as a stable landing platform Volume = (PI) R²/2 x L Surface area = 2x (PI) R²/2 (ends) + (PI) x D x L Geometry and shapes Note: The shapes must have rounded corners to minimize the bending stresses when pressurized.

12 Concept Design Process – STEP 4 Develop Concept Geometry and Structure We choose a cylinder as our geometry as it is more useful to for connecting to other HABs. - Adopt 4.2 m diameter as it can be cheaply manufactured and transported on Earth. - Adopt 9.5 m in length as this provides a volume of 120 m³. ItemMass/m²ThicknessDescription Outer shell22 kg/m²80 mmDouble walled aluminum shell including insulation Internal walls8 kg/m²50mmDouble walled carbon composite incl insulation Internal floors15 kg/m150mmDouble walled carbon composite incl insulation ItemAreaMassVolumeMonocoque structure Outer shell1404,200 kg120 m³Isogrid strucure Walls70560 kg3.5 m³Graphite/epoxy composites Floors33500 kg4 m³ TOTAL5260kg Note: For spherical structures use outer shell 17 kg/m

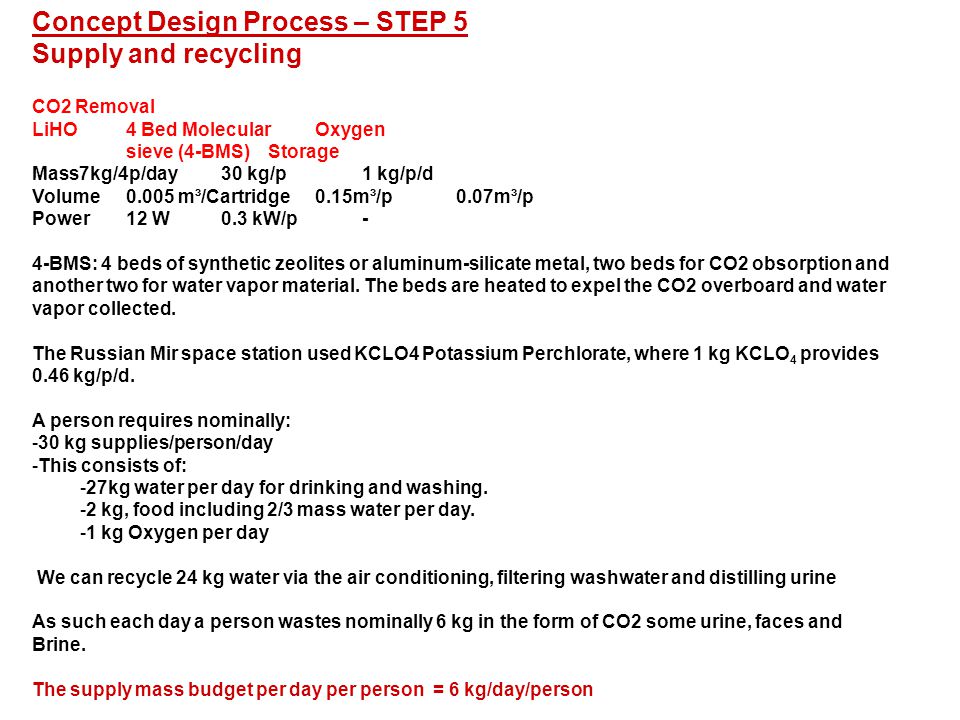

13 CO2 Removal LiHO4 Bed MolecularOxygen sieve (4-BMS)Storage Mass7kg/4p/day30 kg/p1 kg/p/d Volume0.005 m³/Cartridge0.15m³/p0.07m³/p Power12 W0.3 kW/p- 4-BMS: 4 beds of synthetic zeolites or aluminum-silicate metal, two beds for CO2 obsorption and another two for water vapor material. The beds are heated to expel the CO2 overboard and water vapor collected. The Russian Mir space station used KCLO4 Potassium Perchlorate, where 1 kg KCLO 4 provides 0.46 kg/p/d. A person requires nominally: -30 kg supplies/person/day -This consists of: -27kg water per day for drinking and washing. -2 kg, food including 2/3 mass water per day. -1 kg Oxygen per day We can recycle 24 kg water via the air conditioning, filtering washwater and distilling urine As such each day a person wastes nominally 6 kg in the form of CO2 some urine, faces and Brine. The supply mass budget per day per person = 6 kg/day/person Concept Design Process – STEP 5 Supply and recycling

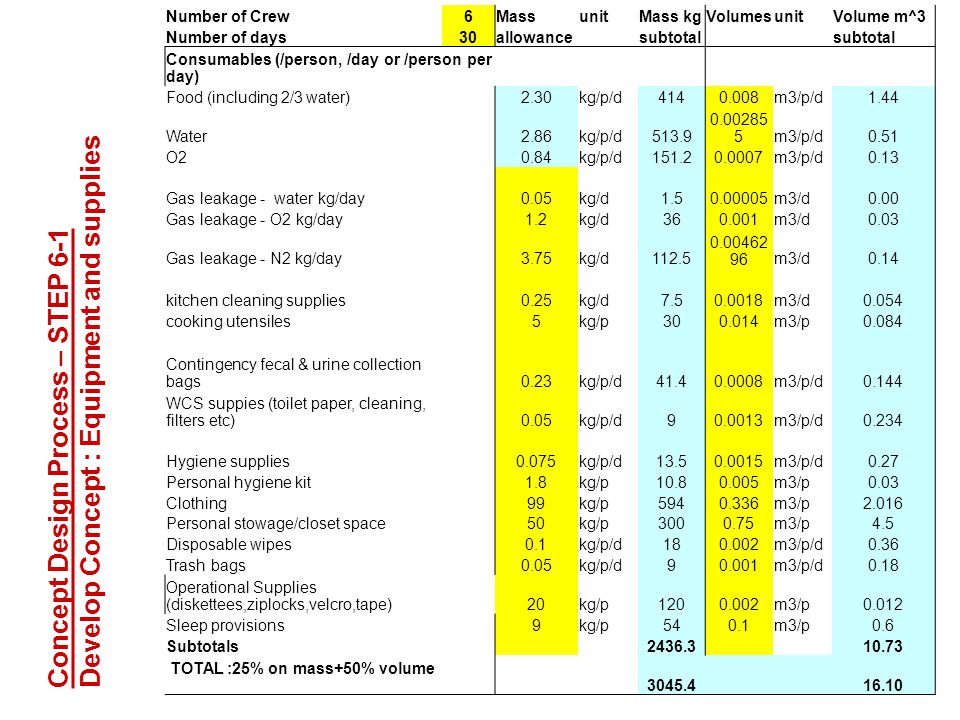

14 Concept Design Process – STEP 6-1 Develop Concept : Equipment and supplies Number of Crew6MassunitMass kgVolumesunitVolume m^3 Number of days30allowance subtotal Consumables (/person, /day or /person per day) Food (including 2/3 water) 2.30kg/p/d m3/p/d1.44 Water 2.86kg/p/d m3/p/d0.51 O2 0.84kg/p/d m3/p/d0.13 Gas leakage - water kg/day 0.05kg/d m3/d0.00 Gas leakage - O2 kg/day 1.2kg/d m3/d0.03 Gas leakage - N2 kg/day 3.75kg/d m3/d0.14 kitchen cleaning supplies 0.25kg/d m3/d0.054 cooking utensiles 5kg/p m3/p0.084 Contingency fecal & urine collection bags 0.23kg/p/d m3/p/d0.144 WCS suppies (toilet paper, cleaning, filters etc) 0.05kg/p/d m3/p/d0.234 Hygiene supplies 0.075kg/p/d m3/p/d0.27 Personal hygiene kit 1.8kg/p m3/p0.03 Clothing 99kg/p m3/p2.016 Personal stowage/closet space 50kg/p m3/p4.5 Disposable wipes 0.1kg/p/d m3/p/d0.36 Trash bags 0.05kg/p/d90.001m3/p/d0.18 Operational Supplies (diskettees,ziplocks,velcro,tape)20kg/p m3/p0.012 Sleep provisions 9kg/p540.1m3/p0.6 Subtotals TOTAL :25% on mass+50% volume

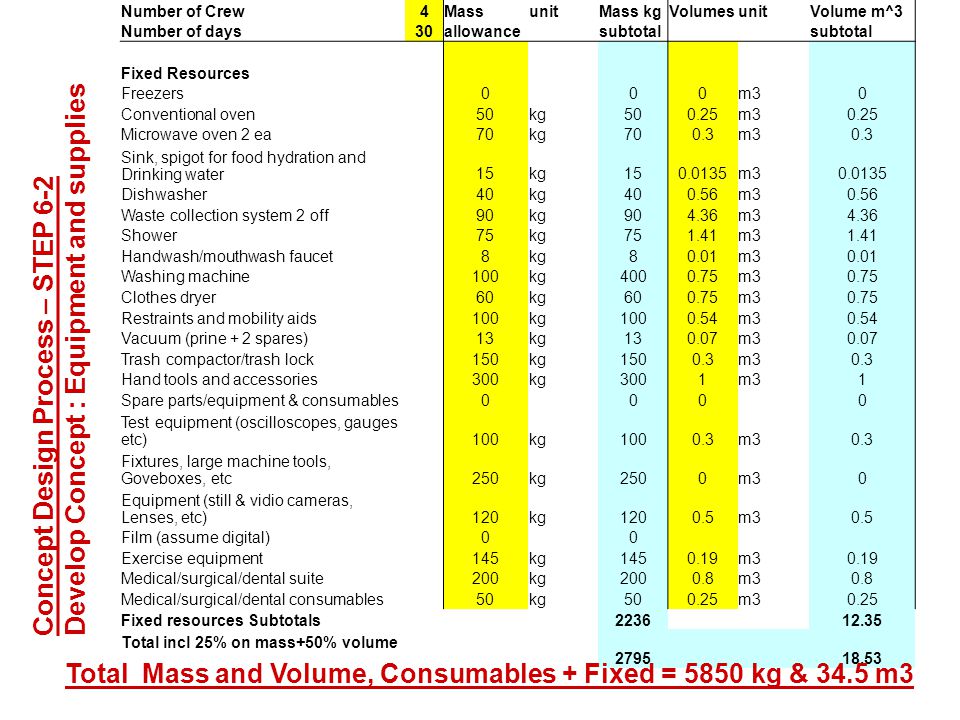

15 Concept Design Process – STEP 6-2 Develop Concept : Equipment and supplies Number of Crew4MassunitMass kgVolumesunitVolume m^3 Number of days30allowance subtotal Fixed Resources Freezers 000m30 Conventional oven 50kg500.25m30.25 Microwave oven 2 ea 70kg700.3m30.3 Sink, spigot for food hydration and Drinking water 15kg m Dishwasher 40kg400.56m30.56 Waste collection system 2 off 90kg904.36m34.36 Shower 75kg751.41m31.41 Handwash/mouthwash faucet 8kg80.01m30.01 Washing machine 100kg m30.75 Clothes dryer 60kg600.75m30.75 Restraints and mobility aids 100kg m30.54 Vacuum (prine + 2 spares) 13kg130.07m30.07 Trash compactor/trash lock 150kg1500.3m30.3 Hand tools and accessories 300kg3001m31 Spare parts/equipment & consumables 0000 Test equipment (oscilloscopes, gauges etc) 100kg1000.3m30.3 Fixtures, large machine tools, Goveboxes, etc 250kg2500m30 Equipment (still & vidio cameras, Lenses, etc) 120kg1200.5m30.5 Film (assume digital) 00 Exercise equipment 145kg m30.19 Medical/surgical/dental suite 200kg2000.8m30.8 Medical/surgical/dental consumables 50kg500.25m30.25 Fixed resources Subtotals Total incl 25% on mass+50% volume Total Mass and Volume, Consumables + Fixed = 5850 kg & 34.5 m3

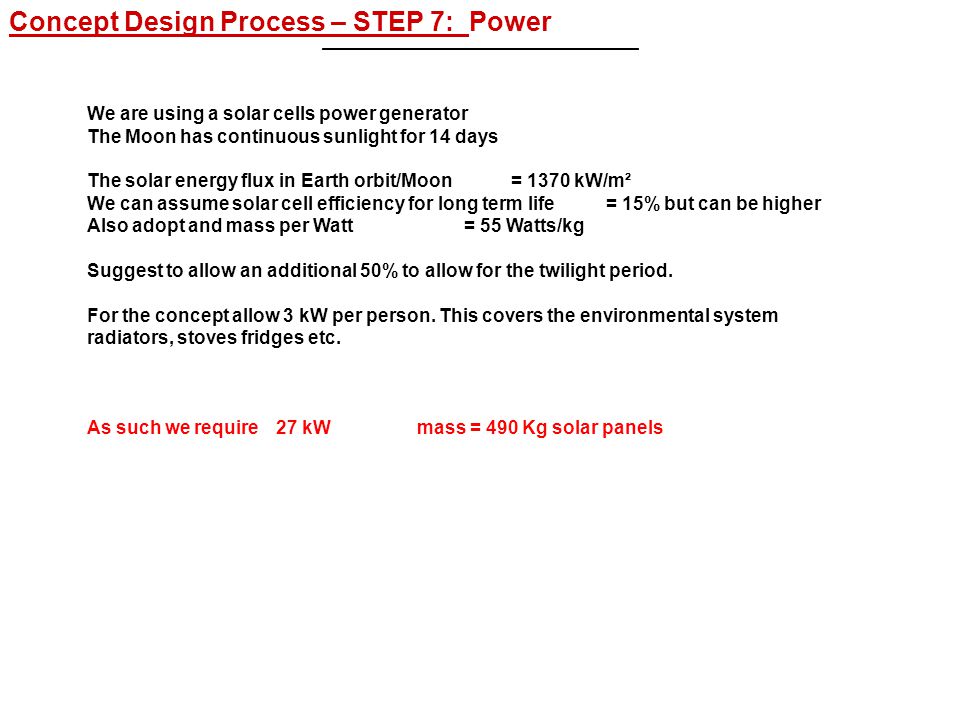

16 Concept Design Process – STEP 7: Power We are using a solar cells power generator The Moon has continuous sunlight for 14 days The solar energy flux in Earth orbit/Moon= 1370 kW/m² We can assume solar cell efficiency for long term life = 15% but can be higher Also adopt and mass per Watt= 55 Watts/kg Suggest to allow an additional 50% to allow for the twilight period. For the concept allow 3 kW per person. This covers the environmental system radiators, stoves fridges etc. As such we require27 kWmass = 490 Kg solar panels The Solar Generator Design Assumptions [i] [i] The Cambridge Encyclopedia of Space, Cambridge University Press, Cambridge, p137 [ii] [ii] Clawson, “AG-Pod – The Integration of Existing Technologies for Efficient, Affordable Space Flight Agriculture.” 29 th International Conference on Environmental Systems Denver, Colorado July 12-15,1999.

17 Concept Design Process – STEP 7: Concept Questions: Are the rooms placed well for: -dealing with sound? -dealing with dust if the airlock is used? -connecting to other moon base ‘Habs? -Is the airlock practical in terms of entrance and exit?

18 Concept Design Process – STEP 7: Concept We are using a solar cells power generator ItemMassVolume Structural Mass4,200 kg120 m³ Fixed resources2,800 kg18.5 m³ Expendable Supplies3,050 kg16.4 m³ Airlock500 kg5 m³ Solar Generator Power460 kg Margin (25%)2,750 kg TOTAL13,760 kg. Our original guess was 13,800 kg Free Volume 82 m³ This is 13.6 m³ per person and is > than our minimum 10m³/person

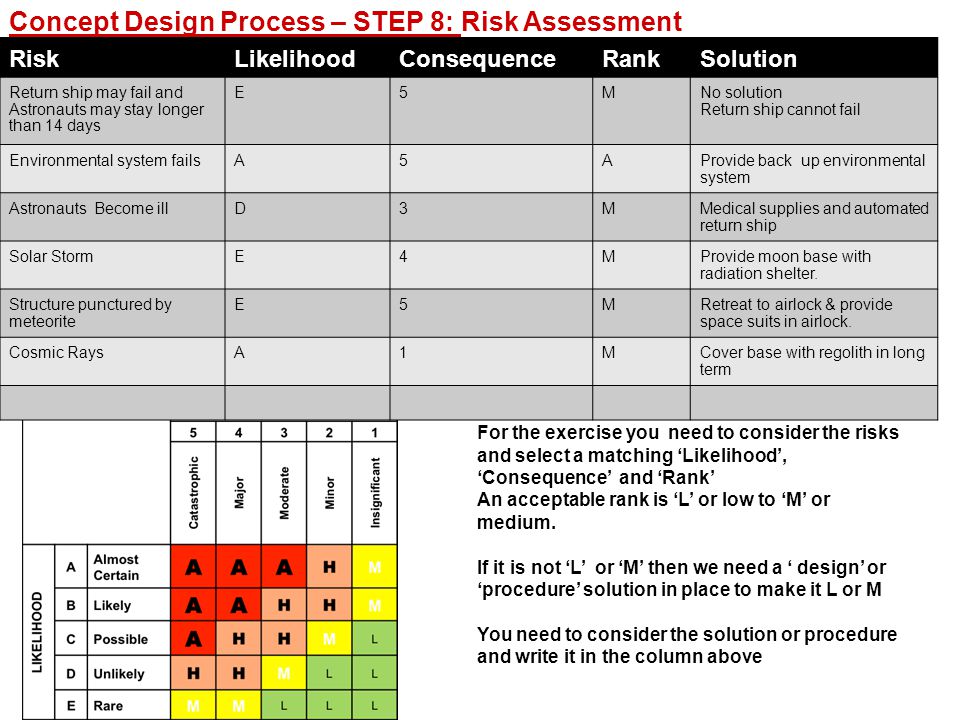

19 Concept Design Process – STEP 8: Risk Assessment RiskLikelihoodConsequenceRankSolution Return ship may fail and Astronauts may stay longer than 14 days E5MNo solution Return ship cannot fail Environmental system failsA5AProvide back up environmental system Astronauts Become illD3MMedical supplies and automated return ship Solar StormE4MProvide moon base with radiation shelter. Structure punctured by meteorite E5MRetreat to airlock & provide space suits in airlock. Cosmic RaysA1MCover base with regolith in long term For the exercise you need to consider the risks and select a matching ‘Likelihood’, ‘Consequence’ and ‘Rank’ An acceptable rank is ‘L’ or low to ‘M’ or medium. If it is not ‘L’ or ‘M’ then we need a ‘ design’ or ‘procedure’ solution in place to make it L or M You need to consider the solution or procedure and write it in the column above

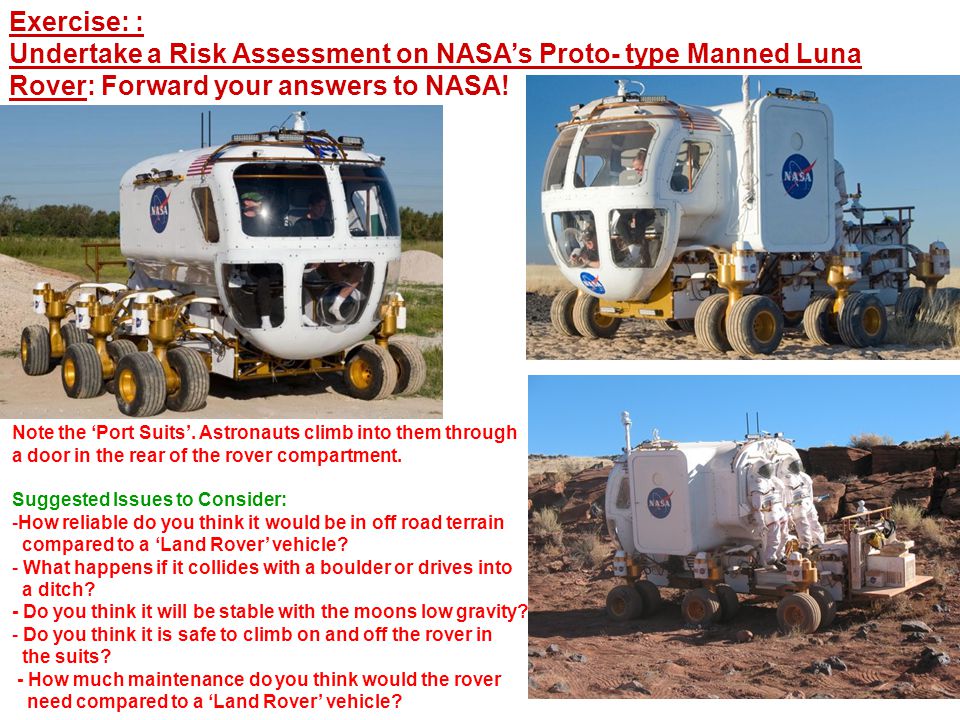

20 Exercise: : Undertake a Risk Assessment on NASA’s Proto- type Manned Luna Rover: Forward your answers to NASA! Note the ‘Port Suits’. Astronauts climb into them through a door in the rear of the rover compartment. Suggested Issues to Consider: -How reliable do you think it would be in off road terrain compared to a ‘Land Rover’ vehicle? - What happens if it collides with a boulder or drives into a ditch? - Do you think it will be stable with the moons low gravity? - Do you think it is safe to climb on and off the rover in the suits? - How much maintenance do you think would the rover need compared to a ‘Land Rover’ vehicle?
