1 Hip Joint

2 The hip is the most proximal of the lower extremity joints. It is very important in weight- bearing and walking activities. Like the shoulder, it is a ball-and-socket joint. The rounded or convex-shaped femoral head fits into and articulates with the concave-shaped acetabulum. Unlike the shoulder, the hip is a very stable joint and therefore sacrifices some range of motion. The hip joint (a triaxial joint) has motions in all three planes. The hip is the most proximal of the lower extremity joints. It is very important in weight- bearing and walking activities. Like the shoulder, it is a ball-and-socket joint. The rounded or convex-shaped femoral head fits into and articulates with the concave-shaped acetabulum. Unlike the shoulder, the hip is a very stable joint and therefore sacrifices some range of motion. The hip joint (a triaxial joint) has motions in all three planes.

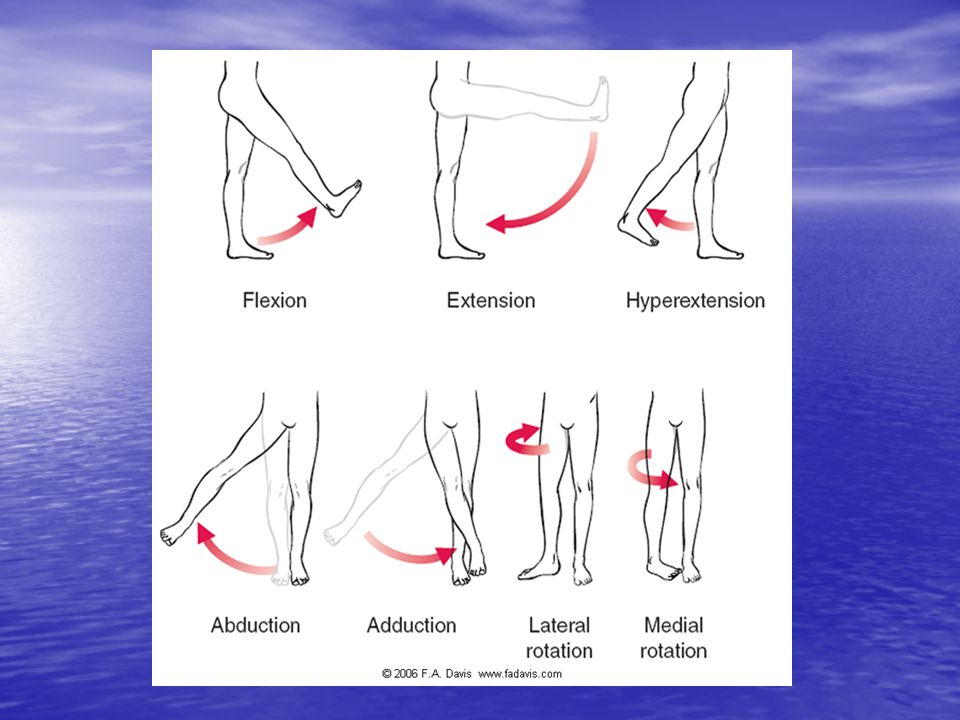

3 Motions of the Hip Flexion Flexion Extension Extension Hyperextension Hyperextension Abduction Abduction Adduction Adduction Lateral Rotation Lateral Rotation Medial Rotation Medial Rotation

4

5 Muscles of the Hip Iliopsoas Iliopsoas Rectus Femoris Rectus Femoris Sartorius Sartorius Pectineus Pectineus Gracilis Gracilis Adductor magnus Adductor magnus Adductor longus Adductor longus Adductor brevis Adductor brevis Gluteus maximus Gluteus maximus Semimembranosus Semimembranosus Deep rotators (6) Deep rotators (6) Semitendonosus Semitendonosus Biceps femoris Biceps femoris Gluteus medius Gluteus medius Tensor fascia latae Tensor fascia latae Gluteus minimus Gluteus minimus

6 Iliopsoas

7 Iliopsoas O: Iliac fossa, anterior and lateral surfaces of T12 through L5 O: Iliac fossa, anterior and lateral surfaces of T12 through L5 I: Lesser trochanter I: Lesser trochanter A: Hip flexion A: Hip flexion N: Iliacus portion: Femoral nerve (L2, L3) N: Iliacus portion: Femoral nerve (L2, L3) Psoas major portion: L2 and L3 Psoas major portion: L2 and L3 *The iliopsoas muscle is actuall two muscles: iliacus muscle and psoas major muscle*

8 Rectus Femoris

9 O: Anterior inferior iliac spine O: Anterior inferior iliac spine I: Tibial tuberosity I: Tibial tuberosity A: Hip flexion, knee extension A: Hip flexion, knee extension N: Femoral nerve (L2, L3, L4) N: Femoral nerve (L2, L3, L4)

10 Sartorius

11 Sartorius O: Anterior superior iliac spine O: Anterior superior iliac spine I: Proximal medial aspect of tibia I: Proximal medial aspect of tibia A: Combination of hip flexion, abduction, lateral rotation and knee flexion A: Combination of hip flexion, abduction, lateral rotation and knee flexion N: Femoral nerve (L2, L3) N: Femoral nerve (L2, L3)

12 Pectineus

13 Pectineus O: Superior ramus of pubis O: Superior ramus of pubis I: Pectineal line of femur I: Pectineal line of femur A: Hip flexion and adduction A: Hip flexion and adduction N: Femoral nerve (L2, L3, L4) N: Femoral nerve (L2, L3, L4)

14 Adductor Longus

15 O: Pubis O: Pubis I: Middle third of the linea aspera I: Middle third of the linea aspera A: Hip adduction N: Obturator nerve (L3, L4) A: Hip adduction N: Obturator nerve (L3, L4)

16 Adductor Brevis

17 O: Pubis O: Pubis I: Pectineal line and proximal linea aspera I: Pectineal line and proximal linea aspera A: Hip adduction A: Hip adduction N: Obturator nerve (L3, L4) N: Obturator nerve (L3, L4)

18 Adductor Magnus

19 O: Ischium and pubis O: Ischium and pubis I: Entire linea aspera and adductor tubercle I: Entire linea aspera and adductor tubercle A: Hip adduction A: Hip adduction N: Obturator and sciatic nerve (L3, L4) N: Obturator and sciatic nerve (L3, L4)

20 Gracilis

21 Gracilis O: Pubis O: Pubis I: Anterior medial surface of proximal end of tibia I: Anterior medial surface of proximal end of tibia A: Hip adduction A: Hip adduction N: Obturator nerve (L2, L3) N: Obturator nerve (L2, L3)

22 Gluteus Maximus

23 O: Posterior sacrum and ilium O: Posterior sacrum and ilium I: Posterior femur distal to greater trochanter and to iliotibial band I: Posterior femur distal to greater trochanter and to iliotibial band A: Hip extension, hyperextension, lateral rotation A: Hip extension, hyperextension, lateral rotation N: Inferior gluteal nerve (L5, S1, S2) N: Inferior gluteal nerve (L5, S1, S2)

24 Gluteus Medius

25 O: Outer surface of the ilium O: Outer surface of the ilium I: Lateral surface of the greater trochanter I: Lateral surface of the greater trochanter A: Hip abduction A: Hip abduction N: Superior gluteal nerve (L4, L5, S1) N: Superior gluteal nerve (L4, L5, S1)

26 Gluteus Minimus

27 O: Lateral ilium O: Lateral ilium I: Anterior surface of the greater trochanter I: Anterior surface of the greater trochanter A: Hip abduction, medial rotation A: Hip abduction, medial rotation N: Superior gluteal nerve (L4, L5, S1) N: Superior gluteal nerve (L4, L5, S1)

28 Deep Rotator Muscles Obturator externus Obturator externus Obturator internus Obturator internus Quadratus femoris Quadratus femoris Piriformis Piriformis Gemellus superior Gemellus superior Gemellus inferior Gemellus inferior

29 Obturator Externus

30 O: Rami of pubis and ischium O: Rami of pubis and ischium I: Trochanteric fossa I: Trochanteric fossa A: Hip lateral rotation A: Hip lateral rotation N: Obturator nerve N: Obturator nerve

31 Obturator Internus

32 O: Rami of pubis and ischium O: Rami of pubis and ischium I: Greater trochanter I: Greater trochanter A: Hip lateral rotation A: Hip lateral rotation N: Nerve to obturator internus N: Nerve to obturator internus

33 Quadratus Femoris

34 O: Ischial tuberosity O: Ischial tuberosity I: Intertrochanteric crest I: Intertrochanteric crest A: Hip lateral rotation A: Hip lateral rotation N: Nerve to quadratus femoris N: Nerve to quadratus femoris

35 Piriformis

36 Piriformis O: Sacrum O: Sacrum I: Greater trochanter I: Greater trochanter A: Hip lateral rotation A: Hip lateral rotation N: S1, S2 N: S1, S2

37 Gemellus superior

38 O: Ischium O: Ischium I: Greater trochanter I: Greater trochanter A: Hip lateral rotation A: Hip lateral rotation N: Nerve to obturator internus N: Nerve to obturator internus

39 Gemellus inferior

40 O: Ischial tuberosity O: Ischial tuberosity I: Greater trochanter I: Greater trochanter A: Hip lateral rotation A: Hip lateral rotation N: Nerve to quadratus femoris N: Nerve to quadratus femoris

41 Hamstring Musculature Semimembranosus Semimembranosus Semitendinosus Semitendinosus Biceps Femoris Biceps Femoris

42 Semimembranosus

43 Semimembranosus O: Ischial tuberosity O: Ischial tuberosity I: Posterior surface of medial condyle of tibia I: Posterior surface of medial condyle of tibia A: Extend hip and flex knee A: Extend hip and flex knee N: Sciatic nerve (L5, S1, S2) N: Sciatic nerve (L5, S1, S2)

44 Semitendinosus

45 Semitendinosus O: Ischial tuberosity O: Ischial tuberosity I: Anteromedial surface of proximal tibia I: Anteromedial surface of proximal tibia A: Extend hip and flex knee A: Extend hip and flex knee N: Sciatic nerve (L5, S1, S2) N: Sciatic nerve (L5, S1, S2)

46 Biceps Femoris

47 O: Long head: ischial tuberosity O: Long head: ischial tuberosity Short head: lateral lip of linea aspera Short head: lateral lip of linea aspera I: Fibular head I: Fibular head A: Long head: extend hip and flex knee A: Long head: extend hip and flex knee Short head: flex knee Short head: flex knee N: Long head: Sciatic nerve (S1, S2, S3) N: Long head: Sciatic nerve (S1, S2, S3) Short head: Common peroneal nerve (L5, S1, S2) Short head: Common peroneal nerve (L5, S1, S2)

48 Tensor Fascia Latae

49 O: Anterior superior iliac spine O: Anterior superior iliac spine I: Lateral condyle of tibia I: Lateral condyle of tibia A: Combined hip flexion and abduction A: Combined hip flexion and abduction N: Superior gluteal nerve (L4, L5) N: Superior gluteal nerve (L4, L5)

50
