1 1 3G-324M over TD-SCDMA for Handsets Ming Ho Sales Director

2 3G-324M over TD-SCDMA for Handsets2 Agenda 3G-324M in a nutshell Challenges in developing 3G handsets Solutions and implications Fast Call Setup Interoperability Handset Integration Aspects Completeness and Future Safety

3 3 3G-324M in a Nutshell

4 3G-324M over TD-SCDMA for Handsets4 Purpose Mobile Video Telephony over Circuit Switched Networks TD-SCDMA UMTS CDMA2000 Products Terminals Gateways Applications

5 3G-324M over TD-SCDMA for Handsets5 The Scope of 3G-324M in 3GPP Standards Video Codec H.263, MPEG-4, H.264 Video Codec H.263, MPEG-4, H.264 Audio Codec AMR, G.723.1, AMR-WB Audio Codec AMR, G.723.1, AMR-WB Data Protocol V.14, LAPM, … Data Protocol V.14, LAPM, … Call Control H.245 Call Control H.245 CCSRL NSRP, WNSRP NSRP, WNSRP H.223 Multiplex/ Demultiplex Annexes A, B, [C, D] H.223 Multiplex/ Demultiplex Annexes A, B, [C, D] Video System Video System Audio System Audio System Data App T.120, etc. Data App T.120, etc. System Control System Control Call Setup WCDMA / TD-SCDMA Scope TS , , and Scope of 3G TS (3G-324M)

6 3G-324M over TD-SCDMA for Handsets6 3G-324M Basics: Call Negotiation Capability exchange and master/slave determination Decide on codec's according to capabilities and open logical channels for media Acknowledge incoming channel opening Decide on multiplexing table to use and notify the other terminal Start sending media TCS+MSD TCS Ack+MSD Ack OLC+OLC OLC Acks MES Ack MES Video Codec H.263, MPEG-4, H.264 Video Codec H.263, MPEG-4, H.264 Audio Codec AMR, G.723.1, AMR-WB Audio Codec AMR, G.723.1, AMR-WB Data Protocol V.14, LAPM, … Data Protocol V.14, LAPM, … Call Control H.245 Call Control H.245 CCSRL NSRP, WNSRP NSRP, WNSRP H.223 Multiplex/ Demultiplex Annexes A, B, [C, D] H.223 Multiplex/ Demultiplex Annexes A, B, [C, D] Video System Video System Audio System Audio System Data App T.120, etc. Data App T.120, etc. System Control System Control Call Setup Modem Interface/Air Interface

7 3G-324M over TD-SCDMA for Handsets7 3G-324M Basics: Media Systems Video Codec H.263, MPEG-4, H.264 Video Codec H.263, MPEG-4, H.264 Audio Codec AMR, G.723.1, AMR-WB Audio Codec AMR, G.723.1, AMR-WB Data Protocol V.14, LAPM, … Data Protocol V.14, LAPM, … Call Control H.245 Call Control H.245 CCSRL NSRP, WNSRP NSRP, WNSRP H.223 Multiplex/ Demultiplex Annexes A, B, [C, D] H.223 Multiplex/ Demultiplex Annexes A, B, [C, D] Video System Video System Audio System Audio System Data App T.120, etc. Data App T.120, etc. System Control System Control Call Setup Modem Interface/Air Interface H.223 bit stream AMR EncoderMPEG-4 Encoder H.223 Adaptation Layer Framing H.223 Multiplexer Generates MUX-PDUs & StuffingMUX-PDU Raw media MPEG-4 frames AMR frame every 20 ms Place framed AL-PDUs in Multiplexer internal queues Decide on best multiplexing

8 3G-324M over TD-SCDMA for Handsets8 Agenda 3G-324M in a nutshell Challenges in developing 3G handsets Solutions and implications Fast Call Setup Interoperability Handset Integration Aspects Completeness and Future Safety

9 3G-324M over TD-SCDMA for Handsets9 Challenges in developing 3G handsets Interoperability Assurance Time to Market Platform and OS Integration User Experience Maturity Differentiation Complete and Future Proof Solution

10 3G-324M over TD-SCDMA for Handsets10 Agenda 3G-324M in a nutshell Challenges in developing 3G handsets Solutions and implications Fast Call Setup Interoperability Handset Integration Aspects Completeness and Future Safety

11 11 Fast Call Setup 1.Standardization Efforts 2.WNSRP 3.Behind the Scenes

12 3G-324M over TD-SCDMA for Handsets12 Agenda 3G-324M in a nutshell Challenges in developing 3G handsets Solutions and implications Fast Call Setup Interoperability Handset Integration Aspects Completeness and Future Safety

13 3G-324M over TD-SCDMA for Handsets13 1. Standardization bodies 3G-324M standardization is complex RADVISION is active in both standardization bodies and in all relevant working groups

14 3G-324M over TD-SCDMA for Handsets14 2. WNSRP Allows negotiation of H.245 Control messages in parallel WNSRP is one of RADVISION’S contributions to the H.324 standard H.223 Bit stream multiplexer NSRP / WNSRP Retransmission Protocol CCSRL Splitting and Reassembly H.245 Multimedia Control WNSRP

15 3G-324M over TD-SCDMA for Handsets Behind The Scenes: The WNSRP Consortium

16 3G-324M over TD-SCDMA for Handsets16 3. Behind The Scenes: Current Status WNSRP was approved… ITU New H.324 version: August GPP New TR version: September 2005 Vodafone’s video telephony spec (WNSRP is mandatory)

17 3G-324M over TD-SCDMA for Handsets17 3. Behind The Scenes: 2006 A complementary solution to WNSRP is currently being debated RADVISION is part of this discussion At the time of writing, the complementary solution includes: ACNRADVISION FM FSS

18 3G-324M over TD-SCDMA for Handsets18 3. Behind The Scenes: Other Contributions WNSRP H.324 Amd2 Dual video support H.324 Amd1 Session Reset H.324 Amd1 Conflict resolutions H.245 Appendix X Soft Keys Proposal ACN & CAN Proposal IMTC 3G-324M AG Co-chairman IMTC conferencing AG Co-chairman IMTC Vice President

19 19 Interoperability 1.Importance 2.RADVISION’S Approach

20 3G-324M over TD-SCDMA for Handsets20 1. Importance Reduces the risk of recalls Mobile handsets recall is a costly process for both the operator and the handset vendor Focus on both interoperability with handsets on the market as well as future extensions (introduction of new services and codec's) Video is not as easy as Voice More codec's Capability negotiation is not a simple process Implementing the exact codec profiles properly Focus on quality in a 64Kbps bandwidth

21 3G-324M over TD-SCDMA for Handsets21 3. RADVISION’S Approach Commitment to the standardization process along with a high level of interoperability Active member in all related international organizations IMTC 3G-324M activity group co-chairman Host of the next F2F event RADVISION’S initiatives WNSRP testing with operators and handset vendors Remote IOT service on select features

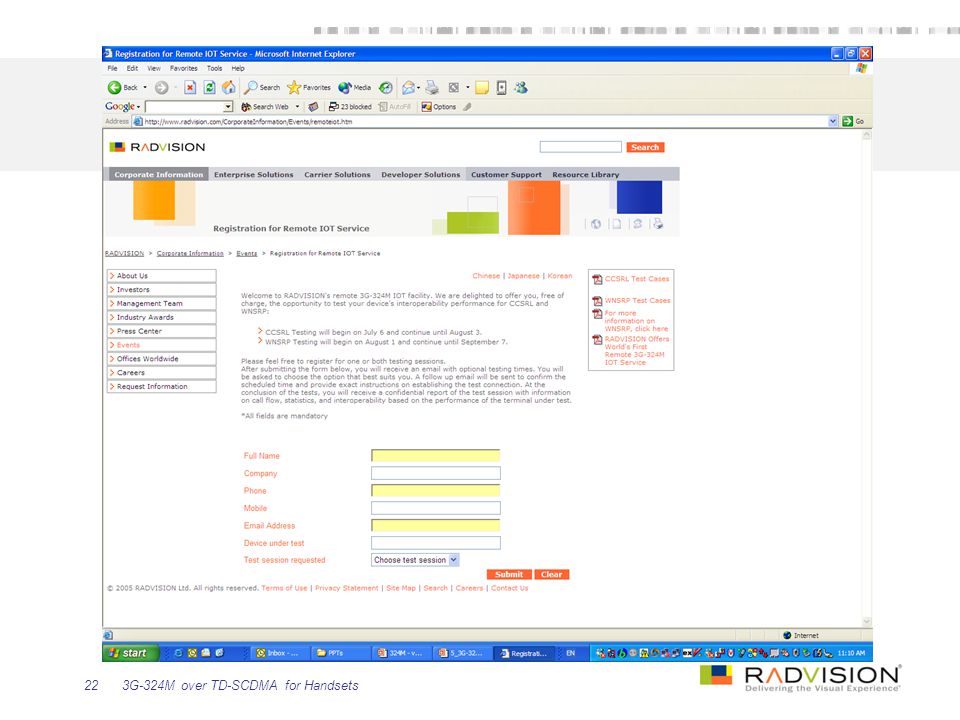

22 3G-324M over TD-SCDMA for Handsets22

23 3G-324M over TD-SCDMA for Handsets23 Agenda 3G-324M in a nutshell Challenges in developing 3G handsets Solutions and implications Fast Call Setup Interoperability Handset Integration Aspects Completeness and Future Safety

24 24 Handset Integration Aspects 1.3G-324M Toolkit Architecture 2.Windows Mobile

25 3G-324M over TD-SCDMA for Handsets G-324M Toolkit Architecture Air Interface/Network Interface H.223 Multiplexer/De-multiplexer Codec Interface Codec Interface Application Call Manager Call Manager H.245 CCSRL, xSRP CCSRL, xSRP Codec's OS abstraction (core) OS abstraction (core) PMT GEF H.223 Split H.245 AutoCaps H.245 AutoCaps  Baseline protocol functionality + many extensions  H.245v11 Support  Optimized ASN.1 PER Encoder  Allows for enhanced portability  Keeps rest of the Toolkit OS agnostic  Reliable control transmissions  Support for SRP, NSRP and WNSRP  Simple codec's integration interface with quality management  H.223 Annexes A, B, C, D  AL1-AL3, AL1M-AL3M

26 3G-324M over TD-SCDMA for Handsets G-324M Toolkit Architecture: Add-ons Air Interface/Network Interface H.223 Multiplexer/De-multiplexer Codec Interface Codec Interface Application Call Manager Call Manager H.245 CCSRL, xSRP CCSRL, xSRP Codec's OS abstraction (core) OS abstraction (core) PMT GEF H.223 Split H.245 AutoCaps H.245 AutoCaps  H.245 Automatic capabilities negotiation and analysis  Automatic channel opening and conflict resolutions  Rapid time to market  Proven interoperability  H.245 Generic Extensibility Framework for latest codec's support  Stack split into 2 processes: Call management and H.223  Passive monitoring for one-leg analysis Time-to- Market Scalability

27 3G-324M over TD-SCDMA for Handsets G-324M Toolkit Architecture: Layering Stack Mgr API Stack Mgr API Call Manager API Call Manager API PVT/PST API PVT/PST API Manual/Automatic API Manual/Automatic API Call Manager Layer Call Manager Layer H.245 Layer H.245 Layer H.223 Layer H.223 Layer PVT/PST (ASN.1) Layer PVT/PST (ASN.1) Layer Stack Manager Layer Stack Manager Layer Application PMT API PMT API PMT Add-on PMT Add-on H.223 Split API H.223 Split API AutoCaps API AutoCaps API GEF API GEF API H.223 Split Add-on H.223 Split Add-on AutoCaps Add-on AutoCaps Add-on GEF Add-on GEF Add-on Codec's API Codec's API Codec's Interface Codec's Interface Base Band Interface Base Band Interface Application Base band Application Base band

28 3G-324M over TD-SCDMA for Handsets28 2. Windows Mobile: Why? An example of the issues that need to be dealt Windows Mobile 5.0 is gaining popularity in APAC

29 3G-324M over TD-SCDMA for Handsets29 2. Windows Mobile: Common Architecture Intel PXA270 Base Band Chip Application Chip DSP Chip USB / UART Windows Mobile 5.0 Proprietary / Nucleus TAPI over RIL Codecs Software; or Hardware accelerated

30 3G-324M over TD-SCDMA for Handsets30 2. Windows Mobile: Common Pitfalls An integrated approach to Mobile Video Telephony Forgetting to integrate with Call History Dialing audio only or video calls won’t have the same call history Not integrating fully with Direct Show and Phone Canvas Inability to answer a call while listening to an MP3 Inability to switch properly between applications in the middle of a call

31 3G-324M over TD-SCDMA for Handsets31 2. Windows Mobile: Interfaces Baseband (Network) Microsoft TAPI over RIL Can be done through USB or UART Codecs (Media) Microsoft DirectShow Codecs should be optimized Application (GUI) PhoneCanvas Call History Outlook Contacts

32 3G-324M over TD-SCDMA for Handsets32 Agenda 3G-324M in a nutshell Challenges in developing 3G terminals and servers Solutions and implications Fast Call Setup Interoperability Customization Product aspects Completeness and Future Safety

33 3G-324M over TD-SCDMA for Handsets33 A Family of 3G Development Solutions 3G Suite Development Solutions MEGACO ProLab TM Test Management Suite RTSP SIP Toolkit with IMS 3G-324M Toolkit ProLab TM Test Management Suite

34 3G-324M over TD-SCDMA for Handsets34 Radvision complete solution for today’s needs Video Telephony Video Telephony 3G-324M Presence, IM Presence, IM RTSP Streaming A-RTP SRTP, PoC, etc. A-RTP SRTP, PoC, etc. SIP SigComp, SIMPLE etc. SIP SigComp, SIMPLE etc. PoC C APIs JSR 32 & 180

35 3G-324M over TD-SCDMA for Handsets35 Future proof SIP with IMS support SIP with IMS support Video Telephony Video Telephony Streaming Presence, IM Presence, IM PoC Other Future Services Other Future Services A-RTP SRTP, PoC, etc. A-RTP SRTP, PoC, etc.

36 3G-324M over TD-SCDMA for Handsets36 ProLab: 3G-324M and VoIP Testing Topology PRI IP Video Network PRI WCDMA Public ISDN Network 3G Wireless Network MCU SIP Simulation SIP Server IP 3G-324M Network DUT 3G Gateway ProLab Test Manager

37 37 Thank You Questions?
