1 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 1 Defining Service Level Agreements Giorgio Ventre The COMICS Research The University of Napoli Federico II, Corso di Reti di Calcolatori II

2 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 2 Professional & Business Challenges  Excessive alarms: A medium-sized operations center receives 100,000 to 1,000,000 alarms per day.  Constant changes: New or upgraded devices and new services launch frequently.  Complex services structure: Services are vital for business and customer interaction, but they are not really managed.

3 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 3 Professional & Business Challenges  Customer interaction: Operators must handle customer complaints, customer care, selling services and service- level agreements (SLAs).  Cuts in operations costs: A small team must run a large, multifaceted network.  Difficult interface integration: Diverse equipment and support systems make managing interface integration a challenge.

4 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 4 Professional & Business Challenges  The bulk of network administrators’ daily work involves alarms.  A large number of alarms indicates we have many irrelevant and noncorrelated signals  It’s therefore hard to understand the true state of problems in the network.  Today’s alarms are more or less raw warnings from the different equipment and vendor-specific management systems.

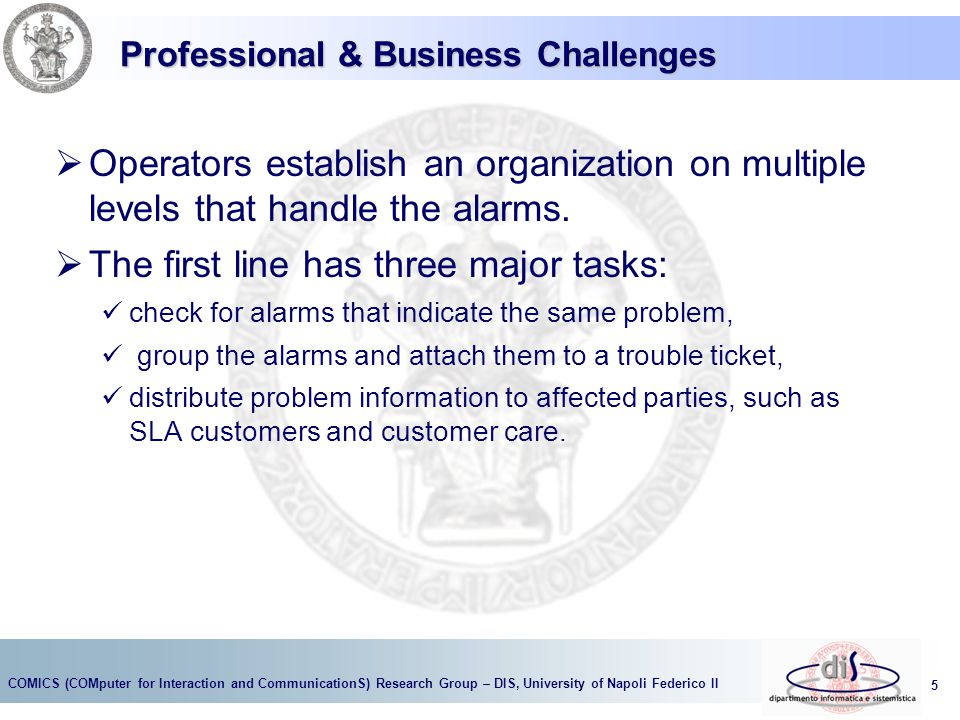

5 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 5 Professional & Business Challenges  Operators establish an organization on multiple levels that handle the alarms.  The first line has three major tasks: check for alarms that indicate the same problem, group the alarms and attach them to a trouble ticket, distribute problem information to affected parties, such as SLA customers and customer care.

6 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 6 Professional & Business Challenges  If it’s a simple problem, the first line resolves it and closes the ticket.  If it’s a complex problem, the first line dispatches it to the second- and third-line organizations. This might involve: equipment vendors operator staff in the field who might perform onsite management, card replacement, and so on

7 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 7 Professional & Business Challenges  Automatic trouble ticketing manages the workflow from problem identification to problem solution  An alarm’s context determines if it affects services, customer SLAs, equipment’s state  We need Alarm-correlation but Alarm quality is insufficient We lack an overall network topology Correlation knowledge is spread across the organization and over several domain experts.

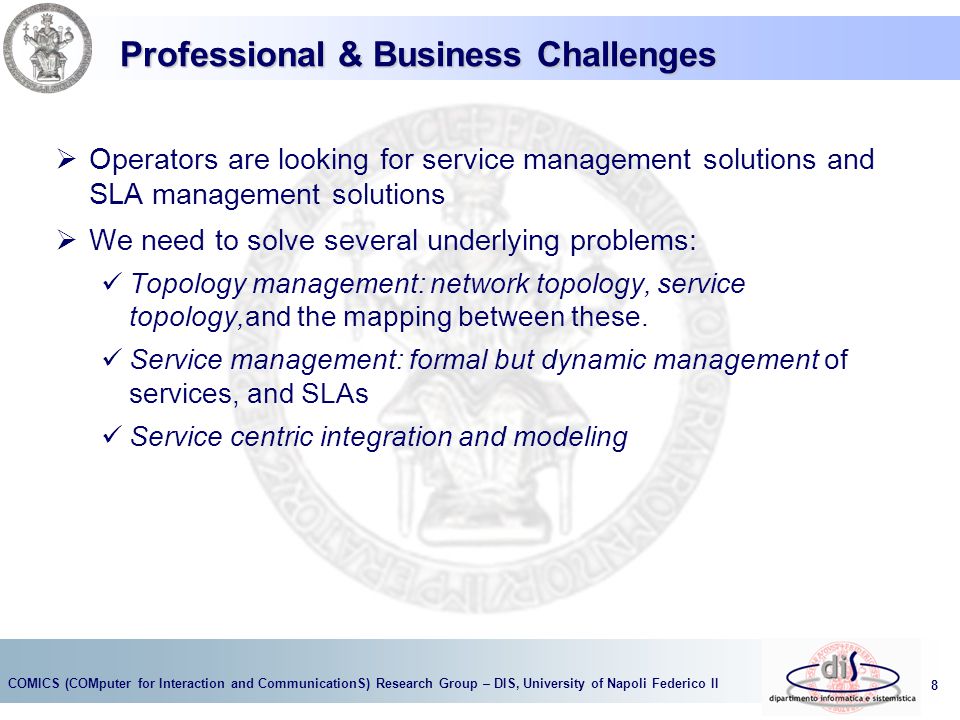

8 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 8 Professional & Business Challenges  Operators are looking for service management solutions and SLA management solutions  We need to solve several underlying problems: Topology management: network topology, service topology,and the mapping between these. Service management: formal but dynamic management of services, and SLAs Service centric integration and modeling

9 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 9 Professional & Business Challenges  A basic tool is the Service Tree  But it is also critical to be able to map the important dependencies: We need correlation software! We need formalisms! We need Knowledge Management!

10 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 10 The concept of Service SupplierCustomer Value provided (goods, services, …)

11 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 11 New business model  In traditional telephony, a customer was just a number (SAP) and a well defined service  Quality used to be controlled statistically  Faults were rare and mostly at exchanges  …the good old days of monopolists  Today we have multiple services with different possible configurations  We now need to link customers to services

12 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 12 Definitions  Service = is the interface between supplier and customer: Service Access Point (SAP), it is where the service is accessed (my home, your company’s sites…) Customer Service Management (CSM), it is how the customer interacts with the supplier

13 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 13 Service life-cycle  Design (definition, marketing)  Negotiation (a business interaction)  Provisioning (implementation & test)  Usage Operation Change  Deinstallation (end of supply)

14 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 14 TMN Telecommunication Management Network Model

15 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 15 TMN Telecommunication Management Network Model

16 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 16 TOM: Telecom Operations Map

17 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 17eTOM

18 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 18 Service-related processes  Service Creation  Service Provisioning  Service Activation  Service Assurance  Service Monitoring  Service Accounting

19 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 19 Business scenario at-a-glance Service Creation Service Activation Service Accounting Network planning and provisioning Customer Care z €41.20 Billing Service Assurance Network Inventory Service Provisioning Service Monitoring

20 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 20 Service Management integration  Integration with all main business processes: Order Management Service Creation (Marketing) Network Configuration Network Management Service Monitoring (SLA) Billing Customer Care

21 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 21 A formal definition A Service Level Agreement is defined as a contract between the service provider and the customer that specifies the QoS level that can be expected for that service. It includes technical elements like the expected behavior of the service, the parameters for QoS verification, the devices involved… But it also includes legal components: costs, obligations, compensations…

22 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 22 A formal definition  The Internet Engineering Task Force’s differentiated services (DiffServ) working group defines an SLA in networking parlance as follows: A SLA is a service contract between a customer and a service provider that specifies the forwarding service a customer should receive (RFC 2475).  The SLA contains both technical and nontechnical terms and conditions. The technical specification of the transport service is given in service level specifications (SLSs). An SLS is a set of parameters and their values which together define the service offered to a traffic stream by a DiffServ domain (RFC 3260)

23 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 23 Research Issues on SLA SLA parameter definitions –This concerns the definition of service level parameters such as availability, reliability, latency, and loss for SLA. –Ongoing work on common standards SLA Negotiation –Can we automatically stipulate & negotatiate SLAs? SLA measurement –This issue deals with how to accurately measure the QoS that service providers deliver to their customers. –Quite a mature research area

24 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 24 Research Issues on SLA SLA compliance reporting –This deals with mechanisms to satisfy increasingly sophisticated customers who demand real-time reporting to confirm that they are receiving the service levels they were promised. –Many things already done QoS management –This issue deals with how to manage and control the QoS delivered to customers to ensure compliance with established SLAs. –Lot of work to be done Languages for SLA definition and validation – Can we define automatically and correctly Service Level Agreements?

25 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 25 SLA Parameter Definition The QoS team of the TeleManagement Forum has been working on the automation of the interface between service providers and customers for performance reporting with the SLA concept. They have identified common terms and definitions, and have created an industry-wide glossary for performance measurement and reporting NMF, “Performance reporting definition document, NMF 701, June 1998

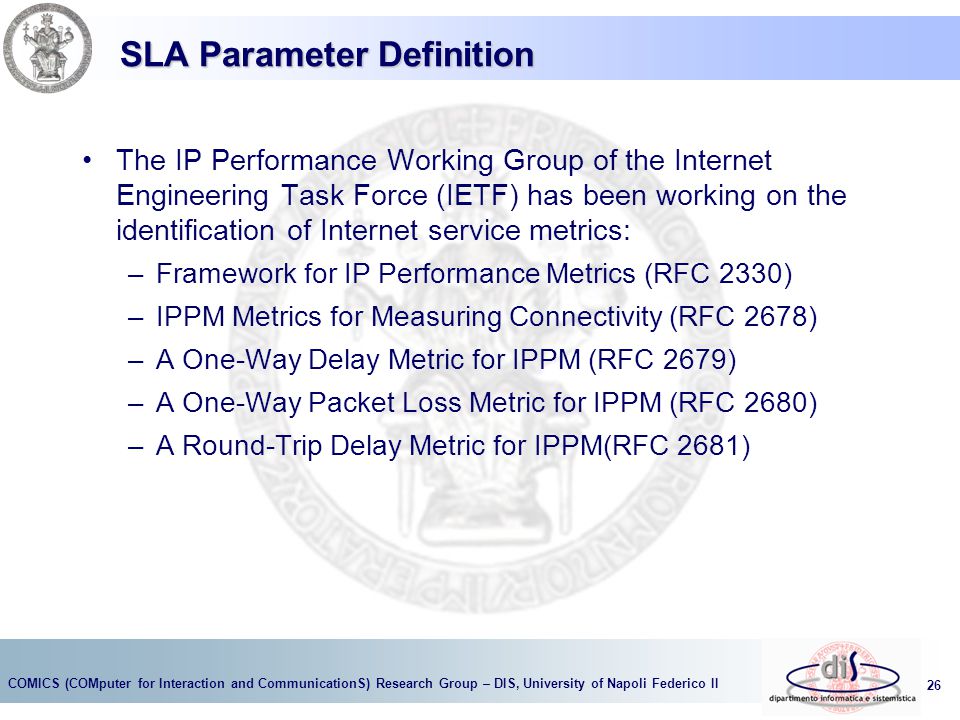

26 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 26 SLA Parameter Definition The IP Performance Working Group of the Internet Engineering Task Force (IETF) has been working on the identification of Internet service metrics: –Framework for IP Performance Metrics (RFC 2330) –IPPM Metrics for Measuring Connectivity (RFC 2678) –A One-Way Delay Metric for IPPM (RFC 2679) –A One-Way Packet Loss Metric for IPPM (RFC 2680) –A Round-Trip Delay Metric for IPPM(RFC 2681)

27 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 27 Components of a SLA  A descritpion of the nature of service to be provided  The expected performance level of the service (i.e. reliability and responsiveness)  The procedure for reporting problems  The time frame for response and problem resolution  The process for monitoring and reporting the service  Consequences for non meeting expectations  Escape clauses and constraints

28 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 28 Describing a Service This part of a SLA includes the type of service to be provided and any qualifications of the type of service to be provided. In the context of IP network connectivity, the type of service may specify the maintenance of network connectivity, It may include additional functions such as operation and maintenance of domain name servers, dynamic host configuration protocol servers, etc. It includes also info related to the location(s) where the service has to be provided

29 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 29 Describing a Service  For Internet services, the definition can be quite complex and can include several components: Application: security, access, configuration, upgrades, resource utilisation, response time… System: all info related to system health Network: everything related to the data transport, such as technologies, QoS, traffic conditioning and profiles, VPNs, encryption…

30 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 30 Describing performance levels  The Quality of Service (QoS) parameters for the Communication Network specifies the minimum requirements for: Network accessibility Network availability Network performance (capacity, delay etc.) Network operation and maintenance

31 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 31 Describing performance levels  One simple thing: to agree on the parameters to measure…  Shall we go for ITU parameters or for IETF stuff?  ITU: world basically made of SONET and optical lines, bits or cells  IETF: world basically made of packets

32 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 32 To estimate and verify the quality of the various components in the network a number of measurement are specified in international agreed standards. The ITU Recommendations G.821 and G.826 specify a set of communication line parameters for SDH networks, primarily based on Bit Error Rates and derived numbers. The values will be part of the SLA between the end user and the network service provider. Describing performance levels

33 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 33 The recommendation G.821 has the following definitions: Errored second (ES), a one-second time interval in which one or more bit errors occurs. Severely Errored second (SES), a one-second time interval in which the bit error rate exceeds Unavailable second (US), a circuit is considered to be unavailable from the first of at least 10 consecutive SES. The circuit is available from the first of at least 10 consecutive seconds which are not SES. Degraded minute (DM), a one-minute time interval in which the bit error rate exceeds Error free seconds (EFS), a one-second time interval without any bit errors. In recommendation G.821 similar definitions are specified based on the block level. Describing performance levels

34 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 34 Recommendation G.826 has the following definitions: Errored second (ES), a one-second time interval containing one or more errored blocks. Errored block (EB), a block containing one or more errored bits Severely Errored second (SES), a one-second time interval in which more than 30% of the blocks are errored. Unavailable second (US), as for G.821 Background block error (BBE), an error block that is not a SES A measurement time interval has to be specified, and the derived ratios for ES, SES and BER are the base for the QoS parameters. The recommended measurement time for G.821 and G.826 is 30 days. Describing performance levels

35 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 35 Recommendation I.356 has the following definitions: Cell Loss Ratio the number of cells lost divided by the number of cells transmitted. Cell Error Ratio (CER), the number of errored cells divided by the number of cells transmitted. Cell Misinsertion Rate (CMR) the number of wrongly inserted cells in a specified time interval. Cell Transfer Delay (CTD) the time from a cell enters a device under test to it leaves the device. Mean Cell Transfer Delay (CTD) is the arithmetical mean of a number of CTD values in a specified period. Cell Delay Variation (CDV) is the degree of variation in the cell transfer delay (CTD) of a virtual connection. Describing performance levels

36 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 36 Describing performance levels  For IP based services, performance levels migh be related to a packet-based, routed world: Average delay measured monthly across ISP network between any two access routers should be less than 200ms The average delay across the ISP network on the transcontinental link between the New York City access router of the customer and the London, U.K., access router of the customer would be less than 250 ms.

37 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 37 Describing performance levels  For IP based services, it is sometime specified also the method of measurement: The customer will not have unscheduled connectivity disruption across the ISP network between any two access routers exceeding 5 min. Connectivity disruption would be defined as the loss of 100% of packets as measured by pinging an access router from a machine connected to another access router.

38 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 38 Describing performance levels

39 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 39 Network availability for at least: Availability of 99.6%to more than 90% of clients Availability of 99%to more than 96.5%of clients Availability of 97%to more than 98.5% of clients Availability of 93%to more than 99.5% of clients Mean time between failures of the service of at least: 1000 hours provided to 99% of clients The target rate is less than incidents per hour, calculated each month by dividing the number of failures in the best 99% access points by the number of access points and the number of hours in the month. Example: JANET, UK

40 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 40 Example: JANET, UK

41 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 41 Example: JANET, UK

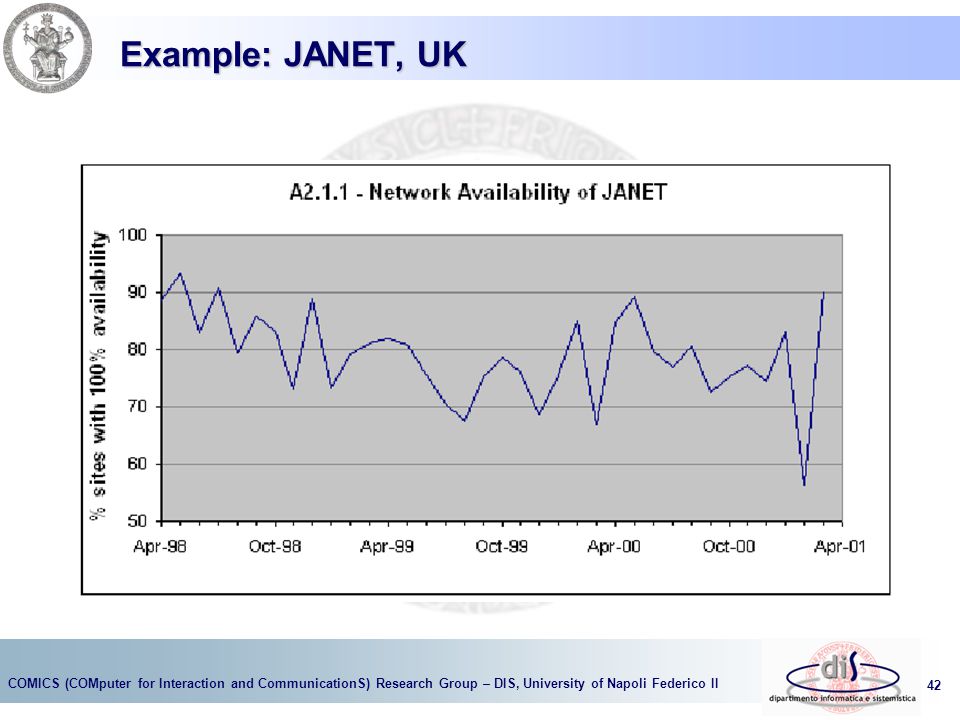

42 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 42 Example: JANET, UK

43 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 43 Example: JANET, UK

44 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 44 End-to-end latency between any pair of clients for 128 octet packets, measured as the time of entry on to the first access line of the last bit of the packet to the time of exit from the second access line of the first bit of the packet, of less than a stated target time, which depends on the transmission technology used for 95% of transmissions over any thirty minute period. Clients shall normally expect to be able to transmit and receive traffic (from a number of sources) which, over any thirty minute period, uses at least 40% of the nominal capacity of their access line, once the overheads of the data solely concerned with the transmission technology in use have been discounted Example: JANET, UK

45 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 45 Performance Indicators and Service Levels for Domain Name Service : Availability of the primary name server for the target domain of 99.5% Availability of service from an available officially supported name server of 99.95%. Performance Indicators and Service Levels for NTP Time Service: This service is intended for use by access points in constructing their own distributed time services (RFC 1305). Availability of each time reference of 98%, MTBF of 800 hours. Example: JANET, UK

46 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 46 Describing performance levels  For hosting services we can have several types of contracted facilities: Boxes in specific locations (PoPs, IXPs): boxes availability is a task of the customer (local access) Boxes + uptime time (i.e. maintenance): boxes are maintained up. All the software inside is a customer responsibility (remote access) Boxes + uptime + applications: the customer needs just to access the service (remote usage)  Examples are Web-hosting, CDN, Data Centres

47 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 47 Describing performance levels  Typical performance and availability clauses: The hosted server will not be unavailable for a contiguous period exceeding 5 min in any 24-h period. Unavailability is defined as the ability to ping the server from a machine with network connectivity to the hosting provider’s access router. The hosted server will be able to handle inbound traffic of Web requests per day.

48 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 48 Describing performance levels  Typical performance and availability clauses: The hosted application will be provided access to the Internet at a bandwidth of 45 Mb/s or more. The service provider will ensure that there are at least five servers available and running the application at all times.  If we host multiple customers at the same site we are responsible for ensuring that the performance of one customer’s server is not adversely affected by requests directed to other customers. See AKAMAI, IBM “Business on Demand”, … Resource control? Virtualisation?

49 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 49 Describing performance levels  Today trend is to outsource entire IT services or even departments  In this case we have an integrated services offer and the performance clauses are at the overall system level: The time to perform an employee lookup on the corporate directory would not exceed 500 ms. The average performance of a standard syntheticWebbased transaction, as reported by probes located at selected locations, will not exceed 100 ms. Unscheduled downtime of the mail server will not exceed a 30- min period during the normal business day of 9 A.M. to 5 P.M.

50 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 50 Describing Customer Support  This section includes the typical helpdesk problem of reporting and problem resolution guarantees.  Examples include a single point of contact assigned to the customer and problem resolution within 48 hours of reporting.  Sometime it indicates also the SAP (e.g. a toll-free number or a web service).

51 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 51 SLA Measurement  SLA measurement is a quite active area of R&D  We can have different approaches depending on the component we need to monitor: Sampling: very effective and reliable for applications and system level parameters Trap/alarms: logging all troubles and faults  Big issues for network parameters: how, when & where

52 COMICS (COMputer for Interaction and CommunicationS) Research Group – DIS, University of Napoli Federico II 52 SLA Measurement
