1 ® IEEE 802.1ae & Legacy Technologies Ken Grewal

2 ® 2 Agenda  Problem Statement  Technologies Impacted  Recommendations

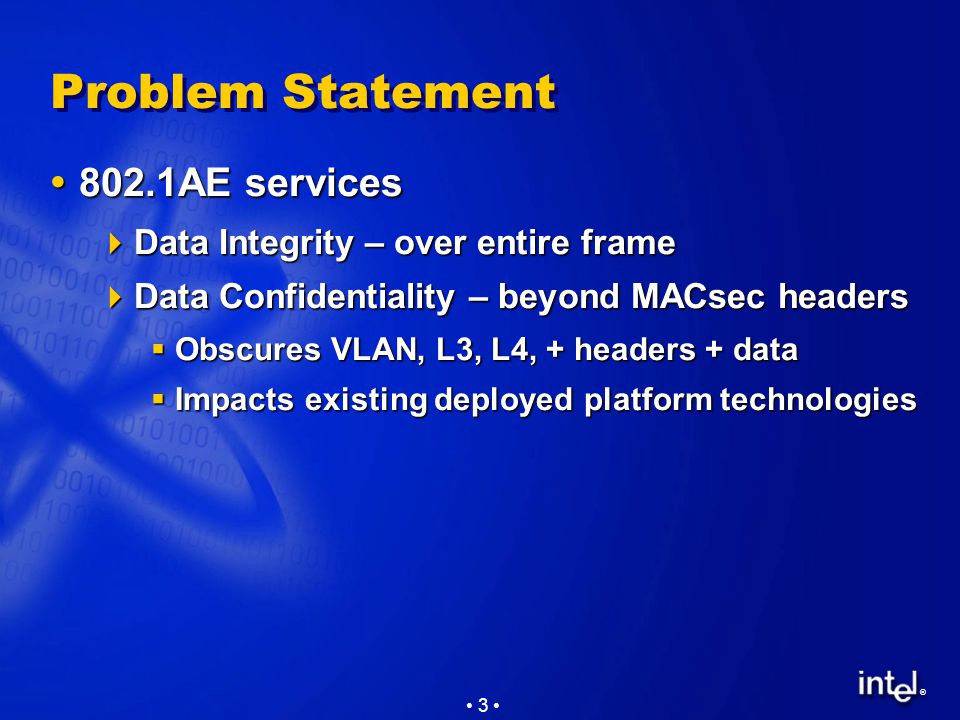

3 ® 3 Problem Statement  802.1AE services  Data Integrity – over entire frame  Data Confidentiality – beyond MACsec headers  Obscures VLAN, L3, L4, + headers + data  Impacts existing deployed platform technologies

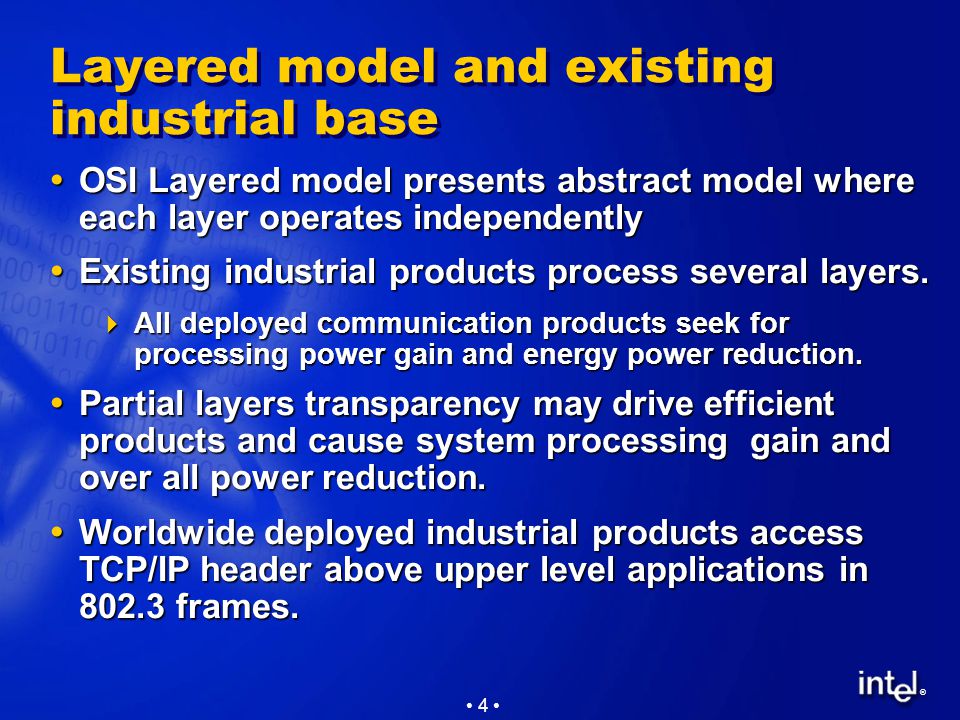

4 ® 4 Layered model and existing industrial base  OSI Layered model presents abstract model where each layer operates independently  Existing industrial products process several layers.  All deployed communication products seek for processing power gain and energy power reduction.  Partial layers transparency may drive efficient products and cause system processing gain and over all power reduction.  Worldwide deployed industrial products access TCP/IP header above upper level applications in frames.

5 ® 5 In-Line manipulation of L2+ data  Complex End node System & Comm. design calls for “in-line” manipulation of Layer 2+ Payload in hardware.  DMTF sanctioned Manageability (ASF, IPMI, others) commonly uses same MAC address as general traffic, but separate IP addresses. –Manageability packets must be directed to Out-of-band processing by hardware to guarantee persistence of management under any platform OS or functionality state.  Efficient use of DMA’s, Memory, Cache, Interrupts has driven Controller based manipulation of Payload for nearly a decade. –Packet classification per Layer 3,4,5 fields, or per some host based multithreading optimization algorithm  Tasking to Hardware Programmable engine should not be assumed. –Feasible & often used. –But unnecessarily grows power and cost, and presents scalability challenges.

6 ® 6 TCP/IP level access needs  Need to read the TCP/IP data without encapsulation protocols knowledge.  Accessing TCP/IP level directly is a wide industrial practice used for several applications  RSS – directing packet for the processing in the multiprocessor environment according to the TCP/IP header  TCP offload functionality  TCP Checksum offload  TCP/IP header/data splitter  Upper layer data support  iSCSI offload  Remote DMA (RDMA)  General packet management / redirection

7 ® 7 MPDU Format MPDU = MACsec protocol data unit

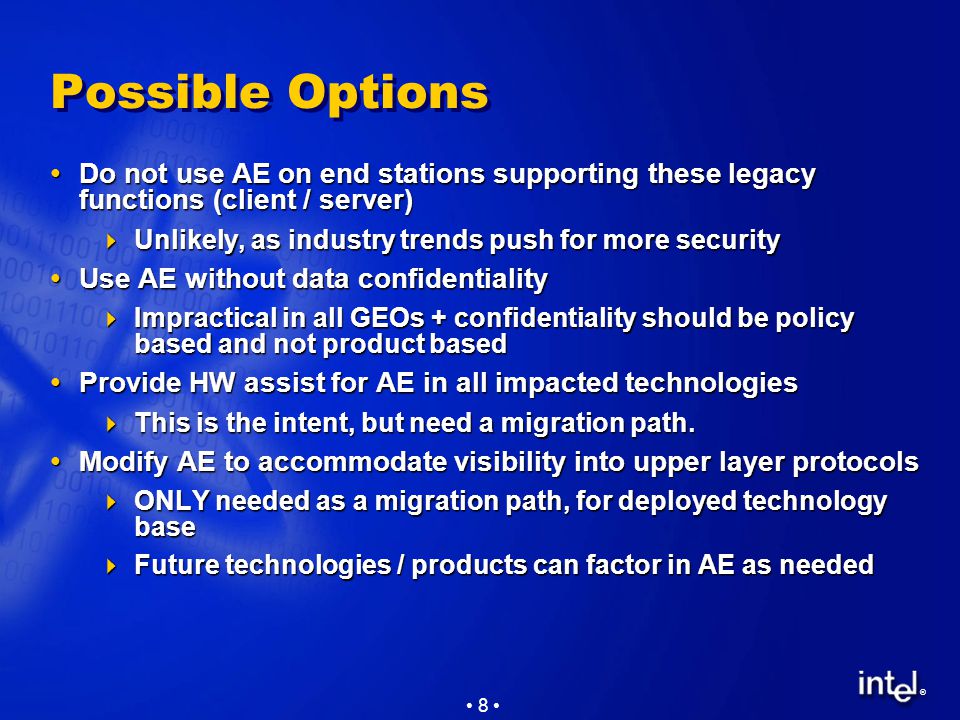

8 ® 8 Possible Options  Do not use AE on end stations supporting these legacy functions (client / server)  Unlikely, as industry trends push for more security  Use AE without data confidentiality  Impractical in all GEOs + confidentiality should be policy based and not product based  Provide HW assist for AE in all impacted technologies  This is the intent, but need a migration path.  Modify AE to accommodate visibility into upper layer protocols  ONLY needed as a migration path, for deployed technology base  Future technologies / products can factor in AE as needed

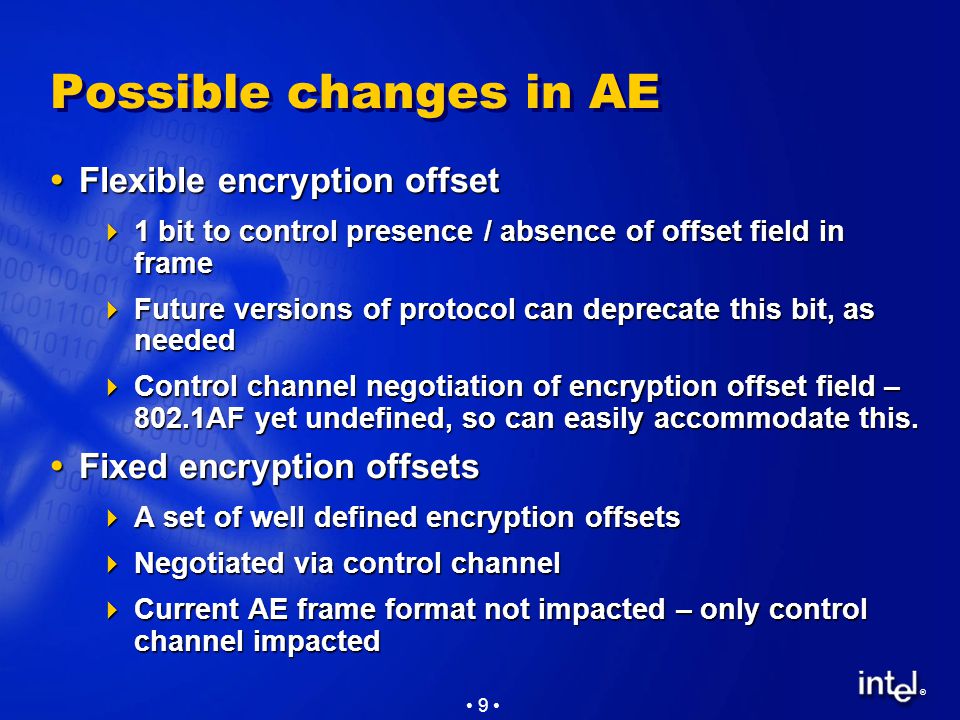

9 ® 9 Possible changes in AE  Flexible encryption offset  1 bit to control presence / absence of offset field in frame  Future versions of protocol can deprecate this bit, as needed  Control channel negotiation of encryption offset field – 802.1AF yet undefined, so can easily accommodate this.  Fixed encryption offsets  A set of well defined encryption offsets  Negotiated via control channel  Current AE frame format not impacted – only control channel impacted

10 ® 10 Fixed encryption offset  Cannot accommodate all packet format / protocol permutations!  Two primitives considered  IPv4 + Upper layer protocols  Ether type = 2 Octets  IP Header (no options) = 20 Octets  Min (TCP / UDP / SCTP / etc, ports) = 8 Octets Total = = 30 Octets With VLAN = (Only ports for TCP/UDP/…) = 30 Octets  IPv6 + Upper layer protocols  Ether type = 2 Octets  IP Header (no options) = 40 Octets  Min (TCP / UDP / SCTP / etc, ports) = 8 Octets Total = = 50 Octets With VLAN = (Only ports for TCP/UDP/…) = 50 bytes  30/50 Octet encryption offset (negotiated via control channel)

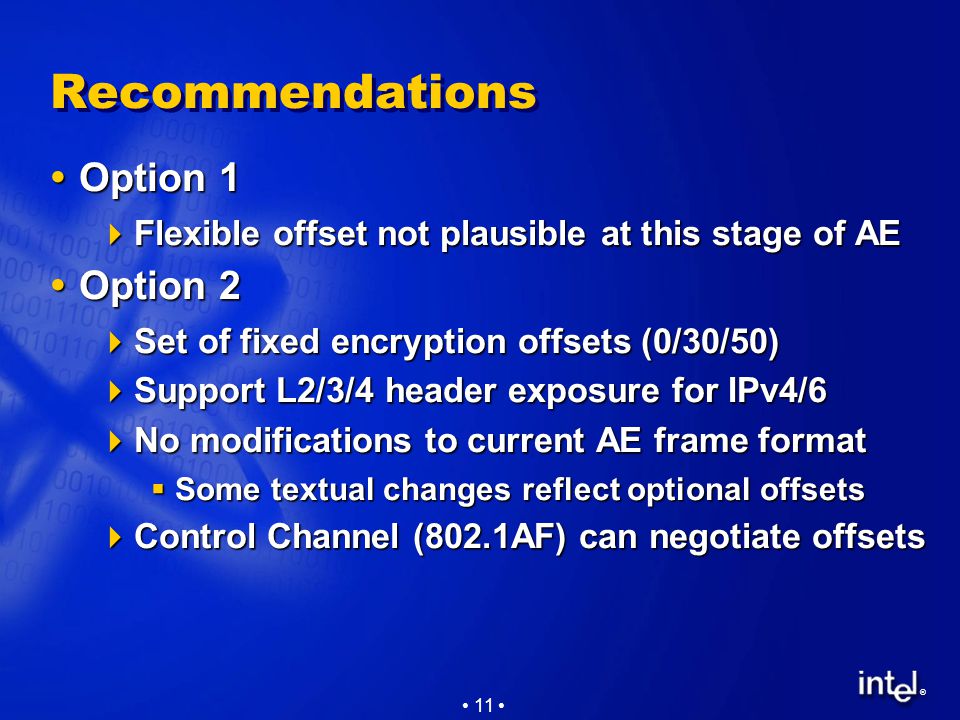

11 ® 11 Recommendations  Option 1  Flexible offset not plausible at this stage of AE  Option 2  Set of fixed encryption offsets (0/30/50)  Support L2/3/4 header exposure for IPv4/6  No modifications to current AE frame format  Some textual changes reflect optional offsets  Control Channel (802.1AF) can negotiate offsets

12 ® 12 Questions?
