Dentin_pulp complex. Dentin and pulp are embryologically, histologically, and functionally the same tissue and therefore are considered as a complex.

Similar presentations

Presentation on theme: "Dentin_pulp complex. Dentin and pulp are embryologically, histologically, and functionally the same tissue and therefore are considered as a complex."— Presentation transcript:

1 Dentin_pulp complex

2 Dentin and pulp are embryologically, histologically, and functionally the same tissue and therefore are considered as a complex

3 Tooth Dentin Tooth Crown Tooth Root Pulp

4 Both dentin and pulp have a common origin from the dental papilla.

5 Dentin Pulp

6 Dentin Pulp Odontoblast cell layer

7 Dentin Pulp

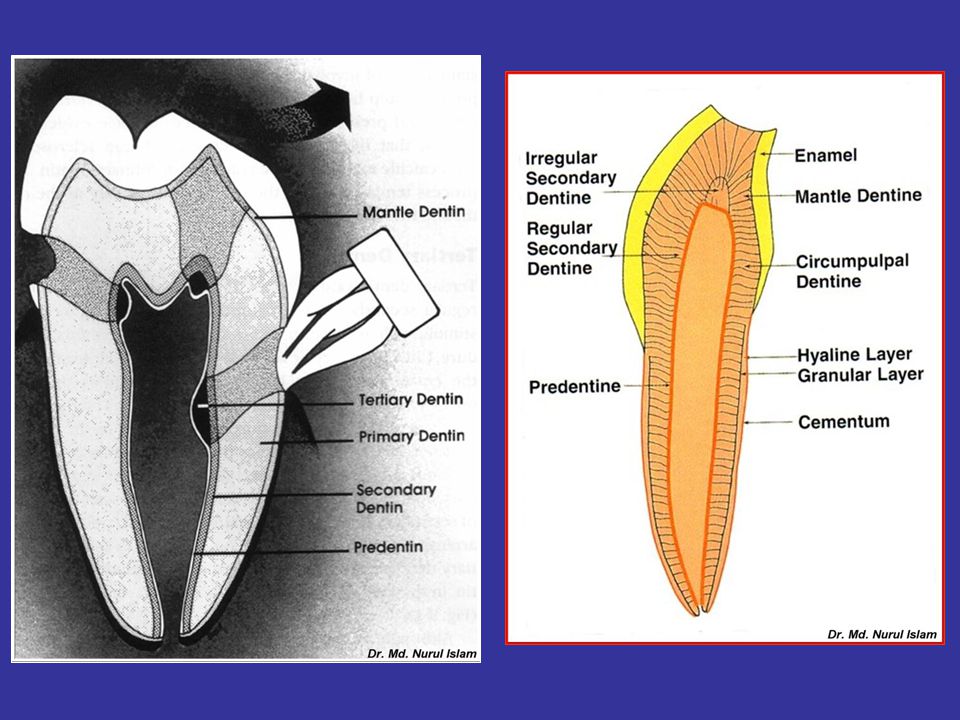

8 Types of Dentin Dentin Primary physiologic dentin Secondary physiologic dentin Tertiary dentin or reparative dentin or reactionary dentin or irregular secondary dentin Mantle dentin Circumpulpal dentin Peritubular dentin Intertubular dentin


10 Types of Dentin Primary dentin: is the dentin formed in a tooth before the completion of the apical foramen of the root. Primary dentin is noted for its regular pattern of tubules. Secondary dentin: is the dentin that is formed after the completion of the apical foramen and continues to form throughout the life of the tooth. Peritubular (intratubular) dentin: dentin that creates the wall of the dentinal tubule. Intertubular dentin: dentin found between the tubules. Mantle dentin: the first predentin that forms and matures within the tooth. Circumpulpal dentin: the layer of dentin around the outer pulpal wall.

11 Odontoblasts and process Odontoblast cellsOdontoblast process Dentin Pulp

12 Dentinal Matrix Dentinal matrix Hole for dentinal tubules

13 Dentinal tubules


15 Peritubular dentinIntertubular dentin

16 Dentinal tubules Predentin

17 Dentinal tubules Peritubular dentinIntertubular dentin

18 Dentinal tubules Predentin Odontoblast layer


20 Dentinal Tubules Coronal dentin Root dentin

21 Dentinal tubules

22 Intertubular dentin Dentinal tubules Intraubular or peritubular dentin

23 Interglobuler Dentin Inter- globuler dentin Dentinal Tubules Dentino Enamel Junction

24 Inter- globuler dentin

25 Dentin Cementum Granular layer of Tomes Hyaline layer

26 Primary physiological dentin Secondary physiological dentin

27 Primary physiological dentin Secondary physiological dentin Tertiary dentin

28 Deantal caries Sclerotic dentin

29 Primary physiological dentin Secondary physiological dentin Tertiary dentin Dead tracts

30 Incremental line of von Ebner

31 Dentin Enamel Lines of Retzius Lines of Owen Dentino-enamel Junction

32 Neonatal lines in Dentin

33 Functions of the Dental Pulp Nutrition: blood supply for pulp and dentin. Sensory: changes in temp., vibration and chemical that affect the dentin and pulp. Formative: the pulp involve in the support, maintenance and continued formation of dentin. Defensive: triggering of inflammatory and immune response. Protective: Development and formation of secondary and tertiary dentin which increase the coverage of the pulp.

34 Anatomy of Pulp Pulp Chamber or coronal pulp, located in the crown of the tooth. Root canal or radicular pulp, is the portion of the pulp located in the root area. The apical foramen is the opening from the pulp at the apex of the tooth. Accessory canals or lateral canal, extra canal located on the lateral portions of the root. Pulp horns or cornua

35 Lateral or accessory canal

36 Lateral Canal

37 Predentin Odontoblasts Cell-free zone Cell-rich zone Cell bodies Odontoblastic process

38 Zones-from outer to inner zoneDescription Odontoblastic layer Lines the outer pulpal wall and consists of the cell bodies of odontoblast. Secondary dentin may form in this area from the apposition of odontoblast. Cell-free zone Fewer cells than odontoblastic layer. Nerve and capillary plexus located here Cell-rich zone Increased density of cells as compared to cell-free zone and also a more extensive vascular system Pulpal-core Located in the center of the pulp chamber, which has many cells and an extensice vascular supply, similar to cell-rich zone Microscopic Zones in Pulp

39 Dentin Predentin Odontoblasts layer Cell free zone Cell rich zone Pulp core

40 Contents of the Pulp Cells: Odontoblast, Fibroblast, white-blood cells, Undifferentiated mesenchymal cells, Macrophages and Lymphocytes. No fat cell. Fibrous Matrix: Mostly reticular fibres and collagen fibres (Type I and Type III). Ground substance: Act as a medium to transport nutrients to cells and metabolites of the cell to the blood vessels.

41 Vascularity and Nerves of the Pulp The pulp organ is extensively vascular with vessels arising from the external carotids to the superior or inferior alveolar arteries. It drain by the same vein. Blood flow is more rapid in the pulp than in most area of the body, and the blood pressure is quite high. The walls of the pulpal vessels become very thin as their enter the pulp. Nerves : Several large nerves enter the apical canal of each Molar and Premolar and single ones enter the anterior teeth. This trunks transverse the radicular pulp, proceed to the coronal area and branch peripherally.

42 Nerves and vessels in pulp Blood and vessels enter and exit the dental pulp by way of the apical and accessory foramina. Pulp is richly innervated; nerves enter the pulp through the apical foramen, along with afferent blood vessels and together form the neuro-vascular bundle.

43 Nerves in pulp

44 Dental Pulp NerveBlood vessel

45 Clinically Importance features of the Dental Pulp With age the pulp becomes less cellular. The number of cells in the dental pulp decreases as cell death occurs with age. The volume of the pulp chamber with continued deposition of dentine. In older teeth, the pulp chamber decreases in size; in some cases the pulp chamber can be obliterated. An increase in calcification in the pulp occurs with age. An increase in calcification in the pulp occurs with age.


47 Free True Denticle Free True Denticle

48 Free True Denticle

49 Odontoblast Predentin Dentinal Tubules Free True Denticle

50 Free False Denticle

51 Diffuse Pulp Calcification

52 Dentin Sensitivity: three theories Nerve in dentin – the dentin contains nerve endings that respond when it is stimulated. Odontoblastic process – the odontoblasts serve as receptors and are coupled to nerves in the pulp. Fluid movements in the dentinal tubules – the tubular nature of dentin permits fluid movement to occur within the tubule when a stimulus is applied – a movement registered by pulpal free nerve endings close to the dentin.
