Tooth Development (Odontogenesis)

Similar presentations

Presentation on theme: "Tooth Development (Odontogenesis)"— Presentation transcript:

1 Tooth Development (Odontogenesis)

2 Dentition Primary dentition – develops during prenatal period
20 teeth Permanent dentition – develops as the jaw grows and matures 32 teeth period in between – during the preteen years mixed dentition period

3 THERE ARE MULTIPLE STAGES IN TOOTH DEVELOPMENT – but three major ones actually
initiation stage – 6th to 7th week bud stage – 8th week cap stage – 9th to 10th weeks bell stage – 11th to 12th weeks apposition stage – vaires per tooth maturation stage – varies per tooth

4 Tooth formation first signs of formation – day 11
thickening of the epithelium where tooth formation will occur - on the 1st branchial arch more than 90 genes have been identified in the oral epithelium, dental epithelium and dental mesenchyme!! so exact signaling mechanisms remain unclear

5 Tooth formation: Initial stages
-involves the physiologic process of induction -induction of ectodermal tissues by the developing mesenchyme -mechanisms remain unknown -at the 6th week the stomatodeum is lined with ectoderm – outer portion is the oral epithelium -this gives rise to the primary epithelial bands -also is a developing mesenchyme which contains neural crest cells that have migrated to the area -a basement membrane separates the developing oral epithelium and mesenchyme Primary epithelial bands: Horseshoe-shaped bands that appear approximately around the 37th day of development, one for each jaw. -there are two subdivisions: vestibular lamina and dental lamina -the dental lamina grows deep into the mesenchyme -develops in the future spot for the dental arches -the ingrowths represent the future sites for each deciduous tooth -the vestibular lamina cells rapidly enlarge and then degenerate – forms a cleft that becomes the vestibule of the oral cavity The initiation of tooth formation starts around the 37th day of gestation.

6 Bud Stage marked by the incursion of epithelium into the mesenchyme
period of extensive proliferation and growth of the dental lamina forms into tooth buds or oral masses that penetrate into the mesenchyme each tooth bud is surrounded by the mesenchyme buds + mesenchyme develop into the tooth germ and the associated tissues of the tooth Tooth bud Oral epithelium Mesenchyme

7 Cap Stage characterized by continuation of the ingrowth of the oral epithelium into the mesenchyme. tooth bud of the dental lamina proliferates unequally in different parts of the bud forms a cap shaped tissue attached to the remaining dental lamina this stage marks the beginning of histodifferentiation (differentiation of tissues) the tooth germ also begins to take on form – start of morphodifferentiation a depression forms in the deepest part of each tooth bud and forms the cap or enamel organ (or dental organ) – produces the future enamel (ectodermal origin) below this cap is a condensing mass of mesenchyme – dental papilla – produces the future dentin and pulp tissue (mesenchymal origin) the basement membrane separating the dental organ and the dental papilla becomes the future site for the dentinoenamel junction (DEJ) remaining mesenchyme surrounds the dental/enamel organ and condenses to form the dental sac or the dental follicle

8 Cap stage together the enamel organ + dental papilla + dental follicle is considered the developing tooth germ these germs are found in the developing dental arches and will develop into the primary dentition

9 Bell Stage Continuation of histodifferentiation and morphodifferentiation cap shape then assumes a more bell-like shape differentiation produces four types of cells within the enamel/dental organ 1. inner enamel epithelium 2. outer enamel epithelium 3. stellate reticulum 4. stratum intermedium the dental papilla undergoes differentiation and produces two types of cells 1. outer cells of the DP – forms the dentin-secreting cells (odontoblasts) 2. central cells of the DP – forms the primordium of the pulp dental sac/follicle increases its collagen content and differentiates at a later stage than the EO and DP

10 Differentiation of the Enamel/Dental organ
outer enamel epithelium (OEE) – cuboidal shape protective barrier during enamel production may also be called the outer dental epithelium inner enamel epithelium (IEE) short, columnar cells differentiates into the enamel secreting cells = ameloblasts separated from the dental papilla below it by a basement membrane also may also be called the inner dental epithelium the IEE and OEE are continuous region where they connect – curved rim of the EO = cervical loop stellate reticulum star-shaped cells in many layers center of the enamel organ forms a network = reticulum supports production of enamel stratum intermedium inner layer of compressed flat to cuboidal cells OEE IEE cervical loop

11 Bell Stage -the cells in the center of the enamel organ begin to
synthesize and secrete GAGs -this pulls water into the EO -increasing amount of fluid in the EO forces the central cells apart -however, they remain connected via cellular processes which makes them star shaped = stellate ret. B = inner dental epithelium (inner enamel epithelium)

12 Bell stage – early crown formation
the dental papilla is separated from the enamel organ by a basement membrane immediately below this BM is a region called the acellular zone this is where the first enamel proteins will be laid down the dental lamina begins to break up into discrete islands of epithelial cells (epithelial pearls)– separates the oral epithelium from the developing tooth the IEE completes its folding and you can begin to identify the shape of the future crown pattern

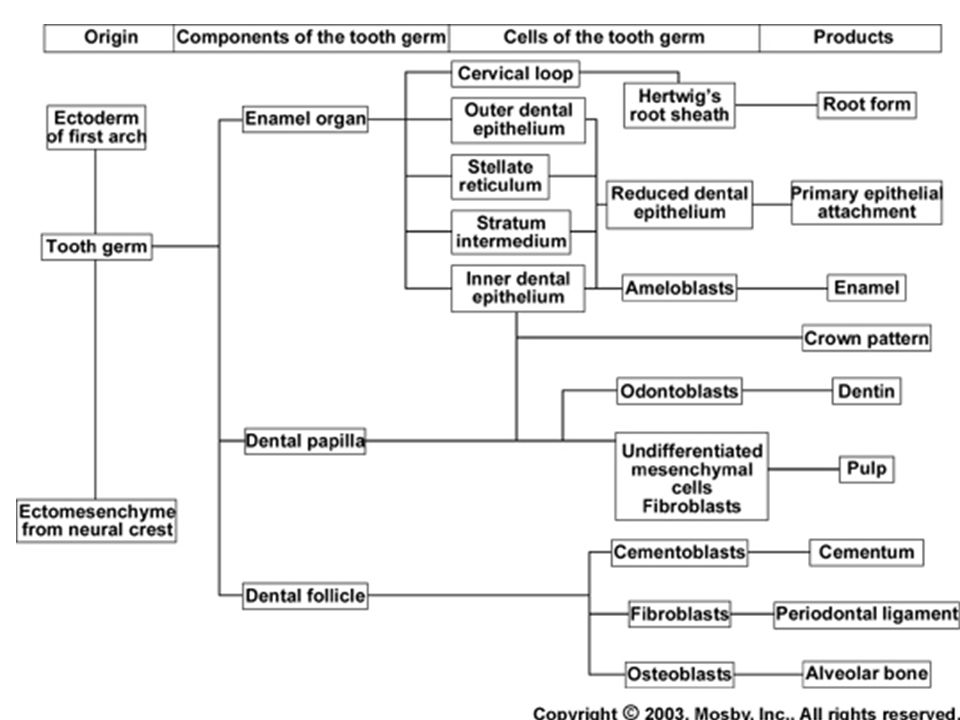

13 Tooth development so far

14 Cap and Bell stages & Permanent teeth
during the cap stage the development of the permanent dentition begins the primordia for these teeth appears as an extension off the developing dental lamina its site of origin is called the succesional dental lamina these permanent teeth are called succedaneous teeth (anterior teeth and the premolars) teeth that form with the primary tooth buds (primary predecessors)

15 Appositional stage secretion of enamel, dentin and cementum
these tissues are initially secreted as a matrix that is partially calcified – serves as a framework for later calcification

16 Maturation stage characterized by the completion of calcification

17 Ameloblasts and Odontoblasts
the cells of the IEE assume a more columnar shape or they elongate differentiate into pre-ameloblasts the pre-ABs induce the cells of the dental papilla to differentiate also odontoblasts differentiation by the mesenchyme of the dental papilla occurs after differentiation of pre-ABs begins results because the pre-ABs induce differentiation of the mesenchymal cells also after differentiation – the ODs then start dentinogenesis

18 At 1 the epithelium is separated from the dental papilla by an acellular zone.
At 2 the cells of the inner dental epithelium have elongated, and the acellular zone begins to be eliminated as odontoblasts differentiate from ectomesenchymal cells in the tooth pulp. At 3 the odontoblasts retreat toward the center of the pulp, leaving behind formed dentin. At 4 the cells of the inner dental epithelium, now ameloblasts, begin to migrate outward and leave behind formed enamel. before dentin forms – cells of the EO receive blood supply from vessels of the dental lamina as dentin forms, it cuts of this papillary source of blood/nutrients this causes a drastic reduction in the amount of nutrients that reach the EO but the ABs require extensive nutrients to form enamel – stellate reticulum collapses and invagination of the OEE – this brings in blood supply from peripheral vessels found outside the tooth

19 Dentinoenamel junction
after OD differentiation and the initiation of dentinogenesis – the BM between the pre-ABs and ODs disintegrates this allows direct contact between the pre-ABs and ODs – results in the completion of pre-AB differentiation to mature ABs ABs then begin amelogenesis – apposition of enamel matrix upon contact of the enamel matrix and dentin – the disintegrating BM begins to mineralize – forms the dentinoenamel junction or DEJ mineralization of the developing dentin and enamel is distinct for each type of tissue

20 Timetable for tooth development
Entire primary dentition initiated between 6 and 8 weeks of embryonic development. Successional permanent teeth initiated between 20th week in utero and 10th month after birth permanent molars between 20th week in utero (first molar) and 5th year of life (third molar)

21 ROOT FORMATION takes place as the crown is completely shaped and the tooth begins to erupt therefore the tooth forms from the “top down” – i.e. crown to root root formation is through the formation of a cervical loop the CL is the most cervical portion of the enamel/dental organ – two layers consisting of IEE and OEE the CL begins to grow down into the dental sac it forms a Hertwig's root sheath grows down to encompass all but the basal portion of the pulp this sheath shapes the root and induces dentin formation in the root area by the ODs of the dental papilla this sheath lacks the stellate reticulum and stratum intermedium is capable of differentiating into ODs BUT NOT ABs A, The root is beginning to form as an extension of the inner and outer dental epithelia in the cervical loop region (circles) which form a bilayered structure called Hertwig’s epithelial root sheath. B. formation of dentin by odontoblasts above the root sheath

22 Root Dentin The root of the tooth is composed by dentin and cementum
dentin forms when the outer cells of the dental papilla are induced to differentiation into ODs similar to what occurs at the crown area influenced by Hertwig’s root sheath the ODs then undergo dentinogenesis and secrete predentin after dentin formation – the BM disintegrates along with the Hertwig’s sheath

23 Cementum and Pulp formation
cementogenesis in the root area also occurs upon degradation of the H. root sheath the degradation allows contact of the dental sac cells with the dentin surface – induces the formation of cementoblast cells the CBs cover the root dentin and undergo cementogenesis – laying down cementoid only upon mineralization of the cementoid can it be called cementum the region of contact between cementum and root dentin = dentinocemental junction or DCJ while the cementum is forming - the central cells of the dental papilla form the pulp (Chapter 13)

24 Periodontal ligament the surrounding tissues of the tooth also develop as the crown and root form the mesenchyme of the dental sac condenses to form the periodontal ligament forms adjacent to the new cementum ends of these fibers insert into the outer layer of cementum and surrounding alveolar bone the cells of the disintegrating H. root sheath develop into discrete islands of epithelial cells become epithelial rests of Malassez (figure 6-22) no known function they can be identified in the periodontal ligament and are responsible for the development of radicular cysts.

25 Multirooted teeth anterior teeth, premolars and molars all begin as a single root – root trunk root of the posterior teeth divides from the trunk into the correct number of root branches differential growth of the H. root sheath results in the division of the root trunk into two or three roots
