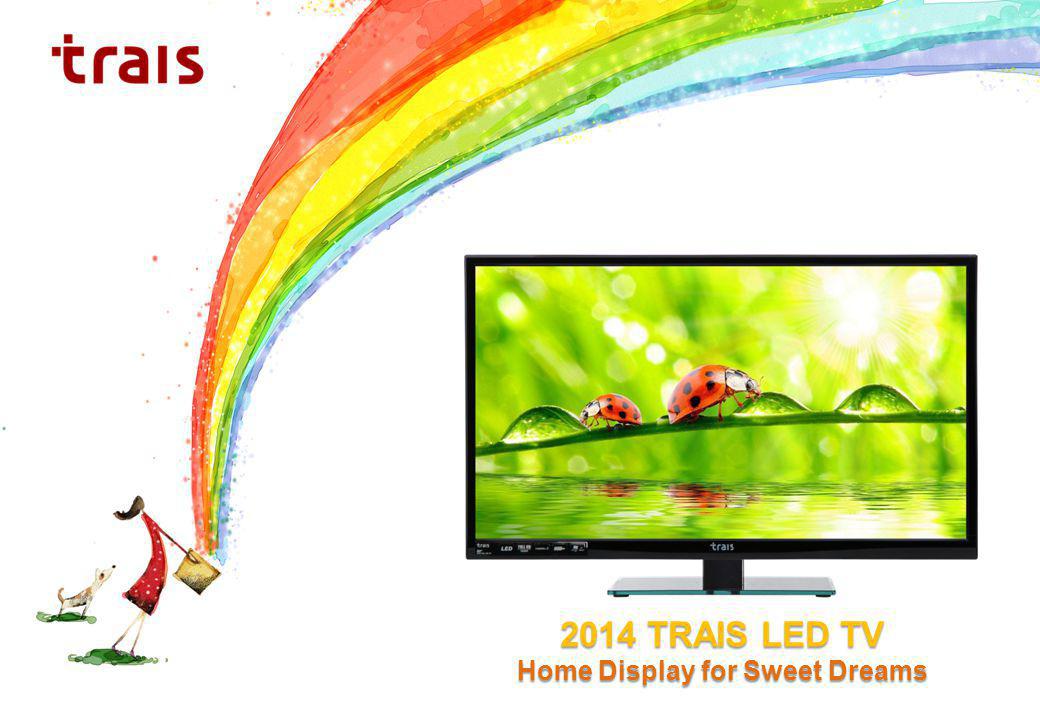

1 2014 TRAIS LED TV Home Display for Sweet Dreams

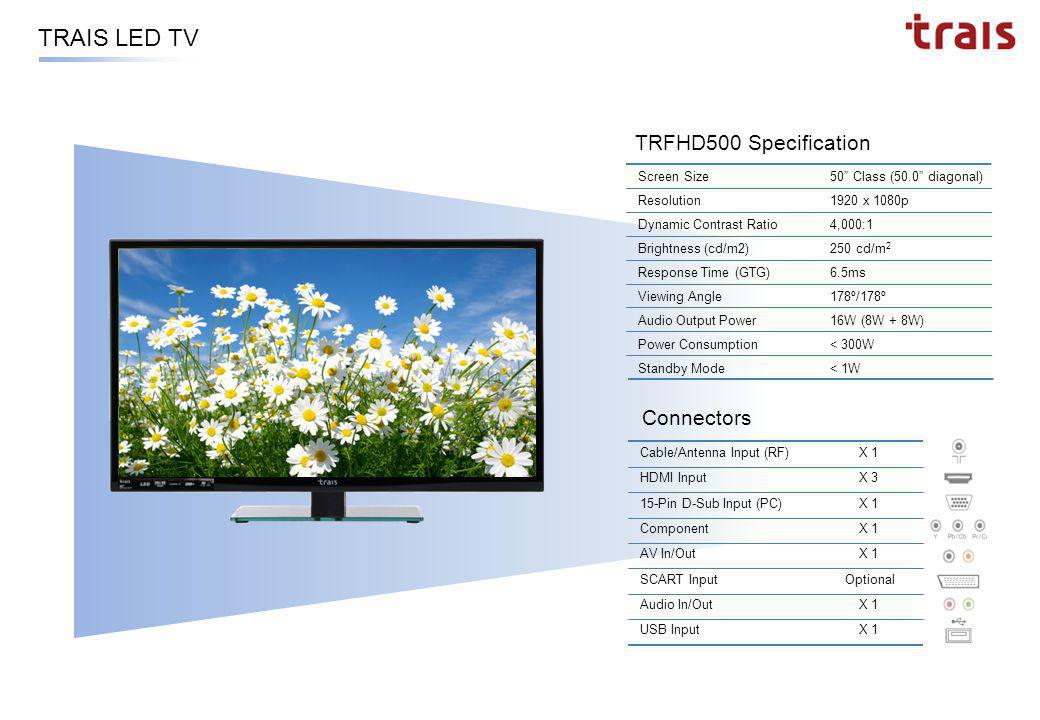

2 TRAIS LED TV Cable/Antenna Input (RF) HDMI Input 15-Pin D-Sub Input (PC) Component AV In/Out SCART Input Audio In/Out USB Input X 1 X 3 X 1 Optional X 1 Connectors Screen Size 50 Class (50.0 diagonal) Resolution 1920 x 1080p Dynamic Contrast Ratio 4,000:1 Brightness (cd/m2)250 cd/m 2 Response Time (GTG) 6.5ms Viewing Angle 178º/178º Audio Output Power16W (8W + 8W) Power Consumption< 300W Standby Mode < 1W TRFHD500 Specification

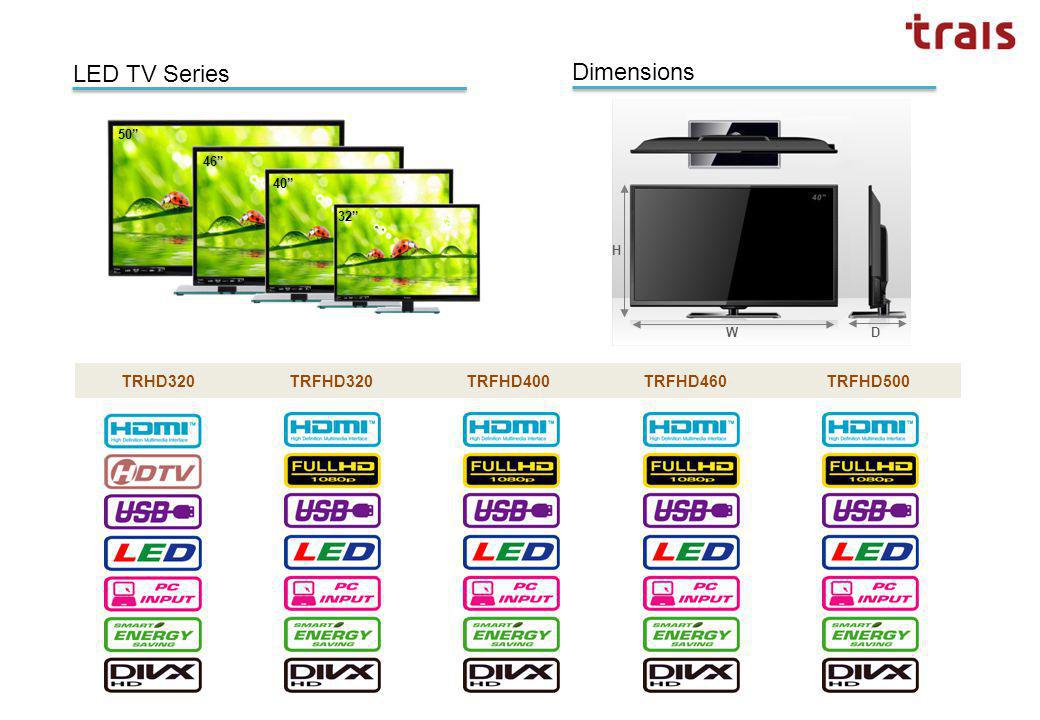

3 LED TV Series Dimensions TRHD320TRFHD320TRFHD400TRFHD460TRFHD500 H W D

4 Model Specification Model NameTRHD320TRFHD320TRFHD400TRFHD460TRFHD500 Display Feature Display TechnologyLED Screen Size16:9 Resolution1366 x x 1080 Brightness220cd/m 2 250cd/m 2 Contrast2500:12800:1 4000:1 3000:14000:1 Viewing angle178°/178° Response Time6.5ms Maximum colors16.7M Main B/D Main B/D Chip solutionSIS231 TV SystemNTSC-M,ATSC Channel Coverage VHF 2-13, UHF 14-69, CATV (1-135) ATSC Tuner No. of Channel181 Sound Sound SystemBTSC/AC3 Maximum audio output8W x 2 7W x 2 8W x 2 Speaker TypeEmbedded Terminals Cable/RF HDMI VGA YPBRP component in Coaxial out PC audio USB Headphone Vedio AV in R L Line out Other features Infared Remote Control with NEC codesYY Y YY Auto Search ChannelYY Y YY FreezeYY Y YY De-interlacingYY Y YY Noise ReductionYY Y YY Comb Filter3D HD Compatible480i/480p/720p/1080i/1080p 8/10bit Drive8Bit Wide ModeFill Screen/ Zoom OSD LanguageEnglish/Korean Sleep TimerYY Y YY No Signal Shut DownYY Y YY V-CHIPYY N YY Case Material Non-rohs, fire resistance for back cover Accessory Instruction MenuYes Remote controlYes; with batteries Wall Mount Supportfor option Wall Mount and Base Stand Screw SizeTBD Power supply110~240V AC 50/60HZ Power consumption<75W <260W<300W Stand by power consumption<1W Dimension/Stuffing Dimension with stand (MM)734 X 488 X x 90 x x 699 x x 724 x 254 Dimension w/o stand (MM)734 X 442 X x 90 x x 640 x x 663 x 94 Net Weight (kg)7kgs 10.2kgs 15.9kgs17kgs *These specifications are subject to change without notice

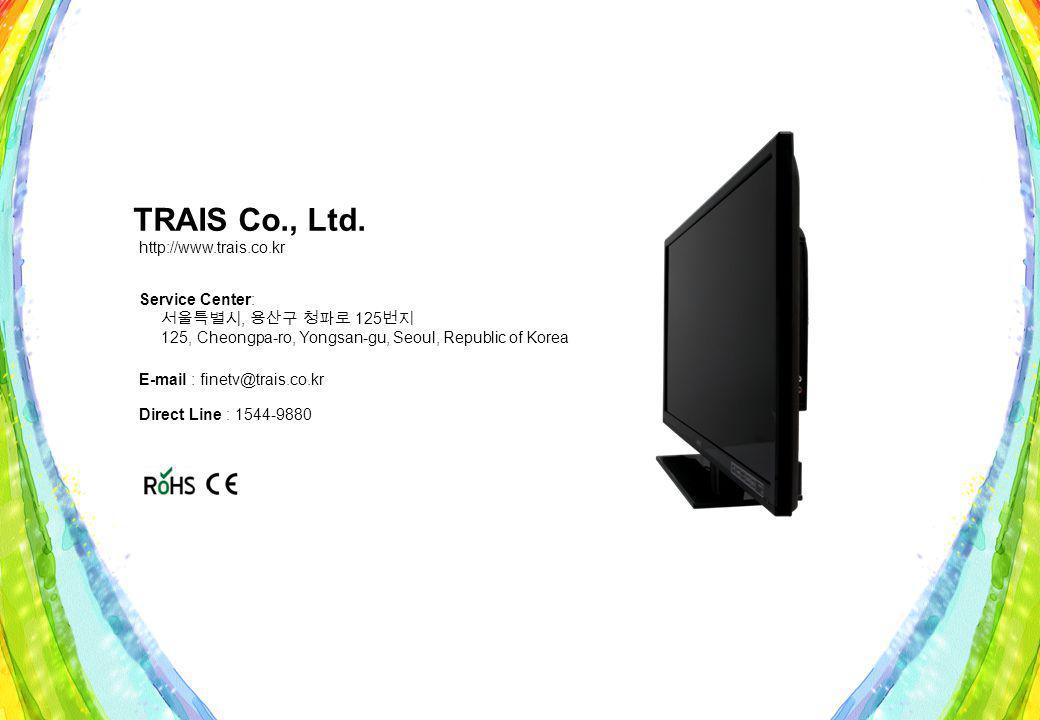

5 TRAIS Co., Ltd. Service Center:, , Cheongpa-ro, Yongsan-gu, Seoul, Republic of Korea Direct Line :
