1 PLC-WTC500L SANYO FISHER Sales (Europe) GmbH

2 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Technical Specifications Model: PLC-WTC500L Category: Professional Panel: 3 x 1.0" TFT p-Si (16:10) Resolution: WXGA (1,280 x 800 pixels) Brightness: 5,000 ANSI lumens Standard Lens LNS-S11: F = 1.7 – 2.1/f = mm Throw Distance LNS-S11: 1.3 – 10.5 m Throw Distance Ratio LNS-S11: 1.6 – 2.1 : 1 Contrast Ratio: 3,000 : 1 Image size min. - max. (diagonal): 30 – 300 Lamp: 2 x 330 W NSH (LMP-125) Lamp Life: 3,000 h (eco mode) / 2,500 h (normal mode) Fan Noise: 31 dB (eco mode) / 35 dB (normal mode) Keystone Correction: vertical +/- 40°, horizontal +/-20° Dimensions (W x H x D): x x mm Weight (Net): 14.7 kg

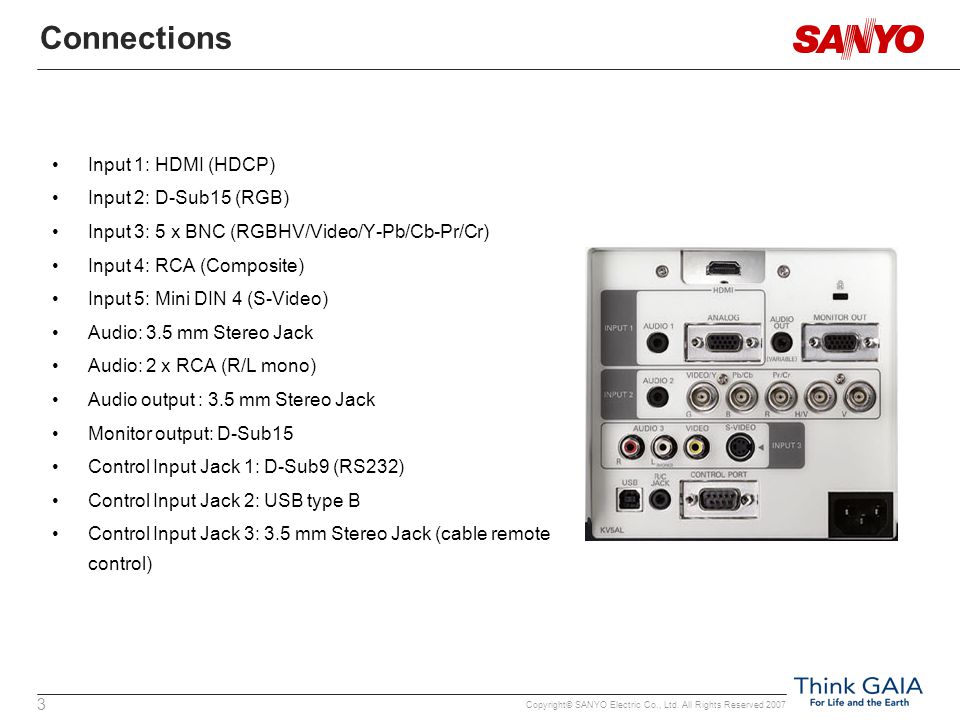

3 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Connections Input 1: HDMI (HDCP) Input 2: D-Sub15 (RGB) Input 3: 5 x BNC (RGBHV/Video/Y-Pb/Cb-Pr/Cr) Input 4: RCA (Composite) Input 5: Mini DIN 4 (S-Video) Audio: 3.5 mm Stereo Jack Audio: 2 x RCA (R/L mono) Audio output : 3.5 mm Stereo Jack Monitor output: D-Sub15 Control Input Jack 1: D-Sub9 (RS232) Control Input Jack 2: USB type B Control Input Jack 3: 3.5 mm Stereo Jack (cable remote control)

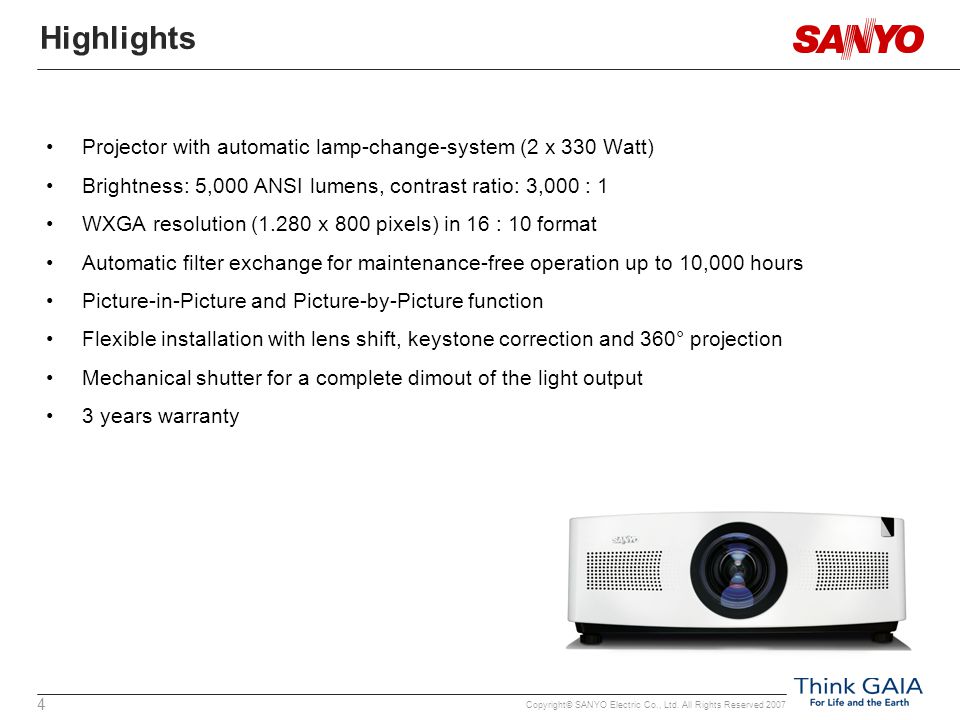

4 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Highlights Projector with automatic lamp-change-system (2 x 330 Watt) Brightness: 5,000 ANSI lumens, contrast ratio: 3,000 : 1 WXGA resolution (1.280 x 800 pixels) in 16 : 10 format Automatic filter exchange for maintenance-free operation up to 10,000 hours Picture-in-Picture and Picture-by-Picture function Flexible installation with lens shift, keystone correction and 360° projection Mechanical shutter for a complete dimout of the light output 3 years warranty

5 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Standard accessories IR/cable remote control with laser pointer and mouse function Batteries User manual Power cable USB cable D-Sub15 cable PIN code label Optional accessories PJ Net Organizer Plus II with video camera (POA-PN03C) Ceiling mounts: 15 cm (POA-CM01), cm (POA-CM02), cm (POA-CM03) Exchange filter (POA-FIL-100) Optional lenses: LNS-S11, LNS-T10, LNS-T11, LNS-W10, LNS-W11 Accessories

6 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Highlights Projector with lamp selection system Flexible installations Active maintenance filter Lamp selection system

7 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Lamp selection system Lamp-selection system provides further convenience for professional applications High functionality – up to 6,000 combined hours of lamp operation Eliminates time- and cost-consuming lamp exchange maintenance A special adjustable mirror is located between the lamps and is able to reposition itself to reflect light from either lamp through the lens onto the screen Flexible mirror

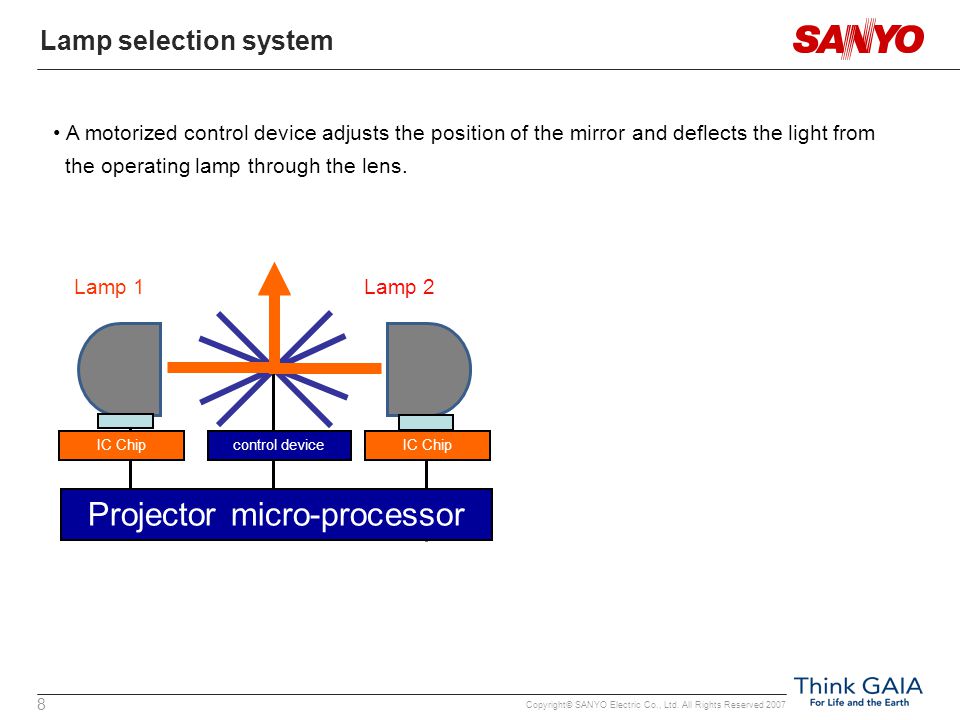

8 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Lamp selection system Lamp 1Lamp 2 control deviceIC Chip Projector micro-processor IC Chip A motorized control device adjusts the position of the mirror and deflects the light from the operating lamp through the lens.

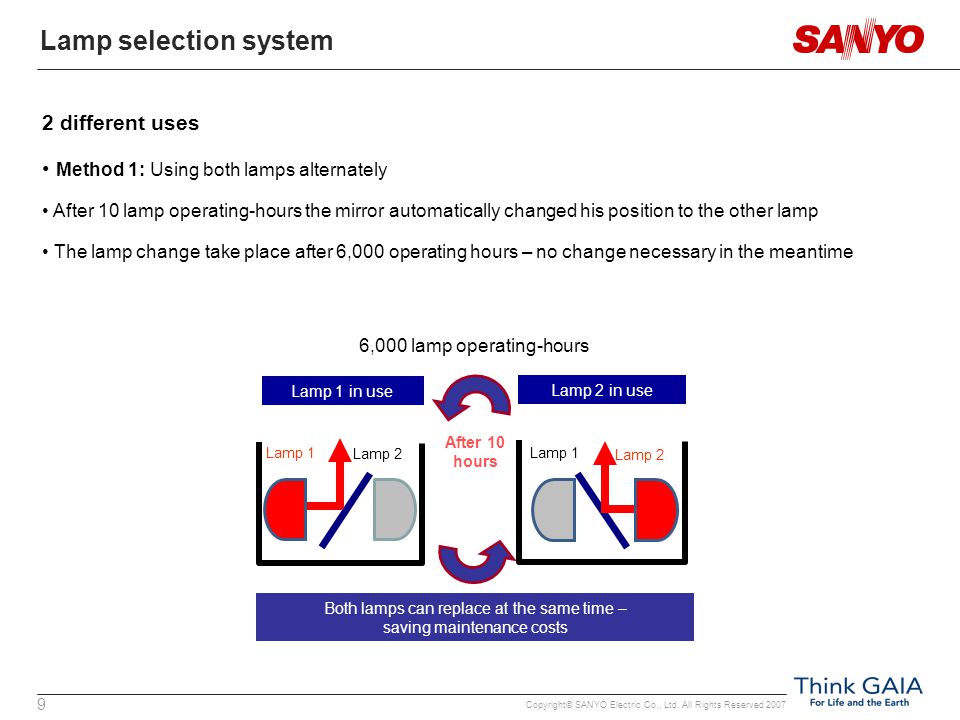

9 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Lamp selection system 2 different uses Method 1: Using both lamps alternately After 10 lamp operating-hours the mirror automatically changed his position to the other lamp The lamp change take place after 6,000 operating hours – no change necessary in the meantime Alternating Mode Lamp 1 in use Lamp 1 Lamp 2 Lamp 2 in use After 10 hours 6,000 lamp operating-hours Lamp 1 Lamp 2 Both lamps can replace at the same time – saving maintenance costs

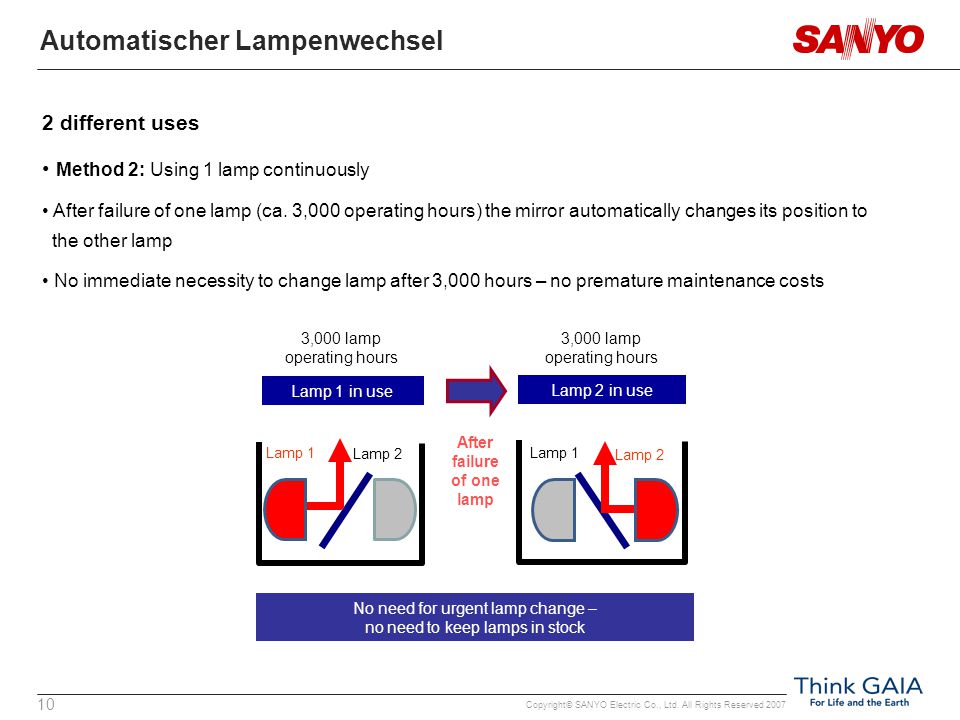

10 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Alternating Mode Lamp 1 in use Lamp 1 Lamp 2 Lamp 2 in use After failure of one lamp Lamp 1 Lamp 2 No need for urgent lamp change – no need to keep lamps in stock Automatischer Lampenwechsel 2 different uses Method 2: Using 1 lamp continuously After failure of one lamp (ca. 3,000 operating hours) the mirror automatically changes its position to the other lamp No immediate necessity to change lamp after 3,000 hours – no premature maintenance costs 3,000 lamp operating hours

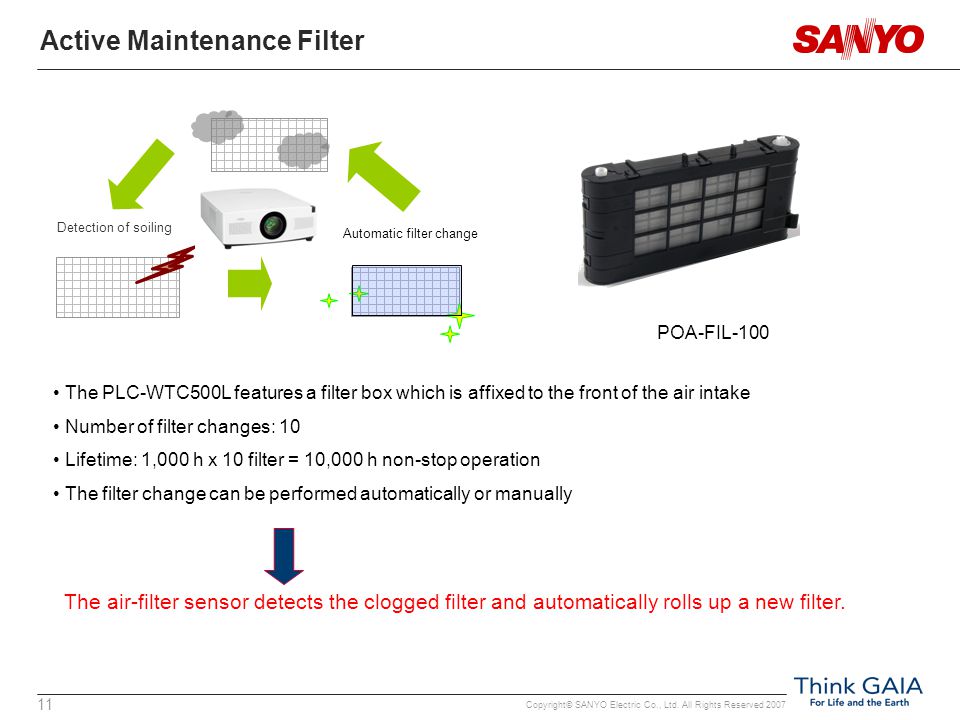

11 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Automatic filter change Detection of soiling Active Maintenance Filter The air-filter sensor detects the clogged filter and automatically rolls up a new filter. The PLC-WTC500L features a filter box which is affixed to the front of the air intake Number of filter changes: 10 Lifetime: 1,000 h x 10 filter = 10,000 h non-stop operation The filter change can be performed automatically or manually POA-FIL-100

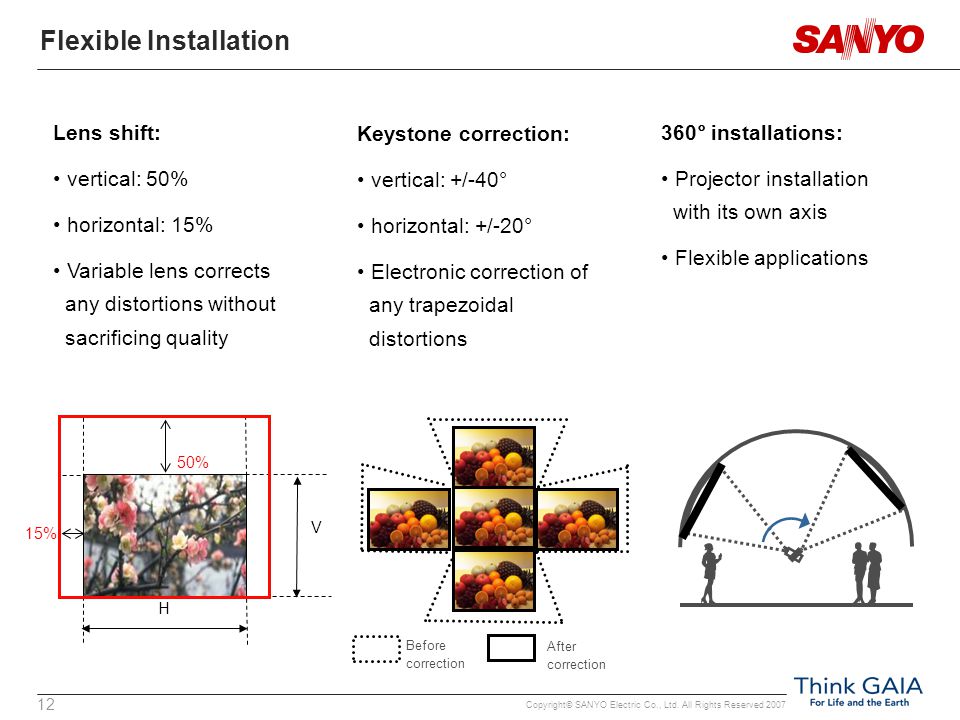

12 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Flexible Installation V H 15% 50% Lens shift: vertical: 50% horizontal: 15% Variable lens corrects any distortions without sacrificing quality Before correction After correction Keystone correction: vertical: +/-40° horizontal: +/-20° Electronic correction of any trapezoidal distortions 360° installations: Projector installation with its own axis Flexible applications

13 Copyright© SANYO Electric Co., Ltd. All Rights Reserved optional lens types Optimal versatility in every situation Impressive pictures with a maximum screen size of 600 inch (15,24 m) Throw distance ratio Other features

14 Copyright© SANYO Electric Co., Ltd. All Rights Reserved optional lens types Optimal versatility in every situation Impressive pictures with a maximum screen size of 400 inch (10,16 m) Throw distance ratio Other features LNS-W11 LNS-W10 LNS-S11 LNS-T10 LNS-T : – 1.6 : – 2.1 : – 3.5 : – 5.4 : 1

15 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Other features Mechanical shutter The mechanical shutter moves between the prism block and the lens Presentations can be paused for a desired amount of time Effective withholding of residual light from being projected on- screen Mechanical Shutter Prism block Lens Blocks protection light

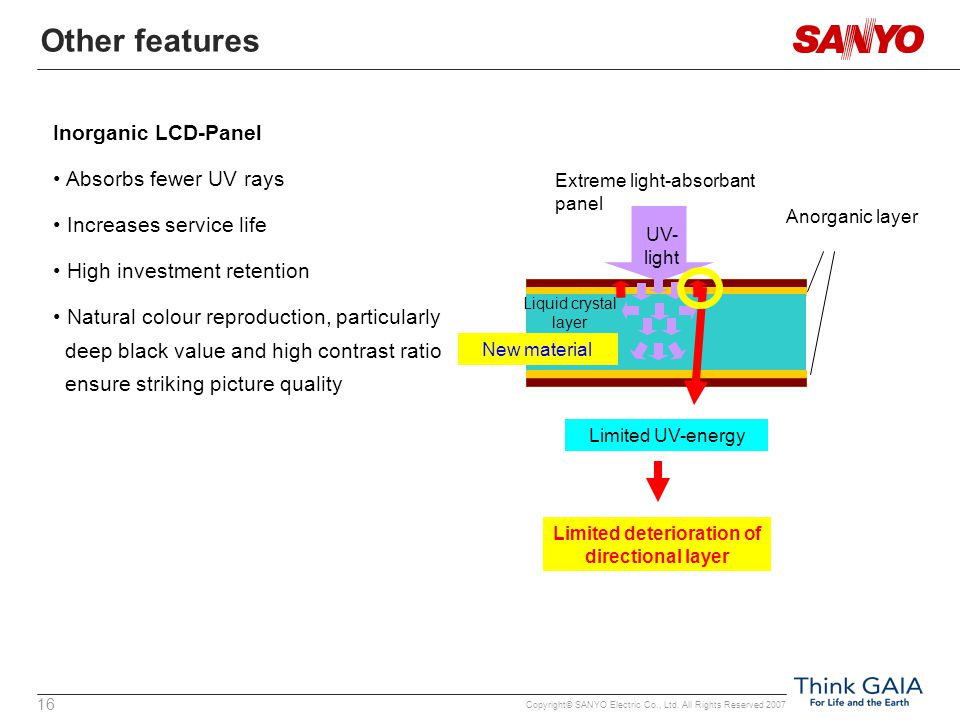

16 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Other features Extreme light-absorbant panel UV- light Liquid crystal layer New material Limited deterioration of directional layer Limited UV-energy Anorganic layer Inorganic LCD-Panel Absorbs fewer UV rays Increases service life High investment retention Natural colour reproduction, particularly deep black value and high contrast ratio ensure striking picture quality

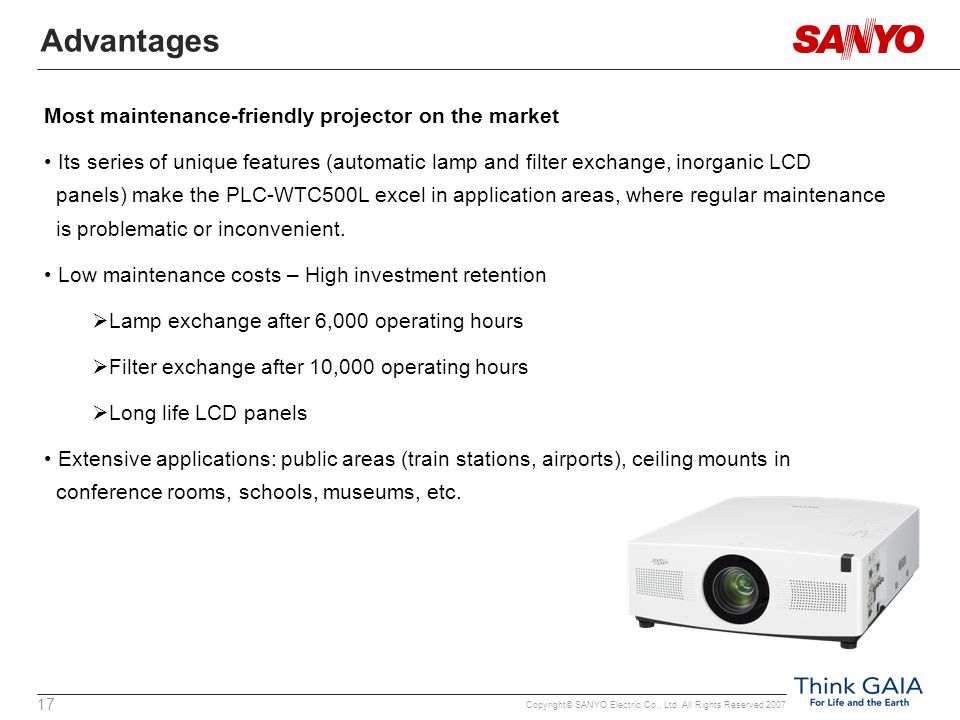

17 Copyright© SANYO Electric Co., Ltd. All Rights Reserved Advantages Most maintenance-friendly projector on the market Its series of unique features (automatic lamp and filter exchange, inorganic LCD panels) make the PLC-WTC500L excel in application areas, where regular maintenance is problematic or inconvenient. Low maintenance costs – High investment retention Lamp exchange after 6,000 operating hours Filter exchange after 10,000 operating hours Long life LCD panels Extensive applications: public areas (train stations, airports), ceiling mounts in conference rooms, schools, museums, etc.
