1 ETC is your One-Stop-Shop for control upgrades on all types of Automatic Transfer Schemes: Emergency Transfer Controls Automatic Transfer Switches (ATS ) Main-Main (MM) Main-Tie-Main (MTM) Our cost, service, and support are unmatched in the industry

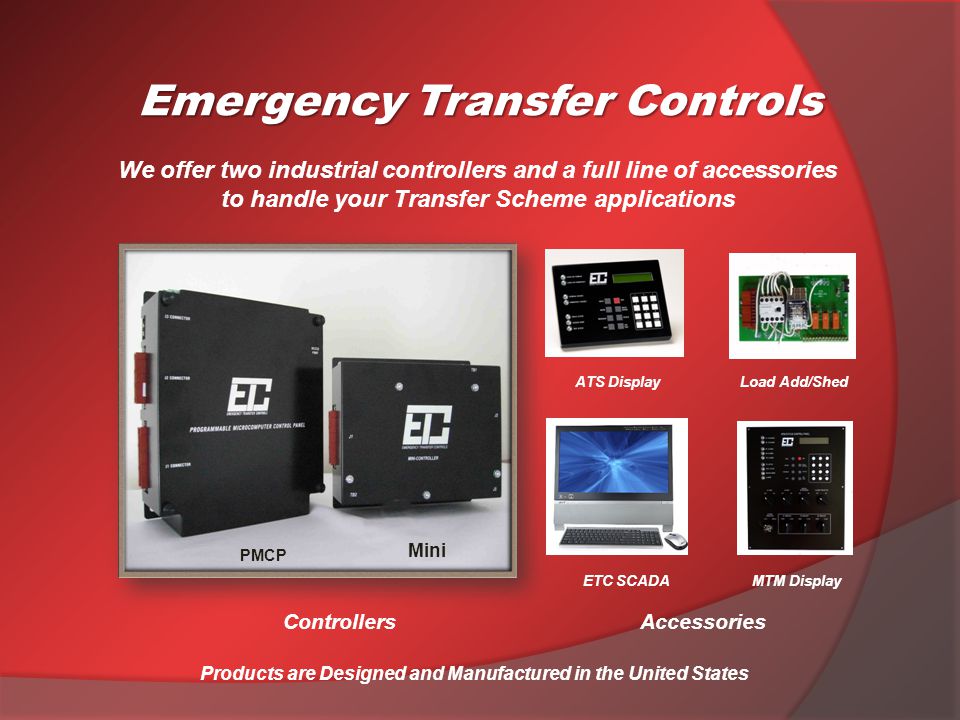

2 We offer two industrial controllers and a full line of accessories to handle your Transfer Scheme applications Mini PMCP Emergency Transfer Controls Products are Designed and Manufactured in the United States Controllers ETC SCADA Load Add/ShedATS Display MTM Display Accessories

3 Our Products & Services are widely used throughout the USA and Canada for critical applications: Data Centers Hospitals Military Installations State Facilities Water Treatment Plants Municipalities Universities Pharmaceutical Plants Hotels Correctional Facilities Residential/Commercial Buildings Emergency Transfer Controls

4 Advantages of using the PMCP Controller NO software to write Reduction in labor, wiring, parts, and engineering Program operating settings within 60 Seconds Programmable for ATS, Main-Main, or Main-Tie-Main Operation Select for Open, Closed, Delayed, and Soft Load Transfer Low and Medium voltage applications A full line of accessories to meet your application requirements A 2-Year Warranty on parts and labor We provide 24/7 technical support Emergency Transfer Controls The PMCP is the most versatile Transfer Scheme Controller on the market

5 Our Controllers are used to replace old and obsolete ATS controls on all the major ATS Manufacturers Westinghouse Cutler Hammer Lake Shore Thompson Technology Russelectric Emergency Transfer Controls ASCO Zenith Kohler Onan Generac Replacing the entire ATS is costly but upgrading the controls is not

6 Emergency Transfer Controls Interfacing the PMCP to an ATS and Main-Main

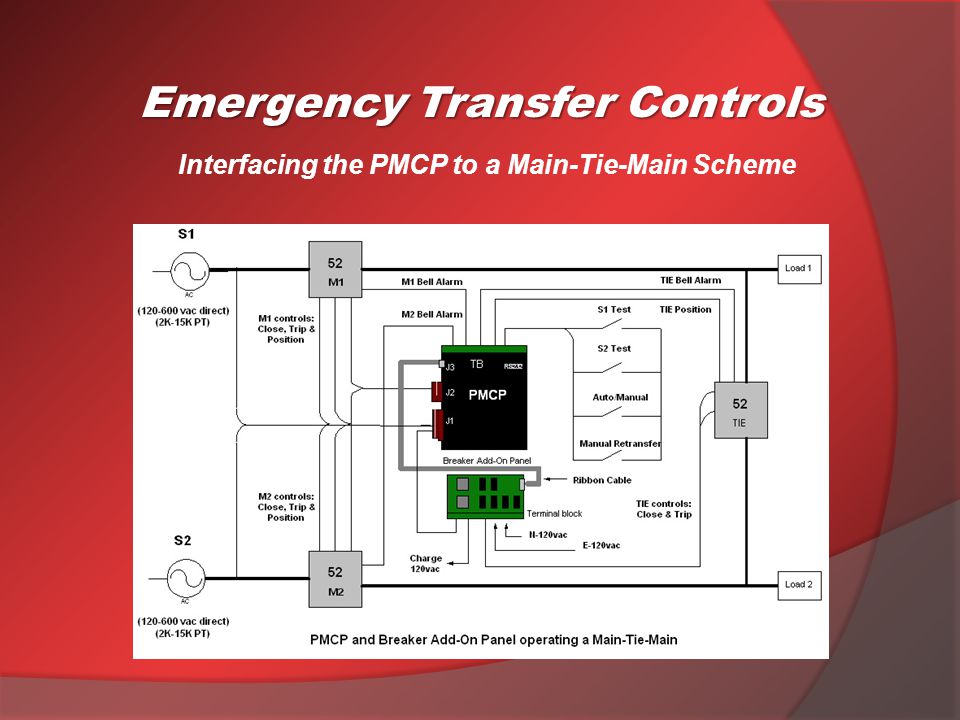

7 Emergency Transfer Controls Interfacing the PMCP to a Main-Tie-Main Scheme

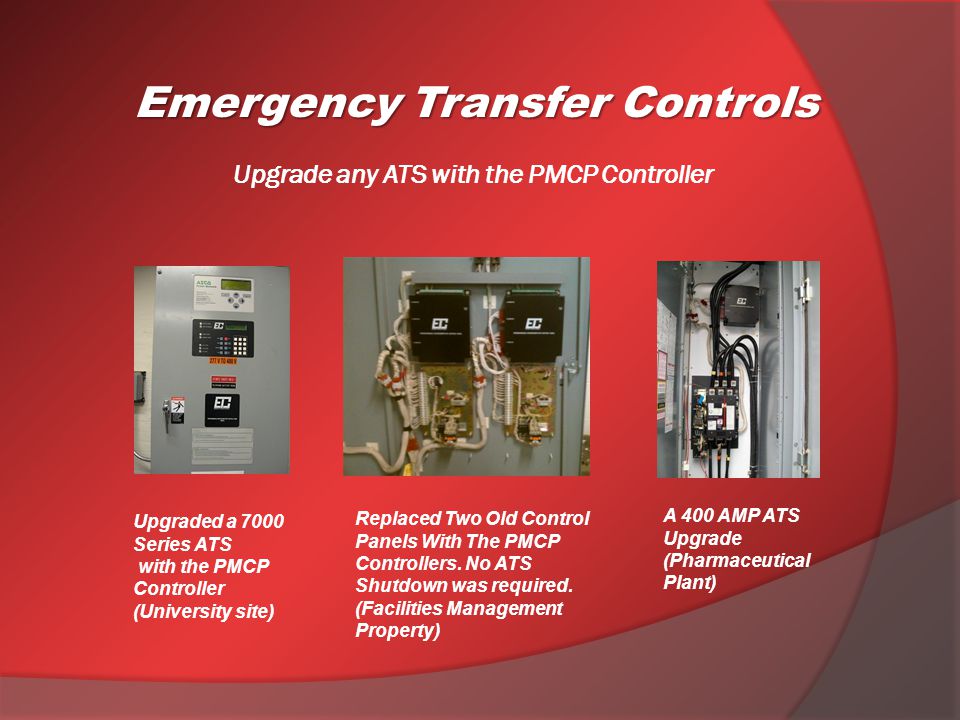

8 Upgrade any ATS with the PMCP Controller A 400 AMP ATS Upgrade (Pharmaceutical Plant) Upgraded a 7000 Series ATS with the PMCP Controller (University site) Emergency Transfer Controls Replaced Two Old Control Panels With The PMCP Controllers. No ATS Shutdown was required. (Facilities Management Property)

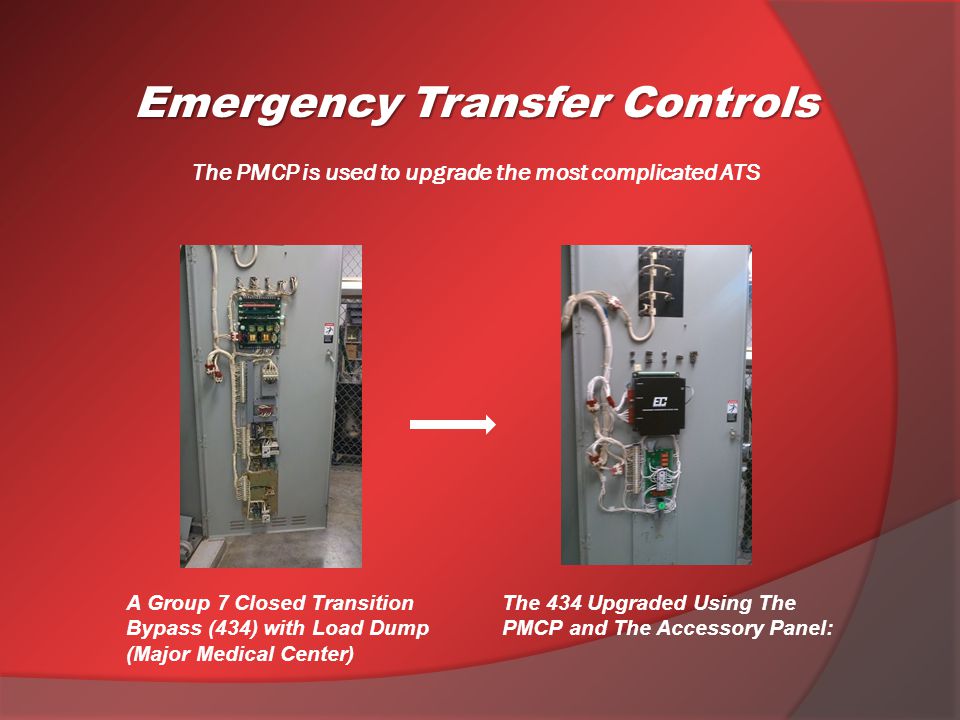

9 Emergency Transfer Controls The PMCP is used to upgrade the most complicated ATS A Group 7 Closed Transition Bypass (434) with Load Dump (Major Medical Center) The 434 Upgraded Using The PMCP and The Accessory Panel:

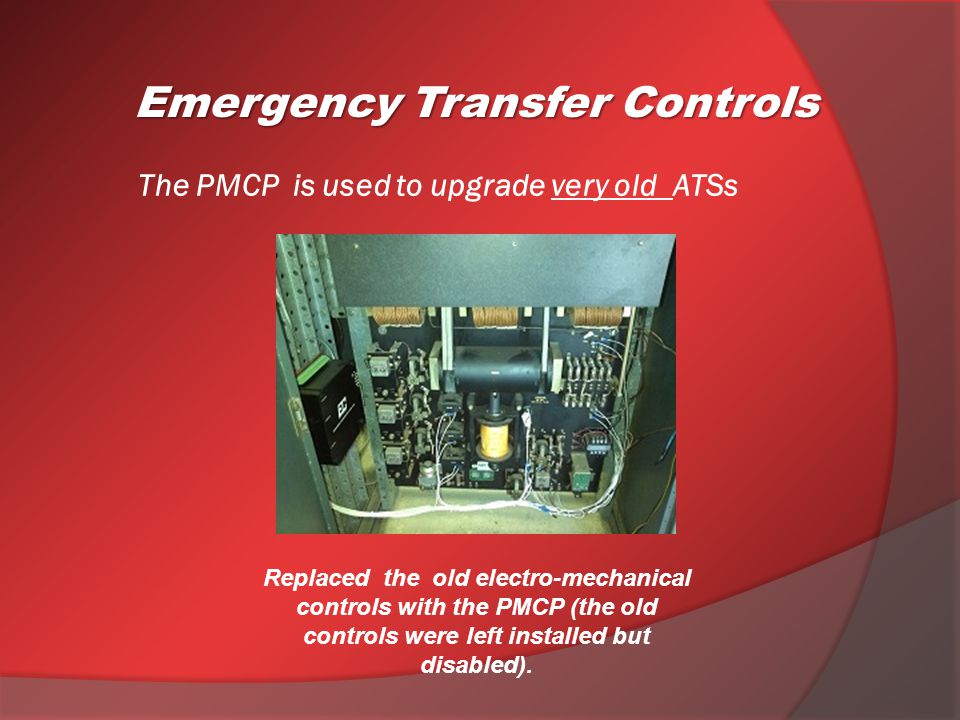

10 Emergency Transfer Controls The PMCP is used to upgrade very old ATSs Replaced the old electro-mechanical controls with the PMCP (the old controls were left installed but disabled).

11 Emergency Transfer Controls The PMCP is used to upgrade new ATSs Upgraded a new 7000 Series CTTS : (Utility Site) Front view showing the PMCP and the ATS Display Panel

12 The PMCP can easily be selected for Low and Medium Voltage Switchgear applications Emergency Transfer Controls 15KV Main-Main (Data Centers in Canada) ATS Display Panel mounted on door 4160v Main-Main (Navy Base)

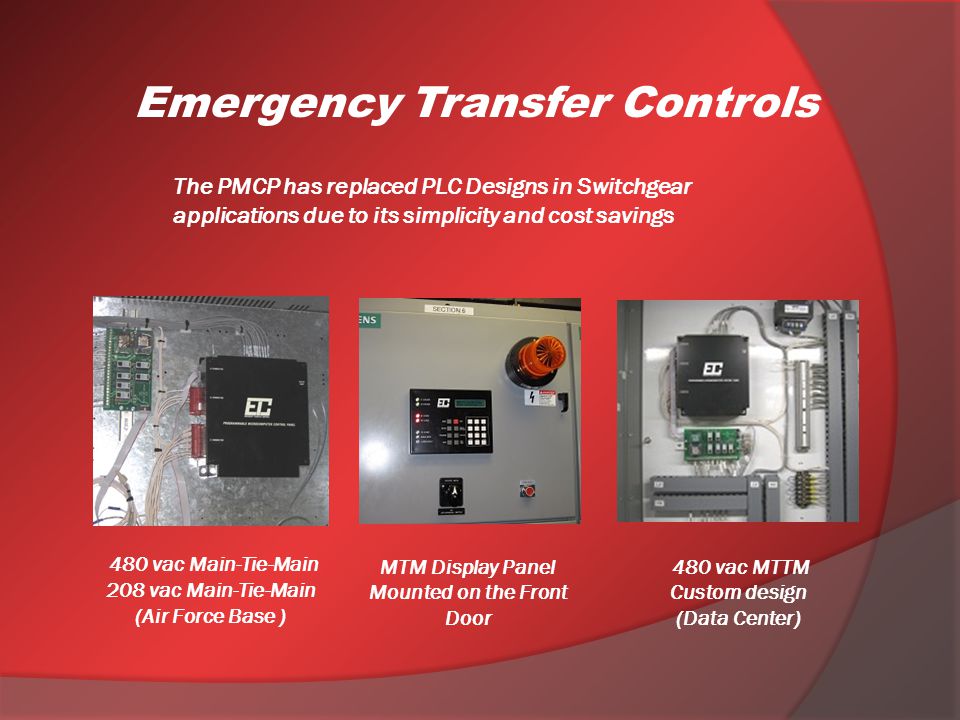

13 MTM Display Panel Mounted on the Front Door 480 vac Main-Tie-Main 208 vac Main-Tie-Main (Air Force Base ) Emergency Transfer Controls 480 vac MTTM Custom design (Data Center) The PMCP has replaced PLC Designs in Switchgear applications due to its simplicity and cost savings

14 The PMCP is ideal for MM & MTM Applications 480 vac MTM (Treatment Plant) Emergency Transfer Controls 2-15KV MTM 4-15KV MM (State Facility) 15KV MTM Closed Transition (Data Center)

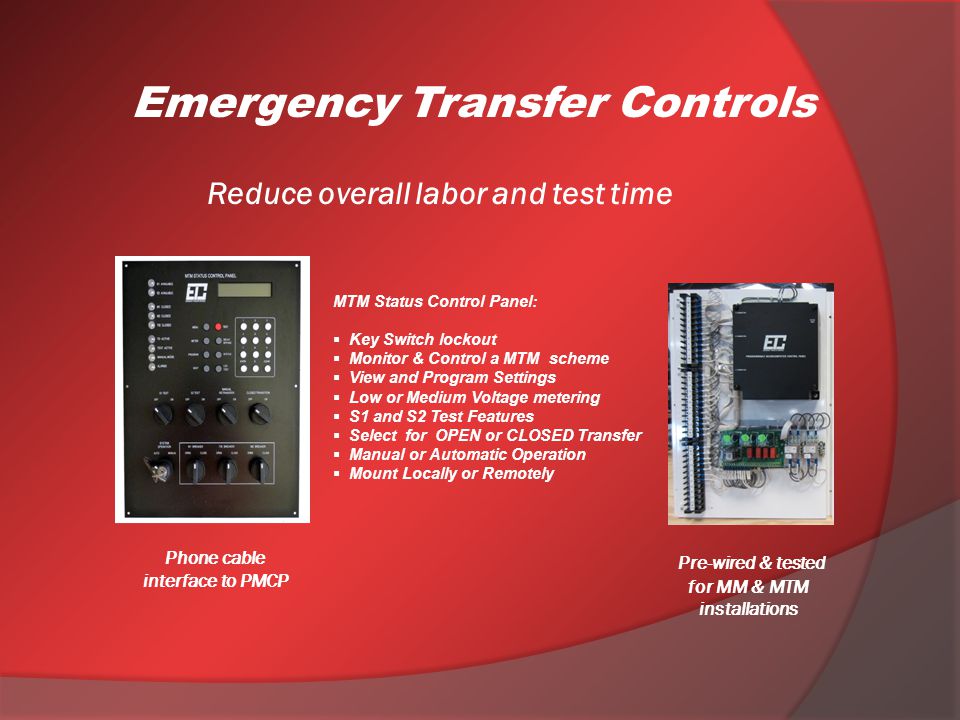

15 Reduce overall labor and test time Pre-wired & tested for MM & MTM installations Emergency Transfer Controls MTM Status Control Panel: Key Switch lockout Monitor & Control a MTM scheme View and Program Settings Low or Medium Voltage metering S1 and S2 Test Features Select for OPEN or CLOSED Transfer Manual or Automatic Operation Mount Locally or Remotely Phone cable interface to PMCP

16 Services we provide: Upgrade, service, and installation of controls for ATSs, Main- Main, and Main-Tie-Main Schemes Engineering & Application support SCADA Network u pgrades and n ew installations Upgrade Paralleling Switchgear Controls Assessments and evaluations Emergency Transfer Controls

17 You can contact us to discuss your Transfer Scheme Application or upgrade project(s) Emergency Transfer Controls Three Bridges, NJ Office: Cell: Website: Emergency Transfer Controls Emergency Transfer Controls is a Minority Owned Business: MBE
