Used AeroFreeze Spiral Freezer Model # 3622-23-150 33 wide usable belt 1391 of usable belt length 3 product clearance 23 total tiers of belt Freezer still.

Similar presentations


Presentation on theme: "Used AeroFreeze Spiral Freezer Model # 3622-23-150 33 wide usable belt 1391 of usable belt length 3 product clearance 23 total tiers of belt Freezer still."— Presentation transcript:

1 Used AeroFreeze Spiral Freezer Model # wide usable belt 1391 of usable belt length 3 product clearance 23 total tiers of belt Freezer still installed Process Equipment Warehouse A division of Mather Process Solutions Used And Remanufactured Processing Equipment 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

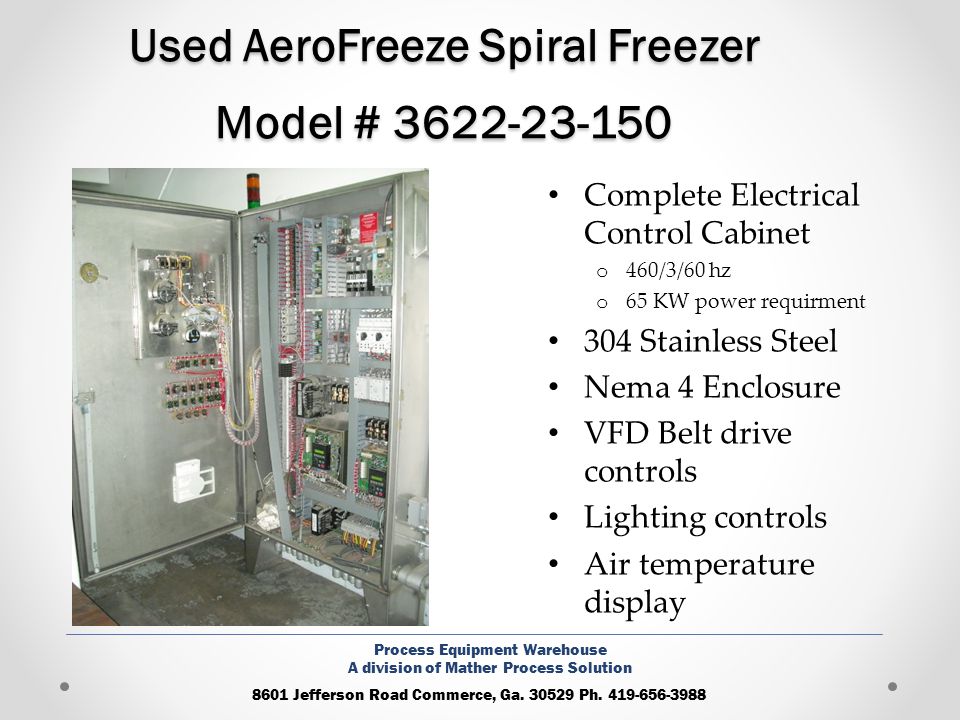

2 Used AeroFreeze Spiral Freezer Model # Complete Electrical Control Cabinet o 460/3/60 hz o 65 KW power requirment 304 Stainless Steel Nema 4 Enclosure VFD Belt drive controls Lighting controls Air temperature display 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

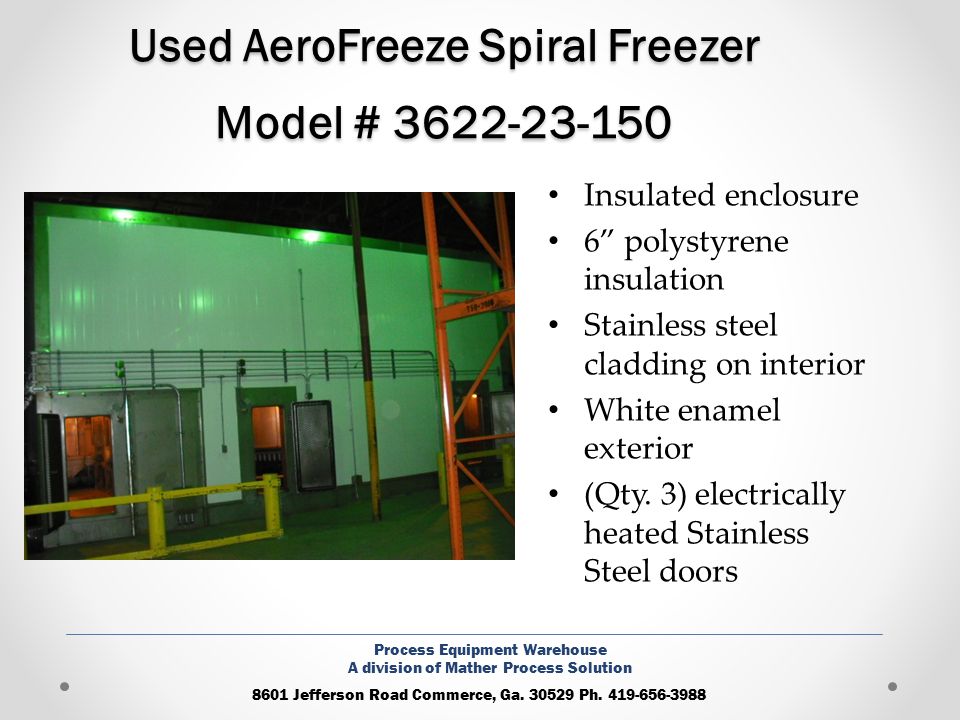

3 Used AeroFreeze Spiral Freezer Model # Insulated enclosure 6 polystyrene insulation Stainless steel cladding on interior White enamel exterior (Qty. 3) electrically heated Stainless Steel doors 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

4 Used AeroFreeze Spiral Freezer Model # Insulated enclosure o 34 long o 23 5 wide o 17 6 height 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

5 Used AeroFreeze Spiral Freezer Model # Elevated In-feed Belt o Top to bottom spiral configuration o infeed height o 38 discharge height 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

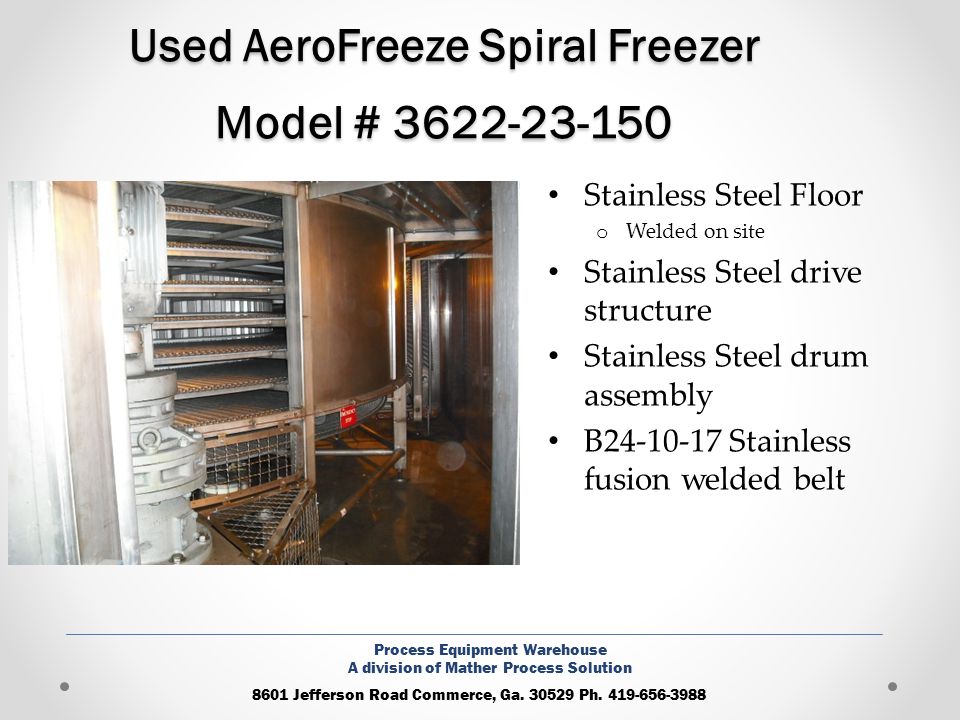

6 Used AeroFreeze Spiral Freezer Model # Stainless Steel Floor o Welded on site Stainless Steel drive structure Stainless Steel drum assembly B Stainless fusion welded belt 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

7 Used AeroFreeze Spiral Freezer Model # Stainless Steel Drum Enclosure 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

8 Used AeroFreeze Spiral Freezer Model # Stainless Steel Interior wall panels 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

9 Used AeroFreeze Spiral Freezer Model # Stainless Steel upper mezzanine 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

10 Used AeroFreeze Spiral Freezer Model # Aluminum Air Plenum (Qty. 3) Sisw 25 hp. Centrifugal air fans 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

11 Used AeroFreeze Spiral Freezer Model # Complete refrigeration system o 105 tons refrigeration capacity o -35 deg. f at evaporator o NH3 pumped 5:1 o Water defrost 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

12 Used AeroFreeze Spiral Freezer Model # Complete refrigeration system 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

13 Used AeroFreeze Spiral Freezer Model # Complete refrigeration system 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

14 Used AeroFreeze Spiral Freezer Model # Complete refrigeration system 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution

15 Used AeroFreeze Spiral Freezer Model # Complete refrigeration system 8601 Jefferson Road Commerce, Ga Ph Process Equipment Warehouse A division of Mather Process Solution
