1 Organizing List and Documents with Site Columns and Content Types Gayan Peiris Principal Consultant

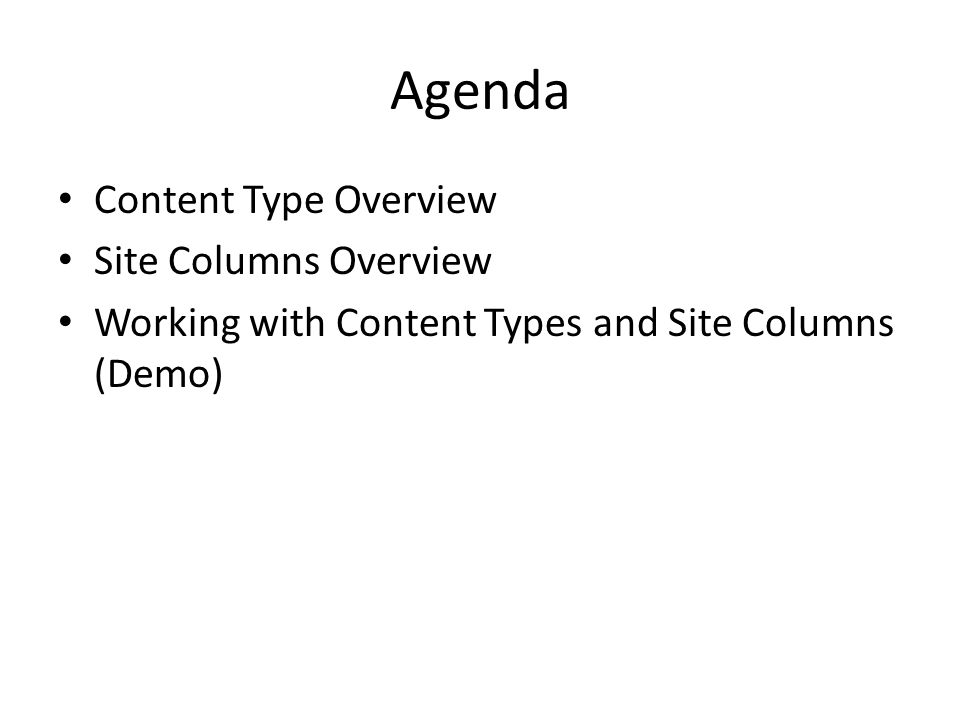

2 Agenda Content Type Overview Site Columns Overview Working with Content Types and Site Columns (Demo)

3 Content Types Item Schema – Collection of Site Columns – Some Site Columns are shared between Content Types, some are unique Document Template (if applicable) Parent Content Type Workflow Settings Document Information Panel Settings Policy Settings Event Handlers Custom New, Edit and Display forms

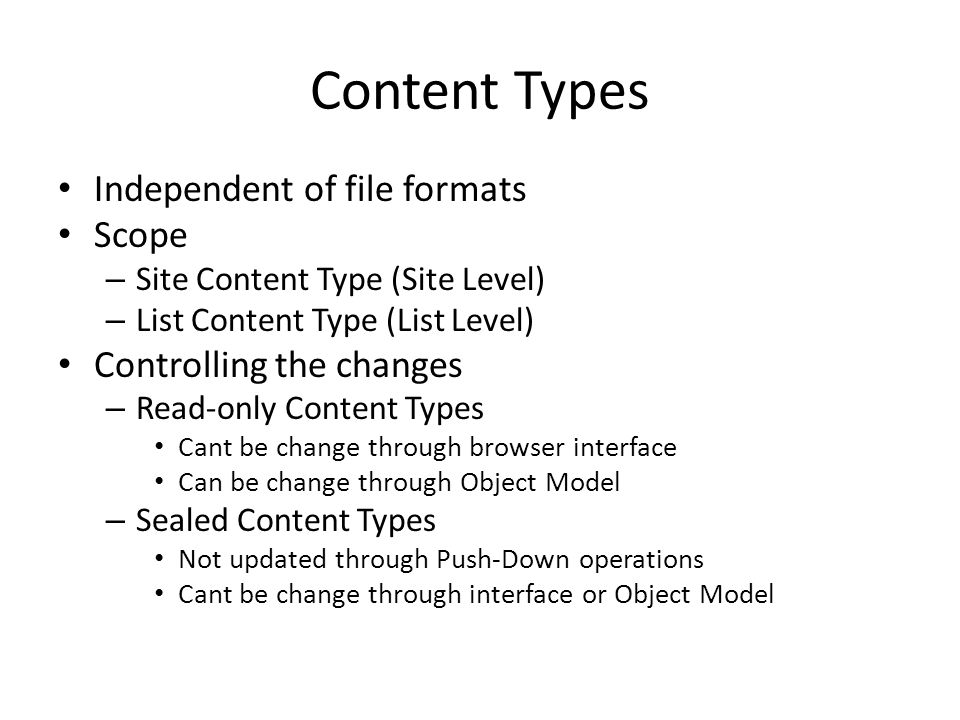

4 Content Types Independent of file formats Scope – Site Content Type (Site Level) – List Content Type (List Level) Controlling the changes – Read-only Content Types Cant be change through browser interface Can be change through Object Model – Sealed Content Types Not updated through Push-Down operations Cant be change through interface or Object Model

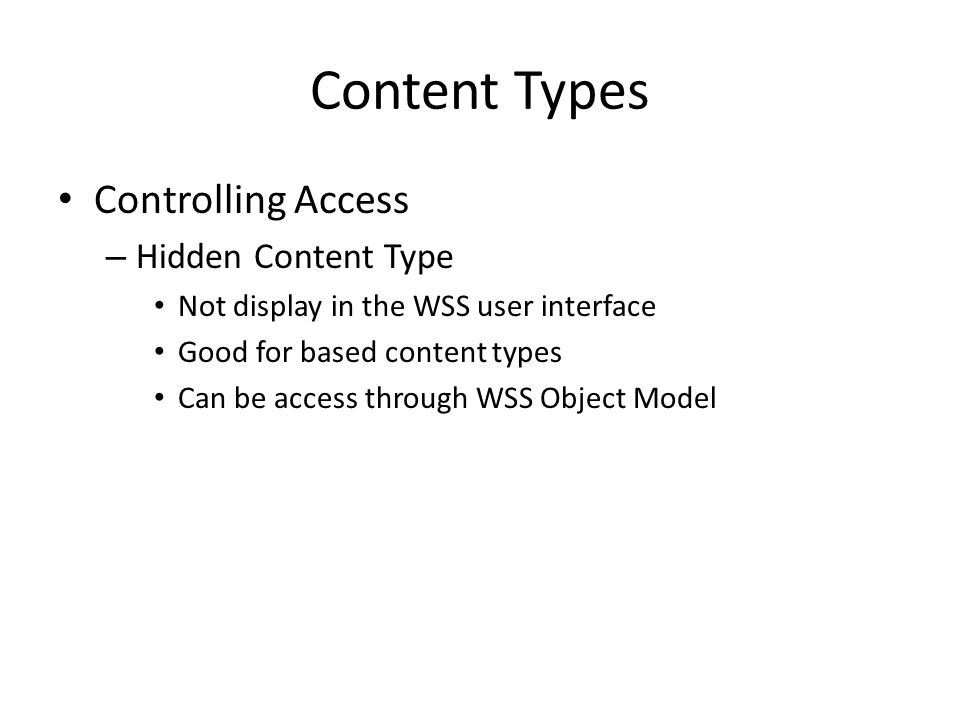

5 Content Types Controlling Access – Hidden Content Type Not display in the WSS user interface Good for based content types Can be access through WSS Object Model

6 Content Types Push Down Changes can optionally be applied to existing Content Types and Lists which inherit from the modified Content Type Granular – Push down Individual changes Allow consumers of the Content Type to make their own customizations Administrators can Seal a Content Type to prevent consumers from making changes to it

7 Site Column Reusable column definitions Defined at the Site level Use in multiple Content Types in multiple lists Update in one place Define with one of the data types supported by WSS (Single line of text, number, ect..) Also member of a column group

8 DEMO

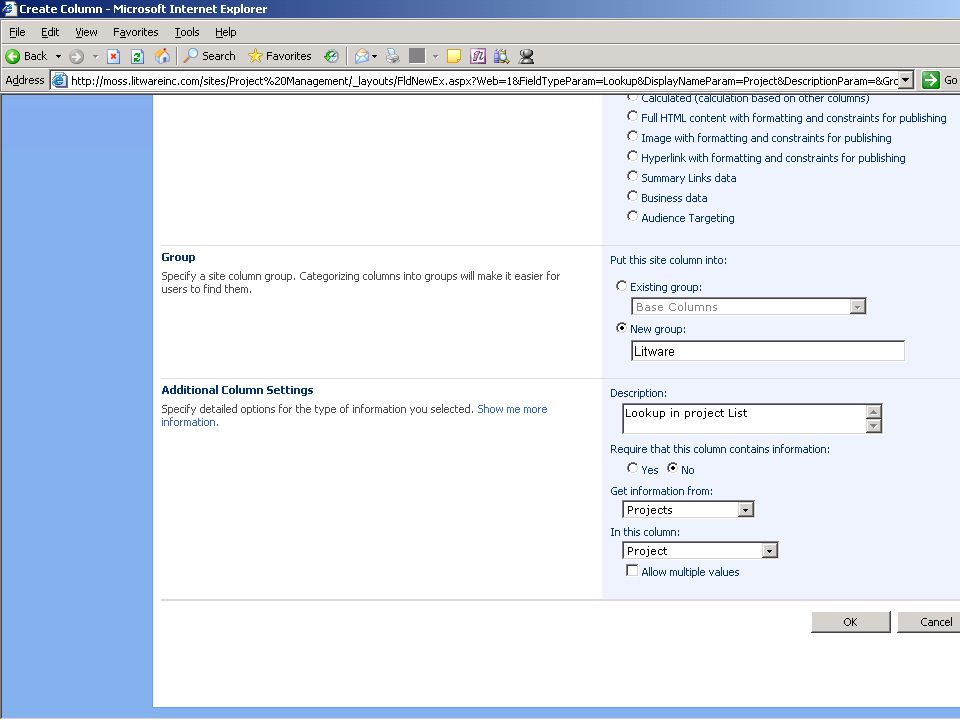

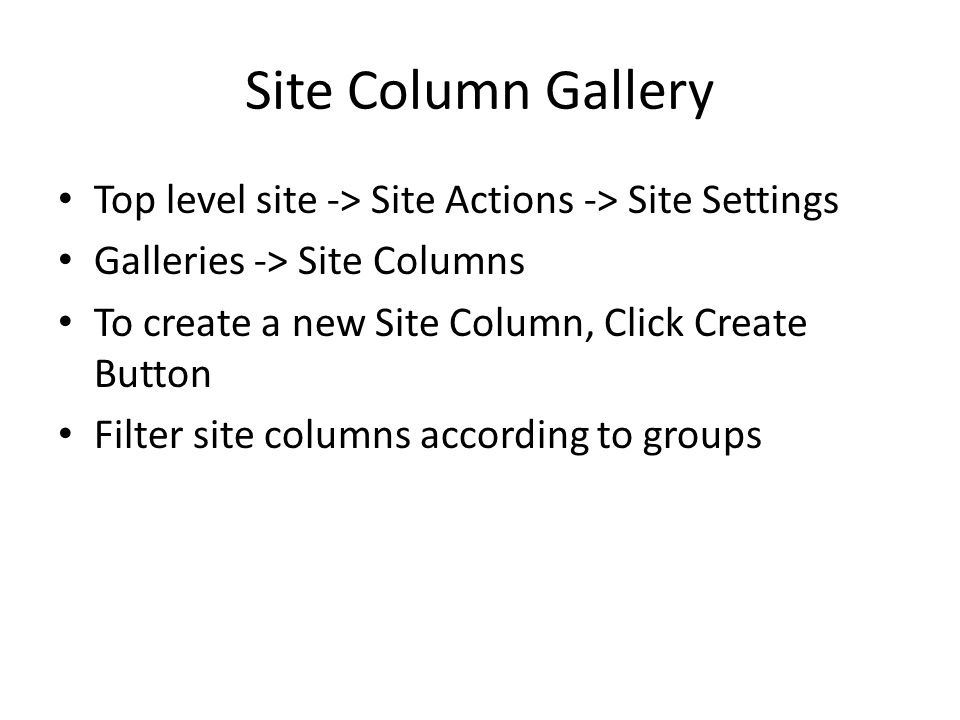

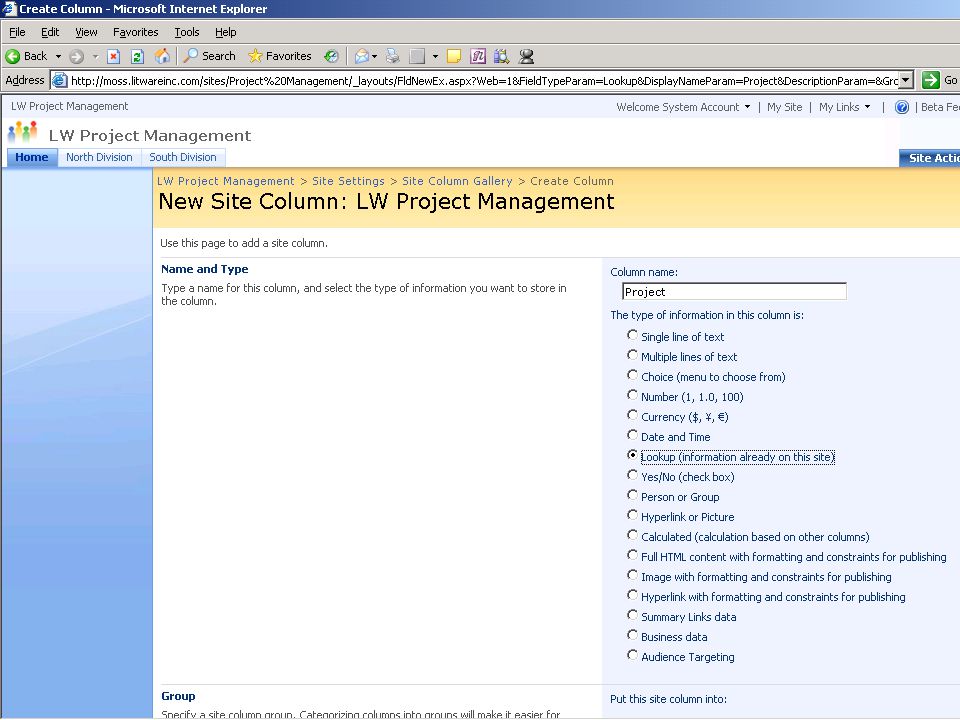

9 Site Column Gallery Top level site -> Site Actions -> Site Settings Galleries -> Site Columns To create a new Site Column, Click Create Button Filter site columns according to groups

10

11

12

13

14 Add a Site Colum to a list Create a List in a sub site Navigate to List settings page Click Add from existing site columns link

15

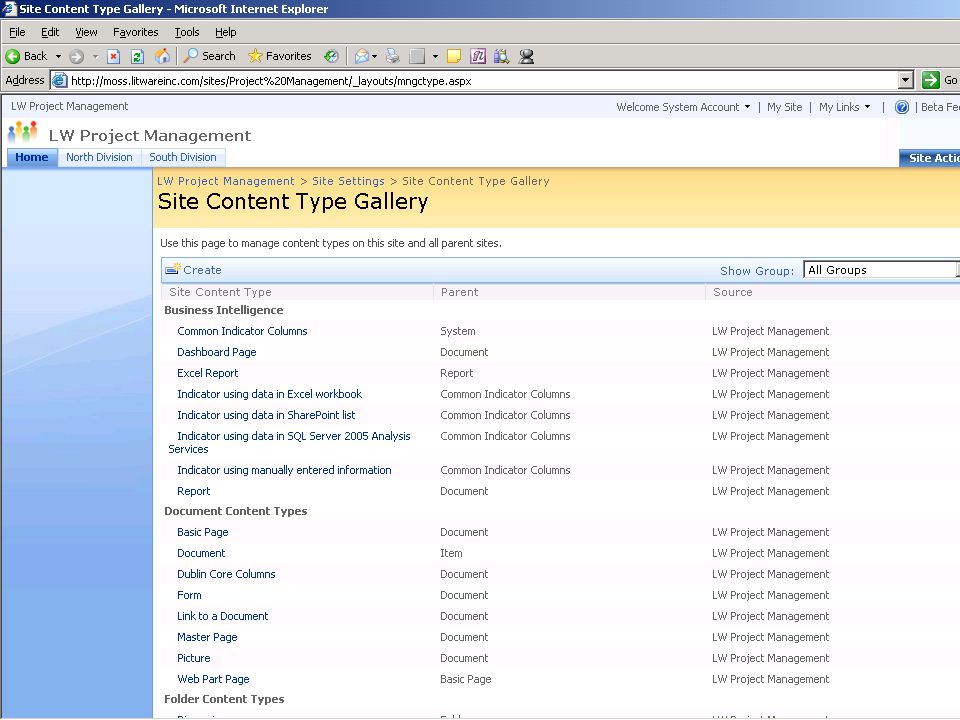

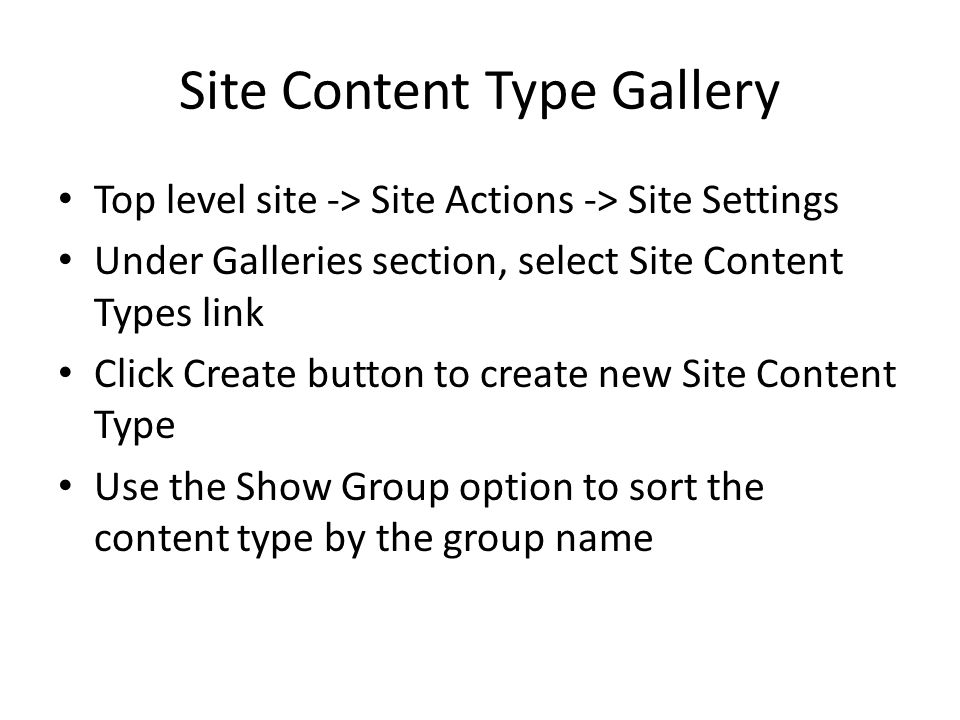

16 Site Content Type Gallery Top level site -> Site Actions -> Site Settings Under Galleries section, select Site Content Types link Click Create button to create new Site Content Type Use the Show Group option to sort the content type by the group name

17

18

19

20

21

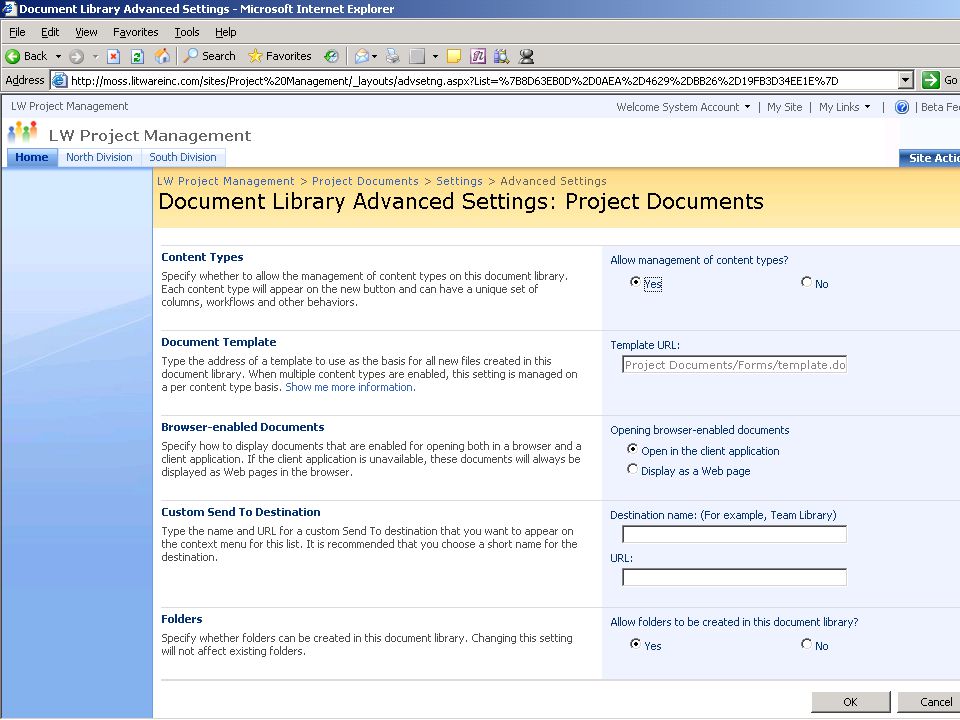

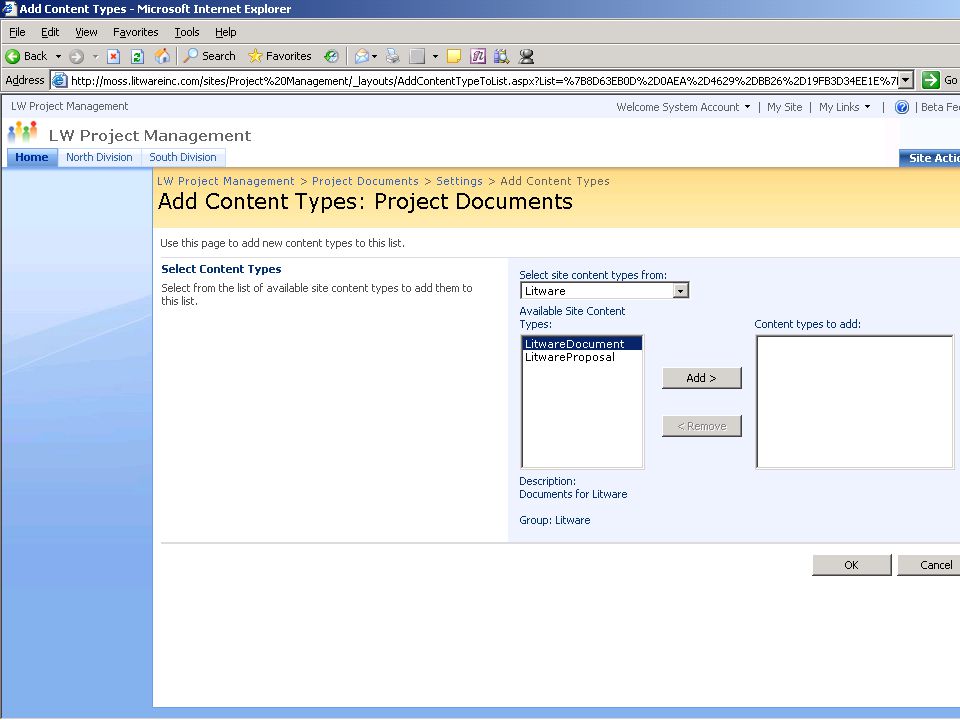

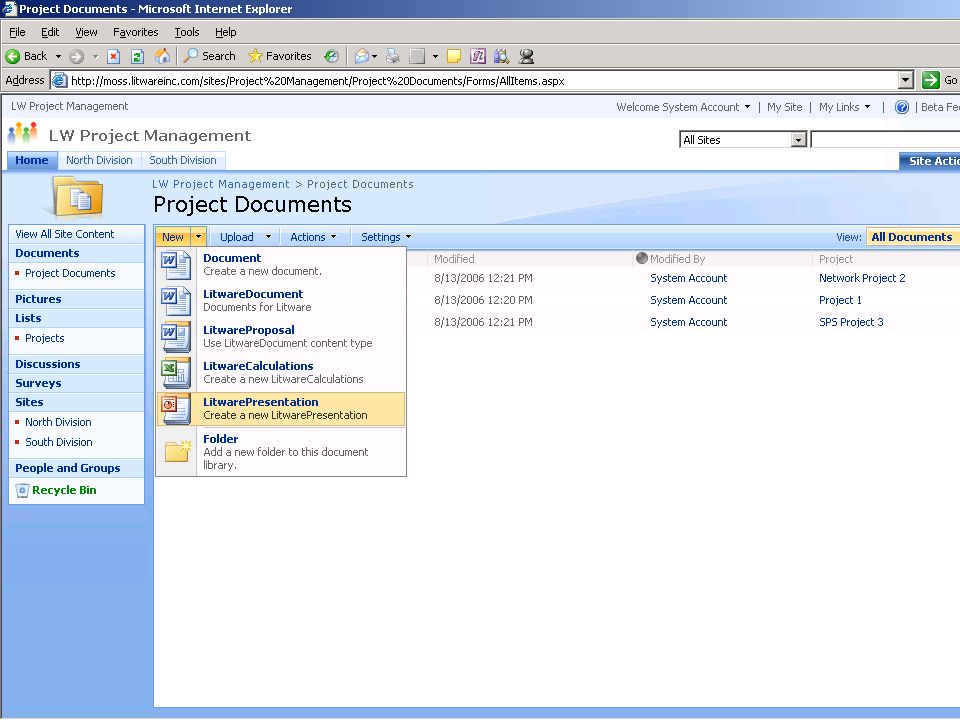

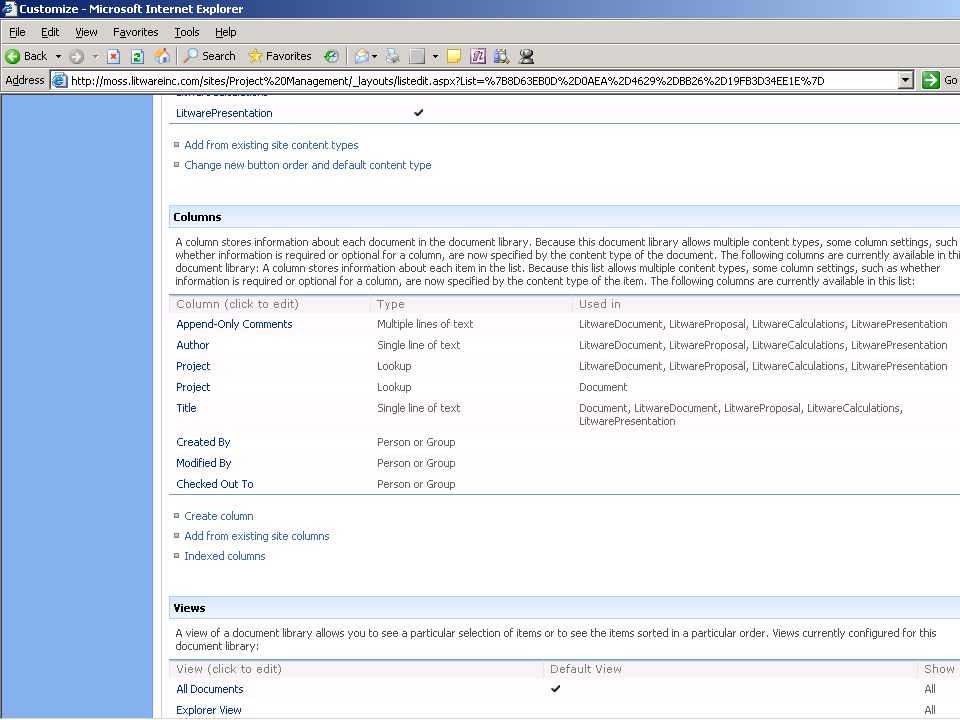

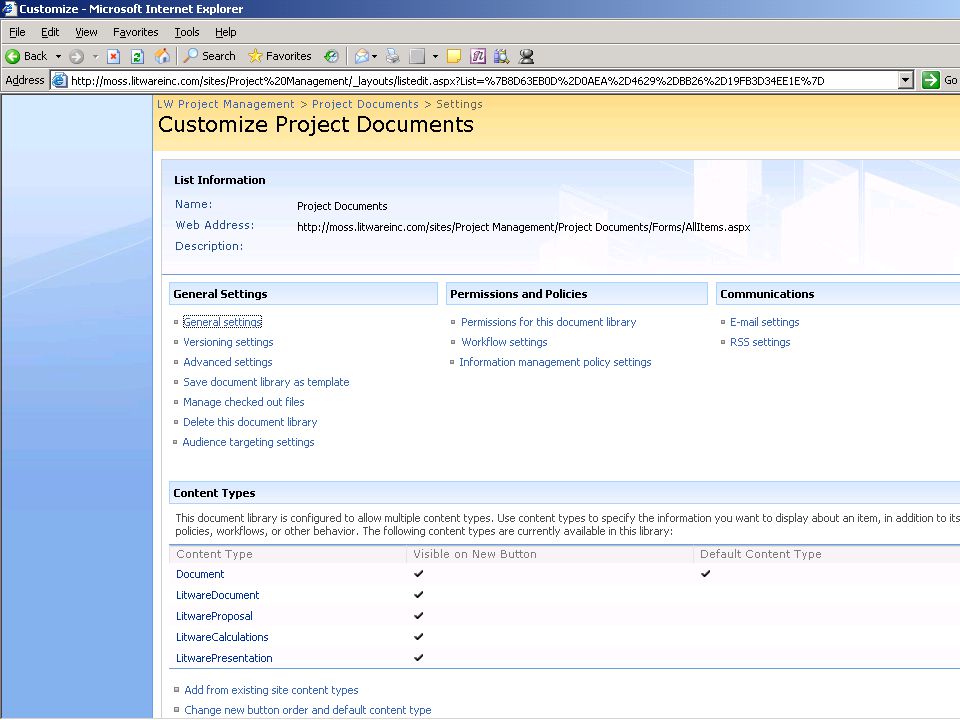

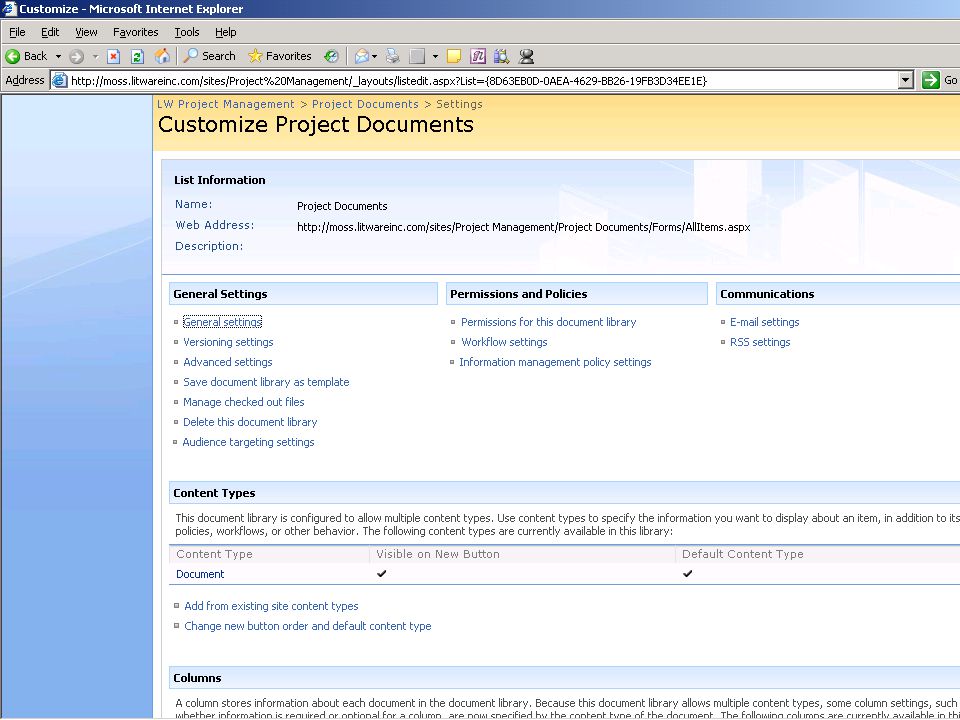

22 Using Content Type in Document Libraries Document Library -> Settings -> Document Library Settings Click Advance Settings link Click Yes to Allow management of Content type option Content Type section will display in the Settings page Click Add from existing Site content type link to add a content type to the document library

23

24

25

26

27

28
