1. 1 Newton’s Third Law Readings: Chapter 8

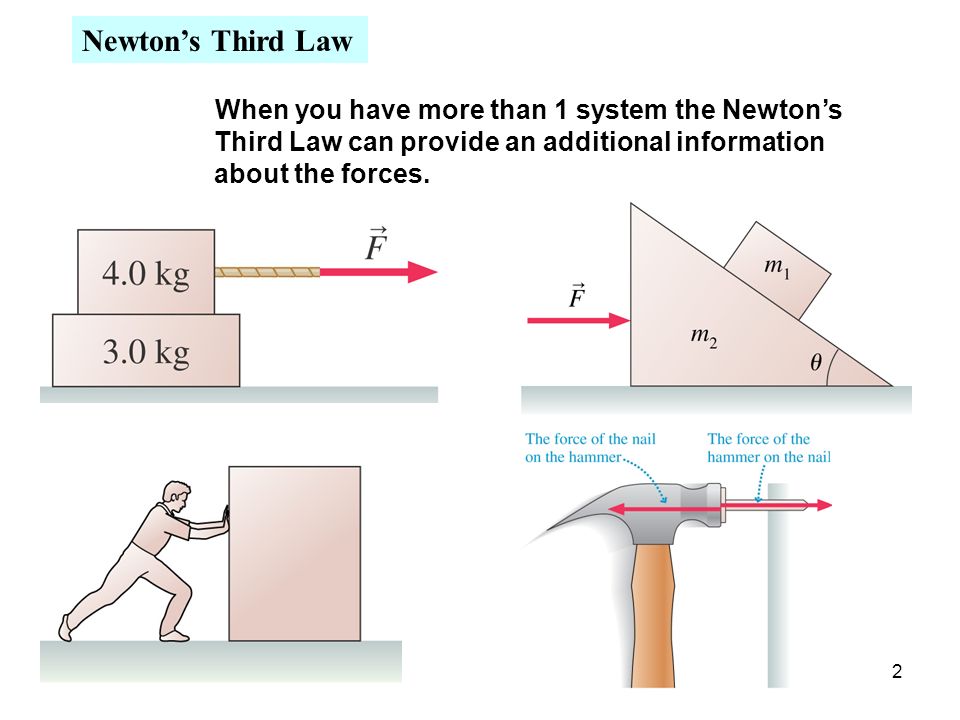

2. 2 Newton’s Third Law When you have more than 1 system the Newton’s Third Law can provide an additional information about the forces.

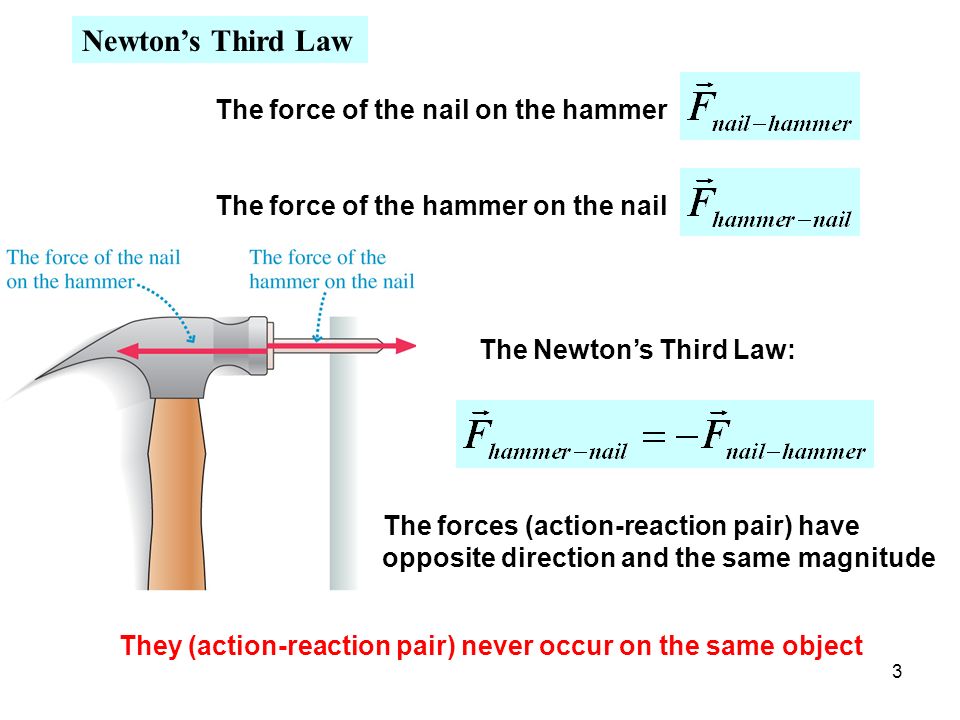

3. 3 Newton’s Third Law The force of the nail on the hammer The force of the hammer on the nail The Newton’s Third Law: The forces (action-reaction pair) have opposite direction and the same magnitude They (action-reaction pair) never occur on the same object

4. 4 Newton’s Third Law The Newton’s Third Law: Two systems: Person and Crate Equilibrium: 1.System P: 2.System C 3.System P+C

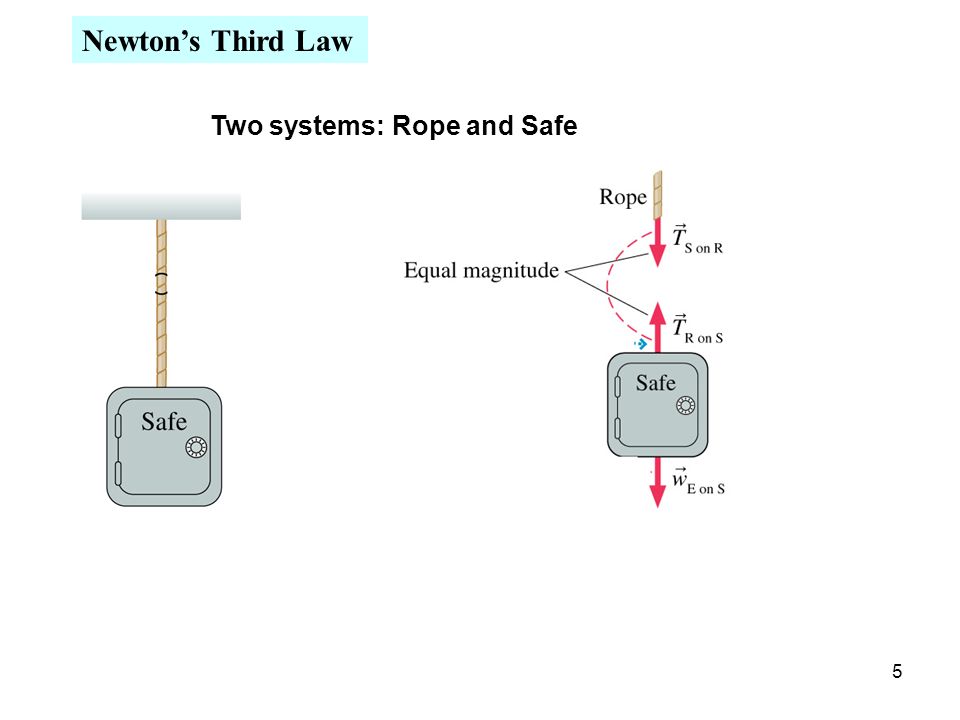

5. 5 Newton’s Third Law Two systems: Rope and Safe

6. 6 Newton’s Third Law:

7. 7 Find tension of rope 2 No friction System A: System B:

8. 8 Find tension of rope 2 No friction System A: System B: Newton’s Third Law:

9. 9 Example: Find acceleration of the lower block. The coefficient of kinetic friction between the lower block and the surface is 0.3. The coefficient of kinetic friction between the lower block and the upper block is 0.3. Newton’s Third Law:

10. 10 Upper block: Lower block:

11. 11 Upper block: Lower block: Unknown:

12. 12

13. 13 Example: The 10.2 kg block is held in place by the massless rope passing over two massless, frictionless pulleys. Find the tensions to and the magnitude of force F. The same rope:

14. 14 Equilibrium:

15. 15 Equilibrium:
