1. FibroLAN Company and Solutions Highlights Total Access Solutions

2. FibroLAN: who are we? A vendor of F/O Access and Transmission solutions Established in 1996 by industry experts Seasoned management team HQ in Yoqneam/Israel, Offices in US (NA) and Austria (Central EU) Technology – Functionality– Reliability Large installed base – more than 100,000 active devices Thousands of enterprise customers, >40 carriers/ SPs Full solutions: Products + Services

3. 3 Main Carrier Customers FAAG01-15

4. 4 More…………(CE) FAAG01-15

5. 5 COLUMBUS Telephone Company Montrose Mutual Telephone Company More…………(NA)

6. FibroLAN Solutions in 1 glance CE Access NTU/EDD/NID Aggregation CE+TDM PtP MBH Migration 2G>>LTE Small Cell BH Indoor BH Aggregation Transmission 40 λ xWDM systems Repeaters/ extenders up to 12G

7. Main Application: Business Access NTU Targeted Segments: Carriers (T1-2- 3),Service Providers, Utilities, Communities Highlights: High capacity (6 GB ) Small Footprint, low power consumption Ring Operation G.8031/8032 Strong Price/Performance Ratio Product Line: µFalcon-SL

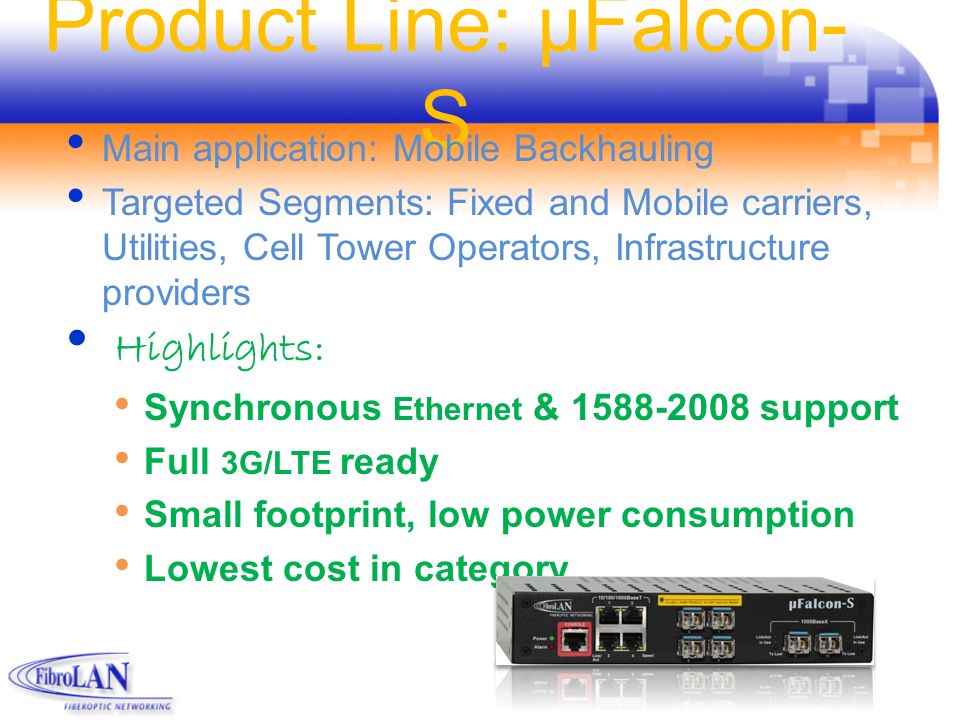

8. Product Line: µFalcon- S Main application: Mobile Backhauling Targeted Segments: Fixed and Mobile carriers, Utilities, Cell Tower Operators, Infrastructure providers Highlights: Synchronous Ethernet & 1588-2008 support Full 3G/LTE ready Small footprint, low power consumption Lowest cost in category

9. Product Line:µFalcon-ST Main Application: Mobile Backhauling Targeted Segments: Fixed and Mobile carriers, Utilities, Cell Tower Operators, Infrastructure providers Highlights: Synchronous Ethernet and 1588-2008 TDM integration (up to 8 E1/T1 +8 GE ports) Migration 2G>3G>4G>LTE CESx3 (MEF8,CESoPSN, SAToP)

10. Product Line: µFalcon-SP Main Application: Mobile Backhauling, (Macro and small cells), security cameras Targeted Segments: Fixed and Mobile carriers, Cell Tower Operators, Infrastructure providers, highway operators, engineering companies Highlights: 4 ports PoE+ (60 W) 2 Uplink/ Ring SFP GBE ports Outdoor applications (optional) Synchronous Ethernet and 1588-2008 new

11. Product Line: µFalcon- ST/G Main Application: Mobile Backhauling (Macro and small cells), 2G-3G-LTE Targeted Segments: Fixed and Mobile carriers, Cell Tower Operators, Infrastructure providers Highlights: Integrated GPS for ultimate synchronization where other means are not available Full performance of µFalcon-ST Synchronous Ethernet and 1588-2008 new

12. Product Line: Falcon- M Main application: LTE/small cell Mobile Backhauling Targeted Segments: Fixed and Mobile carriers, Both outdoor and indoor applications Highlights: Synchronous Ethernet & 1588-2008 support MPLS-TP Small footprint, low power consumption, optional PoE to minimize small cell infrastructure Optional GPS receiver and Alarms (dry contacts) Advanced RT Monitoring Content Acceleration (Caching)

13. Product Line: Falcon- X Main application: Aggregation1/2 of 3G-LTE and Access Targeted Segments: Fixed and Mobile carriers, Cell tower operators, Access providers Highlights: Synchronous Ethernet & 1588-2008 support Full Carrier Ethernet compliance Up to 4X10G NNI uplinks and 24 GE ports Aggregate throughput of 128Gbs 1U footprint for populated collocations, basements

14. Product Line: Falcon- STA Main application: Aggregation of CES of 2G-3G- LTE and Access Targeted Segments: Fixed and Mobile carriers, Cell tower operators, Access providers Highligths Aggregates up to 262 E1s (336T1s) onto STM1/STM4 (or OC) Deploy anywhere in the packet network Aggregates CES from uFalcon –ST or any standard third party devices 8GE+1/2/4xSTM1 or 1xSTM4 Unique SysLink interface for resilience Economy: from $200/full CES E1 circuit (both remote and central ends) 1U footprint, redundant AC/DC PS new

15. Across the Falcon Line Triple CES CE/TDM integration Excellent Ring Performance Caching Extremely low latency MBD CDR Multiple Sync Platforms Small footprint Low power consumption Multiple EMS/NMS options Full OAM suite PoE+ 15 FAAG01-15

16. Case study A 2G network transformation to 3G LTE ready

17. Local aggregation Node Local aggregation Node Local aggregation Node Local aggregation Node Main aggregation Node µFalcon ST8 17FAAG01-15

18. Local Aggregation Node Falcon-X/212/D Local ring 1 Local ring 12 Local ring 2 10GE Ring µFalcon ST8 18FAAG01-15

19. Main Aggregation Node (1 out of n) Customer’s core Nx10GE switch 10GE Ring1 10GE Ring 2 10GE Ring 4 Falcon -STA BSC RNC GE Falcon -STA STM1 (1) STM1 (64) 4x10GE Customer’s core Nx10GE router customer 19FAAG01-15

20. Product Line: xWDM Main application: PtP and ring fiber capacity enhancement Targeted Segments: Carriers (T2-3), Data Centers, MSOs, Utilities, Transportation, Large Enterprise, Defense Highlights: Extremely Modular & Scalable, Low entry level Full range of passive and active devices Hi capacity: 40 λ x 12G(active)/100G (passive) Full system/service suite

21. xWDM Building blocks Data Stream Protection CWDM MUX Chassis based Optical path Protection Switch L1 MULTIRATE TRANSPONDER 10G DWDM MUX single OADM double OADM CWDM single fiber MUX CWDM dual fiber MUX DWDM DCM Stand Alone L1 MULTIRATE 3R TRANSPONDER 12G L1 GE 3R TRANSPONDER L2 10GE TRANSPONDER SUB MUX nxGE SUB MUX TDM+ GE OA- BOOSTER 23dbm OA- pre-Amp 25db EMS NETWORK STUDY COMMISSIONING NETWORK DESIGN CWDM SFP DWDM SFP CWDM SFP+ DWDM SFP+ In-Line OA NETWORK SIMULATION, PRE-CONFIG, PRE-CONNECT TRAINING 2/4/8 λ OADM CIRCULATORSERVICE-TO-SERVICE GUARANTY 21WDM tutorial Jan 2015

22. Case study 2 MPLS Access Network Enhancement DWDM X 50 bandwidth increase 6 months ROI

23. 23 WDM ADM NOC 10Gbps×4λ DWDM Local RING 10Gbps Ring 8 Local RING’s / Regional RING DWDM ADM WDM ADM WDM ADM DWDM Ext. Amp. WDM ADM WDM ADM 10Gbps×4λ DWDM RING 10Gbps×32λ DWDM Regional RING DWDM Ext. Amp. 10Gbps×32λ Long Distance Dual Route 4 Nodes / Local RING DWDM ADM A A A A B B B+ B CN B C BCC WDM ADM WDM ADM B+ CE switch WDM ADM B+ NOC DWDM Ext. Amp. C DWDM Ext. Amp. BCC CE switch OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT 10Gbps OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT OLTOLT CE switch FAAG01-15

24. Product Line: MetroStar Main Application: Enterprise inter/intra connect Targeted Segments: T3 carriers, Service providers, MSOs, Utilities, Large Enterprise, Defense Highlights: Most Comprehensive suite of Line Modules and CPEs Small C/O footprint Robust and Comprehensive OAM Dual Demarcation for 2way SLA enforcement Available in 3RU and 1RU form factors

25. Product Line: Converters Main application: Fiber Connectivity Targeted Segments: MSOs, T3carriers, Utilities, Transportation, Heavy Industry, Defense Highlights: Extensive speed, protocol & distance coverage Robust and reliable Internal switching PSUs Enormous installed base, 15 years

26. EMS/NMS CISCO like CLI Advanced web GUI HPOV NNMi ALU SAM 5620GNE ASPEN (RM)

27. Product/Application Map uFalcon-SPuFalconSLuFalcon-SuFalcon- ST FalconXFalcon-MWDMuFalcon- ST/G MetroStar Converters MBH MBH LTE LTE small cells MBH Indoor Business Acc. Metro Rings MDU MSO Utility ISP Carrier Enterprise Campus Data Centers 27FAAG01-15
