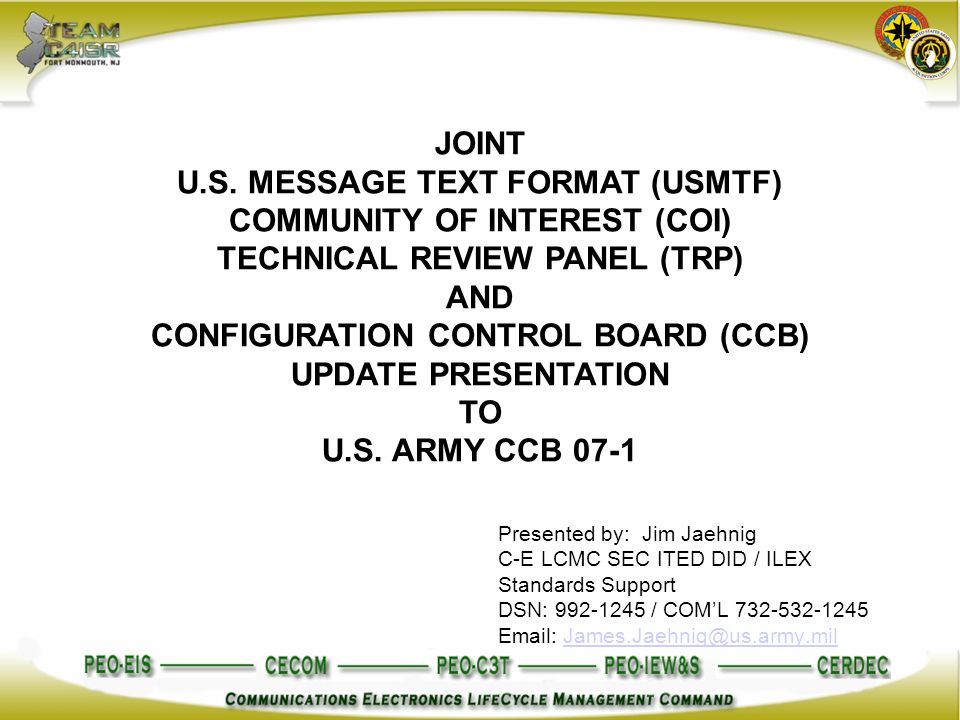

1. Presented by: Jim Jaehnig C-E LCMC SEC ITED DID / ILEX Standards Support DSN: 992-1245 / COM’L 732-532-1245 Email: James.Jaehnig@us.army.milJames.Jaehnig@us.army.mil JOINT U.S. MESSAGE TEXT FORMAT (USMTF) COMMUNITY OF INTEREST (COI) TECHNICAL REVIEW PANEL (TRP) AND CONFIGURATION CONTROL BOARD (CCB) UPDATE PRESENTATION TO U.S. ARMY CCB 07-1

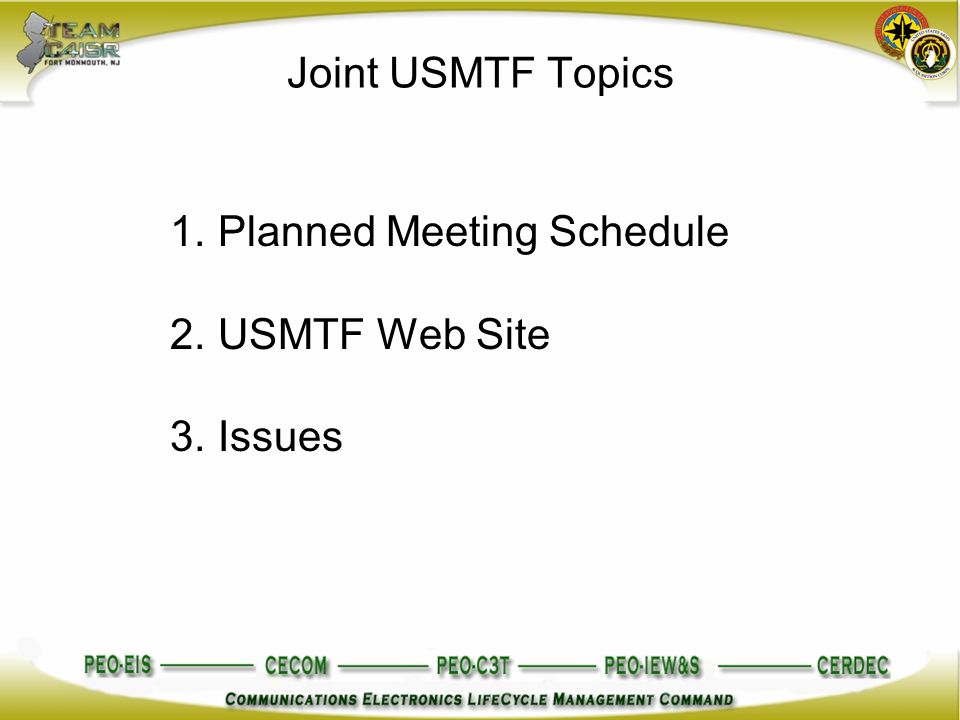

2. Joint USMTF Topics 1.Planned Meeting Schedule 2.USMTF Web Site 3.Issues

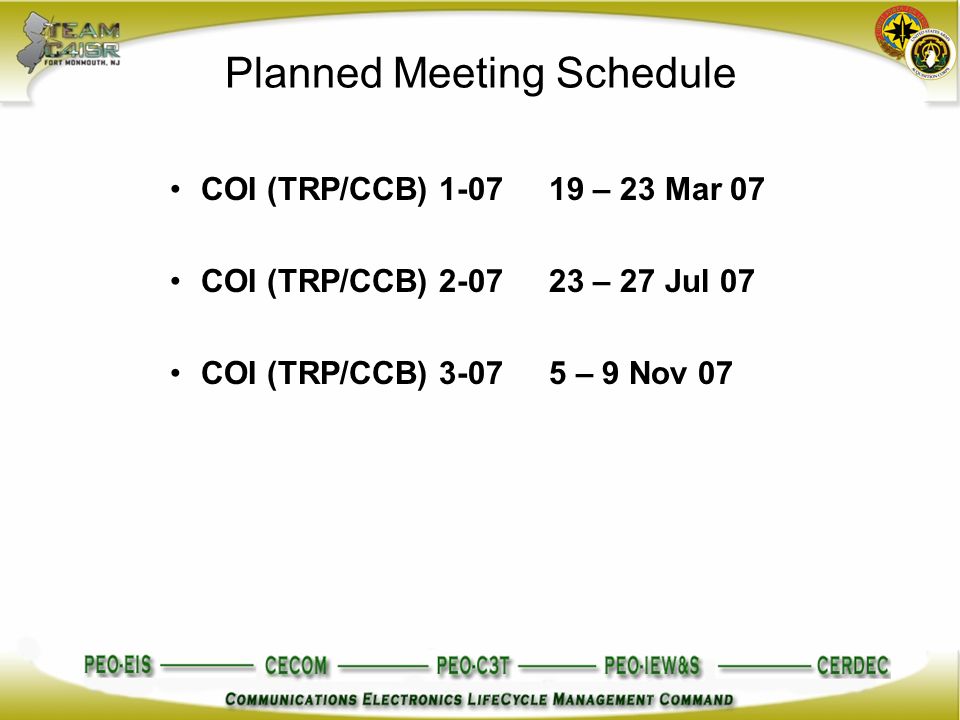

3. Planned Meeting Schedule COI (TRP/CCB) 1-07 19 – 23 Mar 07 COI (TRP/CCB) 2-07 23 – 27 Jul 07 COI (TRP/CCB) 3-07 5 – 9 Nov 07

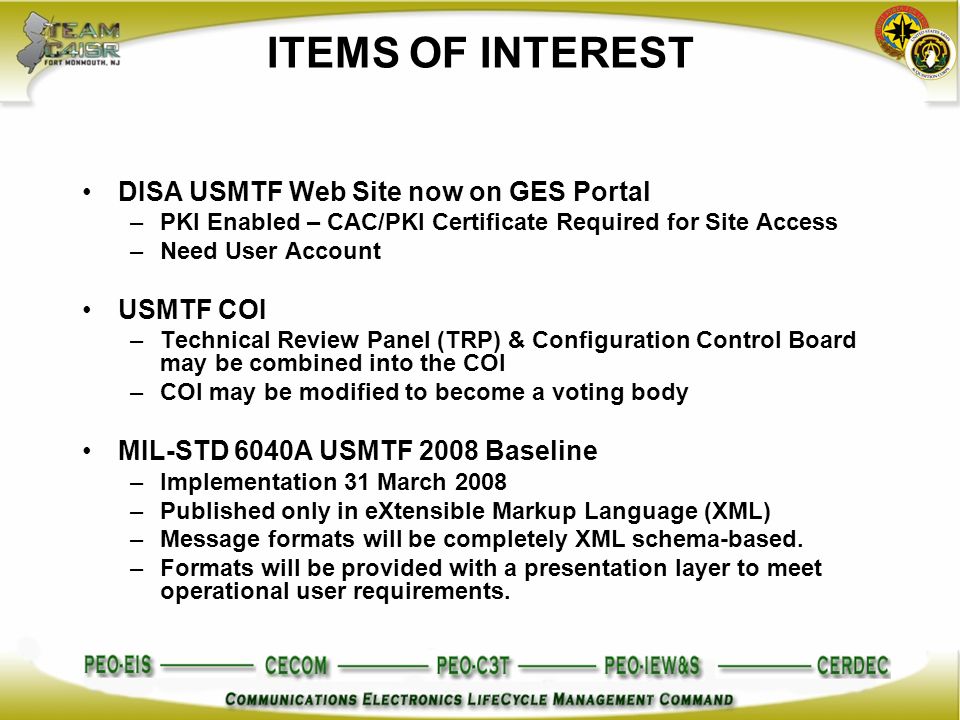

4. ITEMS OF INTEREST DISA USMTF Web Site now on GES Portal –PKI Enabled – CAC/PKI Certificate Required for Site Access –Need User Account USMTF COI –Technical Review Panel (TRP) & Configuration Control Board may be combined into the COI –COI may be modified to become a voting body MIL-STD 6040A USMTF 2008 Baseline –Implementation 31 March 2008 –Published only in eXtensible Markup Language (XML) –Message formats will be completely XML schema-based. –Formats will be provided with a presentation layer to meet operational user requirements.

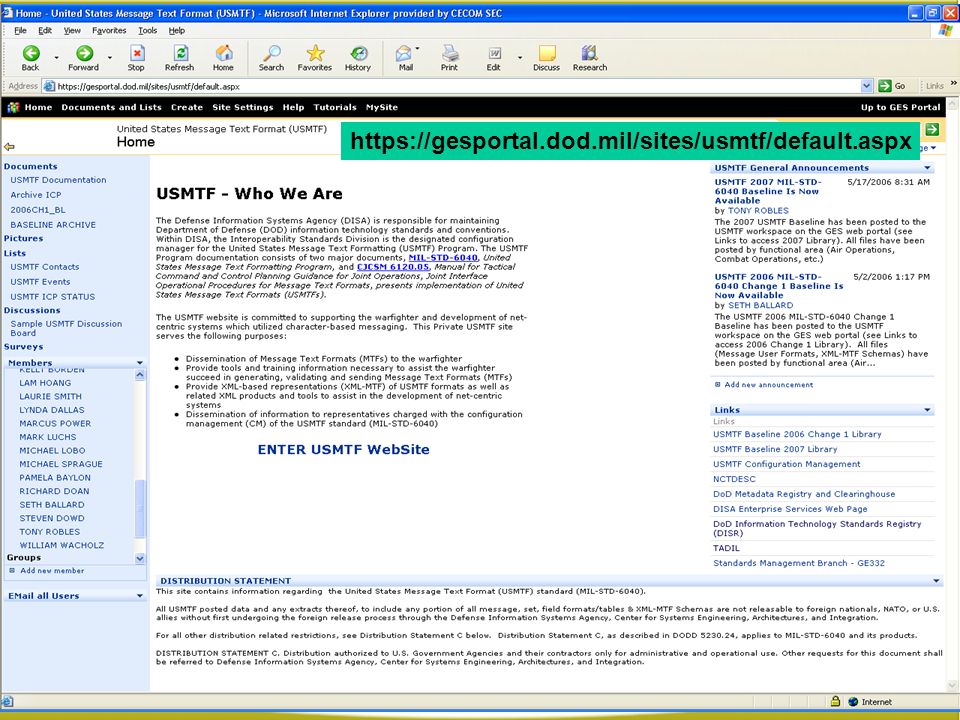

5. https://gesportal.dod.mil/sites/usmtf/default.aspx

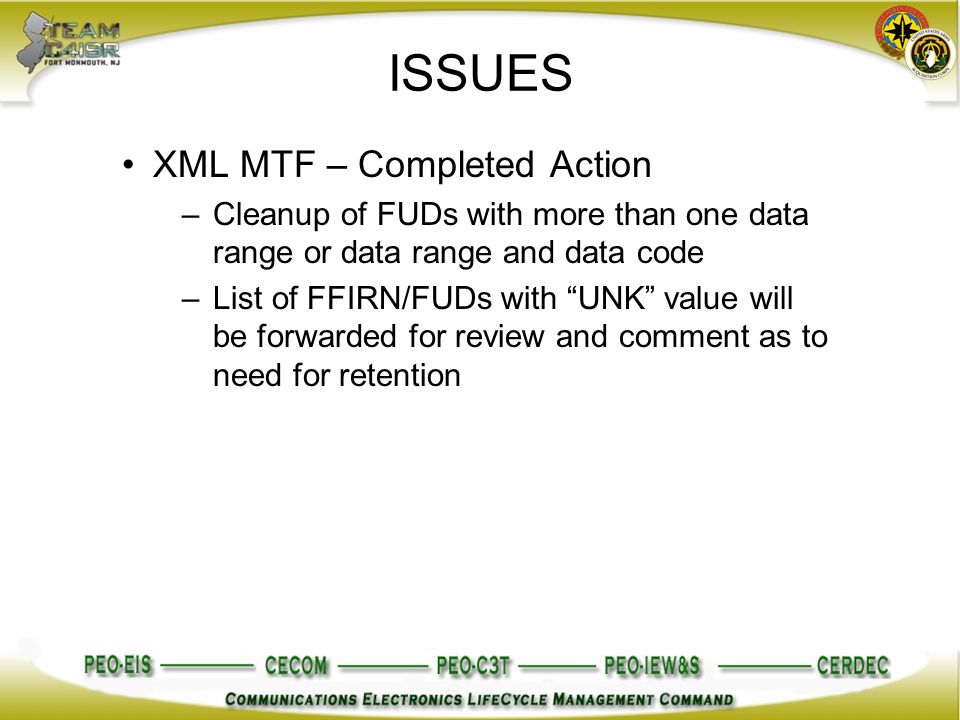

6. ISSUES XML MTF – Completed Action –Cleanup of FUDs with more than one data range or data range and data code –List of FFIRN/FUDs with “UNK” value will be forwarded for review and comment as to need for retention

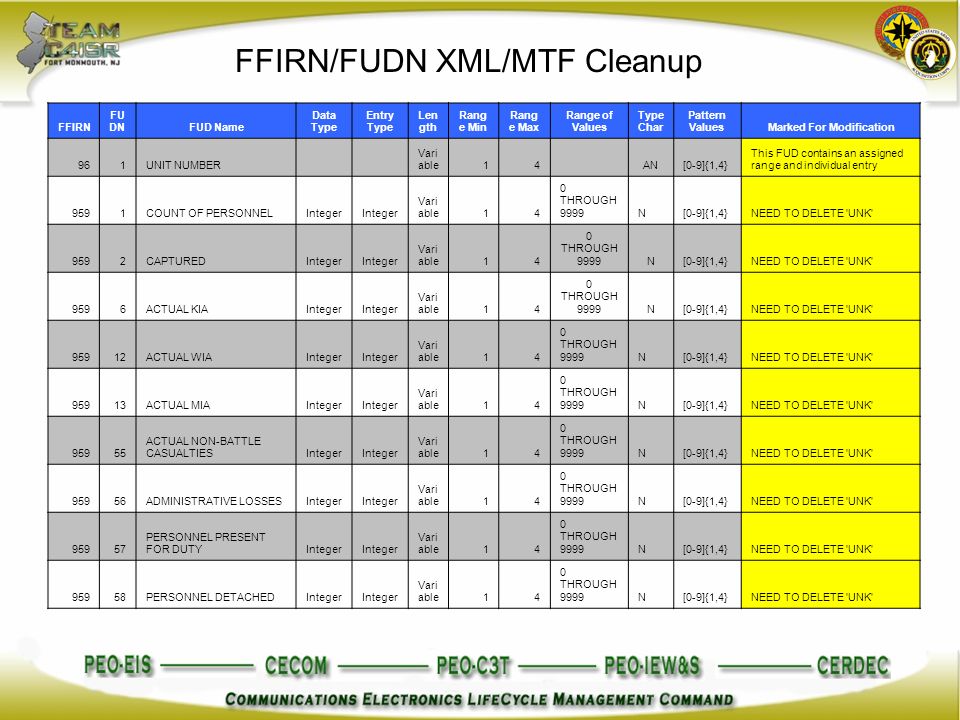

7. FFIRN/FUDN XML/MTF Cleanup FFIRN FU DNFUD Name Data Type Entry Type Len gth Rang e Min Rang e Max Range of Values Type Char Pattern ValuesMarked For Modification 961UNIT NUMBER Vari able14 AN[0-9]{1,4} This FUD contains an assigned range and individual entry 9591COUNT OF PERSONNELInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 9592CAPTUREDInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 9596ACTUAL KIAInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 95912ACTUAL WIAInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 95913ACTUAL MIAInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 95955 ACTUAL NON-BATTLE CASUALTIESInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 95956ADMINISTRATIVE LOSSESInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 95957 PERSONNEL PRESENT FOR DUTYInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK' 95958PERSONNEL DETACHEDInteger Vari able14 0 THROUGH 9999N[0-9]{1,4}NEED TO DELETE 'UNK'

8. Questions ?
