1. LECTURE 9: MITOSIS AND CYTOKINESIS

2. INTRODUCTION 1. Cell division is accomplished by MITOSIS = division of chromosomes and CYTOKINESIS = division of the cytoplasm 2. Mitosis is the division of somatic cells in which the appropriate number of chromosomes is maintained 3. A somatic cell is a body cell of an organism or a cell that is not involved in reproduction of a new organism. Somatic cells divide to recreate themselves

3. 4. Cytokinesis is division of the cytoplasm to produce two daughter cells, usually begun during telophase 5. Difference between animals and plants: plants are divided by the formation of a cell plate (=pelat), where animal cells are divided through the formation of a cell cleavage (=belahan). Cell plate materials originate in the golgi complex.

4. KRT-2008 4 INTRODUCTION 4. When the somatic cell has its complete complement of chromosomes it is said to be in the diploid condition 5. At the end of mitosis daughter cells are diploid Terminology Genome : cell’s genetic information Somatic : body cells Gametes : reproductive cells (sperm and egg cells) Chromosomes : DNA molecules Diploid (2n) : 2 sets of chromosomes Haploid (1n) : 1 set of chromosomes

5. KRT-2008 5 BASIC PRINCIPLE Cell Division: Key Roles

6. KRT-2008 6 Coordination of Mitosis and Cytokinesis Cell Division demands coordination of DNA replication (Mitosis) and division of the cytoplasm (Cytokinesis). Cell Division at cellular level

7. KRT-2008 7 What’s so important about cell division? The process

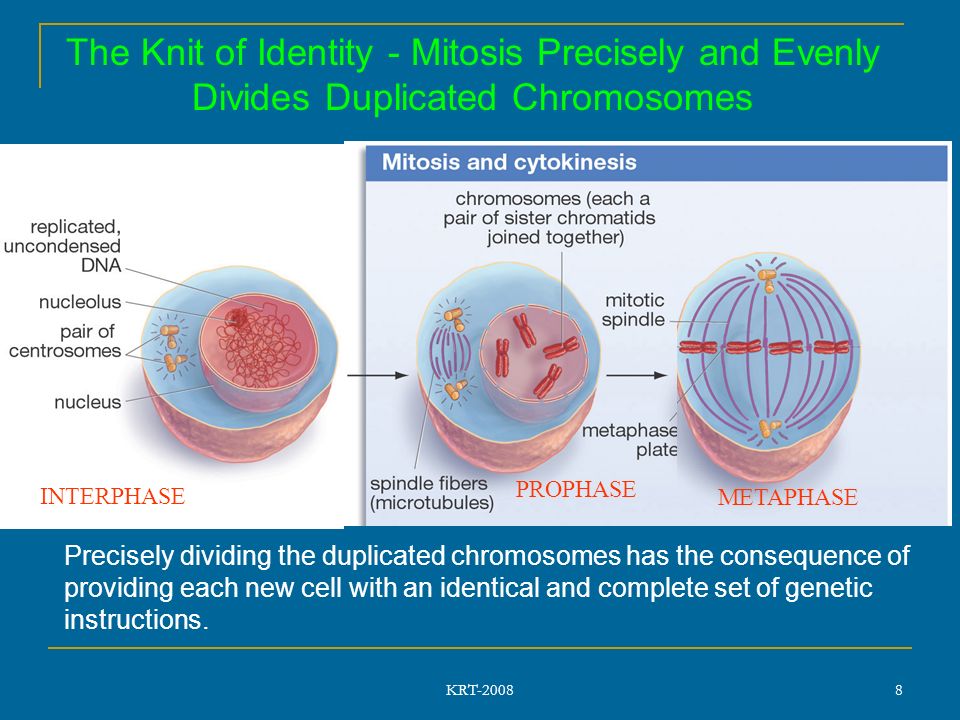

8. KRT-2008 8 The Knit of Identity - Mitosis Precisely and Evenly Divides Duplicated Chromosomes Precisely dividing the duplicated chromosomes has the consequence of providing each new cell with an identical and complete set of genetic instructions. INTERPHASE PROPHASE METAPHASE

9. KRT-2008 9 Mitosis Precisely and Evenly Divides Duplicated Chromosomes Cytokinesis is the process of cell division and it is distinct and separable from mitosis.

10. KRT-2008 10 In Animal Cells, a Cleavage Furrow Forms and Separates Daughter Cells Cleave furrow in a dividing frog cell.

11. KRT-2008 11 The Plant Cell Wall Forces Cytokinesis to Play by Different Rules

12. KRT-2008 12 Cancer Transformation Tumor: benign (=jinak) or malignant (=ganas) Metastasis

13. KRT-2008 13 Cancer Is One Outcome of A Runaway Cell Cycle Licentious division - prostate cancer cells during division.

14. KRT-2008 14 Chromosome and DNA What is the difference between DNA and Chromosome? What is Karyotype ?

15. KRT-2008 15 Cell Devision at chromosome level CHROMOSOME DUPLICATION AND SEPERATION

16. KRT-2008 16 DNA Replication – Simple in Principle, Complicated in Practice Cell Devision at DNA level

17. KRT-2008 17 DNA is Packaged into Chromosomes The packaging is impressive – 2 meters of human DNA fit into a sphere about 0.000005 meters in diameter. chromatin duplicated chromosome DNA in the cell is virtually always associated with proteins.

18. KRT-2008 18 The Link Between DNA Replication and Chromosome Duplication

19. KRT-2008 19 DNA is Condensed into Visible Chromosomes Only For Brief Periods in the Life of a Cell 95% of the time, chromosomes are like this. Easily visible chromosomes are apparent perhaps 5% of the time in an actively growing cell and less in a non-growing cell.

20. KRT-2008 20 A normal human karyotype Boy or girl? Note that almost all chromosomes come in homologous pairs. A Karyotype is an arranged picture of chromosomes at their most condensed State

21. KRT-2008 21 The Cell Cycle

22. KRT-2008 22 From Birth to Rebirth, a Cell Progresses Through Characteristic Stages That Constitute the Cell Cycle In multicellular organisms like us, progress through the cell cycle is carefully regulated.

23. KRT-2008 23 The Cell Cycle 1. Interphase (90% of cycle)  G1 phase~ growth  S phase~ synthesis of DNA  G2 phase~ preparation for cell division 2. Mitotic phase 3. Mitosis~ nuclear division 4. Cytokinesis~ cytoplasm division INTERPHASE - It is the time between divisions

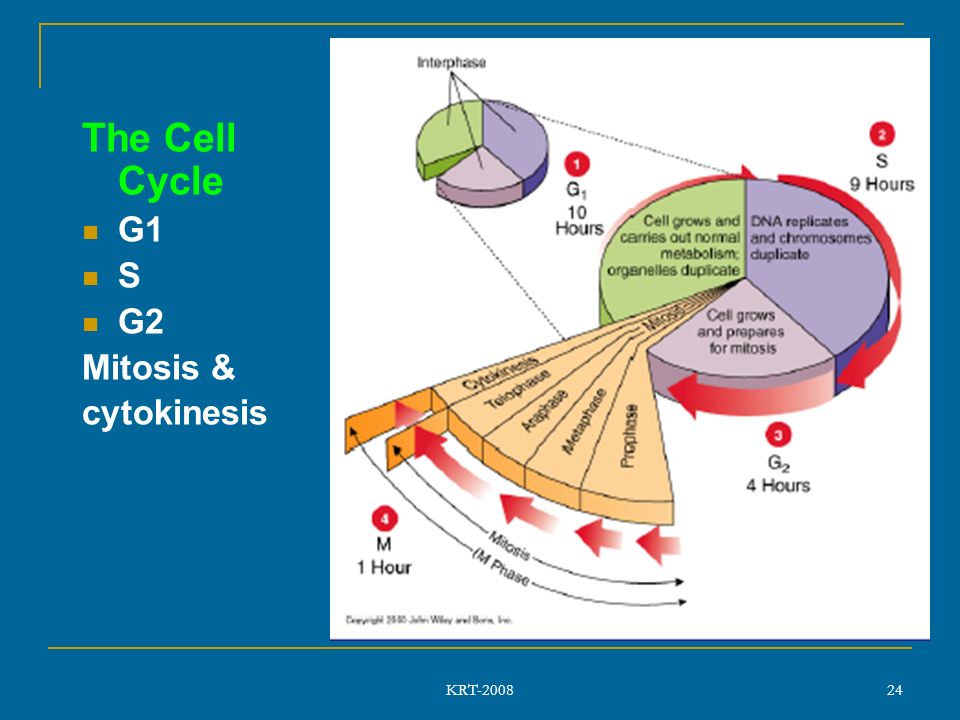

24. KRT-2008 24 The Cell Cycle G1 S G2 Mitosis & cytokinesis

25. KRT-2008 25 Cell Cycle regulation Growth factors Density- dependent inhibition Anchorage (=tempat) dependence

26. KRT-2008 26 Stages of Mitosis

27. KRT-2008 27 Mitosis 1. Prophase 2. Prometaphase 3. Metaphase 4. Anaphase 5. Telophase

28. KRT-2008 28 Mitosis in Action Blue shows DNA, green shows spindle fibers.

29. KRT-2008 29 Stages of mitosis

30. KRT-2008 30 Stages of mitosis

31. PROPHASE, METAPHASE, ANAPHASE,TELOPHASE 1. Prophase: Chromosomes condense and become visible, each Chromosome contains several cm of DNA condensed into 5 – 10 micrometers. During the S Phase each chromosome has been duplicated into a sister chromatid. (A chromotid is one of the two halves of duplicated chromosomes) S Phase = synthesis of DNA

32. KRT-2008 32 Prometaphase Nuclear membrane fragments Spindle interaction with chromosomes Kinetochore develops

33. KRT-2008 33 Centrosomes at opposite poles Centromeres are aligned (=disejajarkan) Kinetochores of sister chromatids attached to microtubules (spindle) 2. Metaphase: 1. Chromosomes line up along the cell “equator”. 2. The cell itself condenses and the chromosomes are more clearly visible than during any other phase of mitosis

34. KRT-2008 34 Paired centromeres separate; sister chromatids liberated Chromosomes move to opposite poles Each pole now has a complete set of chromosomes 3. Anaphase 1. is defined as the sister chromatids begin to separate 2. By now each chromatid is an independent and functional chromosome 3. The chromosomes are pulled toward opposite poles. Anaphase is complete when a complete set of chromosomes reaches each pole.

35. 4. Telophase: 1. The final stage of mitosis, chromosomes uncoil (= mengurai) into chomatin threads 2. A nuclear envelope forms around each set of chromosomes, nucleoli appear Daughter nuclei form Nuclear envelopes arise Chromatin becomes less coiled (= menggulung) Two new nuclei complete mitosis

36. KRT-2008 36 Structure of a replicated chromosome

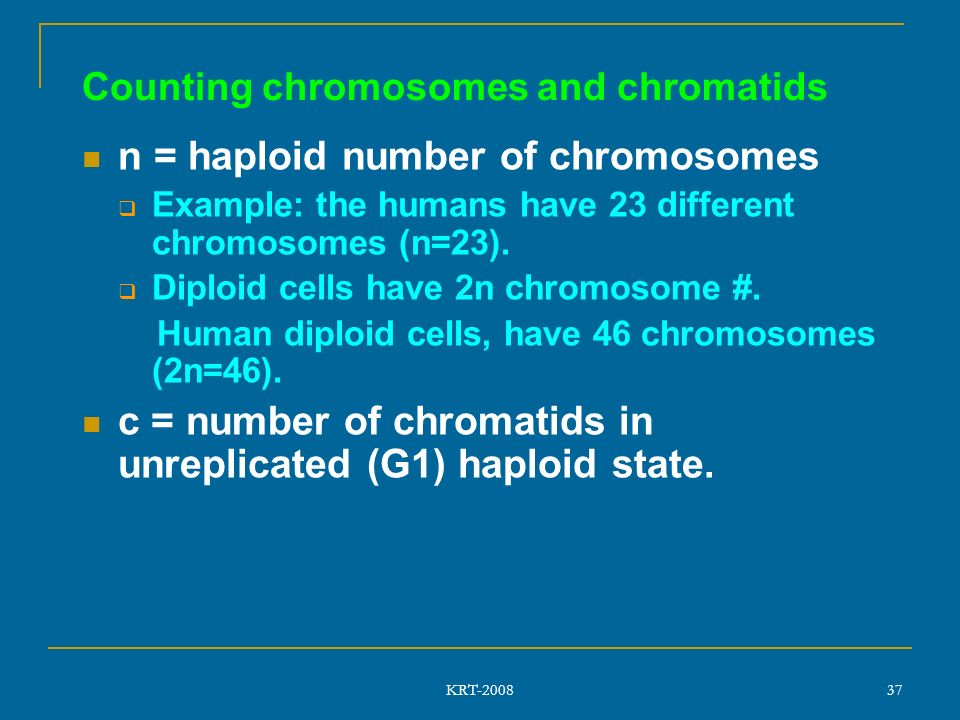

37. KRT-2008 37 Counting chromosomes and chromatids n = haploid number of chromosomes  Example: the humans have 23 different chromosomes (n=23).  Diploid cells have 2n chromosome #. Human diploid cells, have 46 chromosomes (2n=46). c = number of chromatids in unreplicated (G1) haploid state.

38. KRT-2008 38 Replication of a chromosome during mitosis

39. 1. Frequency of mitosis varies between species or even with location within an organism…skin cell versus nerve cells for example, but under similar conditions the length of the cell cycle is constant for a particular type of cell. 2. The rate and frequency of mitosis in a multicelluar organism must be controlled… 3. The cell requires a protein called maturation promoting factor (MPF). Scientists are still learning how MPF works and controls the cell mitosis. CONTROLS ON DIVISION

40. Read about the effects of Colchicine and the condition of polypoidy When mitosis occurs each daughter cell receives exactly the same number and kind of chromosomes as the parent When a haploid cell undergoes mitosis, two haploid cells are produced.

41. KRT-2008 41 These are Organisms (living things)
