1. http://www.sharepointne.com Welcome to the Nebraska SharePoint User Group

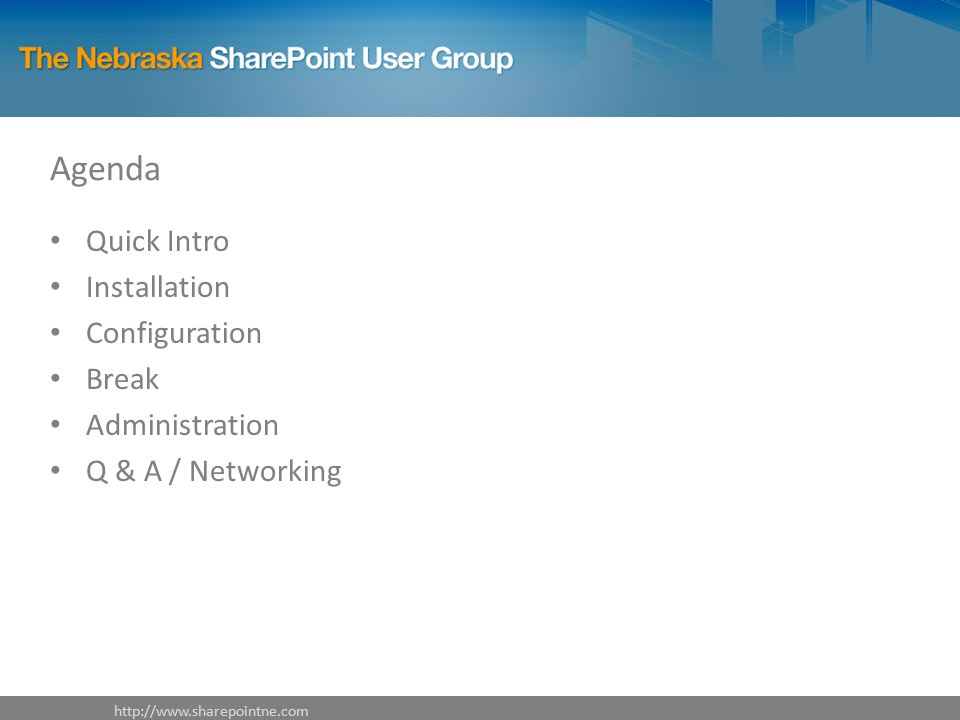

2. Agenda Quick Intro Installation Configuration Break Administration Q & A / Networking http://www.sharepointne.com

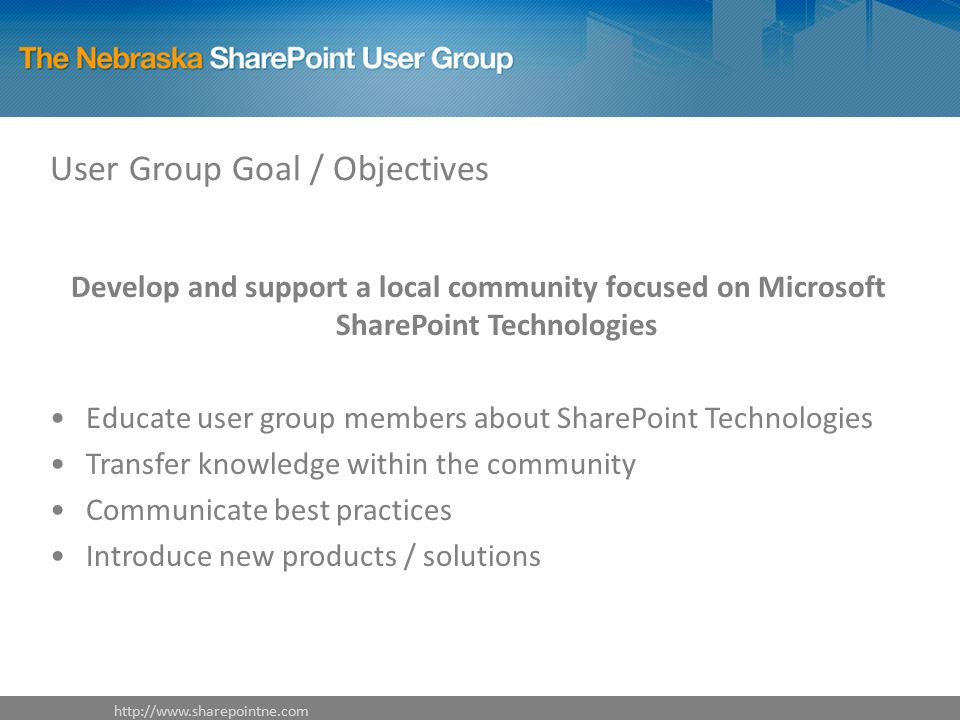

3. User Group Goal / Objectives Develop and support a local community focused on Microsoft SharePoint Technologies Educate user group members about SharePoint Technologies Transfer knowledge within the community Communicate best practices Introduce new products / solutions http://www.sharepointne.com

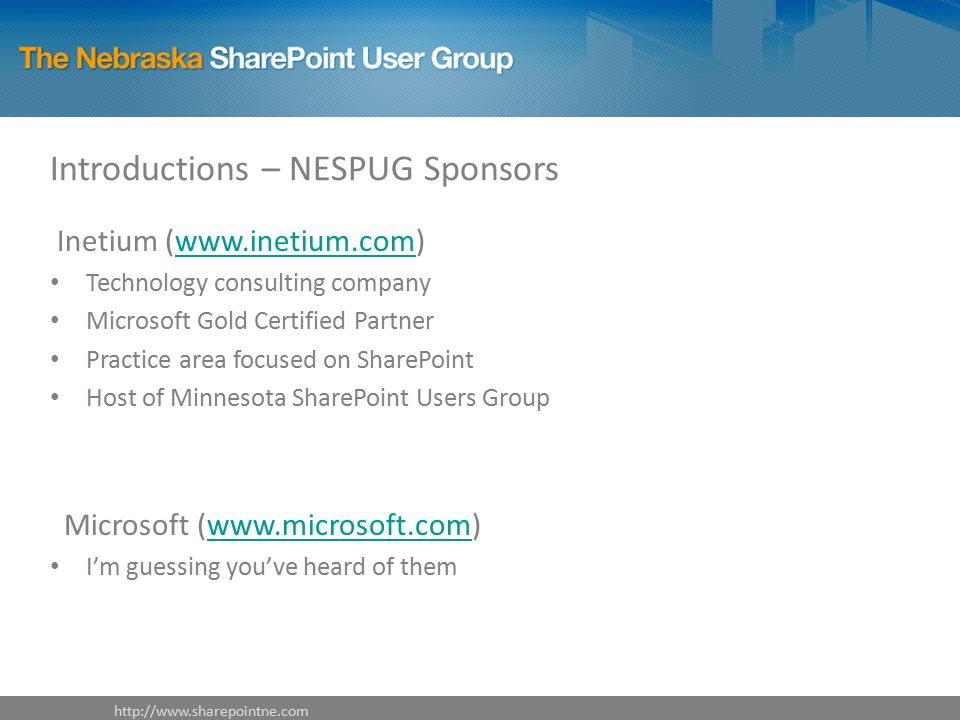

4. Introductions – NESPUG Sponsors Inetium (www.inetium.com)www.inetium.com Technology consulting company Microsoft Gold Certified Partner Practice area focused on SharePoint Host of Minnesota SharePoint Users Group Microsoft (www.microsoft.com)www.microsoft.com I’m guessing you’ve heard of them http://www.sharepointne.com

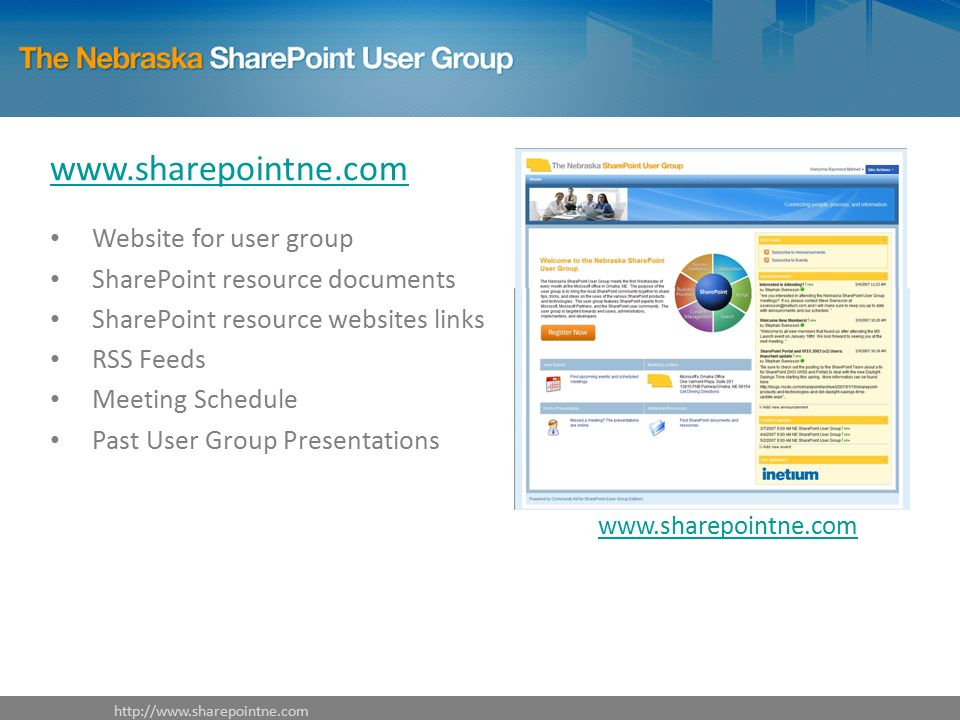

5. www.sharepointne.com Website for user group SharePoint resource documents SharePoint resource websites links RSS Feeds Meeting Schedule Past User Group Presentations www.sharepointne.com http://www.sharepointne.com

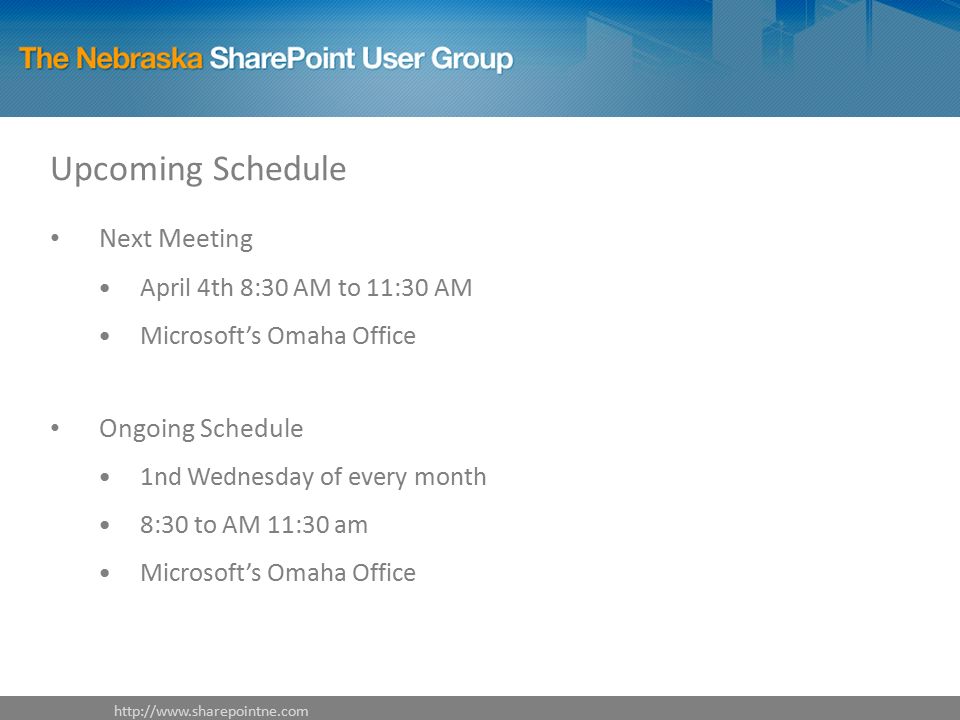

6. Upcoming Schedule Next Meeting April 4th 8:30 AM to 11:30 AM Microsoft’s Omaha Office Ongoing Schedule 1nd Wednesday of every month 8:30 to AM 11:30 am Microsoft’s Omaha Office http://www.sharepointne.com

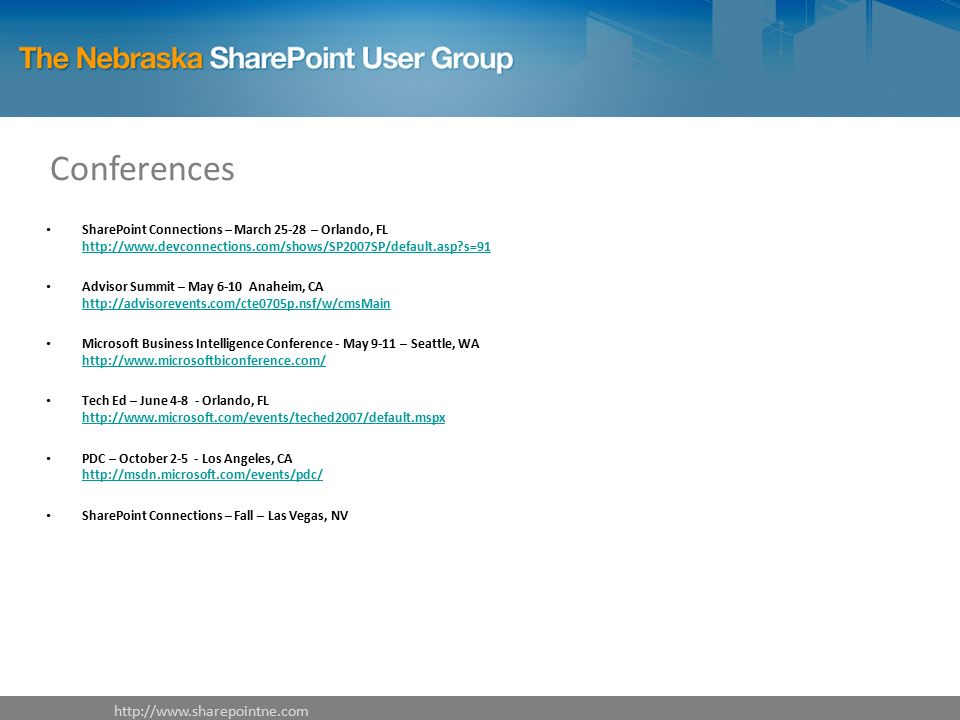

7. Conferences SharePoint Connections – March 25-28 – Orlando, FL http://www.devconnections.com/shows/SP2007SP/default.asp?s=91 http://www.devconnections.com/shows/SP2007SP/default.asp?s=91 Advisor Summit – May 6-10 Anaheim, CA http://advisorevents.com/cte0705p.nsf/w/cmsMain http://advisorevents.com/cte0705p.nsf/w/cmsMain Microsoft Business Intelligence Conference - May 9-11 – Seattle, WA http://www.microsoftbiconference.com/ http://www.microsoftbiconference.com/ Tech Ed – June 4-8 - Orlando, FL http://www.microsoft.com/events/teched2007/default.mspx http://www.microsoft.com/events/teched2007/default.mspx PDC – October 2-5 - Los Angeles, CA http://msdn.microsoft.com/events/pdc/ http://msdn.microsoft.com/events/pdc/ SharePoint Connections – Fall – Las Vegas, NV http://www.sharepointne.com

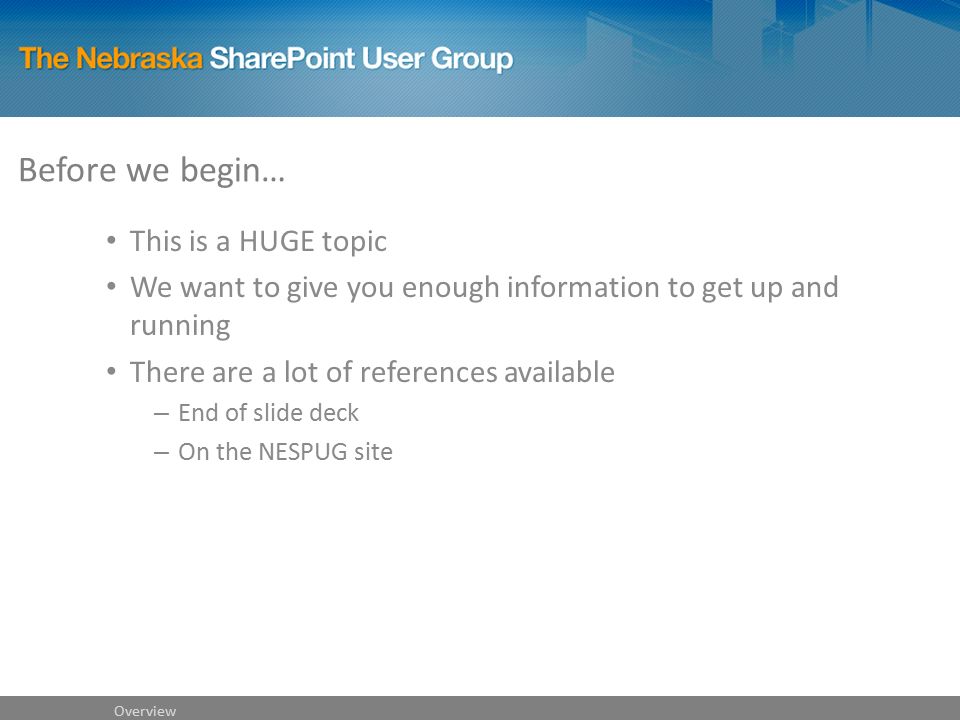

8. Before we begin… This is a HUGE topic We want to give you enough information to get up and running There are a lot of references available – End of slide deck – On the NESPUG site Overview

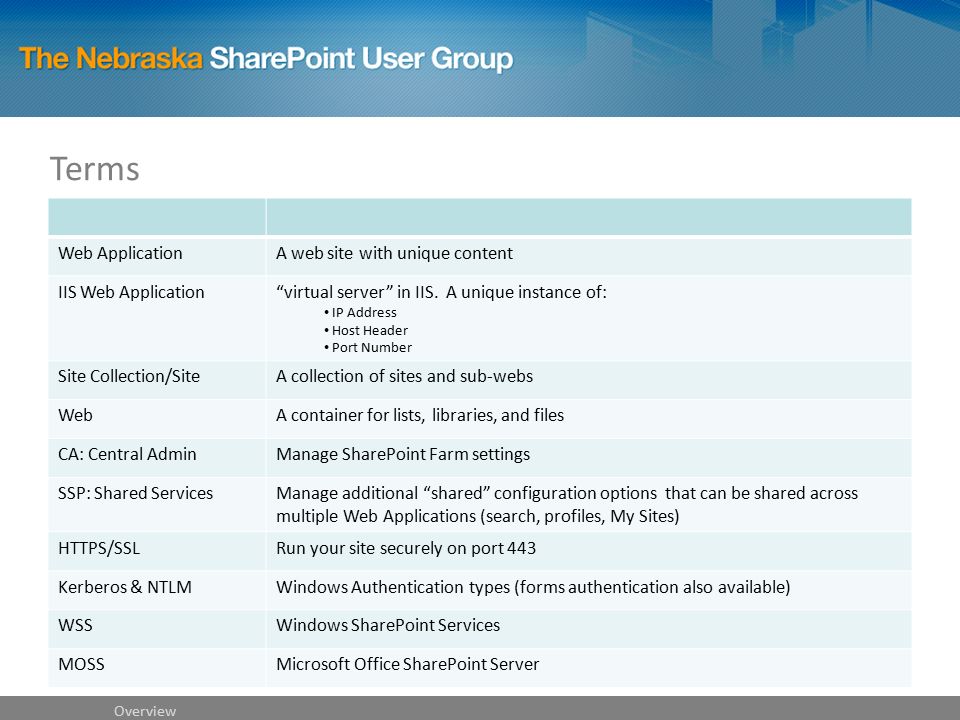

9. Terms Overview Web ApplicationA web site with unique content IIS Web Application“virtual server” in IIS. A unique instance of: IP Address Host Header Port Number Site Collection/SiteA collection of sites and sub-webs WebA container for lists, libraries, and files CA: Central AdminManage SharePoint Farm settings SSP: Shared ServicesManage additional “shared” configuration options that can be shared across multiple Web Applications (search, profiles, My Sites) HTTPS/SSLRun your site securely on port 443 Kerberos & NTLMWindows Authentication types (forms authentication also available) WSSWindows SharePoint Services MOSSMicrosoft Office SharePoint Server

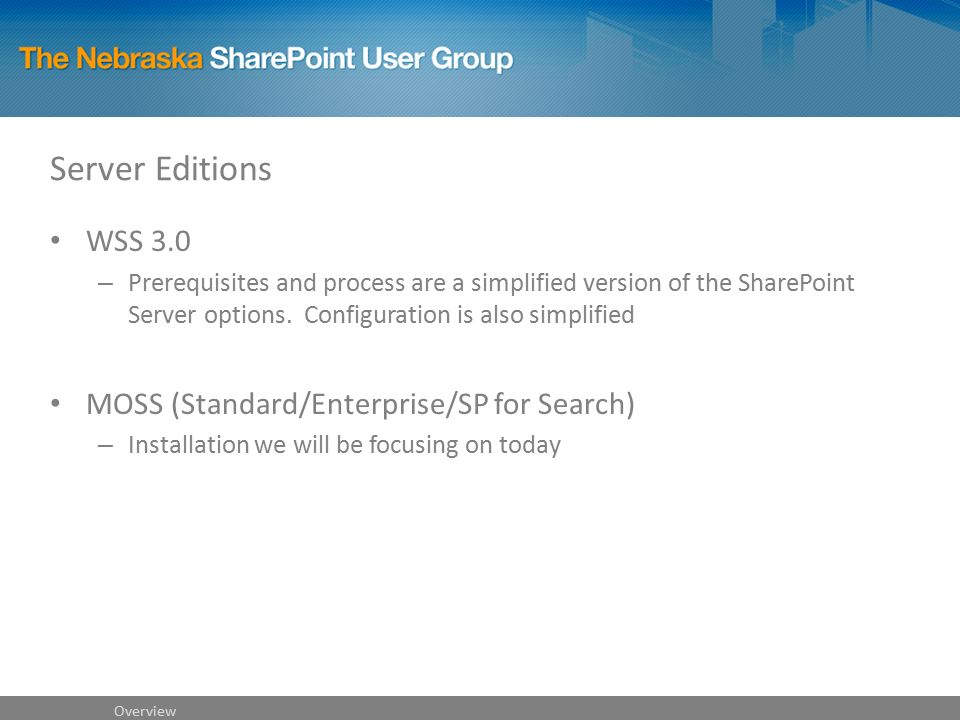

10. Server Editions WSS 3.0 – Prerequisites and process are a simplified version of the SharePoint Server options. Configuration is also simplified MOSS (Standard/Enterprise/SP for Search) – Installation we will be focusing on today Overview

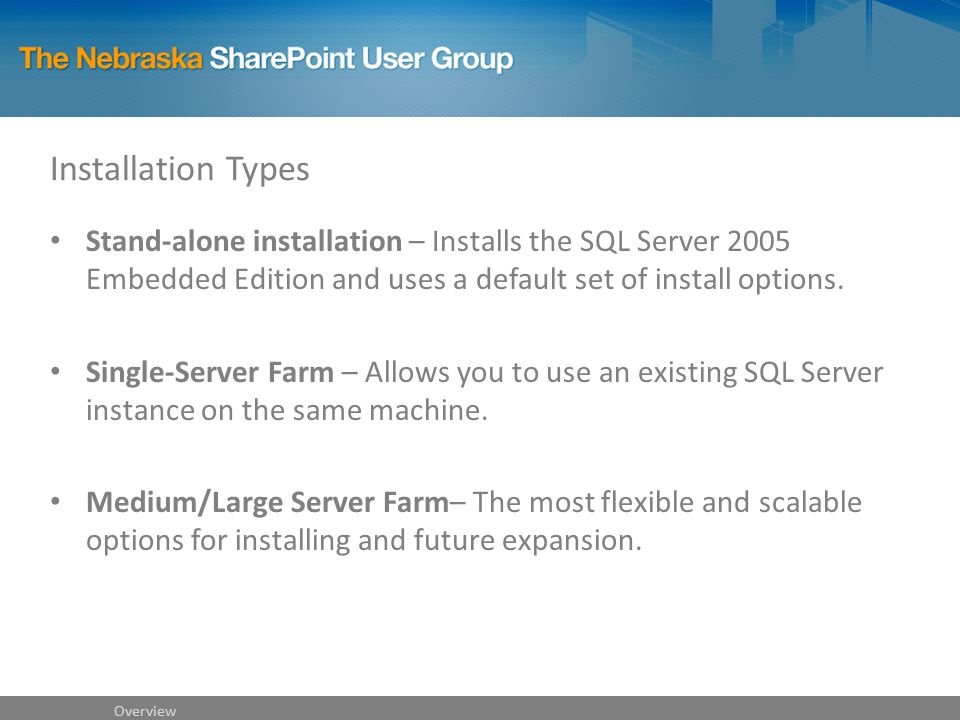

11. Installation Types Stand-alone installation – Installs the SQL Server 2005 Embedded Edition and uses a default set of install options. Single-Server Farm – Allows you to use an existing SQL Server instance on the same machine. Medium/Large Server Farm– The most flexible and scalable options for installing and future expansion. Overview

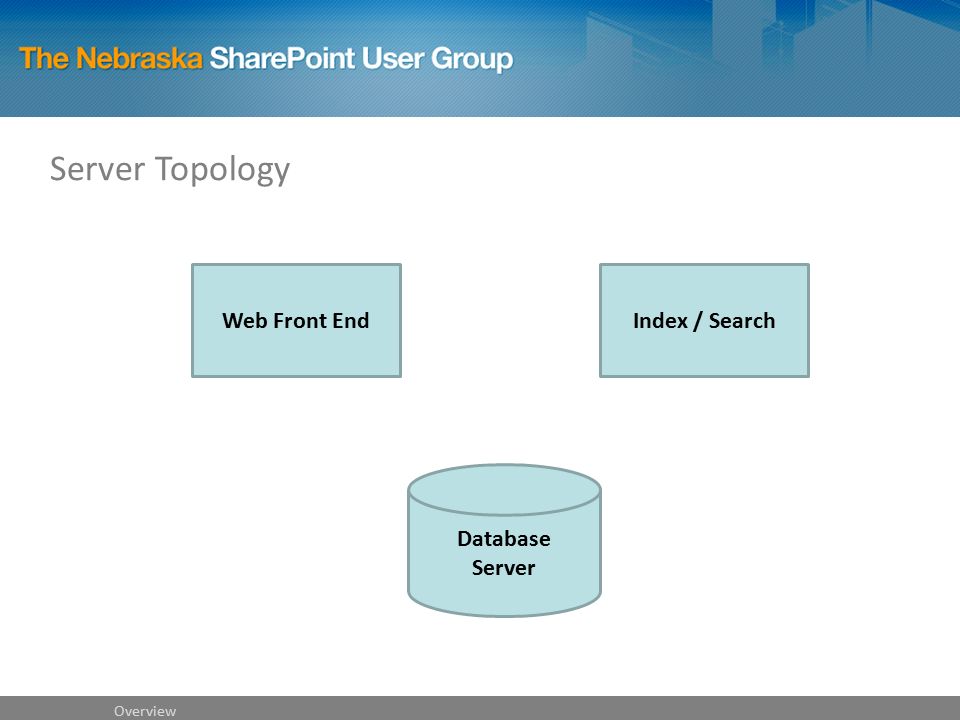

12. Server Topology Overview Database Server Web Front EndIndex / Search

13. Installation

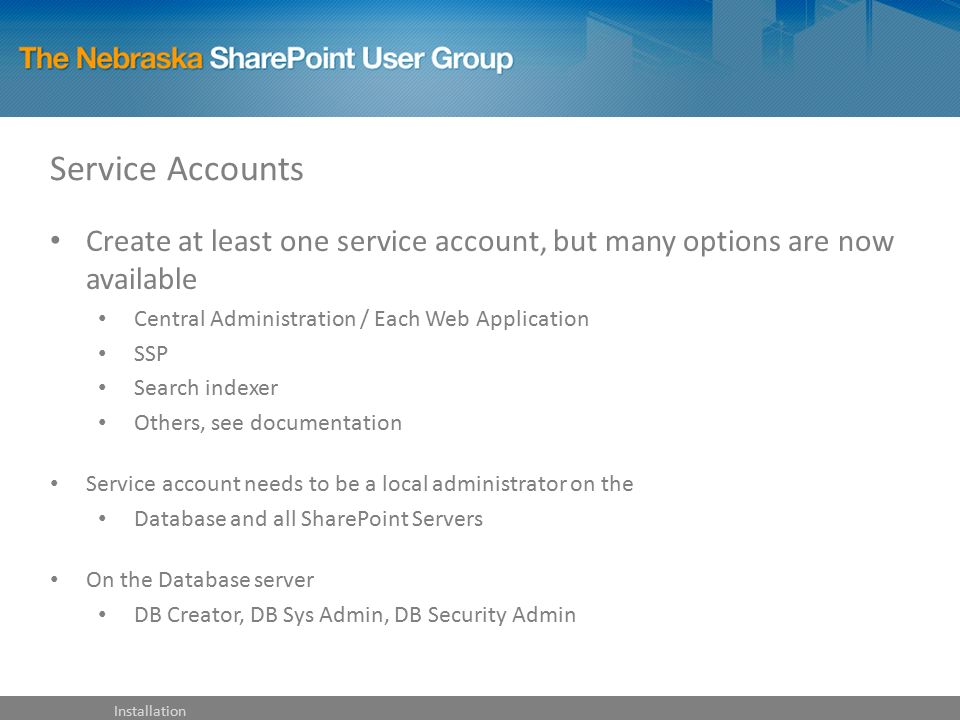

14. Service Accounts Create at least one service account, but many options are now available Central Administration / Each Web Application SSP Search indexer Others, see documentation Service account needs to be a local administrator on the Database and all SharePoint Servers On the Database server DB Creator, DB Sys Admin, DB Security Admin Installation

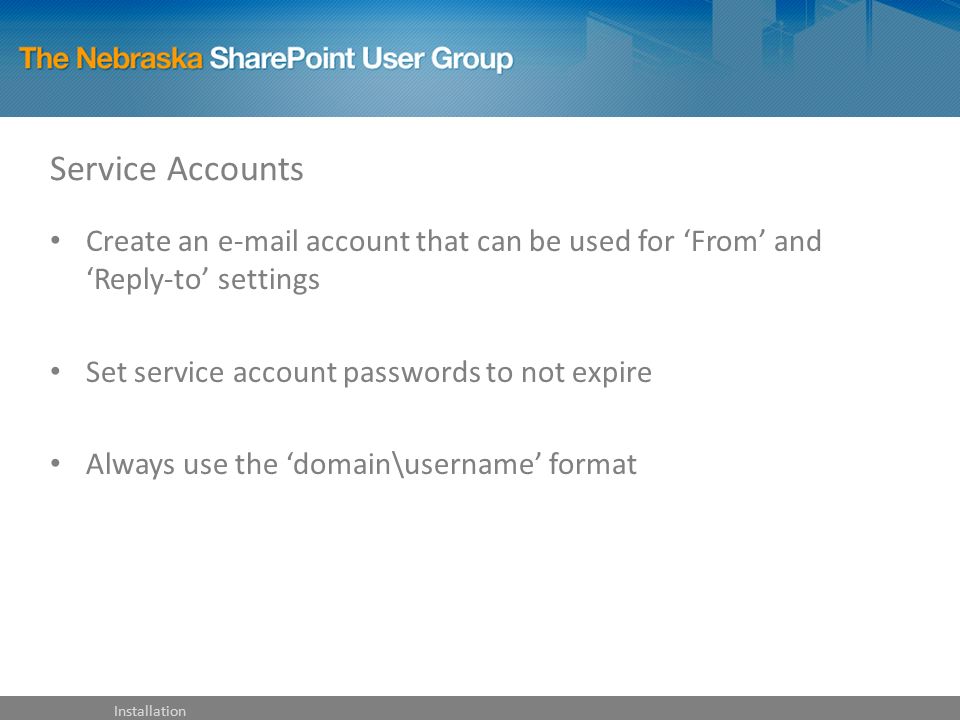

15. Service Accounts Installation Create an e-mail account that can be used for ‘From’ and ‘Reply-to’ settings Set service account passwords to not expire Always use the ‘domain\username’ format

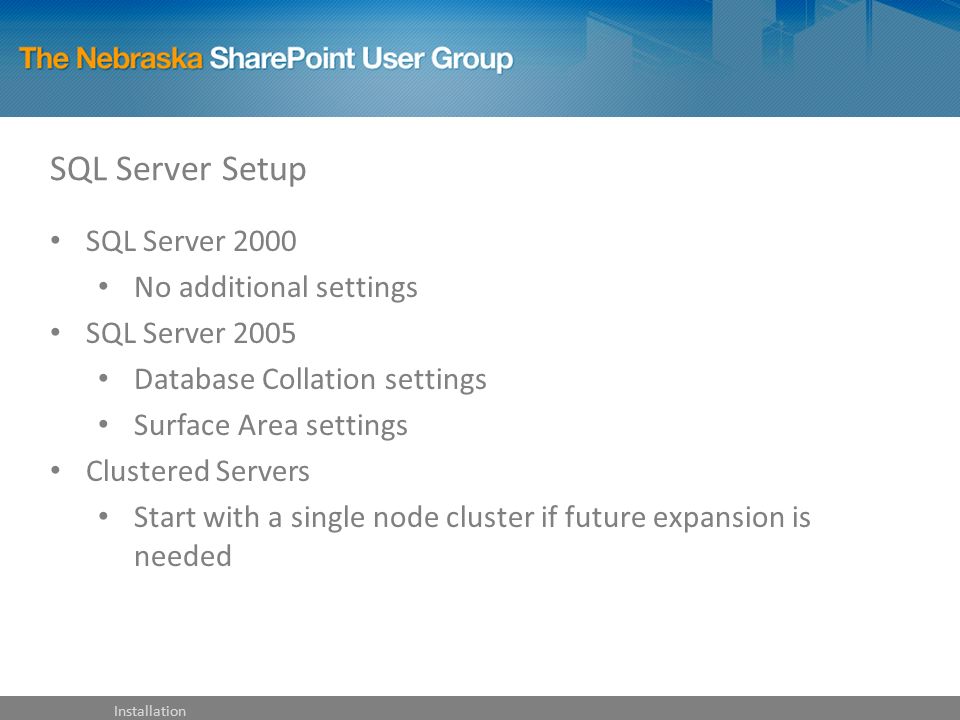

16. SQL Server Setup SQL Server 2000 No additional settings SQL Server 2005 Database Collation settings Surface Area settings Clustered Servers Start with a single node cluster if future expansion is needed Installation

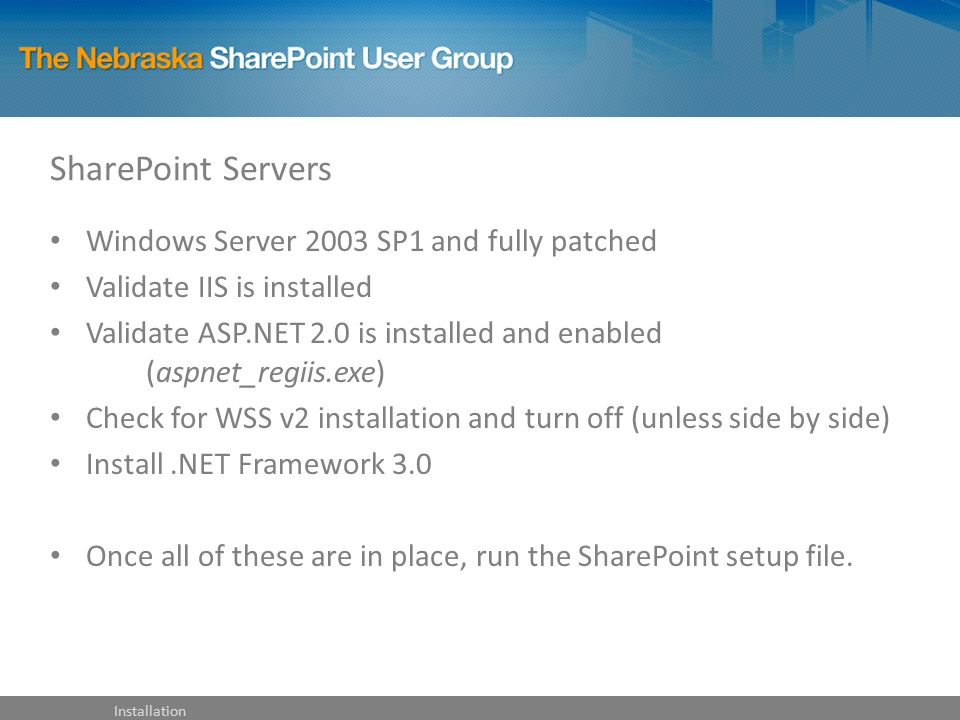

17. SharePoint Servers Windows Server 2003 SP1 and fully patched Validate IIS is installed Validate ASP.NET 2.0 is installed and enabled (aspnet_regiis.exe) Check for WSS v2 installation and turn off (unless side by side) Install.NET Framework 3.0 Once all of these are in place, run the SharePoint setup file. Installation

18. SharePoint Installation A few slides... Installation

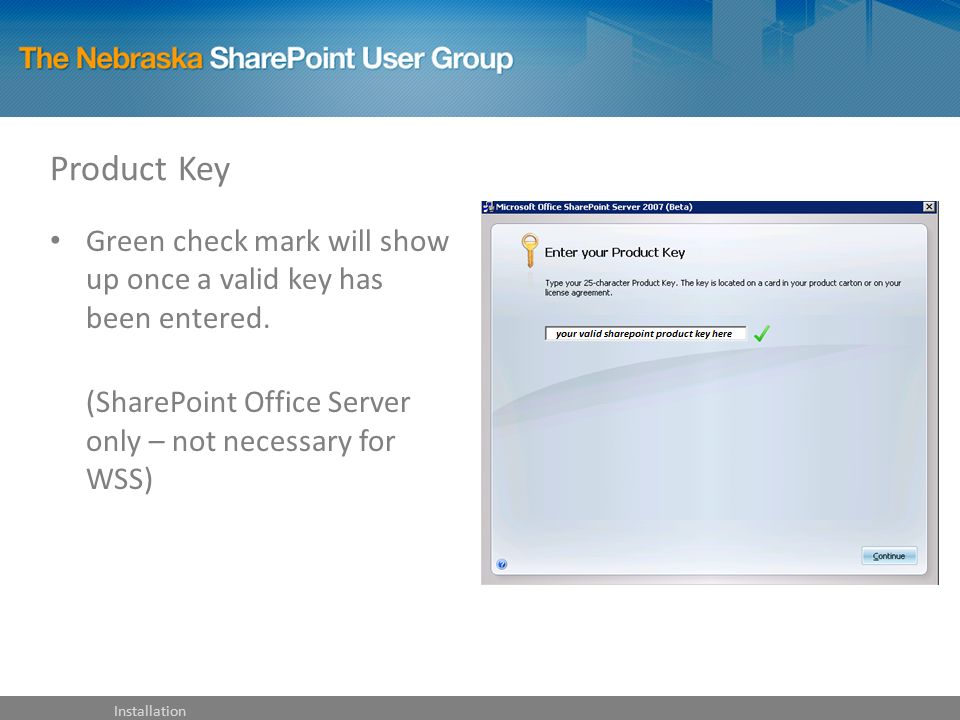

19. Product Key Green check mark will show up once a valid key has been entered. (SharePoint Office Server only – not necessary for WSS) Installation

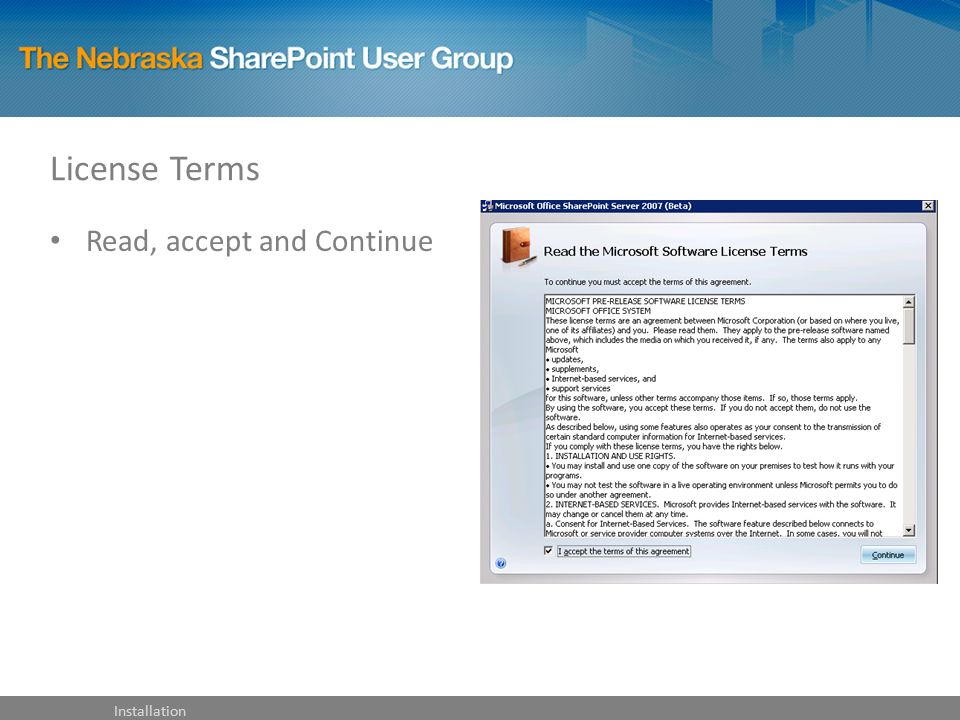

20. License Terms Read, accept and Continue Installation

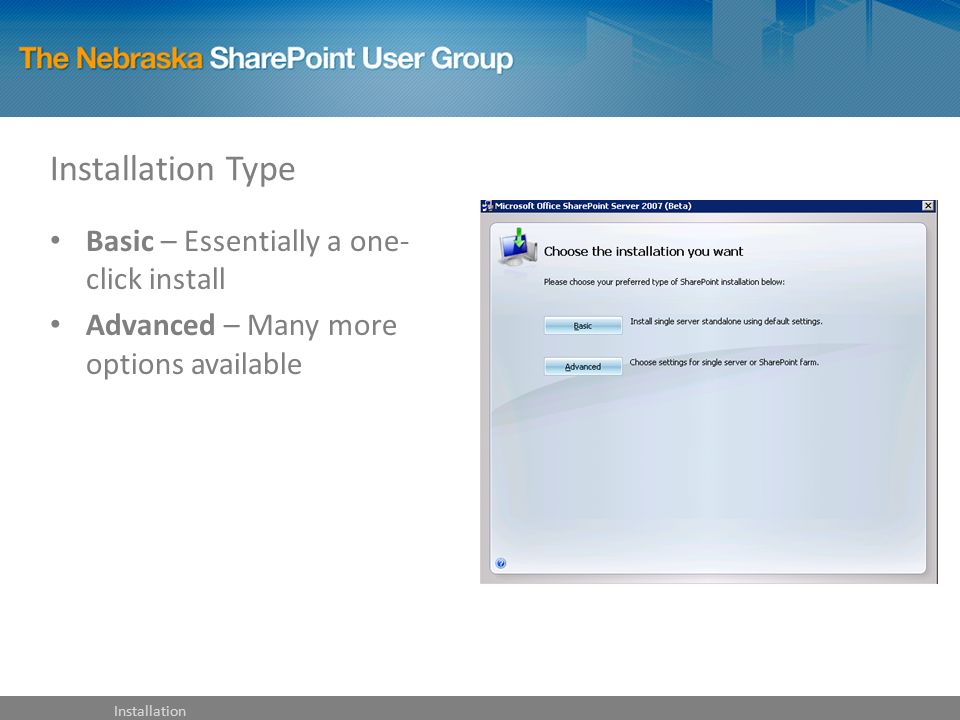

21. Installation Type Basic – Essentially a one- click install Advanced – Many more options available Installation

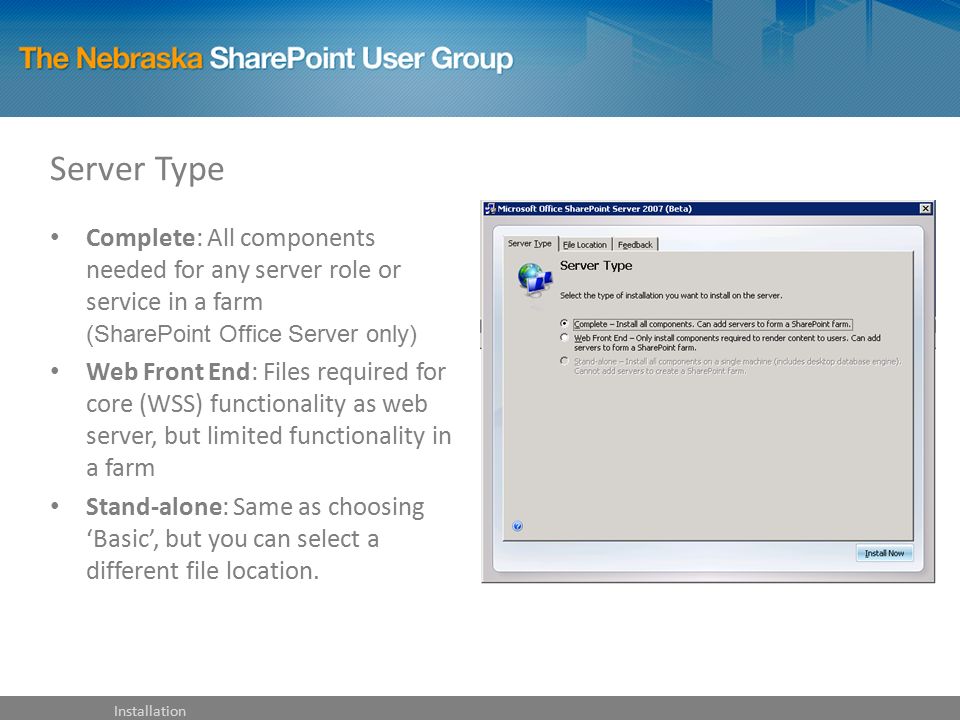

22. Server Type Complete: All components needed for any server role or service in a farm (SharePoint Office Server only) Web Front End: Files required for core (WSS) functionality as web server, but limited functionality in a farm Stand-alone: Same as choosing ‘Basic’, but you can select a different file location. Installation

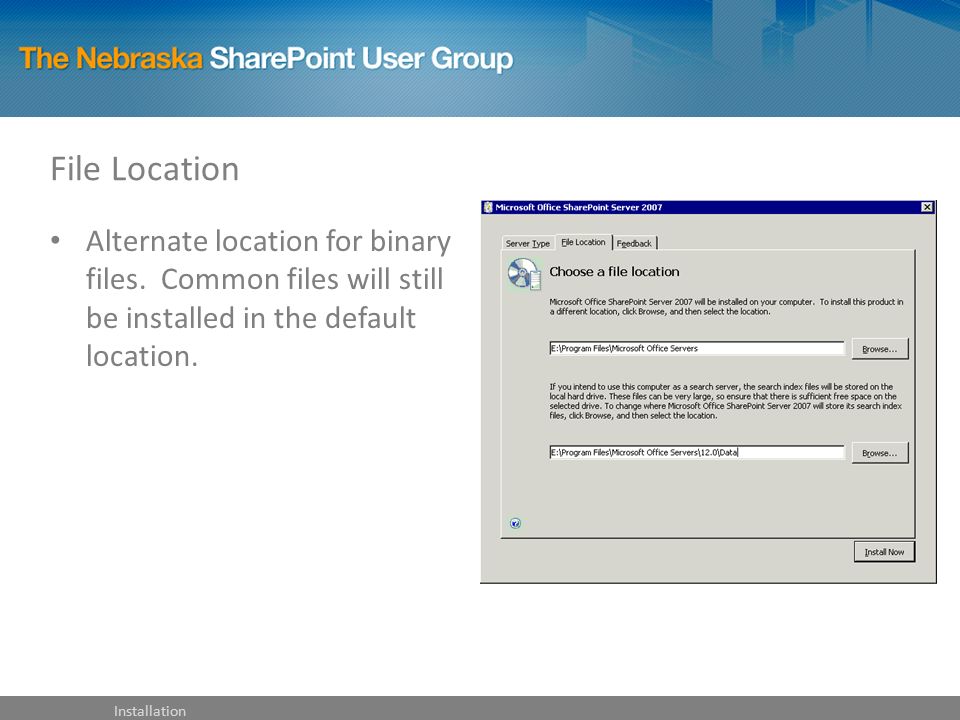

23. File Location Alternate location for binary files. Common files will still be installed in the default location. Installation

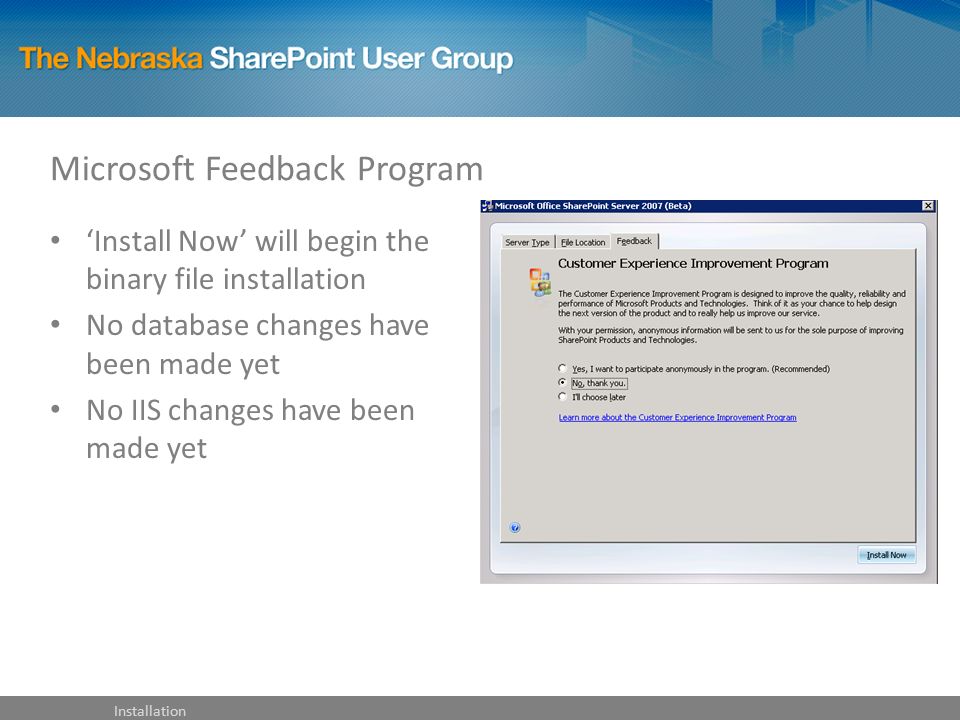

24. Microsoft Feedback Program ‘Install Now’ will begin the binary file installation No database changes have been made yet No IIS changes have been made yet Installation

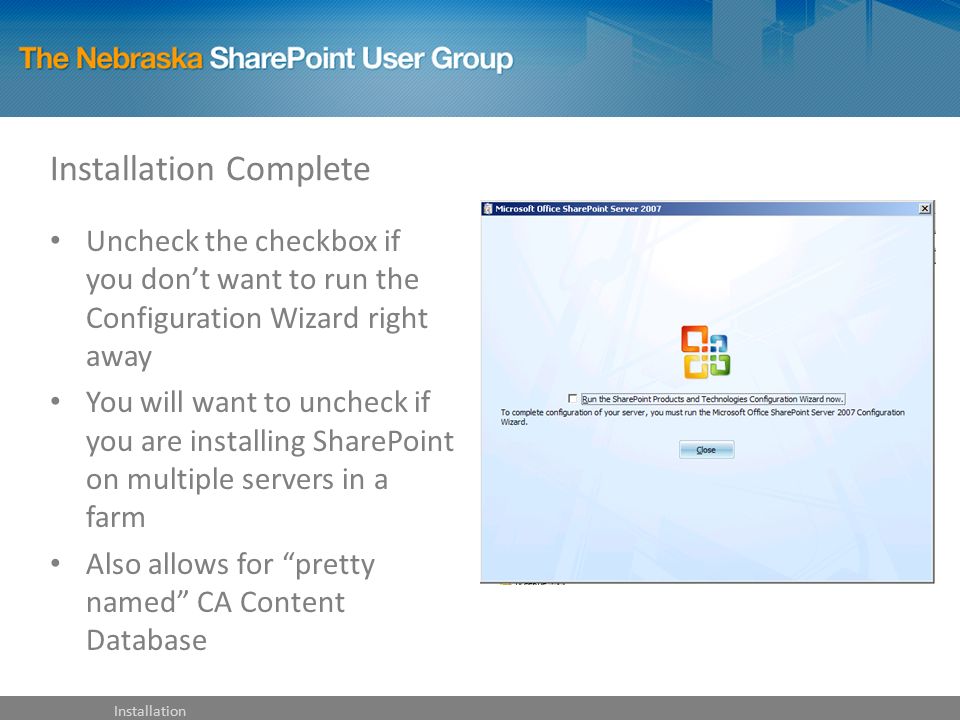

25. Installation Complete Uncheck the checkbox if you don’t want to run the Configuration Wizard right away You will want to uncheck if you are installing SharePoint on multiple servers in a farm Also allows for “pretty named” CA Content Database Installation

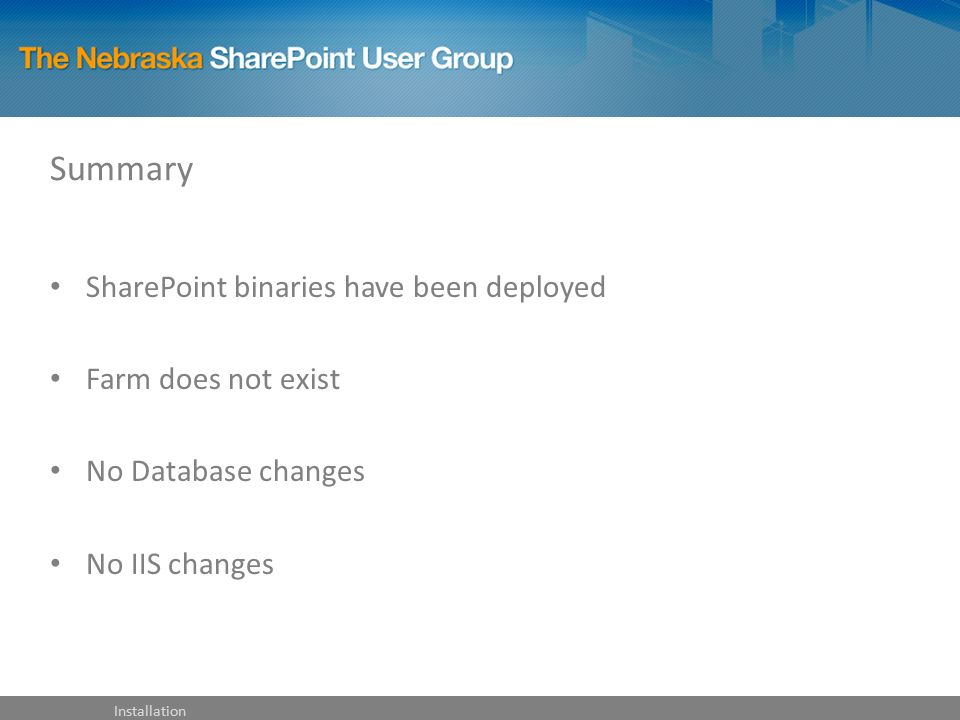

26. Summary SharePoint binaries have been deployed Farm does not exist No Database changes No IIS changes Installation

27. Configuration

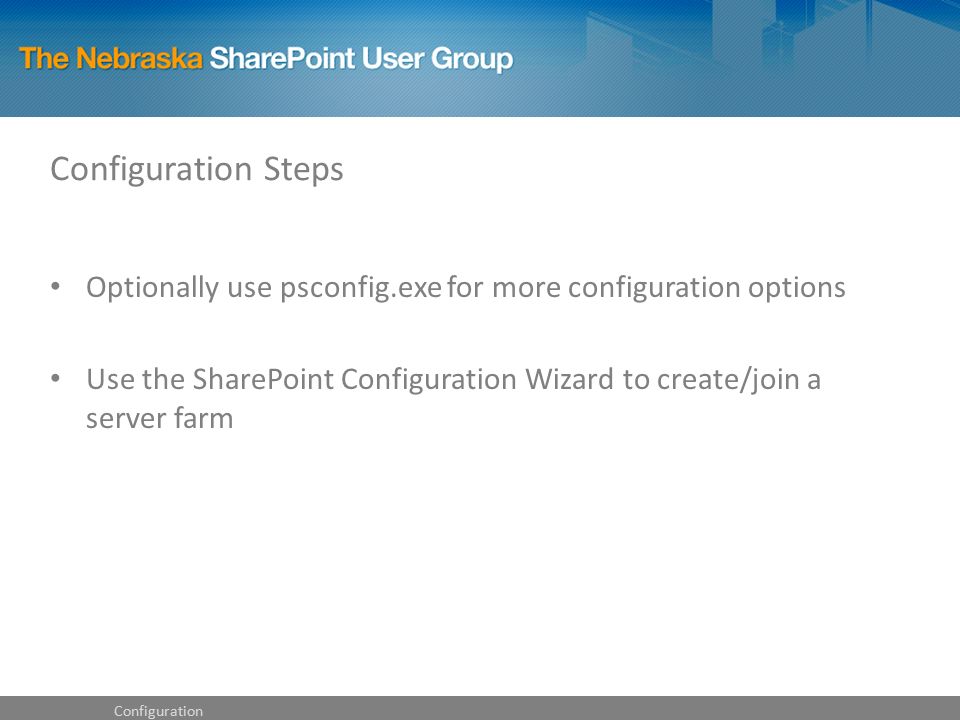

28. Configuration Steps Optionally use psconfig.exe for more configuration options Use the SharePoint Configuration Wizard to create/join a server farm Configuration

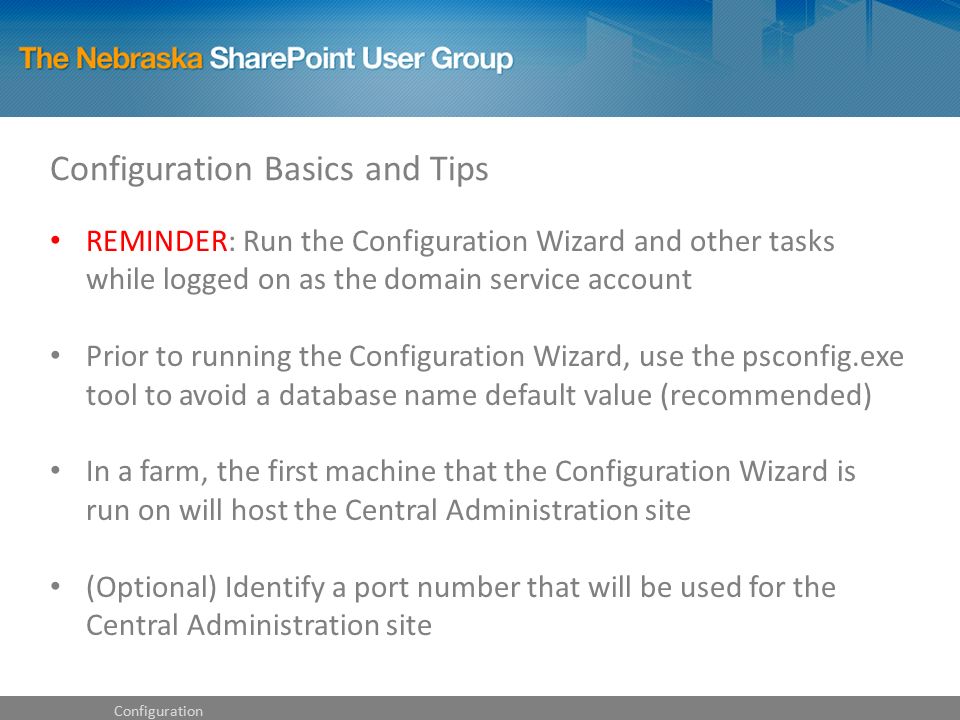

29. Configuration Basics and Tips Configuration REMINDER: Run the Configuration Wizard and other tasks while logged on as the domain service account Prior to running the Configuration Wizard, use the psconfig.exe tool to avoid a database name default value (recommended) In a farm, the first machine that the Configuration Wizard is run on will host the Central Administration site (Optional) Identify a port number that will be used for the Central Administration site

30. psconfig.exe Run on the same server that the Central Administration will be created on. Same file location as STSADM.exe C:\Program Files\Common Files\Microsoft Shared\web server extensions\12\bin Pre-install the Config and AdminContent databases Psconfig –cmd configdb –create –server –database –user –password –admincontentdatabase Configuration

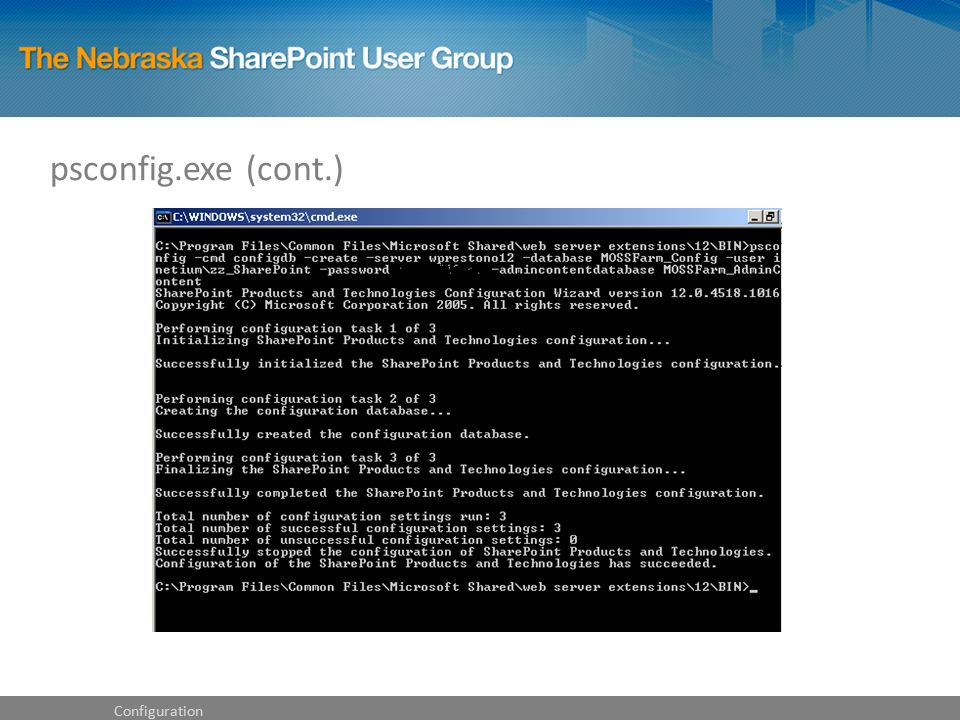

31. psconfig.exe (cont.) Configuration

32. Configuration Wizard Run the Configuration Wizard on the machine that will host the Central Administration first Configuration

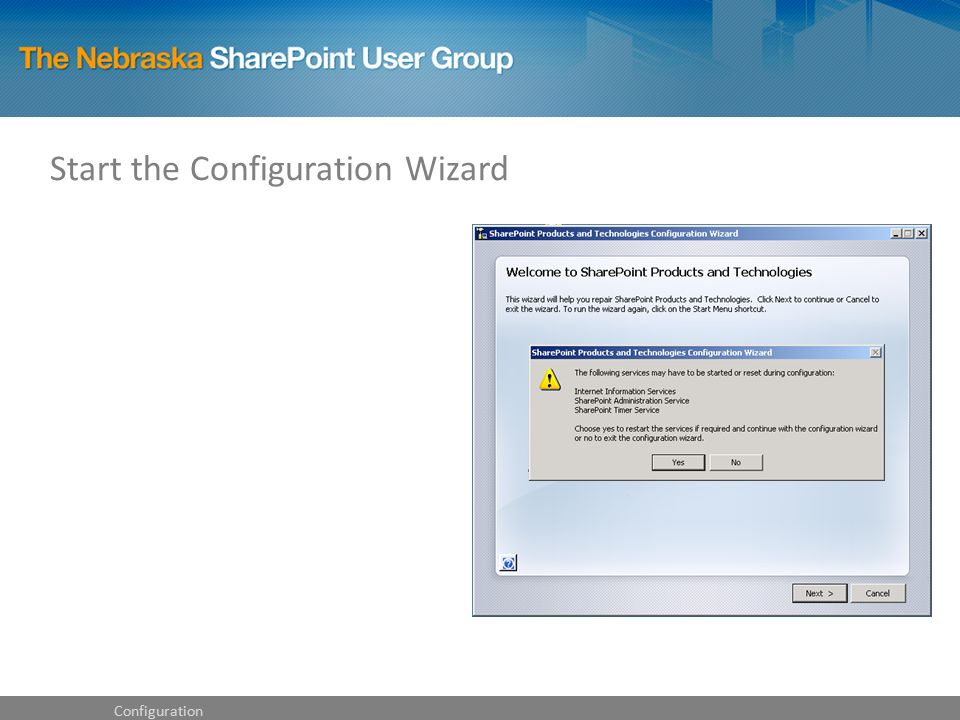

33. Start the Configuration Wizard Configuration

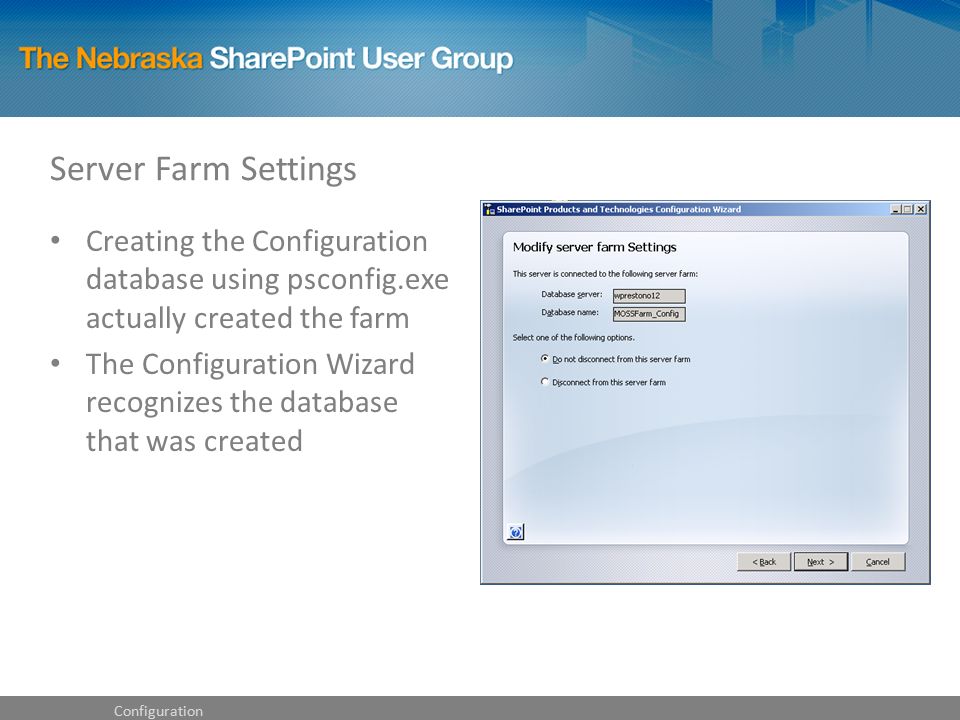

34. Server Farm Settings Creating the Configuration database using psconfig.exe actually created the farm The Configuration Wizard recognizes the database that was created Configuration

35. Central Administration configuration Either accept the randomly generated port number or specify a port number Specify security configuration (Kerberos outside the scope of this presentation) Configuration

36. Review Configuration Settings ‘Next’ will start the configuration process running Configuration

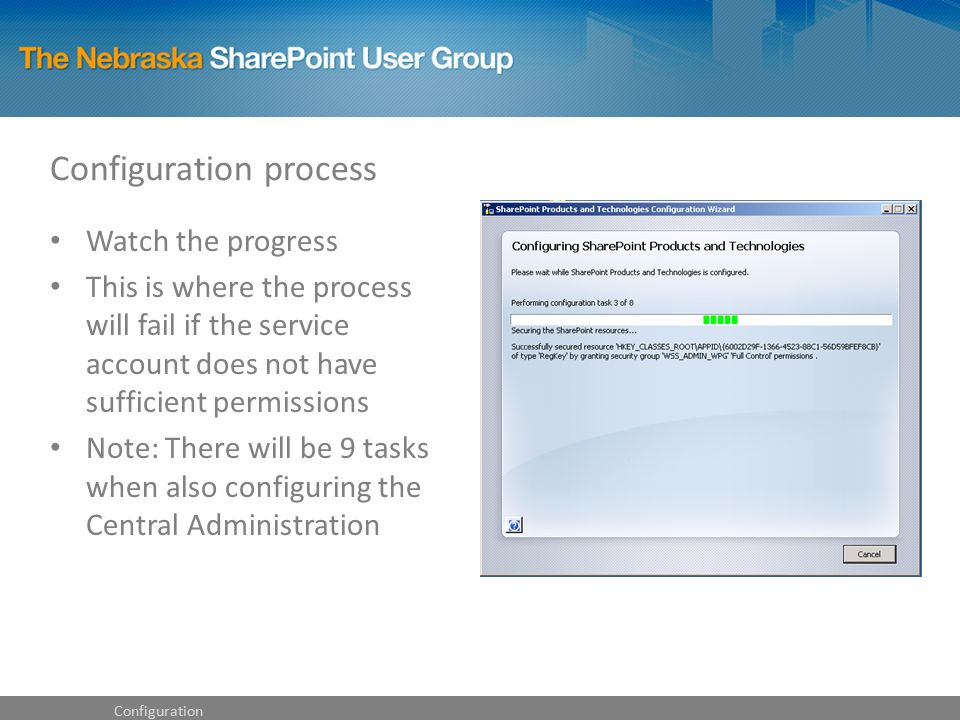

37. Configuration process Watch the progress This is where the process will fail if the service account does not have sufficient permissions Note: There will be 9 tasks when also configuring the Central Administration Configuration

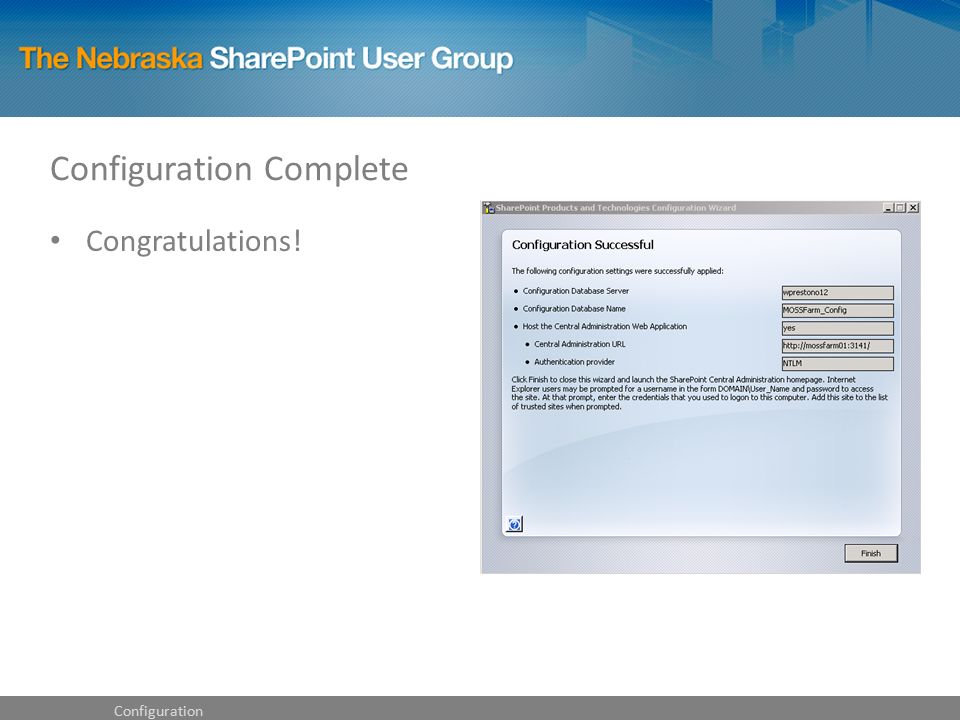

38. Configuration Complete Congratulations! Configuration

39. Welcome to Central Administration ‘Server Farm Configuration Not Complete’ won’t go away until all steps have been completed Note that the farm now includes the single server and the SQL Server If not adding additional servers, services can now be configured Configuration

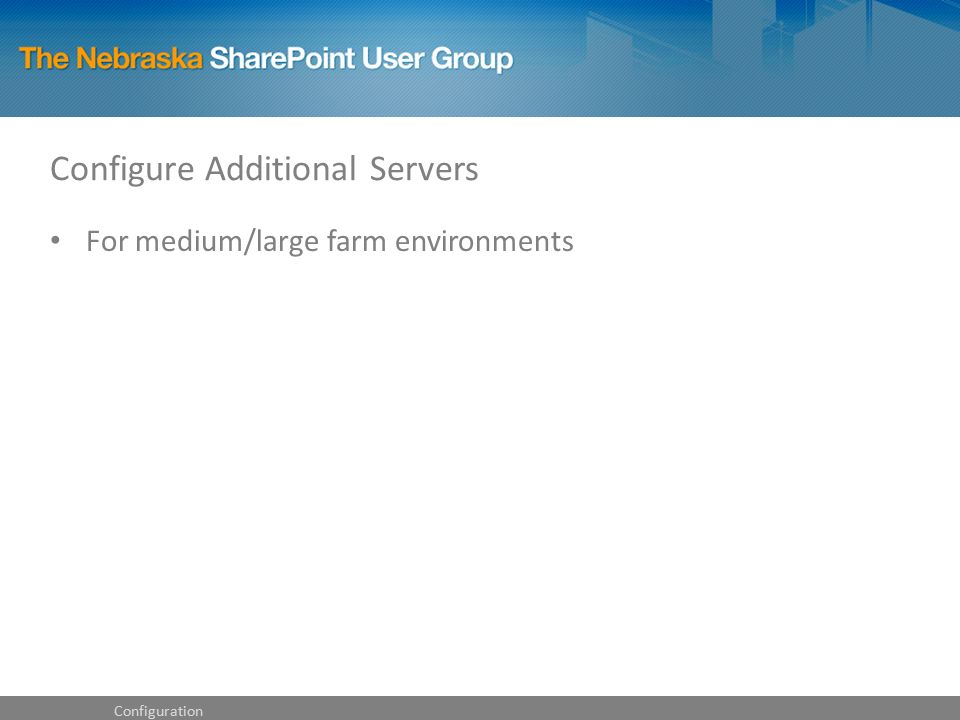

40. Configure Additional Servers For medium/large farm environments Configuration

41. Run Configuration Wizard on additional servers No matter what the roles of the additional servers, the process of adding them to the farm will be the same Roles will be assigned after the farm has been built Applies to both WSS and SharePoint Office Servers Configuration

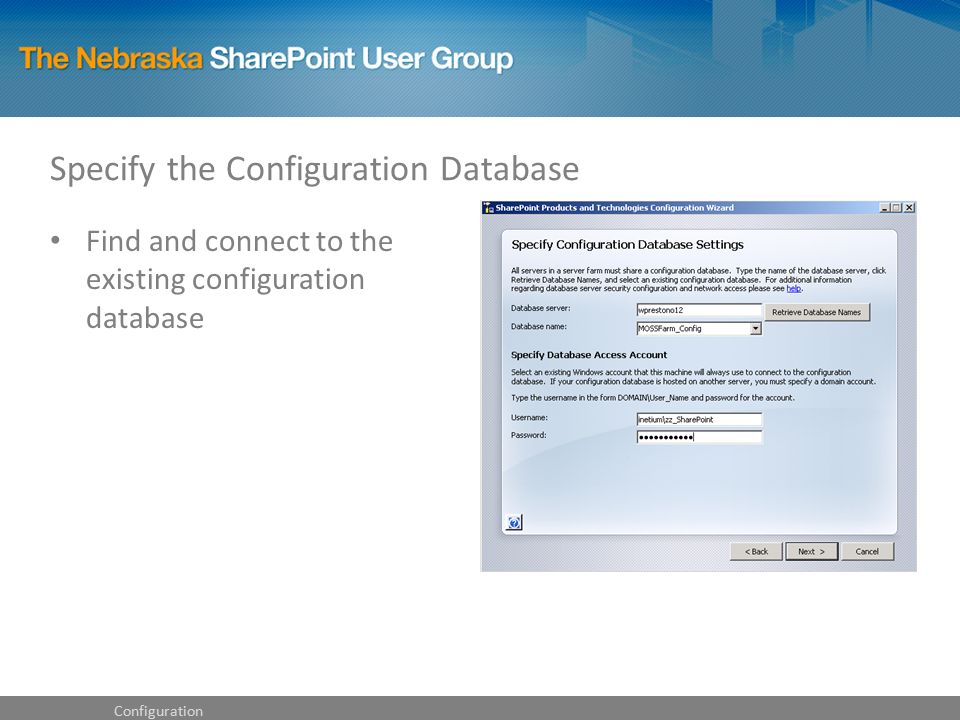

42. Specify the Configuration Database Find and connect to the existing configuration database Configuration

43. Validate the database settings The process validates the database and the ability to connect to it with the credentials entered ‘Next’ will initiate the configuration process for the server Configuration

44. Configuration Process Configuration

45. Configuration Complete The additional server has been added to the farm. Configuration

46. Installation Complete Both servers are now listed in the Farm Topology web part Configuration

47. Shared Services Provider (SSP) – Prerequisite Steps (Office SharePoint Server only) Activate and deactivate services on the servers Create index and query service roles Create Web Applications Create and configure the SSP Configuration

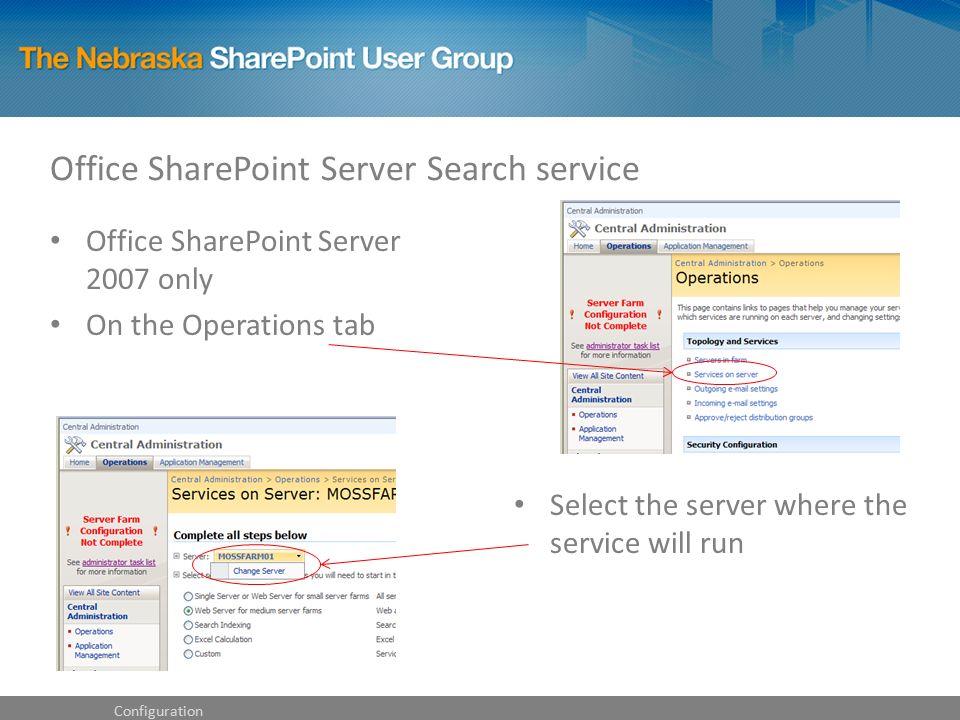

48. Office SharePoint Server Search service Office SharePoint Server 2007 only On the Operations tab Select the server where the service will run Configuration

49. Start the service Click Start Configuration

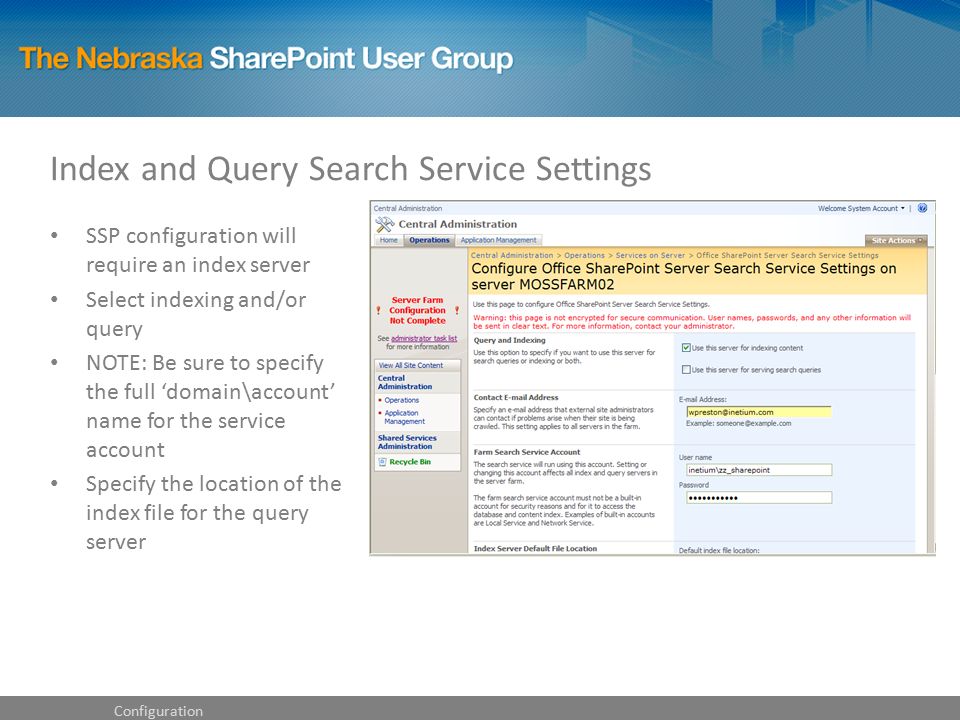

50. Index and Query Search Service Settings SSP configuration will require an index server Select indexing and/or query NOTE: Be sure to specify the full ‘domain\account’ name for the service account Specify the location of the index file for the query server Configuration

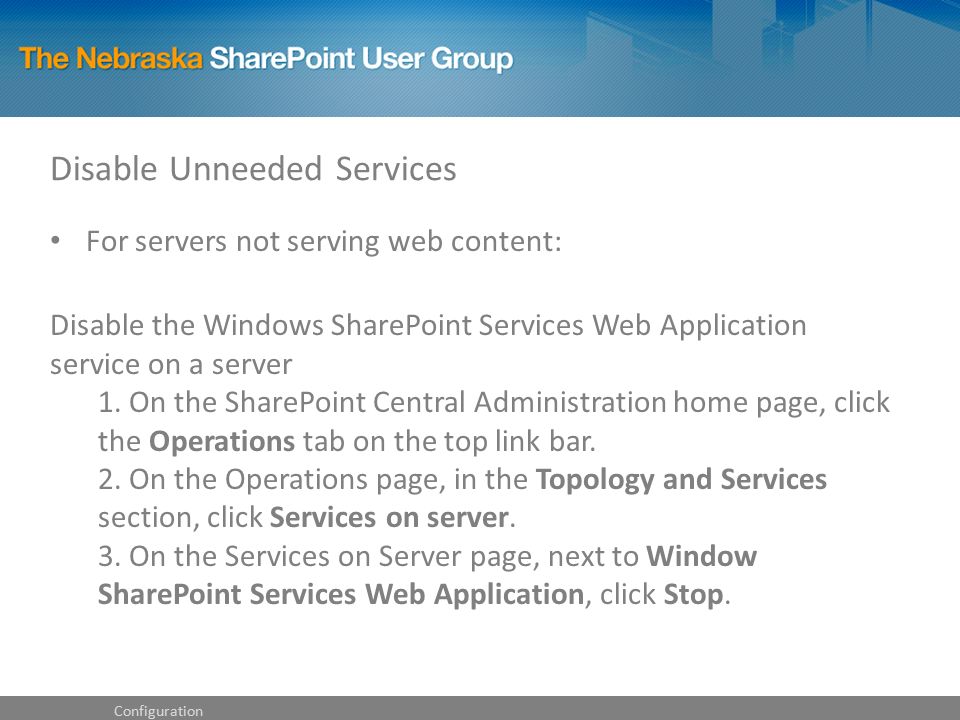

51. Disable Unneeded Services For servers not serving web content: Disable the Windows SharePoint Services Web Application service on a server 1. On the SharePoint Central Administration home page, click the Operations tab on the top link bar. 2. On the Operations page, in the Topology and Services section, click Services on server. 3. On the Services on Server page, next to Window SharePoint Services Web Application, click Stop. Configuration

52. Web Application for SSP Create a new Web application Choose a port number (and file path) Create and name a new app pool Assign a service account Assign a database name and server Configuration

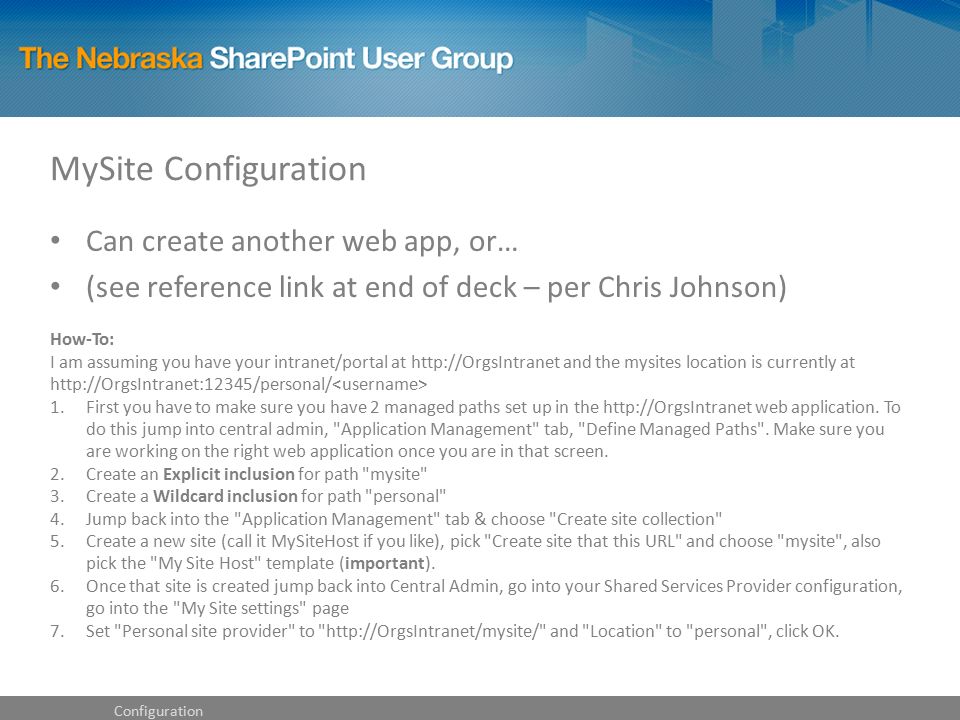

53. MySite Configuration Can create another web app, or… (see reference link at end of deck – per Chris Johnson) How-To: I am assuming you have your intranet/portal at http://OrgsIntranet and the mysites location is currently at http://OrgsIntranet:12345/personal/ 1.First you have to make sure you have 2 managed paths set up in the http://OrgsIntranet web application. To do this jump into central admin, "Application Management" tab, "Define Managed Paths". Make sure you are working on the right web application once you are in that screen. 2.Create an Explicit inclusion for path "mysite" 3.Create a Wildcard inclusion for path "personal" 4.Jump back into the "Application Management" tab & choose "Create site collection" 5.Create a new site (call it MySiteHost if you like), pick "Create site that this URL" and choose "mysite", also pick the "My Site Host" template (important). 6.Once that site is created jump back into Central Admin, go into your Shared Services Provider configuration, go into the "My Site settings" page 7.Set "Personal site provider" to "http://OrgsIntranet/mysite/" and "Location" to "personal", click OK. Configuration

54. Create the Farm’s Shared Services Configuration

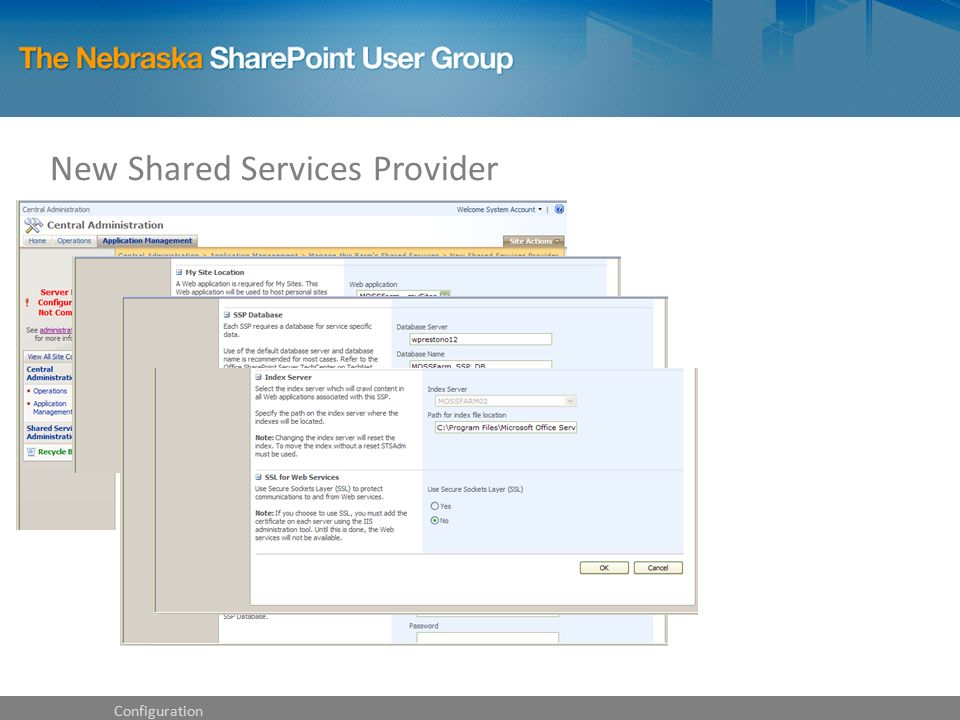

55. New Shared Services Provider Configuration

56. SSP Complete Configuration

57. Break 5 – 10 minutes

58. Administration

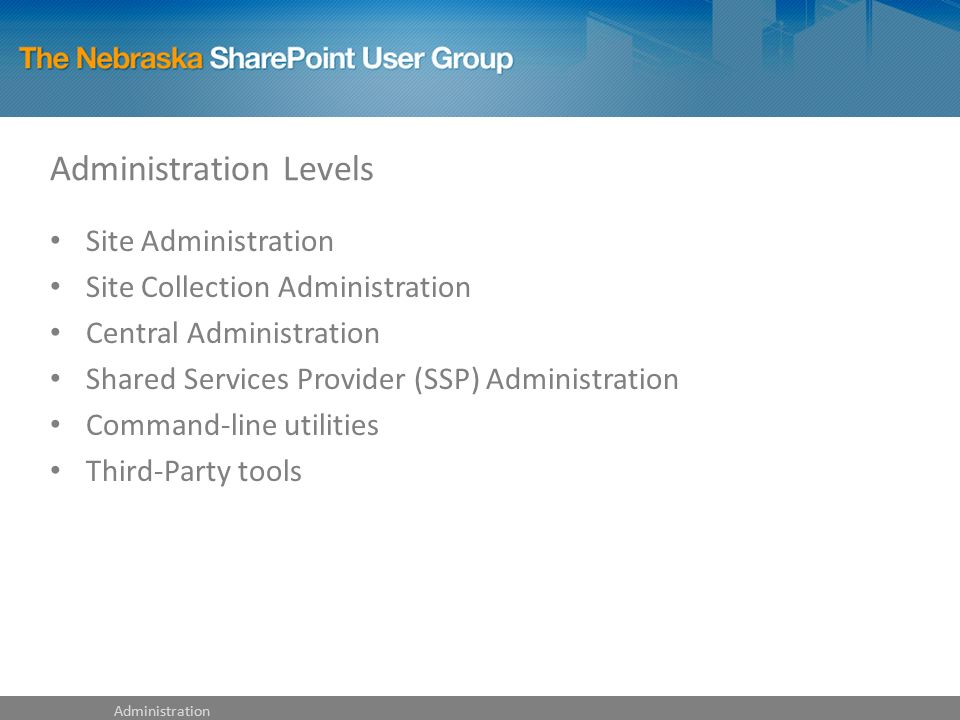

59. Administration Levels Site Administration Site Collection Administration Central Administration Shared Services Provider (SSP) Administration Command-line utilities Third-Party tools Administration

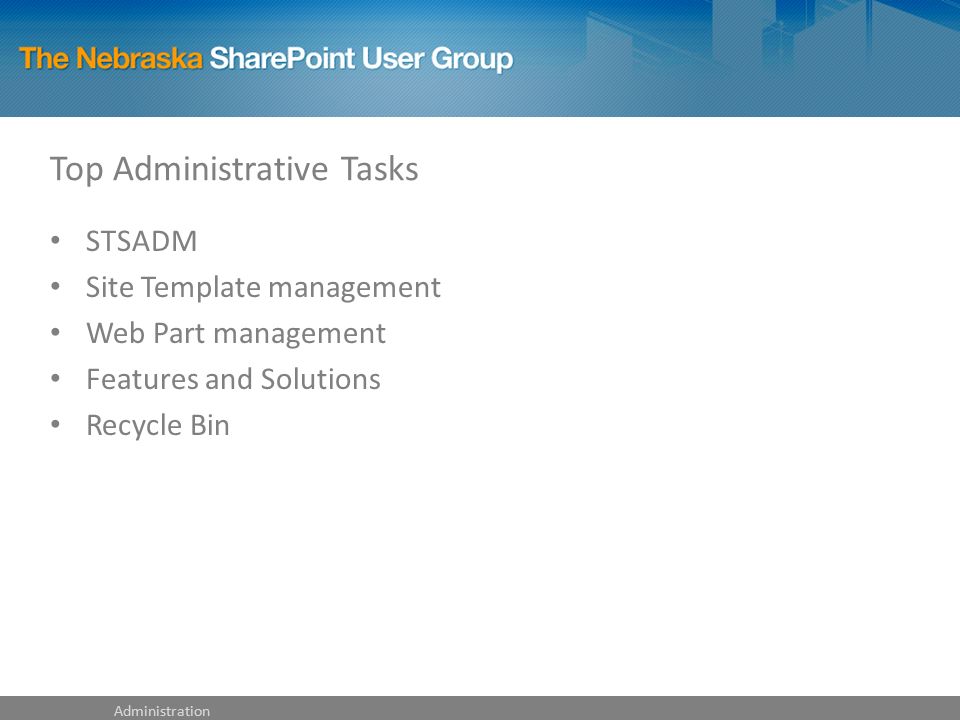

60. Top Administrative Tasks Administration STSADM Site Template management Web Part management Features and Solutions Recycle Bin

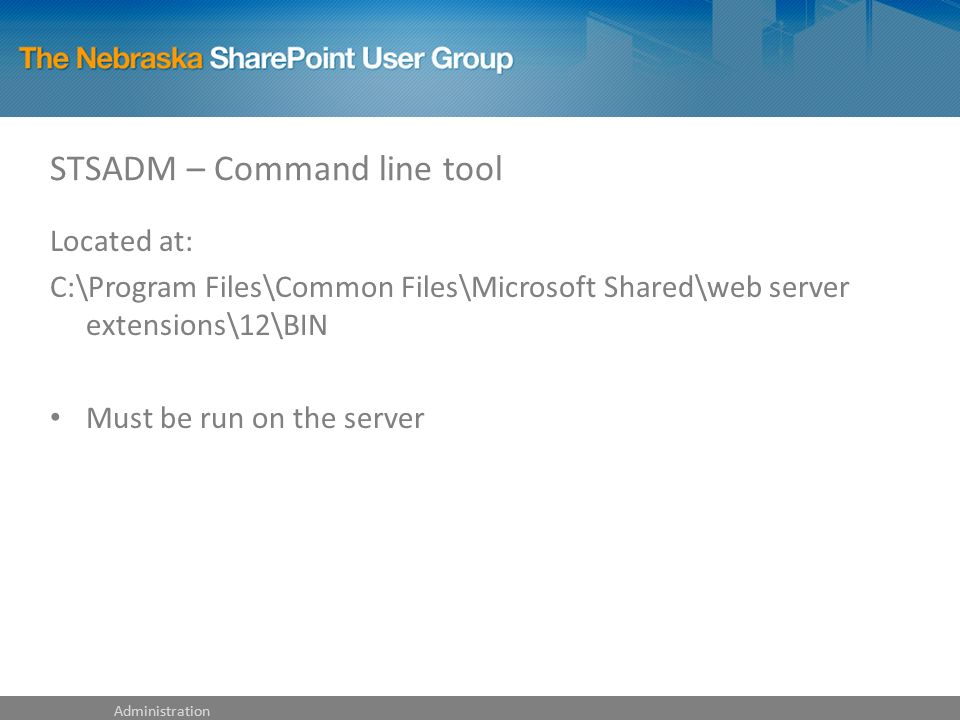

61. STSADM – Command line tool Located at: C:\Program Files\Common Files\Microsoft Shared\web server extensions\12\BIN Must be run on the server Administration

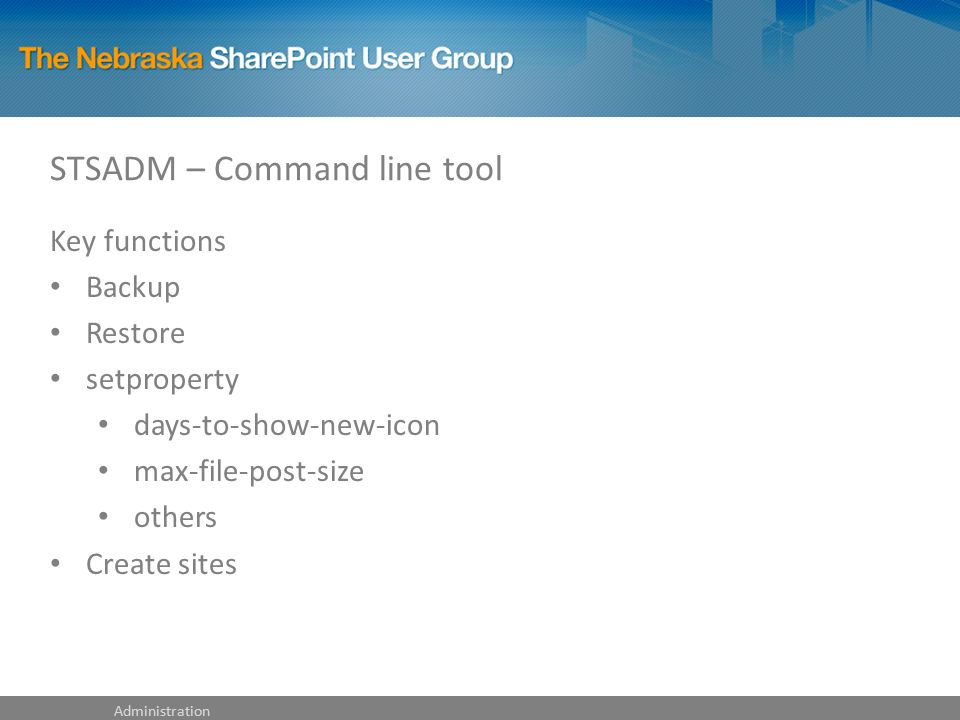

62. STSADM – Command line tool Key functions Backup Restore setproperty days-to-show-new-icon max-file-post-size others Create sites Administration

63. STSADM – Command line tool All you need to know: stsadm -help Administration

64. activatefeature addalternatedomain addcontentdb adddataconnectionfile addexemptuseragent addpath addpermissionpolicy addsolution addtemplate adduser addwppack addzoneurl allowuserformwebserviceproxy allowwebserviceproxy associatewebapp authentication backup backuphistory binddrservice blockedfilelist canceldeployment changepermissionpolicy copyappbincontent createadminvs createcmsmigrationprofile creategroup createsite createsiteinnewdb createssp createweb databaserepair deactivatefeature deleteadminvs deletealternatedomain deletecmsmigrationprofile deleteconfigdb deletecontentdb deletegroup deletepath deletepermissionpolicy deletesite deletesolution deletessp deletessptimerjob deletetemplate deleteuser deleteweb deletewppack deletezoneurl deploysolution deploywppack disablessc displaysolution editcmsmigrationprofile editcontentdeploymentpath editssp email enablecmsurlredirect enablessc enumalternatedomains enumcontentdbs enumdataconnectionfiledependants enumdataconnectionfiles enumdeployments enumexemptuseragents enumformtemplates enumgroups enumroles enumservices enumsites enumsolutions enumssp enumssptimerjobs enumsubwebs enumtemplates enumusers enumwppacks enumzoneurls execadmsvcjobs export extendvs extendvsinwebfarm forcedeletelist formtemplatequiescestatus getadminport getdataconnectionfileproperty getformtemplateproperty getproperty getsitedirectoryscanschedule getsitelock geturlzone import installfeature listlogginglevels listregisteredsecuritytrimmers localupgradestatus managepermissionpolicylevel migrateuser osearch osearchdiacriticsensitive preparetomove profilechangelog profiledeletehandler provisionservice quiescefarm quiescefarmstatus quiesceformtemplate reconvertallformtemplates refreshdms refreshsitedms registersecuritytrimmer registerwsswriter removedataconnectionfile removedrservice removeexemptuseragent removesolutiondeploymentlock renameserver renameweb restore restoressp retractsolution retractwppack runcmsmigrationprofile runcontentdeploymentjob scanforfeatures setadminport setapppassword setbulkworkflowtaskprocessingschedule setconfigdb setcontentdeploymentjobschedule setdataconnectionfileproperty setdefaultssp setformtemplateproperty setholdschedule setlogginglevel setpolicyschedule setproperty setrecordsrepositoryschedule setsearchandprocessschedule setsharedwebserviceauthn setsitedirectoryscanschedule setsitelock setsspport setworkflowconfig siteowner spsearch spsearchdiacriticsensitive sync syncsolution unextendvs uninstallfeature unquiescefarm unquiesceformtemplate unregistersecuritytrimmer unregisterwsswriter updateaccountpassword updatealerttemplates updatefarmcredentials upgrade upgradesolution upgradetargetwebapplication userrole STSADM – Command line tool Administration backup createweb enumsubwebs restore setproperty

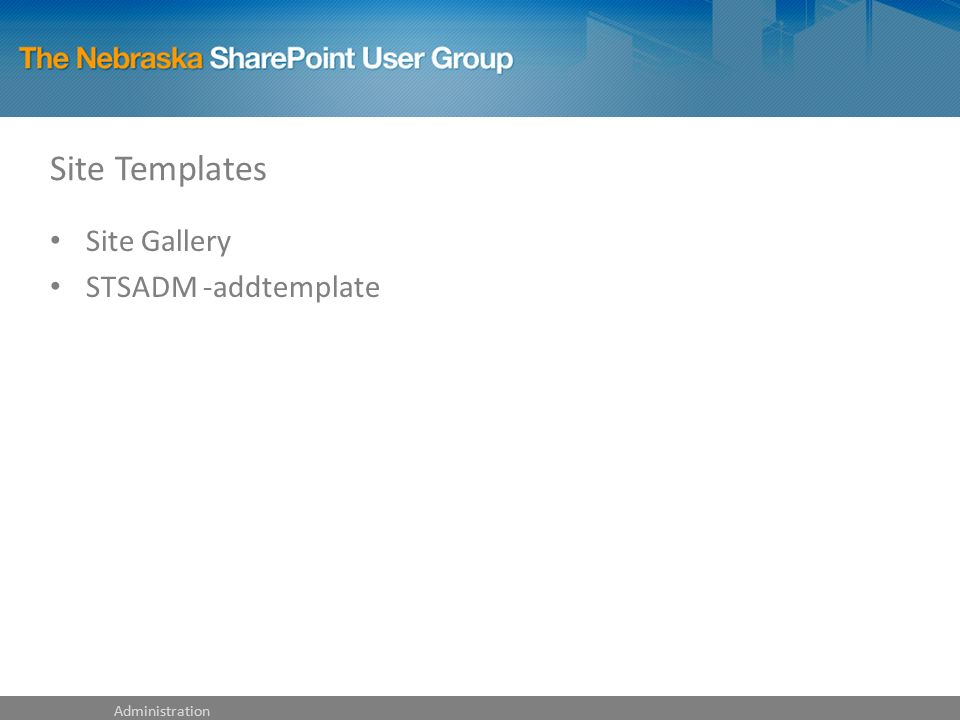

65. Site Templates Site Gallery STSADM -addtemplate Administration

66. Demo Site Templates and STSADM

67. Web Parts Web Part Gallery STSADM –addwppack Administration

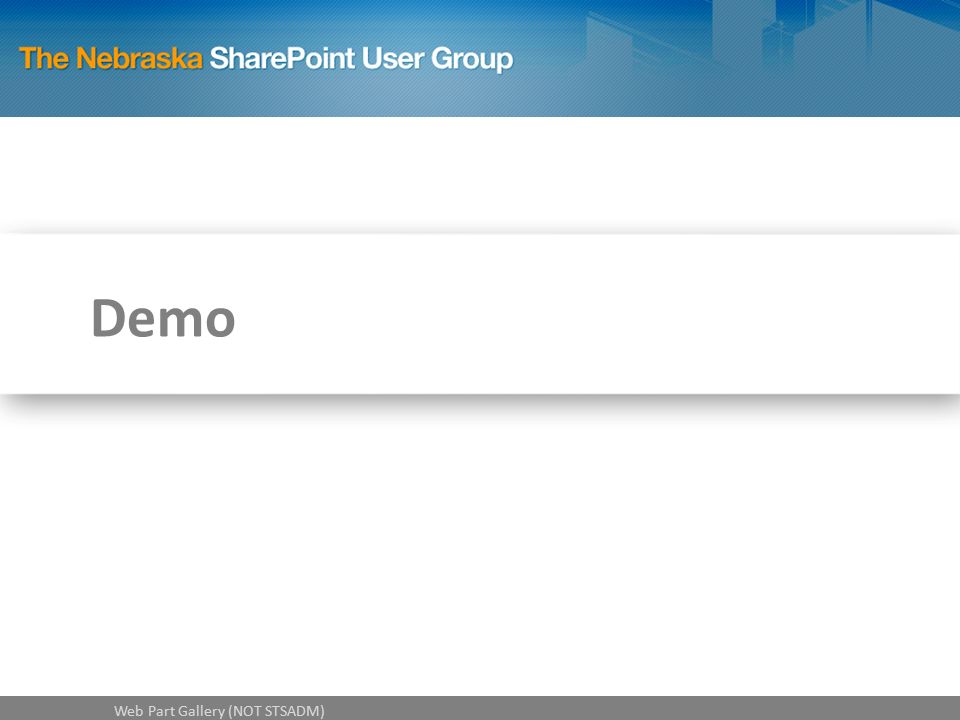

68. Demo Web Part Gallery (NOT STSADM)

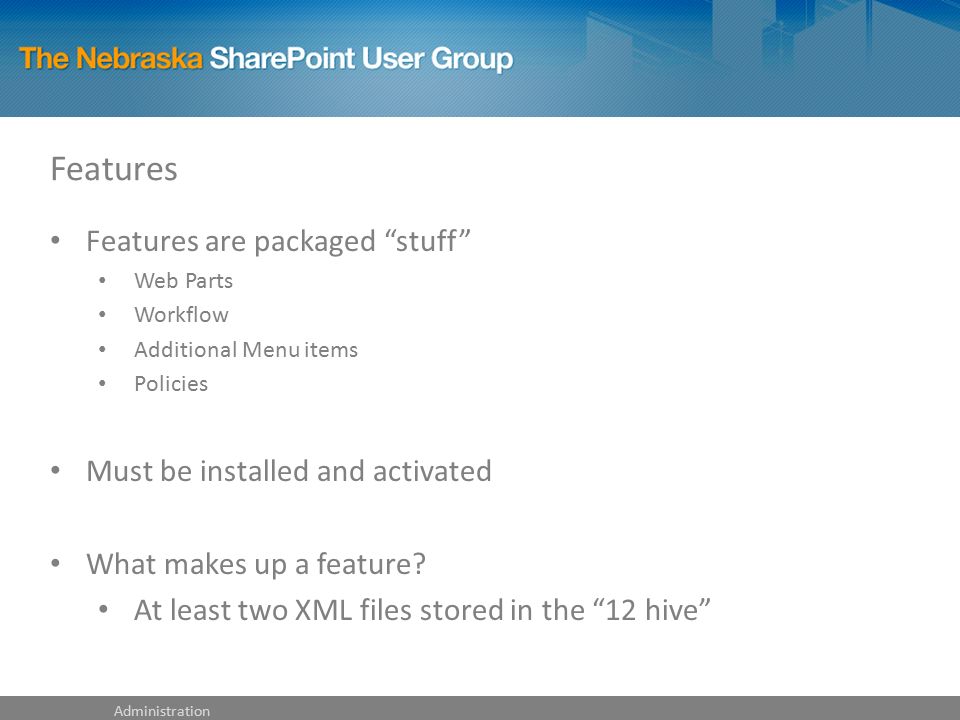

69. Features Features are packaged “stuff” Web Parts Workflow Additional Menu items Policies Must be installed and activated What makes up a feature? At least two XML files stored in the “12 hive” Administration

70. Features Central Administration Operations - Global Configuration: Manage Farm Features Application Mgmt - Web Application Features Site Collection Features Web: Site Settings->Site Features Upgrade and Migration: Enable Enterprise Features Enable Features on existing sites Administration

71. Solutions Solutions can package multiple features Must be installed and then deployed Facilitate deployment on farms Scheduled deployments Deploys to all servers in the farm Administration

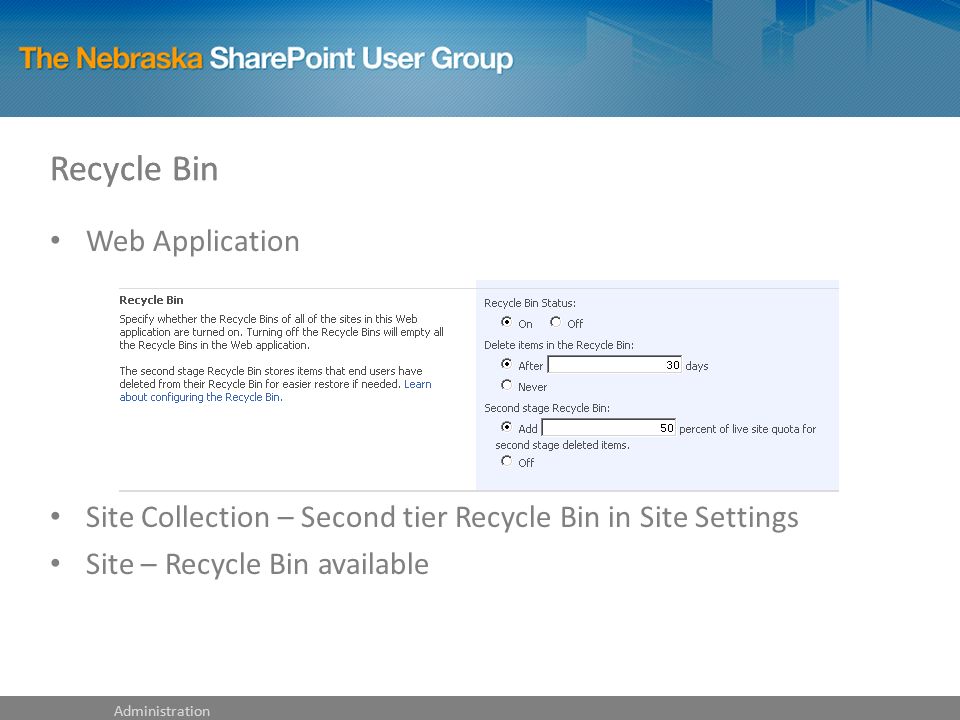

72. Recycle Bin Administration Recycle Bin Web Application Site Collection – Second tier Recycle Bin in Site Settings Site – Recycle Bin available

73. Additional Administration Topics Search Profiles Auditing and Policies Forms Authentication E-mail to Document Library More… Administration

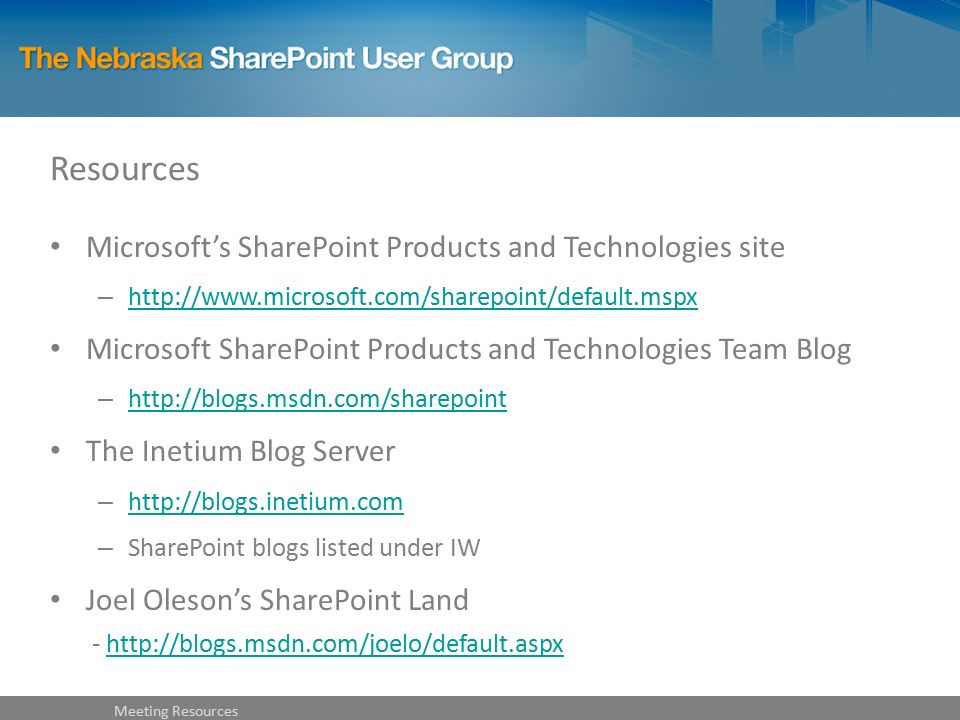

74. Resources Microsoft’s SharePoint Products and Technologies site – http://www.microsoft.com/sharepoint/default.mspx http://www.microsoft.com/sharepoint/default.mspx Microsoft SharePoint Products and Technologies Team Blog – http://blogs.msdn.com/sharepoint http://blogs.msdn.com/sharepoint The Inetium Blog Server – http://blogs.inetium.com http://blogs.inetium.com – SharePoint blogs listed under IW Joel Oleson’s SharePoint Land - http://blogs.msdn.com/joelo/default.aspxhttp://blogs.msdn.com/joelo/default.aspx Meeting Resources

75. Resources TechNet Installation Reference Site – http://technet2.microsoft.com/Office/en-us/library/776589ed-aba4-47eb- 8c4d-86905ac11a511033.mspx?mfr=true http://technet2.microsoft.com/Office/en-us/library/776589ed-aba4-47eb- 8c4d-86905ac11a511033.mspx?mfr=true Microsoft SharePoint Products and Technologies Team Blog (specific) – http://blogs.msdn.com/sharepoint/archive/2006/11/16/announcing-the-rtw- of-wss-and-office-sharepoint-server-2007-standard-and-enterprise- evaluation.aspx http://blogs.msdn.com/sharepoint/archive/2006/11/16/announcing-the-rtw- of-wss-and-office-sharepoint-server-2007-standard-and-enterprise- evaluation.aspx Administrator’s Companion – http://www.amazon.com/Microsoft-Office-SharePoint-Administrators- Companion/dp/0735622825/sr=8-1/qid=1171179023/ref=sr_1_1/104- 0676530-9511934?ie=UTF8&s=books http://www.amazon.com/Microsoft-Office-SharePoint-Administrators- Companion/dp/0735622825/sr=8-1/qid=1171179023/ref=sr_1_1/104- 0676530-9511934?ie=UTF8&s=books Meeting Resources

76. Resources Which SharePoint technology document http://sharepointne.inetium.com/User%20Group%20Presentations/Which%20Sha rePoint%20technology%20is%20right%20for%20you.pdf Kerberos information http://support.microsoft.com/?kbid=832769 http://support.microsoft.com/?kbid=832769 MySite Setup options http://blogs.msdn.com/cjohnson/archive/2006/09/15/754902.aspx http://blogs.msdn.com/cjohnson/archive/2006/09/15/754902.aspx SharePoint Products and Technologies Community http://www.microsoft.com/technet/community/en-us/sharepoint/default.mspx Meeting Resources

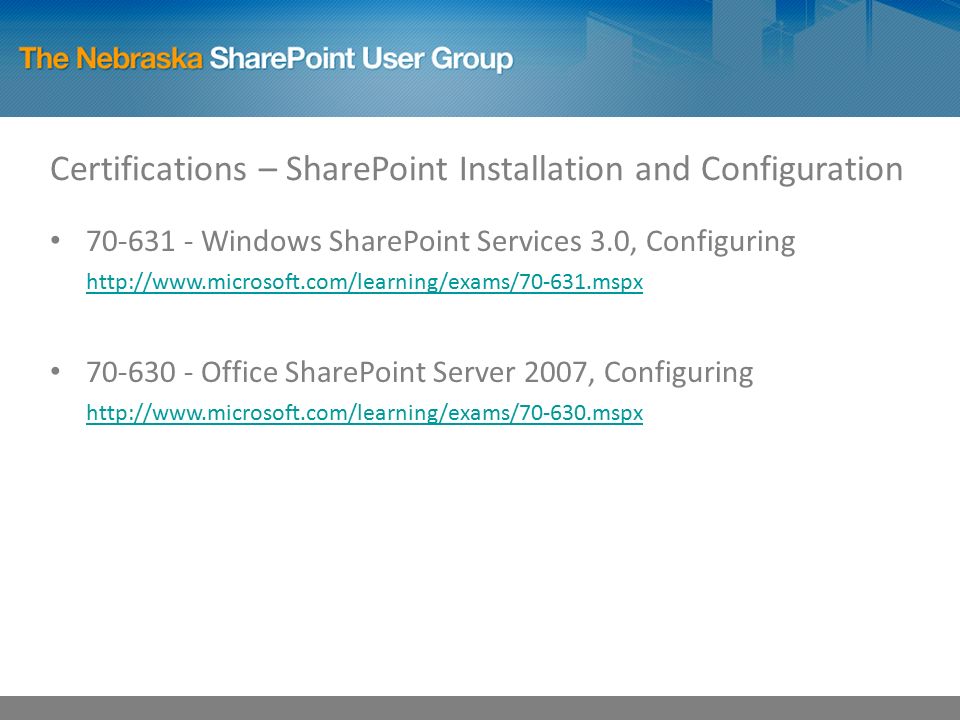

77. Certifications – SharePoint Installation and Configuration 70-631 - Windows SharePoint Services 3.0, Configuring http://www.microsoft.com/learning/exams/70-631.mspx http://www.microsoft.com/learning/exams/70-631.mspx 70-630 - Office SharePoint Server 2007, Configuring http://www.microsoft.com/learning/exams/70-630.mspx http://www.microsoft.com/learning/exams/70-630.mspx

78. Q & A

79. Give Away

80. http://www.sharepointmn.com Thanks for coming!
