1. Chapter 8: Plotting

2. After completing this Chapter, you will be able to use the following features: Planning the Plot Sheet Plotting Environments Plotting from Model Space Plotting from Paper Space (Layout)

3. There are four variables that control the relationship between the size of objects in the AutoCAD drawing and their sizes on a sheet of paper produced by an AutoCAD plot: Size of the object in AutoCAD ( ACAD_size ) Size of the object on the plotted sheet (ACAD_plot) Maximum available plot area for a given sheet of paper (ACAD_max_plot) Plot scale (ACAD_scale) Planning the Plotted Sheet

4. The relationship between the variables can be described by the following three algebraic formulas: ACAD_scale = ACAD_plot / ACAD_size ACAD_plot = ACAD_size x ACAD_scale ACAD_size = ACAD_plot / ACAD_scale In addition, following relationship exists: LTSCALE = 1/ACAD_scale DIMSCALE = 1/ACAD_scale size of the plotted dimvars_value = dimvars_value x ACAD_scale x DIMSCALE

5. One of the useful features of AutoCAD is the option to work in two different environments: Model space is used to create design work in the 3D environment, even though objects may have been drawn only in a 2D plane. Paper space (also referred as Layout) is used to compose and annotate model drawing for plotting. AutoCAD plots drawing from model space as well as paper space. Plotting Environments

6. Most of the drafting and design work is created in the 3D environment of model space, even though objects may have been drawn only in a 2D plane. The drawing can be plotted from model space to any scale by specifying the plot scale in the plot dialog box. Plotting from Model Space

7. Plot dialog box, not expanded

8. Expanded Plot dialog box with additional options

9. Plot preview

10. Plot Stamp dialog box

11. A layout is used to compose or layout model drawing for plotting. Multiple layouts can be setup in the paper space environment. Each one can be set up for a different type of output. A layout may consist of a title block, one or more viewports, and annotations. Different scales can be applied to each view within the viewport, and specify different visibility for layers in the viewport. Layouts are accessible by choosing the Layout tab at the bottom of the drawing area. Plotting from Paper Space (Layout)

12. Drawing layout for plotting

13. By default, AutoCAD creates two layouts, called Layout1 and Layout2 whenever a new drawing is created. Setting up a Layout Creating and Modifying a Layout Working with Floating Viewports Clipping Viewports Scaling Views Relative to Paper Space Controlling the Visibility of Layers within Viewports Plotting from Layout Reconfiguring the Layout with Page Setup Annotative Scaling Creating and Modifying Plot Style Tables

14. To set up a layout, first select the Layout tab located at the bottom of the drawing area. Basic parts of the default layout with only one viewport and nothing drawn in paper space. Setting Up a Layout

15. Layout with the objects

16. The LAYOUT command creates a new layout. Up to 255 layouts can be created in a single drawing. Creating and Modifying a Layout Choosing Layout from Template creates a new layout tab based on an existing layout in a template (.dwt), drawing (.dwg), or drawing interchange (.dxf ) file.

17. AutoCAD lets you to create multiple, overlapping, contiguous, or separated untiled viewports in a Layout. By default, AutoCAD sets up one floating viewport in each layout. Viewports are objects with a view into model space that can be moved and resized. AutoCAD treats viewports in a layout like any other object, such as a line, arc, or text object. You can use any of the standard AutoCAD modify commands, such as MOVE, COPY, STRETCH, SCALE, and ERASE to manipulate the floating viewports. A viewport can be of any size and can be located anywhere in the layout. Floating Viewports can be created or manipulated when paper space is active. Working with Floating Viewports

18. Floating viewports in a layout

19. You can create a single floating viewport that fits the entire layout or create multiple floating viewports in the layout. Once you create a viewport, you can change its size and properties, and move it as needed. To create a single rectangular floating viewport, choose 1Viewport from the Viewports submenu of the View menu in the Menu Browser.

20. To create an irregularly shaped floating viewport, choose Polygonal Viewport from the Viewports panel. To create a floating viewport from a closed polyline, ellipse, spline, region, or circle, choose Convert Object to Viewport from the Viewports panel.

21. Choose Display Viewports from the Viewports panel to create multiple floating viewports. This opens the Viewports dialog box. AutoCAD lists standard viewport configurations. Choose the name of the configuration you want to use from the Standard viewports list.

22. Two vertical viewports with the objects

23. Resizing and rearranging the two viewports

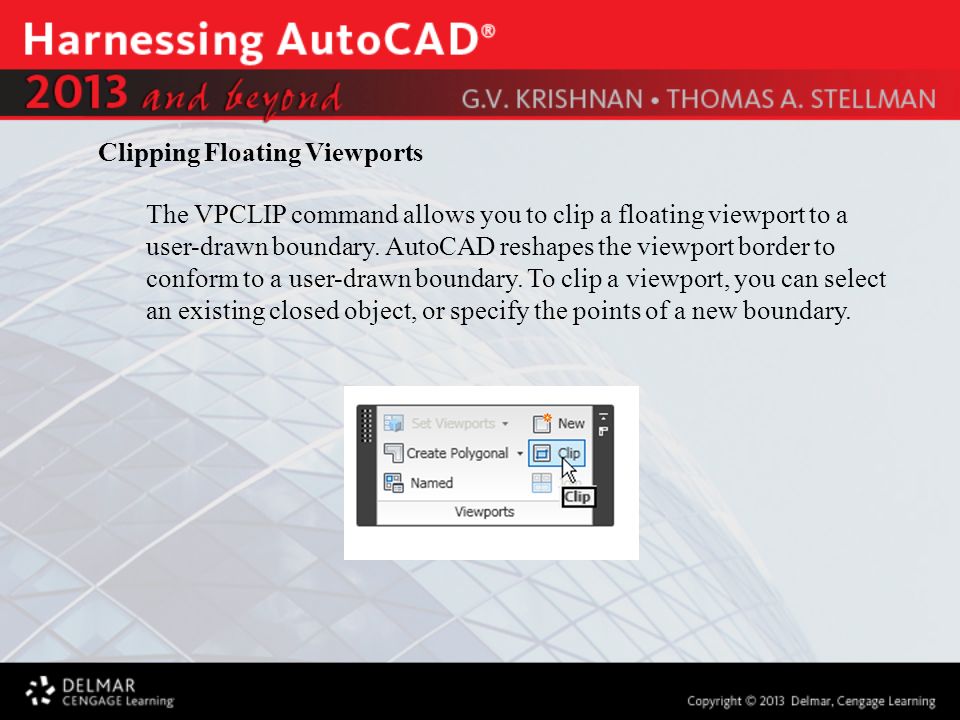

24. The VPCLIP command allows you to clip a floating viewport to a user-drawn boundary. AutoCAD reshapes the viewport border to conform to a user-drawn boundary. To clip a viewport, you can select an existing closed object, or specify the points of a new boundary. Clipping Floating Viewports

25. To edit the model you must switch to model space using one of the following methods: Choose the Model tab. Double-click over the floating viewport. On the status bar, Paper changes to Model. Click Paper on the status bar to return to the floating viewport that was last current.

26. AutoCAD allows to scale views relative to paper space. The scale factor represents a ratio between the actual size of the model displayed in the viewport and the size of the layout. The ratio is determined by dividing the paper space units by the model space units. The scale factor can be set with the ZOOM XP command. You can also change the plot scale of the viewport using the Viewport Scale Control on the Viewports toolbar. Usually the layout is plotted at a 1:1 ratio. Scaling Views Relative to Paper Space

27. Objects that are valid as clipping boundaries include closed polylines, circles, ellipses, closed splines, and regions. Available options include: Polygonal selection allows you to create a clipping boundary. Delete selection deletes the clipping boundary of a selected viewport.

28. The Layer Properties Manager dialog box controls the visibility of layers in a single viewport or in a set of viewports. This enables you to select a viewport and freeze a layer in it while still allowing the contents of that layer to appear in another viewport. Controlling the Visibility of Layers within Viewports

29. Invoke the PLOT command to plot the drawing from the selected Layout. Before you plot the drawing from the layout, make sure you complete the following: Create the model drawing. Create or activate a layout. Open the page setup dialog box and set settings such as plotting device (if necessary configure plotting device), paper size, plot area, plot scale, and drawing orientation. Create floating viewports and position them in the layout. Set the view scale of the floating viewports Annotate or create geometry in the layout as needed. If necessary, insert a title block or attach title block as a reference file. In necessary, create or attach an existing plot style table. Plot the layout by invoking the PLOT command. Plotting from layout

30. By default, every initialized layout has an unnamed page setup associated with it. You can modify the settings for the layout’s page setup with the help of the Page Setup Manager dialog box. Choose Page Setup Manager from the Layouts toolbar and AutoCAD displays the Page Setup Manager dialog box. Reconfiguring the Layout with Page Setup

31. Page Setup Manager dialog box.

32. Objects that are commonly used to annotate drawings have a property called Annotative. With this property, you can automate the process of scaling annotations so that they plot at the correct size on paper. When annotative objects are created, they are scaled based on the current annotation scale setting (can be set from the status bar) and automatically displayed at the correct size. Annotation scale setting is saved with model space, layout viewports, and model views. Before you add annotative objects to your model, set the annotation scale to the same scale as the viewports in which you want those objects to display. The annotation scale automatically displays the objects in your model at the correct size. Annotative Scaling

33. Annotative property is turned on (set to YES) for the following objects that are commonly used to annotate drawings: TextMutlileaders MtextLeaders DimensionsBlocks HatchesAttributes Tolerances Many of the dialog boxes used to create these objects now have an Annotative check box, where you can specify to make the object annotative. You can also change existing objects to be annotative by changing the annotative property on the Properties palette. Annotative objects display a special icon when you hover the mouse over them in a drawing.

34. The Annotation Visibility button on the status bar sets the display for annotative objects. All the annotative objects, or only those that support the current annotation scale, can be displayed. This reduces the need to use multiple layers to manage the visibility of annotations for model space and layout viewports. When you create an annotative object in your drawing, it supports one annotation scale: the annotation scale that is current when you create the object. The object can be updated to support additional annotation scales. When you select an object that supports more than one scale, the scale representation that supports the current scale is highlighted. The other scale representations of the object display in a dimmed state.

35. Plot style tables are settings that give control over how objects in a drawing are plotted. By modifying an object’s plot style, AutoCAD overrides the selected object’s color, linetype, and lineweight. You can also specify end, join, and fill styles, as well as output effects such as dithering, gray scale, pen assignment, and screening. You can use plot styles if you need to plot the same drawing in different ways. The actual characteristics of plot styles are defined in plot style tables that can be attached to a specific model and layout. Creating and Modifying Plot Style Tables

36. AutoCAD provides two plot style modes: Color-dependent plot styles are based on object color. There are 255 color-dependent plot styles. You cannot add, delete, or rename color-dependent plot styles. You can control the way all objects of the same color plot in color-dependent mode by adjusting the plot style that corresponds to that object color. Color-dependent plot style tables are stored in files with the extension.CTB. Named plot styles work independently of object color. You can create any number of named plot style, modify the available properties and save it as plot style table. You can assign any plot style to any object regardless of that object’s color. Named plot style tables are stored in files with the extension.STB.

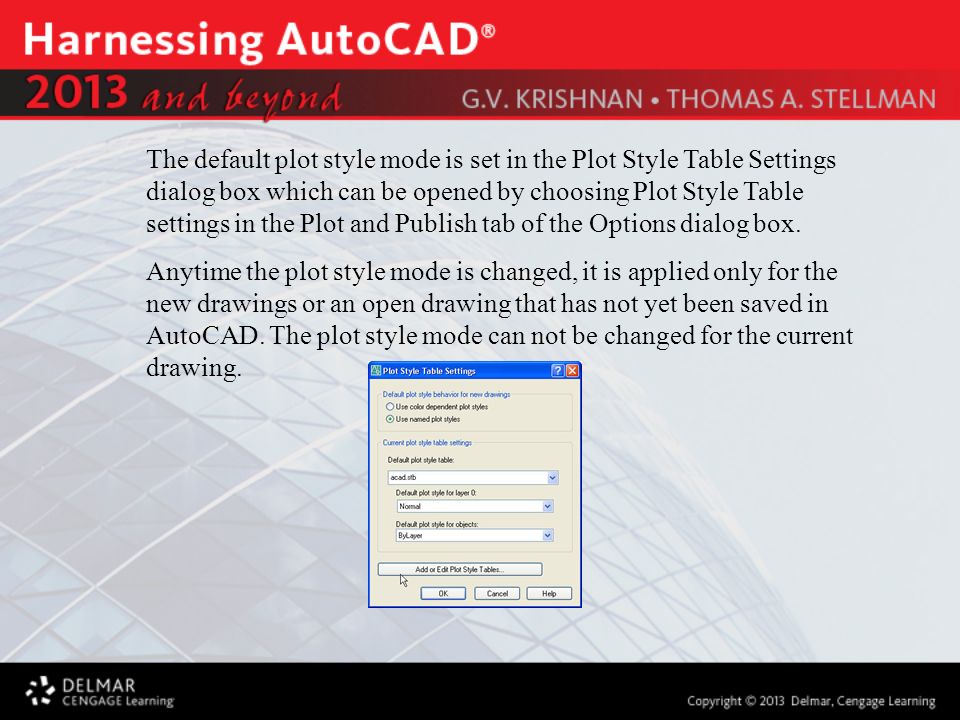

37. The default plot style mode is set in the Plot Style Table Settings dialog box which can be opened by choosing Plot Style Table settings in the Plot and Publish tab of the Options dialog box. Anytime the plot style mode is changed, it is applied only for the new drawings or an open drawing that has not yet been saved in AutoCAD. The plot style mode can not be changed for the current drawing.

38. The Add Plot Style Table Wizard allows to create a plot style from scratch, modify an existing plot style table, import style properties from an acadr14.cfg file, or import style properties from an existing PCP or PC2 file. Tools menuChoose Wizards > Add Plot Style Tables

39. AutoCAD also allows to modify plot styles in a plot style table by using the Plot Style Table Editor. Open the Plot Style Table Editor using any of the following methods: Choose Plot Style Table Editor button from the Finish screen in the Add Plot Style Table Wizard. Open the Plot Style Manager (File menu), right-click a CTB or STB file, and then choose Open from the shortcut menu. On the Plot Device tab of the Plot dialog box or Page Setup dialog box, select the plot style table you want to edit from the Plot Style Table list, and then choose the Edit button.

40. Plot Style Table Editor color-dependent plot style

41. Plot Style Table Editor for a for a named plot style

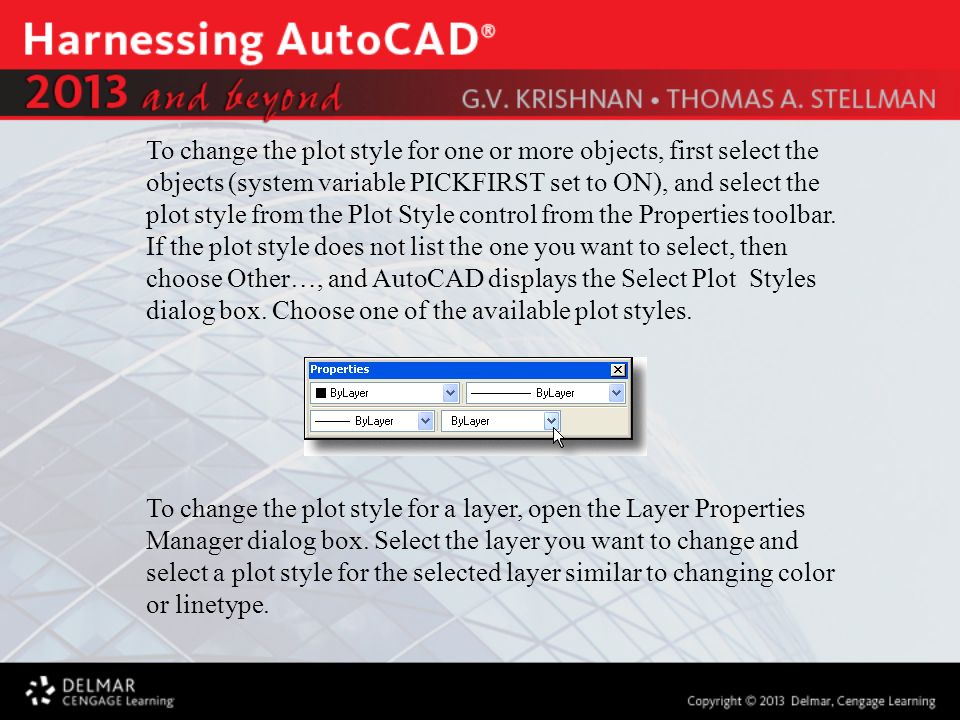

42. To change the plot style for one or more objects, first select the objects (system variable PICKFIRST set to ON), and select the plot style from the Plot Style control from the Properties toolbar. If the plot style does not list the one you want to select, then choose Other…, and AutoCAD displays the Select Plot Styles dialog box. Choose one of the available plot styles. To change the plot style for a layer, open the Layer Properties Manager dialog box. Select the layer you want to change and select a plot style for the selected layer similar to changing color or linetype.
