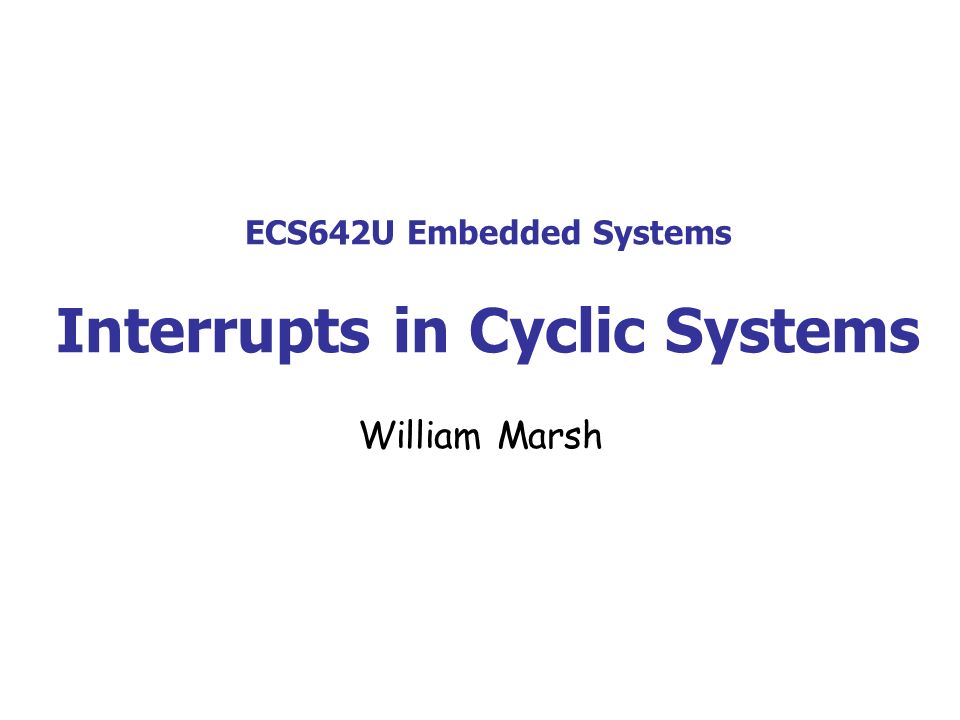

1. ECS642U Embedded Systems Interrupts in Cyclic Systems William Marsh

2. 2 ARM University Program Copyright © ARM Ltd 2013 Acknowledgement Some slides from ARM University Program lab-in-a- box Copyright acknowledged

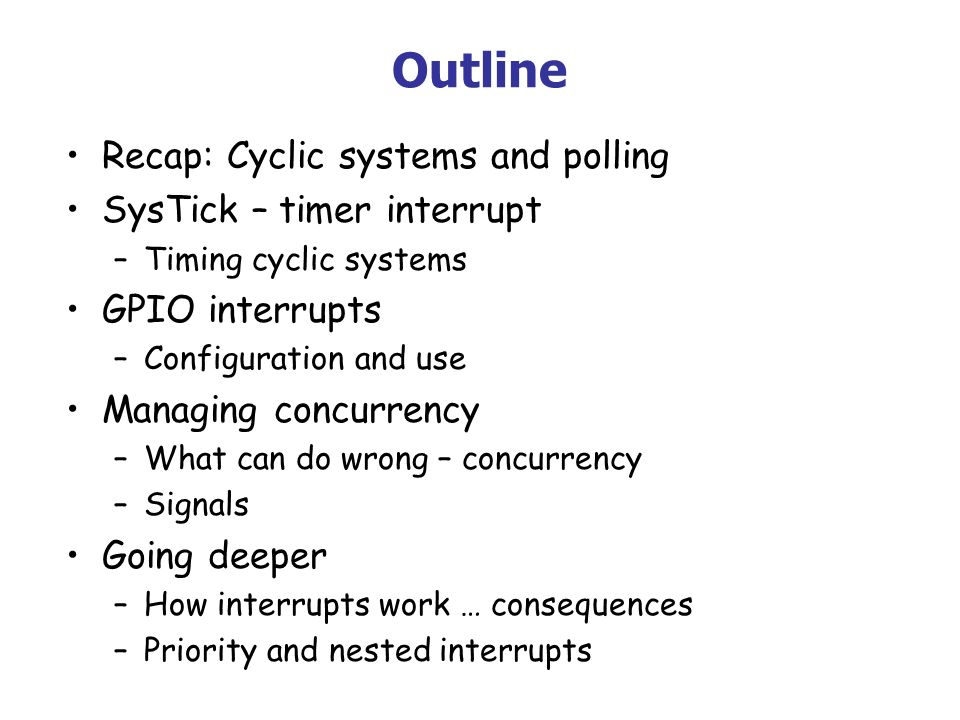

3. Outline Recap: Cyclic systems and polling SysTick – timer interrupt –Timing cyclic systems GPIO interrupts –Configuration and use Managing concurrency –What can do wrong – concurrency –Signals Going deeper –How interrupts work … consequences –Priority and nested interrupts

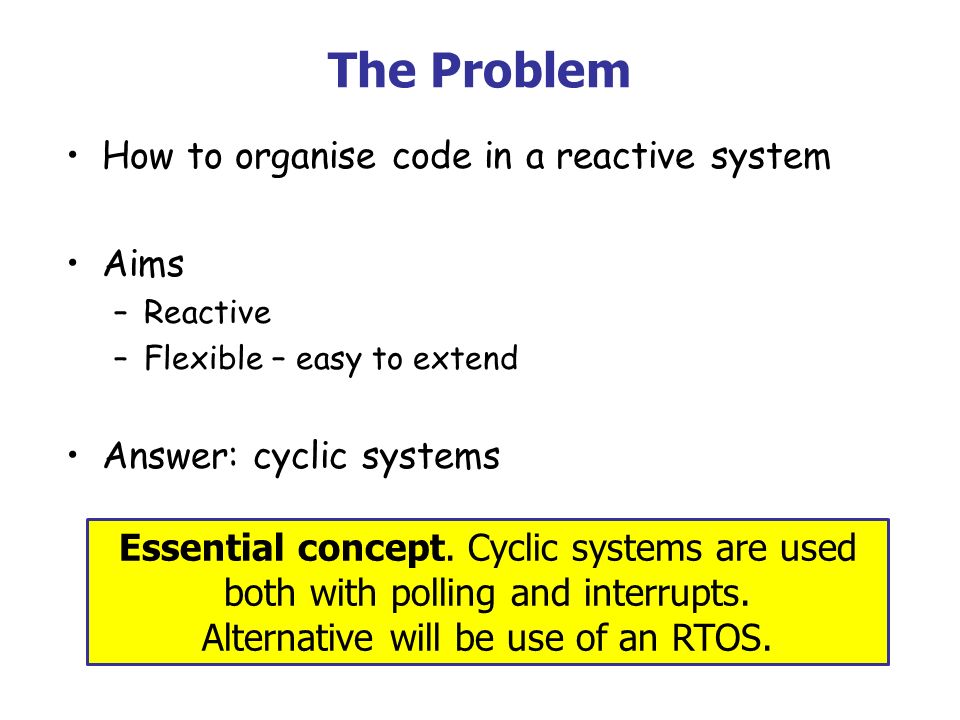

4. The Problem How to organise code in a reactive system Aims –Reactive –Flexible – easy to extend Answer: cyclic systems Essential concept. Cyclic systems are used both with polling and interrupts. Alternative will be use of an RTOS.

5. Recap of Cyclic Systems A system design of reactive systems Polling … and its limitations The way ahead

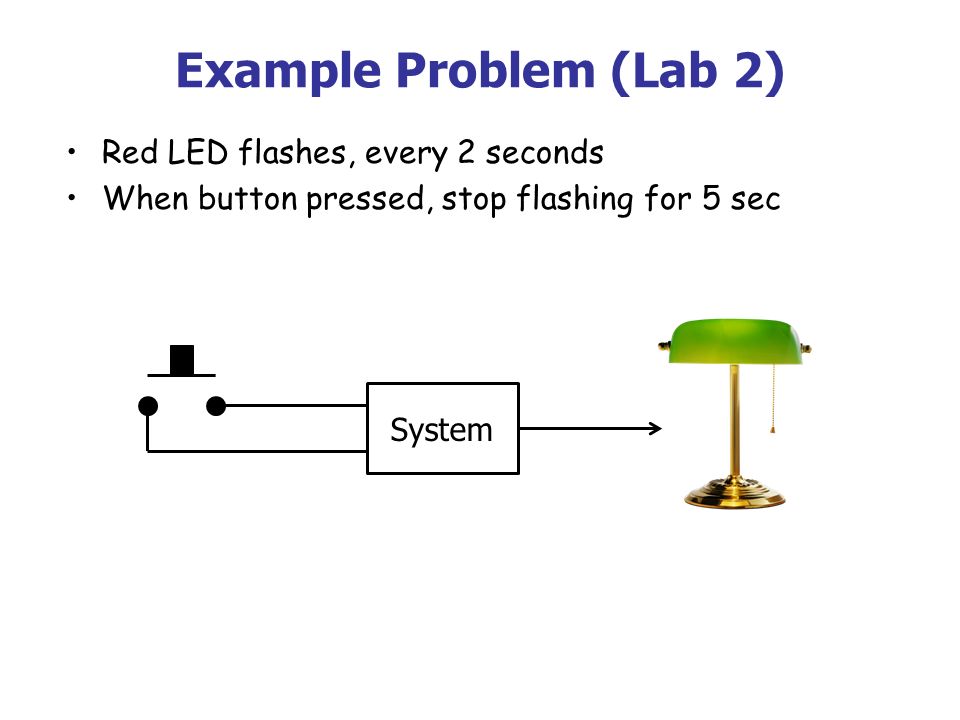

6. Example Problem (Lab 2) Red LED flashes, every 2 seconds When button pressed, stop flashing for 5 sec System

7. Unreactive System (It Works) void oneCycle(void) { redOn(); // wait for 500ms Delay(500) ; redOff(); // wait for 500ms Delay(500) ; // test the input if (isPressed()) { Delay(5000) ; } Long period when button not tested … Cannot react to anything else either

8. Unreactive Systems Long period when button not tested … Cannot react to anything else either Is Pressed Start 0.5 sec? Light On Light Off 0.5 sec? No Yes 5 sec?

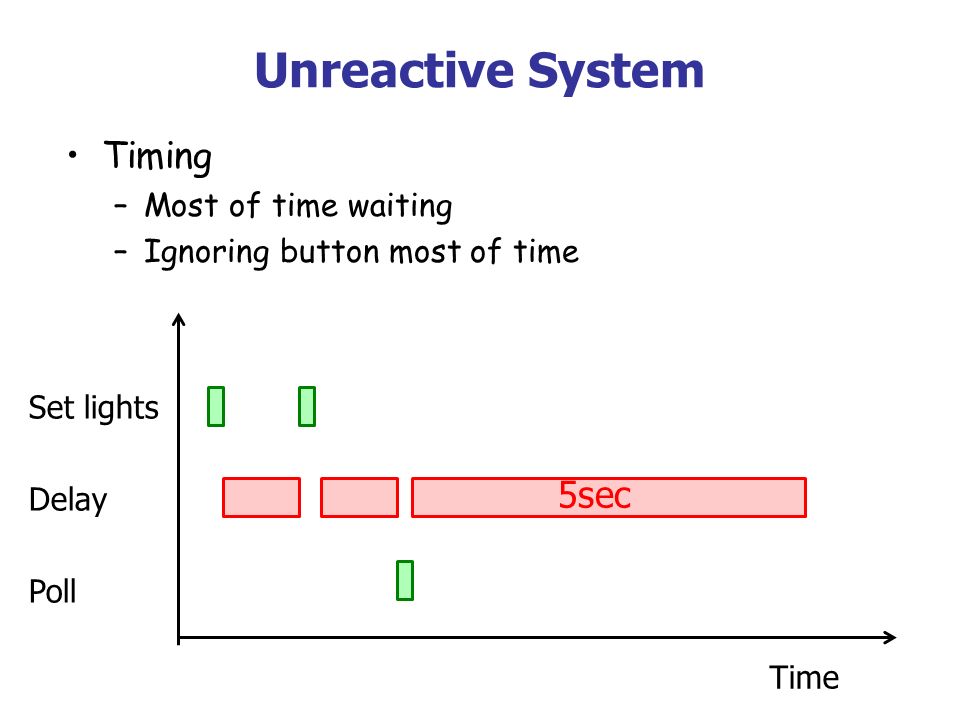

9. Unreactive System Timing –Most of time waiting –Ignoring button most of time Set lights Delay Poll Time 5sec

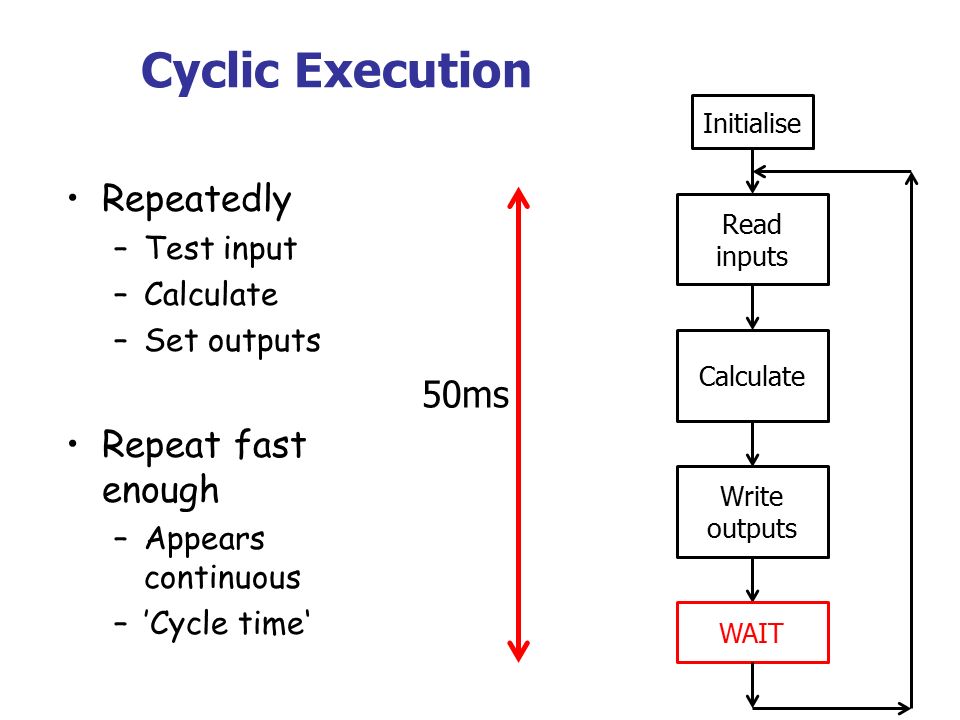

10. Cyclic Execution Repeatedly –Test input –Calculate –Set outputs Repeat fast enough –Appears continuous –’Cycle time‘ Initialise Write outputs Read inputs Calculate WAIT 50ms

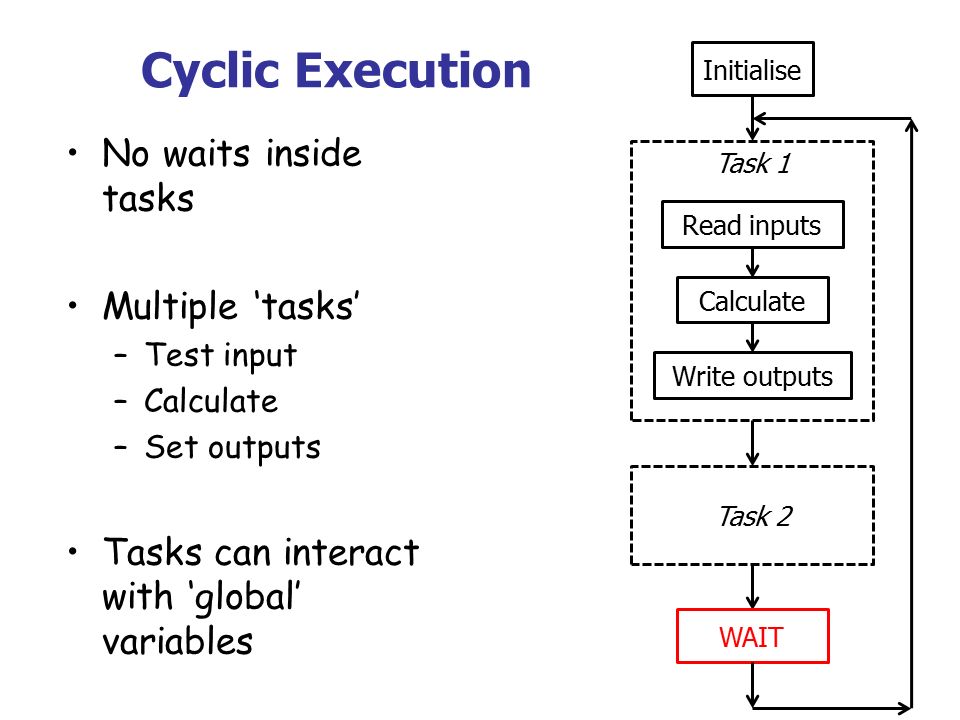

11. Cyclic Execution No waits inside tasks Multiple ‘tasks’ –Test input –Calculate –Set outputs Tasks can interact with ‘global’ variables Initialise Write outputs Read inputs Calculate Task 1 Task 2 WAIT

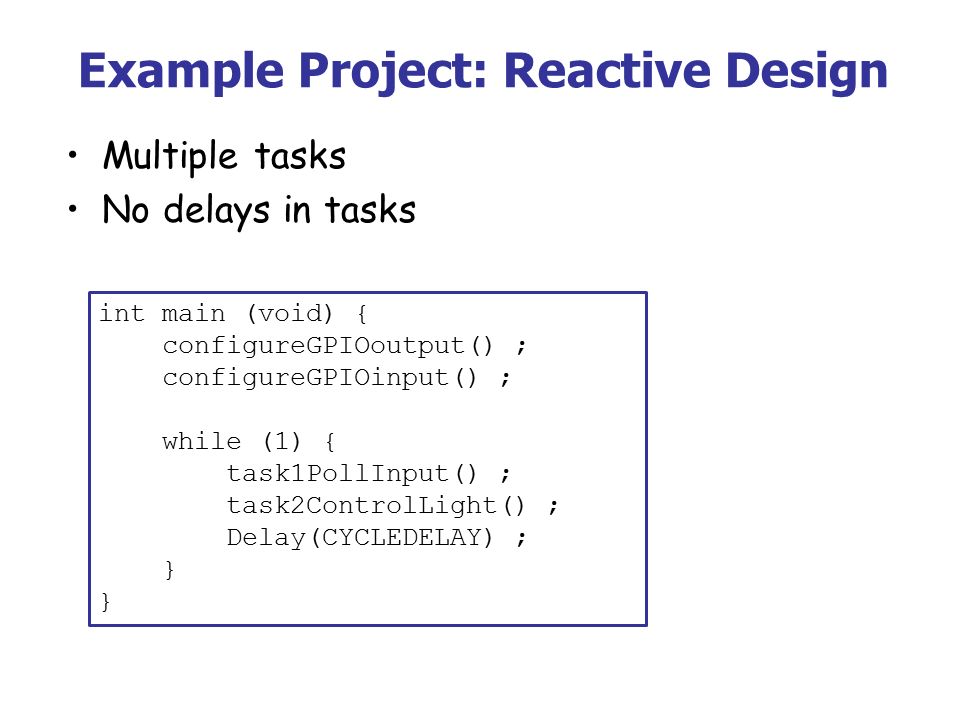

12. int main (void) { configureGPIOoutput() ; configureGPIOinput() ; while (1) { task1PollInput() ; task2ControlLight() ; Delay(CYCLEDELAY) ; } Example Project: Reactive Design Multiple tasks No delays in tasks

13. // Task 1: poll the input - detect changes in the switch state. // isPressed and not closed  new press; // ~isPressed and closed  not closed int closed = 0 ; // Track switch position int pressed = 0 ; // Signal next task void task1PollInput(void) { if (isPressed()) { if (~closed) { closed = 1 ; pressed = 1 ; } } else { // not pressed if (closed) { closed = 0 ; }

14. // Task 2 Toggle LED when count down complete // Detect if a button press event has occurred int ledOn = 0 ; // State – flashing on / off int counter = 0 ; // Times flashes void task2ControlLight(void) { if (counter > 0) counter-- ; // Detect button press event and pause flashing if (pressed ) { pressed = 0 ; redOff() ; counter = PAUSECOUNT ; return ; } // Check counter and toggle LED if (counter==0) { if (ledOn) { redOff() ; ledOn = 0 ; } else { redOn() ; ledOn = 1 ; } counter = FLASHCOUNT ; } }

15. Summary of Cyclic System Principles No waits inside tasks Timing by count cycles Tasks communicate using global variables Tasks use state variable Each cycle –What state? –Do I need to change state?

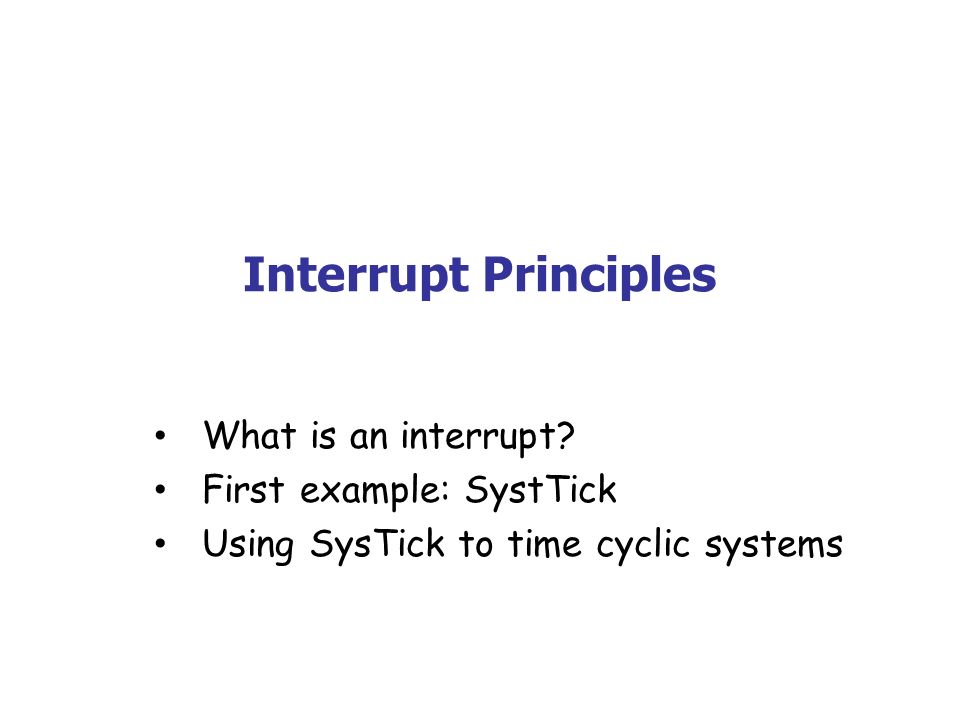

16. Interrupt Principles What is an interrupt? First example: SystTick Using SysTick to time cyclic systems

17. Question What happens when you press reset? The program restarts but how? …. main program … other satrt points … analogies: GUI, box with buttons … vector

18. Interrupt Processing Sequence Interrupt trigger occurs –Processor does some hard-wired processing –Processor executes ISR Processor resumes other code Main Code Interrupt routine Hardwired CPU response activities Time

19. How Many Interrupts? Interrupt is a physical signal (i.e. a pin) –Early MCU had e.g. 2 interrupts Cortex-M0+ –Configure pins to be interrupts NVIC Nested Vector Interrupt Controller –A memory mapped –Interrupt number, priority and vector Port –Making pins into interrupts

20. Cortex-M0+ Core: NVIC NVIC –Vectors for interrupts and exceptions –Priority: possible to interrupt and interrupt Aims to make interrupt handling fast

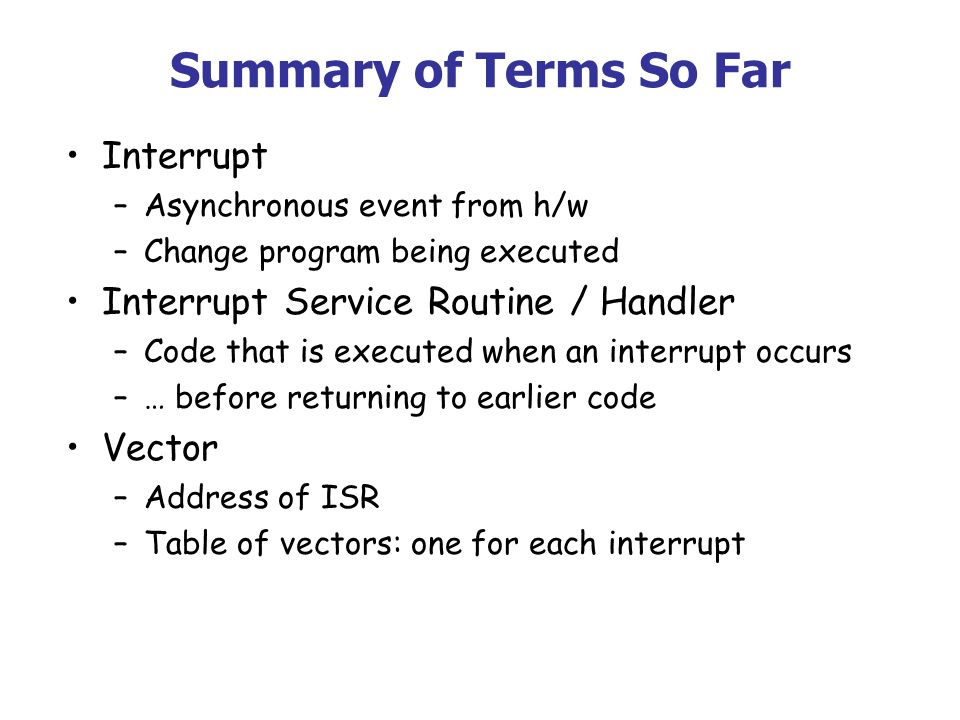

21. Summary of Terms So Far Interrupt –Asynchronous event from h/w –Change program being executed Interrupt Service Routine / Handler –Code that is executed when an interrupt occurs –… before returning to earlier code Vector –Address of ISR –Table of vectors: one for each interrupt

22. SysTick A simple timer interrupt Use in cyclic systems

23. Overview Generates a periodic interrupt Part of CPU core’s peripherals What can we do with a fixed period? –Time intervals, by counting –Delay for a precise period

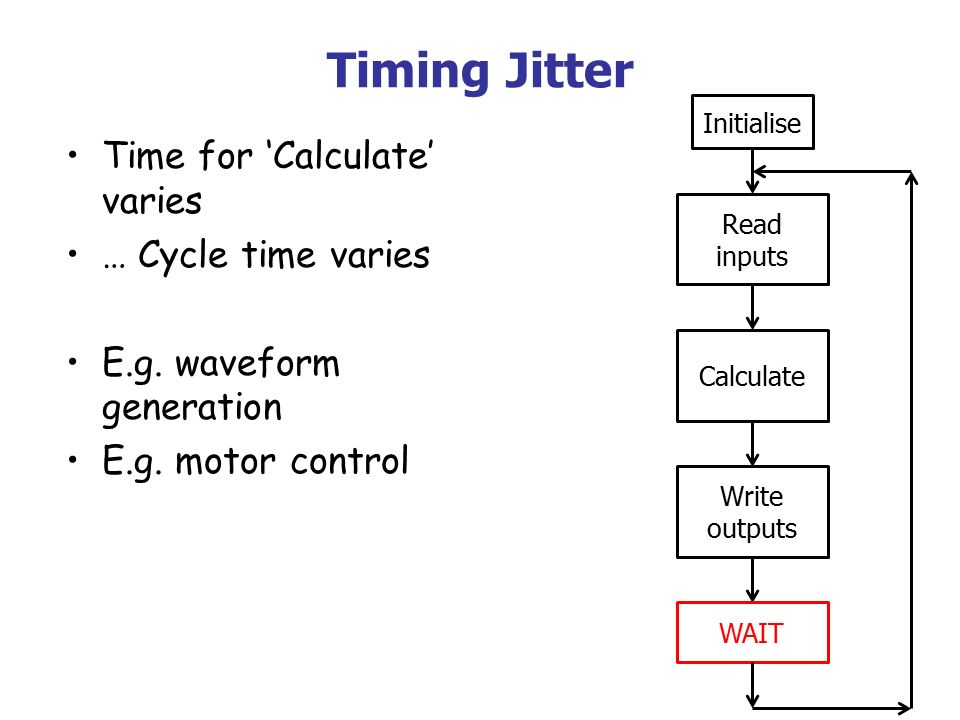

24. Timing Jitter Time for ‘Calculate’ varies … Cycle time varies E.g. waveform generation E.g. motor control Initialise Write outputs Read inputs Calculate WAIT

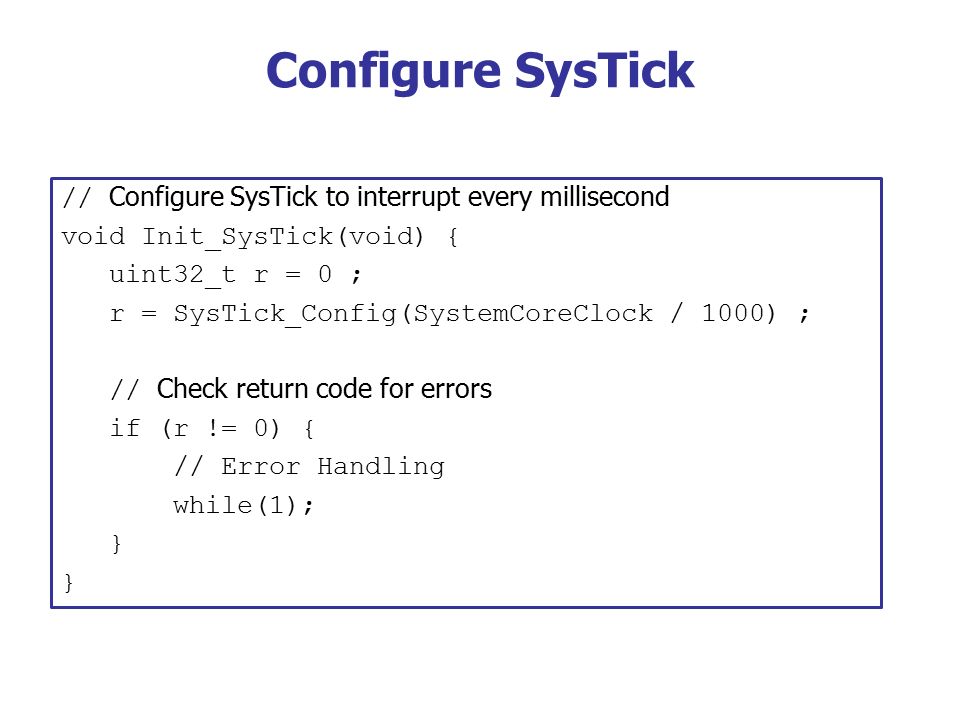

25. Configure SysTick // Configure SysTick to interrupt every millisecond void Init_SysTick(void) { uint32_t r = 0 ; r = SysTick_Config(SystemCoreClock / 1000) ; // Check return code for errors if (r != 0) { // Error Handling while(1); }

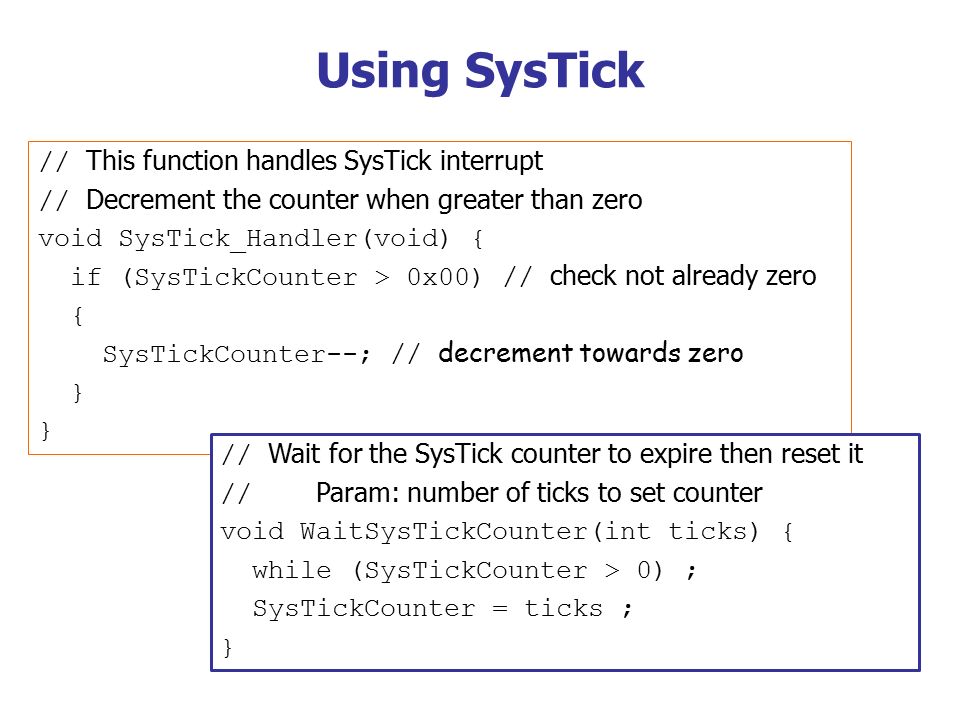

26. Using SysTick // This function handles SysTick interrupt // Decrement the counter when greater than zero void SysTick_Handler(void) { if (SysTickCounter > 0x00) // check not already zero { SysTickCounter--; // decrement towards zero } // Wait for the SysTick counter to expire then reset it // Param: number of ticks to set counter void WaitSysTickCounter(int ticks) { while (SysTickCounter > 0) ; SysTickCounter = ticks ; }

27. Timing with SysTick Fix period of cycle Period chosen –Latency acceptable –Computation possible Other counters –e.g. since button pressed Initialise Write outputs Read inputs Calculate Task 1 Task 2 Wait for SysTick Counter Number of SysTick Periods

28. GPIO Interrupt: Configuration and Use Interrupt on input: better than polling

29. Limitations of Polling Do not notice changes that occur for less than cycle time Cycle time unnecessarily fast

30. KL25Z GPIO Ports with Interrupts Port A (PTA) through Port E (PTE) Not all port bits are available (package- dependent) Ports A and D support interrupts

31. Port Module Port Module (A – E) –Port is 32 pins –Includes connection of external inputs to NVIC PCR - Pin control register (32 per port) –Each register corresponds to an input pin –Configure pin as interrupt ISFR - Interrupt status flag register (one per port) –Each bit corresponds to an input pin –Bit is set to 1 if an interrupt has been detected

32. Pin Control Register (PCR) Each pin has a PCR MUX for alternative use (GPIO is 1) IRQC controls interrupts IRQCConfiguration 0000Interrupt Disabled ….DMA, reserved 1000Interrupt when logic zero 1001Interrupt on rising edge 1010Interrupt on falling edge 1011Interrupt on either edge 1100Interrupt when logic one …reserved

33. NVIC Registers and State Enable interrupts –Two registers (set bits for interrupts) Pending interrupt –Requested but is not yet serviced BitC Code (CMSIS)Description NVIC_ISER NVIC_EnableIRQ(IRQnum) Enable interrupt NVIC_ICER NVIC_DisableIRQ(IRQnum) Disable interrupt BitC Code (CMSIS)Description NVIC_ISPR NVIC_ClearPendingIRQ(IRQnum) Set pending NVIC_ICPR NVIC_ClearPendingIRQ(IRQnum) Clear pending (NVIC_ISPR) NVIC_GetPendingIRQ(IRQnum) Get pending

34. Switch Initialization void init_switch(void) { /* Enable clock for port D */ SIM->SCGC5 |= SIM_SCGC5_PORTD_MASK; /* Select GPIO and enable pull-up resistors and interrupts on falling edges for pin connected to switch */ PORTD->PCR[SW_POS] |= PORT_PCR_MUX(1) | PORT_PCR_PS_MASK | PORT_PCR_PE_MASK | PORT_PCR_IRQC(0x0a); /* Set port D switch bit to inputs */ PTD->PDDR &= ~MASK(SW_POS); /* Enable Interrupts */ NVIC_SetPriority(PORTD_IRQn, 128); NVIC_ClearPendingIRQ(PORTD_IRQn); NVIC_EnableIRQ(PORTD_IRQn); }

35. ISR void PORTD_IRQHandler(void) { // clear pending interrupts NVIC_ClearPendingIRQ(PORTD_IRQn); // check that the interrupt was for switch if ((PORTD->ISFR & MASK(SW_POS))) { buttonPress = 1 ; } // clear interrupt status flags (all flags for PortD) PORTD->ISFR = 0xffffffff; } Name creates the Vector Show interrupt serviced Check correct pin (c.f. port)

36. Cyclic Execution with Interrupts Interrupts reduce latency … BUT concurrency issues Initialise Write outputs Read inputs Calculate Interrupt Handler 1 Interrupt Handler 2

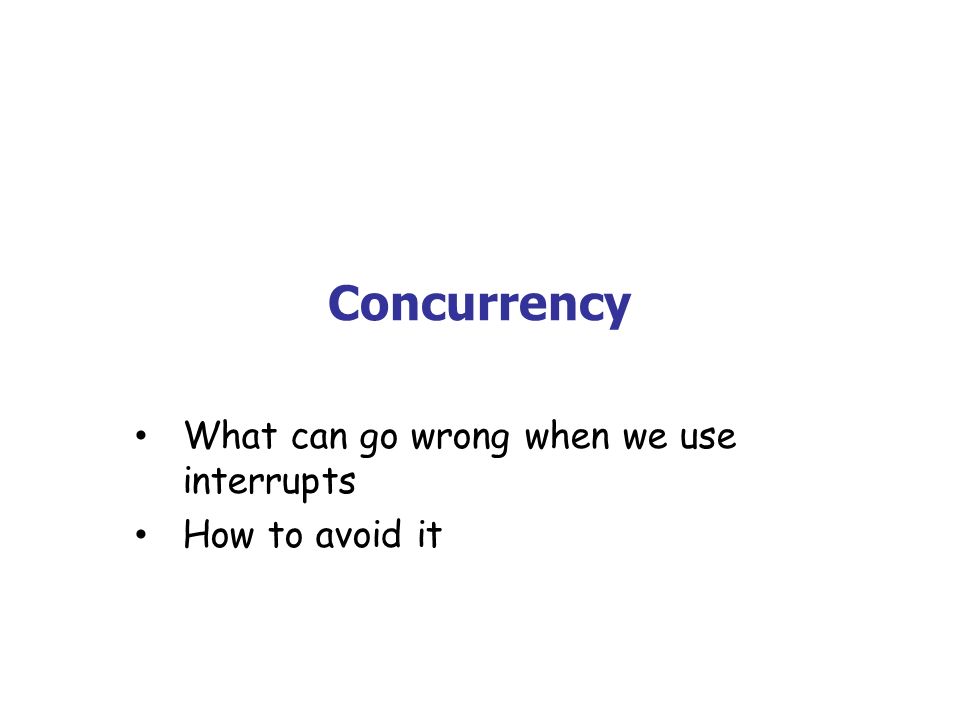

37. Concurrency What can go wrong when we use interrupts How to avoid it

38. Interleaving Model of concurrency –Interrupts –(Later: pre-emptive scheduling) Any non-atomic instruction can interleaved Note: task == thread == process

39. An Incorrect Program Wish to provide a sequence of numbers to different tasks so no number used more than once This program does not work. The two tasks could get the same number int num = 0 ; int getNext() { return num++ ; } x1 = getNext(); seq x2 = getNext(); seq Task 1 Task 2

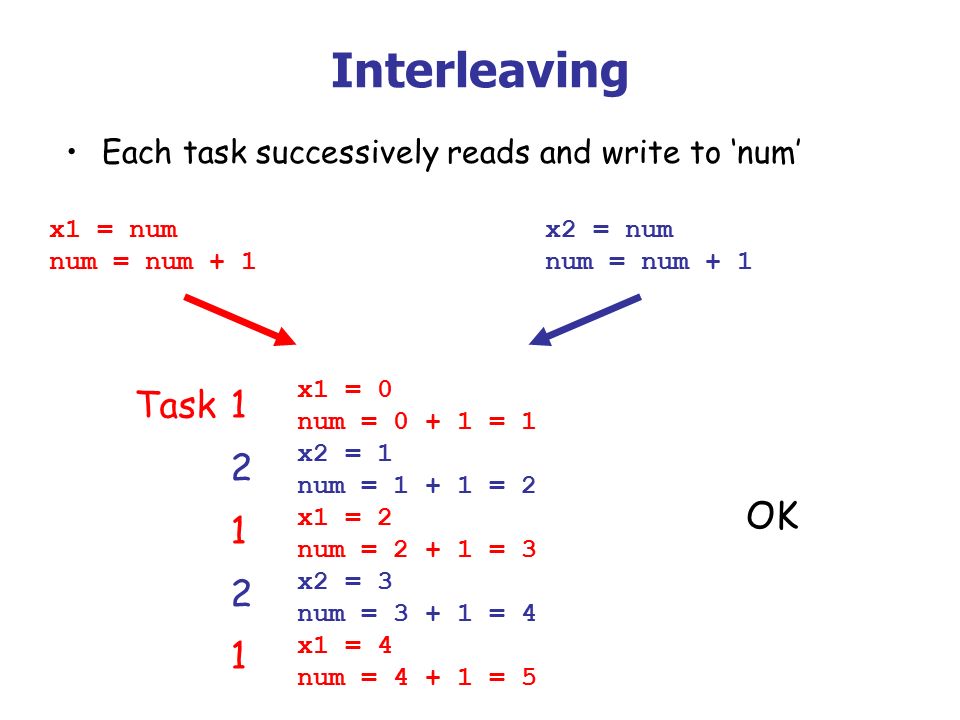

40. Interleaving Each task successively reads and write to ‘num’ x1 = num num = num + 1 x2 = num num = num + 1 x1 = 0 num = 0 + 1 = 1 x2 = 1 num = 1 + 1 = 2 x1 = 2 num = 2 + 1 = 3 x2 = 3 num = 3 + 1 = 4 x1 = 4 num = 4 + 1 = 5 OK Task1 2 1 2 1

41. Interleaving Each task successively reads and write to ‘num’ x1 = 0 seq.num = 0 + 1 = 1 x2 = 1 seq.num = 1 + 1 = 2 x1 = 2 seq.num = 2 + 1 = 3 x2 = 3 seq.num = 3 + 1 = 4 x1 = 4 seq.num = 4 + 1 = 5 STILL OK Task1 1 2 1 x1 = num num = num + 1 x2 = num num = num + 1

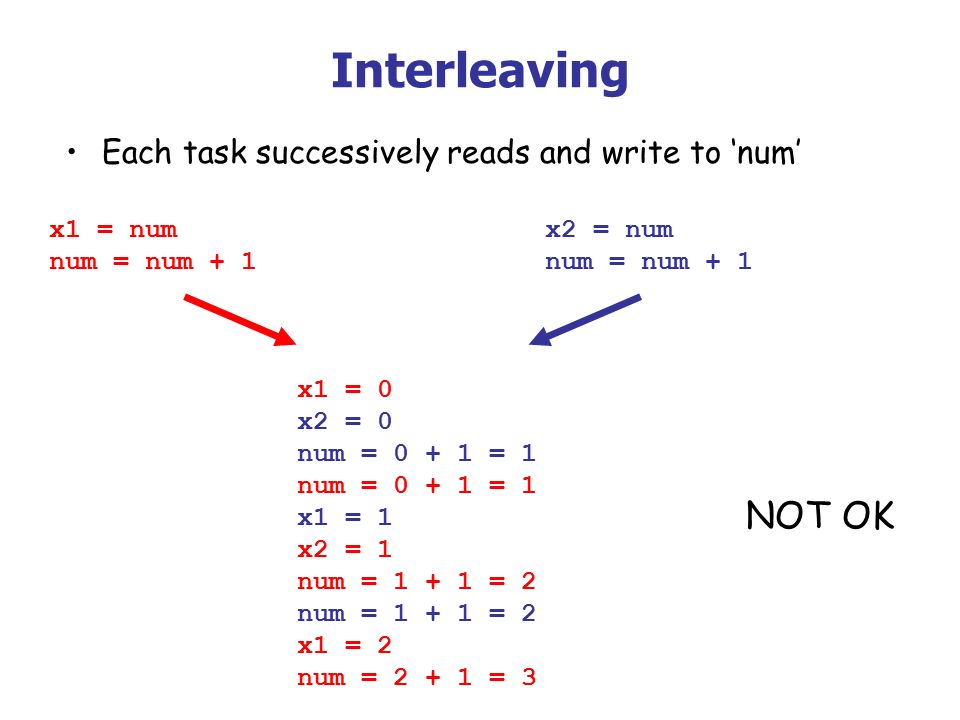

42. Interleaving Each task successively reads and write to ‘num’ x1 = 0 x2 = 0 num = 0 + 1 = 1 x1 = 1 x2 = 1 num = 1 + 1 = 2 x1 = 2 num = 2 + 1 = 3 NOT OK x1 = num num = num + 1 x2 = num num = num + 1

43. Signal Yes / no Interrupt handler –Sets it Main task –Clear to acknowledge Machine instructions are atomic Data type must be single word What happens if two interrupts before acknowledged?

44. Going Deeper How interrupts work … consequences Advanced features

45. Some Interrupt Sources (Partial) Vector Start Address Vector #IRQSourceDescription 0x0000_00041ARM CoreInitial program counter 0x0000_00082ARM CoreNon-maskable interrupt 0x0000_0040-4C16-190-3Direct Memory Access Controller Transfer complete or error 0x0000_0058226Power Management Controller Low voltage detection 0x0000_0060-6424-258-9I 2 C ModulesStatus and error 0x0000_0068-6C26-2710-11SPI ModulesStatus and error 0x0000_0070-7828-3012-14UART ModulesStatus and error 0x0000_00B84630Port Control ModulePort A Pin Detect 0x0000_00BC4731Port Control ModulePort D Pin Detect Up to 32 non-core vectors, 16 core vectors From KL25 Sub-Family Reference Manual, Table 3-6 Exceptions not interrupts

46. CPU’s Hardwired Exception Processing Finish current instruction –Some exceptions Push context (registers) onto current stack (MSP or PSP) Load PC with address of interrupt handler –Where from? Start executing code of interrupt handler Usually 16 cycles from exception request to execution of first instruction in handler

47. NVIC Priority Registers: NVIC_IPR0-7 Priority – deal with simultaneous interrupts –Two bits per interrupt source –Four interrupt sources per register –Set priority to 0 (highest priority), 64, 128 or 192 (lowest) Exceptions (core vectors) have higher priorities –CMSIS: NVIC_SetPriority(IRQnum, priority) Bits31:3029:2423:2221:1615:1413:87:65:0 IPR0IRQ3reservedIRQ2reservedIRQ1reservedIRQ0reserved IPR1IRQ7reservedIRQ6reservedIRQ5reservedIRQ4reserved IPR2IRQ11reservedIRQ10reservedIRQ9reservedIRQ8reserved IPR3IRQ15reservedIRQ14reservedIRQ13reservedIRQ12reserved IPR4IRQ19reservedIRQ18reservedIRQ17reservedIRQ16reserved IPR5IRQ23reservedIRQ22reservedIRQ21reservedIRQ20reserved IPR6IRQ27reservedIRQ26reservedIRQ25reservedIRQ24reserved IPR7IRQ31reservedIRQ30reservedIRQ29reservedIRQ28reserved

48. PRIMASK: Exception Mask Register Bit 0: PM Flag –Set to 1 to prevent activation of all exceptions with configurable priority –Clear to 0 to allow activation of all exception Use to prevent data race conditions with code needing atomicity CMSIS-CORE API –void __enable_irq() - clears PM flag –void __disable_irq() - sets PM flag

49. Summary

50. Summary of Interrupts Cortex-M0+ NVIC –32 interrupts –2 bits of priority – 4 priorities –Vector: address of code Two GPIO port interrupts: A & D Initialisation –Enable interrupt by number (NVIC) –Configure pin (PCR) Use –Read PORT Interrupt status register (my bit?) –(Read) / clear interrupt pending
