Presentation on theme: "Machine- a device that makes work easier by changing the direction or size of the force."— Presentation transcript:

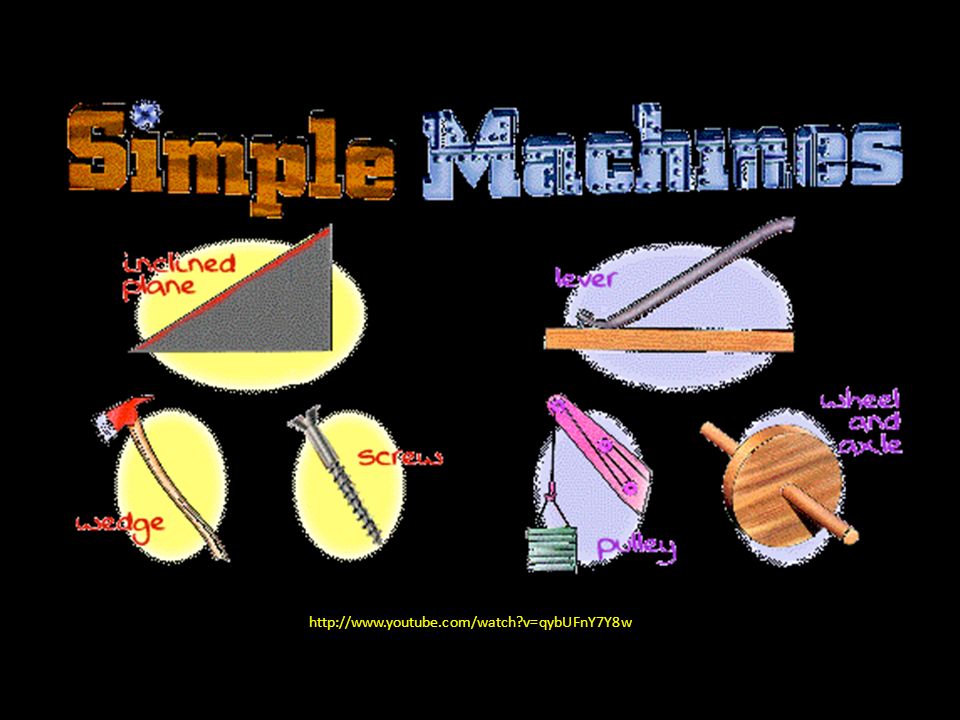

1 http://www.youtube.com/watch?v=qybUFnY7Y8w

2 Machine- a device that makes work easier by changing the direction or size of the force.

3 Work- Force move an object in the direction of the Force Work = Force x Distance

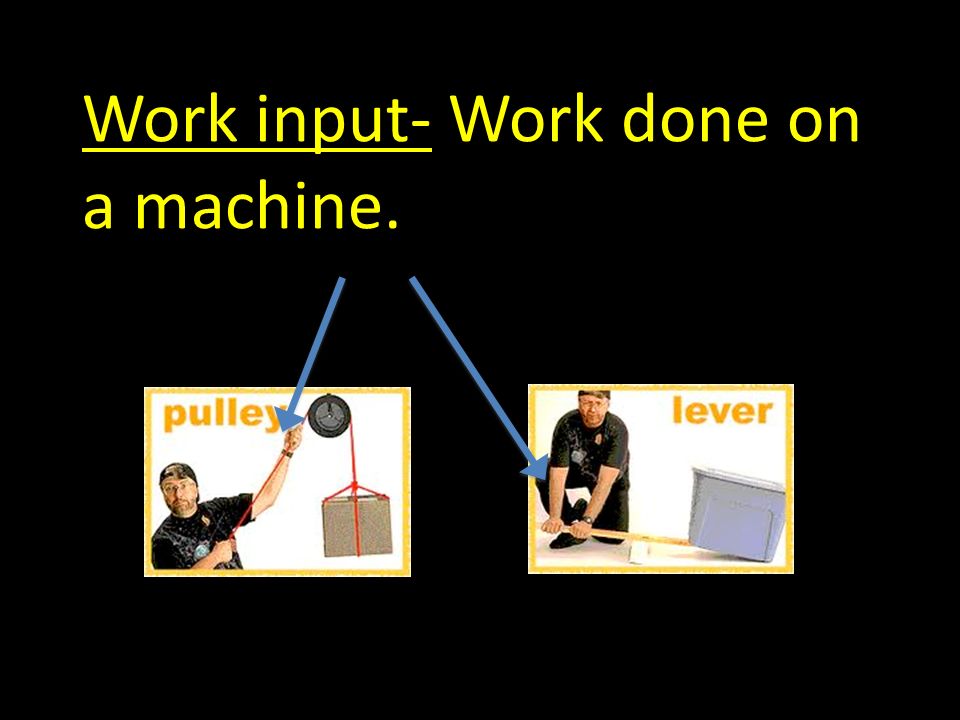

4 Work input- Work done on a machine.

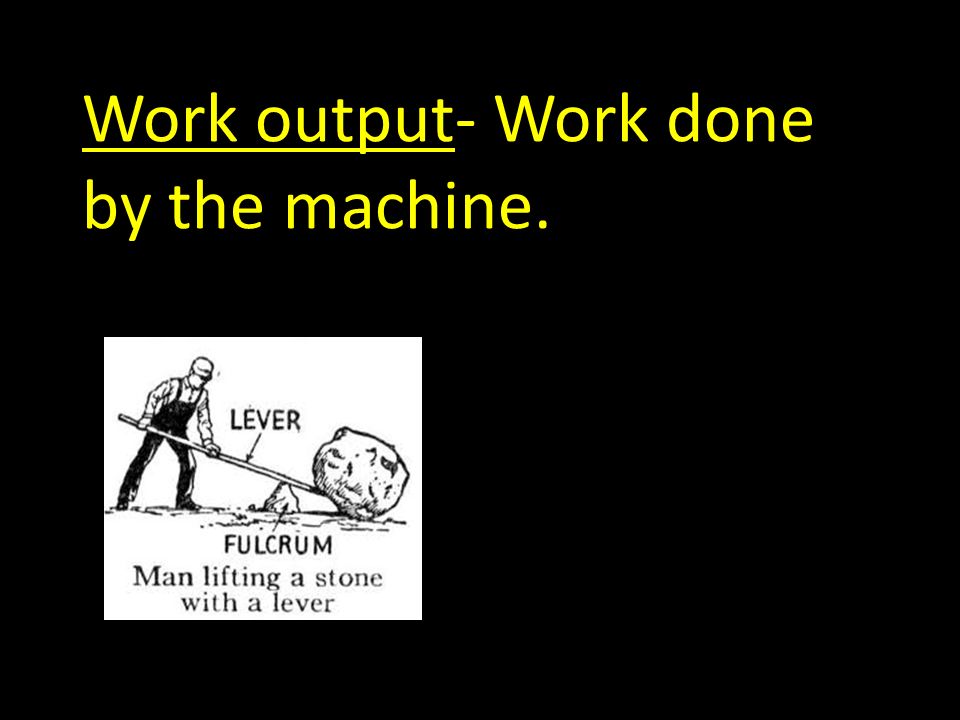

5 Work output- Work done by the machine.

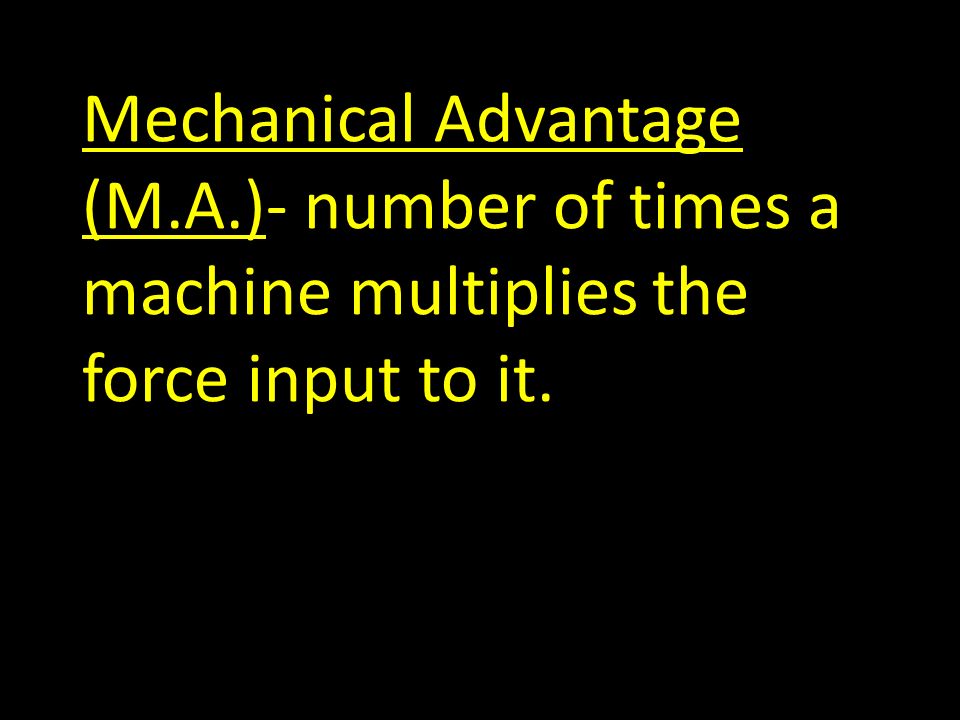

6 Mechanical Advantage (M.A.)- number of times a machine multiplies the force input to it.

7 Mechanical Efficiency – Ratio of work output divided by work input. work output work input

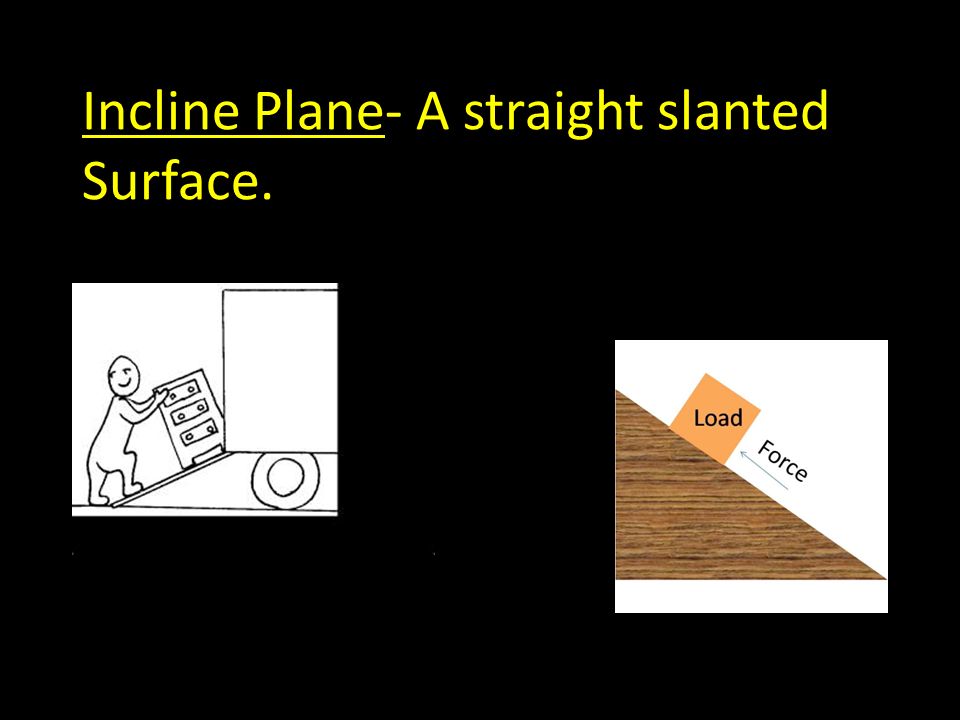

8 Incline Plane- A straight slanted Surface.

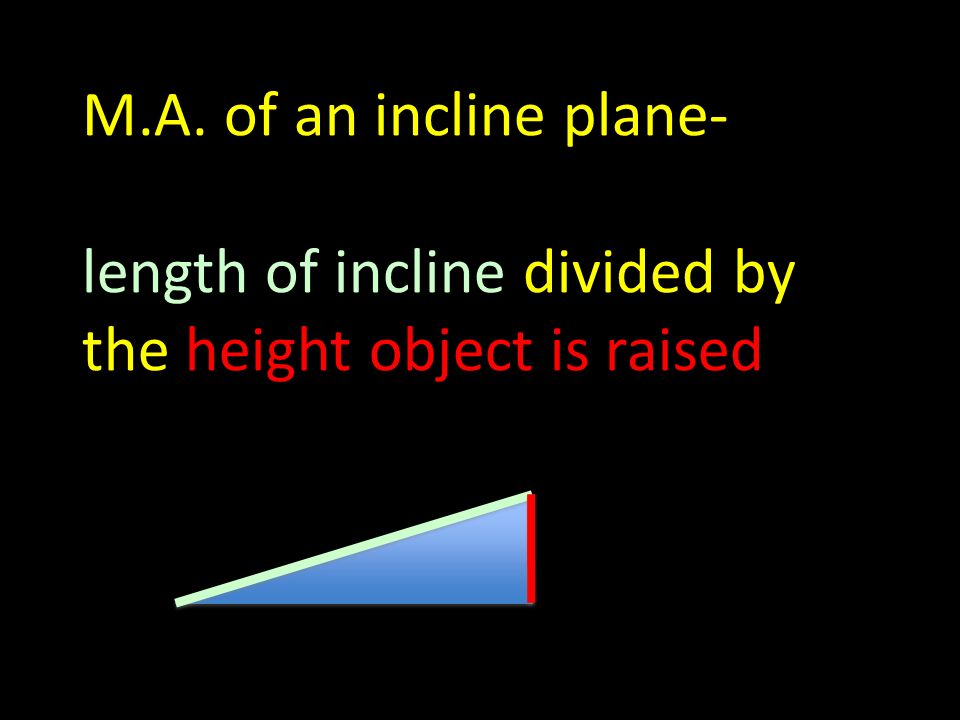

9 M.A. of an incline plane- length of incline divided by the height object is raised

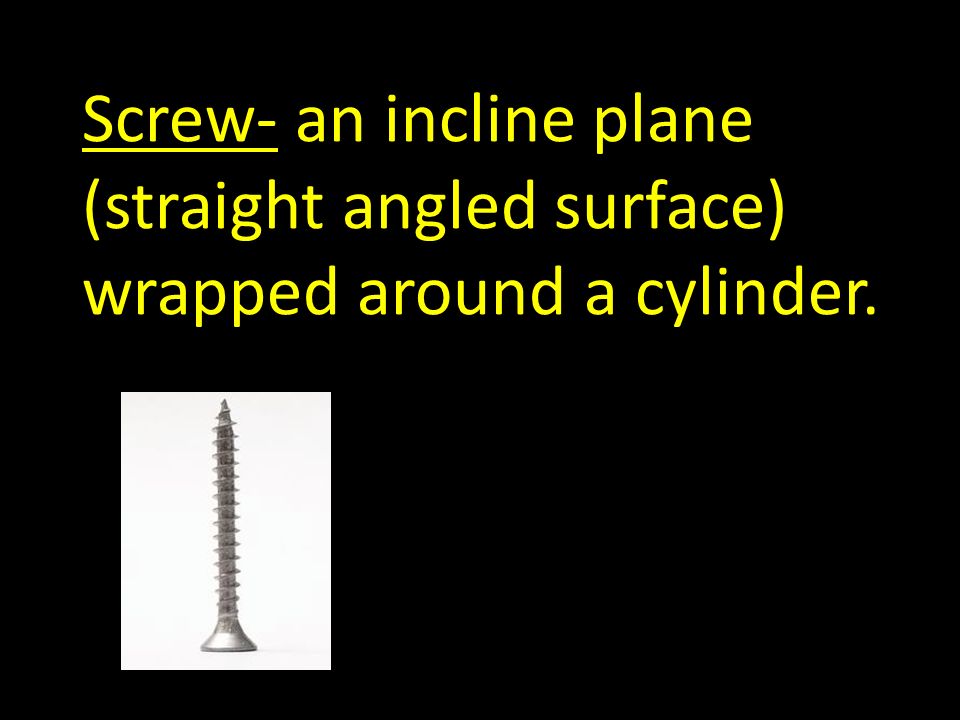

10 Screw- an incline plane (straight angled surface) wrapped around a cylinder.

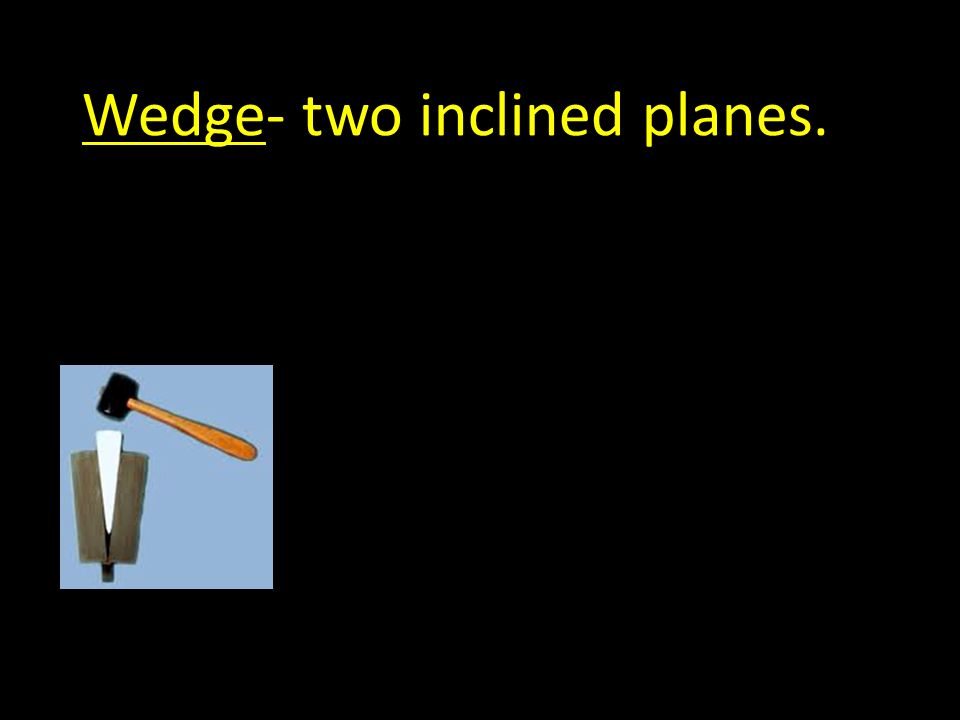

11 Wedge- two inclined planes.

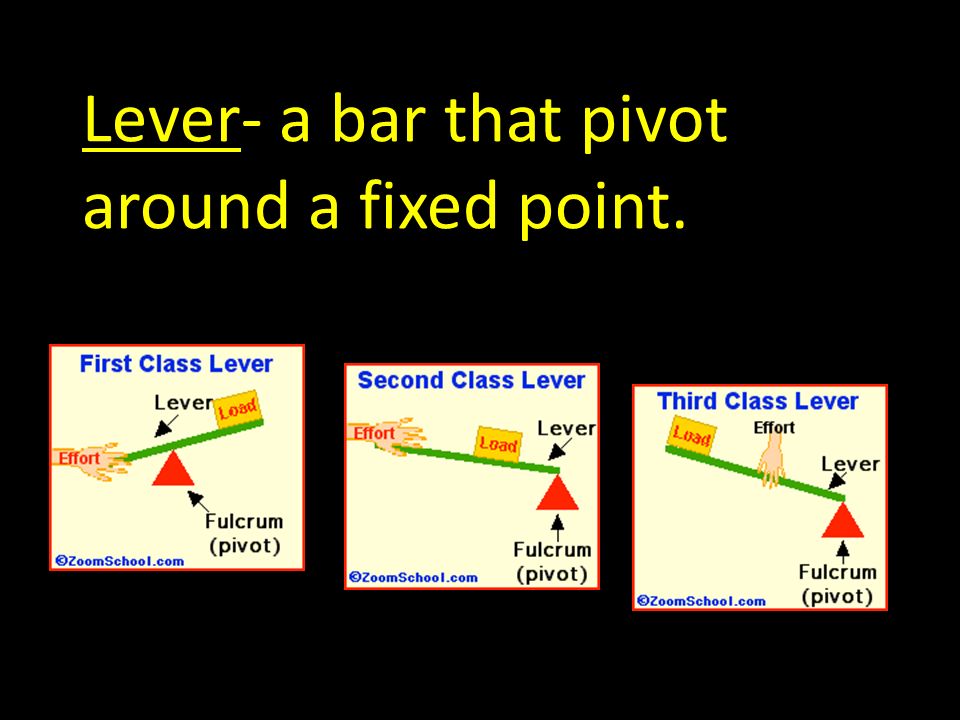

12 Lever- a bar that pivot around a fixed point.

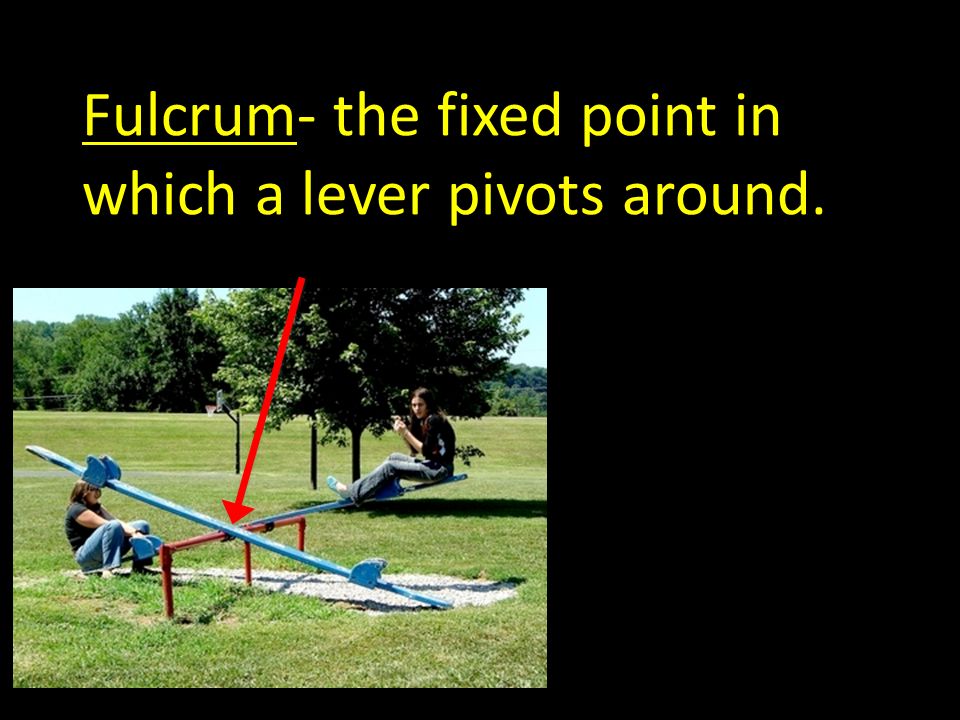

13 Fulcrum- the fixed point in which a lever pivots around.

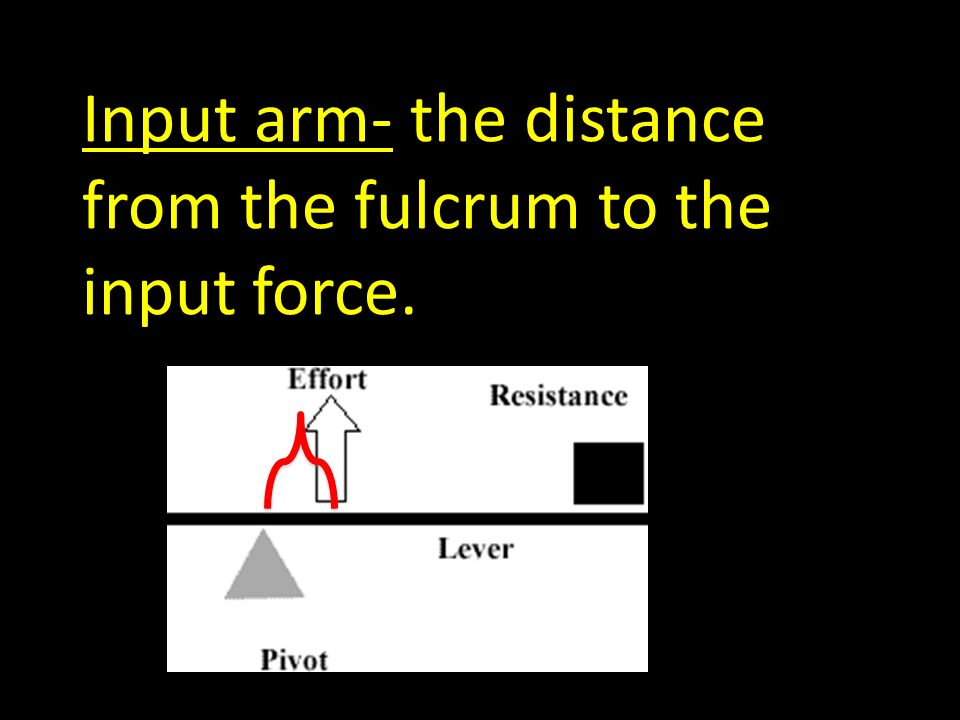

14 Input arm- the distance from the fulcrum to the input force.

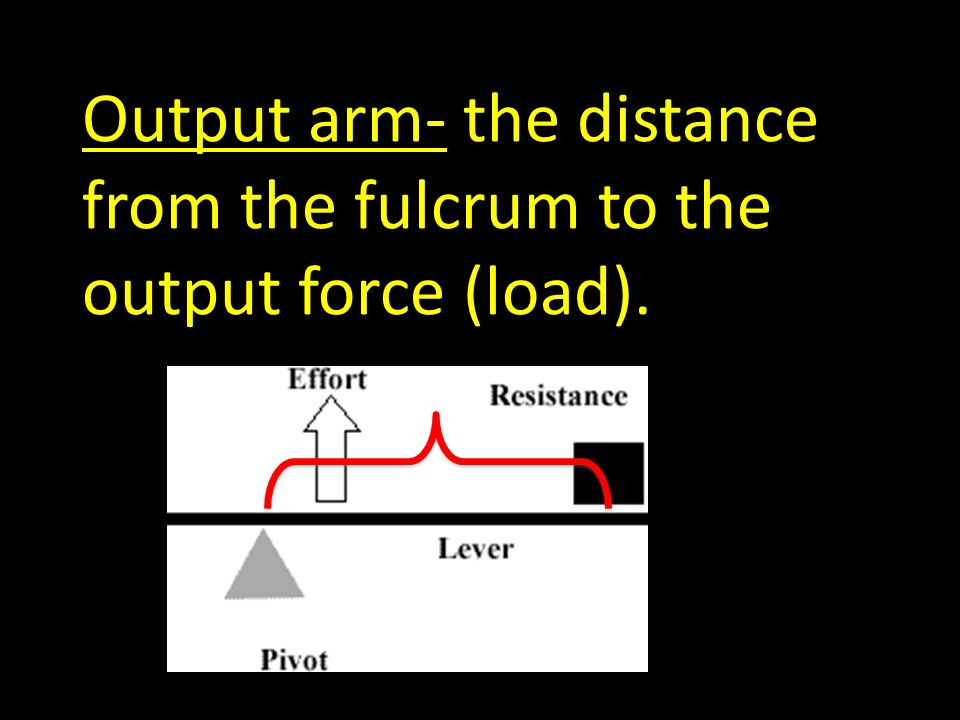

15 Output arm- the distance from the fulcrum to the output force (load).

16 Load- Object being moved.

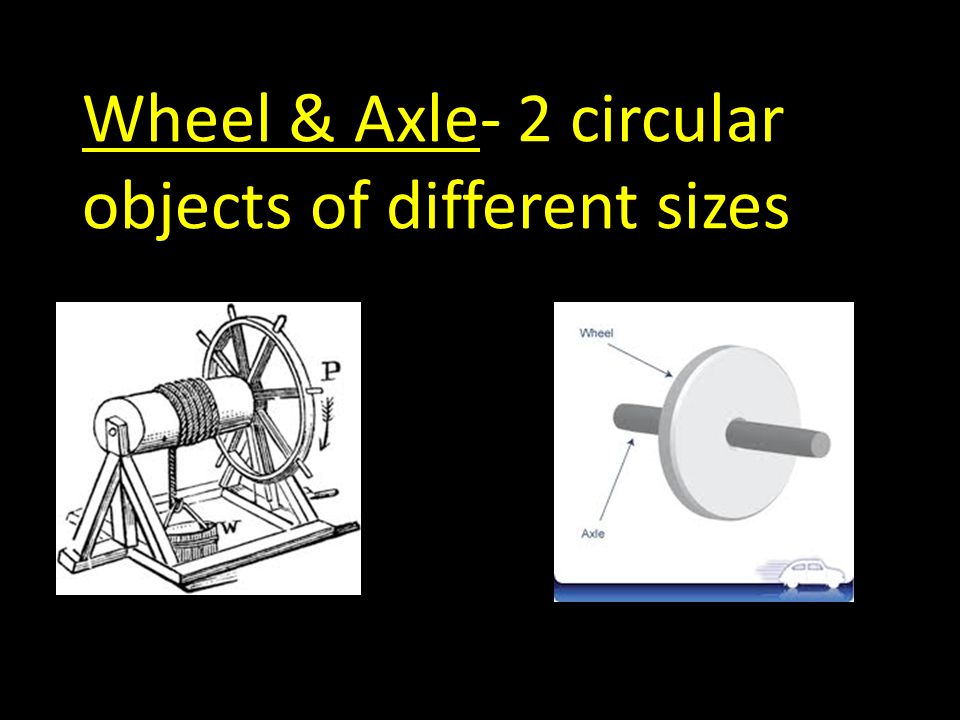

17 Wheel & Axle- 2 circular objects of different sizes

18 M.A. of a Wheel & Axle- Radius of the Wheel Radius of the axle

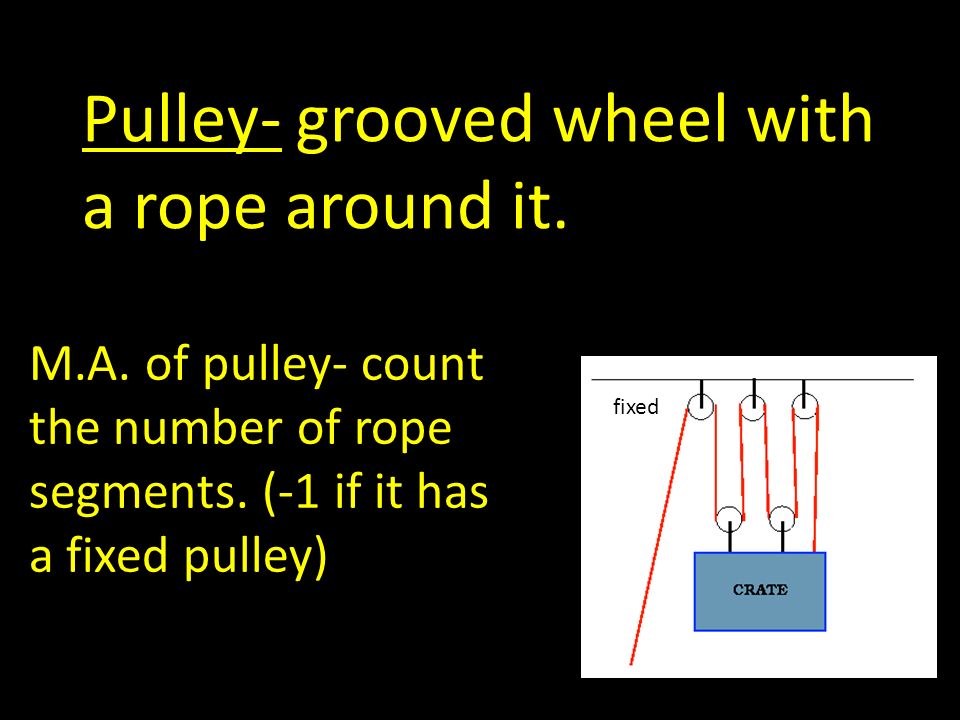

19 Pulley- grooved wheel with a rope around it. M.A. of pulley- count the number of rope segments. (-1 if it has a fixed pulley) fixed

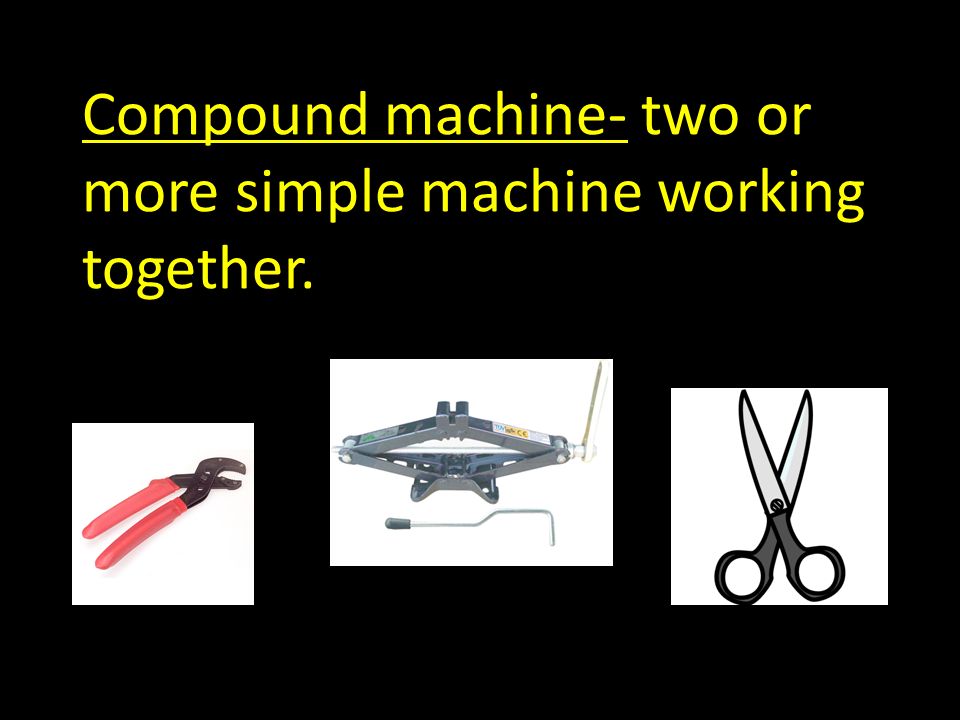

20 Compound machine- two or more simple machine working together.

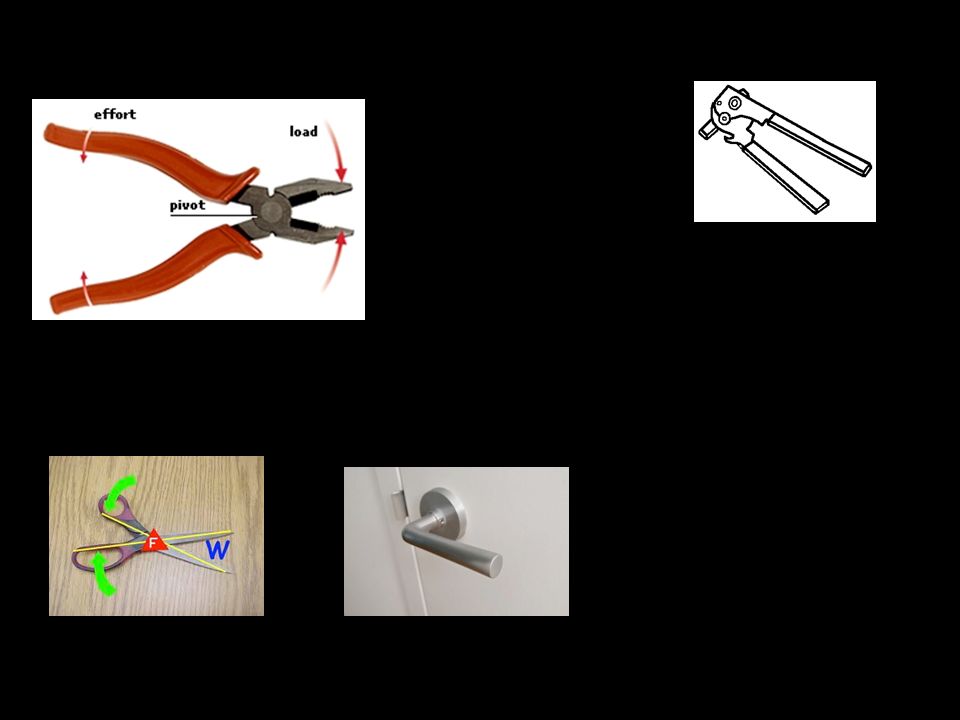

21

22 http://www.youtube.com/watch?v=q ybUFnY7Y8w
