1. Co-ordinate Bonds, Intermolecular Forces and Metallic Bonding Everything you EVER wanted to know but were afraid to ask!

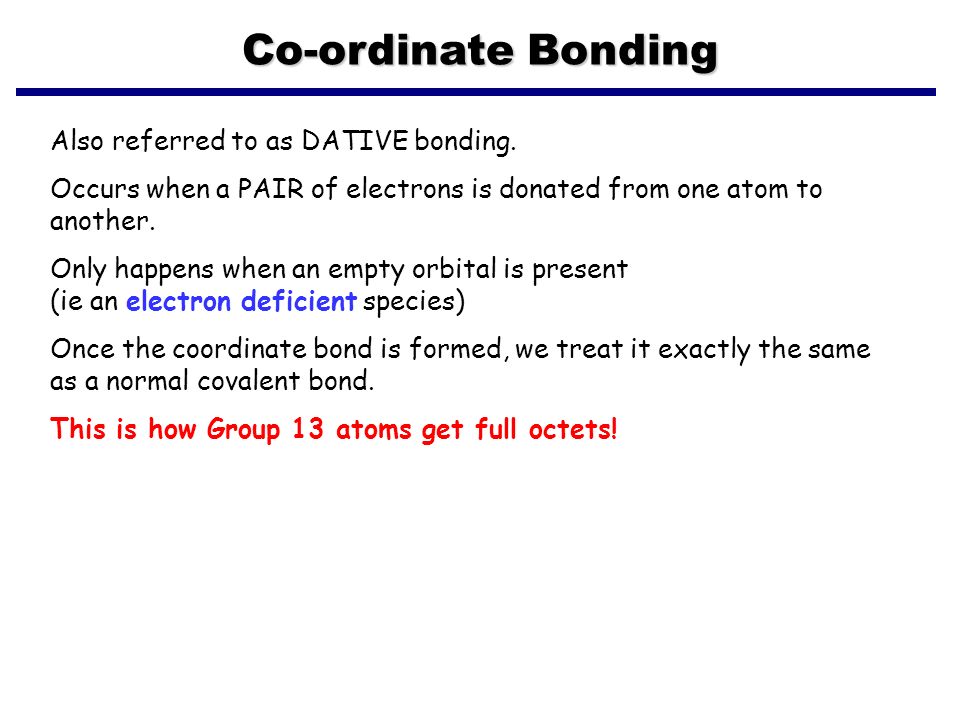

2. Co-ordinate Bonding Also referred to as DATIVE bonding. Occurs when a PAIR of electrons is donated from one atom to another. Only happens when an empty orbital is present (ie an electron deficient species) Once the coordinate bond is formed, we treat it exactly the same as a normal covalent bond. This is how Group 13 atoms get full octets!

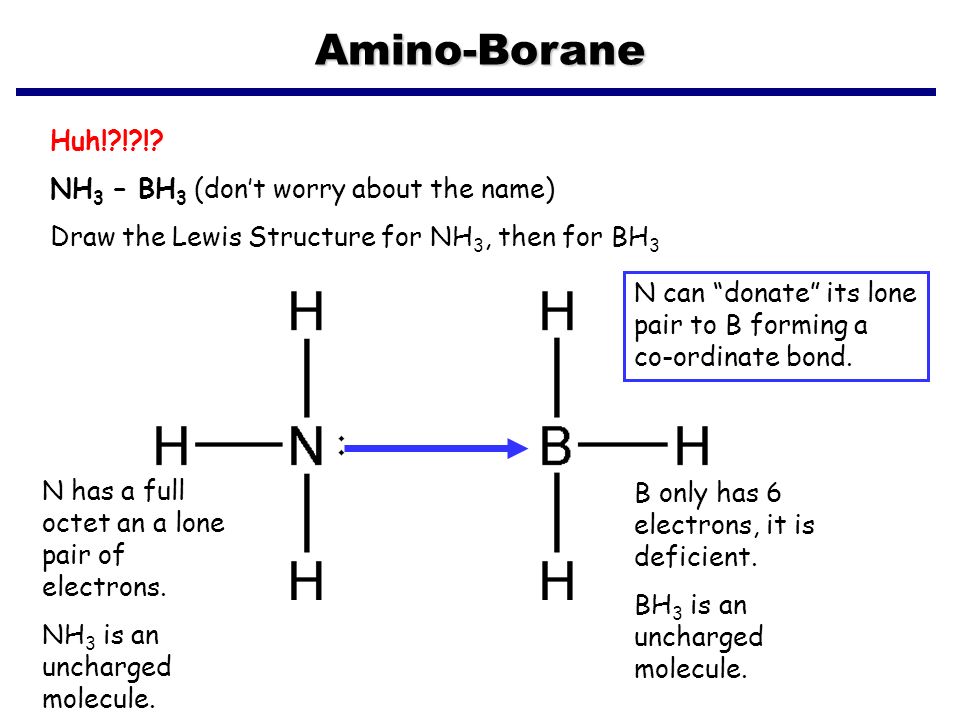

3. Amino-Borane Huh!?!?!? NH 3 – BH 3 (don’t worry about the name) Draw the Lewis Structure for NH 3, then for BH 3 N has a full octet an a lone pair of electrons. NH 3 is an uncharged molecule. B only has 6 electrons, it is deficient. BH 3 is an uncharged molecule. N can “donate” its lone pair to B forming a co-ordinate bond.

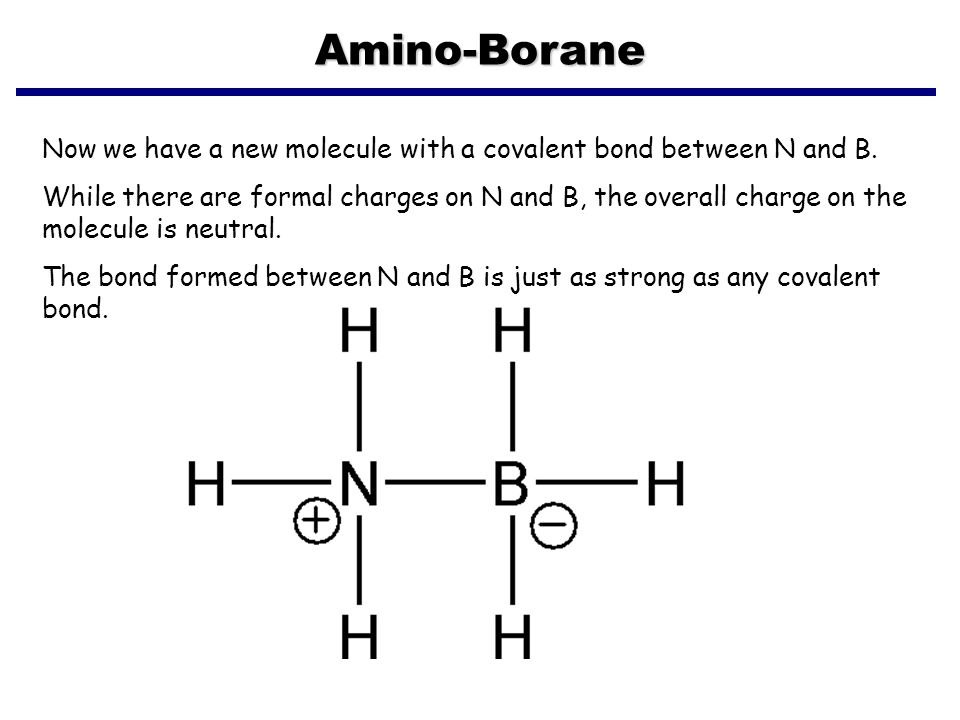

4. Amino-Borane Now we have a new molecule with a covalent bond between N and B. While there are formal charges on N and B, the overall charge on the molecule is neutral. The bond formed between N and B is just as strong as any covalent bond.

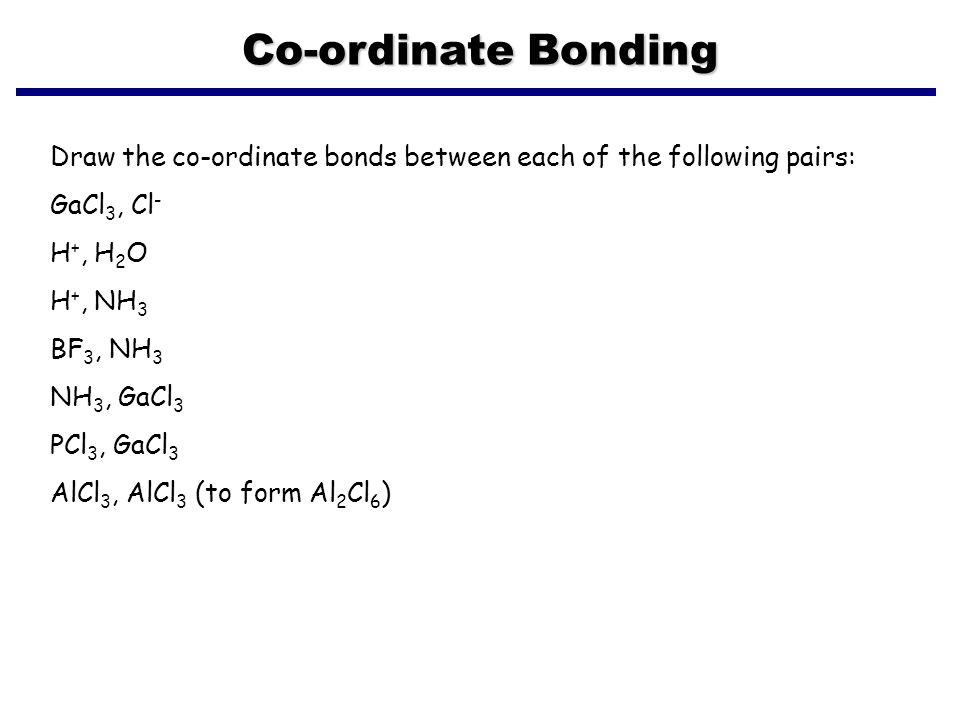

5. Co-ordinate Bonding Draw the co-ordinate bonds between each of the following pairs: GaCl 3, Cl - H +, H 2 O H +, NH 3 BF 3, NH 3 NH 3, GaCl 3 PCl 3, GaCl 3 AlCl 3, AlCl 3 (to form Al 2 Cl 6 )

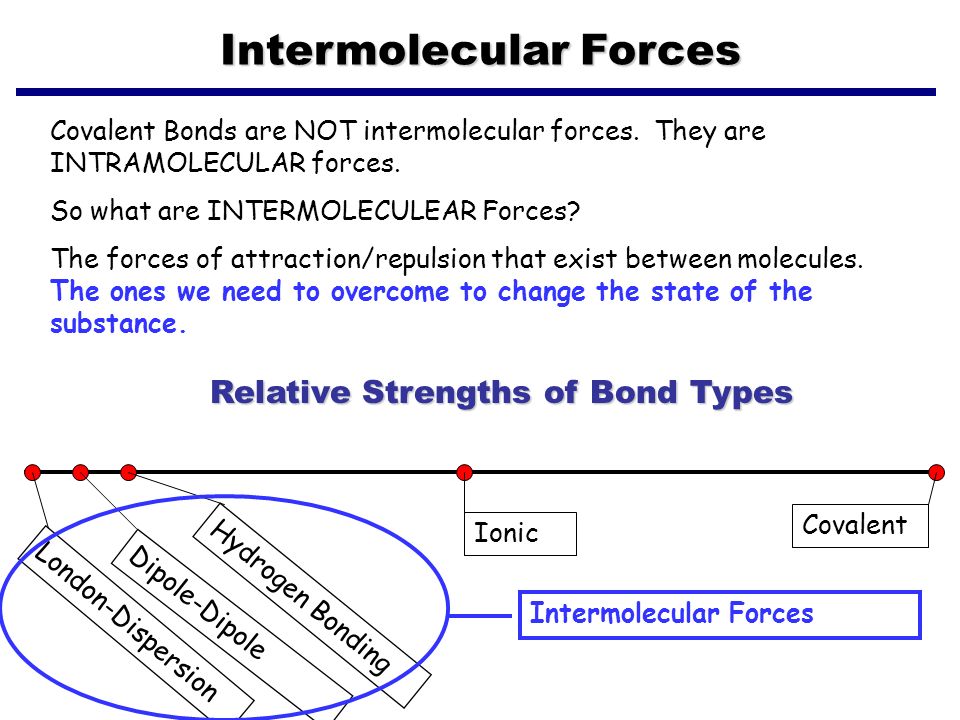

6. Intermolecular Forces Covalent Bonds are NOT intermolecular forces. They are INTRAMOLECULAR forces. So what are INTERMOLECULEAR Forces? The forces of attraction/repulsion that exist between molecules. The ones we need to overcome to change the state of the substance. Relative Strengths of Bond Types London-Dispersion Dipole-Dipole Hydrogen Bonding Ionic Covalent Intermolecular Forces

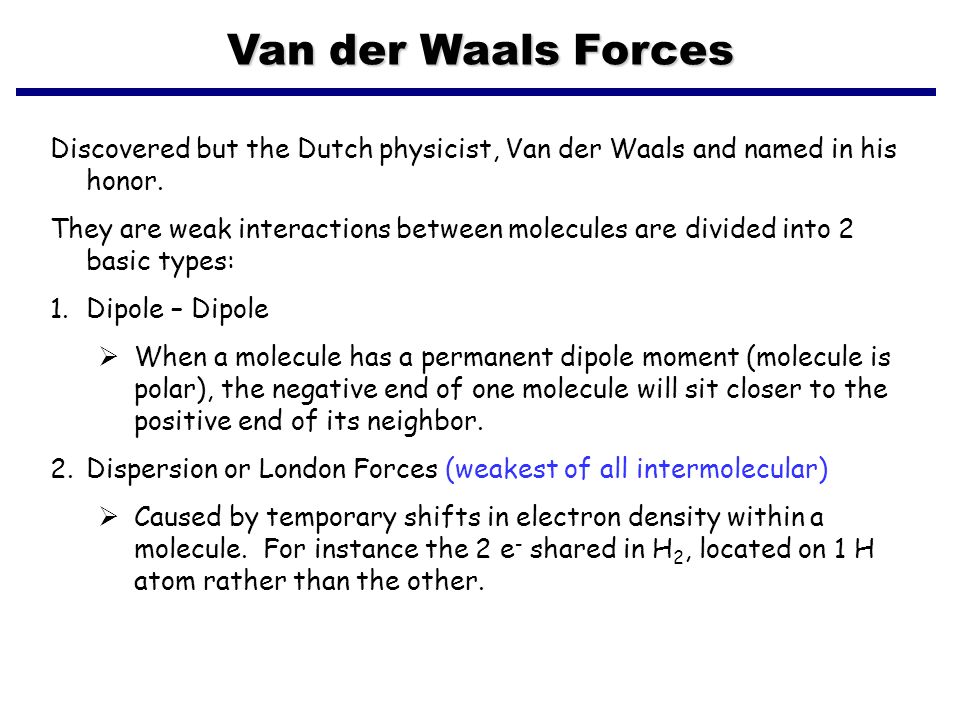

7. Van der Waals Forces Discovered but the Dutch physicist, Van der Waals and named in his honor. They are weak interactions between molecules are divided into 2 basic types: 1.Dipole – Dipole  When a molecule has a permanent dipole moment (molecule is polar), the negative end of one molecule will sit closer to the positive end of its neighbor. 2.Dispersion or London Forces (weakest of all intermolecular)  Caused by temporary shifts in electron density within a molecule. For instance the 2 e - shared in H 2, located on 1 H atom rather than the other.

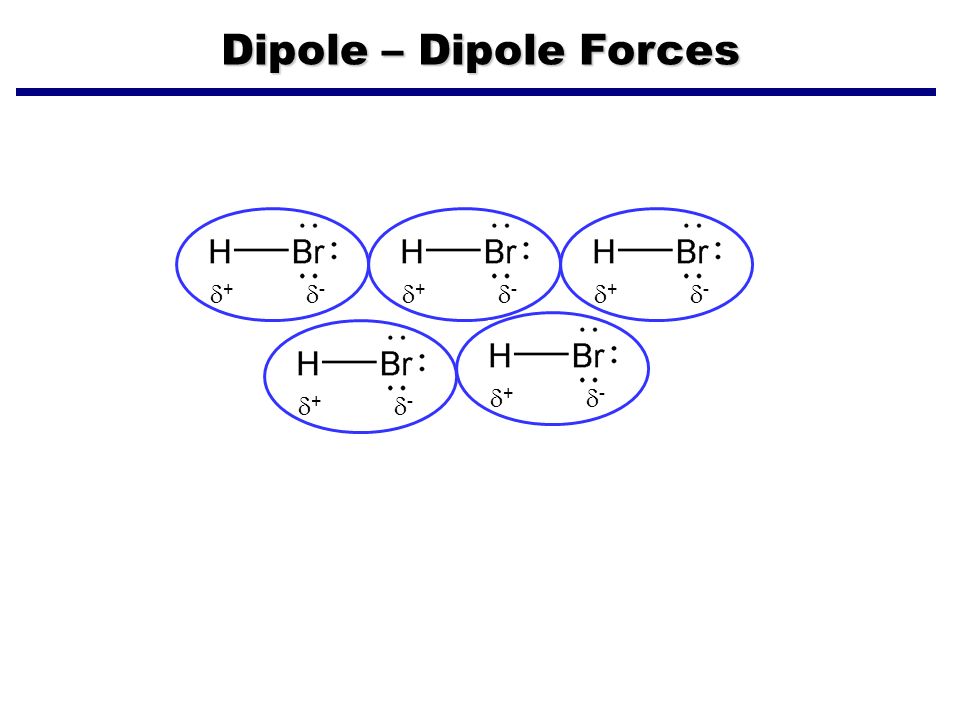

8. Dipole – Dipole Forces +-+- +-+- +-+- +-+- +-+-

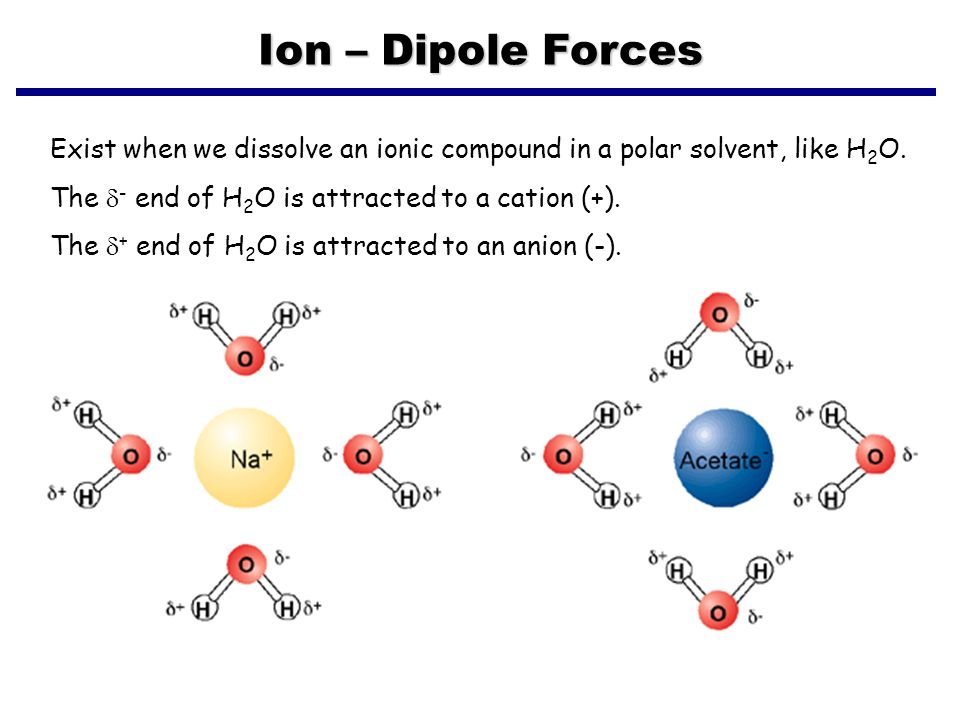

9. Ion – Dipole Forces Exist when we dissolve an ionic compound in a polar solvent, like H 2 O. The  - end of H 2 O is attracted to a cation (+). The  + end of H 2 O is attracted to an anion (-).

10. London Forces +-+- 2e - -+-+ Caused by the natural vibrations of the electrons in the bond, there is no permanent dipole moment. The dominant intermolecular force in non- polar substances.

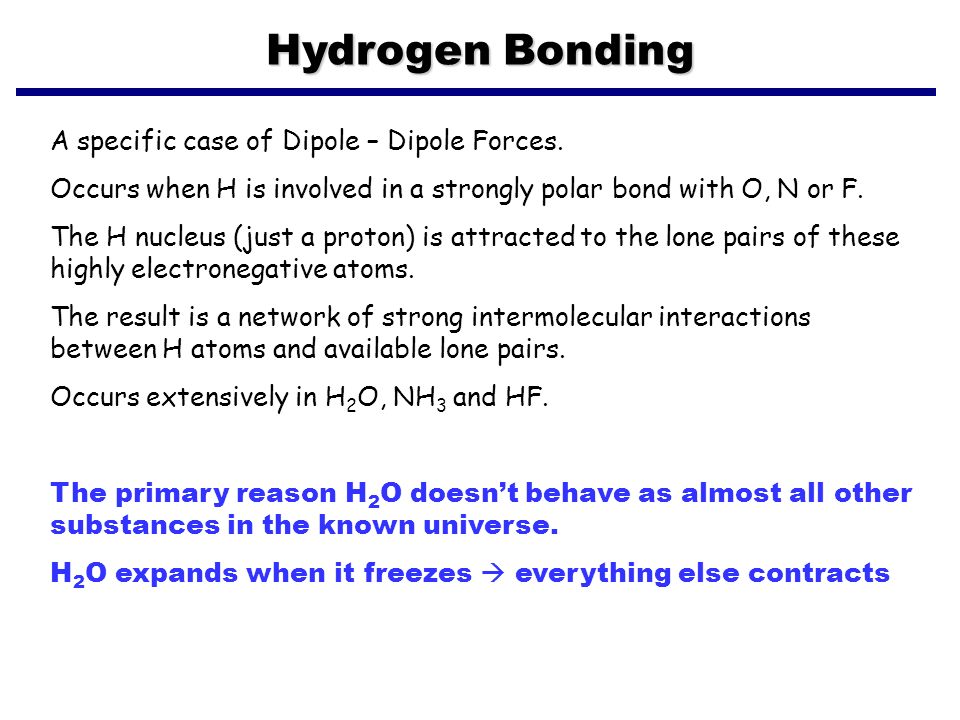

11. Hydrogen Bonding A specific case of Dipole – Dipole Forces. Occurs when H is involved in a strongly polar bond with O, N or F. The H nucleus (just a proton) is attracted to the lone pairs of these highly electronegative atoms. The result is a network of strong intermolecular interactions between H atoms and available lone pairs. Occurs extensively in H 2 O, NH 3 and HF. The primary reason H 2 O doesn’t behave as almost all other substances in the known universe. H 2 O expands when it freezes  everything else contracts

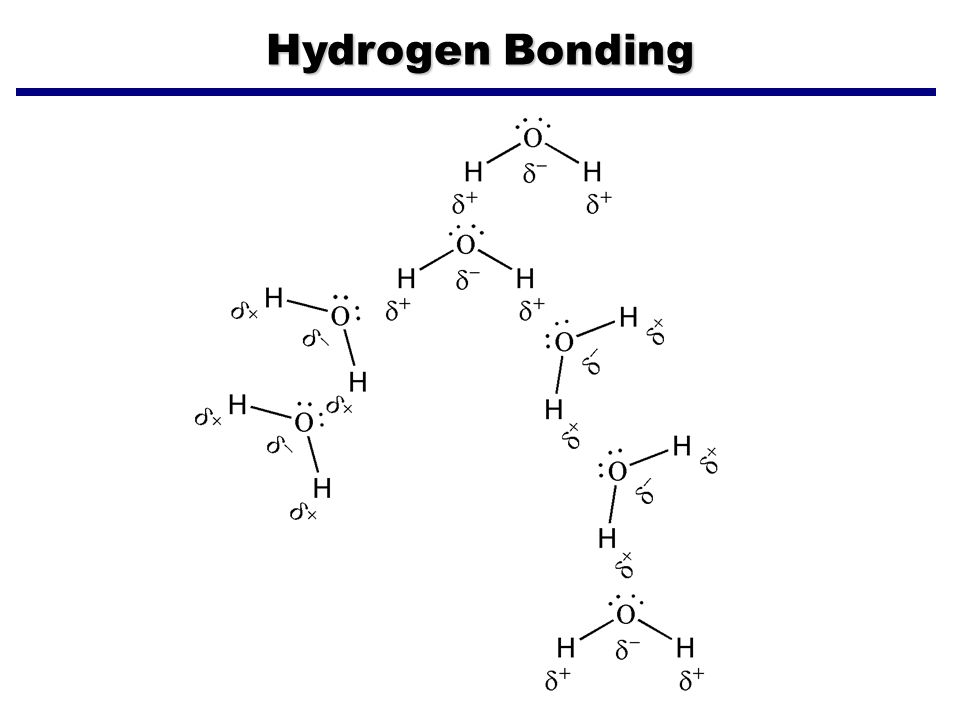

12. Hydrogen Bonding

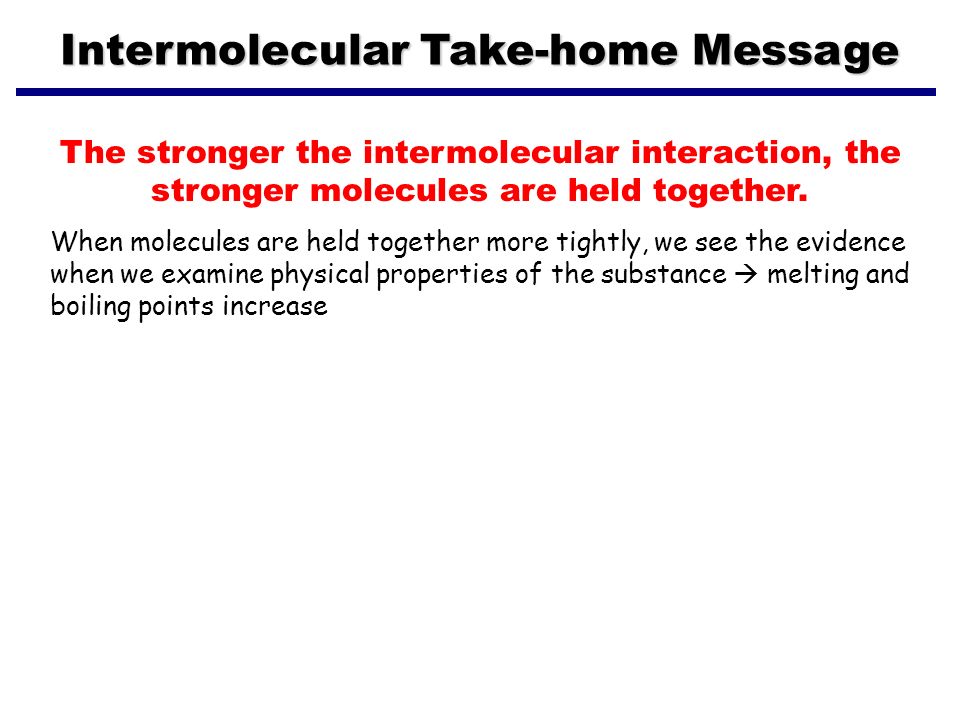

13. Intermolecular Take-home Message The stronger the intermolecular interaction, the stronger molecules are held together. When molecules are held together more tightly, we see the evidence when we examine physical properties of the substance  melting and boiling points increase

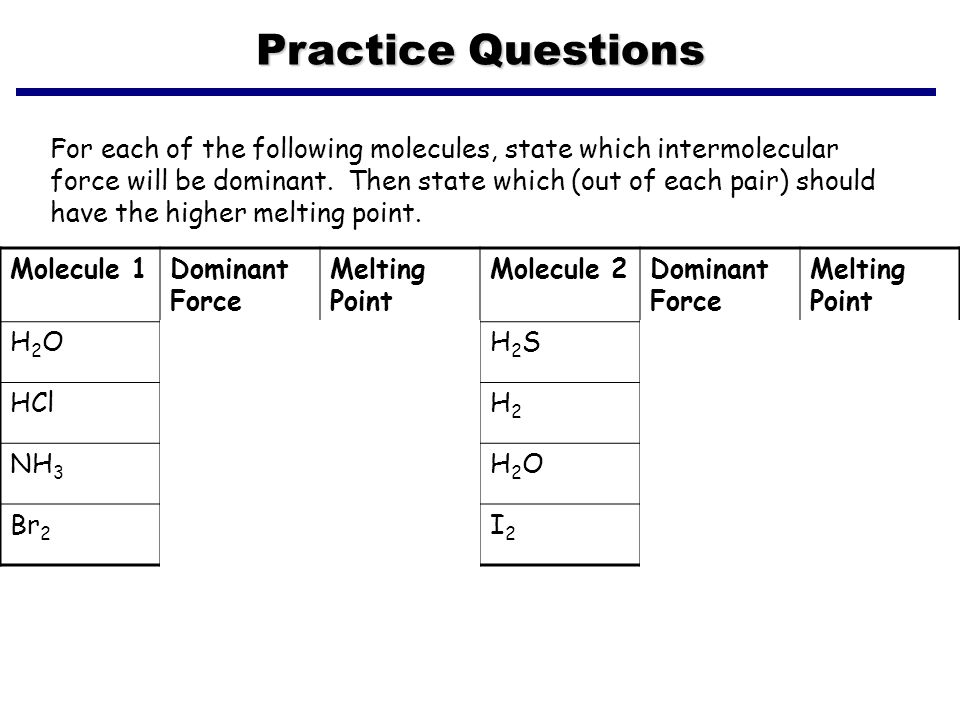

14. Practice Questions For each of the following molecules, state which intermolecular force will be dominant. Then state which (out of each pair) should have the higher melting point. Molecule 1Dominant Force Melting Point Molecule 2Dominant Force Melting Point H2OH2OH-Bonding0 ºCH2SH2SDipole-82 ºC HClDipole-114.2 ºCH2H2 London-259 ºC NH 3 H-bonding-78 ºCH2OH2OH-bondingO ºC Br 2 London-7 ºCI2I2 London114 ºC

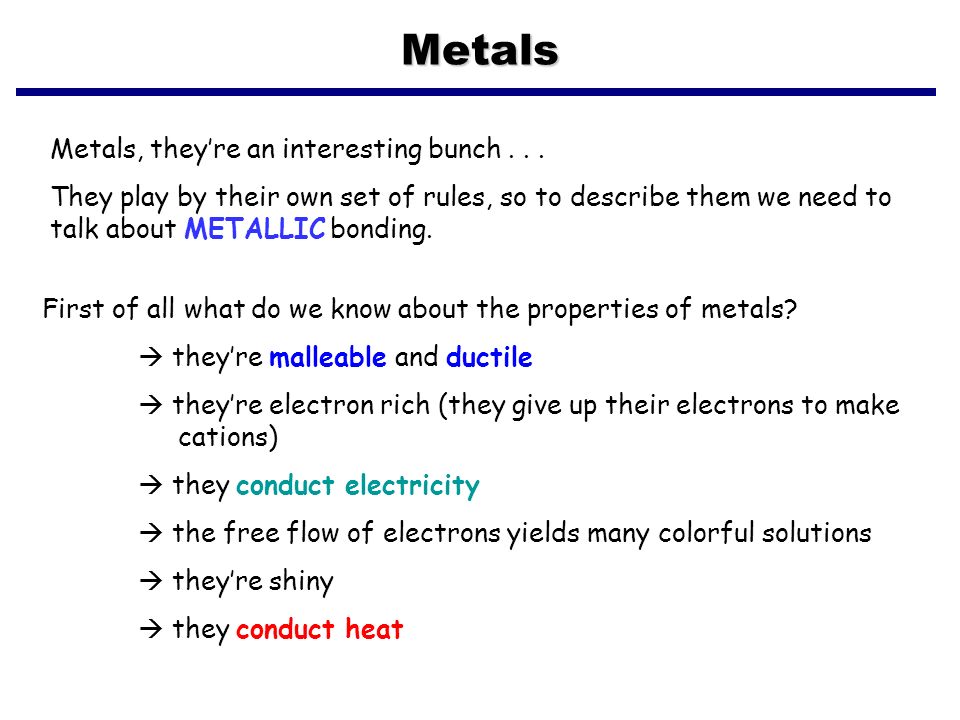

15. Metals Metals, they’re an interesting bunch... They play by their own set of rules, so to describe them we need to talk about METALLIC bonding. First of all what do we know about the properties of metals?  they’re malleable and ductile  they’re electron rich (they give up their electrons to make cations)  they conduct electricity  the free flow of electrons yields many colorful solutions  they’re shiny  they conduct heat

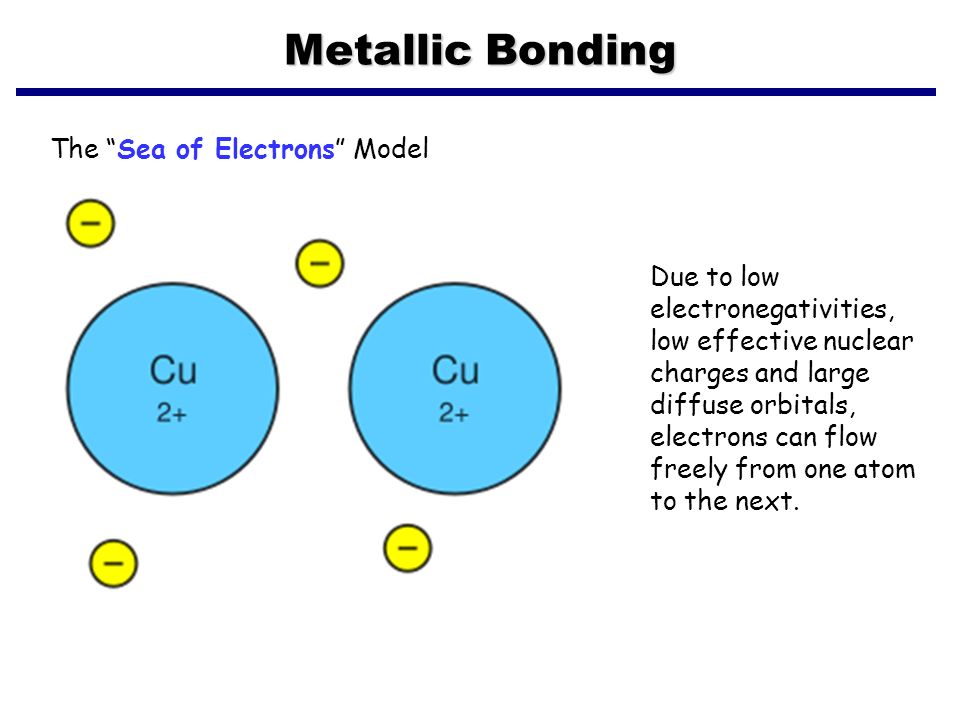

16. Metallic Bonding The “Sea of Electrons” Model Due to low electronegativities, low effective nuclear charges and large diffuse orbitals, electrons can flow freely from one atom to the next.

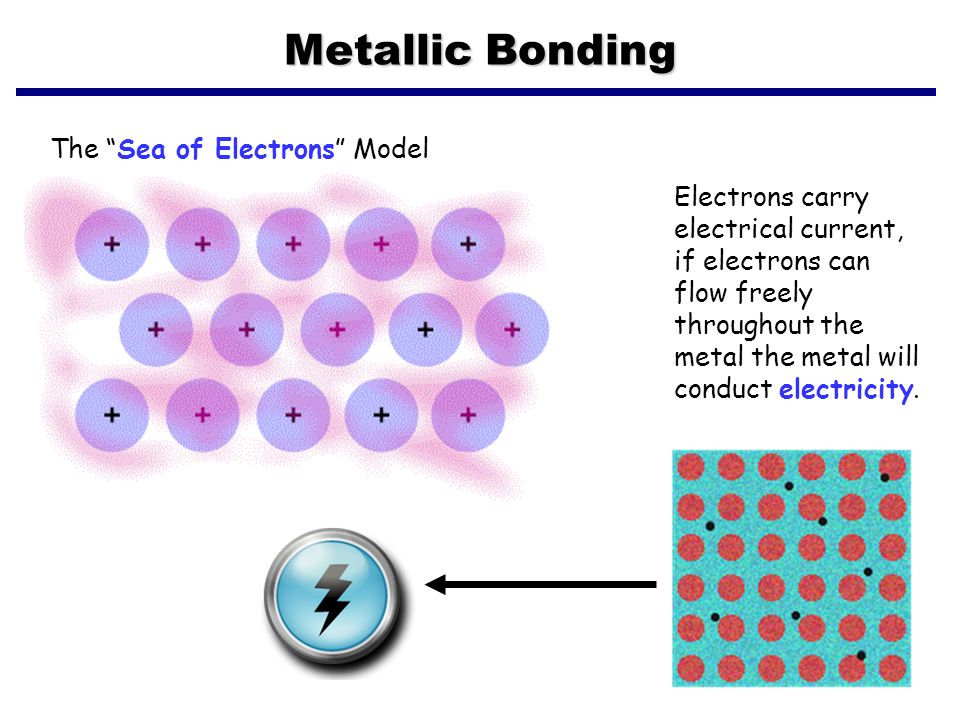

17. Metallic Bonding The “Sea of Electrons” Model Electrons carry electrical current, if electrons can flow freely throughout the metal the metal will conduct electricity.

18. Alloys A mix of 2 or more metals. 2 types: Substitutional and Interstitial Fe CC ZnCuZn CuZnCu Brass (Zn and Cu in various proportions) Typically Zn is put in place of a Cu atom. Steel (Fe and C in various proportions) C fills in the “holes” between the Fe atoms.
