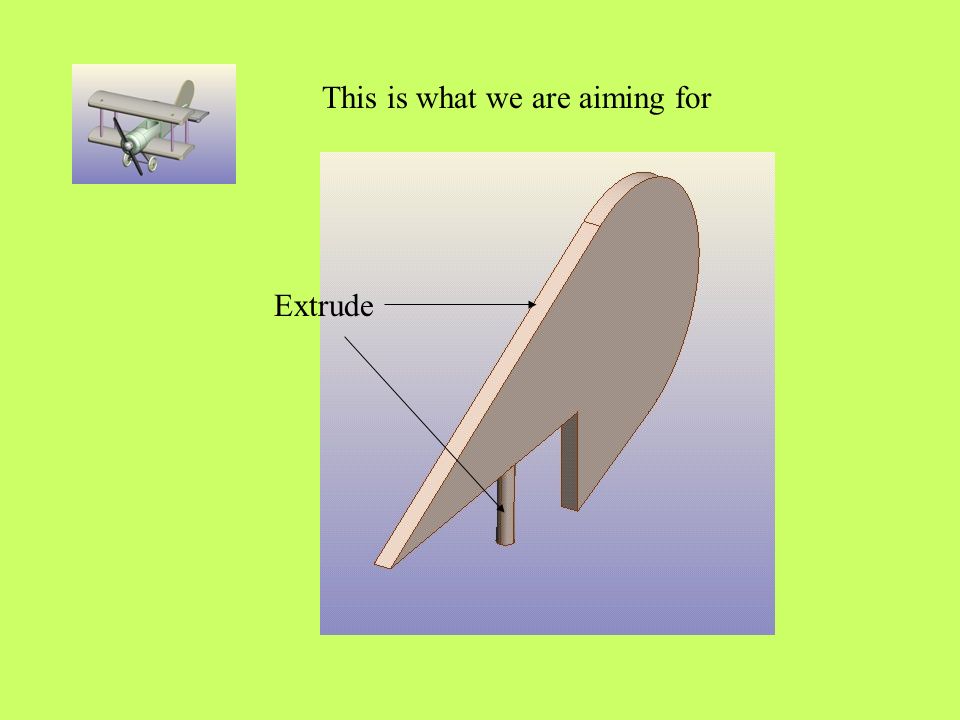

1. This is what we are aiming for Extrude

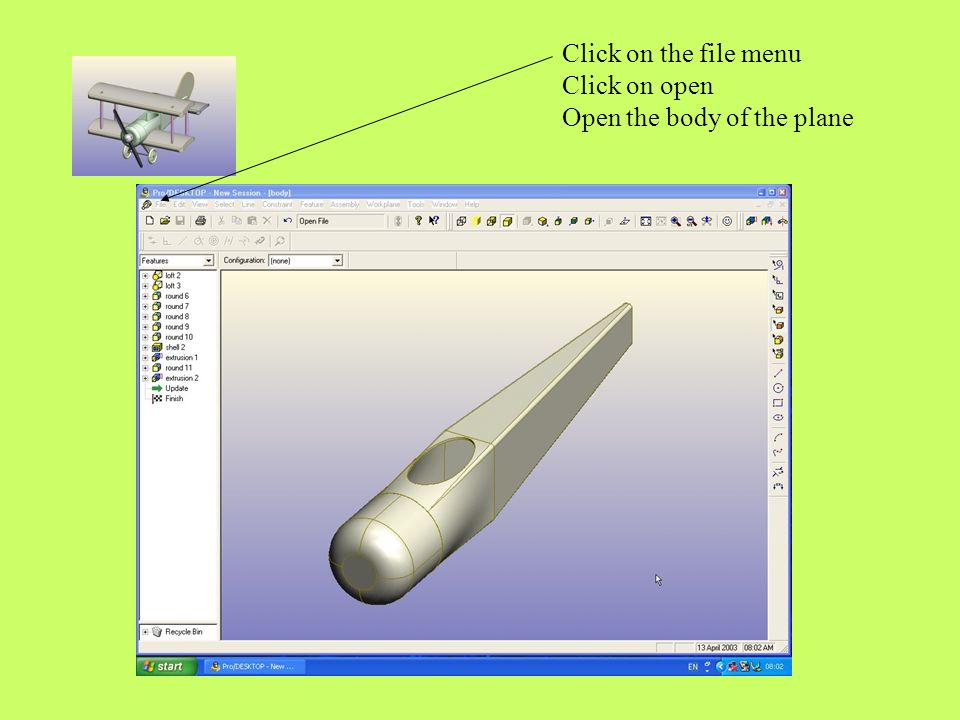

2. Click on the file menu Click on open Open the body of the plane

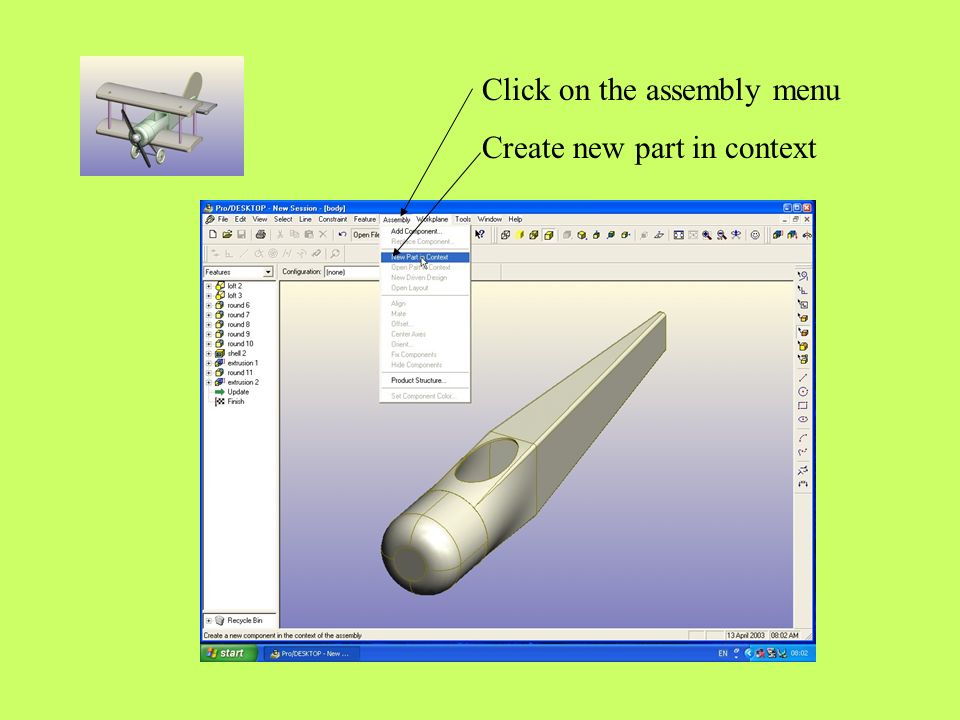

3. Click on the assembly menu Create new part in context

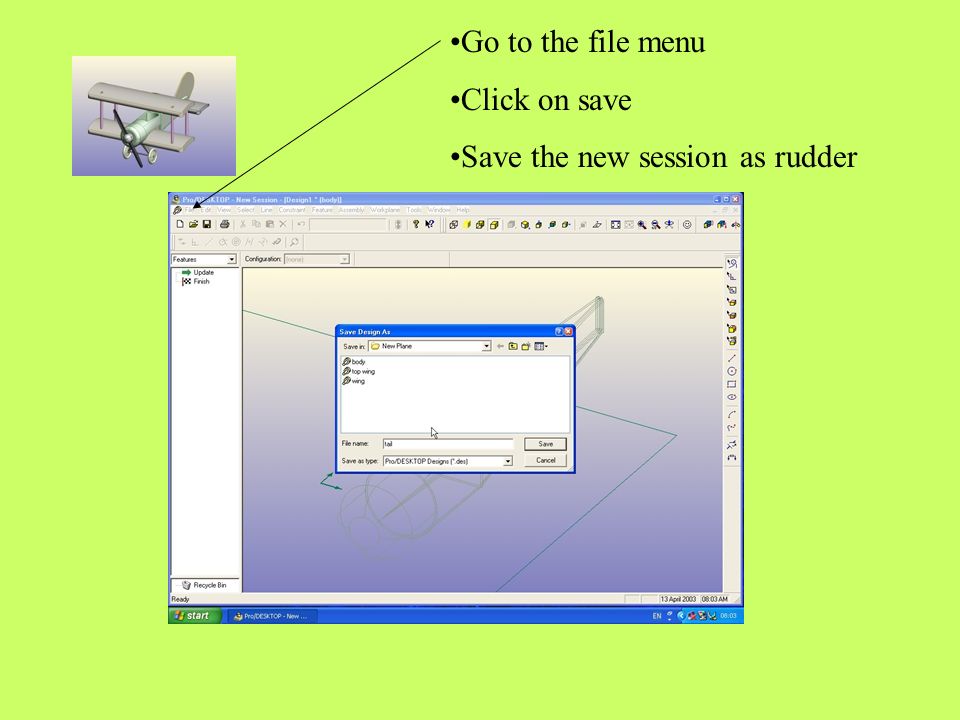

4. Go to the file menu Click on save Save the new session as rudder

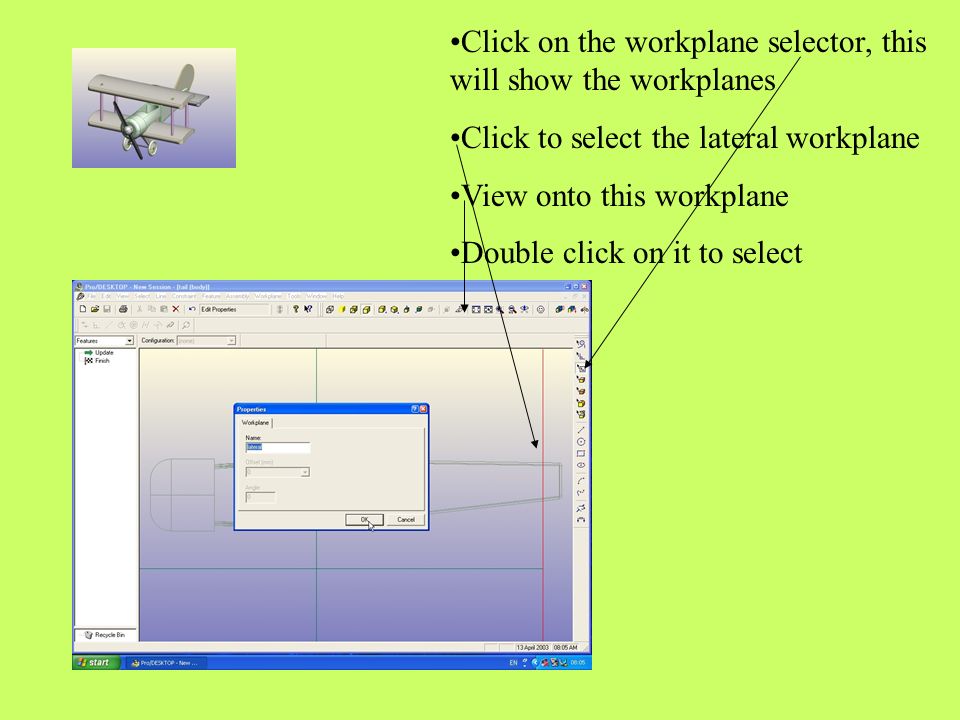

5. Click on the workplane selector, this will show the workplanes Click to select the lateral workplane View onto this workplane Double click on it to select

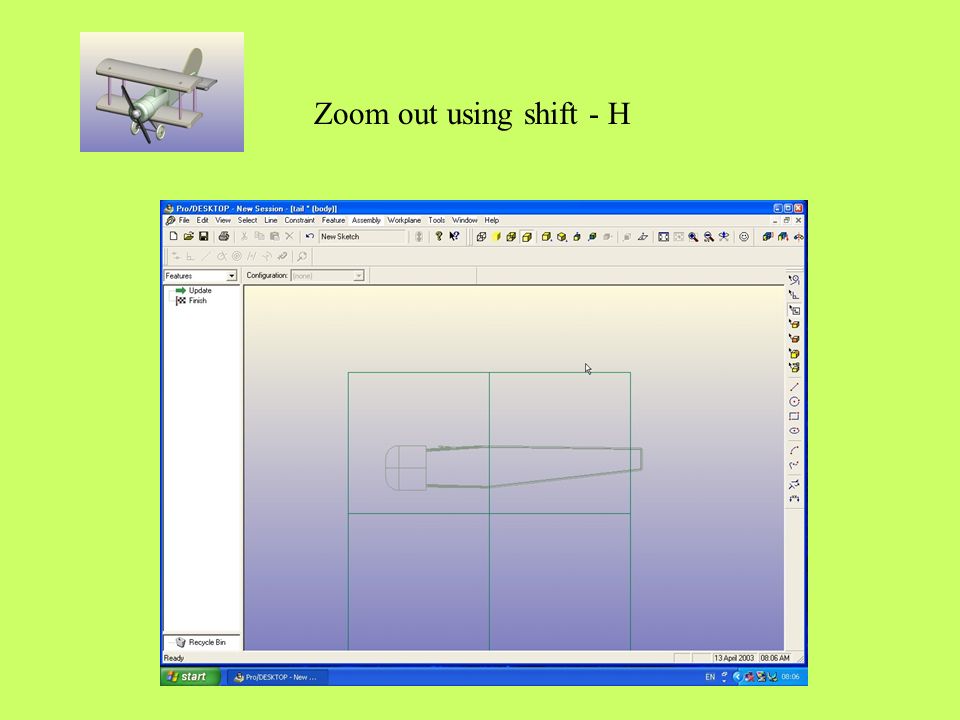

6. Zoom out using shift - H

7. Click on the workplane menu Create a new sketch on the lateral workplane called rudder. Make sure filled is selected and it’s on the frontal workplane

8. Zoom in on the tail section using shift - Z

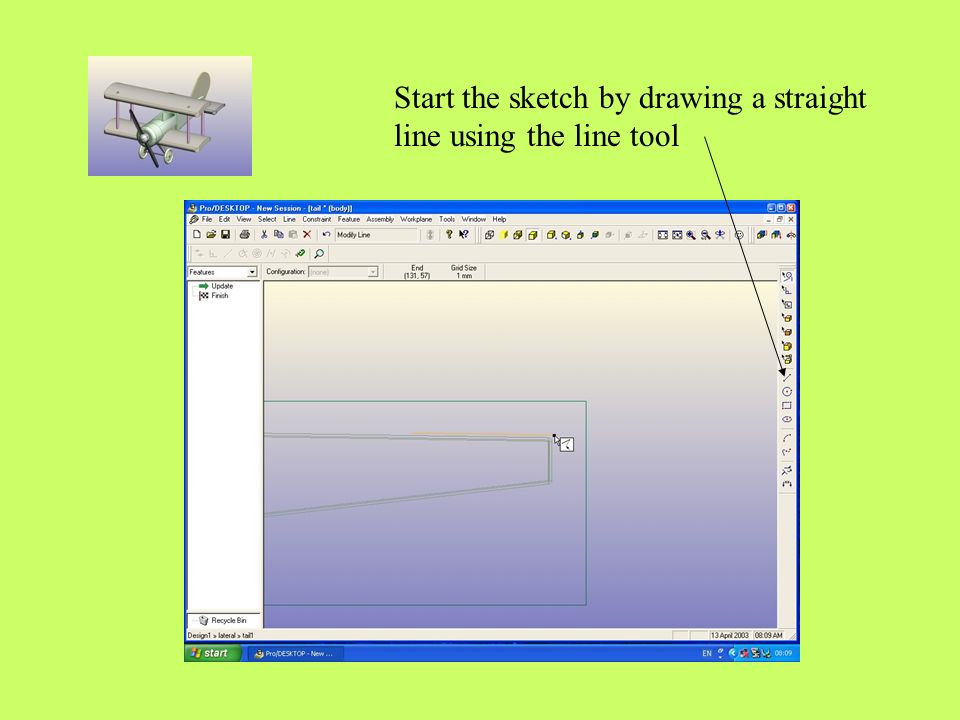

9. Start the sketch by drawing a straight line using the line tool

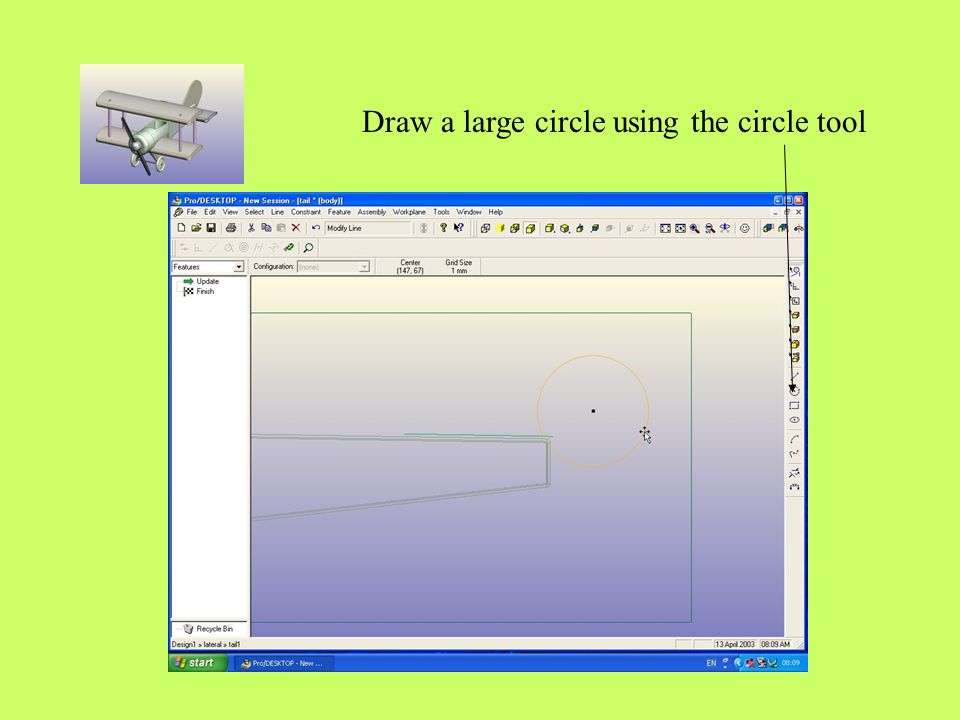

10. Draw a large circle using the circle tool

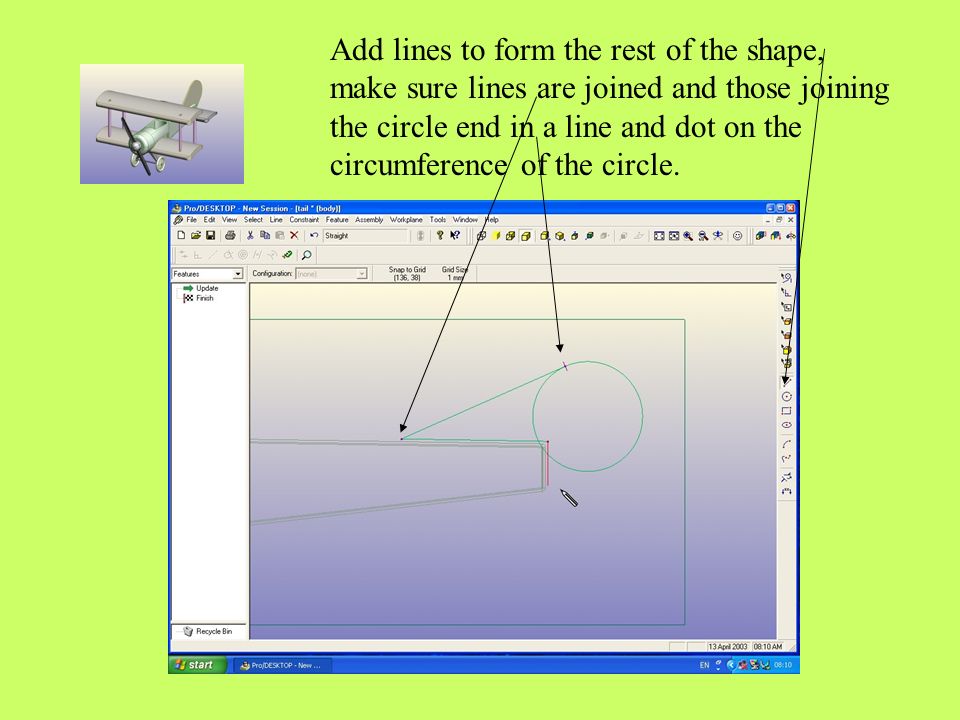

11. Add lines to form the rest of the shape, make sure lines are joined and those joining the circle end in a line and dot on the circumference of the circle.

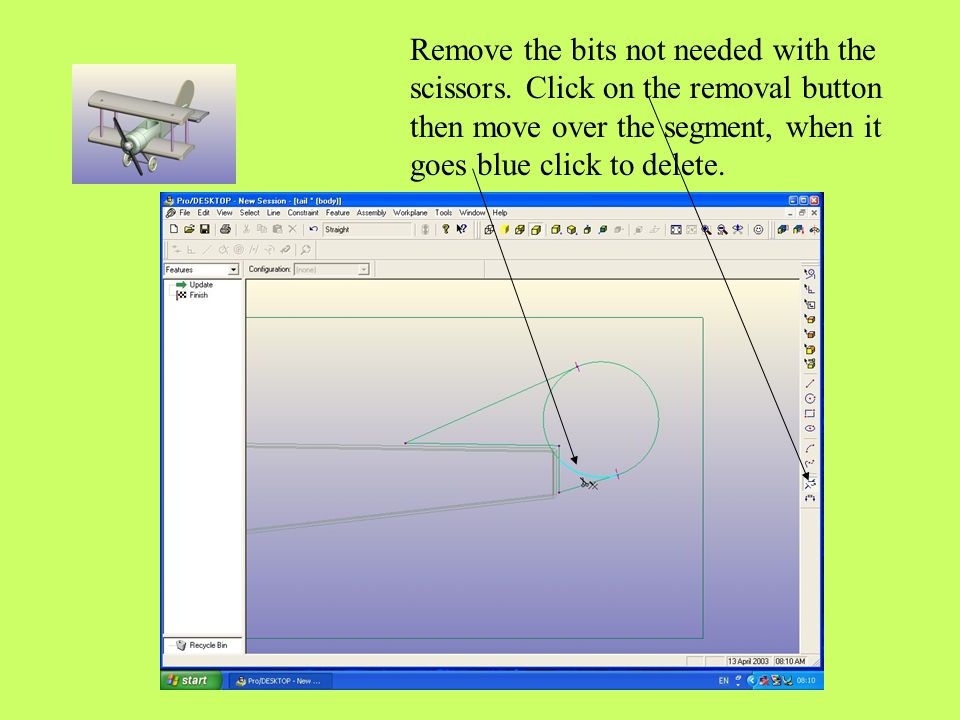

12. Remove the bits not needed with the scissors. Click on the removal button then move over the segment, when it goes blue click to delete.

13. The shape should fill, if not zoom in and check all the joints for stray bits of lines.

14. Change the view using the arrows to look straight down the plane.

15. Click on extrude Enter three millimeters in the distance box Make sure add material is selected

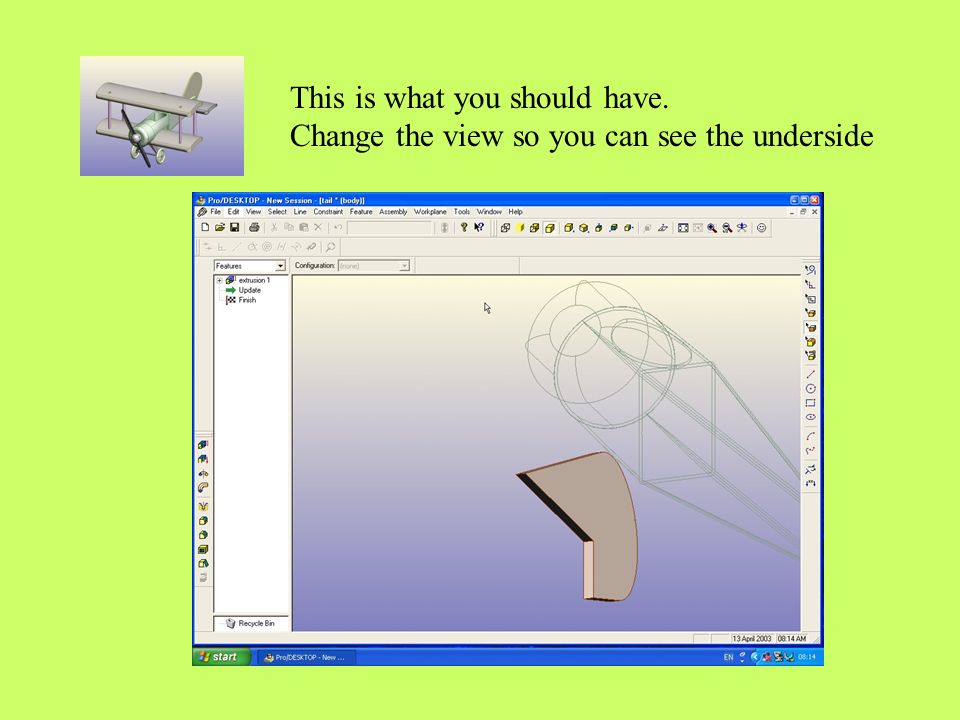

16. This is what you should have. Change the view so you can see the underside

17. Select the bottom surface using the surface selector. Turn this into a workplane by going to the workplane menu and clicking new workplane. Make sure plane of object is selected. Call it tail surface

18. Click on the workplane menu and select new sketch Call it tail rod, make sure it is filled and on the tail surface workplane

19. View onto the new workplane using the view key, make sure it is still selected.

20. Draw a circle using the circle tool Add a dimension by clicking on the dimension tool then clicking on the circle and dragging to the side. Click on the constraints selector and double click on the dimension Change the length to 3mm

21. Using the dimension tool set the centre of the circle 1.5mm from the edge of the rudder. Do this by; Select the dimension tool Select the circle by clicking on it when it’s bright blue Click and hold on the outside edge of the rudder Drag the dimension downwards. Select the dimension by clicking twice and change it

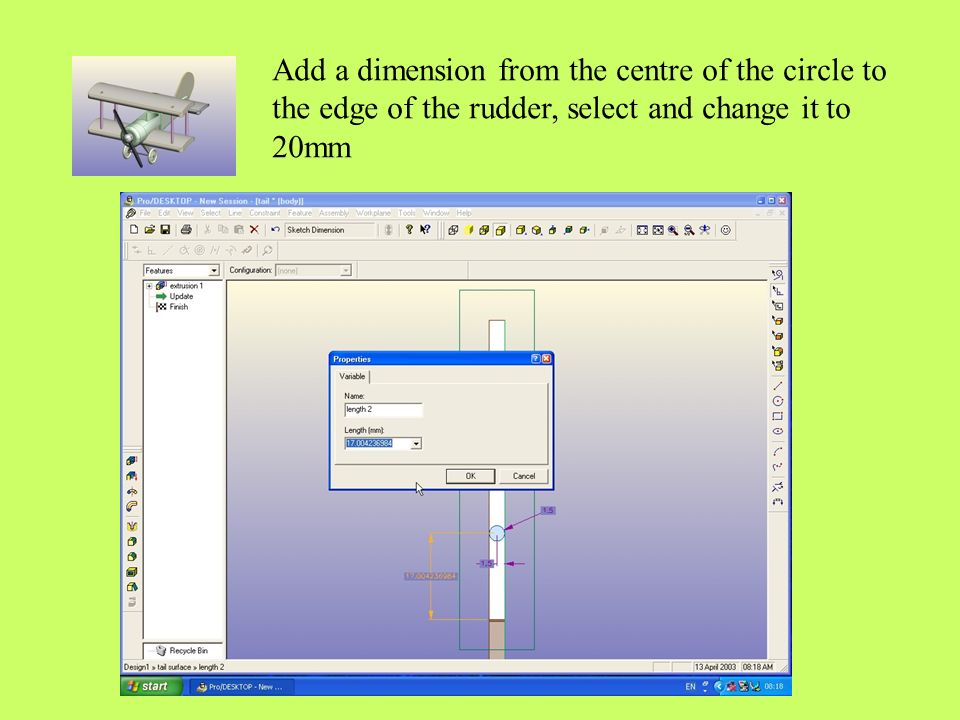

22. Add a dimension from the centre of the circle to the edge of the rudder, select and change it to 20mm

23. View the rudder from the side, use the arrows to alter the view

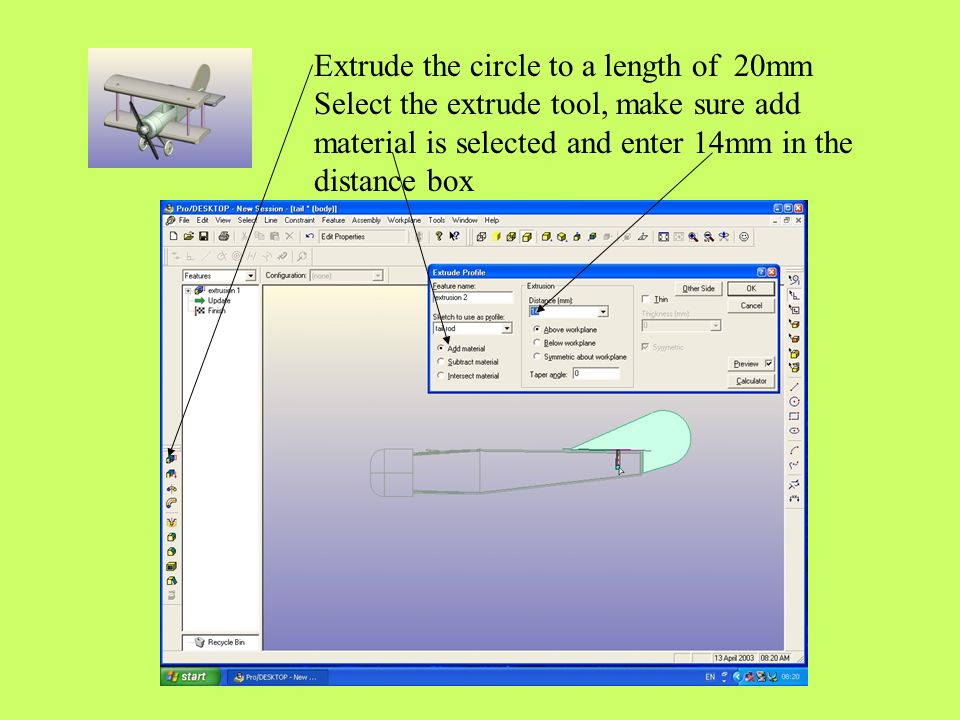

24. Extrude the circle to a length of 20mm Select the extrude tool, make sure add material is selected and enter 14mm in the distance box

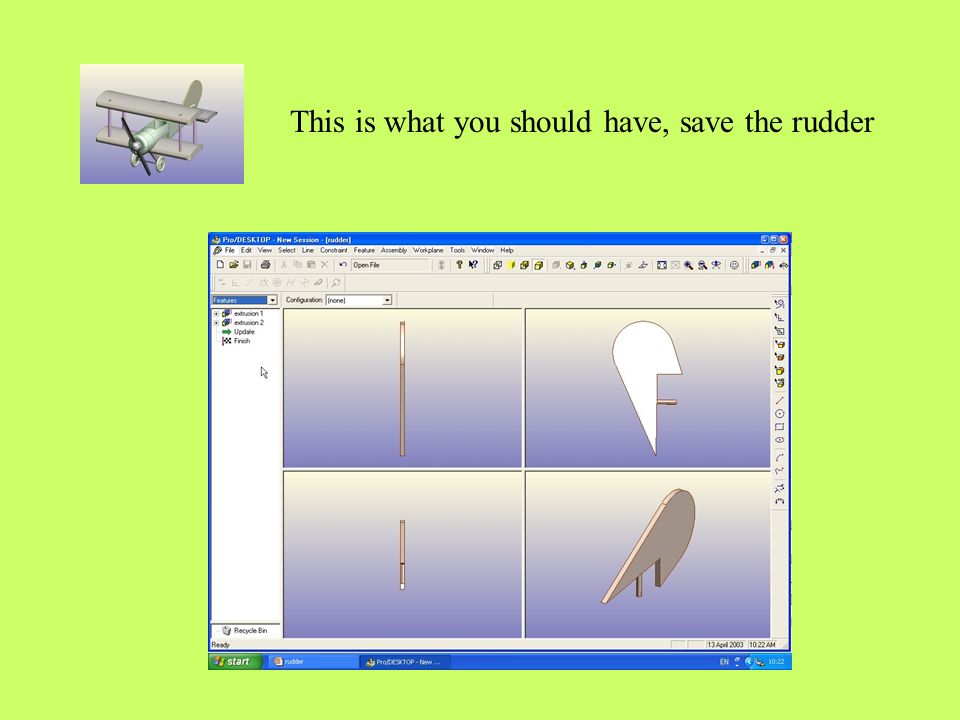

25. This is what you should have, save the rudder
